  1. ACS Unit for a Viterbi Decoder Garrick Ng, Audelio Serrato, Ichang Wu, Wen-Jiun Yong Advisor: Professor David Parent EE166, Spring 2005

  2. Agenda • Abstract • Introduction • Project Details • Results • Cost Analysis • Conclusions

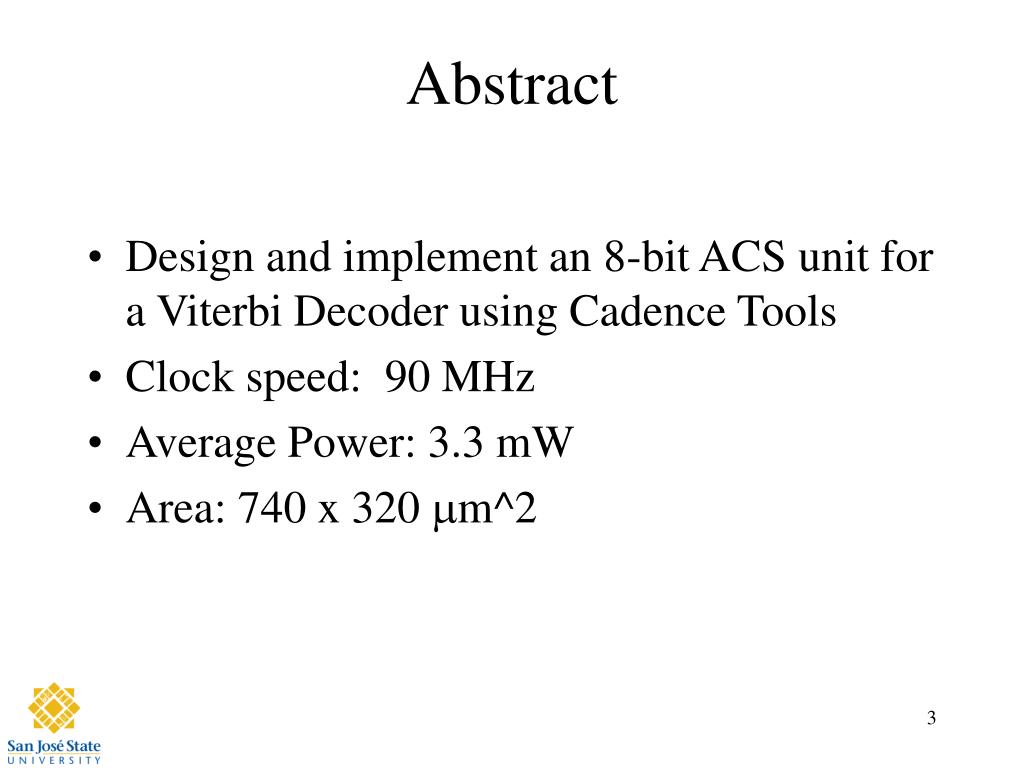

  3. Abstract • Design and implement an 8-bit ACS unit for a Viterbi Decoder using Cadence Tools • Clock speed: 90 MHz • Average Power: 3.3 mW • Area: 740 x 320 mm^2

  4. Introduction • Viterbi Decoder is commonly used in decoding convolutional codes for wireless communication • There are 3 major building blocks: • BMU (branch metric Unit) • ACS (add-compare-select Unit) • Survival Path Unit • ACS unit consumes most power and area

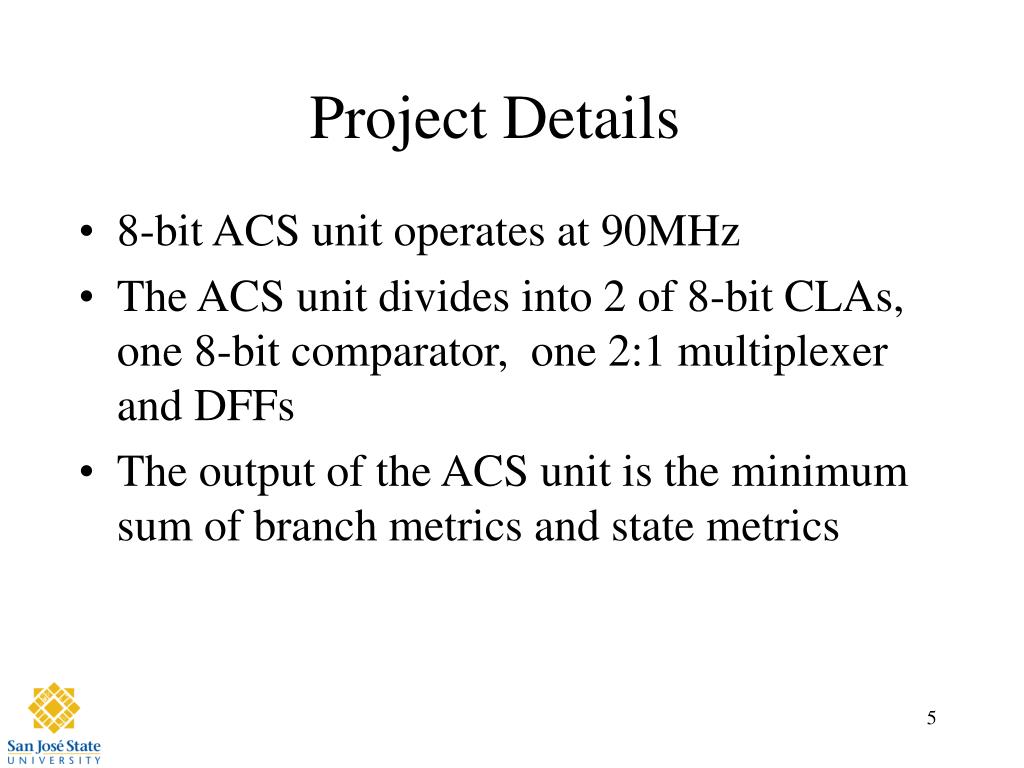

  5. Project Details • 8-bit ACS unit operates at 90MHz • The ACS unit divides into 2 of 8-bit CLAs, one 8-bit comparator, one 2:1 multiplexer and DFFs • The output of the ACS unit is the minimum sum of branch metrics and state metrics

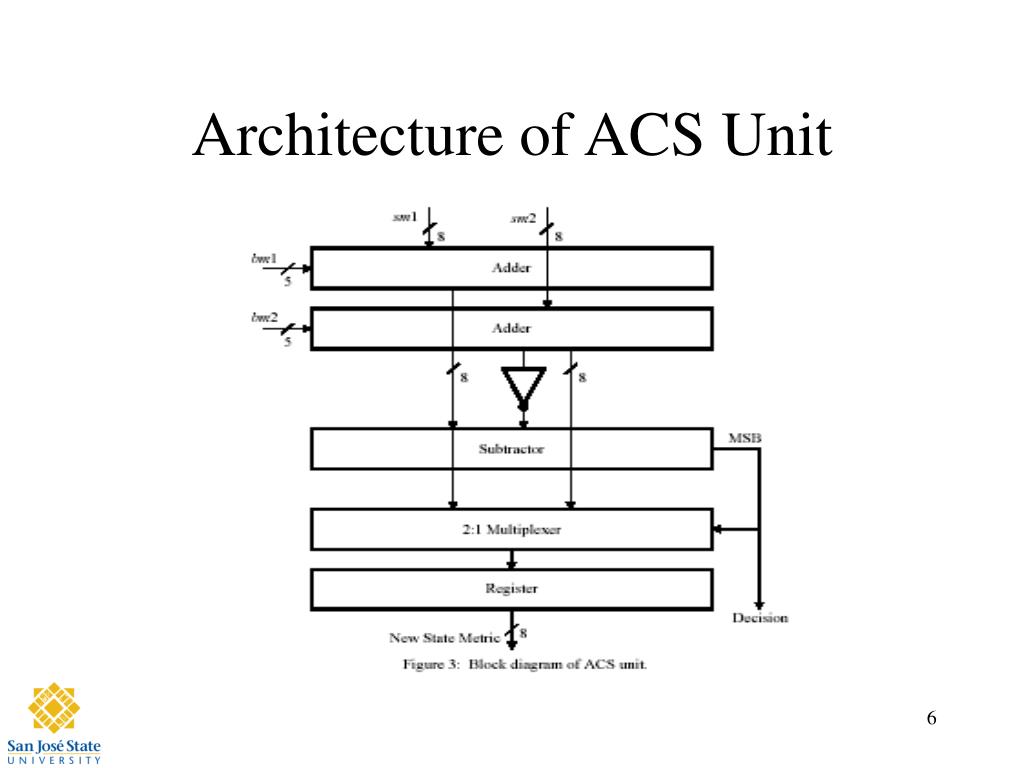

  6. Architecture of ACS Unit

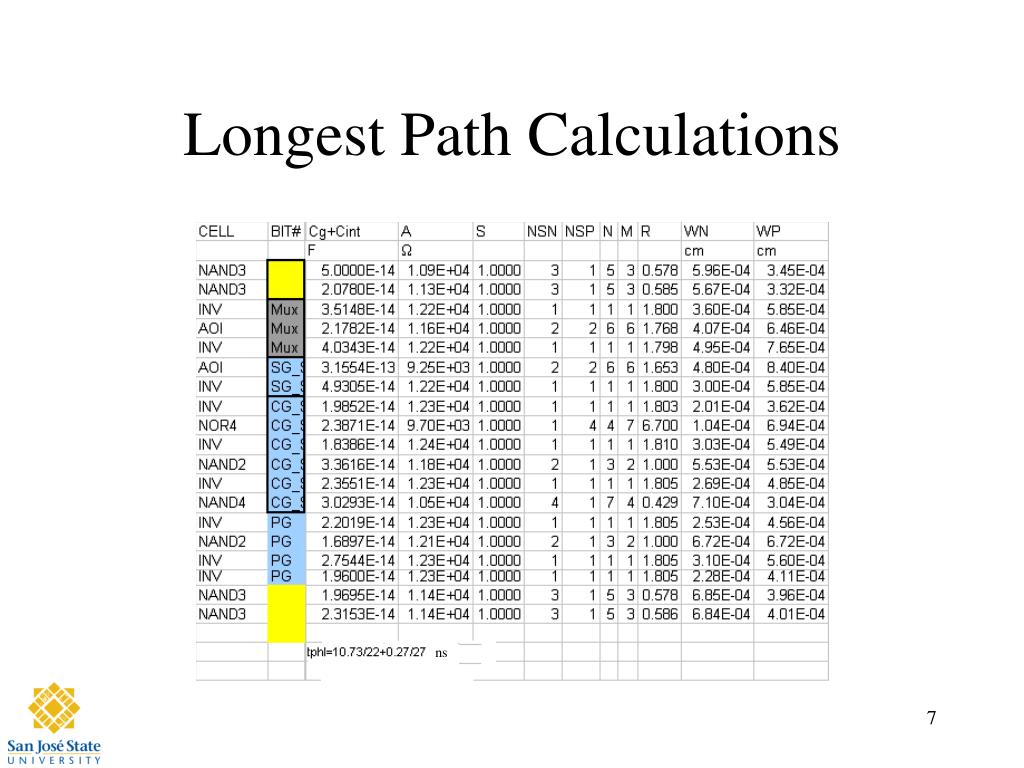

  7. Longest Path Calculations ns

  8. Schematic

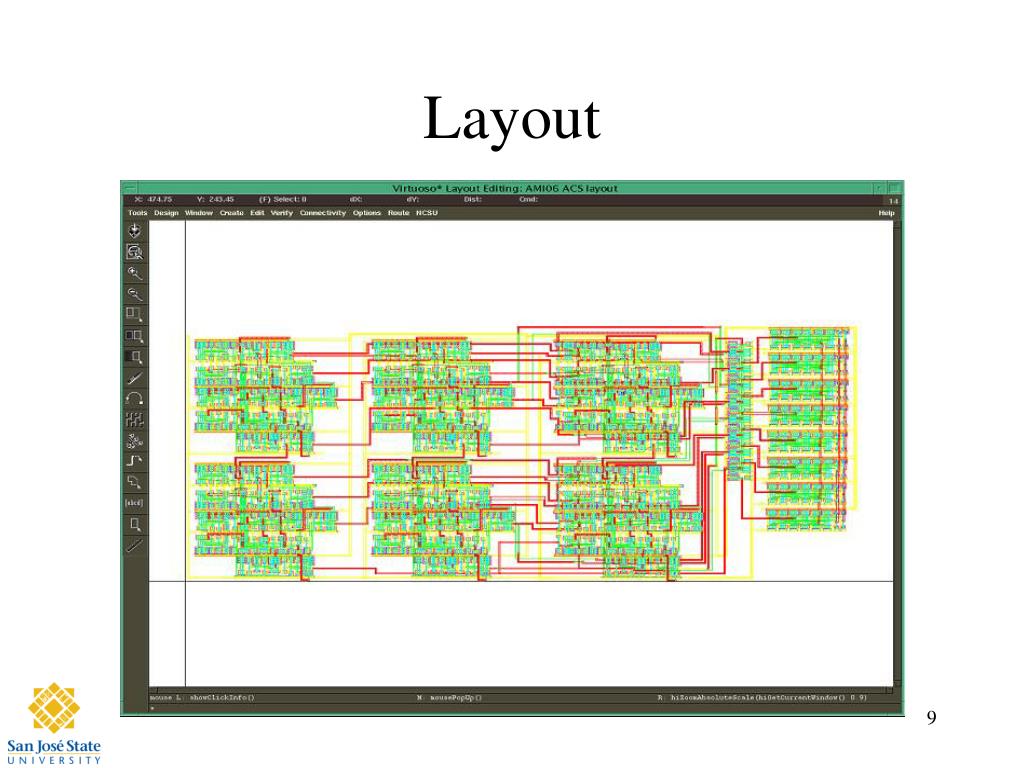

  9. Layout

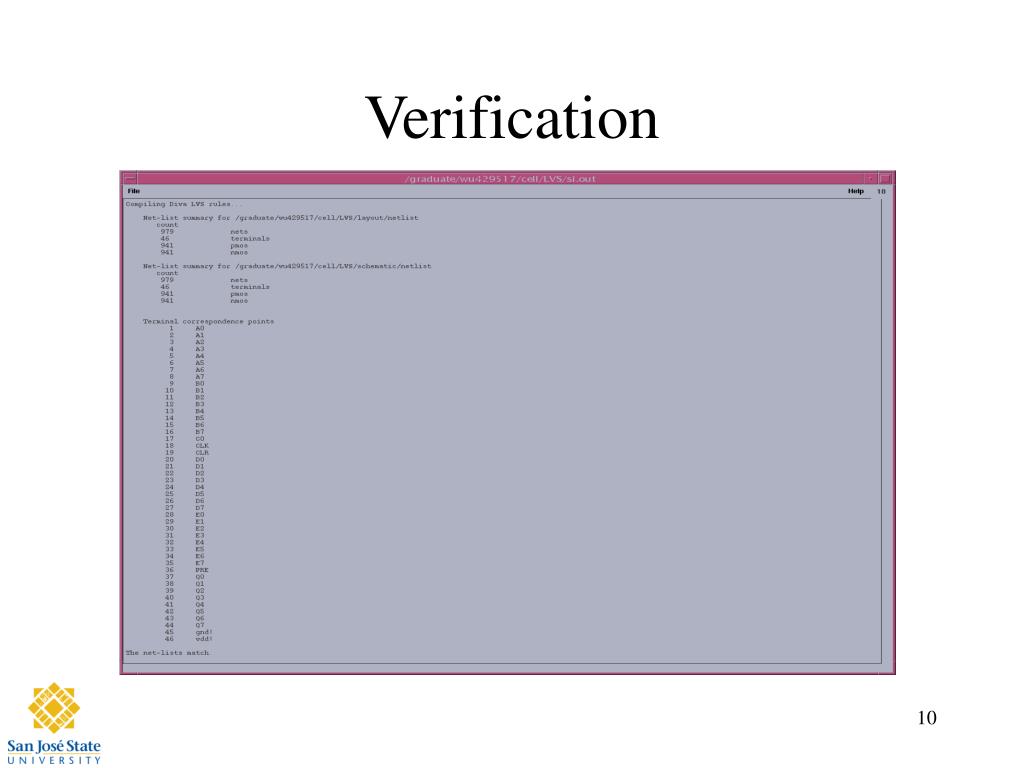

  10. Verification

  11. Testbench of ACS Unit

  12. Simulations

  13. Another Test Case

  14. Output Waveform

  15. Power

  16. Cost Analysis • Estimation of time spent on ACS project: • Research the Viterbi Algorithm (1 week) • Implementation of the ACS unit (2 weeks) • Verifying logic (1 week) • Verifying timing (1 week) • Layout (2 weeks) • Post-extracted timing (2 days)

  17. Lessons Learned • Use Cell based design • Great for debugging & passing LVS • Save time in for multiple bits • Define a manageable scope of project • To meet project deadline

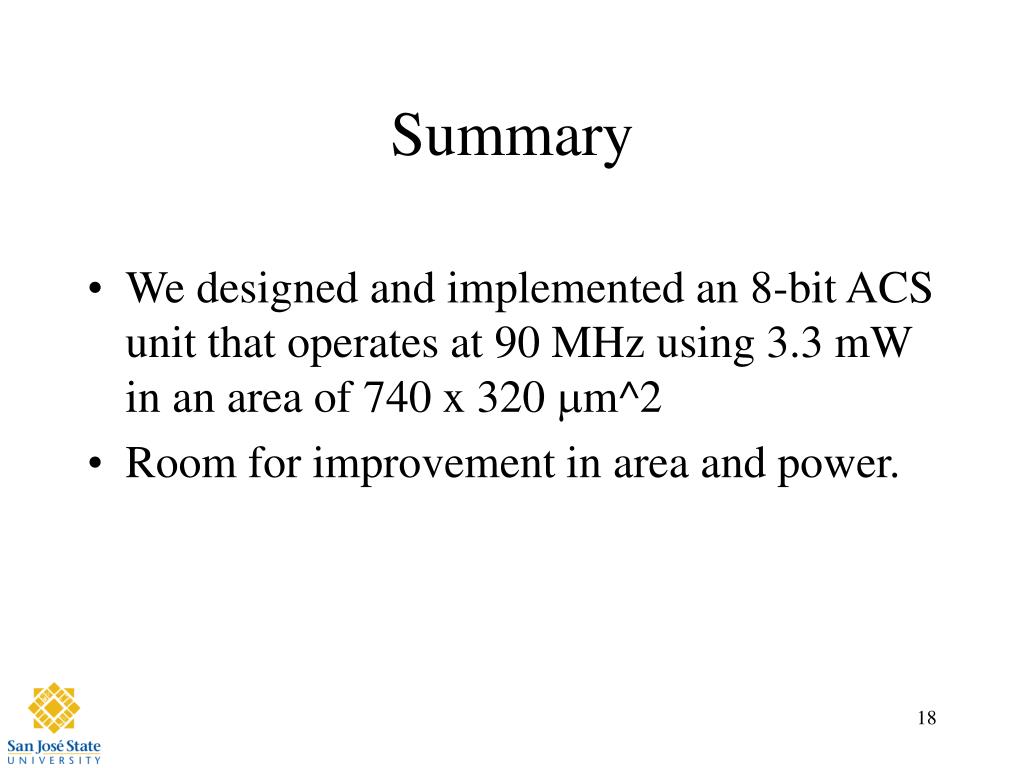

  18. Summary • We designed and implemented an 8-bit ACS unit that operates at 90 MHz using 3.3 mW in an area of 740 x 320 mm^2 • Room for improvement in area and power.

  19. Acknowledgements • Thanks to Cadence Design Systems for the VLSI lab • Thanks to Professor Parent for his time & guidance
