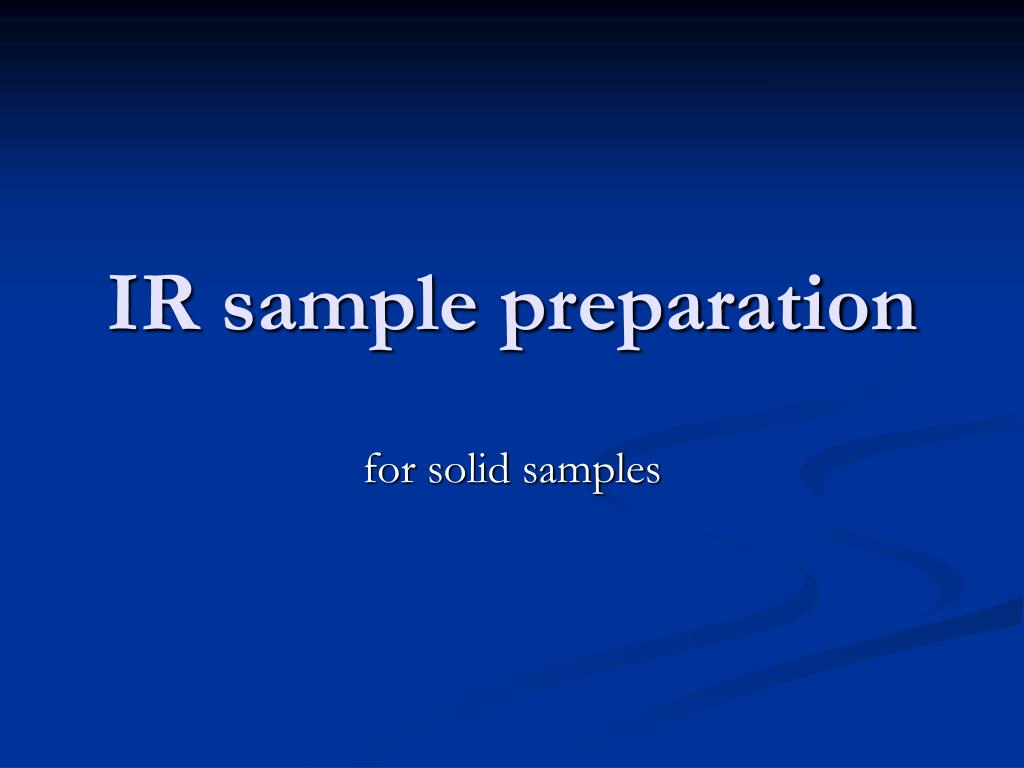

Ir sample preparation l.jpgSlide 1

IR sample preparation

for solid samples

What is a mull l.jpgSlide 2

What is a mull?

  • a mull a suspension of solid sample in mineral oil

  • It is used to make a thin-film cell from a solid sample

Thin film ir cells l.jpgSlide 3

Thin film IR cells

  • Salt (NaCl) discs are used

  • To hold the sample

  • So the holder won’t absorb infrared light

  • and only sample absorption is detected

Sample preparation l.jpgSlide 4

Sample preparation

  • so dry the sample well

  • because water etches the IR discs

  • and emulsifies with oil letting less light through

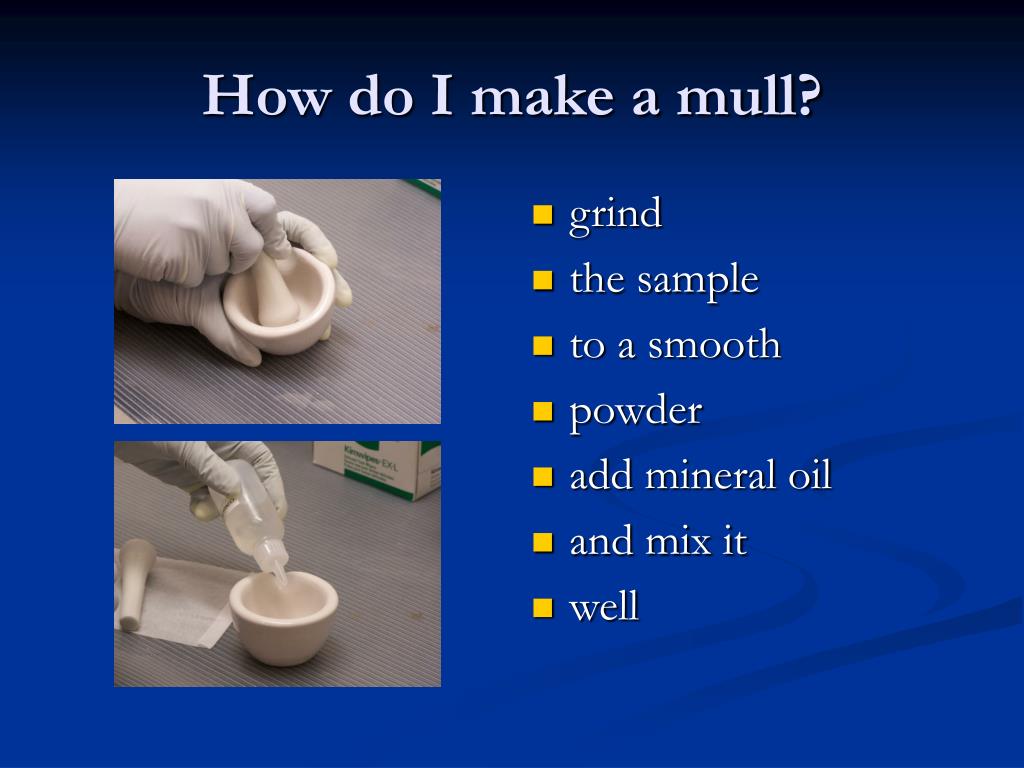

How do i make a mull l.jpgSlide 5

How do I make a mull?

  • grind

  • the sample

  • to a smooth

  • powder

  • add mineral oil

  • and mix it

  • well

What should the mull be like l.jpgSlide 6

What should the mull be like?

  • the mull

  • should look

  • and spread

  • like soft butter

Use clean gloves to work with salt discs l.jpgSlide 7

use clean glovesto work with salt discs

  • put on an extra pair of gloves

  • to protect cells

  • from anything aqueous on your regular gloves

Applying the mull l.jpgSlide 8

applying the mull

  • use a rubber policeman

  • to spread

  • a thin layer

  • on one disc

  • lower the 2nd disc

  • on top of the 1st

  • and twist the discs

  • to spread sample evenly

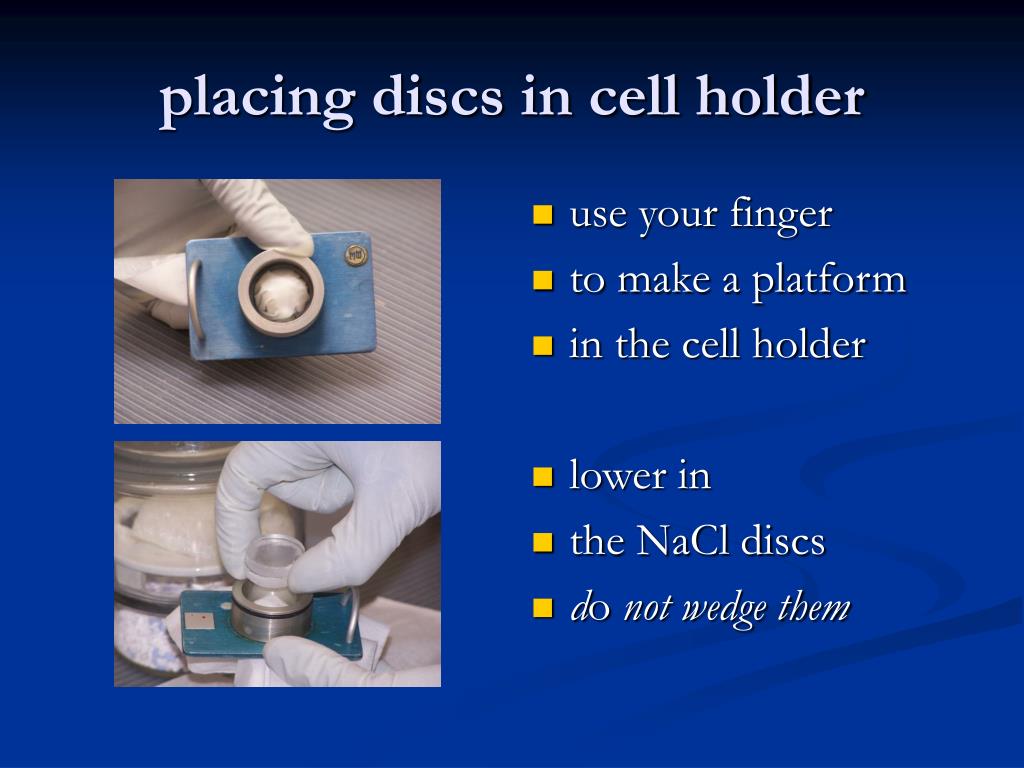

Placing discs in cell holder l.jpgSlide 9

placing discs in cell holder

  • use your finger

  • to make a platform

  • in the cell holder

  • lower in

  • the NaCl discs

  • do not wedge them

Slide10 l.jpgSlide 10

  • gently

  • place lid

  • on top

  • slide into position

  • in light beam

Slide11 l.jpgSlide 11

  • close

  • sample

  • compartment

  • remove gloves

  • before using

  • keyboard

To clean discs l.jpgSlide 12

to clean discs

  • add a few drops

  • of chloroform

  • to each disc

  • rub gently

  • to clean off

  • all traces of sample

Keep discs dry l.jpgSlide 13

Keep discs dry

  • replace

  • in desiccator

  • after cleaning
