Presentation Transcript


Evolution

Evolution

How Populations Evolve


Voyage of the beagle

Voyage of the Beagle


Jean baptiste lamarck

Jean Baptiste Lamarck


Charles lyell

Charles Lyell

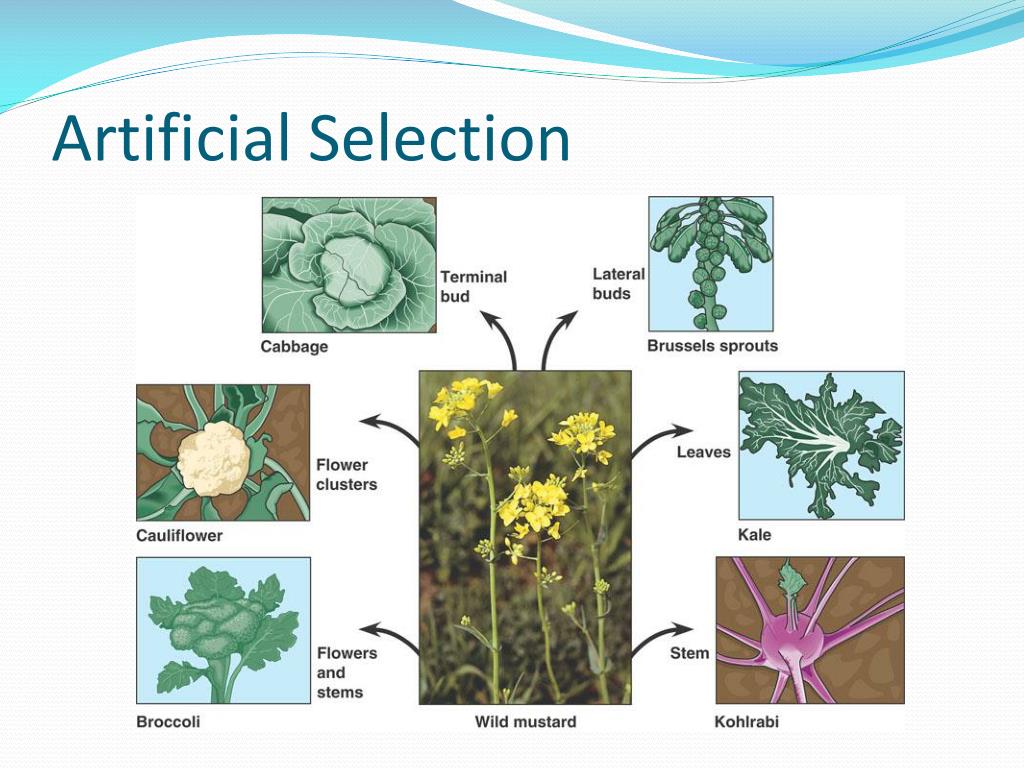

Artificial selection

Artificial Selection

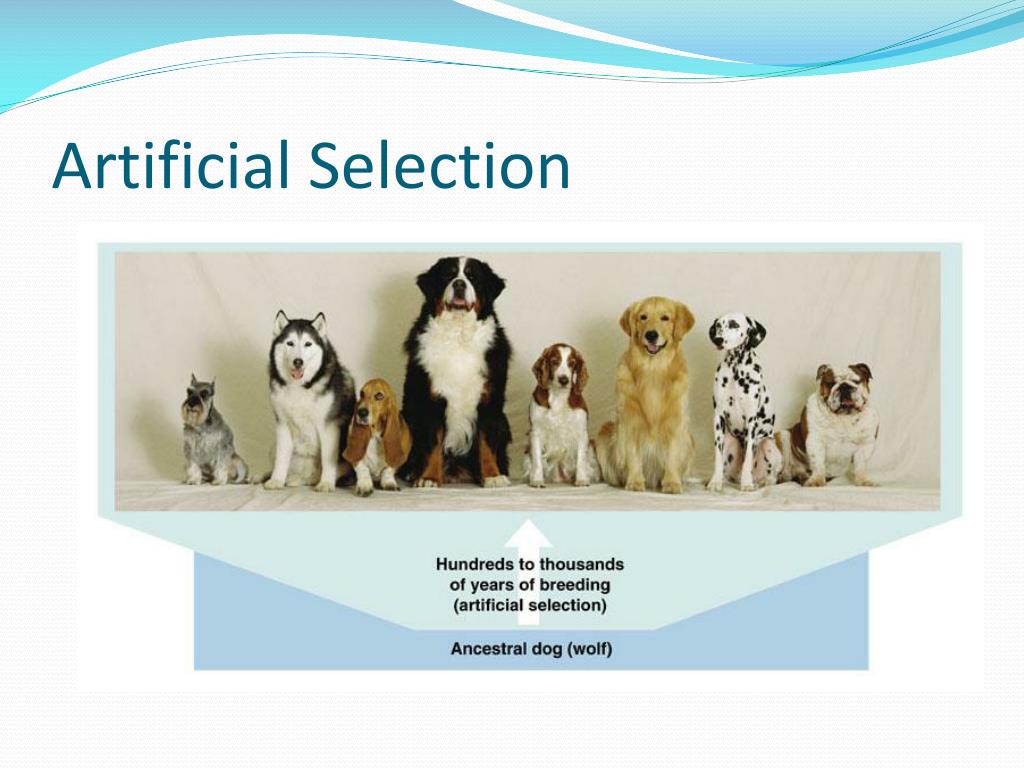

Artificial selection1

Artificial Selection


Natural selection

Natural Selection

  • Darwin saw natural selection as the basic mechanism of evolution

    • As a result, the proportion of individuals with favorable characteristics increases

    • Allele frequencies (and therefore phenotypes within a population) gradually change over time


Evolution

  • These five canine species evolved from a common ancestor through natural selection

African wilddog

Coyote

Fox

Wolf

Jackal

Thousands tomillions of yearsof natural selection

Ancestral canine

Figure 13.4C


Evolution

  • The evolution of insecticide resistance is an example of natural selection in action

Insecticideapplication

Chromosome with geneconferring resistanceto insecticide

Additionalapplications of thesame insecticide willbe less effective, andthe frequency ofresistant insects inthe populationwill grow

Survivor

Figure 13.5B

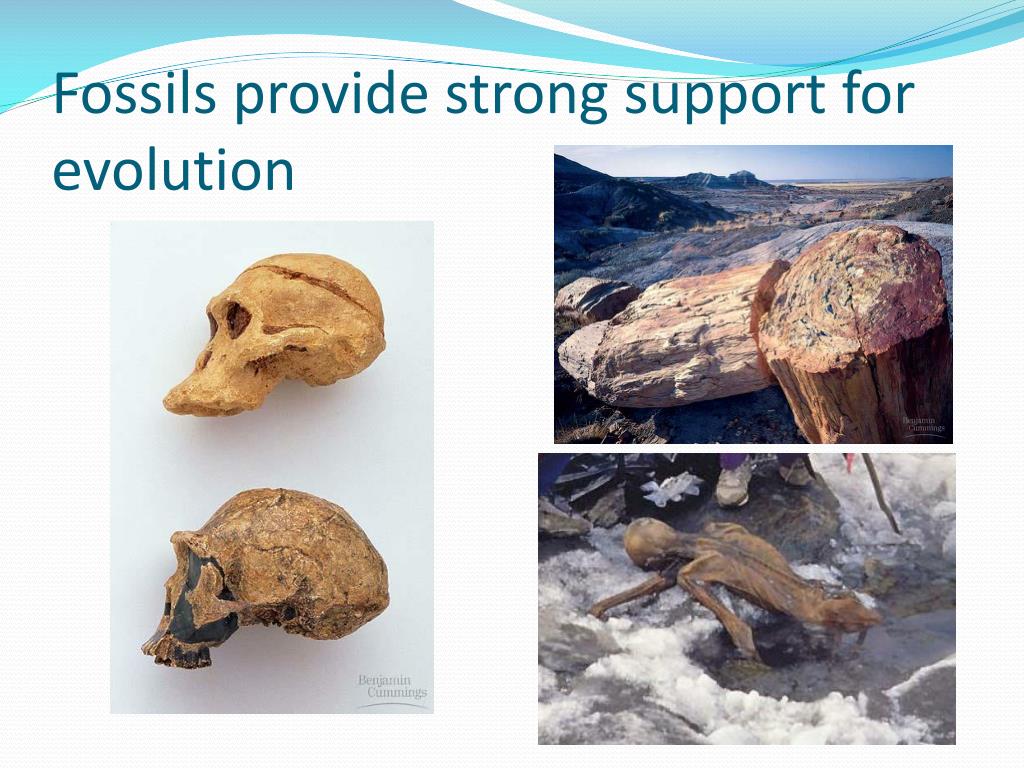

Fossils provide strong support for evolution

Fossils provide strong support for evolution


Ammonite casts fossilized leaf

Ammonite casts; Fossilized leaf


Evolution

  • Other evidence for evolution comes from

    • Comparative anatomy (e.g. homologous structures)


Biogeography

Biogeography


Comparative embryology

Comparative Embryology

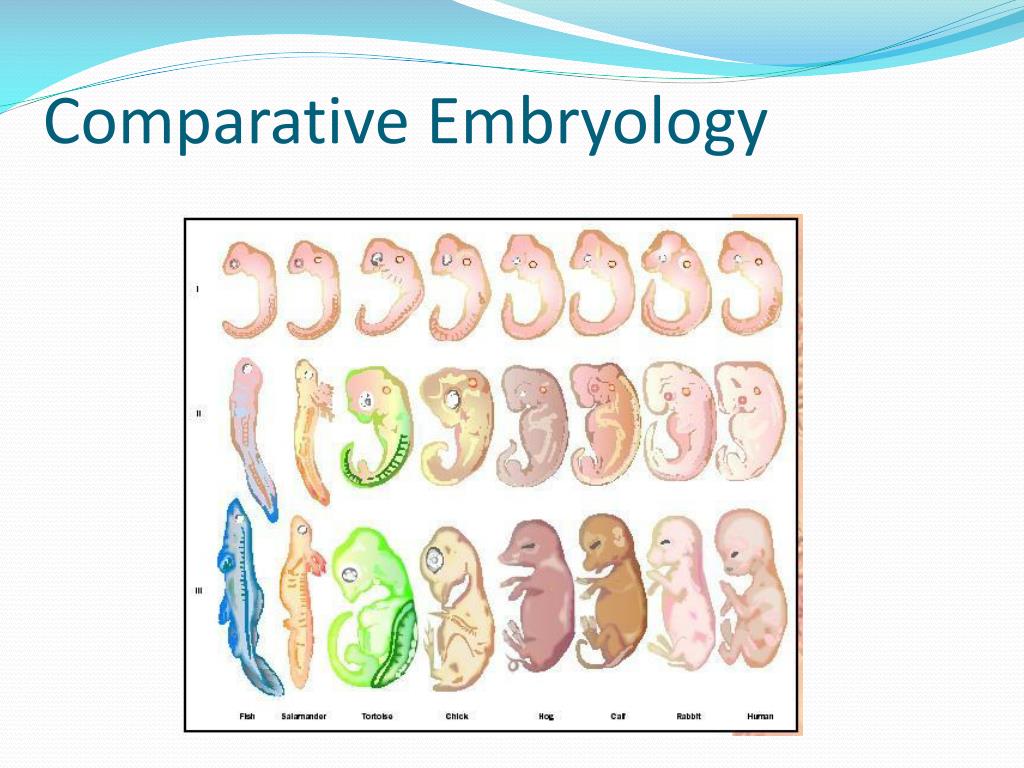

Comparative embryology1

Comparative Embryology


Molecular biology

Molecular biology


Examples of natural selection camouflage adaptations in different environments

Examples of natural selection – camouflage adaptations in different environments


Population genetics and modern evolutionary synthesis theory

Population Genetics and Modern Evolutionary Synthesis Theory

  • Population genetics

    • Studies how populations change genetically over time

  • The modern evolutionary synthesis theory

    • Connects Mendelian Inheritance, Darwin’s theory with population genetics

  • Gene pool

    • Is the total collection of genes in a population at any one time

  • Microevolution

    • Is a change in the relative frequencies of alleles in a given gene pool


Evolution

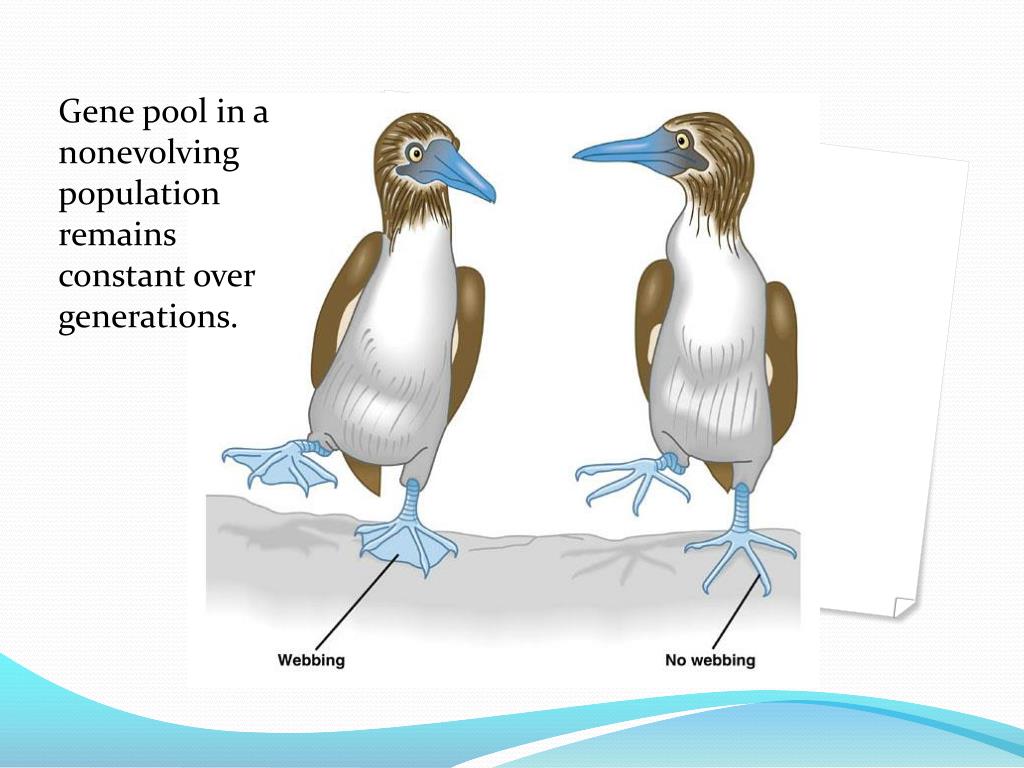

Gene pool in a nonevolving population remains constant over generations.

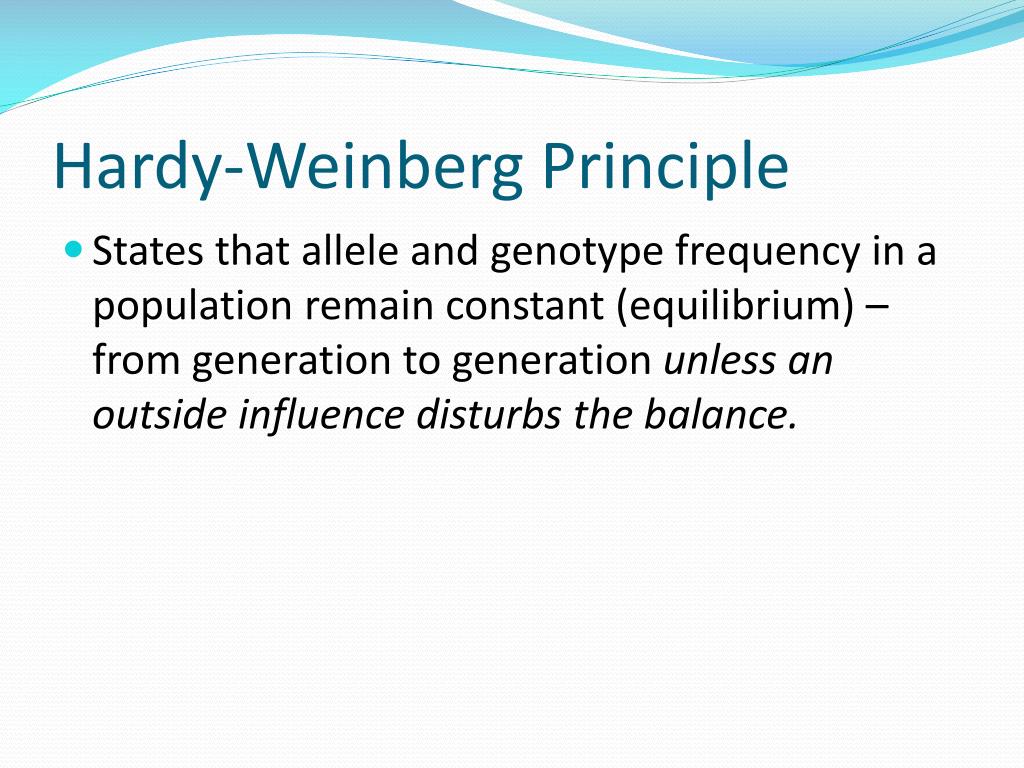

Hardy weinberg principle

Hardy-Weinberg Principle

  • States that allele and genotype frequency in a population remain constant (equilibrium) – from generation to generation unless an outside influence disturbs the balance.


Hardy weinberg principle1

Hardy-Weinberg Principle

  • Must satisfy five conditions

    • The population is very large

    • The population is isolated

    • Mutations do not alter the gene pool

    • Mating is random

    • All individuals are equal in reproductive success


Hardy weinberg equation

Hardy-Weinberg Equation

  • p2 + 2pq + q2 = 1

  • p + q = 1

    Where

  • p is frequency of the dominant allele; q is the frequency of the recessive allele

  • p2 is the frequency of the homozygous dominant genotype

  • 2pq is the frequency of the heterozygous genotype

  • q2 is the frequency of the homozygous recessive genotype


Evolution

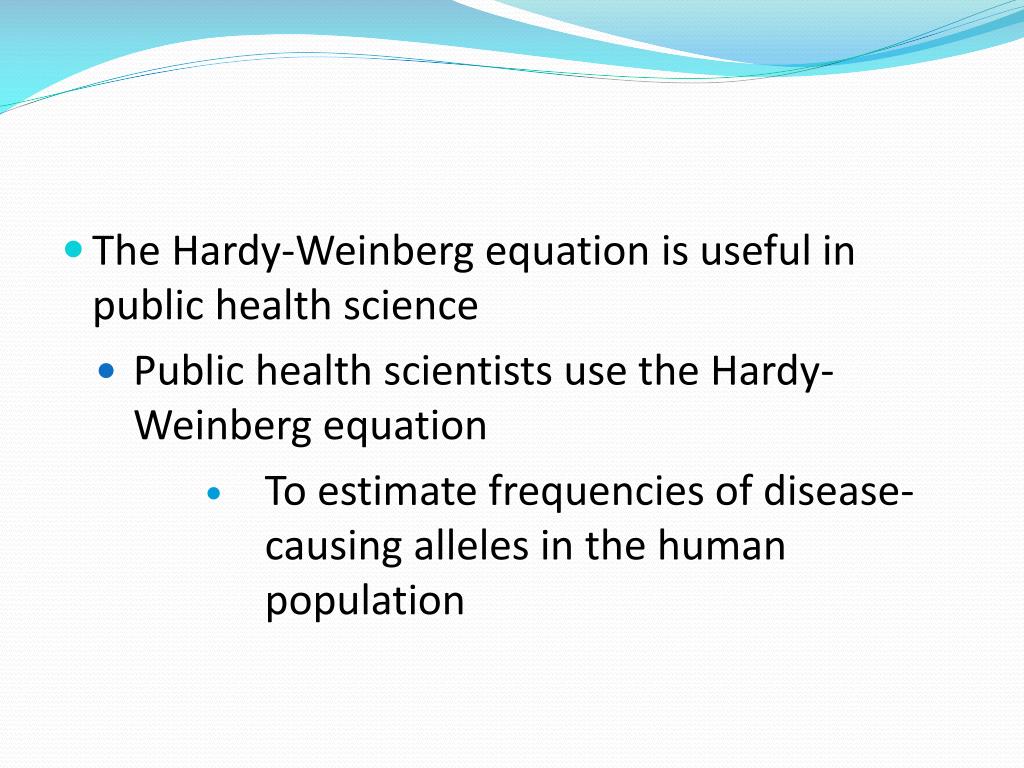

  • The Hardy-Weinberg equation is useful in public health science

    • Public health scientists use the Hardy-Weinberg equation

      • To estimate frequencies of disease-causing alleles in the human population

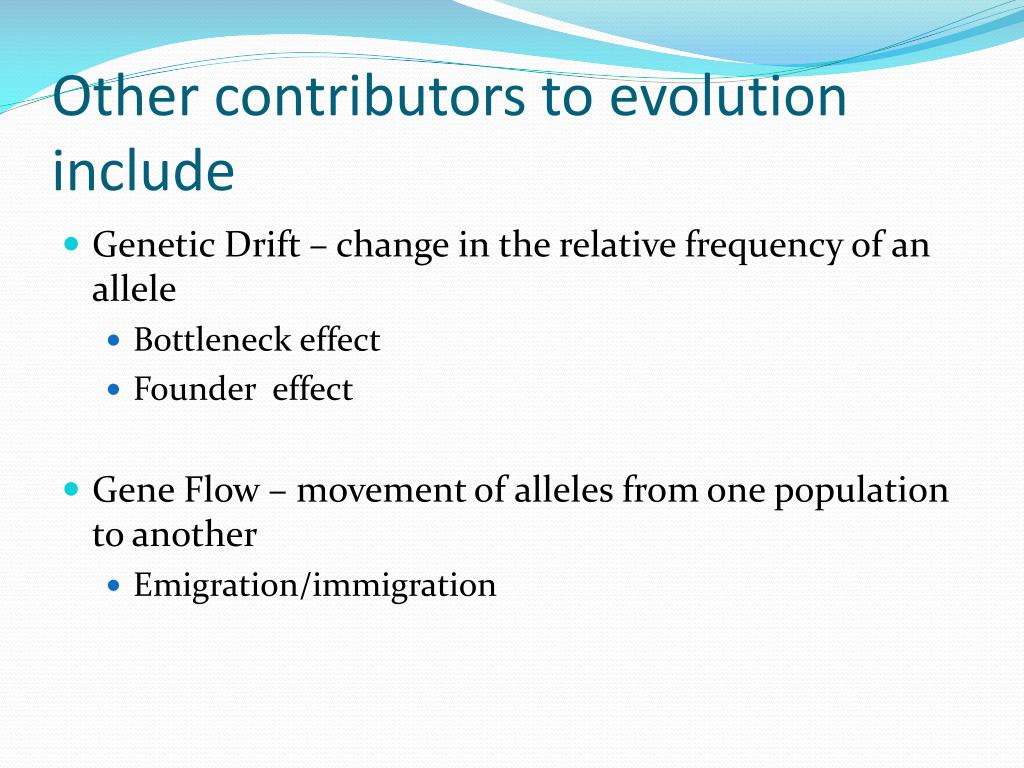

Other contributors to evolution include

Other contributors to evolution include

  • Genetic Drift – change in the relative frequency of an allele

    • Bottleneck effect

    • Founder effect

  • Gene Flow – movement of alleles from one population to another

    • Emigration/immigration

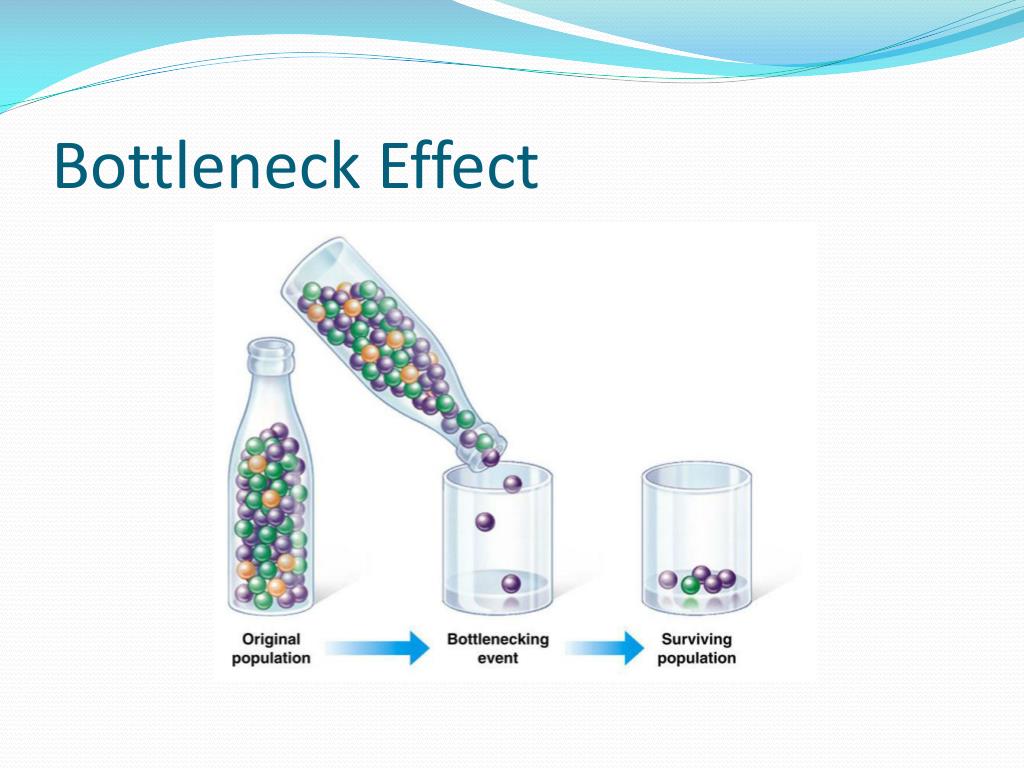

Bottleneck effect

Bottleneck Effect


Founder effect

Founder Effect

  • Loss of genetic variability when a new population is established by a very small number of individuals from a larger population.


Founder effect1

Founder Effect

Island of Krakotoa, 1883

Polydactylism

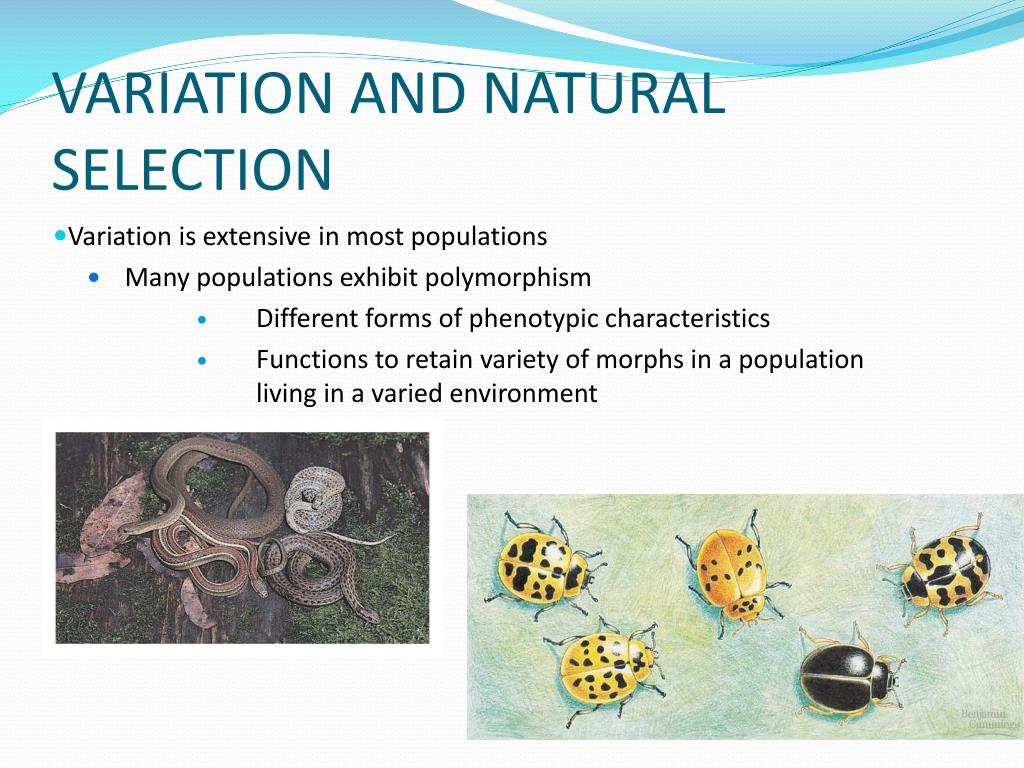

Variation and natural selection

0

VARIATION AND NATURAL SELECTION

  • Variation is extensive in most populations

    • Many populations exhibit polymorphism

      • Different forms of phenotypic characteristics

      • Functions to retain variety of morphs in a population living in a varied environment


Polymorphism

Polymorphism


Evolution

0

  • Populations may also exhibit geographic variation

    • Variation of an inherited characteristic along a geographic continuum


Sexual recombination

Sexual recombination


Evolutionary fitness

Evolutionary Fitness?

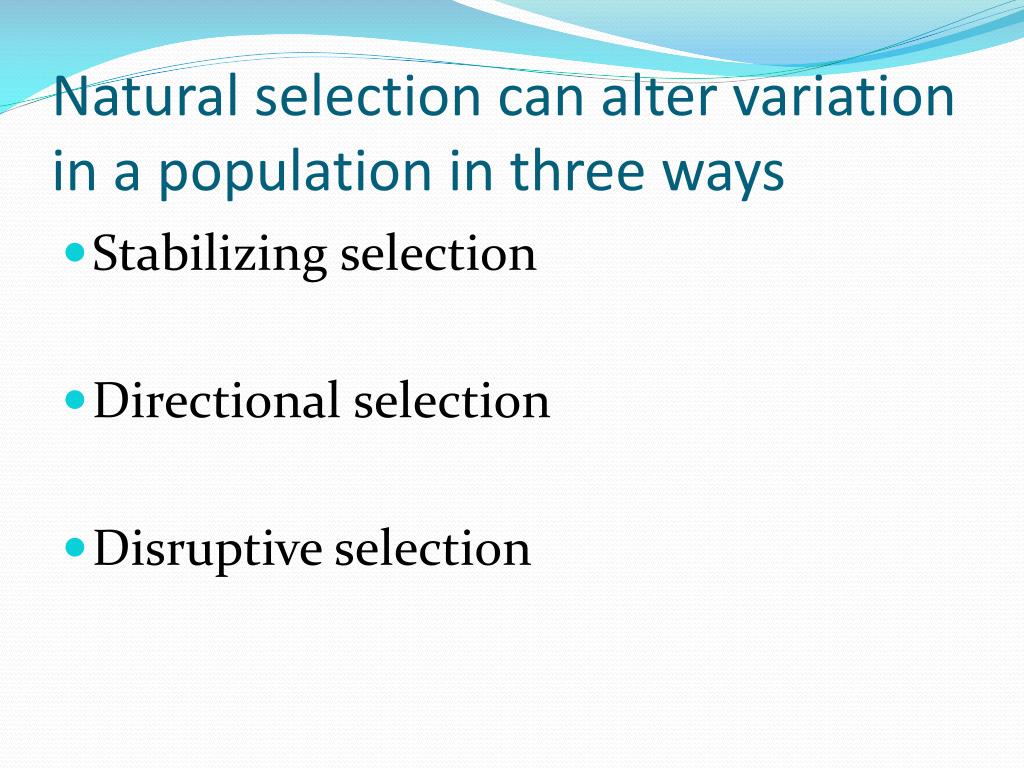

Natural selection can alter variation in a population in three ways

Natural selection can alter variation in a population in three ways

  • Stabilizing selection

  • Directional selection

  • Disruptive selection

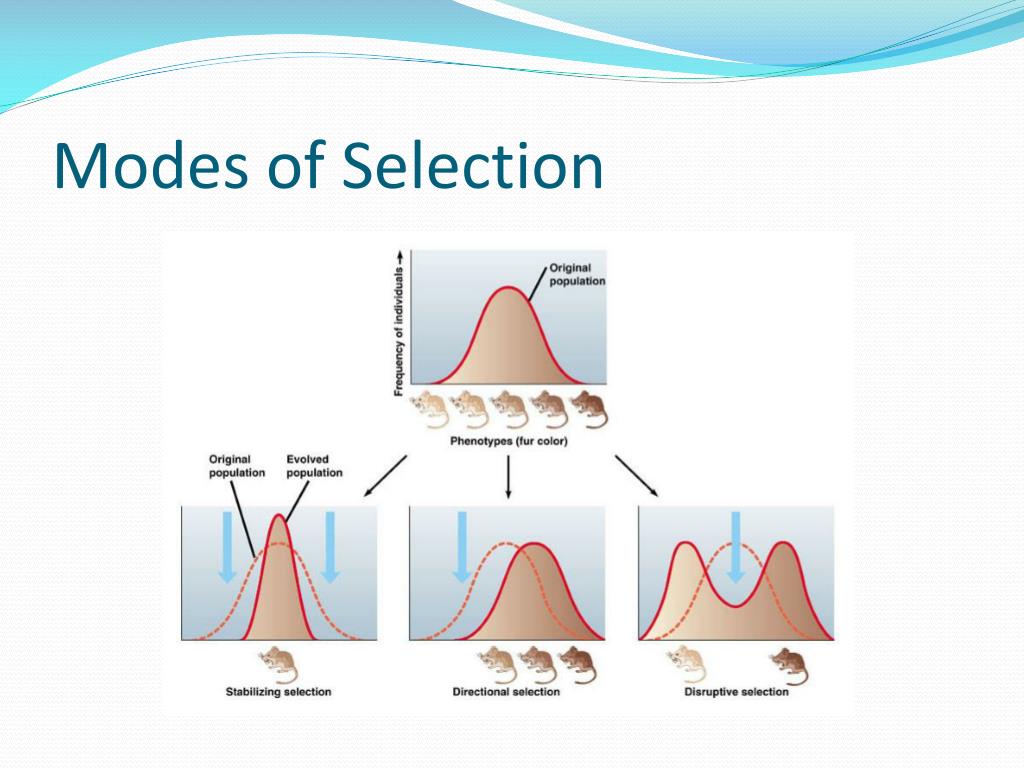

Modes of selection

Modes of Selection


Evolution

Figure 13.17B

Figure 13.17A

0

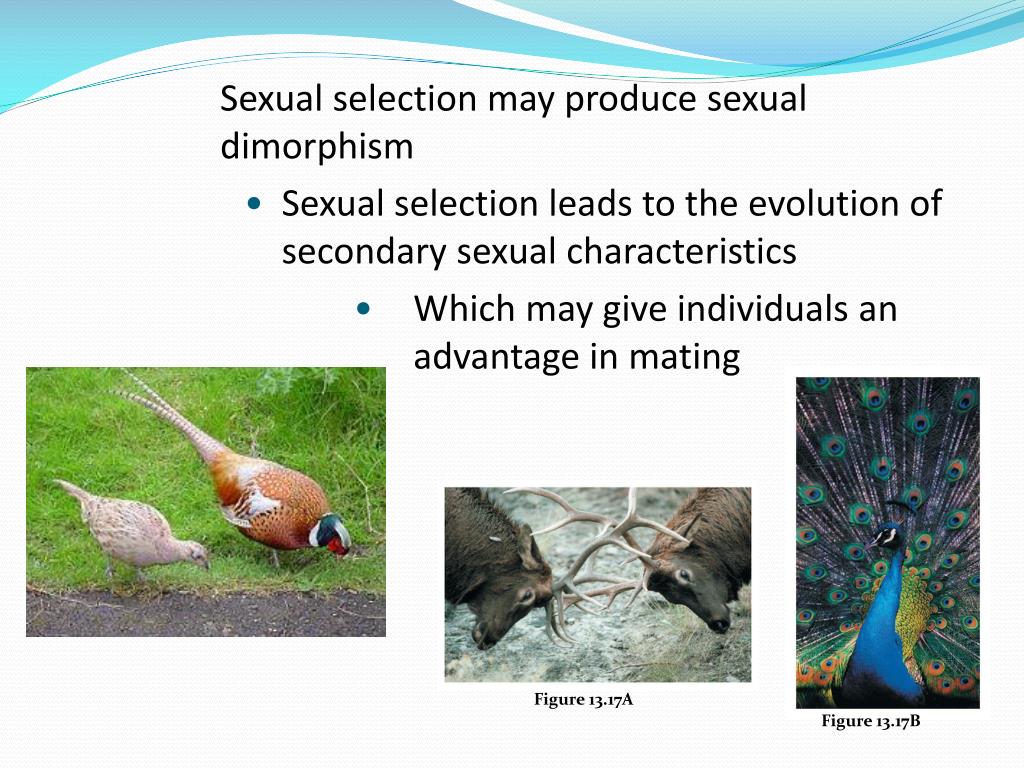

Sexual selection may produce sexual dimorphism

  • Sexual selection leads to the evolution of secondary sexual characteristics

    • Which may give individuals an advantage in mating

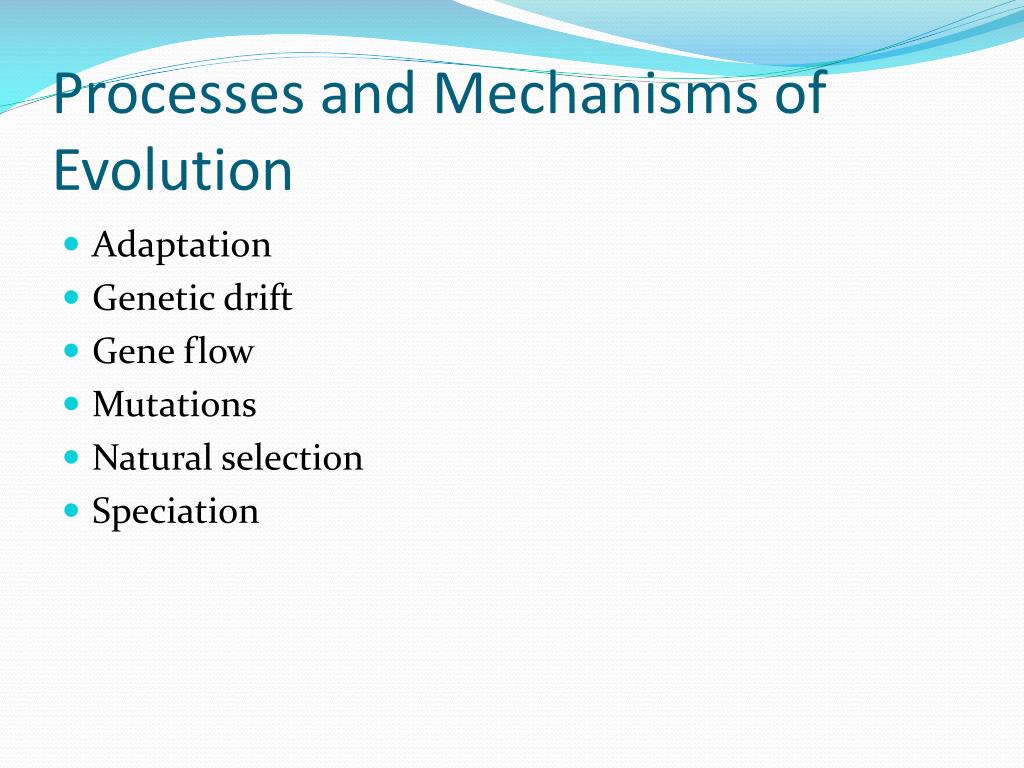

Processes and mechanisms of evolution

Processes and Mechanisms of Evolution

  • Adaptation

  • Genetic drift

  • Gene flow

  • Mutations

  • Natural selection

  • Speciation
