The mole

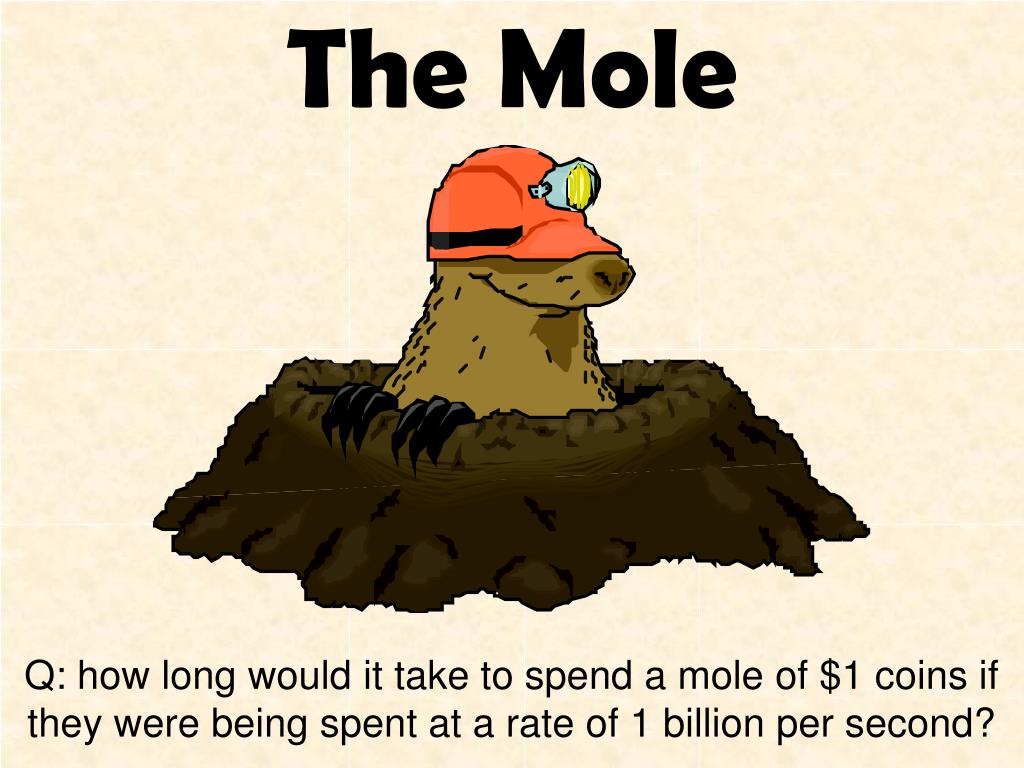

The Mole

Q: how long would it take to spend a mole of $1 coins if they were being spent at a rate of 1 billion per second?


Background atomic masses

Background: atomic masses

  • Look at the “atomic masses” on the periodic table. What do these represent?

  • E.g. the atomic mass of C is 12 (atomic # is 6)

  • We know there are 6 protons and 6 neutrons

  • Protons and neutrons have roughly the same mass. So, C weighs 12 u (atomic mass units).

  • What is the actual mass of a C atom?

  • Answer: approx. 2 x 10-23 grams (protons and neutrons each weigh about 1.7 x10-24 grams)

    Two problems

  • Atomic masses do not convert easily to grams

  • They can’t be weighed (they are too small)


The mole1

The Mole

Withtheseproblems,whyuseatomicmassatall?

  • Masses give information about # of p+, n0, e–

  • It is useful to know relative mass

    E.g. Q - What ratio is needed to make H2O?

    A - 2:1 by atoms, but 2:16 by mass

  • It is useful to associate atomic mass with a mass in grams. It has been found that

    1gH,12gC,or 23gNahave6.02x1023atoms

  • 6.02 x 1023 is a “mole” or “Avogadro’s number”

  • “mol” is used in equations, “mole” is used in writing; one gram = 1 g, one mole = 1 mol.

  • Read 4.3 (167-9). Stop after text beside fig 2.

  • Do Q1-6. Challenge: 1st slide (use reasonable units)


The mole answers

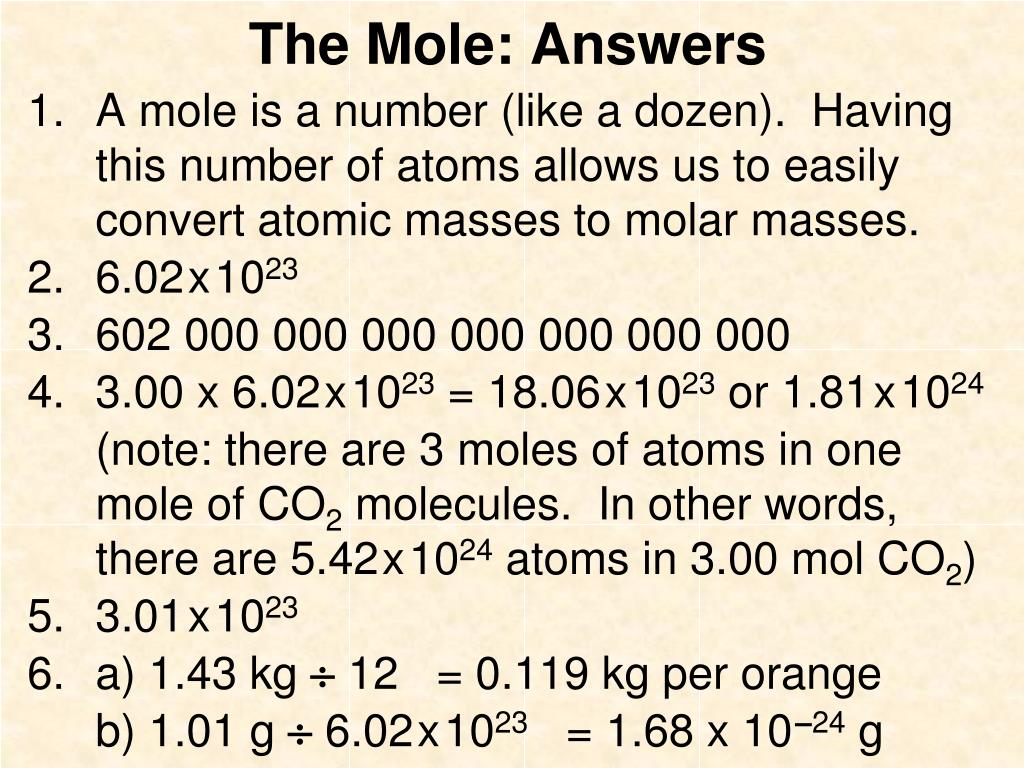

The Mole: Answers

  • A mole is a number (like a dozen). Having this number of atoms allows us to easily convert atomic masses to molar masses.

  • 6.02x1023

  • 602 000 000 000 000 000 000 000

  • 3.00 x 6.02x1023 = 18.06x1023 or 1.81x1024

    (note: there are 3 moles of atoms in one mole of CO2 molecules. In other words, there are 5.42x1024 atoms in 3.00 mol CO2)

  • 3.01x1023

  • a) 1.43 kg  12 = 0.119 kg per orange

    b) 1.01 g  6.02x1023 = 1.68 x 10–24 g


Mollionaire

Mollionaire

Q: how long would it take to spend a mole of $1 coins if they were being spent at a rate of 1 billion per second?

A: $ 6.02 x 1023 / $1 000 000 000

= 6.02 x 1014 payments = 6.02 x 1014 seconds

6.02 x 1014 seconds / 60 = 1.003 x 1013 minutes

1.003 x 1013 minutes / 60 = 1.672 x 1011 hours

1.672 x 1011 hours / 24 = 6.968 x 109 days

6.968 x 109 days / 365.25 = 1.908 x 107 years

A: It would take 19 million years


Comparing sugar c 12 h 22 o 11 h 2 o

Comparing sugar (C12H22O11) & H2O

Same

1 gram each

1 mol each

volume?

No, they have dif. densities.

No, molecules have dif. sizes.

mass?

Yes, that’s what grams are.

No, molecules have dif. masses

# of moles?

No, they have dif. molar masses

Yes.

# of molecules?

No, they have dif. molar masses

Yes (6.02x1023 in each)

# of atoms?

No, sugar has more (45:3 ratio)

No


Molar mass

Molar mass

  • The mass of one mole is called “molar mass”

  • E.g. 1 mol Li = 6.94 g Li

  • This is expressed as 6.94 g/mol

  • What are the following molar masses?

    SSO2

    Cu3(BO3)2

32.06 g/mol

64.06 g/mol

308.27 g/mol

Calculate molar masses (to 2 decimal places)

CaCl2

(NH4)2CO3

O2

Pb3(PO4)2

C6H12O6

Cux 3 = 63.55 x 3= 190.65

Bx 2 = 10.81 x 2= 21.62

Ox 6 = 16.00 x 6= 96.00

308.27


Molar mass1

Molar mass

  • The mass of one mole is called “molar mass”

  • E.g. 1 mol Li = 6.94 g Li

  • This is expressed as 6.94 g/mol

  • What are the following molar masses?

    SSO2

    Cu3(BO3)2

32.06 g/mol

64.06 g/mol

308.27 g/mol

Calculate molar masses (to 2 decimal places)

CaCl2

(NH4)2CO3

O2

Pb3(PO4)2

C6H12O6

110.98 g/mol (Cax1, Clx2)

96.11g/mol(Nx2, Hx8, Cx1, Ox3)

32.00 g/mol (Ox2)

811.54 g/mol (Pbx3, Px2, Ox8)

180.18 g/mol (Cx6, Hx12, Ox6)


Converting between grams and moles

g

mol

g/mol

Formula

g/mol

g

mol (n)

Equation

HCl

0.25

g= g/mol x mol

H2SO4

53.15

NaCl

3.55

Cu

1.27

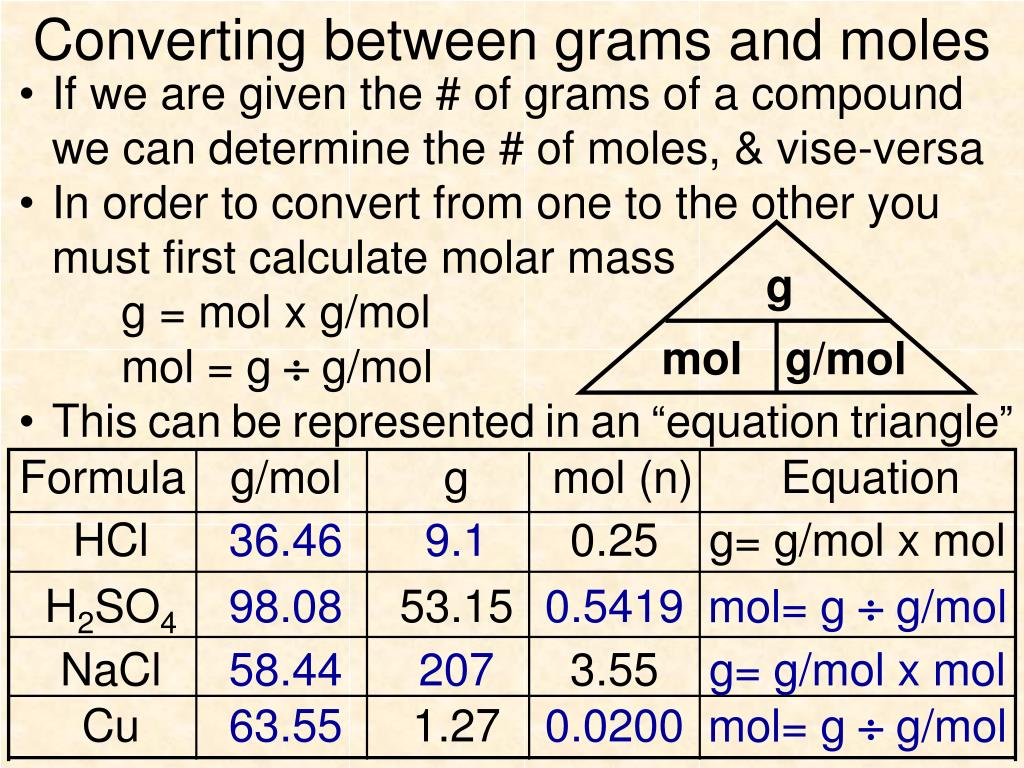

Converting between grams and moles

  • If we are given the # of grams of a compound we can determine the # of moles, & vise-versa

  • In order to convert from one to the other you must first calculate molar mass

    g = mol x g/mol

    mol = g  g/mol

  • Thiscanberepresentedinan“equationtriangle”

36.46

9.1

98.08

0.5419

mol= g  g/mol

58.44

207

g= g/mol x mol

63.55

0.0200

mol= g  g/mol


Simplest and molecular formulae

H

H

H

H

H

H

Na

Na

Na

Na

Cl

Cl

Cl

Cl

O

O

O

O

O

O

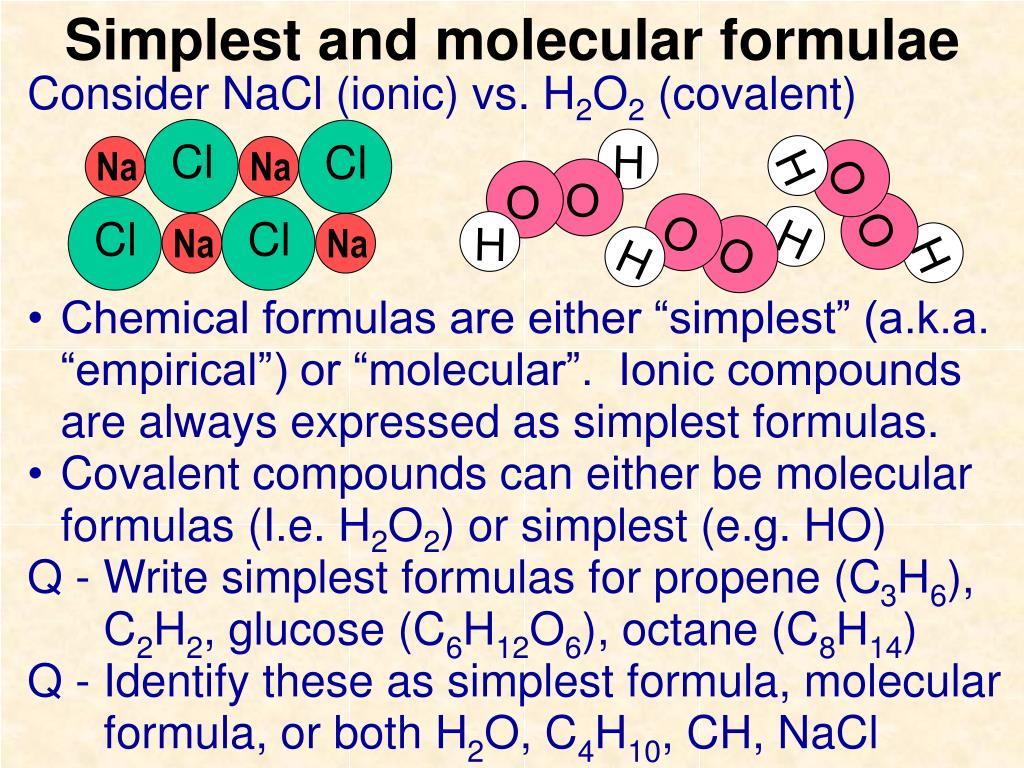

Simplest and molecular formulae

Consider NaCl (ionic) vs. H2O2 (covalent)

  • Chemical formulas are either “simplest” (a.k.a. “empirical”) or “molecular”. Ionic compounds are always expressed as simplest formulas.

  • Covalent compounds can either be molecular formulas (I.e. H2O2) or simplest (e.g. HO)

  • Q - Write simplest formulas for propene (C3H6),

  • C2H2, glucose (C6H12O6), octane (C8H14)

  • Q - Identify these as simplest formula, molecular

  • formula, or both H2O, C4H10, CH, NaCl


Answers

For more lessons, visit www.chalkbored.com

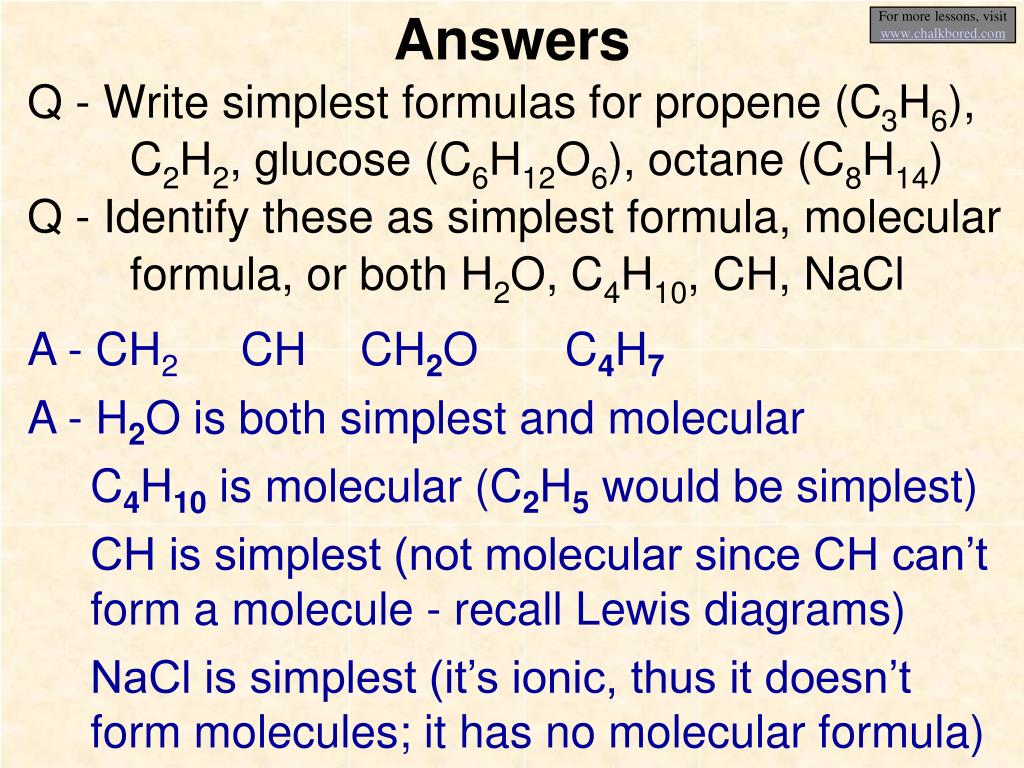

Answers

Q - Write simplest formulas for propene (C3H6),

C2H2, glucose (C6H12O6), octane (C8H14)

Q - Identify these as simplest formula, molecular

formula, or both H2O, C4H10, CH, NaCl

A - CH2

A - H2O is both simplest and molecular

C4H10 is molecular (C2H5 would be simplest)

CH is simplest (not molecular since CH can’t form a molecule - recall Lewis diagrams)

NaCl is simplest (it’s ionic, thus it doesn’t form molecules; it has no molecular formula)

CH

CH2O

C4H7
