Ole automation

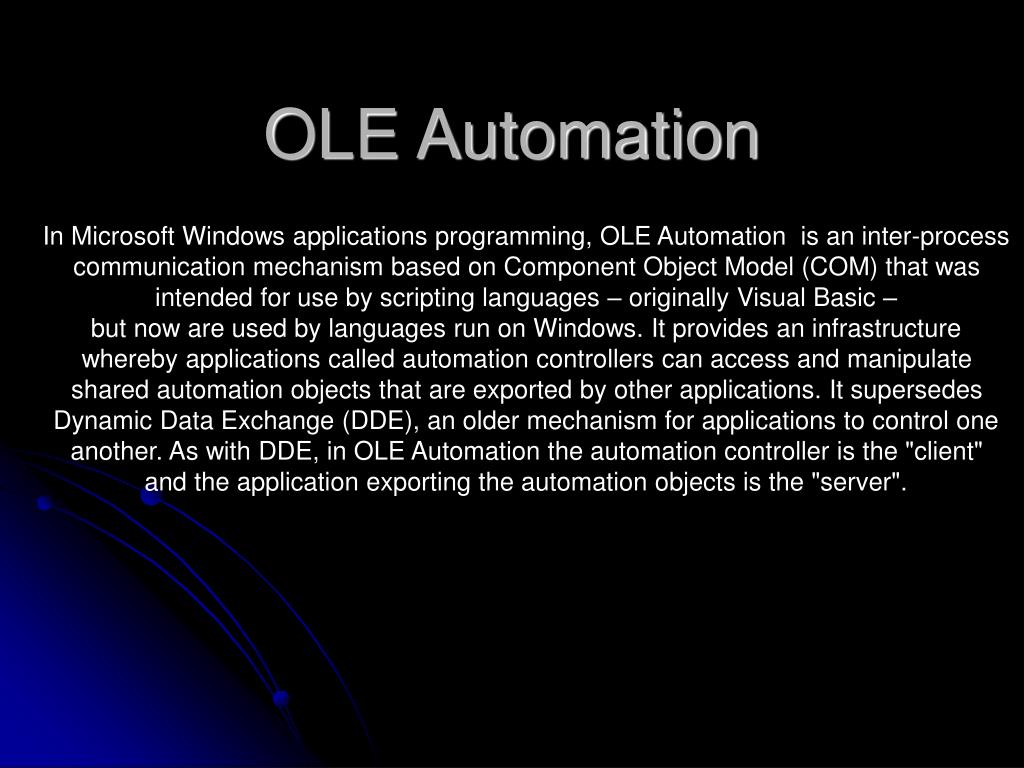

OLE Automation

In Microsoft Windows applications programming, OLE Automation is an inter-process

communication mechanism based on Component Object Model (COM) that was

intended for use by scripting languages – originally Visual Basic –

but now are used by languages run on Windows. It provides an infrastructure

whereby applications called automation controllers can access and manipulate

shared automation objects that are exported by other applications. It supersedes

Dynamic Data Exchange (DDE), an older mechanism for applications to control one

another. As with DDE, in OLE Automation the automation controller is the "client"

and the application exporting the automation objects is the "server".


Ole db and ado

OLE DB and ADO


Example ole db

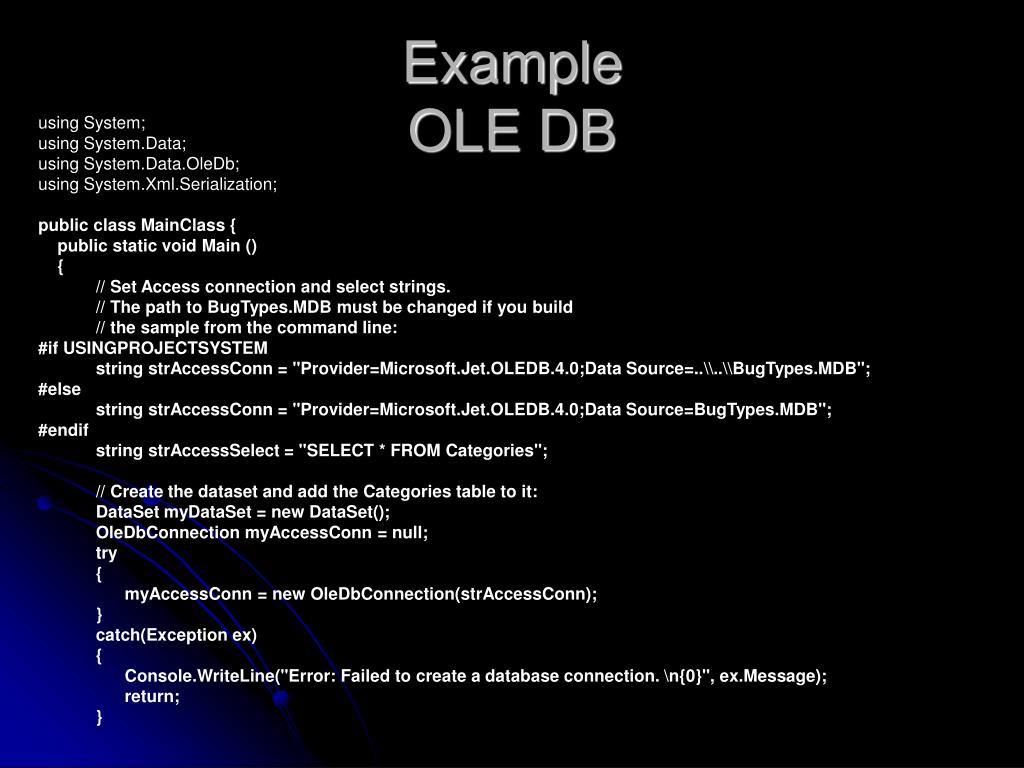

ExampleOLE DB

using System;

using System.Data;

using System.Data.OleDb;

using System.Xml.Serialization;

public class MainClass {

public static void Main ()

{

// Set Access connection and select strings.

// The path to BugTypes.MDB must be changed if you build

// the sample from the command line:

#if USINGPROJECTSYSTEM

string strAccessConn = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=..\\..\\BugTypes.MDB";

#else

string strAccessConn = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=BugTypes.MDB";

#endif

string strAccessSelect = "SELECT * FROM Categories";

// Create the dataset and add the Categories table to it:

DataSet myDataSet = new DataSet();

OleDbConnection myAccessConn = null;

try

{

myAccessConn = new OleDbConnection(strAccessConn);

}

catch(Exception ex)

{

Console.WriteLine("Error: Failed to create a database connection. \n{0}", ex.Message);

return;

}


Ole automation

try

{

OleDbCommand myAccessCommand = new OleDbCommand(strAccessSelect,myAccessConn);

OleDbDataAdapter myDataAdapter = new OleDbDataAdapter(myAccessCommand);

myAccessConn.Open();

myDataAdapter.Fill(myDataSet,"Categories");

}

catch (Exception ex)

{

Console.WriteLine("Error: Failed to retrieve the required data from the DataBase.\n{0}", ex.Message);

return;

}

finally

{

myAccessConn.Close();

}

// A dataset can contain multiple tables, so let's get them

// all into an array:

DataTableCollection dta = myDataSet.Tables;

foreach (DataTable dt in dta)

{

Console.WriteLine("Found data table {0}", dt.TableName);

}


Ole automation

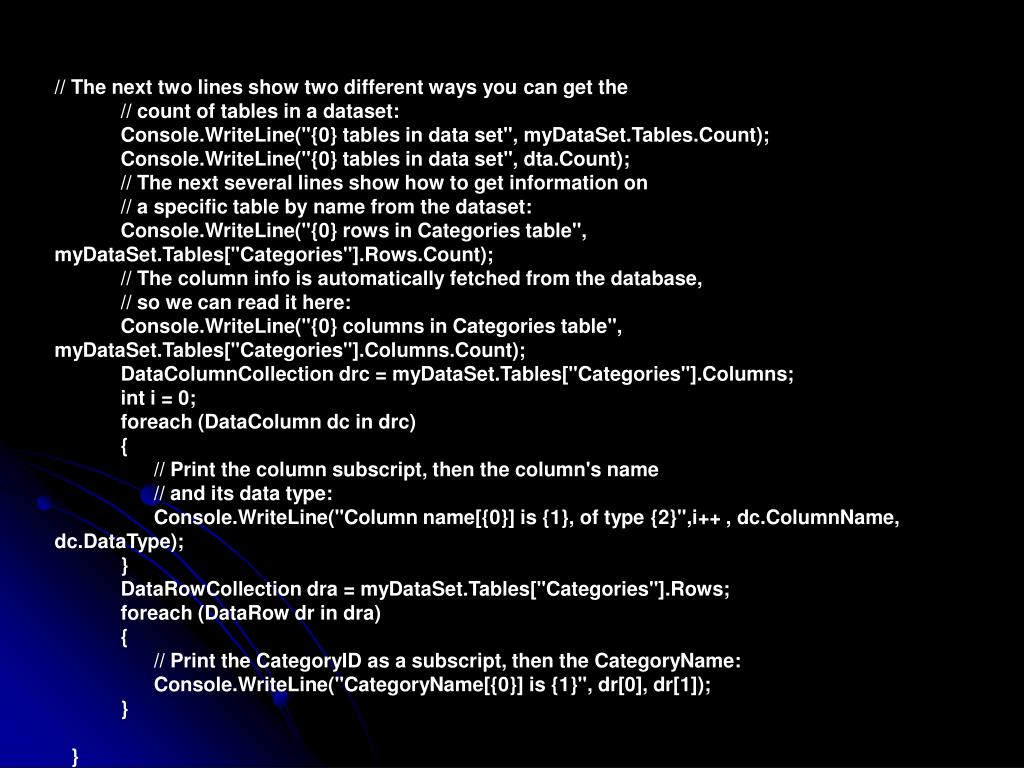

// The next two lines show two different ways you can get the

// count of tables in a dataset:

Console.WriteLine("{0} tables in data set", myDataSet.Tables.Count);

Console.WriteLine("{0} tables in data set", dta.Count);

// The next several lines show how to get information on

// a specific table by name from the dataset:

Console.WriteLine("{0} rows in Categories table", myDataSet.Tables["Categories"].Rows.Count);

// The column info is automatically fetched from the database,

// so we can read it here:

Console.WriteLine("{0} columns in Categories table", myDataSet.Tables["Categories"].Columns.Count);

DataColumnCollection drc = myDataSet.Tables["Categories"].Columns;

int i = 0;

foreach (DataColumn dc in drc)

{

// Print the column subscript, then the column's name

// and its data type:

Console.WriteLine("Column name[{0}] is {1}, of type {2}",i++ , dc.ColumnName, dc.DataType);

}

DataRowCollection dra = myDataSet.Tables["Categories"].Rows;

foreach (DataRow dr in dra)

{

// Print the CategoryID as a subscript, then the CategoryName:

Console.WriteLine("CategoryName[{0}] is {1}", dr[0], dr[1]);

}

}

}


Ole office

OLE & Office


Word object model

Word Object Model


Example word

Example- Word

Replace - Delphi

var WordApp:Olevariant;

yourDocFileName:String;

re:Variant;

cnt,i:integer;

begin

yourDocFileName:=Edit4.text;

WordApp := CreateOLEObject('Word.Application');

WordApp.Documents.Open(yourDocFileName);

WordApp.Selection.Find.ClearFormatting;

WordApp.Selection.Find.Text :='#pNAME#';

WordApp.Selection.Find.Replacement.Text :=Edit1.Text;

WordApp.Selection.Find.Execute(Replace := wdReplaceAll);

WordApp.ActiveDocument.SaveAs(Edit5.Text);

WordApp.ActiveDocument.Close;

WordApp.Documents.Open(Edit5.Text);

WordApp.Visible := True;

end;


Example word macros

ExampleWord - Macros

VB

Dim myStoryRange As Range

For Each myStoryRange In ActiveDocument.StoryRanges

With myStoryRange.Find

.Text = "#pNAme#"

.Replacement.Text = "Petur"

.Wrap = wdFindContinue

.Execute Replace:=wdReplaceAll

End With

Do While Not (myStoryRange.NextStoryRange Is Nothing)

Set myStoryRange = myStoryRange.NextStoryRange

With myStoryRange.Find

.Text = "Edit2"

.Replacement.Text = "Lisabon"

.Wrap = wdFindContinue

.Execute Replace:=wdReplaceAll

End With

Loop

Next myStoryRange

End Sub


Excel object model

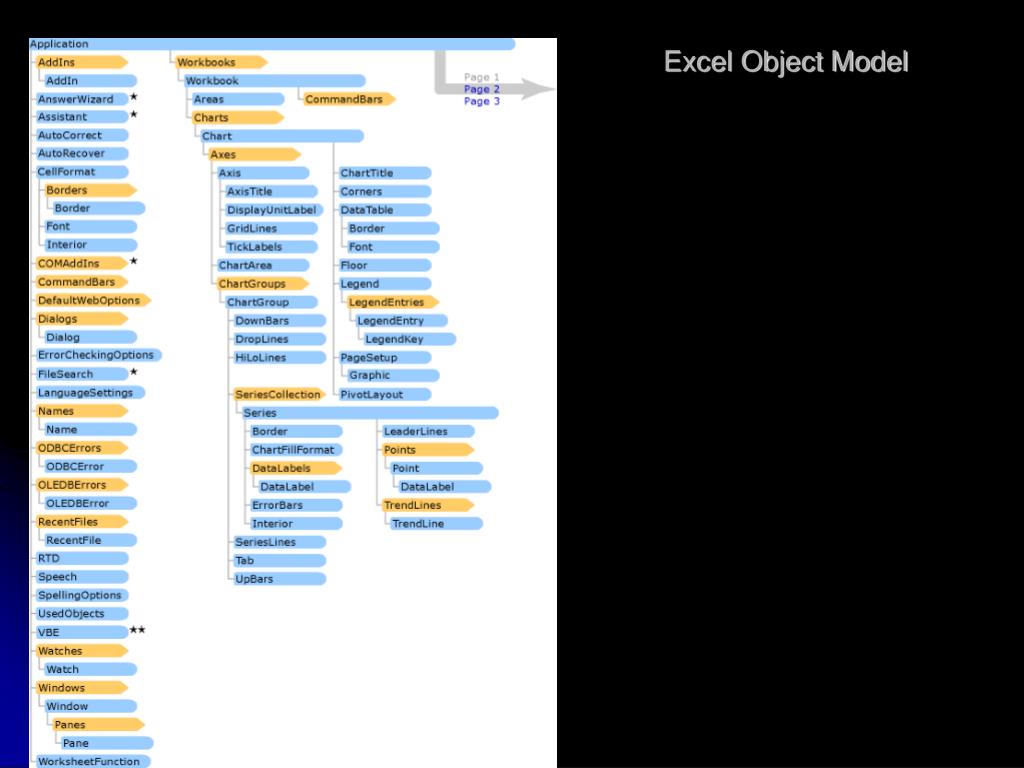

Excel Object Model


Outlook

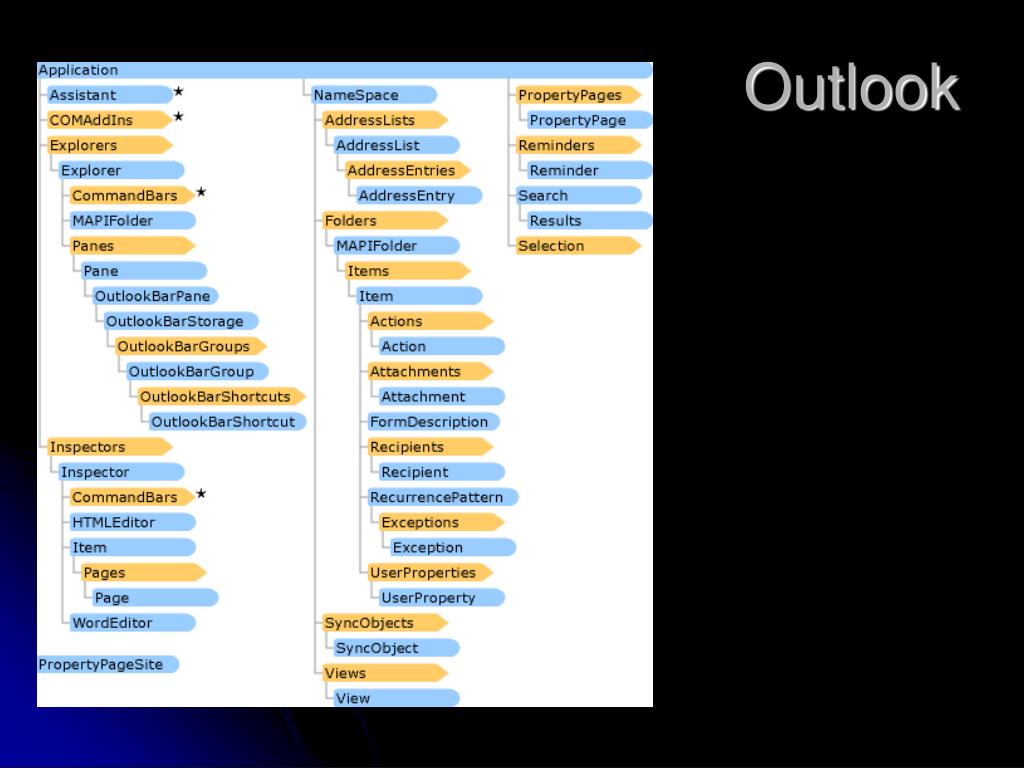

Outlook


Example excel

Example Excel

Създаване на файл

Excel.Application xlApp ;

Excel.Workbook xlWorkBook ;

Excel.Worksheet xlWorkSheet ;

object misValue = System.Reflection.Missing.Value;

xlApp = new Excel.ApplicationClass();

xlWorkBook = xlApp.Workbooks.Add(misValue);

xlWorkSheet = (Excel.Worksheet)xlWorkBook.Worksheets.get_Item(1);

xlWorkSheet.Cells[1, 1] = "http://csharp.net-informations.com";

xlWorkBook.SaveAs("csharp-Excel.xls", Excel.XlFileFormat.xlWorkbookNormal,

misValue, misValue, misValue, misValue, Excel.XlSaveAsAccessMode.xlExclusive,

misValue, misValue, misValue, misValue, misValue);

xlWorkBook.Close(true, misValue, misValue);

xlApp.Quit();

releaseObject(xlWorkSheet);

releaseObject(xlWorkBook);

releaseObject(xlApp);

MessageBox.Show("Excel file created , you can find the file c:\\csharp-Excel.xls");


Excel format

Excel – Format

Excel.Application xlApp ;

Excel.Workbook xlWorkBook ;

Excel.Worksheet xlWorkSheet ;

object misValue = System.Reflection.Missing.Value;

Excel.Range chartRange ;

xlApp = new Excel.ApplicationClass();

xlWorkBook = xlApp.Workbooks.Add(misValue);

xlWorkSheet = (Excel.Worksheet)xlWorkBook.Worksheets.get_Item(1);

//add data

xlWorkSheet.Cells[4, 2] = "";

xlWorkSheet.Cells[4, 3] = "Student1";

xlWorkSheet.Cells[4, 4] = "Student2";

xlWorkSheet.Cells[4, 5] = "Student3";

xlWorkSheet.Cells[5, 2] = "Term1";

xlWorkSheet.Cells[5, 3] = "80";

xlWorkSheet.Cells[5, 4] = "65";

xlWorkSheet.Cells[5, 5] = "45";

xlWorkSheet.Cells[6, 2] = "Term2";

xlWorkSheet.Cells[6, 3] = "78";

xlWorkSheet.Cells[6, 4] = "72";

xlWorkSheet.Cells[6, 5] = "60";


Ole automation

………………..

xlWorkSheet.get_Range("b2", "e3").Merge(false);

chartRange = xlWorkSheet.get_Range("b2", "e3");

chartRange.FormulaR1C1 = "MARK LIST";

chartRange.HorizontalAlignment = 3;

chartRange.VerticalAlignment = 3;

chartRange = xlWorkSheet.get_Range("b4", "e4");

chartRange.Font.Bold = true;

chartRange = xlWorkSheet.get_Range("b9", "e9");

chartRange.Font.Bold = true;

chartRange = xlWorkSheet.get_Range("b2", "e9");

chartRange.BorderAround(Excel.XlLineStyle.xlContinuous, Excel.XlBorderWeight.

xlMedium, Excel.XlColorIndex.xlColorIndexAutomatic, Excel.

XlColorIndex.xlColorIndexAutomatic);

xlWorkBook.SaveAs("csharp.net-informations.xls", Excel.XlFileFormat.

xlWorkbookNormal, misValue, misValue, misValue, misValue, Excel.XlSaveAsAccessMode.

xlExclusive, misValue, misValue, misValue, misValue, misValue);

xlWorkBook.Close(true, misValue, misValue);

xlApp.Quit();


Insert picture

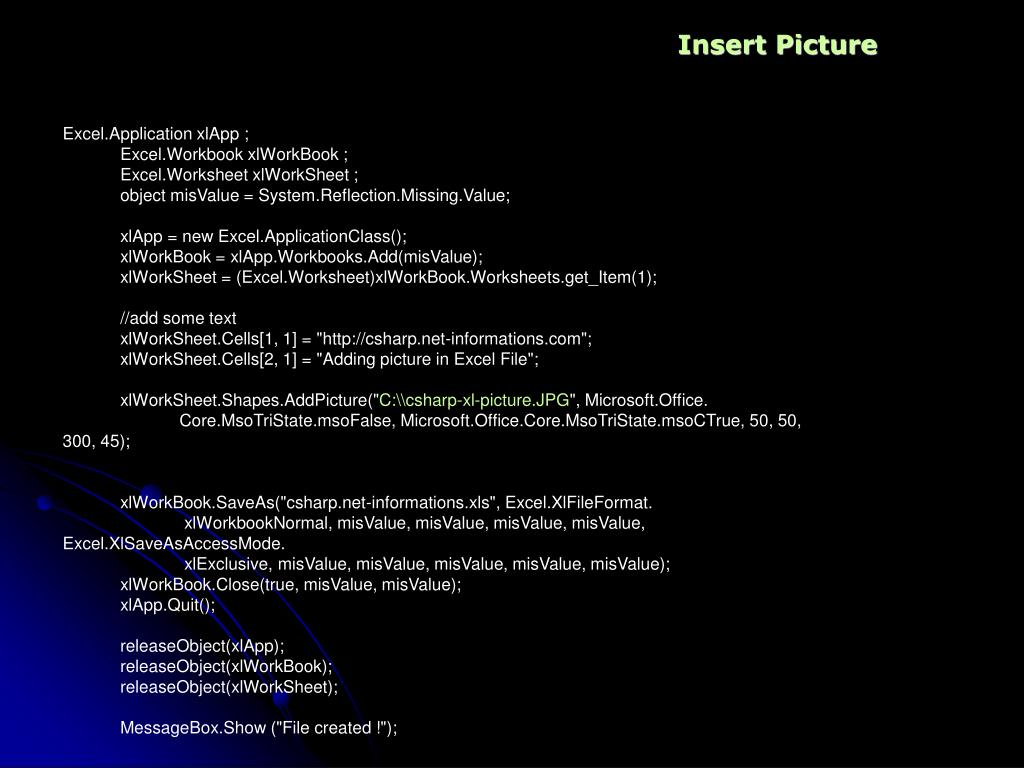

Insert Picture

Excel.Application xlApp ;

Excel.Workbook xlWorkBook ;

Excel.Worksheet xlWorkSheet ;

object misValue = System.Reflection.Missing.Value;

xlApp = new Excel.ApplicationClass();

xlWorkBook = xlApp.Workbooks.Add(misValue);

xlWorkSheet = (Excel.Worksheet)xlWorkBook.Worksheets.get_Item(1);

//add some text

xlWorkSheet.Cells[1, 1] = "http://csharp.net-informations.com";

xlWorkSheet.Cells[2, 1] = "Adding picture in Excel File";

xlWorkSheet.Shapes.AddPicture("C:\\csharp-xl-picture.JPG", Microsoft.Office.

Core.MsoTriState.msoFalse, Microsoft.Office.Core.MsoTriState.msoCTrue, 50, 50, 300, 45);

xlWorkBook.SaveAs("csharp.net-informations.xls", Excel.XlFileFormat.

xlWorkbookNormal, misValue, misValue, misValue, misValue, Excel.XlSaveAsAccessMode.

xlExclusive, misValue, misValue, misValue, misValue, misValue);

xlWorkBook.Close(true, misValue, misValue);

xlApp.Quit();

releaseObject(xlApp);

releaseObject(xlWorkBook);

releaseObject(xlWorkSheet);

MessageBox.Show ("File created !");


Graphic

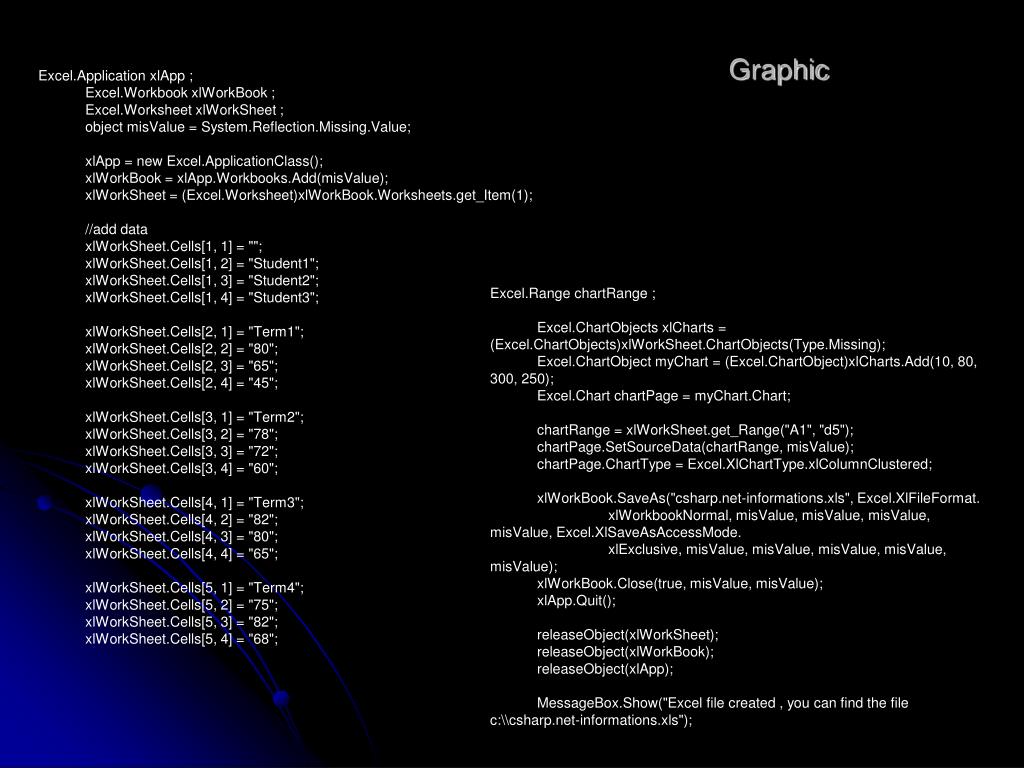

Graphic

Excel.Application xlApp ;

Excel.Workbook xlWorkBook ;

Excel.Worksheet xlWorkSheet ;

object misValue = System.Reflection.Missing.Value;

xlApp = new Excel.ApplicationClass();

xlWorkBook = xlApp.Workbooks.Add(misValue);

xlWorkSheet = (Excel.Worksheet)xlWorkBook.Worksheets.get_Item(1);

//add data

xlWorkSheet.Cells[1, 1] = "";

xlWorkSheet.Cells[1, 2] = "Student1";

xlWorkSheet.Cells[1, 3] = "Student2";

xlWorkSheet.Cells[1, 4] = "Student3";

xlWorkSheet.Cells[2, 1] = "Term1";

xlWorkSheet.Cells[2, 2] = "80";

xlWorkSheet.Cells[2, 3] = "65";

xlWorkSheet.Cells[2, 4] = "45";

xlWorkSheet.Cells[3, 1] = "Term2";

xlWorkSheet.Cells[3, 2] = "78";

xlWorkSheet.Cells[3, 3] = "72";

xlWorkSheet.Cells[3, 4] = "60";

xlWorkSheet.Cells[4, 1] = "Term3";

xlWorkSheet.Cells[4, 2] = "82";

xlWorkSheet.Cells[4, 3] = "80";

xlWorkSheet.Cells[4, 4] = "65";

xlWorkSheet.Cells[5, 1] = "Term4";

xlWorkSheet.Cells[5, 2] = "75";

xlWorkSheet.Cells[5, 3] = "82";

xlWorkSheet.Cells[5, 4] = "68";

Excel.Range chartRange ;

Excel.ChartObjects xlCharts = (Excel.ChartObjects)xlWorkSheet.ChartObjects(Type.Missing);

Excel.ChartObject myChart = (Excel.ChartObject)xlCharts.Add(10, 80, 300, 250);

Excel.Chart chartPage = myChart.Chart;

chartRange = xlWorkSheet.get_Range("A1", "d5");

chartPage.SetSourceData(chartRange, misValue);

chartPage.ChartType = Excel.XlChartType.xlColumnClustered;

xlWorkBook.SaveAs("csharp.net-informations.xls", Excel.XlFileFormat.

xlWorkbookNormal, misValue, misValue, misValue, misValue, Excel.XlSaveAsAccessMode.

xlExclusive, misValue, misValue, misValue, misValue, misValue);

xlWorkBook.Close(true, misValue, misValue);

xlApp.Quit();

releaseObject(xlWorkSheet);

releaseObject(xlWorkBook);

releaseObject(xlApp);

MessageBox.Show("Excel file created , you can find the file c:\\csharp.net-informations.xls");


Vm ole automation

VM & Ole Automation
