95 733 internet technologies

95-733 Internet Technologies

Lecture 1: Introduction

Master of Information System Management


Course web site

Course Web Site

  • http://www.andrew.cmu.edu/~mm6

Master of Information System Management


Prerequisites

Prerequisites

  • The ability to program in Java

  • Enthusiasm for programming

  • Interested in web technologies

Master of Information System Management


Specific technologies

Specific Technologies

  • Netbeans and Glassfish

  • JavaScript, Servlets and Java Server Pages

  • XML (various languages)

  • AJAX

  • Mashups

  • Freebase

  • Ruby

  • Frameworks – Ruby on Rails

  • Grammars - DTD’s, XSDL, JSON Schema

  • XML Transformation - XSLT

  • Semantic Web – OWL, RDF, Protégé, Jena

Master of Information System Management


Structure of the course

Structure of the Course

  • Lectures / class participation

  • Demonstrations

  • Homework (programming)

  • Midterm

  • Final examination

Master of Information System Management


Readings

Readings

  • Readings from the required text are assigned for each lecture -- read them in advance

  • Readings from the web also assigned

  • For this week read “Programming the World Wide Web”, 7th ed. Chapters 1, 2 and 3. Especially chapter 3 on CSS.

  • For next week read “Programming the World Wide Web”, 7th ed. chapters 4, 5 and 10.

  • Chapters 4 and 5 are on JavaScript

  • Chapter 10 covers AJAX.

  • Read the article by Philip McCarthy of IBM on AJAX

Master of Information System Management


Grading

Grading

  • Homework/Programming (3-5) 50%

  • One of the homework problems is designed by the student. A presentation and demonstration is required. See me soon about your topic.

  • For the student designed homework, small groups are permitted. Each student presents for the same number of minutes.

  • Midterm 10%

  • Final Exam 40%

Master of Information System Management


Some suggested topics for student assigned homework

Some Suggested Topics For Student Assigned Homework

  • Explore one of the many XML languages in more detail than we do in class.

  • Discuss and demonstrate an HTML5 element (audio, video, time, canvas).

  • HTML5 document structure

  • HTML5 Local storage.

  • Flash, PhoneGap, GWT, Jquery, etc…

  • Many other options exist. See the schedule for projects from previous terms..

Master of Information System Management


Rich internet applications

Rich Internet Applications

  • The traditional web employed thin clients.

  • In RIA, the browser is extended by downloaded code.

  • With AJAX, the downloaded code interacts with the server asynchronously. The client does not block.

  • This makes for a more responsive user experience.

Master of Information System Management


Ria using ajax

RIA Using Ajax

Asynchronous Java Script and XML

  • Why bother?

    - Everyone loves the browser but

    communication with the server is

    coarse-grained. A full page reload

    interrupts the interaction flow.

  • Example Applications: (Web 2.0)

    - Google Maps runs in a browser but

    behaves like an application.

    - Flikr photo sharing, Google Maps,

    Blackboard, etc.. use AJAX.

Master of Information System Management


95 733 internet technologies

AJAX

  • Typically uses JavaScript or VBScript on the client side.

  • The server side might be in any language, e.g., PHP, ASP.NET, or Java.

  • Any XML document or text may be returned to the caller. Simple text, JavaScript Object Notation (JSON) or XML is common.

  • Client-side Javascript libraries like Dojo or Prototype or Jquery may be used.

  • Frameworks (RoR, JSF, etc.,) support Ajax.

  • Normally, requests may only go back to the originating

    server.

  • However, mashups (combining diverse site output) may still be constructed by having the originating server make calls to other servers.

  • Client side mashups may also be built with a dynamic <script> tag.

  • Ajax is important to mobile phones. JSON service access is easy

  • See www.openajax.org

Master of Information System Management


Before we start

Before We Start

  • A servlet is Java code that runs on the server when an HTTP request arrives.

  • A Java Server Page (JSP) is XHTML+ Java and is compiled to a servlet.

  • JavaScript is not Java and runs in the browser.

  • XHTML is one of many XML languages

Master of Information System Management


95 733 internet technologies

This is a UML

sequence diagram.

This shows a

typical AJAX

round trip.

A solid arrowhead

represents a

synchronous

call.

A stick

arrowhead

represents an

asynchronous

signal.

Master of Information System Management


Typical ajax 1

Typical Ajax(1)

  • Javascript and HTML is delivered to the browser.

    2. The JavaScript code is pointed to by

    a <script> tag.

    3. The HTML defines a button that

    calls a function.

Master of Information System Management


Typical ajax 2

Typical Ajax(2)

4. Within the function (which may be

passed a URL with GET data) a

browser dependent request object is

created with a URL (and, perhaps,

GET data).

5. A handler is defined.

6. The request object is told about the

handler.

7. The request object is told to send a

post or get request asynchronously.

Master of Information System Management


Typical ajax 3

Typical Ajax(3)

8. If POST is used, the send method is

called on the request object

with the POST data.

9. The handler executes on various state

changes in the request object.

10.The handler accesses the server

response by asking the request

object first for its state (and if it's

ready with no errors) its response.

Master of Information System Management


Typical ajax 4

Typical Ajax(4)

11. The response may be text,

or XML or JSON.

12. The handler performs some

action on the browser. This

action may alter the HTML's

DOM and change what the

browser displays.

Master of Information System Management


The xmlhttprequest object as described by w3c

The XMLHttpRequest Object as Described by W3C

  • The XMLHttpRequest interface can be used by scripts to programmatically connect to their originating server via HTTP.

  • Implements an interface exposed by a scripting engine.

  • Supports any text format (not only XML).

  • Supports HTTP and HTTPS.

  • The term “Request” should be broadly defined to include Request and Response.

Master of Information System Management


W3c example 1

W3C Example 1

Some simple JavaScript code to do

something with data from

an XML document fetched over

the network:

function test(data) {

// taking care of data

}

Master of Information System Management


95 733 internet technologies

function handler() {

if(this.readyState == 4 &&

this.status == 200) {

// so far so good

if(this.responseXML != null &&

this.responseXML.getElementById('test').firstChild.data)

// success!

test(this.responseXML.getElementById('test').firstChild.data);

else

test(null);

} else if (this.readyState == 4 && this.status != 200) {

// fetched the wrong page or network error...

test(null);

}

}

var client = new XMLHttpRequest();

client.onreadystatechange = handler;

client.open("GET", "test.xml");

client.send();

Master of Information System Management


W3c example 2

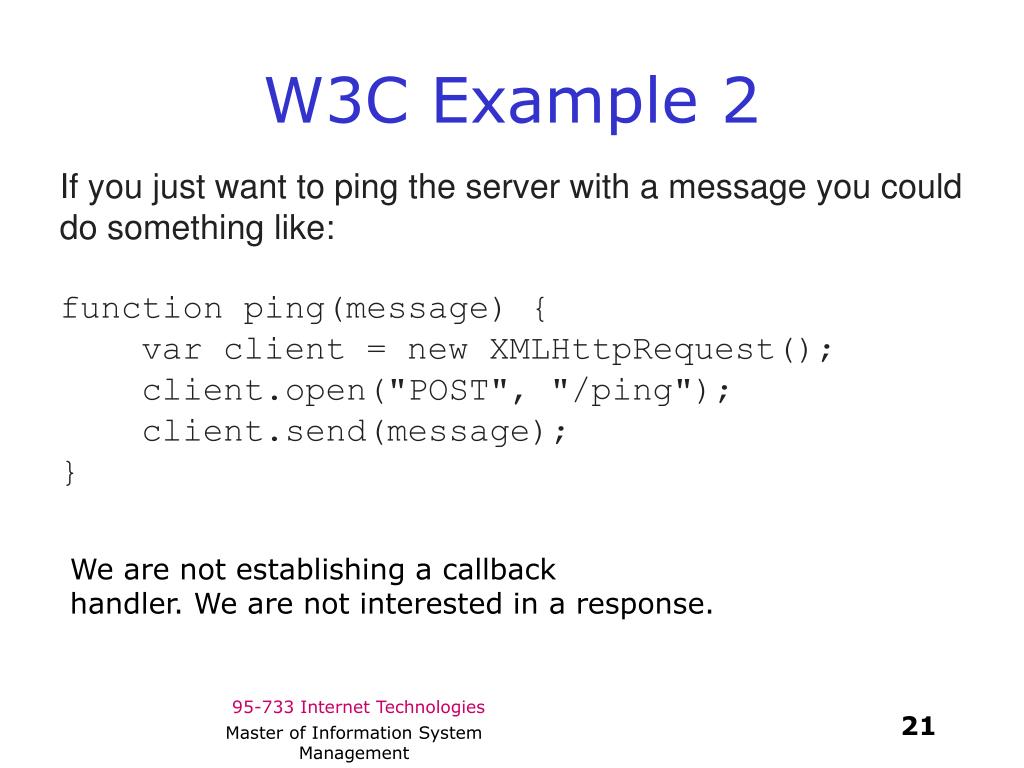

W3C Example 2

If you just want to ping the server with a message you could

do something like:

function ping(message) {

var client = new XMLHttpRequest();

client.open("POST", "/ping");

client.send(message);

}

We are not establishing a callback

handler. We are not interested in a response.

Master of Information System Management

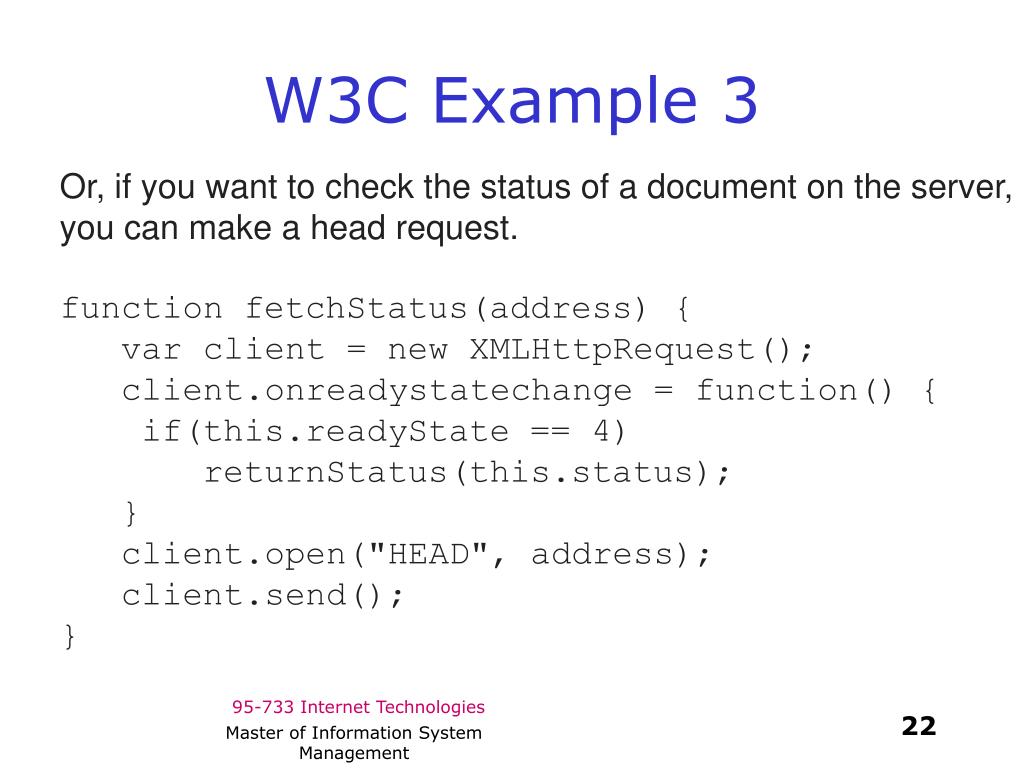

W3c example 3

W3C Example 3

Or, if you want to check the status of a document on the server,

you can make a head request.

function fetchStatus(address) {

var client = new XMLHttpRequest();

client.onreadystatechange = function() {

if(this.readyState == 4)

returnStatus(this.status);

}

client.open("HEAD", address);

client.send();

}

Master of Information System Management


State and state change

State and State Change

The state of the object. The readyState attribute must be

one of the following values:

0 Uninitialized The initial value.

1 Open The open() method has been successfully called.

2 Sent The user agent successfully acknowledged the

request.

3 Receiving Immediately before receiving the message

body (if any). All HTTP headers have been received.

4 Loaded The data transfer has been completed.

When readyState changes value a readystatechange

event is to be dispatched on the XMLHttpRequest object.

Master of Information System Management


Typical interaction

Typical Interaction

post

JavaScript function

XML

XMLHTTPRequest

handler

  • - Executed on

  • state change.

  • - this.responseXML

  • points to the root

  • of the XML

  • write HTML to

  • HTML DOM

HTML Button

Master of Information System Management


A complete example from ibm

A Complete Example From IBM

Demonstrations:

See article by Philip McCarthy on Ajax at:

http://www.ibm.com/developerworks/library/j-ajax1/

Eclipse workspace mm6/95-733

Visit http://localhost:8080/AjaxProject/index.jsp

Netbeans workspace mm6/95-733/AjaxUsingNetbeans

ACoolAjaxShoppingCart and

ACoolAjaxShoppingCartImproved

Master of Information System Management


Main features of index jsp 1

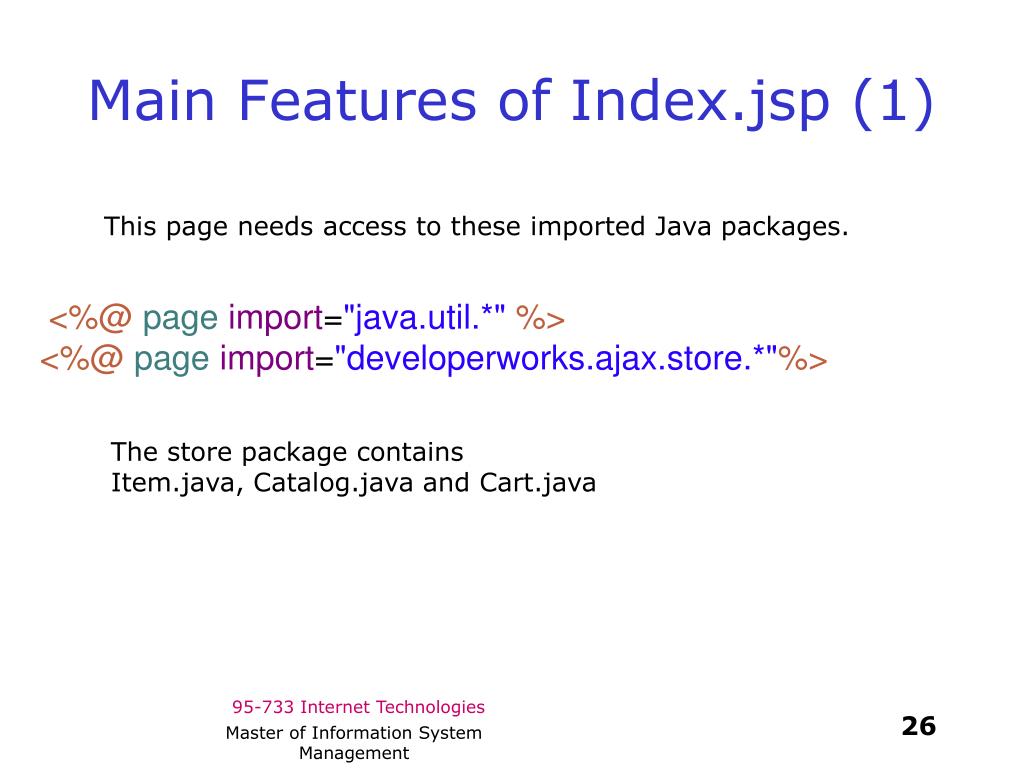

Main Features of Index.jsp (1)

This page needs access to these imported Java packages.

<%@ page import="java.util.*" %>

<%@ page import="developerworks.ajax.store.*"%>

The store package contains

Item.java, Catalog.java and Cart.java

Master of Information System Management

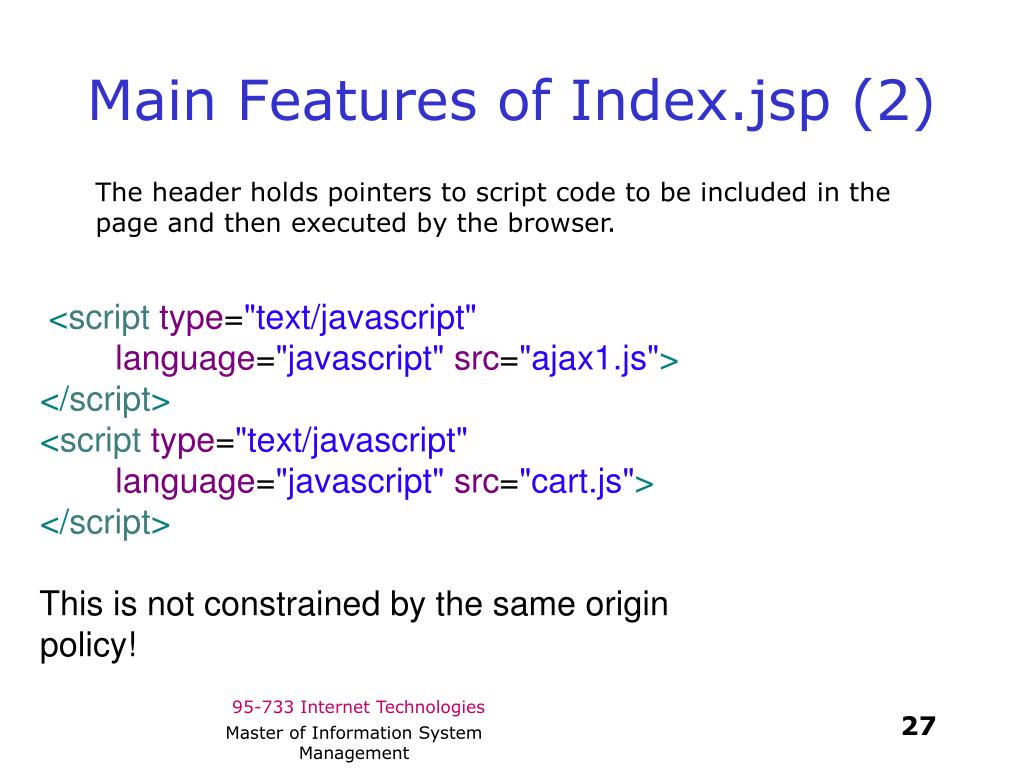

Main features of index jsp 2

Main Features of Index.jsp (2)

The header holds pointers to script code to be included in the

page and then executed by the browser.

<script type="text/javascript"

language="javascript" src="ajax1.js">

</script>

<script type="text/javascript"

language="javascript" src="cart.js">

</script>

This is not constrained by the same origin

policy!

Master of Information System Management


Main features of index jsp 3

Main Features of Index.jsp (3)

The table body tag encloses table rows that are generated on

the server. This is Java (part of JSP) and is not JavaScript.

<tbody>

<%

for (Iterator<Item> I =

new Catalog().getAllItems().iterator();

I.hasNext() ; ) {

Item item = I.next();

%>

Master of Information System Management

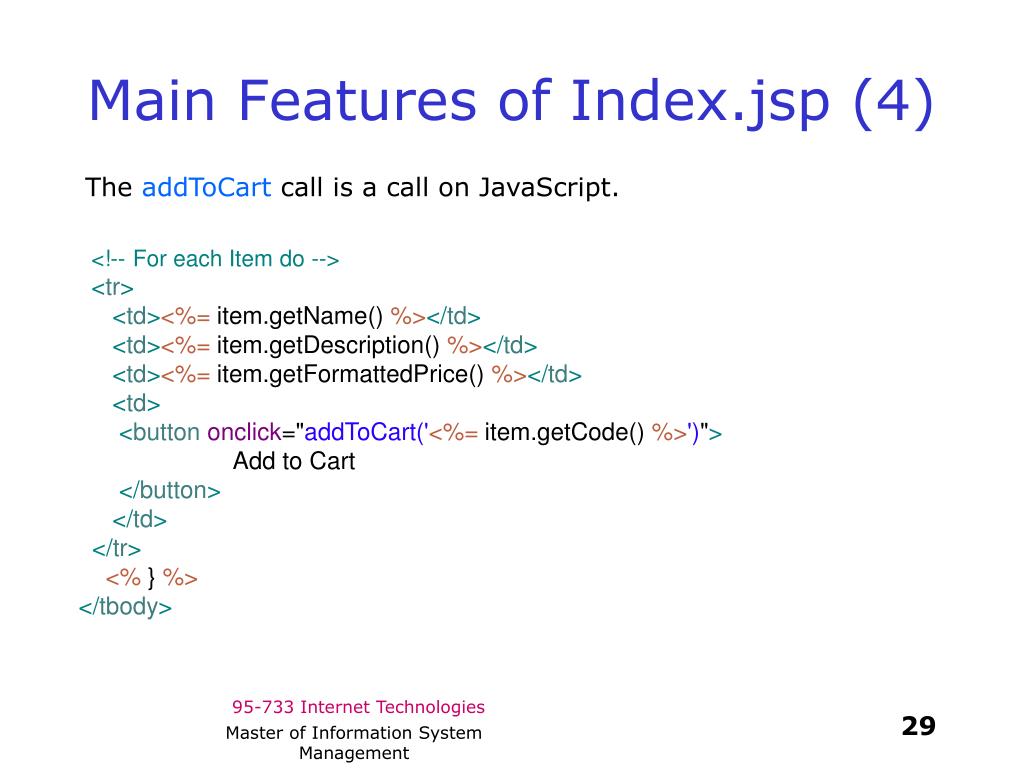

Main features of index jsp 4

Main Features of Index.jsp (4)

The addToCart call is a call on JavaScript.

<!-- For each Item do -->

<tr>

<td><%= item.getName() %></td>

<td><%= item.getDescription() %></td>

<td><%= item.getFormattedPrice() %></td>

<td>

<button onclick="addToCart('<%= item.getCode() %>')">

Add to Cart

</button>

</td>

</tr>

<% } %>

</tbody>

Master of Information System Management


Main features of index jsp 5

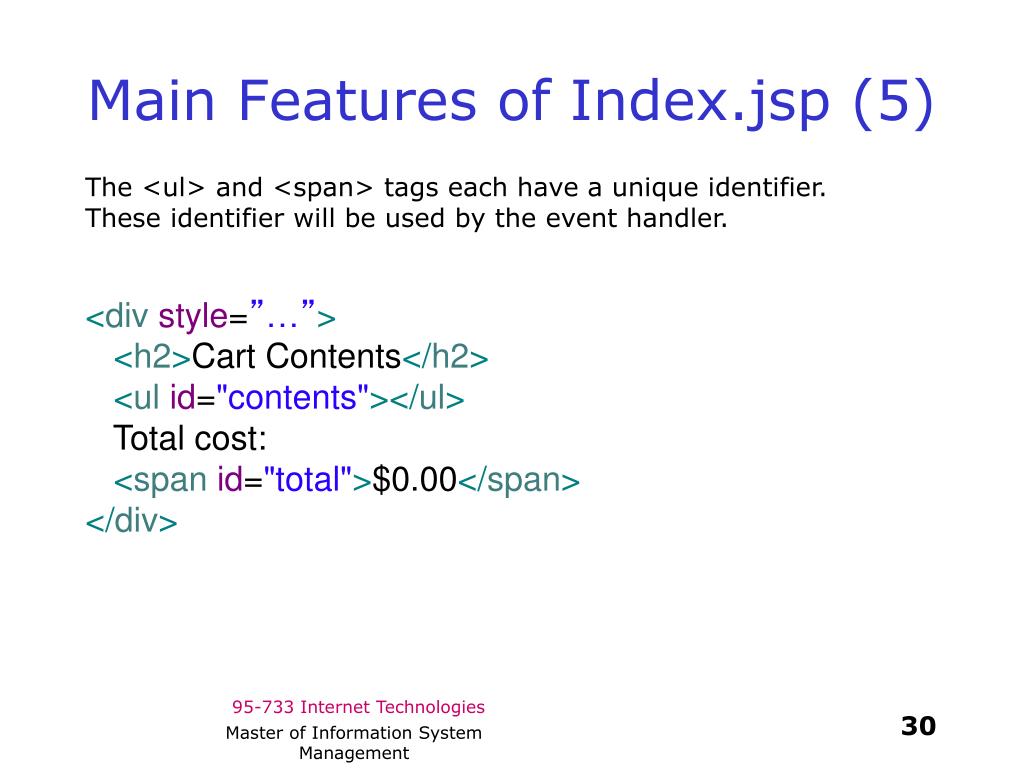

Main Features of Index.jsp (5)

The <ul> and <span> tags each have a unique identifier.

These identifier will be used by the event handler.

<div style=”…”>

<h2>Cart Contents</h2>

<ul id="contents"></ul>

Total cost:

<span id="total">$0.00</span>

</div>

Master of Information System Management

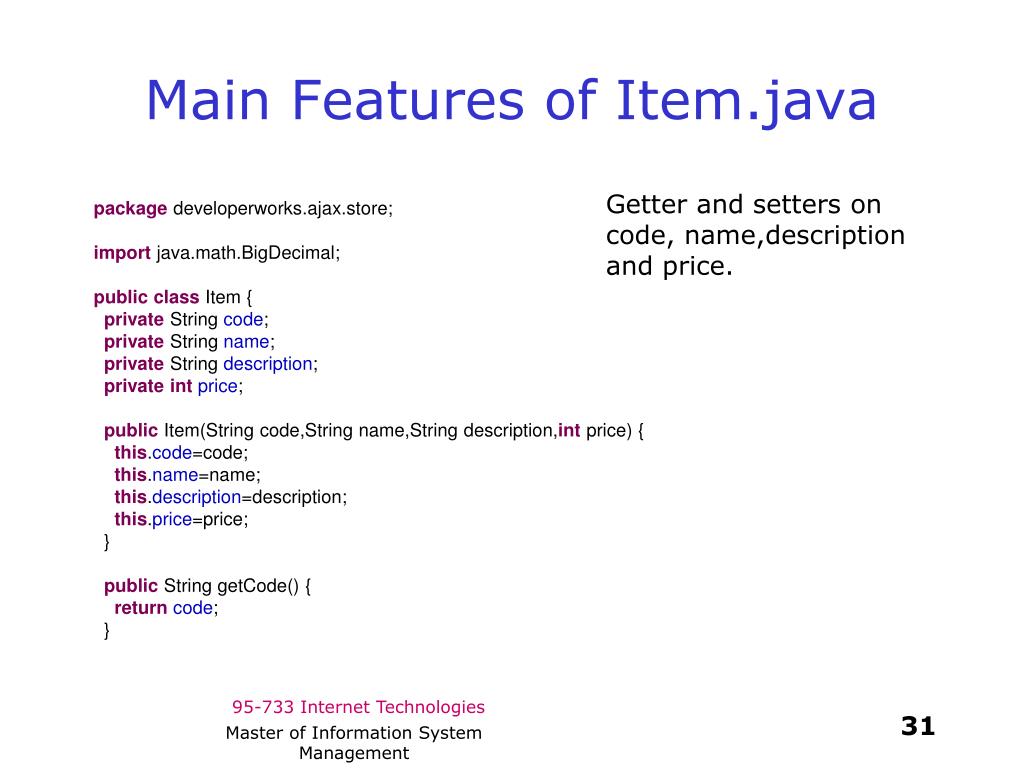

Main features of item java

Main Features of Item.java

Getter and setters on

code, name,description

and price.

package developerworks.ajax.store;

import java.math.BigDecimal;

publicclass Item {

private String code;

private String name;

private String description;

privateintprice;

public Item(String code,String name,String description,int price) {

this.code=code;

this.name=name;

this.description=description;

this.price=price;

}

public String getCode() {

returncode;

}

Master of Information System Management


Main features of catalog java 1

Main Features of Catalog.java(1)

package developerworks.ajax.store;

import java.util.*;

publicclass Catalog {

privatestatic Map<String,Item> items;

static {

items = new HashMap<String,Item>();

items.put("hat001",new Item("hat001",

"Hat","Stylish bowler hat (SALE!)",

1999));

:

}

Master of Information System Management


Main features of catalog java 2

Main Features of Catalog.java(2)

public Collection<Item> getAllItems() {

returnitems.values();

}

publicboolean containsItem(String itemCode)

{

returnitems.containsKey(itemCode);

}

public Item getItem(String itemCode) {

returnitems.get(itemCode);

}

}

Master of Information System Management


Main features of cart java 1

Main Features of Cart.java(1)

package developerworks.ajax.store;

public class Cart {

private HashMap<Item,Integer> contents;

public Cart() { contents = new HashMap<Item,Integer>(); }

Master of Information System Management


Main features of cart java 2

Main Features of Cart.java(2)

public void addItem(String itemCode) {

Catalog catalog = new Catalog();

if (catalog.containsItem(itemCode)) {

Item item = catalog.getItem(itemCode);

int newQuantity = 1;

if (contents.containsKey(item)) {

Integer currentQuantity = contents.get(item);

newQuantity += currentQuantity.intValue();

} contents.put(item, new Integer(newQuantity)); } }

Master of Information System Management


Main features of cart java 3

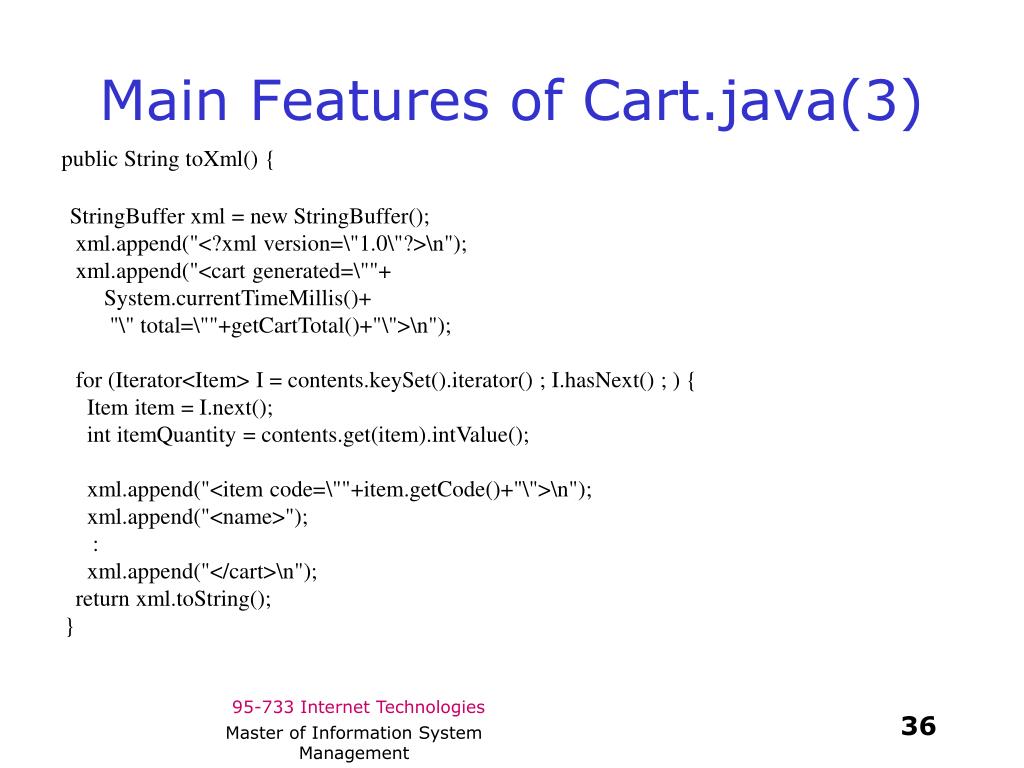

Main Features of Cart.java(3)

public String toXml() {

StringBuffer xml = new StringBuffer();

xml.append("<?xml version=\"1.0\"?>\n");

xml.append("<cart generated=\""+

System.currentTimeMillis()+

"\" total=\""+getCartTotal()+"\">\n");

for (Iterator<Item> I = contents.keySet().iterator() ; I.hasNext() ; ) {

Item item = I.next();

int itemQuantity = contents.get(item).intValue();

xml.append("<item code=\""+item.getCode()+"\">\n");

xml.append("<name>");

:

xml.append("</cart>\n");

return xml.toString();

}

Master of Information System Management


Main features of cartservlet java 1

Main Features of CartServlet.java(1)

private Cart getCartFromSession(HttpServletRequest req)

{

HttpSession session = req.getSession(true);

Cart cart = (Cart)session.getAttribute("cart");

if (cart == null) {

cart = new Cart();

session.setAttribute("cart", cart);

}

return cart;

}

Master of Information System Management


Main features of cartservlet java 2

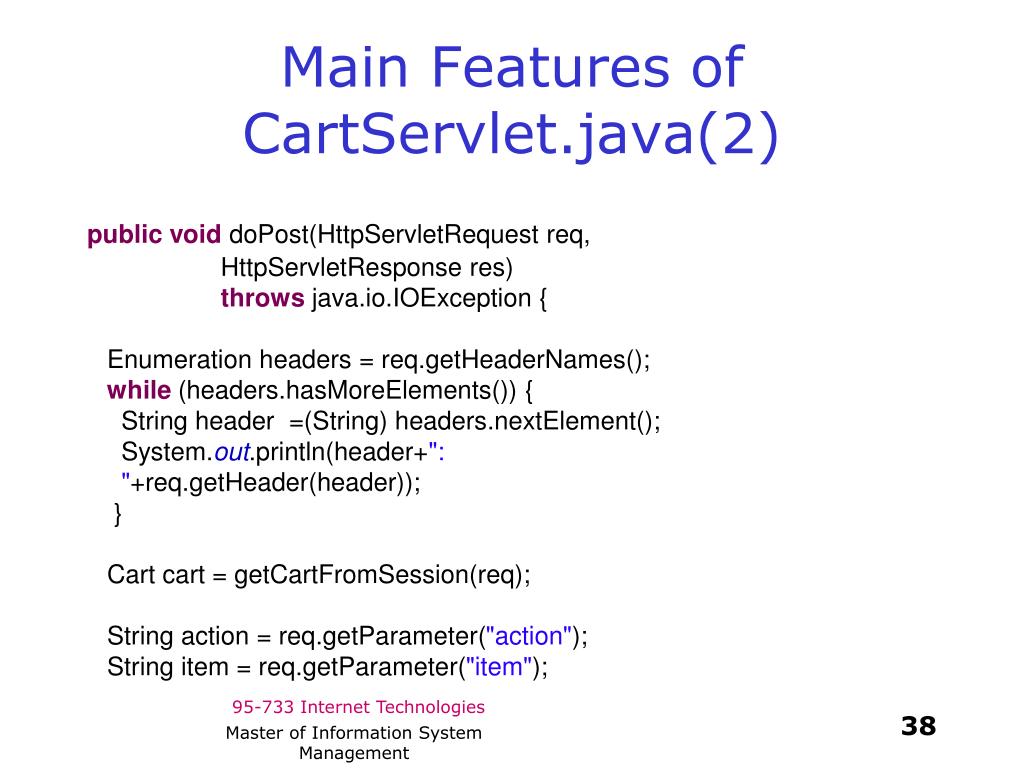

Main Features of CartServlet.java(2)

publicvoid doPost(HttpServletRequest req,

HttpServletResponse res)

throws java.io.IOException {

Enumeration headers = req.getHeaderNames();

while (headers.hasMoreElements()) {

String header =(String) headers.nextElement();

System.out.println(header+":

"+req.getHeader(header));

}

Cart cart = getCartFromSession(req);

String action = req.getParameter("action");

String item = req.getParameter("item");

Master of Information System Management


Main features of cartservlet java 3

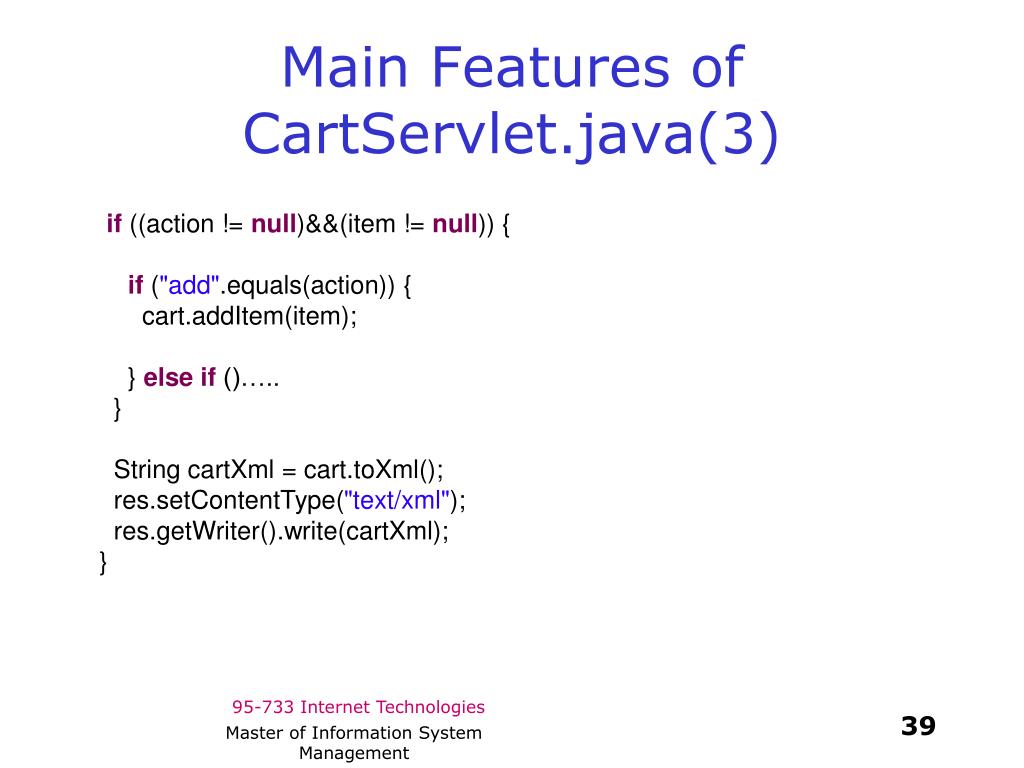

Main Features of CartServlet.java(3)

if ((action != null)&&(item != null)) {

if ("add".equals(action)) {

cart.addItem(item);

} elseif ()…..

}

String cartXml = cart.toXml();

res.setContentType("text/xml");

res.getWriter().write(cartXml);

}

Master of Information System Management


Main features axis1 js 1

Main Features Axis1.js (1)

/*

* Returns an new XMLHttpRequest object, or false if the browser

* doesn't support it

*/

function newXMLHttpRequest() {

var xmlreq = false;

// Create XMLHttpRequest object in non-Microsoft browsers

if (window.XMLHttpRequest) {

xmlreq = new XMLHttpRequest();

}

Master of Information System Management


Main features axis1 js 2

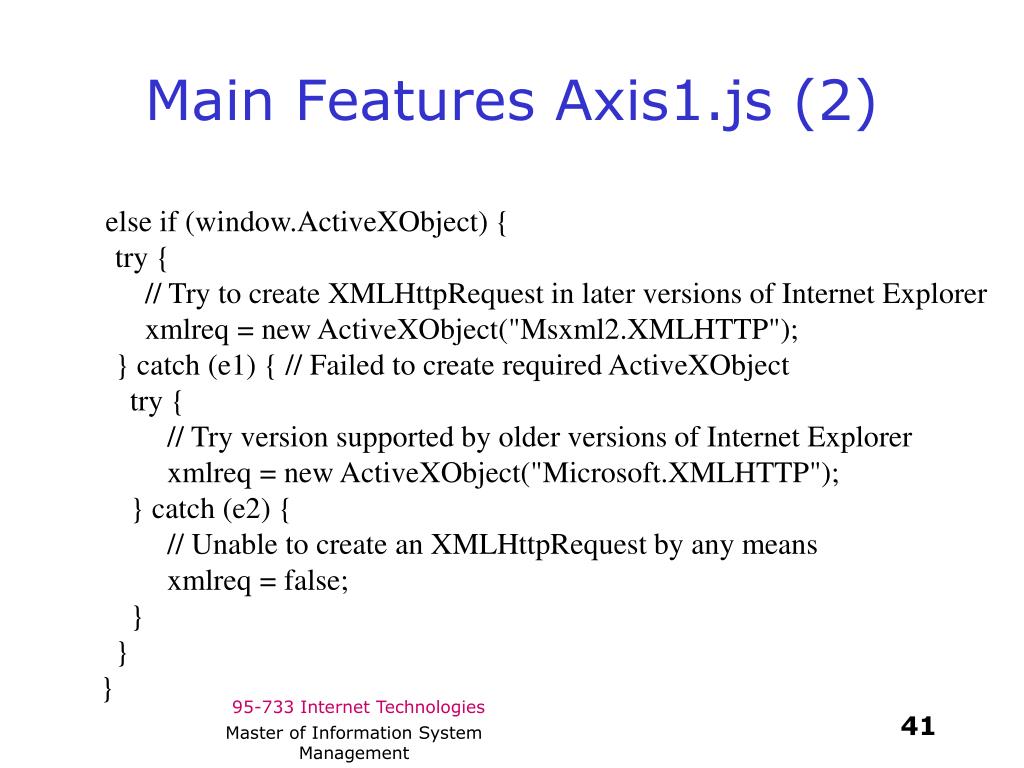

Main Features Axis1.js (2)

else if (window.ActiveXObject) {

try {

// Try to create XMLHttpRequest in later versions of Internet Explorer

xmlreq = new ActiveXObject("Msxml2.XMLHTTP");

} catch (e1) { // Failed to create required ActiveXObject

try {

// Try version supported by older versions of Internet Explorer

xmlreq = new ActiveXObject("Microsoft.XMLHTTP");

} catch (e2) {

// Unable to create an XMLHttpRequest by any means

xmlreq = false;

}

}

}

Master of Information System Management


Main features axis1 js 3

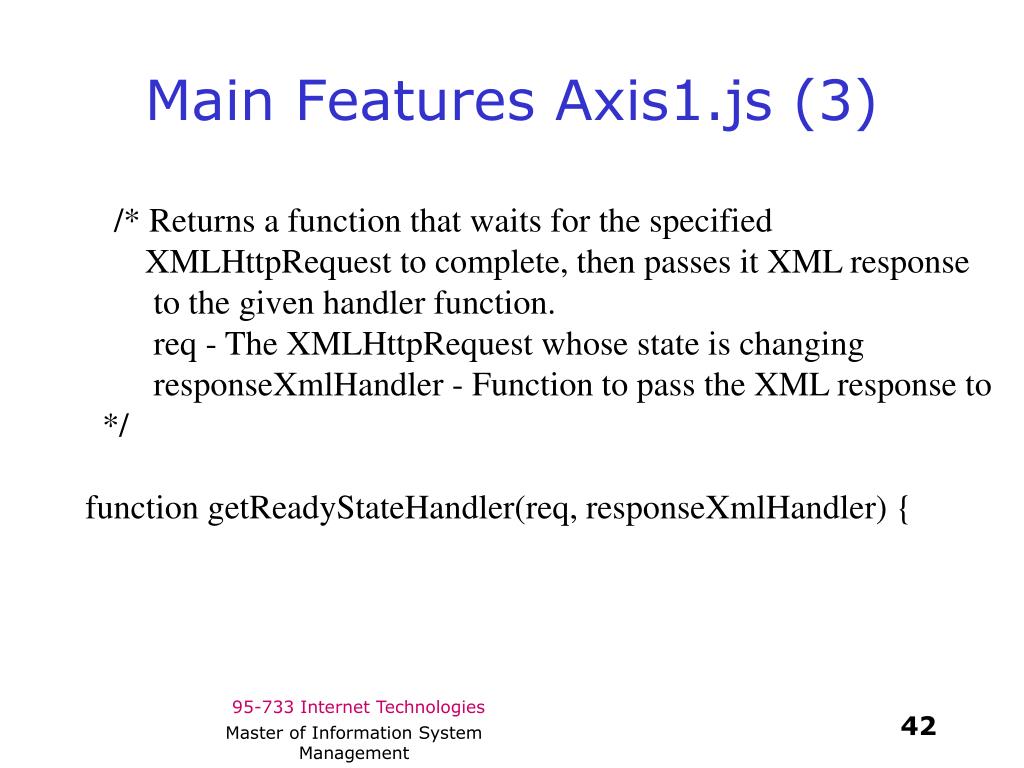

Main Features Axis1.js (3)

/* Returns a function that waits for the specified

XMLHttpRequest to complete, then passes it XML response

to the given handler function.

req - The XMLHttpRequest whose state is changing

responseXmlHandler - Function to pass the XML response to

*/

function getReadyStateHandler(req, responseXmlHandler) {

Master of Information System Management


Main features axis1 js 4

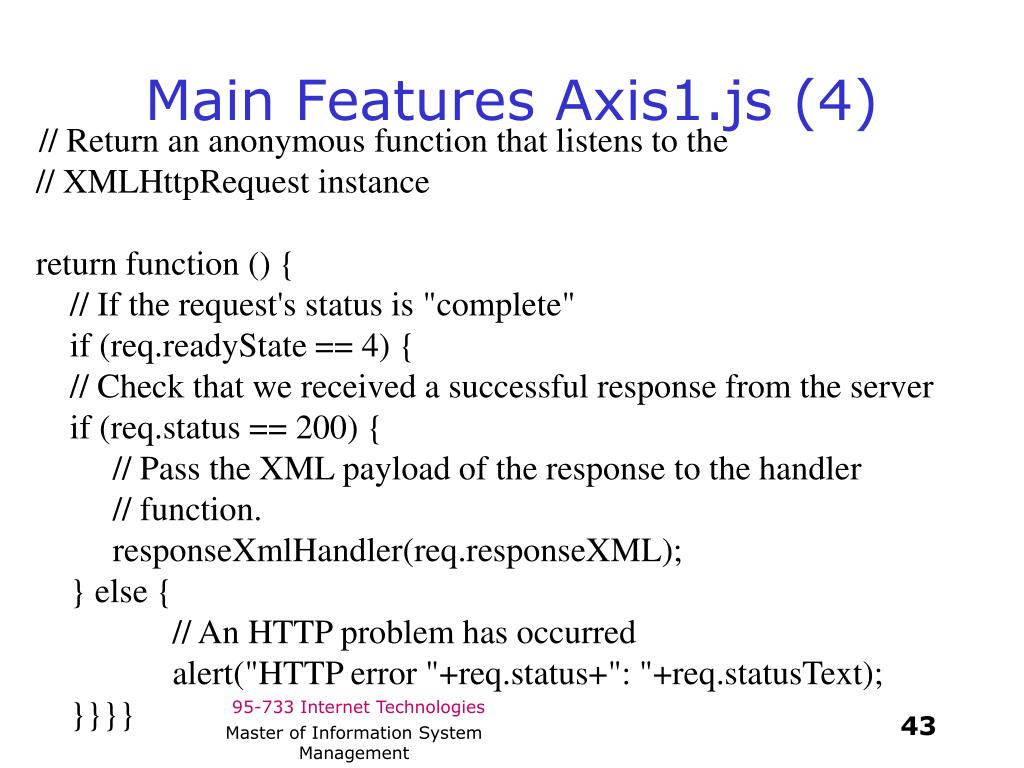

Main Features Axis1.js (4)

// Return an anonymous function that listens to the

// XMLHttpRequest instance

return function () {

// If the request's status is "complete"

if (req.readyState == 4) {

// Check that we received a successful response from the server

if (req.status == 200) {

// Pass the XML payload of the response to the handler

// function.

responseXmlHandler(req.responseXML);

} else {

// An HTTP problem has occurred

alert("HTTP error "+req.status+": "+req.statusText);

}}}}

Master of Information System Management


Main features cart js 1

Main Features Cart.js (1)

// Timestamp of cart that page was last updated with

var lastCartUpdate = 0;

// Adds the specified item to the shopping cart, via Ajax call

// itemCode - product code of the item to add

function addToCart(itemCode) {

var req = newXMLHttpRequest();

req.onreadystatechange = getReadyStateHandler(req, updateCart);

req.open("POST", "cart.do", true);

req.setRequestHeader("Content-Type", "application/x-www-form-urlencoded");

req.send("action=add&item="+itemCode);

}

Establish handler

and pack up and

send the request.

Master of Information System Management


Main features cart js 2

Main Features Cart.js (2)

/*

* Update shopping-cart area of page to reflect contents of cart

* described in XML document.

*/

function updateCart(cartXML) {

var cart = cartXML.getElementsByTagName("cart")[0];

var generated = cart.getAttribute("generated");

if (generated > lastCartUpdate) {

lastCartUpdate = generated;

var contents = document.getElementById("contents");

contents.innerHTML = "";

Master of Information System Management


Main features cart js 3

Main Features Cart.js (3)

var items = cart.getElementsByTagName("item");

for (var I = 0 ; I < items.length ; I++) {

var item = items[I];

var name = item.getElementsByTagName("name")[0].firstChild.nodeValue;

var quantity = item.getElementsByTagName("quantity")[0].firstChild.nodeValue;

var listItem = document.createElement("li");

listItem.appendChild(document.createTextNode(name+" x "+quantity));

contents.appendChild(listItem);

}

}

document.getElementById("total").innerHTML = cart.getAttribute("total");

}

Master of Information System Management


Shopping cart interaction

Shopping Cart Interaction

post

addToCart(itemCode)

XML

XMLHTTPRequest

UpdateCart

reads XML

writes HTML

Anonymous handler

- Executed on

state change.

- req.responseXML

points to the root

of the XML

- calls updateCart

HTML Button

Master of Information System Management


Main features cart js 4

Main Features Cart.js (4)

The handler is reading data with the following format:

<?xml version="1.0"?>

<cart generated="1200367057873" total="$19.99">

<item code="str001">

<name>String</name>

<quantity>1</quantity>

</item>

</cart>

Master of Information System Management


Another example from sebesta chapter 10

Another Example From Sebesta Chapter 10

A form is required to collect name, address, zip, city, and state.

The zip code entry causes an asynchronous call on a servlet

to automatically complete the city and state fields.

The asynchronous call is made when the user blurs (or moves

away from) the zip code field.

This demo is in the Netbeans project

mm6/www/95-733/AjaxUsingNetbeans/SebestaAjaxExample.

Master of Information System Management


Index jsp main features

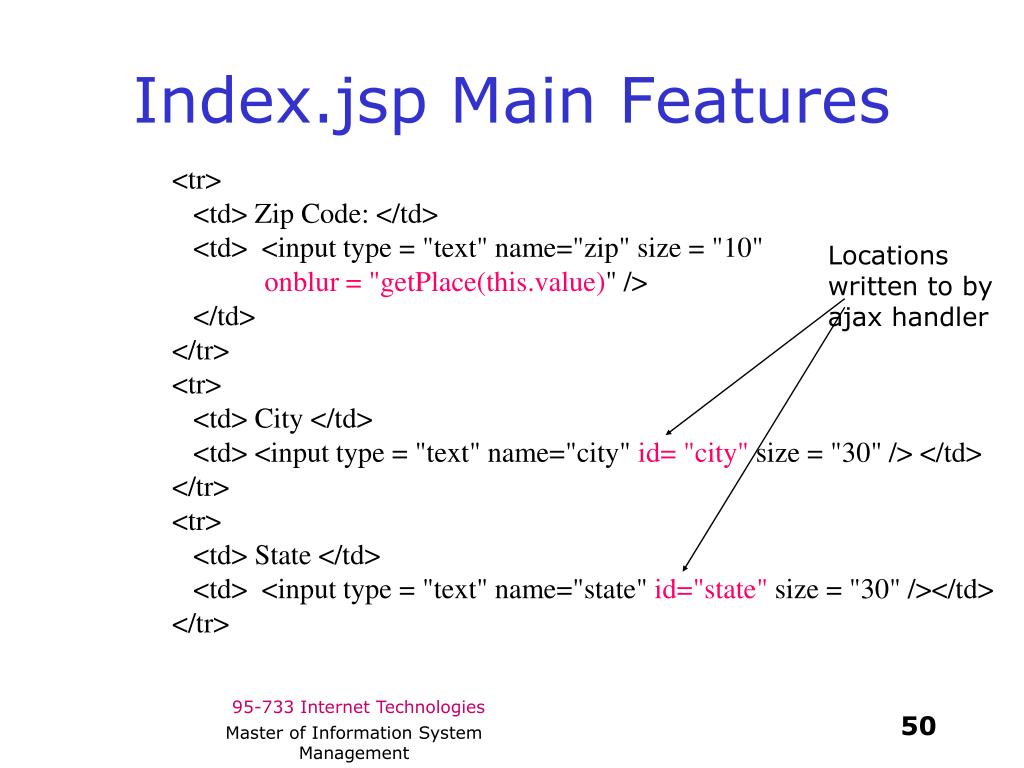

Index.jsp Main Features

<tr>

<td> Zip Code: </td>

<td> <input type = "text" name="zip" size = "10"

onblur = "getPlace(this.value)" />

</td>

</tr>

<tr>

<td> City </td>

<td> <input type = "text" name="city" id= "city" size = "30" /> </td>

</tr>

<tr>

<td> State </td>

<td> <input type = "text" name="state" id="state" size = "30" /></td>

</tr>

Locations

written to by

ajax handler

Master of Information System Management


Javascript main features

Javascript Main Features

function getPlace(zip) {

var xhr;

if(window.XMLHttpRequest)

xhr = new XMLHttpRequest();

else

xhr = ActiveXObject("Microsoft.XMLHTTP");

xhr.onreadystatechange = function() {

if(xhr.readyState == 4) {

var result = xhr.responseText;

var place = result.split(', ');

document.getElementById("city").value = place[0];

document.getElementById("state").value = place[1];

}

}

xhr.open("GET", "ZipToCityStateServlet?zip="+zip,true);

xhr.send(null);

}

Master of Information System Management


Two servlets one for ajax

Two Servlets - One for AJAX

protected void processRequest(HttpServletRequest request,

HttpServletResponse response)

throws ServletException, IOException {

response.setContentType("text/html;charset=UTF-8");

PrintWriter out = response.getWriter();

try {

// Return simple text to Ajax request

if(request.getParameter("zip").equals("15216"))

out.println("Pittsburgh, PA");

else

out.println("New York, NY");

} finally {

out.close();

}

}

Master of Information System Management


Another for the form

Another For the Form

out.println("<h2>Name: " + request.getParameter("name") + "</h2>");

out.println("<h2>Street: " + request.getParameter("street") + "</h2>");

out.println("<h2>Zip: " + request.getParameter("zip") + "</h2>");

out.println("<h2>City: " + request.getParameter("city") + "</h2>");

out.println("<h2>State: " + request.getParameter("state") + "</h2>");

Master of Information System Management


Xml or json 1

XML Or JSON ? (1)

<Person firstName="John" lastName="Smith">

<Address>

<streetAddress>21 2nd Street</streetAddress>

<city>New York</city>

<state>NY</state>

<postalCode>10021</postalCode>

</Address>

<phoneNumber type="home"> 212 555-1234 </phoneNumber>

<phoneNumber type="fax"> 646 555-4567 </phoneNumber>

</Person>

From Wikipedia.org

Master of Information System Management


Xml or json 2

XML Or JSON ? (2)

{

"firstName": "John", "lastName": "Smith",

"address":

{ "streetAddress": "21 2nd Street",

"city": "New York", "state": "NY",

"postalCode": "10021"

},

"phoneNumbers":

[ { "type": "home", "number": "212 555-1234" },

{ "type": "fax", "number": "646 555-4567" } ]

}

If this text is in the variable coolText, then we can create a

JavaScript object with the line of code:

var x = eval("(" + coolText + ")");

And access the data with x.phoneNumbers[0].

From Wikipedia.org

Master of Information System Management


Which to use

Which To Use?

Master of Information System Management


Which to use1

Which To Use?

JSON has some advantages over XML:

JSON messages are smaller and therefore faster.

Very little parsing is required.

JSON is simpler and simple is good.

XML has some advantages over JSON:

If the document is to be integrated more or less intact, XML is

better. With JSON, you would need to construct the tags.

XSLT can be used to transform a response into an appropriate

format.

XML Signature and XML Encryption not available for JSON.

Master of Information System Management


Some popular toolkits

Some Popular Toolkits

  • Any survey of all of the toolkits would quickly be obsolete.

  • jQuery supports Ajax

  • ASP.NET AJAX

  • This is the free Microsoft AJAX framework.

  • Google Web Toolkit (GWT)

  • Write in Java and generate JavaScript.

  • Direct Web Remoting (DWR)

  • Easily make calls on Remote Java Objects through

  • JavaScript.

  • Dojo

  • A free JavaScript library increasing the level of abstraction.

  • Prototype

  • A JavaScript Framework that aims to ease development

  • of dynamic web applications.

Master of Information System Management


Jquery ajax example

jQuery AJAX Example

<!DOCTYPE html>

<html>

<head>

<script src="jquery.js"></script>

<script>

$(document).ready(function(){

$("button").click(function(){

$("div").load('test1.txt');

});

});

</script>

</head>

<body>

<div><h2>Let AJAX change this text</h2></div>

<button>Change Content</button>

</body>

</html>

The syntax is: $(selector).action()

A $ sign to define/access jQuery

A (selector) to "query (or find)"

HTML elements

A jQuery action() to be performed

on the element(s)

Document ready before running

jQuery.

From W3C Schools

Master of Information System Management


Dojo ajax example

Dojo Ajax Example

dojo.io.bind ( {

url : “getCityState.php?zip=“ + zip,

load: function( type, data, evt ) {

var place = data.split(‘, ’);

if(dojo.byID(“city”).value = “”

dojo.byID(“city”).value = place[0];

if(dojo.byID(“state”).value = “”

dojo.byID(“state”).value = place[1];

},

error: function(type, data, evt ) {

alert(“Error in request, returned data:”+data);

},

method: “GET”,

mimetype: “text/plain”

}

);

Note the use of

JSON to describe

an AJAX call.

From Pg. 414

Of Sebesta

Master of Information System Management


  • Login
