Epics mdsplus interface methods

Office of

Science

Supported by

EPICS/MDSplus Interface Methods

Paul Sichta, NSTX Project

in collaboration with

Mikyung Park, KSTAR Project

Gabriele Manduchi, RFX Project

EPICS Collaboration Meeting

June 2-4, 2010

Aix-en-Provence, France

College W&M

Colorado Sch Mines

Columbia U

Comp-X

General Atomics

INEL

Johns Hopkins U

LANL

LLNL

Lodestar

MIT

Nova Photonics

New York U

Old Dominion U

ORNL

PPPL

PSI

Princeton U

SNL

Think Tank, Inc.

UC Davis

UC Irvine

UCLA

UCSD

U Colorado

U Maryland

U Rochester

U Washington

U Wisconsin

Culham Sci Ctr

U St. Andrews

York U

Chubu U

Fukui U

Hiroshima U

Hyogo U

Kyoto U

Kyushu U

Kyushu Tokai U

NIFS

Niigata U

U Tokyo

JAERI

Hebrew U

Ioffe Inst

RRC Kurchatov Inst

TRINITI

NFRI

KAIST

ENEA, Frascati

CEA, Cadarache

IPP, Jülich

IPP, Garching

ASCR, Czech Rep

U Quebec


Introduction

Introduction

  • In the beginning (NSTX 1999),

    • Engineering used EPICS and Physics used MDSplus

    • Separate organizational units were implementing each framework

    • Both frameworks were being deployed for the first time at PPPL.

    • Both were “free” and “open source”.

  • As machine operations matured the benefits of integration became apparent.

  • The organizational units were unified

NSTX

EPICS Spring 2010


Epics mdsplus interface methods at nstx

EPICS/MDSplus Interface Methods at NSTX

  • Use a client that speaks both EPICS and MDSplus

    • C programs (on Unix) calling both EPICS CA and MDSplus libraries

    • IDL using EZCA_IDL for EPICS and community-developed IDL functions for MDSplus

    • Unix shell scripts

Client

  • New EPICS records were prototyped in 2005, but never matured into production (Mastrovito, 5th IAEA TM on Control, Data Acquisition…)

  • Performance was poor

  • A low-priority project


Epics mdsplus interface methods at kstar

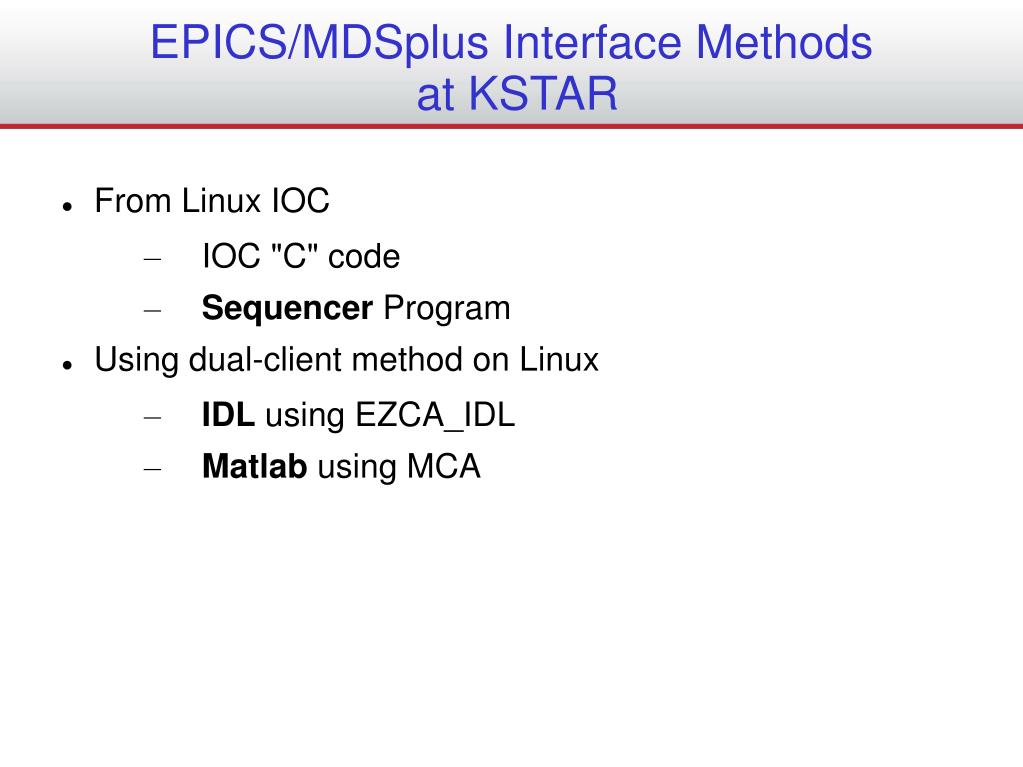

EPICS/MDSplus Interface Methods at KSTAR

  • From Linux IOC

    • IOC "C" code

    • Sequencer Program

  • Using dual-client method on Linux

    • IDL using EZCA_IDL

    • Matlab using MCA


New epics mdsplus interface methods are in development

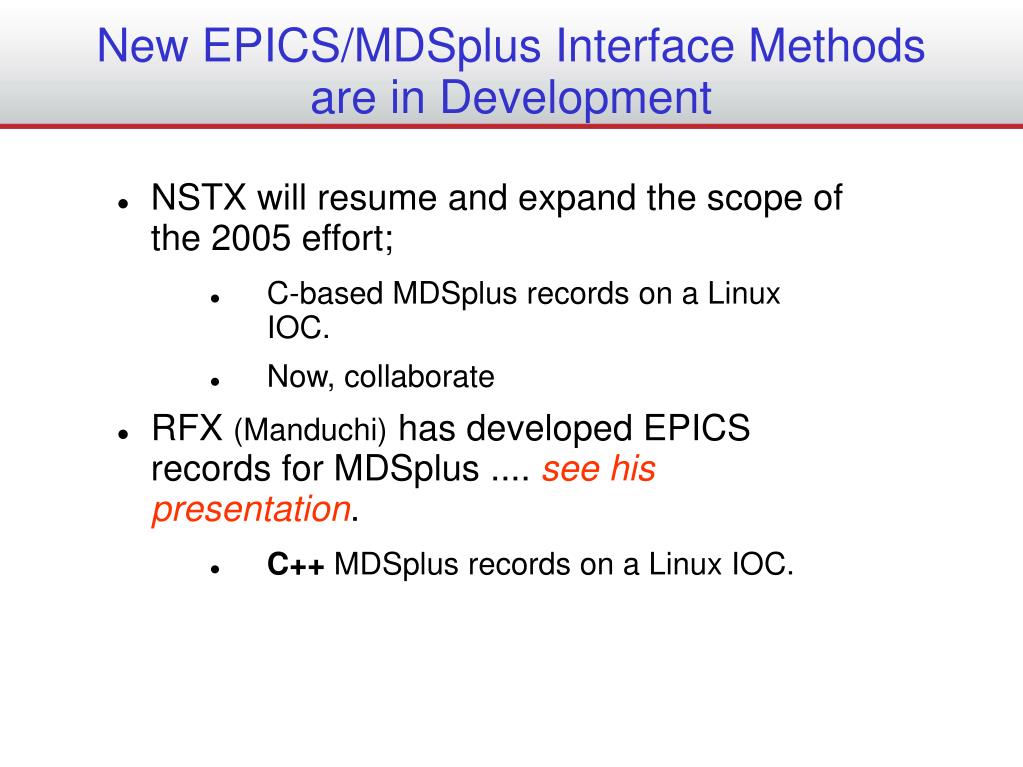

New EPICS/MDSplus Interface Methods are in Development

  • NSTX will resume and expand the scope of the 2005 effort;

    • C-based MDSplus recordson a Linux IOC.

    • Now, collaborate

  • RFX (Manduchi) has developed EPICS records for MDSplus .... see his presentation.

    • C++ MDSplus records on a Linux IOC.


Epics mdsplus interface plans at kstar

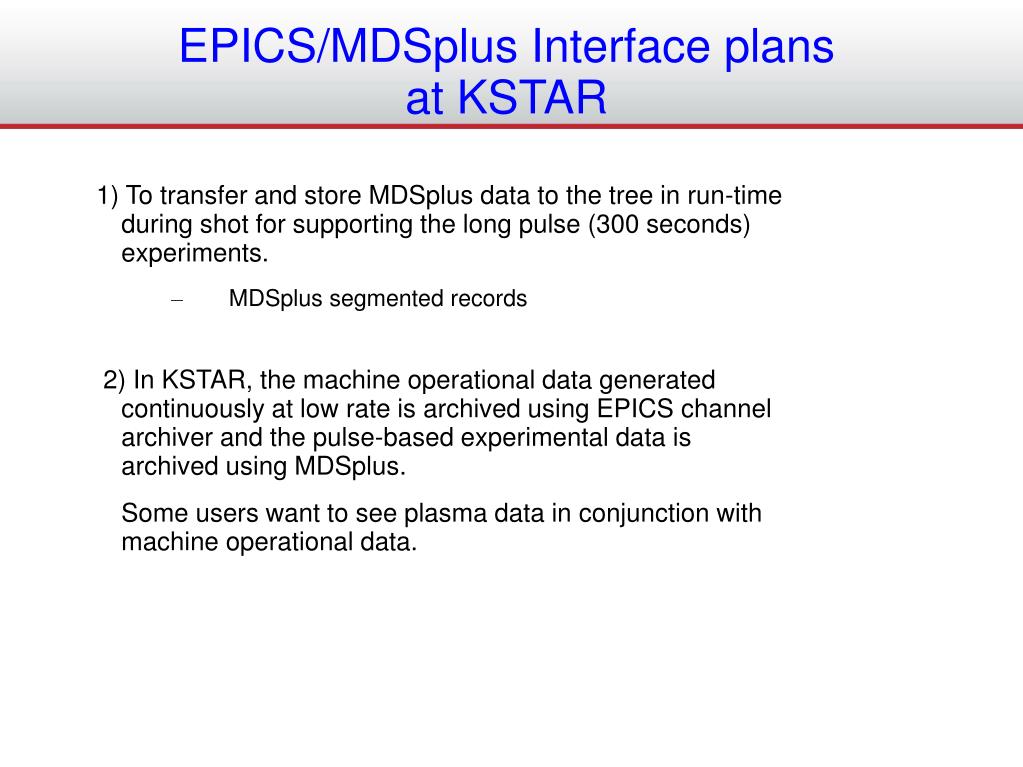

EPICS/MDSplus Interface plans at KSTAR

  • 1) To transfer and store MDSplus data to the tree in run-time during shot for supporting the long pulse (300 seconds) experiments.

    • MDSplus segmented records

  • 2) In KSTAR, the machine operational data generated continuously at low rate is archived using EPICS channel archiver and the pulse-based experimental data is archived using MDSplus.

  • Some users want to see plasma data in conjunction with machine operational data.


Develop other epics mdsplus interfaces

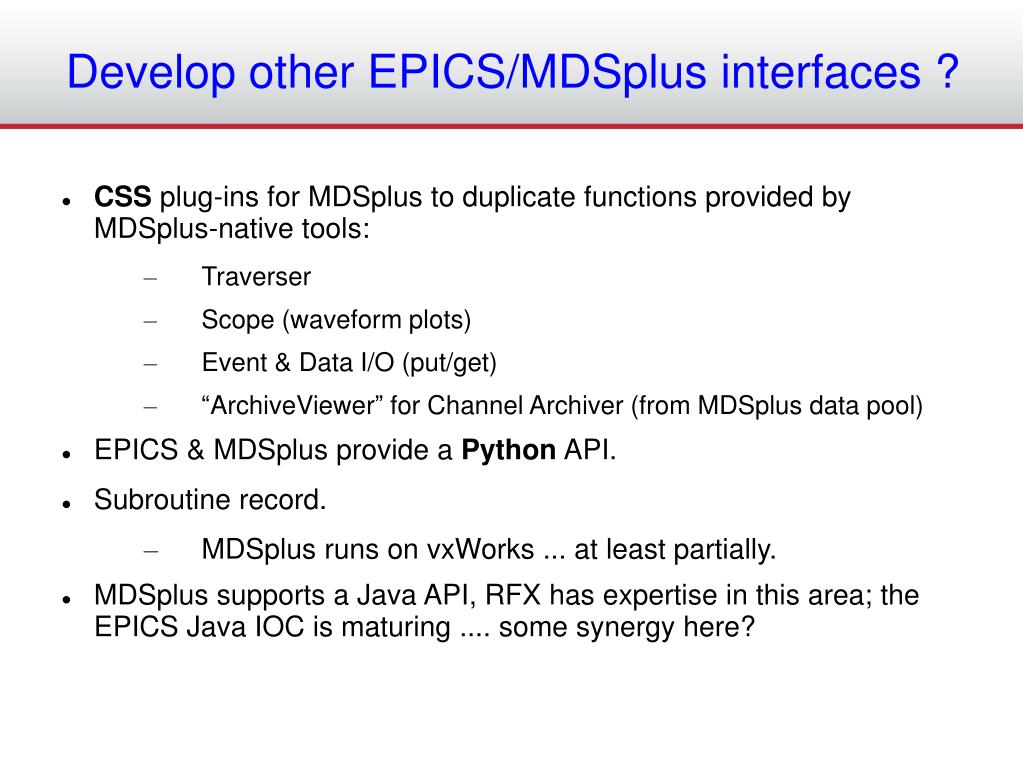

Develop other EPICS/MDSplus interfaces ?

  • CSS plug-ins for MDSplus to duplicate functions provided by MDSplus-native tools:

    • Traverser

    • Scope (waveform plots)

    • Event & Data I/O (put/get)

    • “ArchiveViewer” for Channel Archiver (from MDSplus data pool)

  • EPICS & MDSplus provide a Python API.

  • Subroutine record.

    • MDSplus runs on vxWorks ... at least partially.

  • MDSplus supports a Java API, RFX has expertise in this area; the EPICS Java IOC is maturing .... some synergy here?


Epics mdsplus interface methods

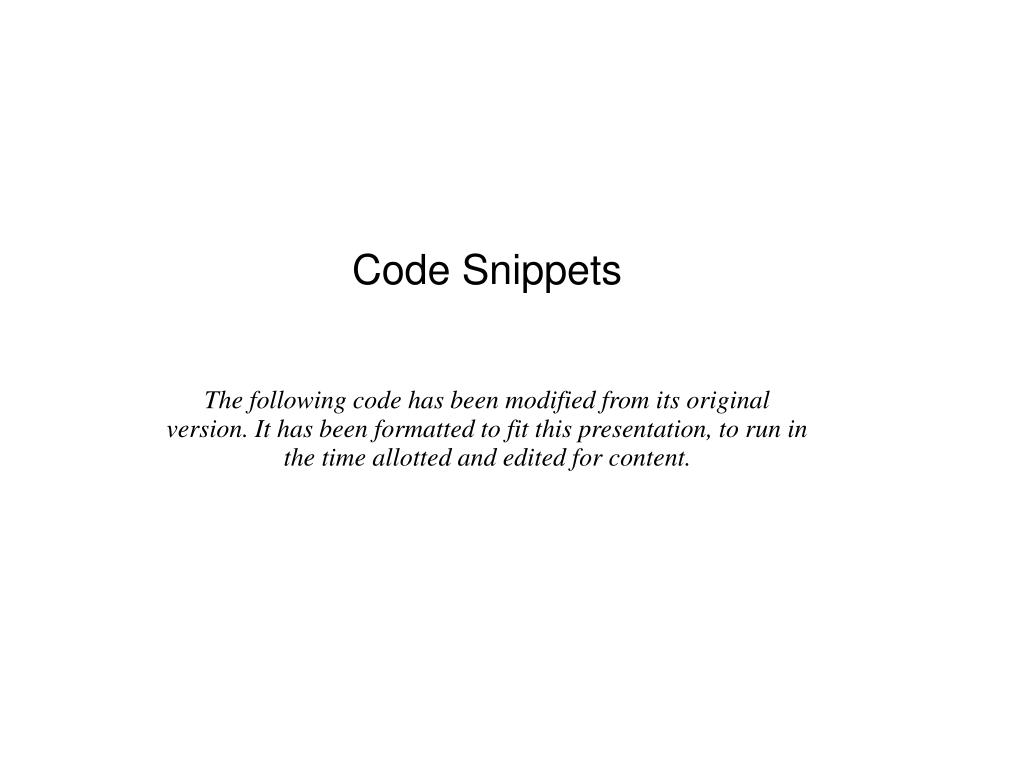

Code Snippets

The following code has been modified from its original version. It has been formatted to fit this presentation, to run in the time allotted and edited for content.


C based client nstx

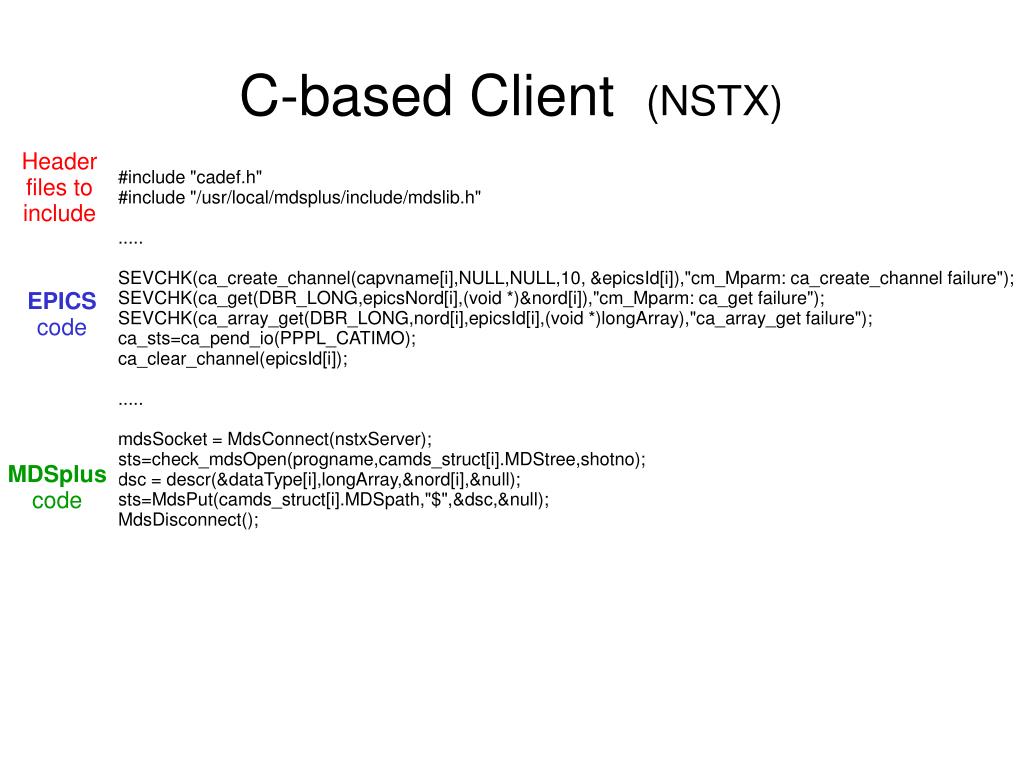

C-based Client (NSTX)

Header files to include

#include "cadef.h"

#include "/usr/local/mdsplus/include/mdslib.h"

.....

SEVCHK(ca_create_channel(capvname[i],NULL,NULL,10, &epicsId[i]),"cm_Mparm: ca_create_channel failure");

SEVCHK(ca_get(DBR_LONG,epicsNord[i],(void *)&nord[i]),"cm_Mparm: ca_get failure");

SEVCHK(ca_array_get(DBR_LONG,nord[i],epicsId[i],(void *)longArray),"ca_array_get failure");

ca_sts=ca_pend_io(PPPL_CATIMO);

ca_clear_channel(epicsId[i]);

.....

mdsSocket = MdsConnect(nstxServer);

sts=check_mdsOpen(progname,camds_struct[i].MDStree,shotno);

dsc = descr(&dataType[i],longArray,&nord[i],&null);

sts=MdsPut(camds_struct[i].MDSpath,"$",&dsc,&null);

MdsDisconnect();

EPICS

code

MDSplus

code


Idl based client nstx

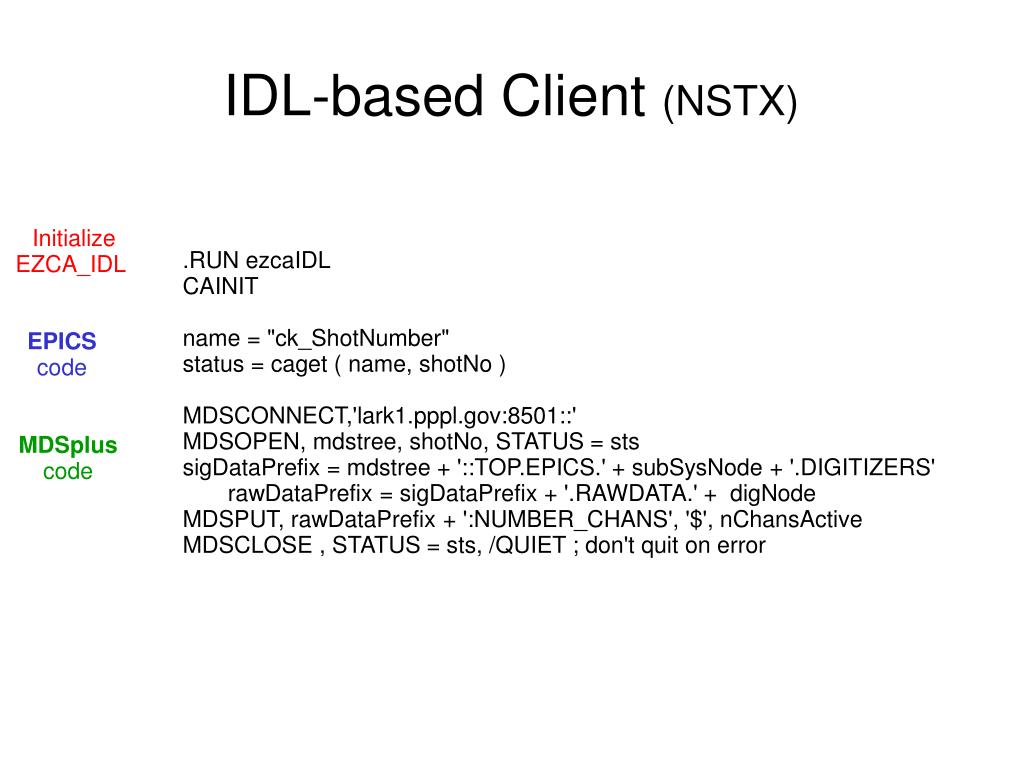

IDL-based Client (NSTX)

Initialize

EZCA_IDL

.RUN ezcaIDL

CAINIT

name = "ck_ShotNumber"

status = caget ( name, shotNo )

MDSCONNECT,'lark1.pppl.gov:8501::'

MDSOPEN, mdstree, shotNo, STATUS = sts

sigDataPrefix = mdstree + '::TOP.EPICS.' + subSysNode + '.DIGITIZERS'

rawDataPrefix = sigDataPrefix + '.RAWDATA.' + digNode

MDSPUT, rawDataPrefix + ':NUMBER_CHANS', '$', nChansActive

MDSCLOSE , STATUS = sts, /QUIET ; don't quit on error

EPICS

code

MDSplus

code


Matlab kstar

MatLab (KSTAR)

1) EPICS interface in Matlab code

pvnames={‘XXX_SHOT_NUMBER',‘XXX_STATUS’};

pvs=mcaopen(pvnames);

shotno = mcaget(pvs(1));

status = mcaget(pvs(2));

2) MDSplus interface in Matlab code

>>mdsconnect(‘Server')

>>mdsopen(‘TREE‘,ShotNumber)

>>d=mdsvalue(‘(Node_Path)')

>>plot,d


Sequencer kstar 1 of 2

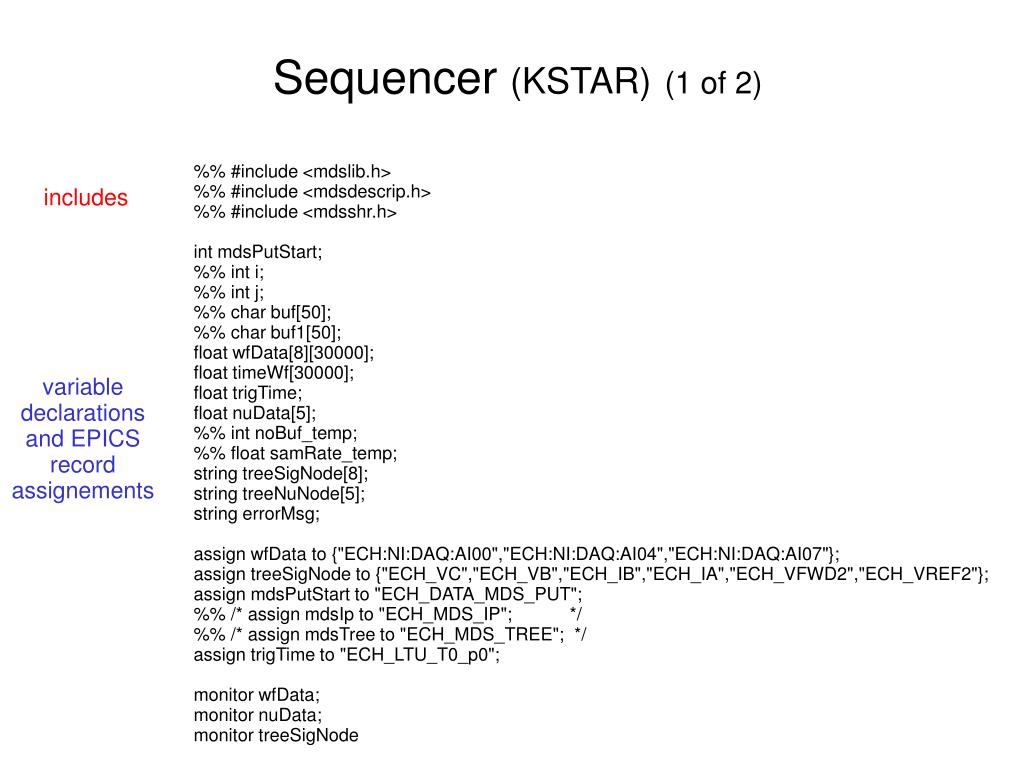

Sequencer (KSTAR)(1 of 2)

%% #include <mdslib.h>

%% #include <mdsdescrip.h>

%% #include <mdsshr.h>

int mdsPutStart;

%% int i;

%% int j;

%% char buf[50];

%% char buf1[50];

float wfData[8][30000];

float timeWf[30000];

float trigTime;

float nuData[5];

%% int noBuf_temp;

%% float samRate_temp;

string treeSigNode[8];

string treeNuNode[5];

string errorMsg;

assign wfData to {"ECH:NI:DAQ:AI00","ECH:NI:DAQ:AI04","ECH:NI:DAQ:AI07"};

assign treeSigNode to {"ECH_VC","ECH_VB","ECH_IB","ECH_IA","ECH_VFWD2","ECH_VREF2"};

assign mdsPutStart to "ECH_DATA_MDS_PUT";

%% /* assign mdsIp to "ECH_MDS_IP"; */

%% /* assign mdsTree to "ECH_MDS_TREE"; */

assign trigTime to "ECH_LTU_T0_p0";

monitor wfData;

monitor nuData;

monitor treeSigNode

includes

variable declarations and EPICS record assignements


Sequencer kstar 2 of 2

Sequencer (KSTAR) (2 of 2)

ss mdsDataPut {

state data_put {

when (mdsPutStart==1) {

%% idesc = descr(&dtypeLong, &tstat, &null);

%% printf("No Buff : %f and Sam Rate : %f \n",nuData[0], nuData[1]);

%% socket = MdsConnect(MDS_SERVER);

status = MdsOpen(ATREE_NAME, &pVar->shotNumber);

/* Data Put loop Start */

%% for(i=0; i<6; i++) {

%% sprintf(buf, "\%s", treeNuNode[i]); printf("%s: %d\n", buf, strlen(buf));

%% sprintf(buf1, "FS_FLOAT(%f)", nuData[i] );printf("%s: %f\n", buf1, nuData[i]);

%% status = MdsPut(buf, buf1, &null); /* MdsPut !! */

%%if ( !statusOk(status) )

%%fprintf(stderr,"Error Mds Put 1 : %s.\n",MdsGetMsg(status));

%%epicsThreadSleep(.50);

%%}

%% status = MdsClose(ATREE_NAME, &pVar->shotNumber);

} state data_put

}

SNL state statements

MDS connect

& tree open

mdsput

&

tree close
