  1. DNS and TCP Sequence Numbers(Again!) EE122 Discussion 10/24/2011

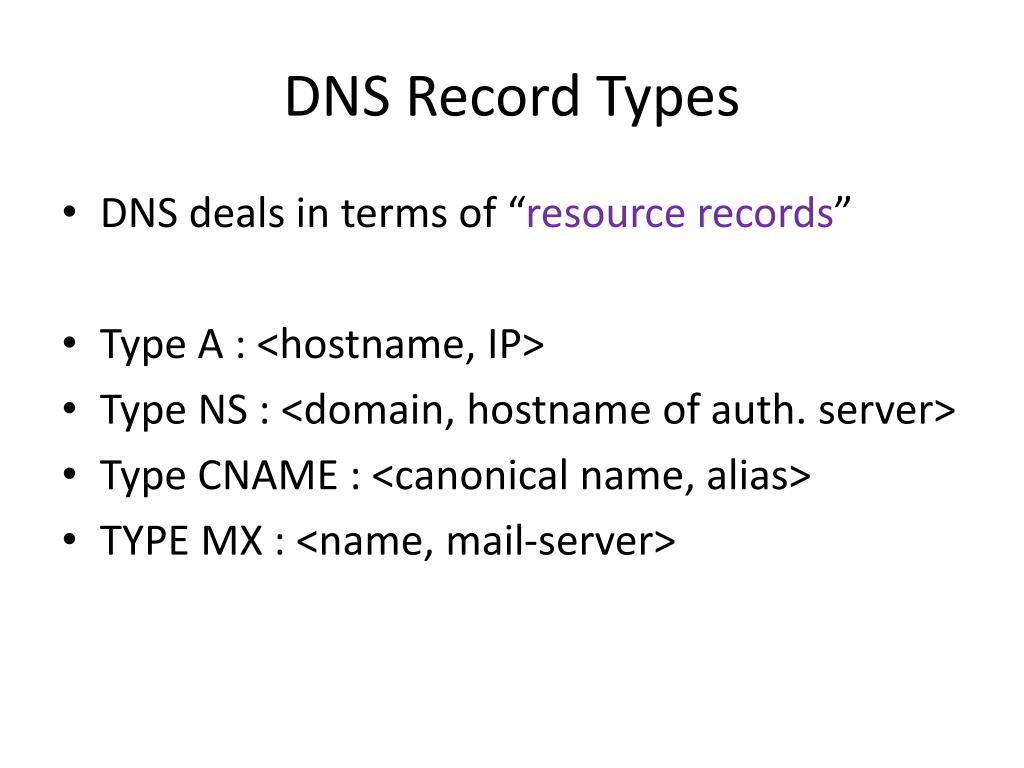

  2. DNS Record Types • DNS deals in terms of “resource records” • Type A : <hostname, IP> • Type NS : <domain, hostname of auth. server> • Type CNAME : <canonical name, alias> • TYPE MX : <name, mail-server>

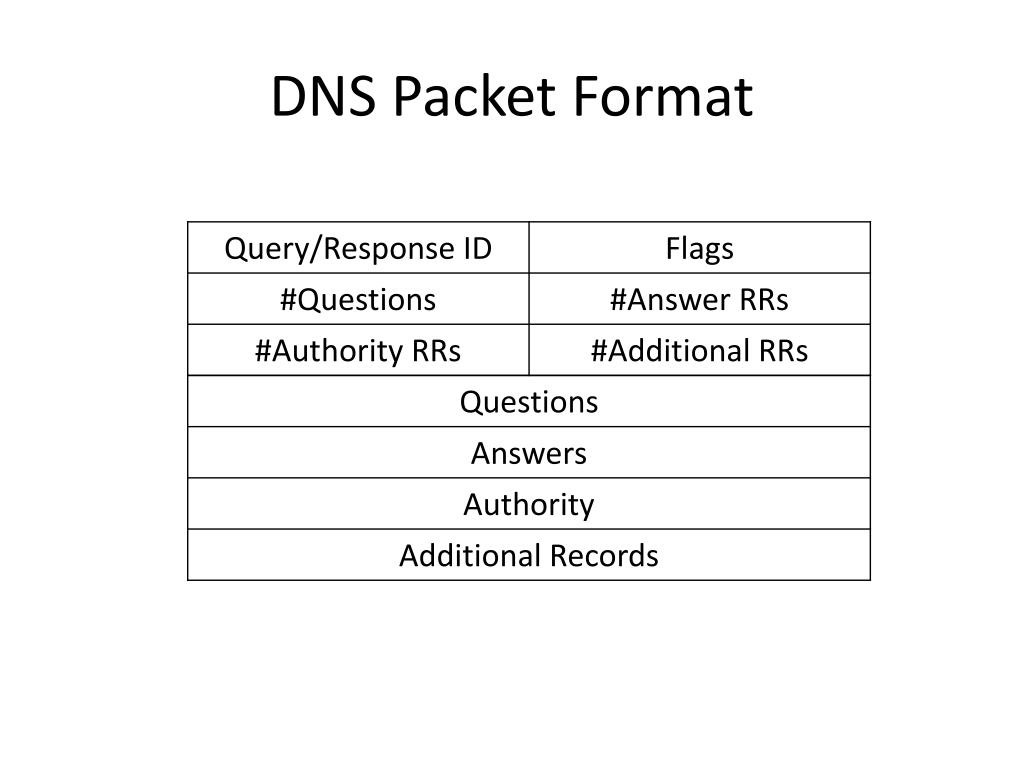

  3. DNS Packet Format

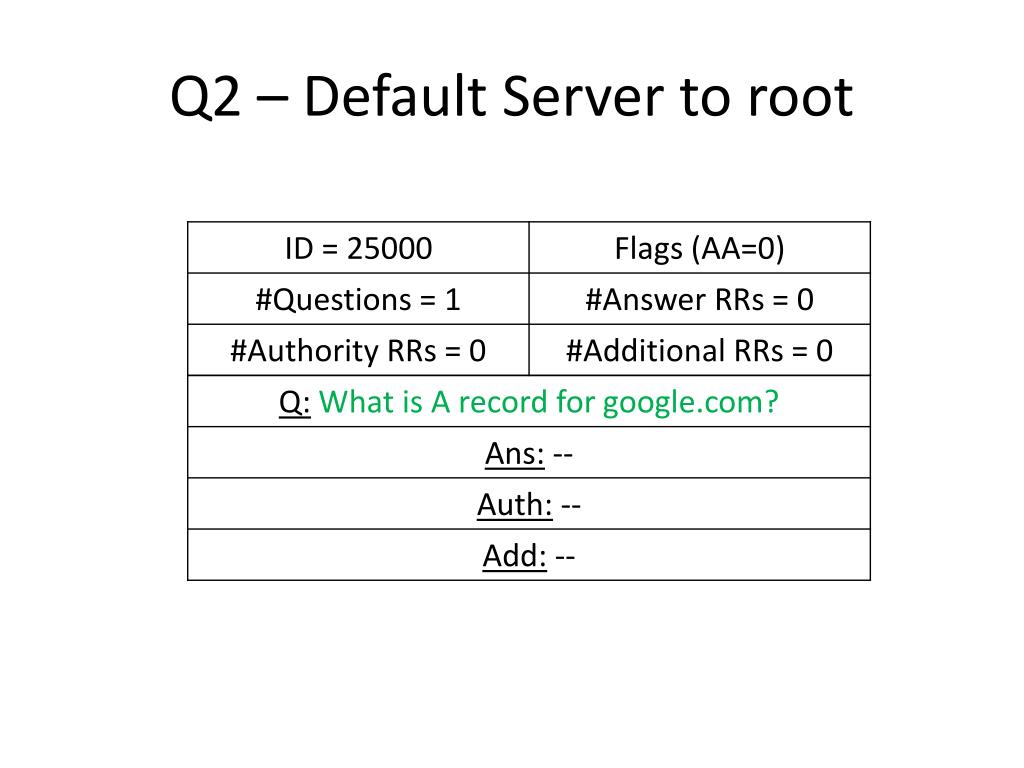

  4. Q2 – Default Server to root

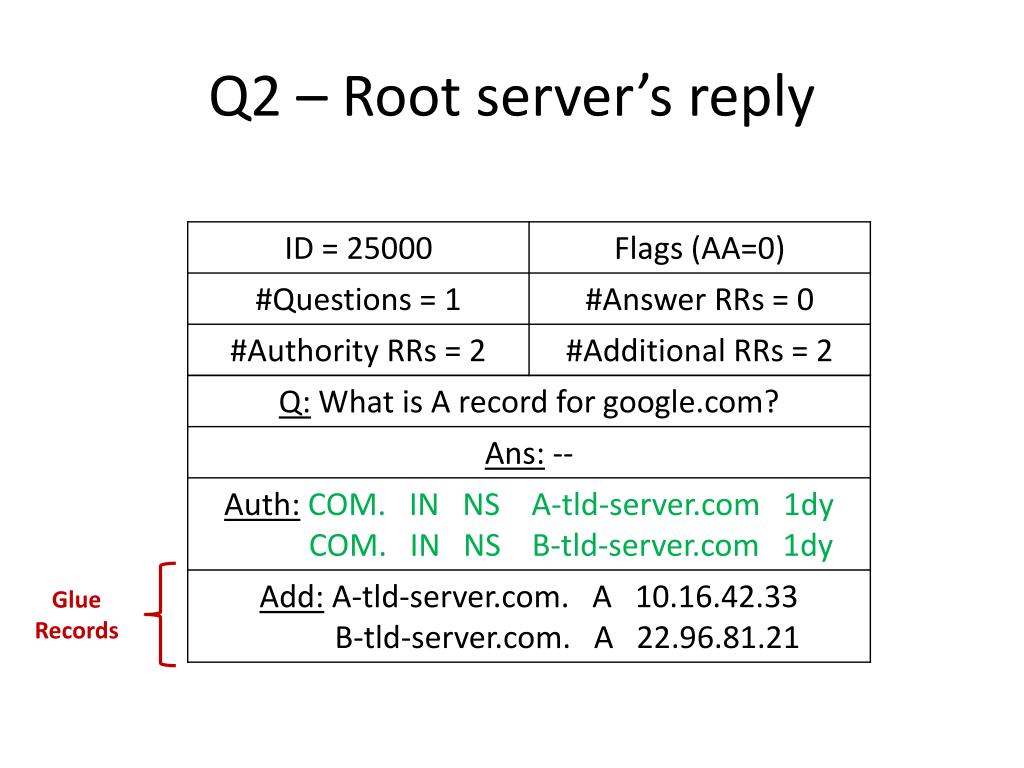

  5. Q2 – Root server’s reply Glue Records

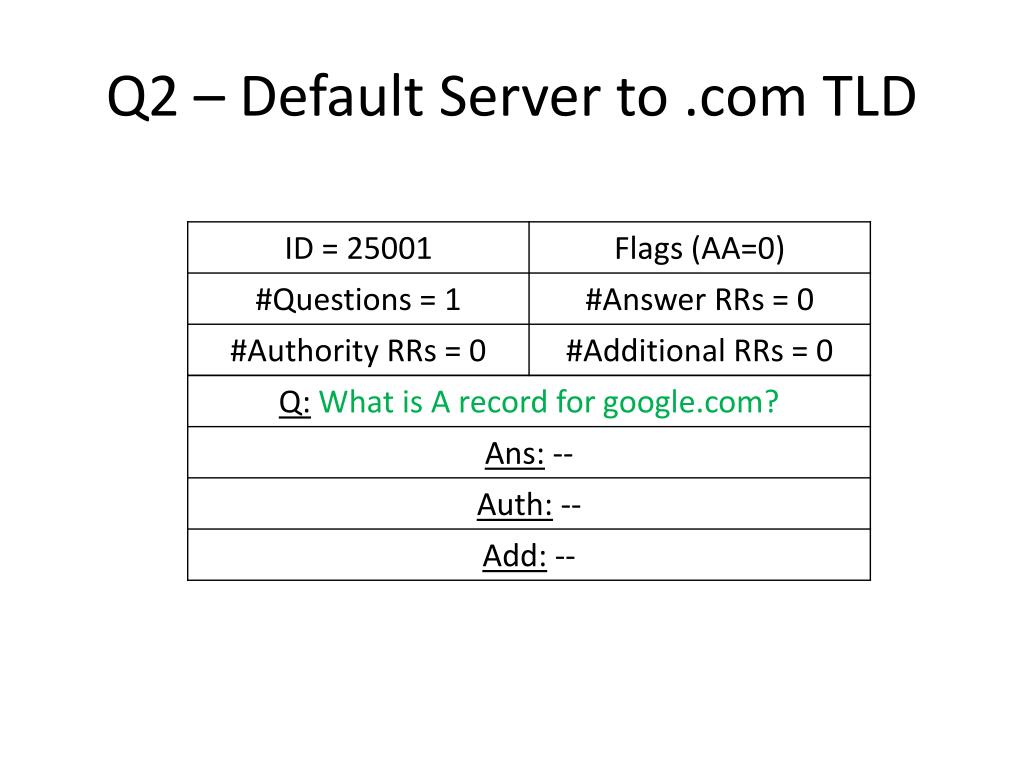

  6. Q2 – Default Server to .com TLD

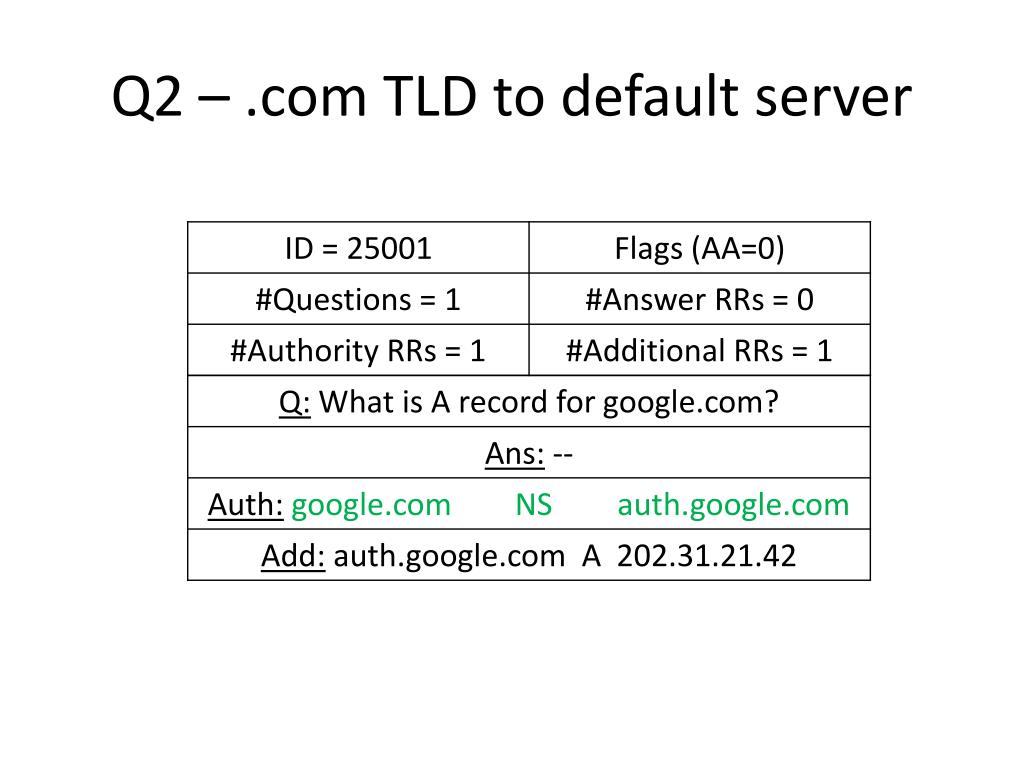

  7. Q2 – .com TLD to default server

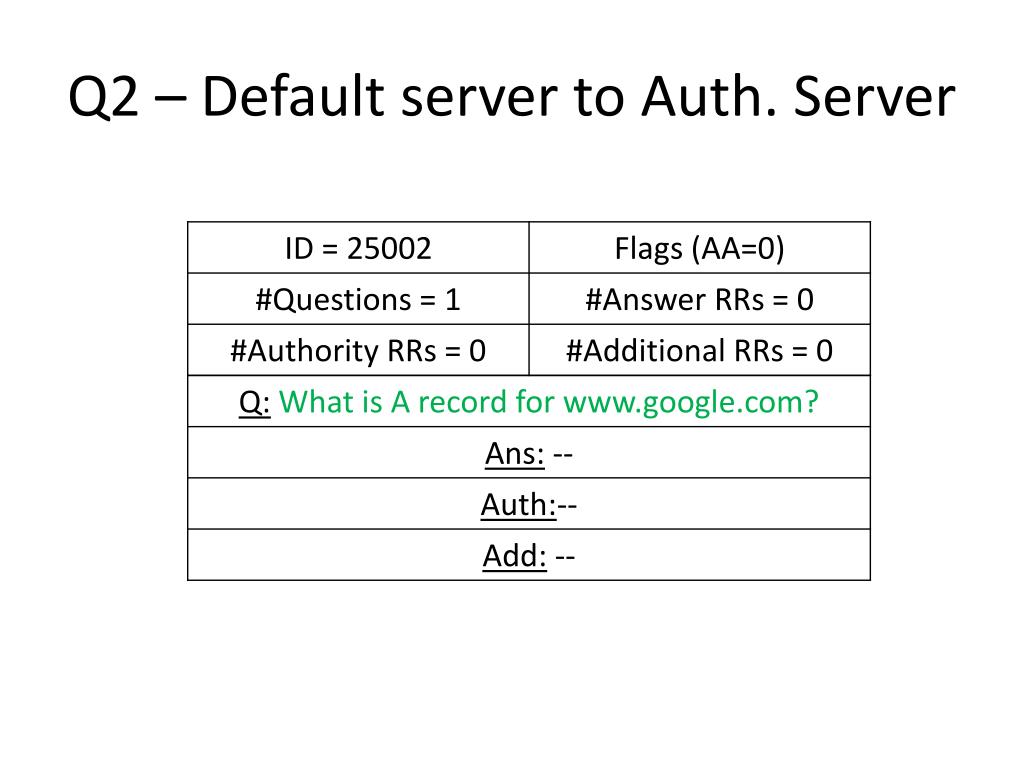

  8. Q2 – Default server to Auth. Server

  9. Q2 – Auth. Server to Default server

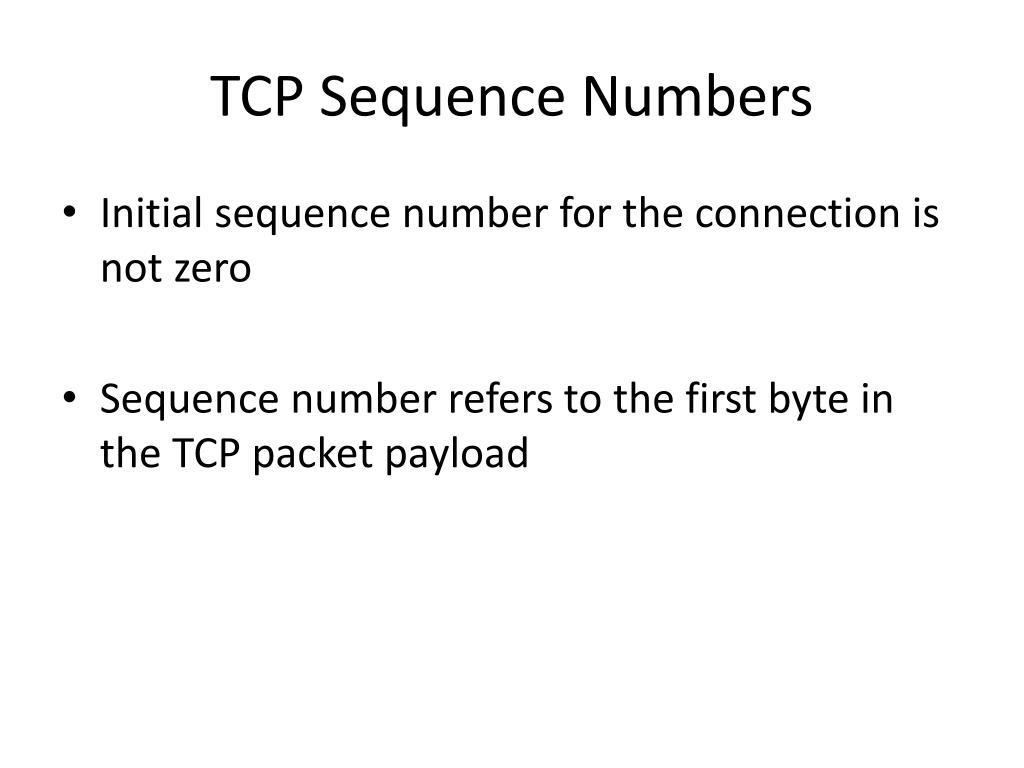

  10. TCP Sequence Numbers • Initial sequence number for the connection is not zero • Sequence number refers to the first byte in the TCP packet payload

  11. Question 3 • 10001 • 15000 • 1501 • 1501 – 1550
