  1. An Introduction of3GPP Long Term Evolution (LTE)

  2. Outline • History of 3GPP LTE • Basic Concepts of LTE • Introduction of LTE Protocol • Compare with LTE and LTE-Advanced • Conclusion

  3. What is LTE ? • In Nov. 2004, 3GPP (3rd Generation Partnership Project) began a project to define the Long-Term Evolution (LTE) of Universal Mobile Telecommunications System (UMTS) cellular technology • Higher performance • Backwards compatible • Wide applications

  4. History of LTE • LTE is a standard for wireless data communications technology and an evolution of the GSM/UMTS standards. • The goal of LTE was to increase the capacity and speed of wireless data networks using new DSP (digital signal processing) techniques and modulations. • A further goal was the redesign and simplification of the network architecture to an IP-based system with significantly reduced transfer latency compared to the 3G architecture. • The LTE wireless interface is incompatible with 2G and 3G networks, so that it must be operated on a separate wireless spectrum.

  5. History of LTE(Cont’d) • LTE was first proposed by NTT DoCoMo of Japan in 2004, and studies on the new standard officially commenced in 2005. • The LTE standard was finalized in December 2008, and the first publicly available LTE service was launched by TeliaSonera in Oslo and Stockholm on December 14, 2009 as a data connection with a USB modem. • Samsung Galaxy Indulge being the world’s first LTE smartphone starting on February 10, 2011.

  6. History of LTE(Cont’d) • Initially, CDMA operators planned to upgrade to rival standards called UMB and WiMAX • But all the major CDMA operators (such as Verizon, Sprint and MetroPCS in the United States, Bell and Telus in Canada, au by KDDI in Japan, SK Telecom in South Korea and China Telecom/China Unicom in China) have announced that they intend to migrate to LTE after all. • The evolution of LTE is LTE Advanced, which was standardized in March 2011. Services are expected to commence in 2013.

  7. Evolution of Radio Access Technologies • LTE (3.9G) : 3GPP release 8~9 • LTE-Advanced :3GPP release 10+ 802.16m 802.16d/e

  8. LTE Basic Concepts • LTE employs OrthogonalFrequency Division Multiple Access (OFDMA) for downlink data transmission and Single Carrier FDMA (SC-FDMA) for uplink transmission • SC-FDMA is a new single carrier multiple access technique which has similar structure and performance to OFDMA • A salient advantage of SC-FDMA over OFDM is the low Peak to Average Power (PAP) ratio : Increasing battery life

  9. LTE Uplink (SC-FDMA)

  10. Multi-Antenna Techniques

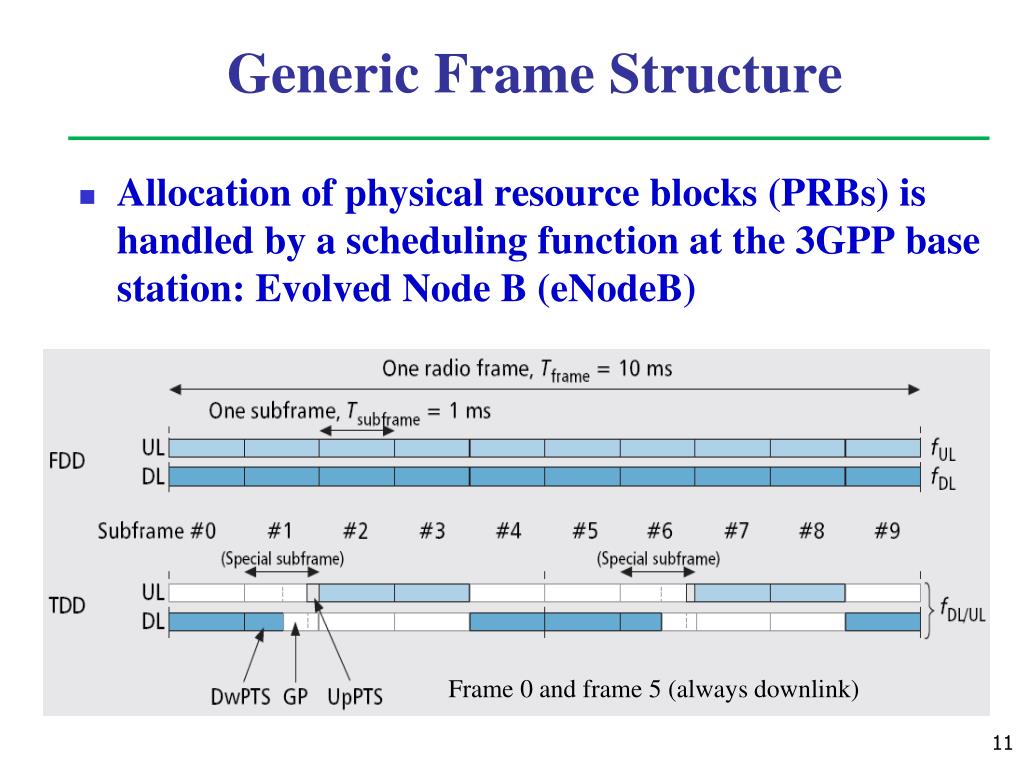

  11. Generic Frame Structure • Allocation of physical resource blocks (PRBs) is handled by a scheduling function at the 3GPP base station: Evolved Node B (eNodeB) Frame 0 and frame 5 (always downlink)

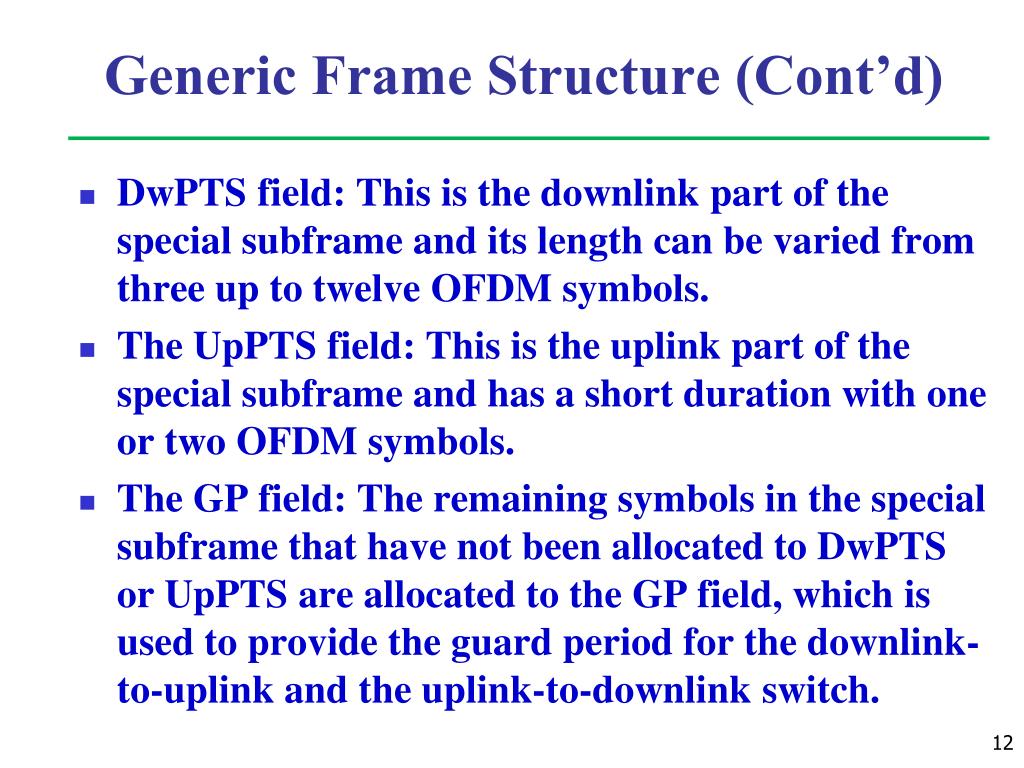

  12. Generic Frame Structure (Cont’d) DwPTS field: This is the downlink part of the special subframe and its length can be varied from three up to twelve OFDM symbols. The UpPTS field: This is the uplink part of the special subframe and has a short duration with one or two OFDM symbols. The GP field: The remaining symbols in the special subframe that have not been allocated to DwPTS or UpPTS are allocated to the GP field, which is used to provide the guard period for the downlink-to-uplink and the uplink-to-downlink switch.

  13. Resource Blocks for OFDMA • One frame is 10 ms consisting of 10 subframes • One subframe is 1ms with 2 slots • One slot contains N Resource Blocks (6 < N < 110) • The number of downlink resource blocks depends on the transmission bandwidth. • One Resource Block contains M subcarriers for each OFDM symbol • The number of subcarriers in each resource block depends on the subcarrier spacing Δf • The number of OFDM symbols in each block depends on both the CP length and the subcarrier spacing.

  14. LTE Spectrum (Bandwidth and Duplex) Flexibility

  15. LTE Downlink Channels The LTE radio interface, various "channels" are used. These are used to segregate the different types of data and allow them to be transported across the radio access network in an orderly fashion. Physical channels: These are transmission channels that carry user data and control messages. Transport channels: The physical layer transport channels offer information transfer to Medium Access Control (MAC) and higher layers. Logical channels: Provide services for the Medium Access Control (MAC) layer within the LTE protocol structure.

  16. LTE Downlink Channels Paging Control Channel Paging Channel Physical Downlink Shared Channel

  17. LTE Downlink Logical Channels

  18. LTE Downlink Logical Channels

  19. LTE Downlink Transport Channel

  20. LTE Downlink Transport Channel

  21. LTE Downlink Physical Channels

  22. LTE Downlink Physical Channels

  23. LTE Uplink Channels Random Access Channel CQI report Physical Uplink Shared Channel Physical Radio Access Channel

  24. LTE Uplink Logical Channels

  25. LTE Uplink Transport Channel

  26. LTE Uplink Physical Channels

  27. LTE Release 8 Key Features (1/2) • High spectral efficiency • OFDM in Downlink • Single‐Carrier FDMA in Uplink • Very low latency • Short setup time & Short transfer delay • Short hand over latency and interruption time • Support of variable bandwidth • 1.4, 3, 5, 10, 15 and 20 MHz

  28. LTE Release 8 Key Features (2/2) • Compatibility and interworking with earlier 3GPP • FDD and TDD within a single radio access technology • Efficient Multicast/Broadcast

  29. Evolution of LTE-Advanced • Asymmetric transmission bandwidth • Layered OFDMA • Advanced Multi-cell Transmission/Reception Techniques • Enhanced Multi-antenna Transmission Techniques • Support of Larger Bandwidth in LTE-Advanced

  30. Asymmetric Transmission Bandwidth • Symmetric transmission • Voice transmission: UE to UE • Asymmetric transmission • Streaming video : the server to the UE (the downlink)

  31. Layered OFDMA • The bandwidth of basic frequency block is, 15 - 20 MHz • Layered OFDMA comprises layered transmission bandwidth assignment (bandwidth is assigned to match the required data rate), a layered control signaling structure, and support for layered environments for both the downlink and uplink.

  32. Coordinated Multi-Point Transmission/Reception (CoMP) • The CoMP is one of the candidate techniques for LTE-Advanced systems to increase the average cell throughput and cell edge user throughput in the both uplink and downlink.

  33. Enhanced Multi-Antenna Transmission Techniques • In LTE-A, the MIMO scheme has to be further improved in the area of spectrum efficiency, average cell through put and cell edge performances • In LTE-A the antenna configurations of 8x8 in DL and 4x4 in UL are planned

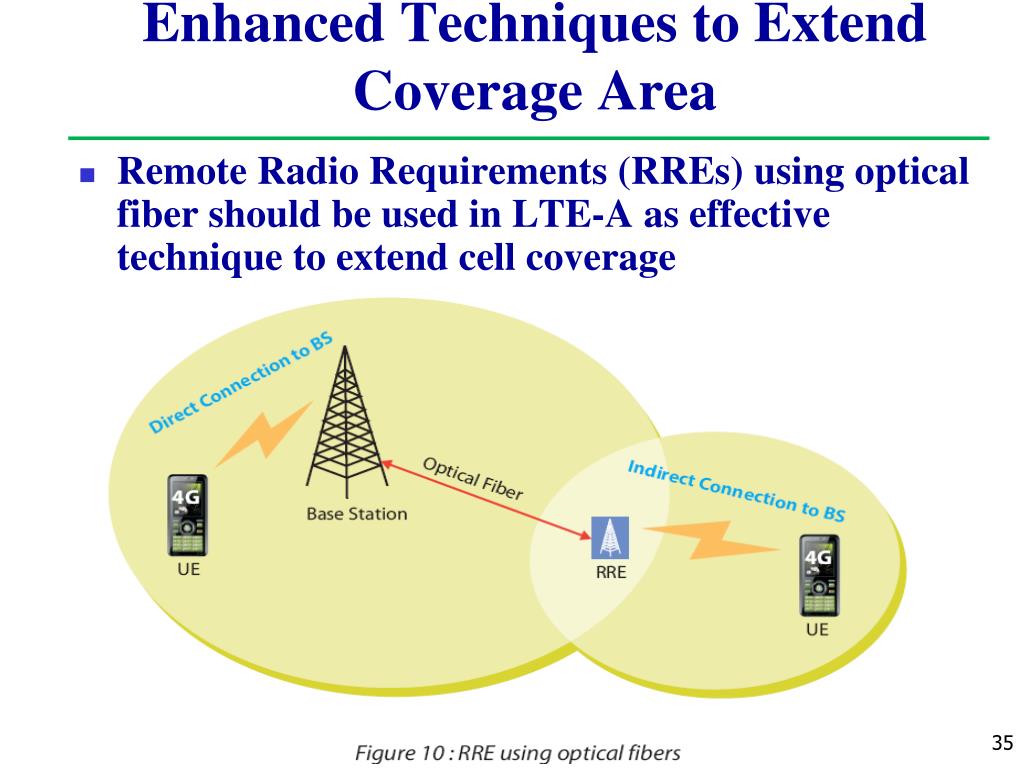

  34. Enhanced Techniques to Extend Coverage Area • Remote Radio Requirements (RREs) using optical fiber should be used in LTE-A as effective technique to extend cell coverage

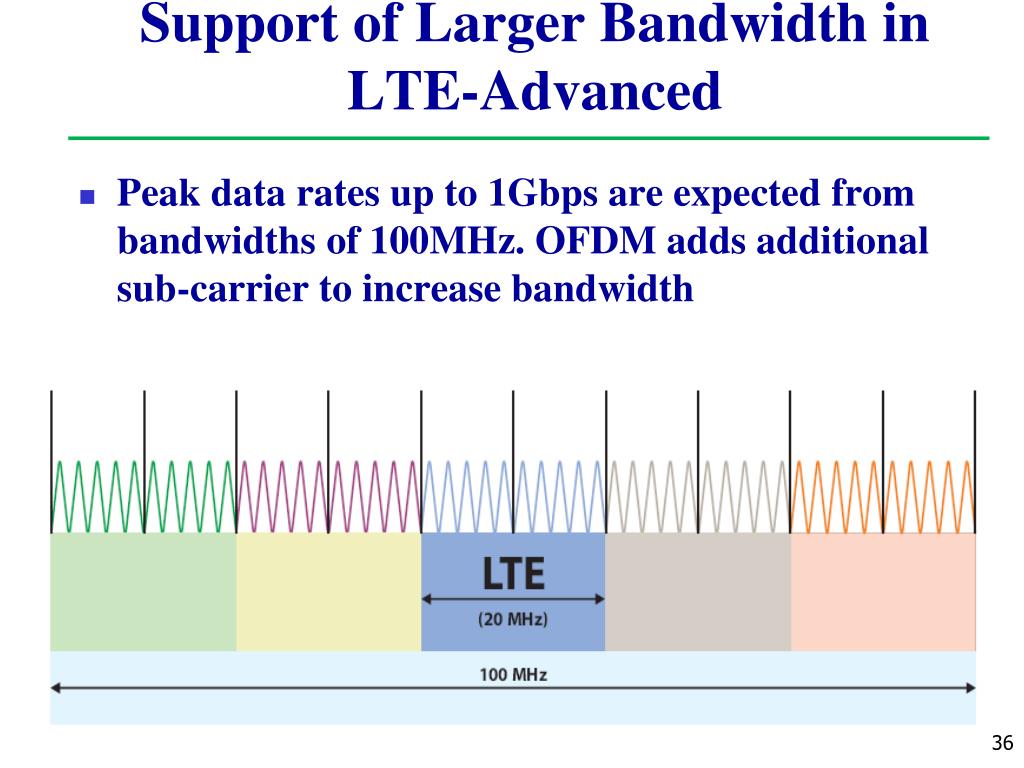

  35. Support of Larger Bandwidth in LTE-Advanced • Peak data rates up to 1Gbps are expected from bandwidths of 100MHz. OFDM adds additional sub-carrier to increase bandwidth

  36. LTE vs. LTE-Advanced

  37. Conclusion • LTE-A helps in integrating the existing networks, new networks, services and terminals to suit the escalating user demands • LTE-Advanced will be standardized in the 3GPP specification Release 10 (LTE-A) and will be designed to meet the 4G requirements as defined by ITU
