DOSE CONCEPTS, QUANTITIES AND UNITS,BASIC PRINCIPLES AND PRIMARY METHODS OF RADIATION PROTECTION

Module IV

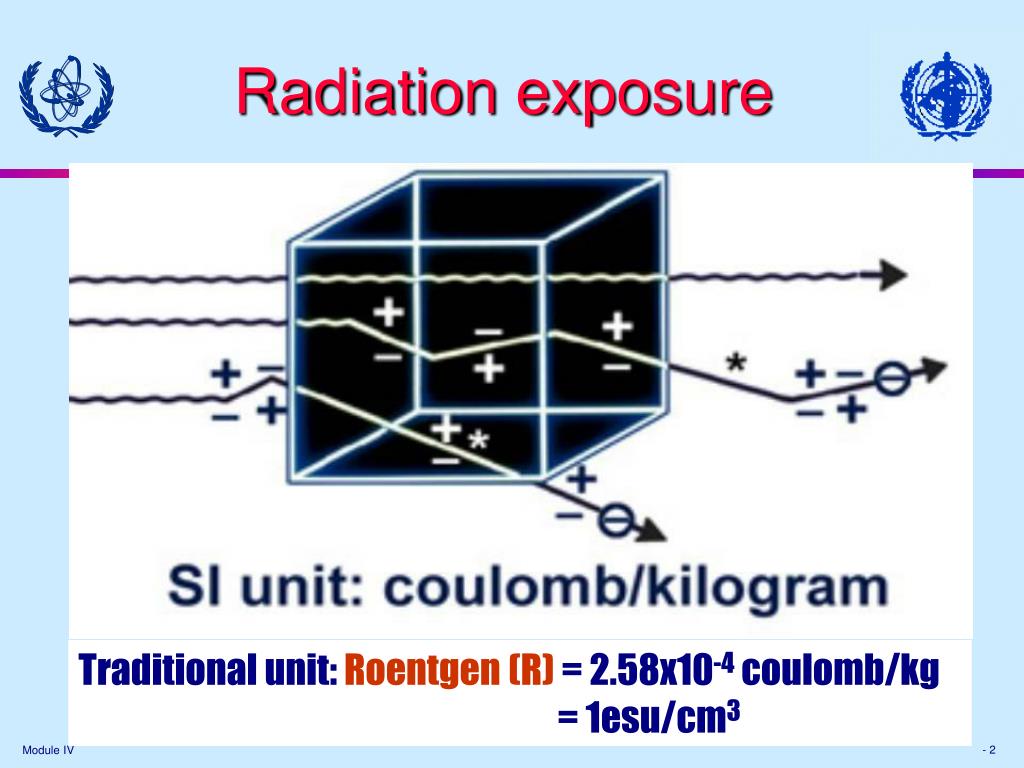

Radiation exposure l.jpg

Radiation exposure

Traditional unit: Roentgen (R) = 2.58x10-4 coulomb/kg

= 1esu/cm3

Module IV


Absorbed dose d l.jpg

Absorbed dose (D)

Energy imparted to matter

from any type of radiation

D = E/m

D:absorbed dose

E: energy absorbed by material of mass ‘m’

Module IV


Units of a bsorbed d ose l.jpg

Units of absorbed dose

The SI unit: gray (Gy)

1 Gy = 1 joule/kilogram

Old unit : rad

1 Gy=100 rad

Module IV


Equivalent dose h t l.jpg

Equivalent dose (HT)

Accounts for biological effect

per unit dose

radiation weighting absorbed

factor ( WR) X dose (D)

HT= WRxD

X

Module IV


Radiation weighting factors w r icrp 60 1991 l.jpg

Radiation weighting factors (WR)ICRP 60 (1991)

Module IV


Unit of equivalent d ose l.jpg

Unit of equivalent dose

SI unit: sievert (Sv)

HT (Sv) = WR x D (Gy)

Old unit: rem

(roentgen equivalent man)

HT (rem) =( WR) x D (rad)

1 Sv = 100 rems

Module IV


Effective dose e l.jpg

Effective dose (E)

Risk related parameter, takingrelative radiosensitivity ofeach organ and tissue into account

E(Sv)= ΣT WT x HT

WT: tissue weighting factor for organ T

HT: equivalent dose received by organ or tissue T

Module IV


Tissue and organ weighting factors l.jpg

Tissue and organ weighting factors

Module IV

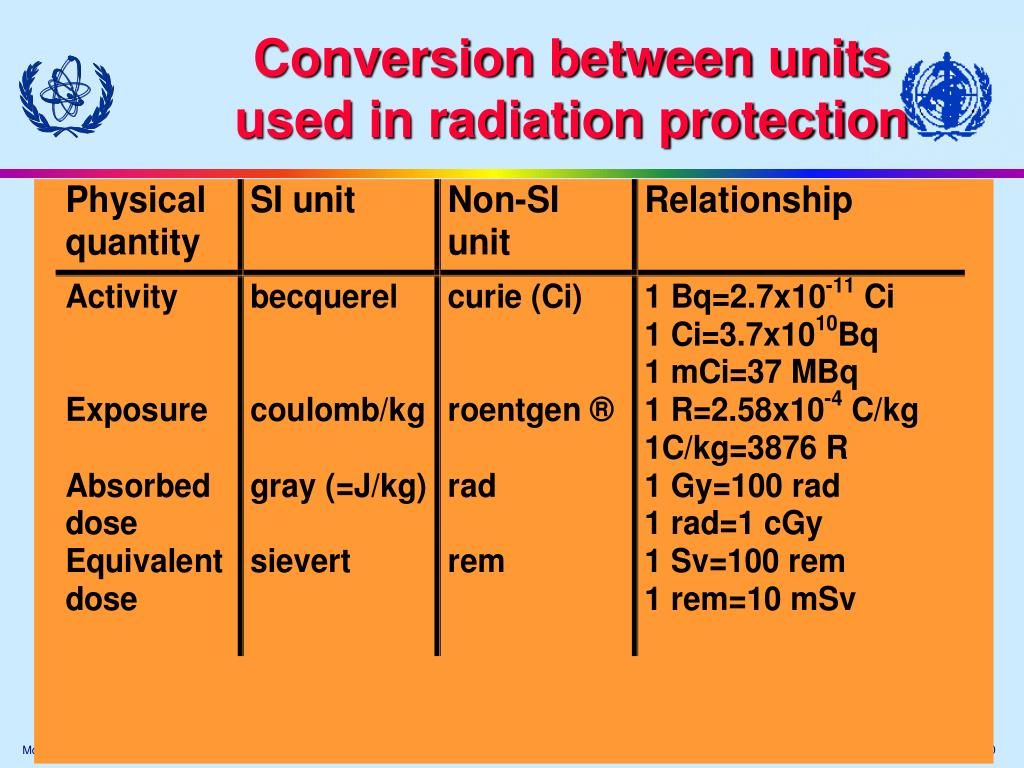

Conversion between units used in radiation protection l.jpg

Conversion between units used in radiation protection

Module IV


Committed equivalent d ose h t t and c ommitted e ffective d ose e t l.jpg

Committed equivalentdose HT(t)and committed effective dose E(t)

Module IV


Projected and a vertable dose l.jpg

Projected and avertable dose

Projected dose

Averted dose

Averted dose

Module IV


Collective effective dose s l.jpg

Collective effective dose (S)

Total radiation dose incurred by population

Ei:average effective dose in the population subgroup i

Ni: number of individuals in subgroup i

Unit:man-sievert (man.Sv)

Module IV


Sources and l evels of r adiation e xposure to p opulation l.jpg

Sources and levels of radiation exposure to population

Module IV


Sources of r adiation d ose to g eneral p opulation l.jpg

Sources of radiation dose to general population

Module IV


Background radiation l.jpg

Background radiation

  • Terrestrial radioactivity

  • Cosmic radiation

  • Internal radioactivity

Natural background radiation doses in Europe

Module IV


Terrestrial r adiation external and internal exposure l.jpg

Terrestrial radiation:external and internal exposure

  • U-238 Ra-222

  • Th-232 Ra-220

Module IV


Cosmic r adiation l.jpg

Cosmic radiation

Module IV


Internal r adioactivity l.jpg

Internal radioactivity

  • Radioactivity in diet

    • lead-210

    • polonium-210

    • potassium-40

Module IV


Av e rage ocupational radiation doses received during various types of work l.jpg

Average ocupational radiation doses received during various types of work

‘Non-coal’

mining

16.3 milisieverts

Dose in milisieverts

Module IV

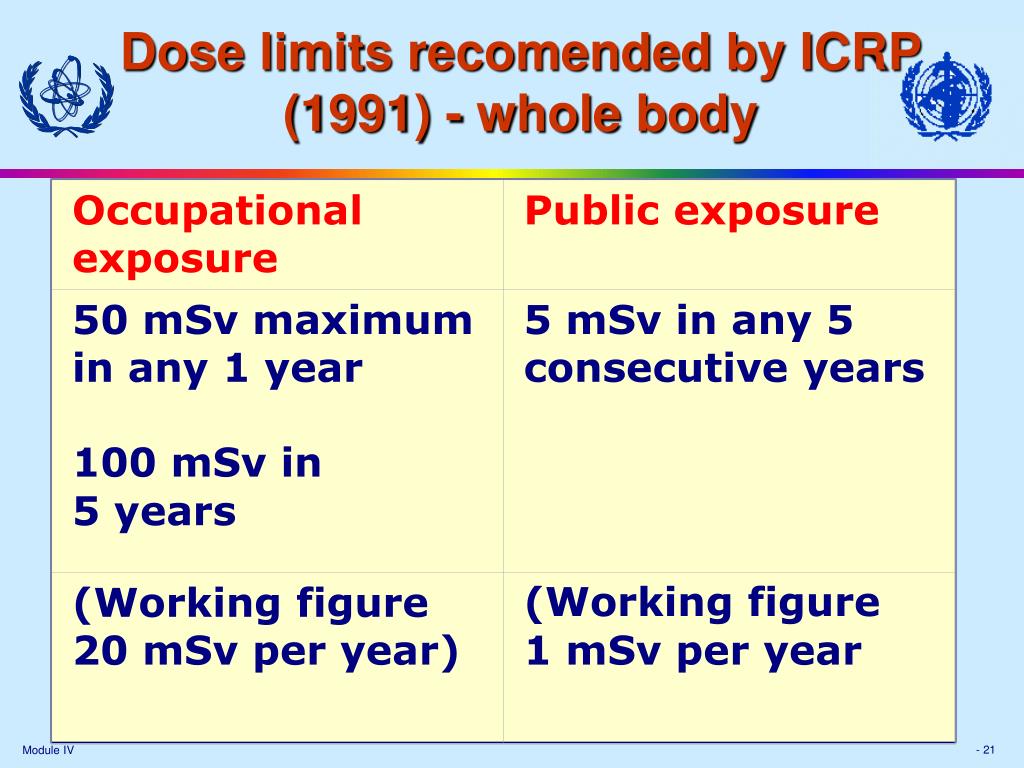

Dose l imits r ecomended by icrp 1991 w hole b ody l.jpg

Occupational

exposure

Public exposure

50 mSv maximum in any 1 year

100 mSv in

5 years

5 mSv in any 5 consecutive years

(Working figure 20 mSv per year)

(Working figure

1 mSv per year

Dose limits recomended by ICRP (1991)-whole body

Module IV


Dose l imits r ecomended by icrp 1991 t issues l.jpg

Annual doses to tissues

Occupational

Public

Lens of the eye

150 mSv

15 mSv

Skin (1cm2)

500 mSv

50 mSv

Hands and feet or individual organ

500 mSv

Dose limits recomended by ICRP (1991)- tissues

Module IV


Slide23 l.jpg

Radiation protection

Basic principles

and

primary methods

Module IV


Basic p rinciples of r adi ation p rotection l.jpg

Basicprinciples of radiationprotection

  • Justification of practice

  • Optimization of protection

  • Individual dose limits

Module IV


A l a r a l.jpg

ALARA

Aslow as reasonably

achievable

Module IV


Basic methods of protection against e xposure to ionizing radiation l.jpg

Basic methods of protection against exposureto ionizing radiation

  • Three basic factors

    • Time

    • Distance

    • Shielding

Module IV


Slide27 l.jpg

Time

Exposure rate

=10mGy/h

Time = Total dose

X

1 hour = 10 mGy

2 hours = 20 mGy

Module IV


Distance l.jpg

Distance

Module IV


Inverse s quare l aw l.jpg

Inverse square law

d=50cm

150 mSv/h

0.06 mSv/h

Module IV


Shielding l.jpg

Shielding

Module IV


Shielding p hotons l.jpg

Shielding photons

Module IV


Half value layer hvl l.jpg

Halfvaluelayer (HVL)

Module IV


Internal e xposure l.jpg

Internal exposure

Module IV


Inhalation l.jpg

Inhalation

Module IV


Ingestion absorption l.jpg

Ingestion/Absorption

Module IV


Protective clothing and hand washing l.jpg

Protective clothing and hand washing

Module IV


Slide37 l.jpg

Medical exposureRelative effective dose and equivalent period of exposure to natural background radiation

Module IV


Review points l.jpg

Review points

  • Becquerel, coulomb per kilogram, gray, and sievert are part of International System of Units (SI).

  • Absorbed dose of radiation in SI units is expressed in gray. Ability of some types of radiation to cause more significant levels of biological damage taken into account with radiation weighting factor used to determine equivalent dose, expressed in sieverts

  • Goal of radiation safety: keep radiation exposure as low as reasonably achievable (ALARA)

Module IV
