A computational environment for interval matrices in c

A Computational Environment for Interval Matrices in C++

Michael Nooner and Chenyi Hu

Computer Science Department, University of Central Arkansas


Introduction

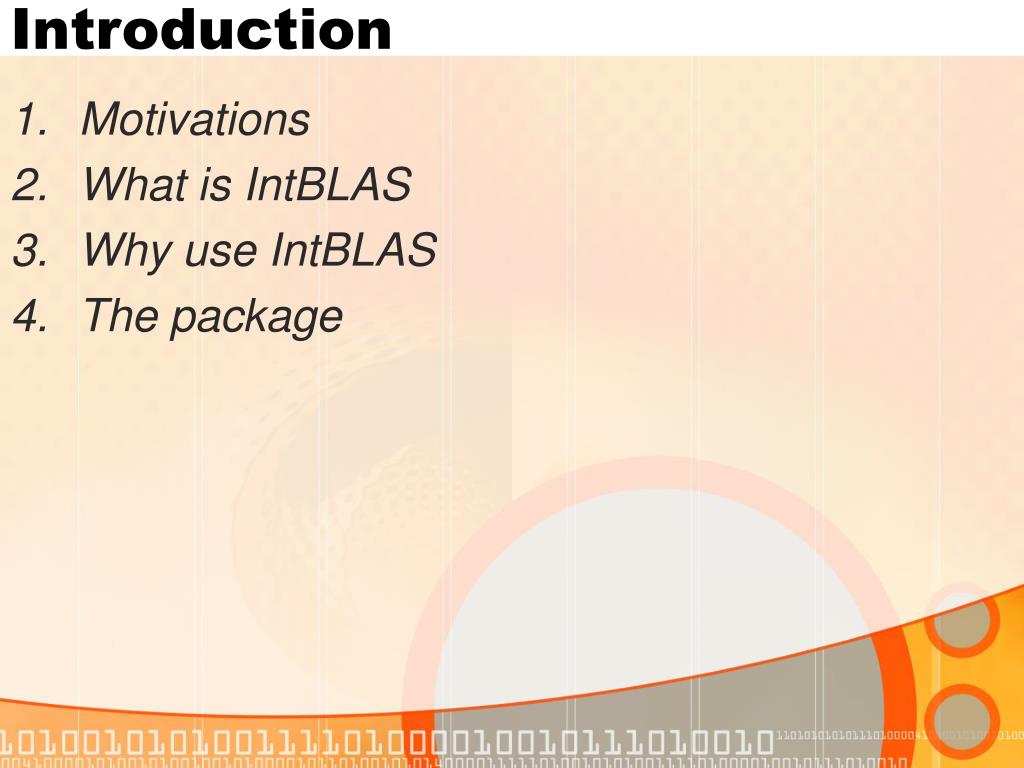

Introduction

  • Motivations

  • What is IntBLAS

  • Why use IntBLAS

  • The package


Motivations

Motivations

  • Profil, IntLAB, IntLib

  • Easy to use

  • Cross platform


What is intblas

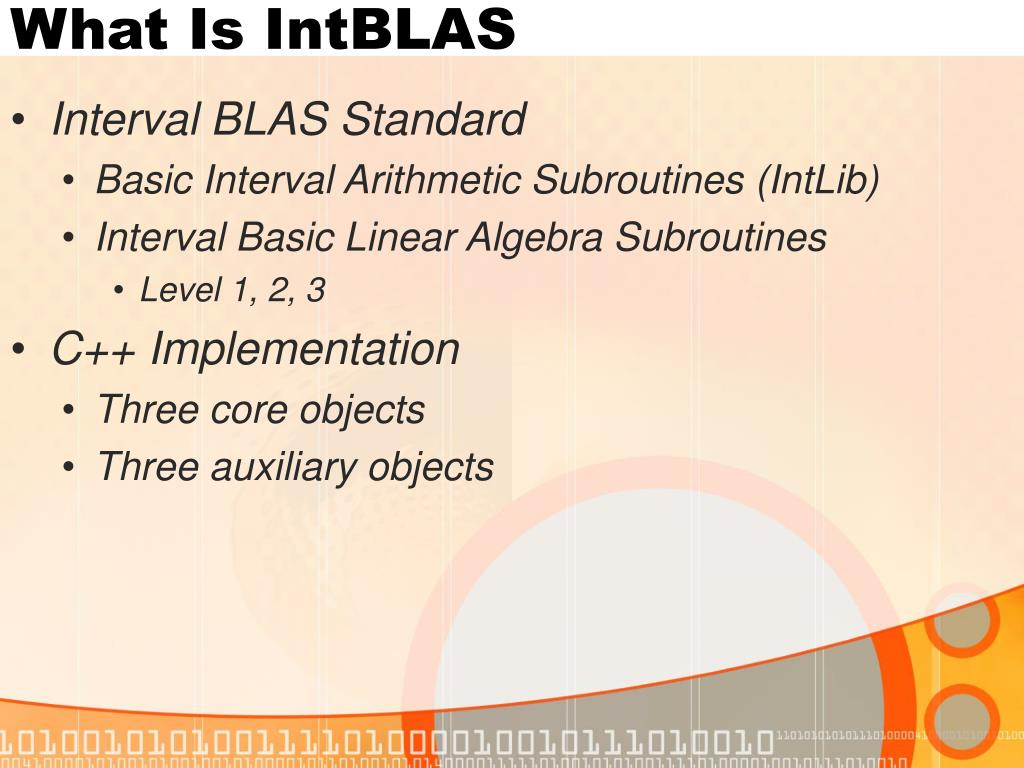

What Is IntBLAS

  • Interval BLAS Standard

    • Basic Interval Arithmetic Subroutines (IntLib)

    • Interval Basic Linear Algebra Subroutines

      • Level 1, 2, 3

  • C++ Implementation

    • Three core objects

    • Three auxiliary objects


Why use intblas

Why use IntBLAS

  • Easy to install

    • GCC

    • Visual Studio

    • More on the way …

  • Cross Platform

  • Open Source (LGPL)

  • Well Documented

  • Easy to use


The package

The Package

  • One header

    • IntBLAS.h

  • Two Static Libraries

    • intblas.lib (optimized)

    • intblas_d.lib (debug)

  • One Namespace

    • intblas

  • One Initialization Function

    • INIT_INTERVAL()


The package1

The Package

#include<IntBLAS.h>

using namespace intblas;

int main()

{

INIT_INTERVAL();

Interval a( .1 );

IntervalMatrix m( 2, 2 ), result;

m[0][0] = 2.3; m[0][1] = 3.3;

m[1][0] = 5.5; m[1][1] = a;

result = m + a;

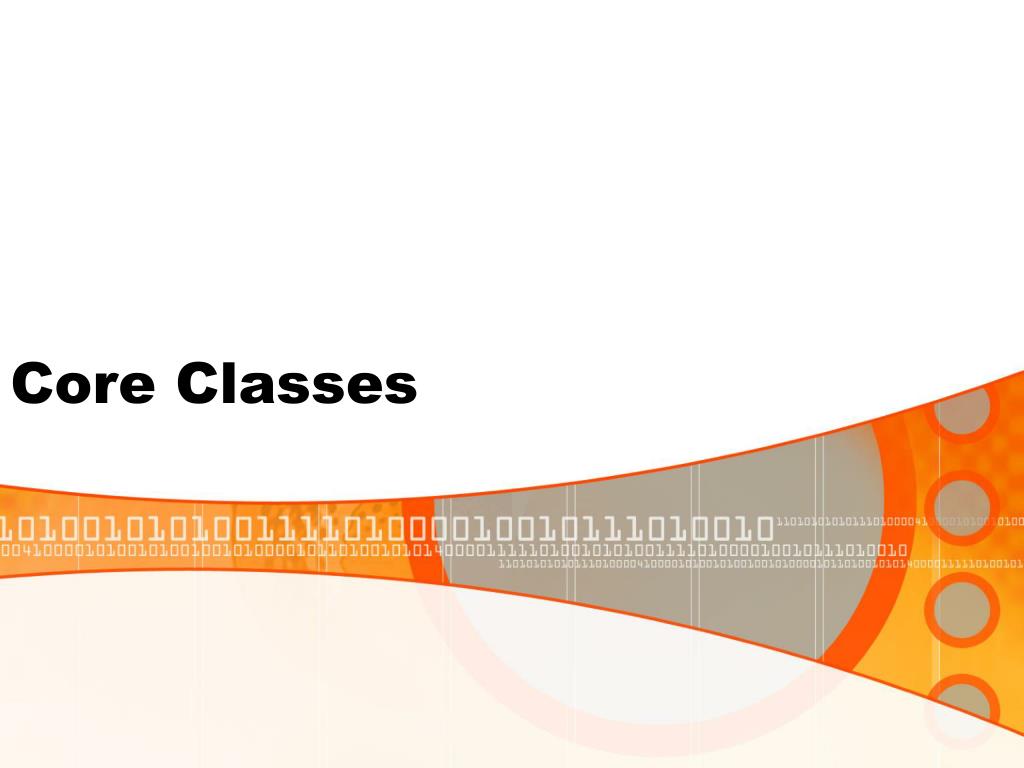

Core classes

Core Classes


Core classes1

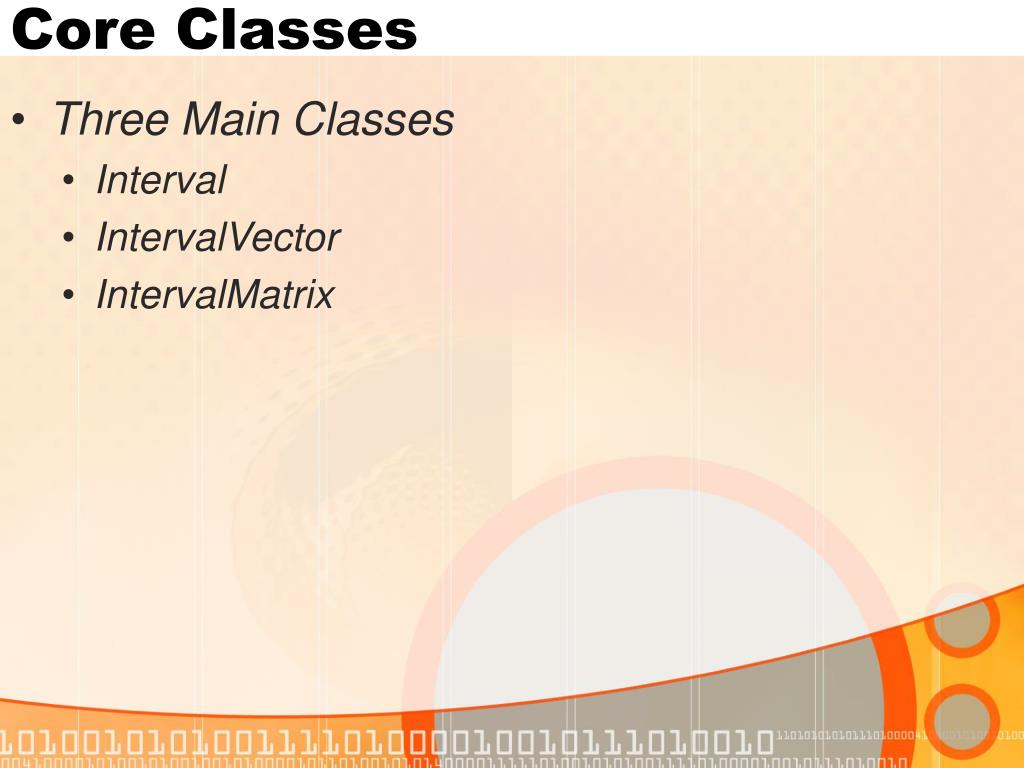

Core Classes

  • Three Main Classes

    • Interval

    • IntervalVector

    • IntervalMatrix


Interval class

Interval Class

  • IntLib

  • Double precision

  • Rounding

    • Round Up: add one ε

    • Round Down: subtract one ε

    • 16th – 18th significant digit


Interval class1

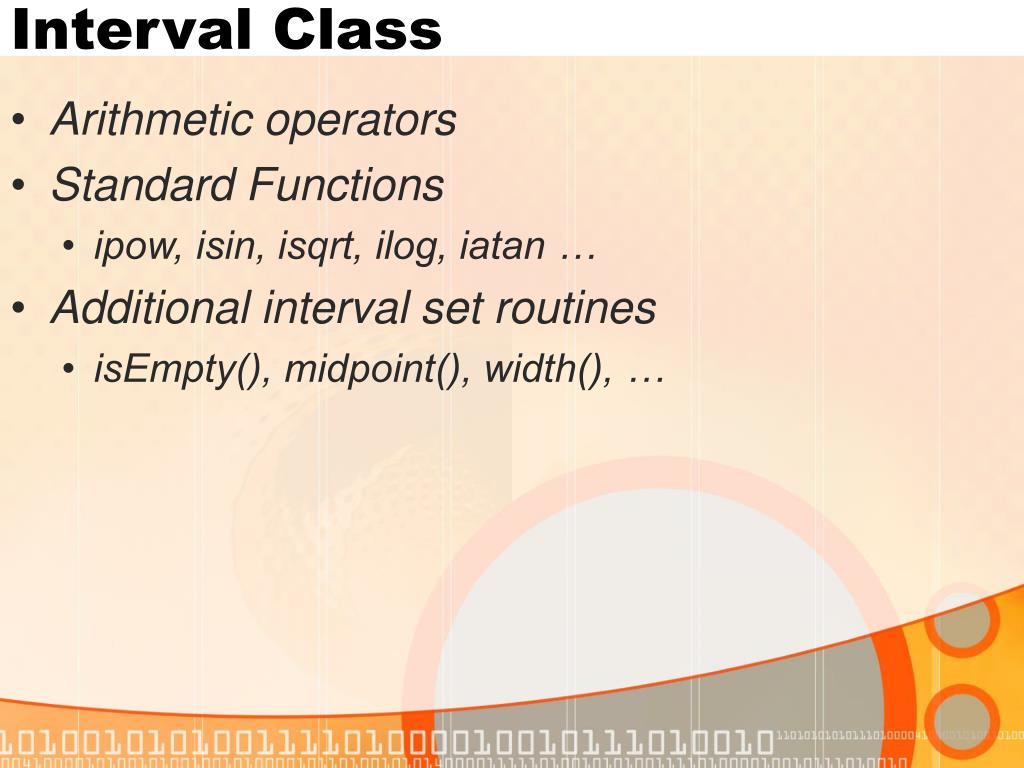

Interval Class

  • Arithmetic operators

  • Standard Functions

    • ipow, isin, isqrt, ilog, iatan …

  • Additional interval set routines

    • isEmpty(), midpoint(), width(), …


Intervalvector and intervalmatrix

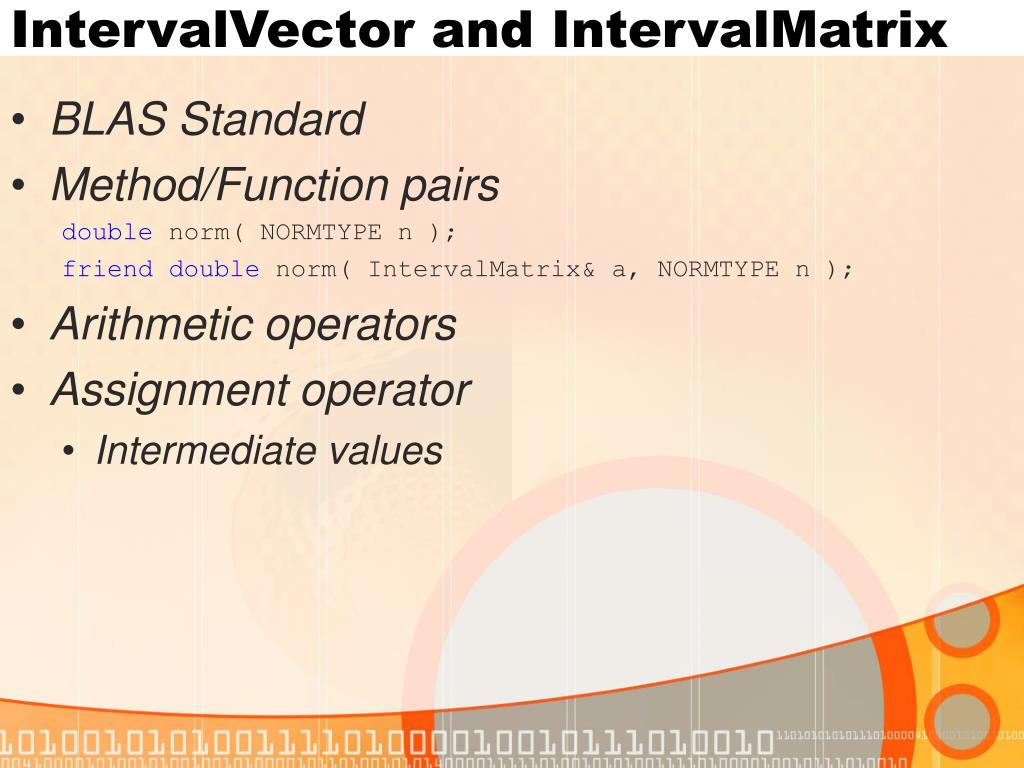

IntervalVector and IntervalMatrix

  • BLAS Standard

  • Method/Function pairs

    double norm( NORMTYPE n );

    friend double norm( IntervalMatrix& a, NORMTYPE n );

  • Arithmetic operators

  • Assignment operator

    • Intermediate values


Auxiliary classes

Auxiliary Classes


Error handling

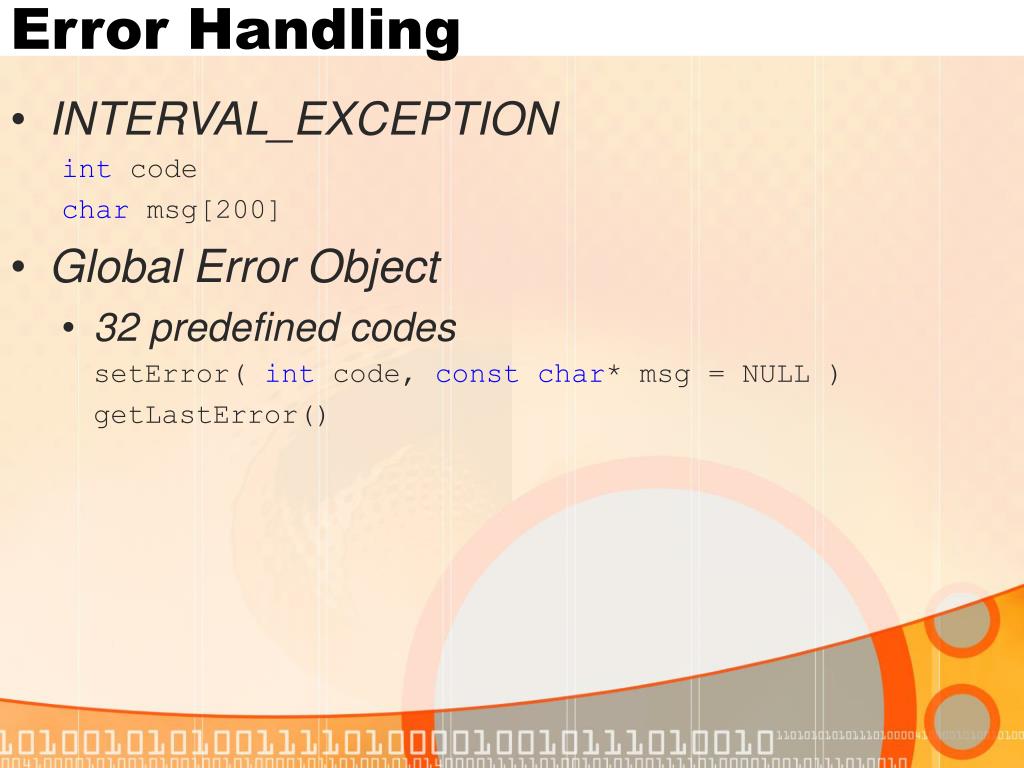

Error Handling

  • INTERVAL_EXCEPTION

    int code

    char msg[200]

  • Global Error Object

    • 32 predefined codes

      setError( int code, const char* msg = NULL )

      getLastError()


Intervalvectort intervalmatrixt

IntervalVectorT & IntervalMatrixT

  • Enables strong dimension checking

  • Typdef common matrices and vectorstypedef IntervalMatrixT<2,2> IMatrix2x2;. . .IMatrix2x2 m, n, o;


A computational environment for interval matrices in c

Demo


Problem

Problem

  • Solve the following set of linear equations:


Problem1

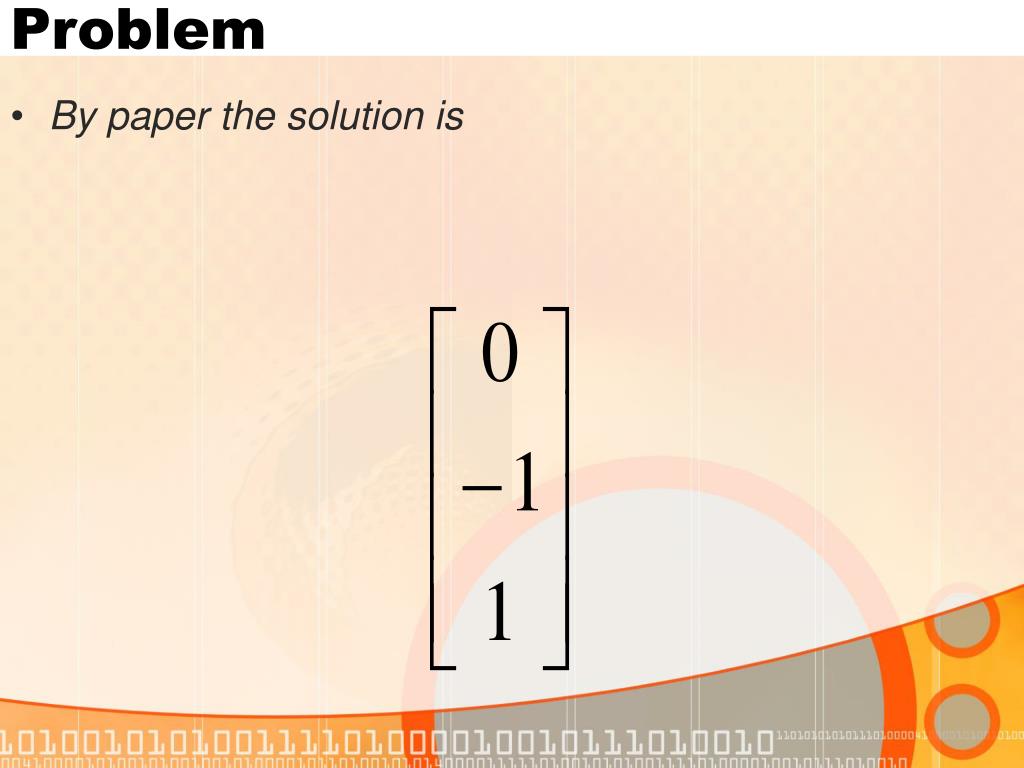

Problem

  • By paper the solution is


Conclusion

Conclusion

  • Interval Basic Linear Algebra Subprograms

  • Easy to install

  • Cross Platform

  • Open Source

  • Well Documented

  • Easy to use

  • Download it from http://www.geocities.com/mike_nooner


Future work

Future Work

  • Banded and Sparse Matrices

  • Arbitrary precision arithmetic

  • Fuzzy Logic Module

  • Interval Based LU Decomposition

  • Other cool stuff!
