  1. 中華技術學院Linux課程 Chap two : DNS 王俊城 RHCE/RHCX

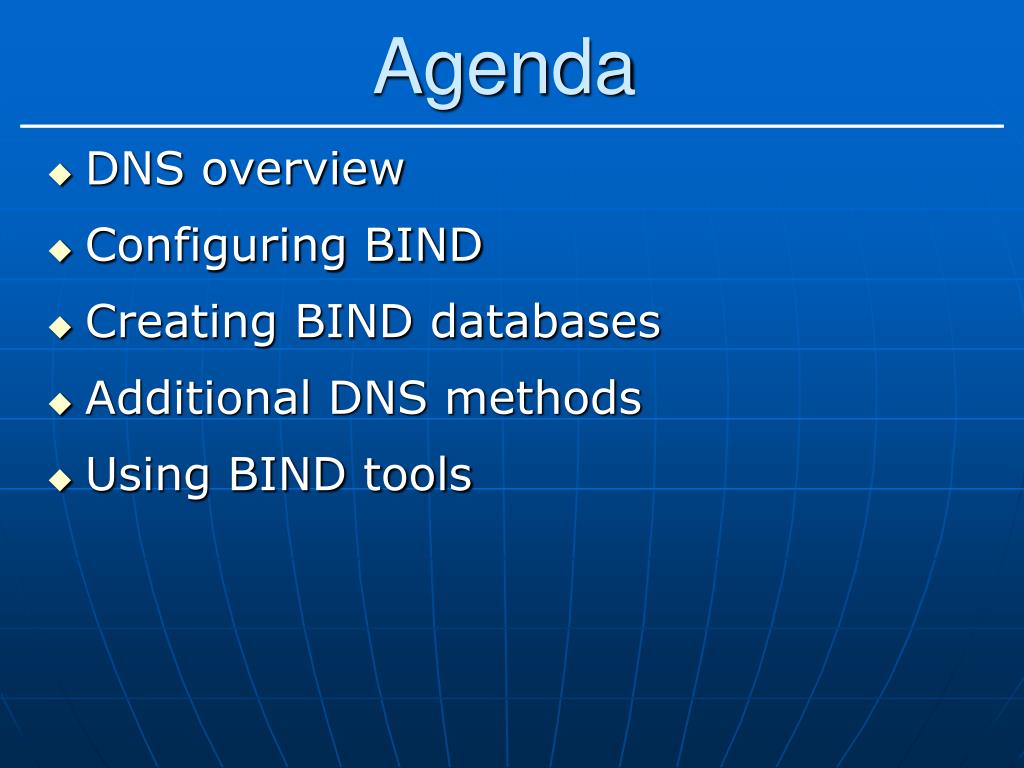

  2. Agenda • DNS overview • Configuring BIND • Creating BIND databases • Additional DNS methods • Using BIND tools

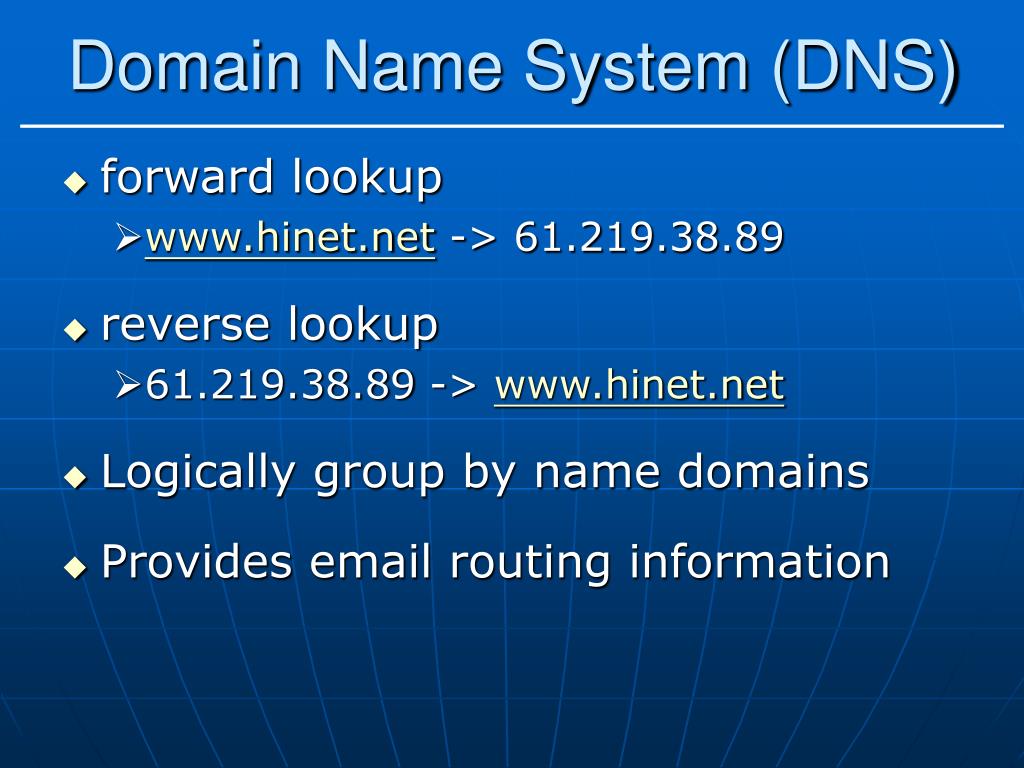

  3. Domain Name System (DNS) • forward lookup • www.hinet.net -> 61.219.38.89 • reverse lookup • 61.219.38.89 -> www.hinet.net • Logically group by name domains • Provides email routing information

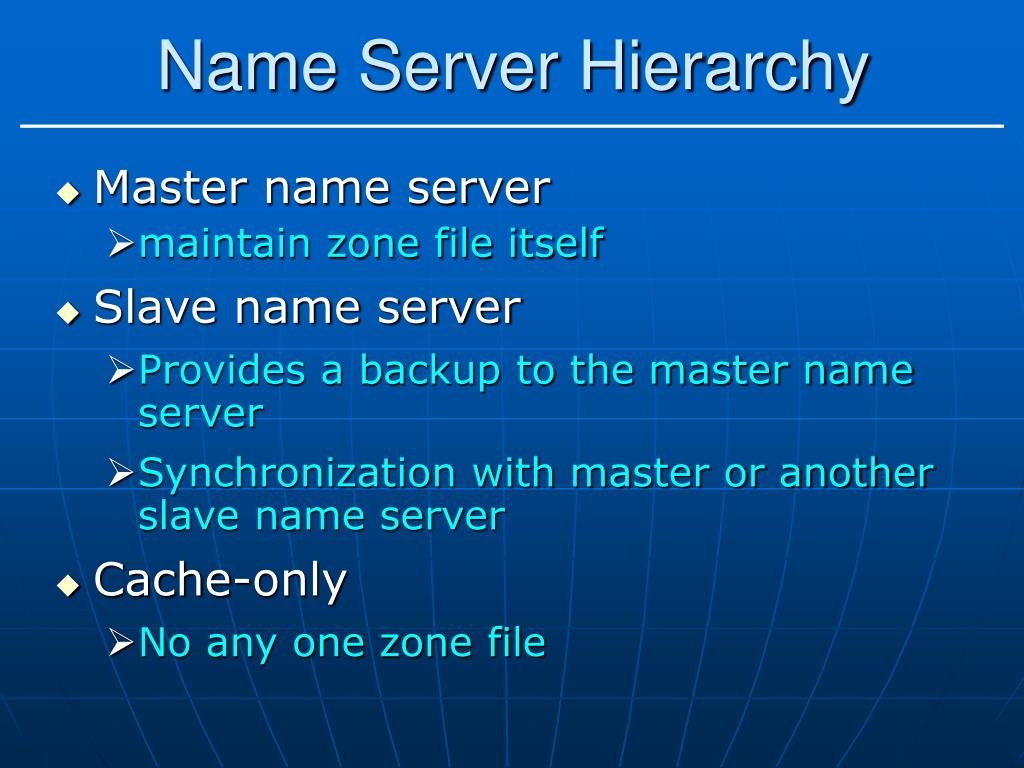

  4. Name Server Hierarchy • Master name server • maintain zone file itself • Slave name server • Provides a backup to the master name server • Synchronization with master or another slave name server • Cache-only • No any one zone file

  5. DNS Server • Server receives request • If zone file have answer • If cache have answer • If forward assign • Asks root name server • /var/named/named.ca • dig @168.95.192.1

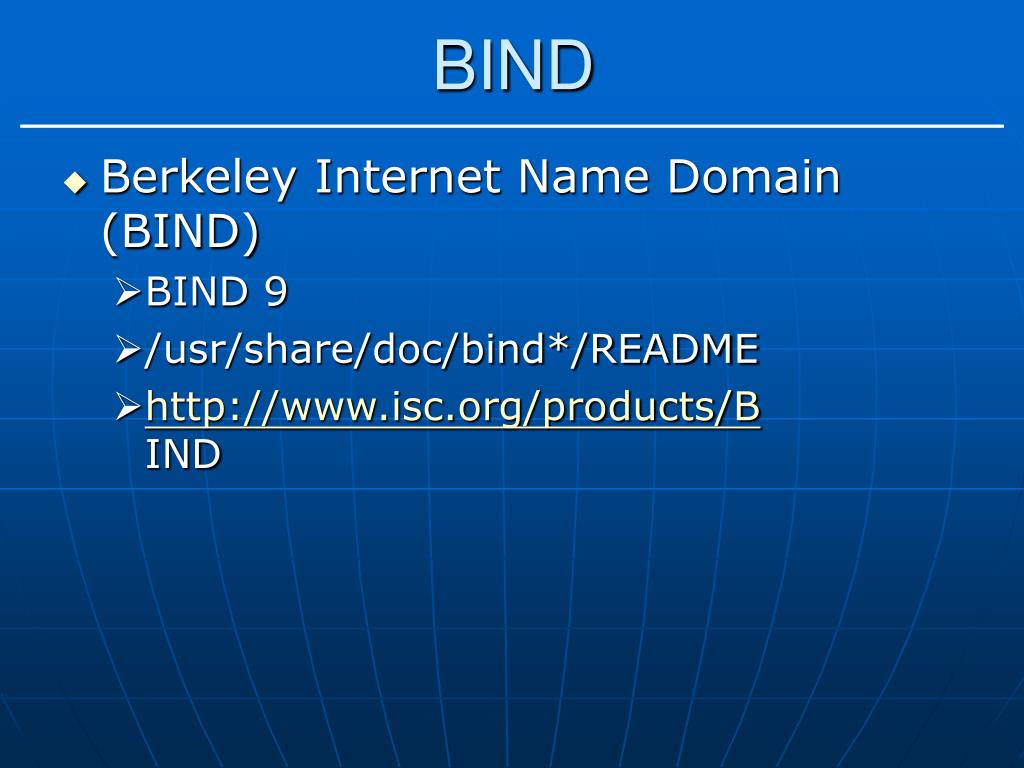

  6. BIND • Berkeley Internet Name Domain (BIND) • BIND 9 • /usr/share/doc/bind*/README • http://www.isc.org/products/BIND

  7. Service Profile : DNS • Type: System V-manager service • Packages: bind,bind-utils caching-nameserver openssl • Daemons: named • Script: named • Ports: UDP(53),TCP(53) • Configs: /etc/named.conf /var/named/named.ca /var/named/* • Log: /var/log/messages

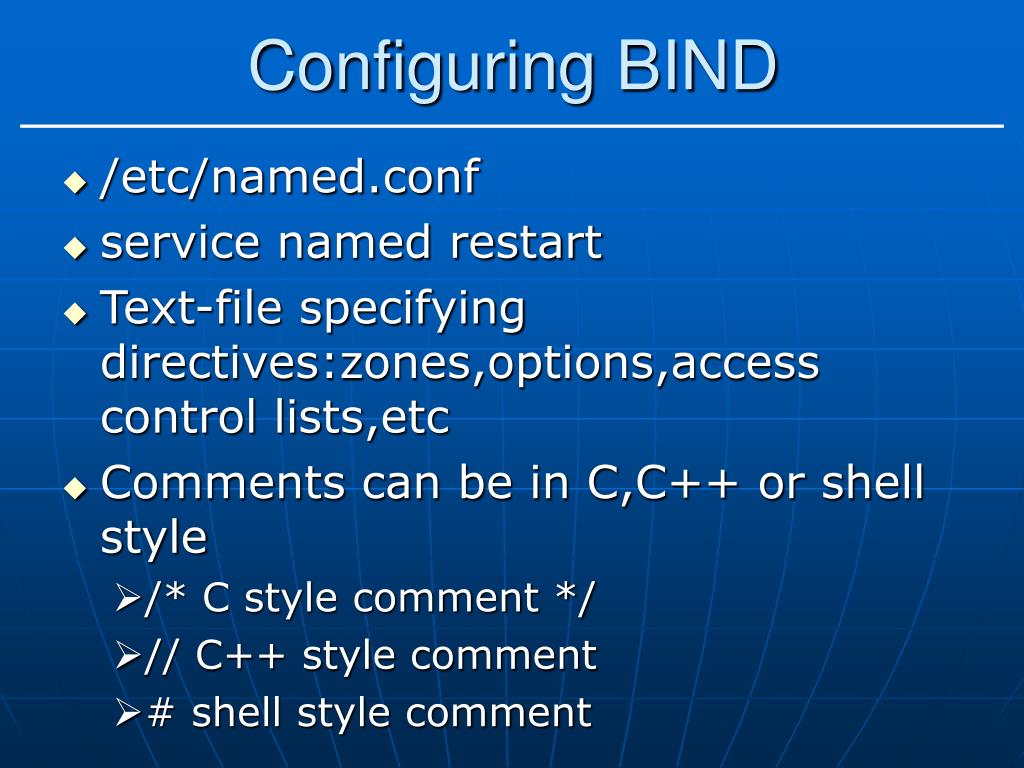

  8. Configuring BIND • /etc/named.conf • service named restart • Text-file specifying directives:zones,options,access control lists,etc • Comments can be in C,C++ or shell style • /* C style comment */ • // C++ style comment • # shell style comment

  9. Global Options

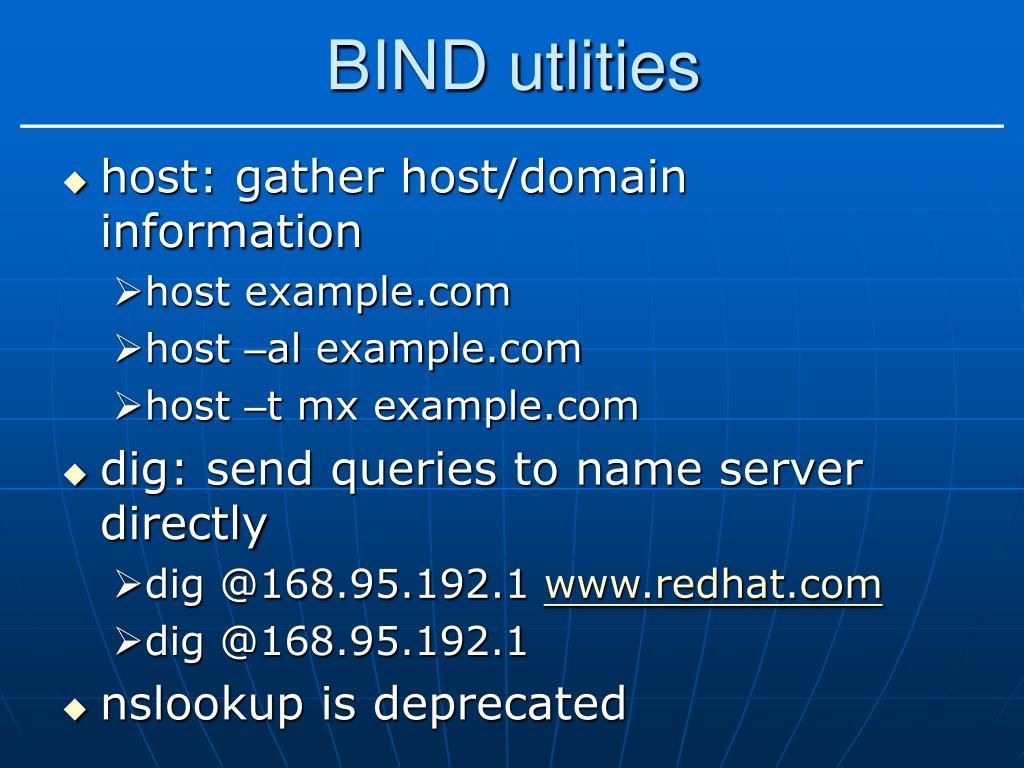

  10. BIND utlities • host: gather host/domain information • host example.com • host –al example.com • host –t mx example.com • dig: send queries to name server directly • dig @168.95.192.1 www.redhat.com • dig @168.95.192.1 • nslookup is deprecated

  11. LAB1-Cache-only DNS Server • /var/named/chroot/etc/named.conf • /etc/hosts • /etc/resolv.conf • service named restart • host station251.example.com

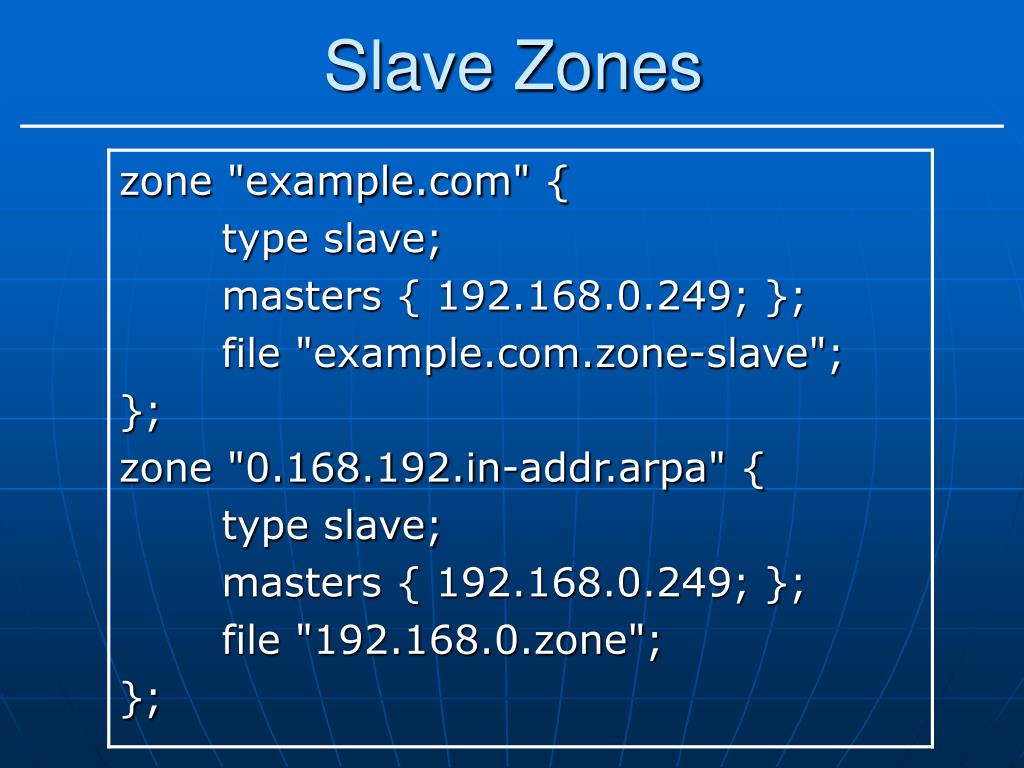

  12. Slave Zones

  13. LAB2-Slave DNS Server • /var/named/chroot/etc/named.conf • /etc/hosts • /etc/resolv.conf • service named restart • host station251.example.com

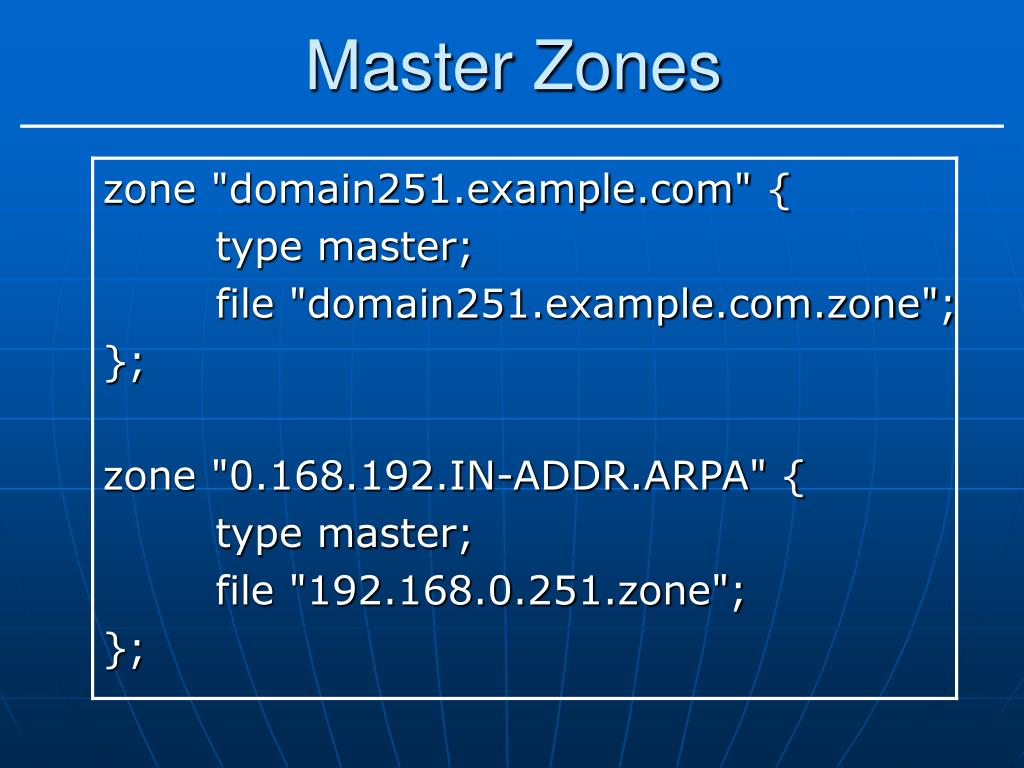

  14. Master Zones

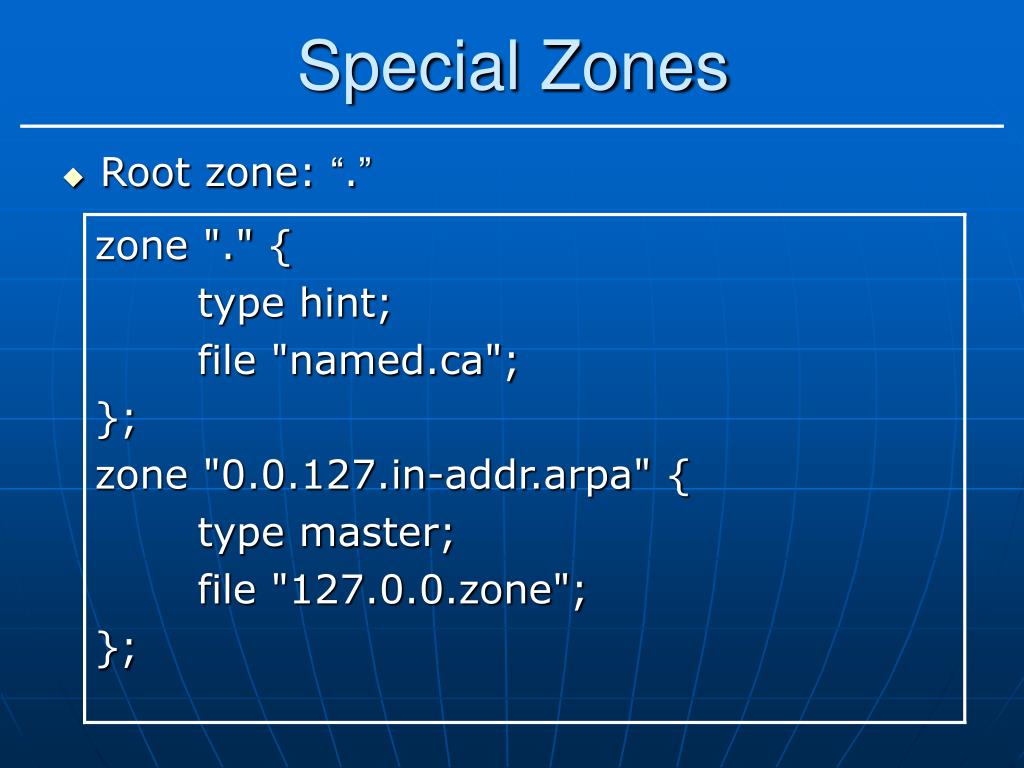

  15. Special Zones • Root zone: “.”

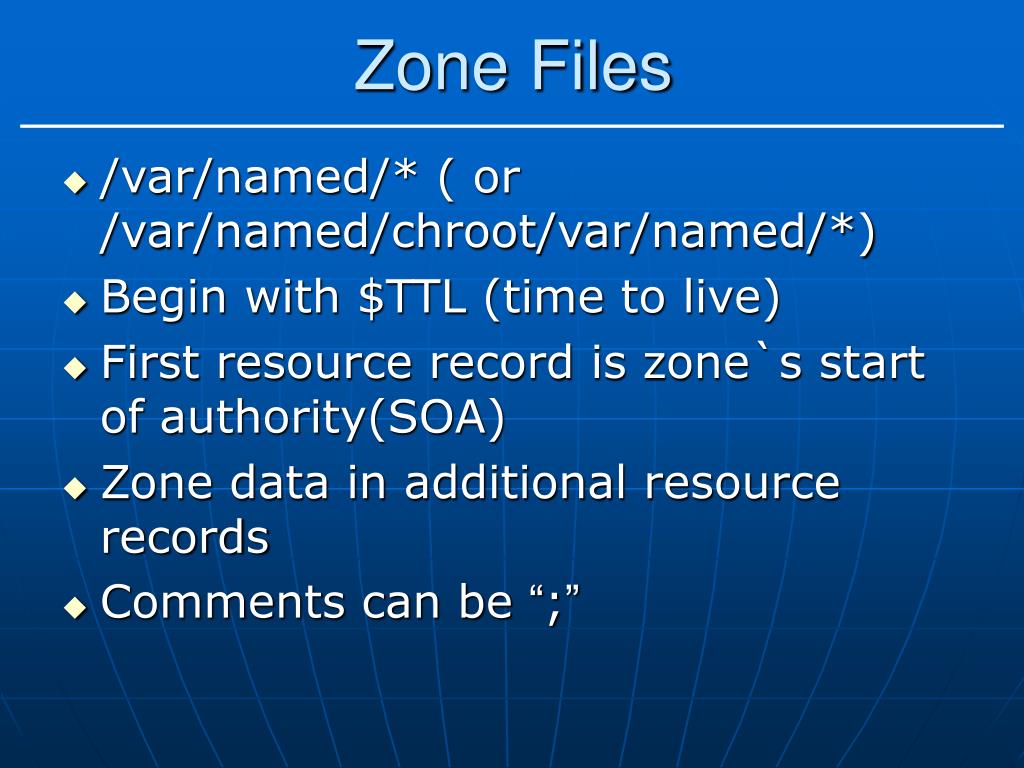

  16. Zone Files • /var/named/* ( or /var/named/chroot/var/named/*) • Begin with $TTL (time to live) • First resource record is zone`s start of authority(SOA) • Zone data in additional resource records • Comments can be “;”

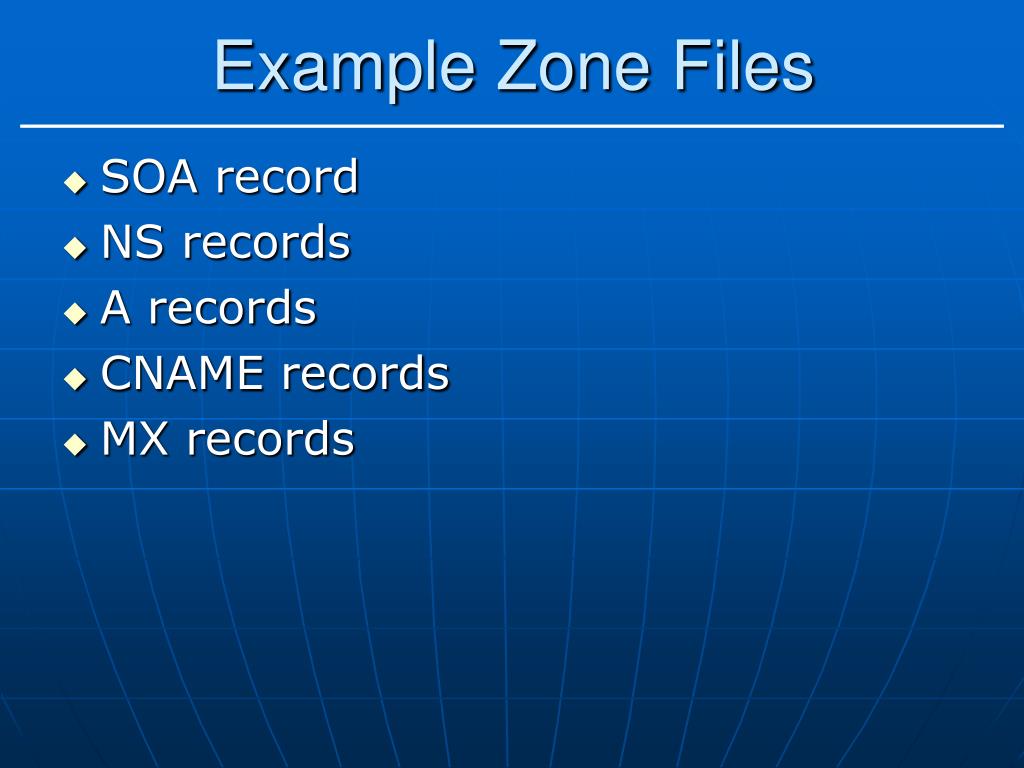

  17. Example Zone Files • SOA record • NS records • A records • CNAME records • MX records

  18. Example Zone Files

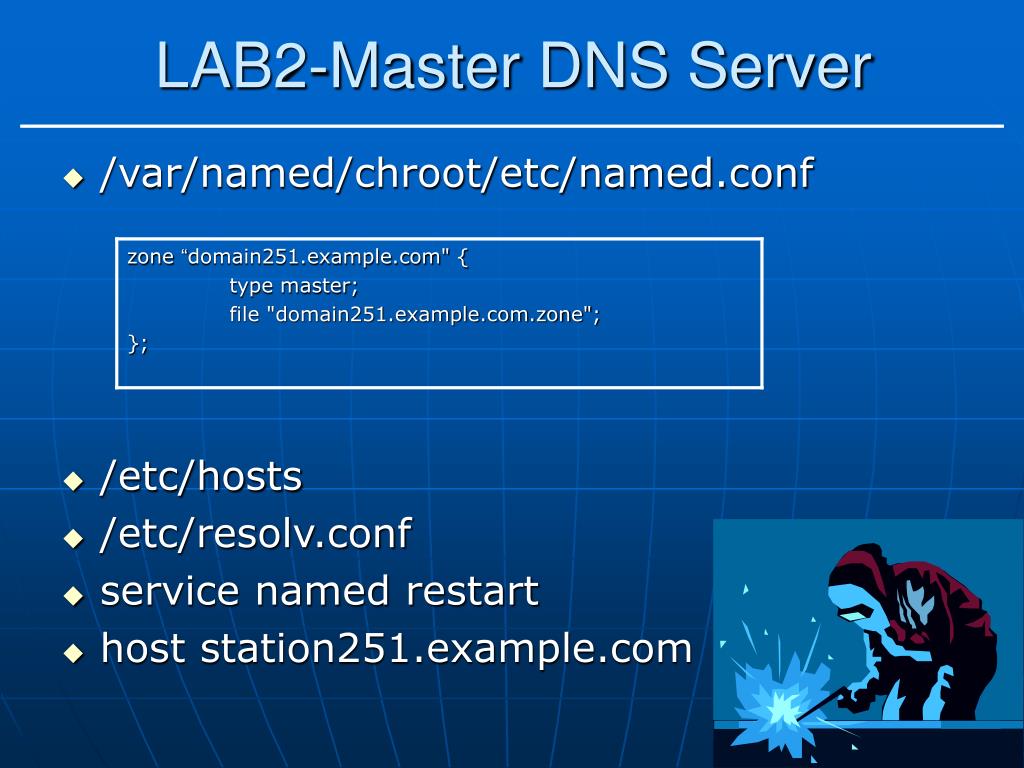

  19. LAB2-Master DNS Server • /var/named/chroot/etc/named.conf • /etc/hosts • /etc/resolv.conf • service named restart • host station251.example.com

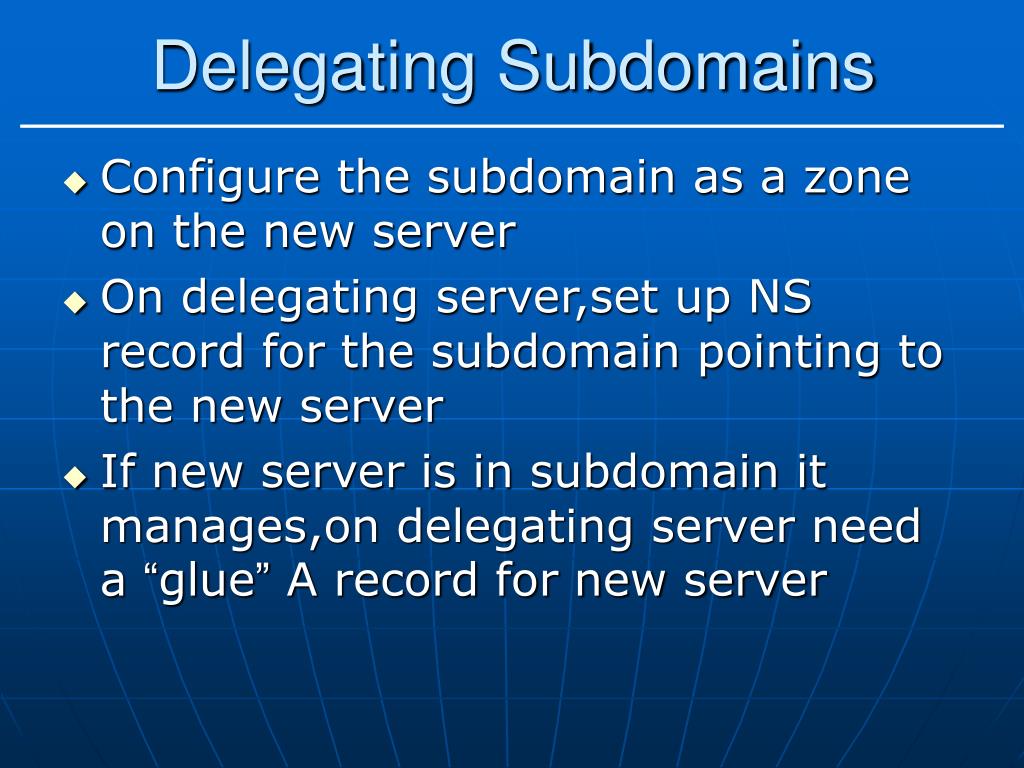

  20. Delegating Subdomains • Configure the subdomain as a zone on the new server • On delegating server,set up NS record for the subdomain pointing to the new server • If new server is in subdomain it manages,on delegating server need a “glue” A record for new server
