Reg 265 infrastructure technology

REG 265 – Infrastructure Technology

Dr AHMAD HILMY ABDUL HAMID

School of Housing, Building & Planning


Parkings

Parkings

  • Parking as part of an overall transportation system is one of the crucial issues of our times. As the number of automobiles increases exponentially, the need to house them in close proximity creates a challenging design problem


Parkings1

Parkings

  • Parking Lots (Primarily Used by Automobiles)

  • Parking lots are paved areas intended for vehicle parking and can vary widely in size, function and design.


Parkings2

Parkings

  • Assumed Traffic

  • Low speed automobiles and trucks.  Typically, automobiles may travel anywhere in the parking lot while heavy trucks travel to and from delivery and pick-up points only.  Thus, recommended parking lot structural design is divided into two categories:


Parkings3

Parkings

  • Light loads.

  • Parking lot areas expected to experience little or no truck traffic can be designed for car and light truck loads only.  Typically light load parking lot areas encompass the parking stalls and parking stall access lanes.  Truck traffic in these areas is limited to a few medium trucks and the occasional heavy truck that may stray in the parking stall area after hours.


Parkings4

Parkings

  • Heavy loads.

  • Parking areas expected to experience significant truck traffic should include a thicker pavement structure to accommodate these heavier loads.  Typically, heavy load parking lot areas encompass the entrance and exit lanes from the parking lot, the area directly in front of a store, truck loading/unloading areas and access routes to these areas.  The recommended minimum pavement thicknesses shown here are for typical parking lot heavy load areas.  If it is likely a particular parking lot will experience excessive heavy loads, it should be designed using an approved procedure.


Parkings5

Parkings


Parkings6

Parkings

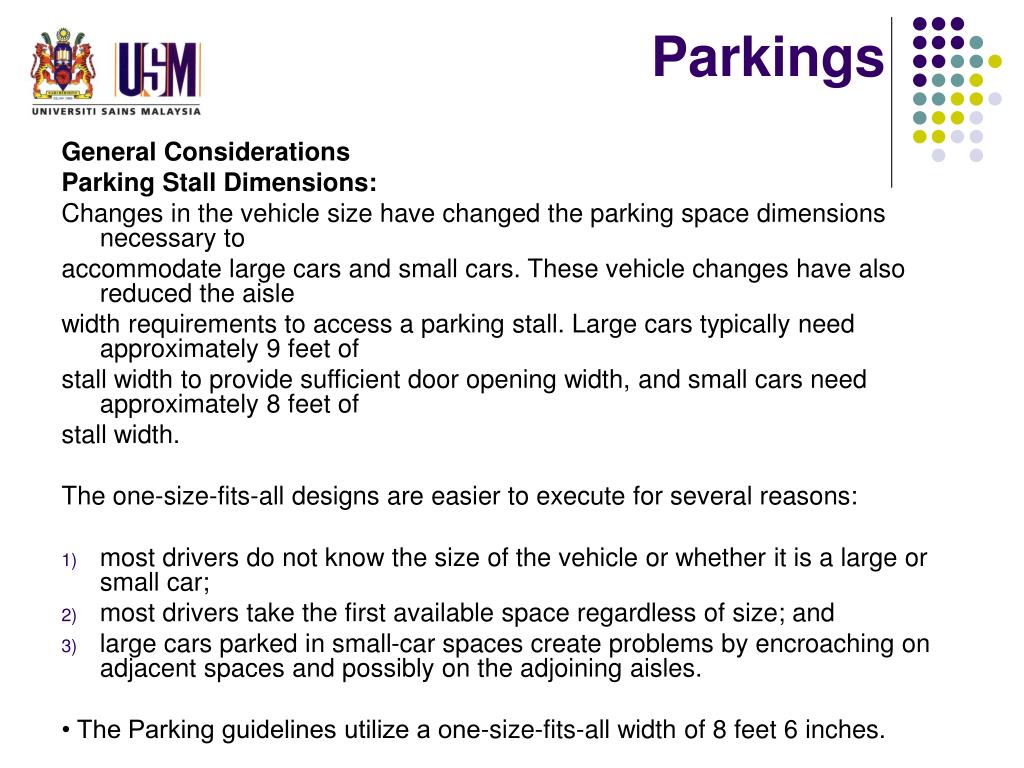

  • General Considerations

  • Parking Stall Dimensions:

  • Changes in the vehicle size have changed the parking space dimensions necessary to

  • accommodate large cars and small cars. These vehicle changes have also reduced the aisle

  • width requirements to access a parking stall. Large cars typically need approximately 9 feet of

  • stall width to provide sufficient door opening width, and small cars need approximately 8 feet of

  • stall width.

  • The one-size-fits-all designs are easier to execute for several reasons:

  • most drivers do not know the size of the vehicle or whether it is a large or small car;

  • most drivers take the first available space regardless of size; and

  • large cars parked in small-car spaces create problems by encroaching on adjacent spaces and possibly on the adjoining aisles.

  • • The Parking guidelines utilize a one-size-fits-all width of 8 feet 6 inches.


Parkings7

Parkings

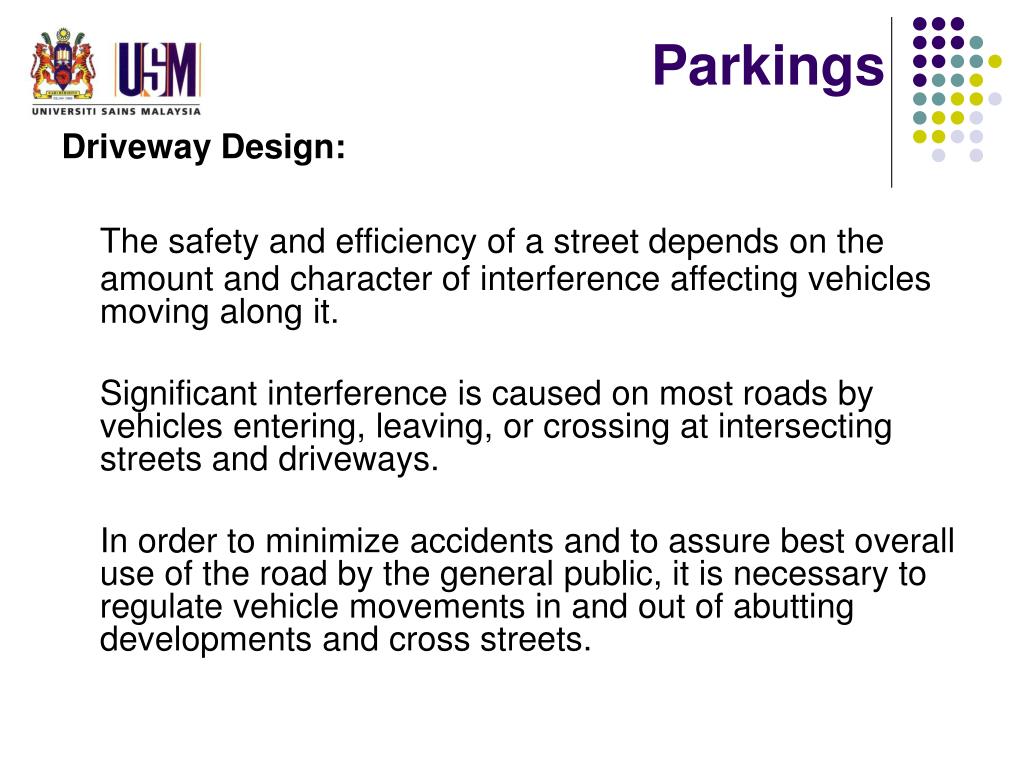

  • Driveway Design:

  • The safety and efficiency of a street depends on the amount and character of interference affecting vehicles moving along it.

  • Significant interference is caused on most roads by vehicles entering, leaving, or crossing at intersecting streets and driveways.

  • In order to minimize accidents and to assure best overall use of the road by the general public, it is necessary to regulate vehicle movements in and out of abutting developments and cross streets.


Parkings8

Parkings

  • • The conflict effect of driveways is a function of traffic and pedestrian flow along the street and at the driveway.

  • • A low volume driveway causes relatively little conflict on a major street, and a high volume driveway causes little conflict on a minor route.

  • • In areas of high pedestrian activity, designs for low speed vehicular entry and exit may be based on radii and restricted total widths.

  • • Driveways should be designed for curb lane access with minimal encroachment on travel lanes.


Parkings9

Parkings

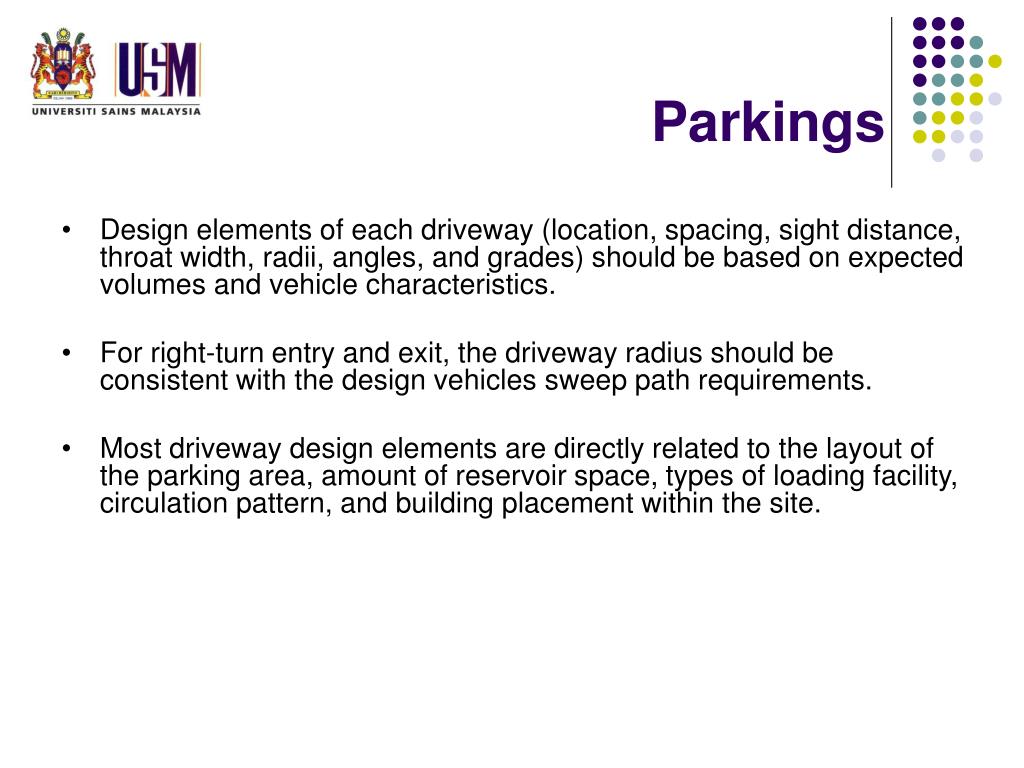

  • • Design elements of each driveway (location, spacing, sight distance, throat width, radii, angles, and grades) should be based on expected volumes and vehicle characteristics.

  • • For right-turn entry and exit, the driveway radius should be consistent with the design vehicles sweep path requirements.

  • • Most driveway design elements are directly related to the layout of the parking area, amount of reservoir space, types of loading facility, circulation pattern, and building placement within the site.


Parkings10

Parkings


Parkings11

Parkings


Parkings12

Parkings


Parkings13

Parkings

  • Parking Area


Parkings14

Parkings

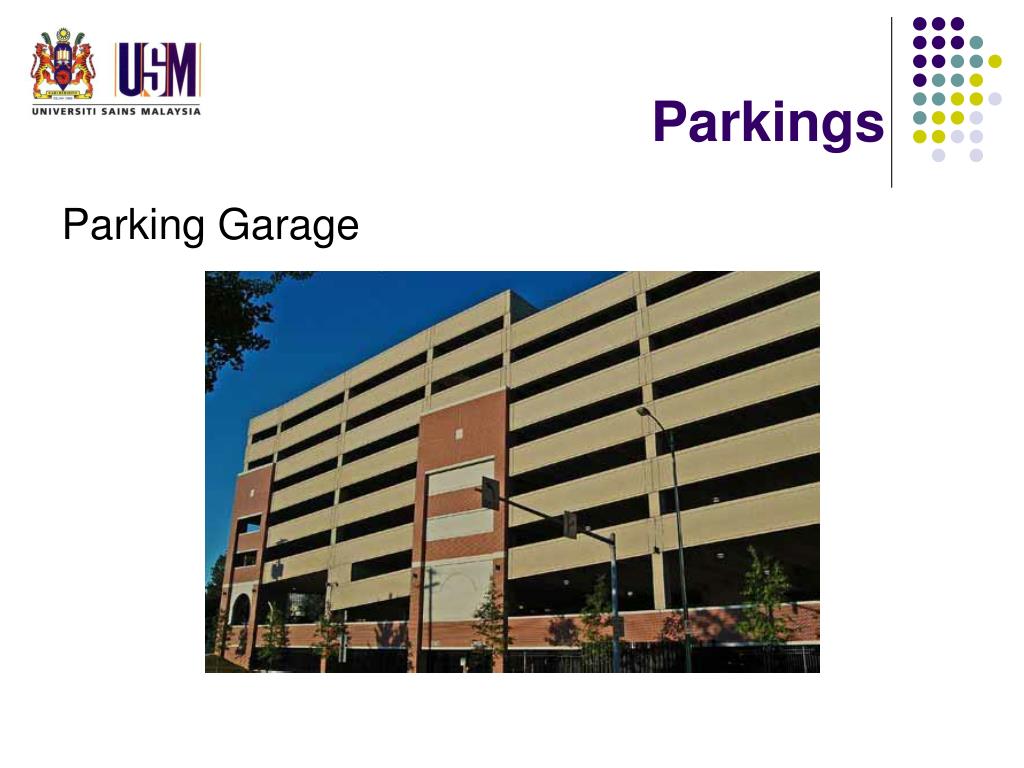

  • Parking Garage


Parkings15

Parkings

  • Parking Layout


Parkings16

Parkings

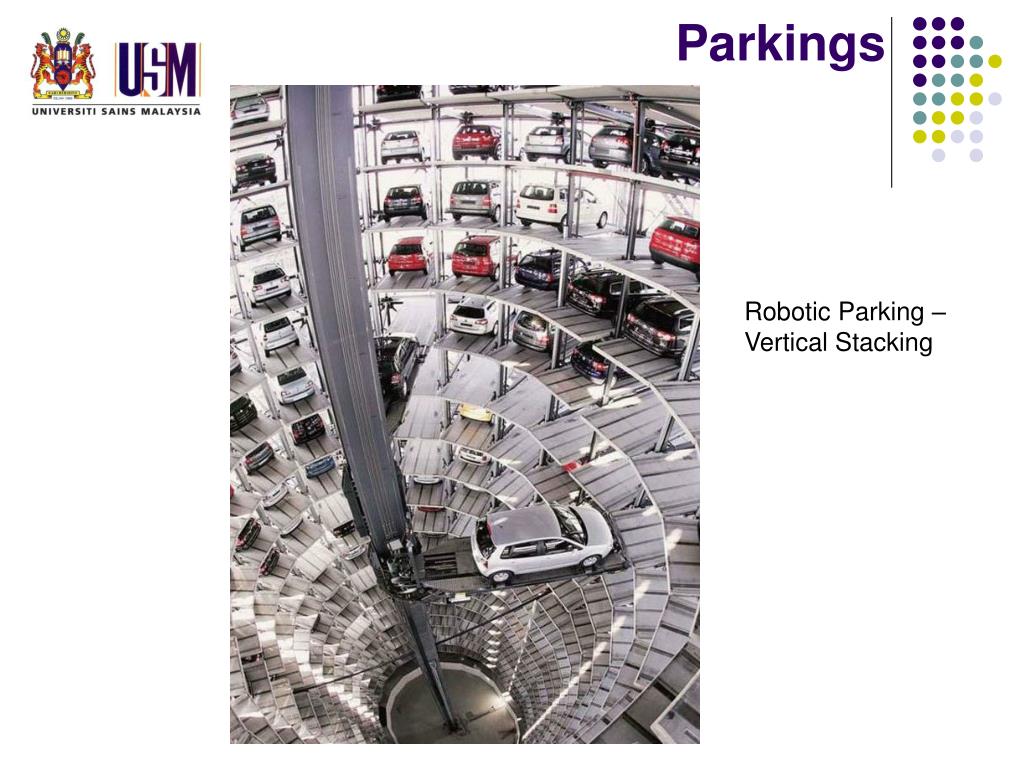

Robotic Parking – Vertical Stacking


Parkings17

Parkings

Robotic Parking – Vertical Stacking


Parkings18

Parkings

  • Robotic Parking Garage


Parkings19

Parkings

  • Eco Parking Area


Parkings20

Parkings

  • Motorcycle Parking


Parkings21

Parkings

  • Motorcyle parking


Parkings22

Parkings

  • Bus Parking Area


Parkings23

Parkings

  • Bus station parking


Parkings24

Parkings

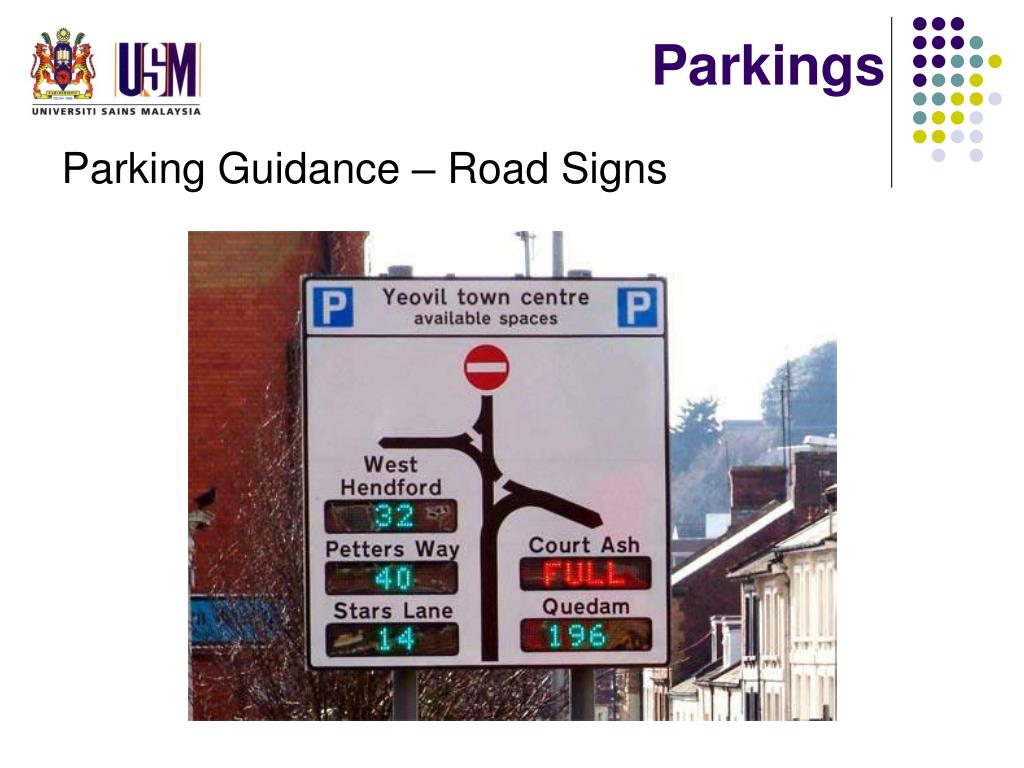

  • Parking Guidance – Road Signs


Parkings25

Parkings

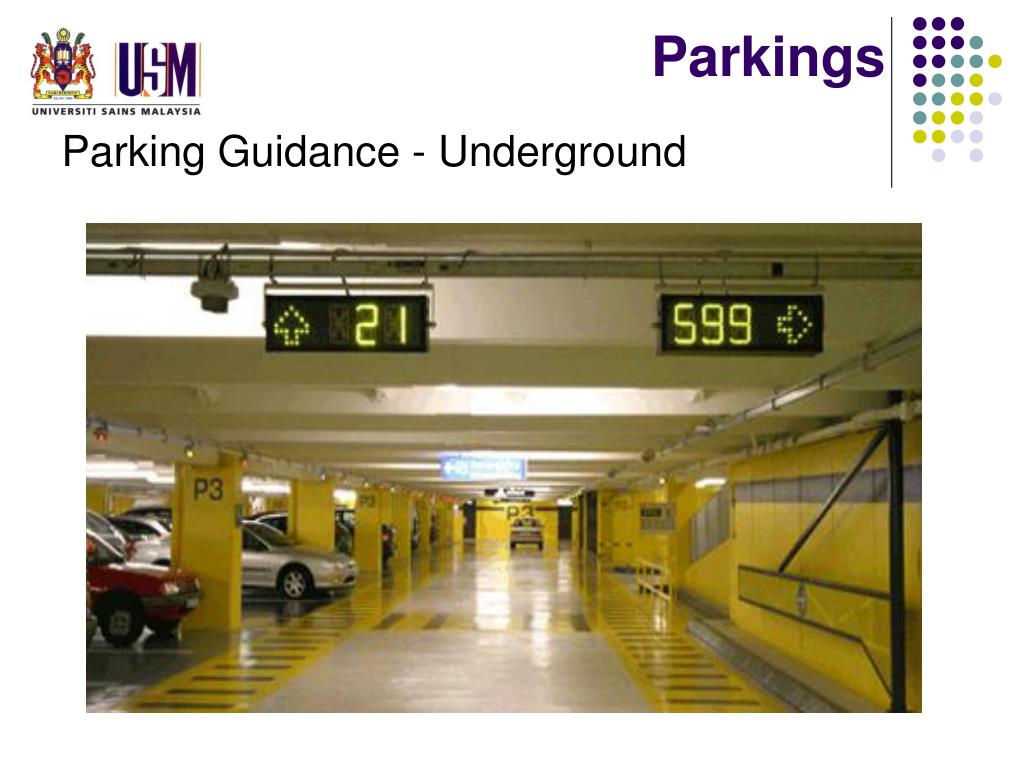

  • Parking Guidance - Underground


Parkings26

Parkings

  • Parking Guidance - Multistorey


Parkings27

Parkings

Congestion Reduction


Parkings28

Parkings

  • Parking – Recogniton Technology


Parkings29

Parkings

  • Parking – Occupancy Recognition


Parkings30

Parkings

  • Vehicle Clamp


Parkings31

Parkings

  • Parking Stunts


Parkings32

Parkings

  • Parking Oddity


Auto parking

Auto Parking


Reg 265 infrastructure technology

Robotic Parking


Kerja kursus

Kerja kursus

  • Anda dijemput oleh sebuah Pihak Berkuasa tempatan (PBT) untuk merangka garis panduan pembangunan di kawasan mereka. Tulis satu laporan ringkas untuk PBT berkenaan dengan memberi tumpuan kepada perkara berikut:

  • i) Cadangan jalan - Hieraki

  • - Kebolehsampaian

  • - Isu Mobiliti

  • - Jalan residensi

  • ii) Peparitan & Pakir- Jenis2 pakir dan peparitan lestari

  • iii) Sistem lampu jalan- Opsyen dan keperluan

  • NOTA:

  • 1.Sokong laporan anda dengan rajah, gambar dan jadual yang relevan

  • 2.Laporan anda tidak harus melebihi 20 muka surat (penulisan sahaja)


Coursework

Coursework

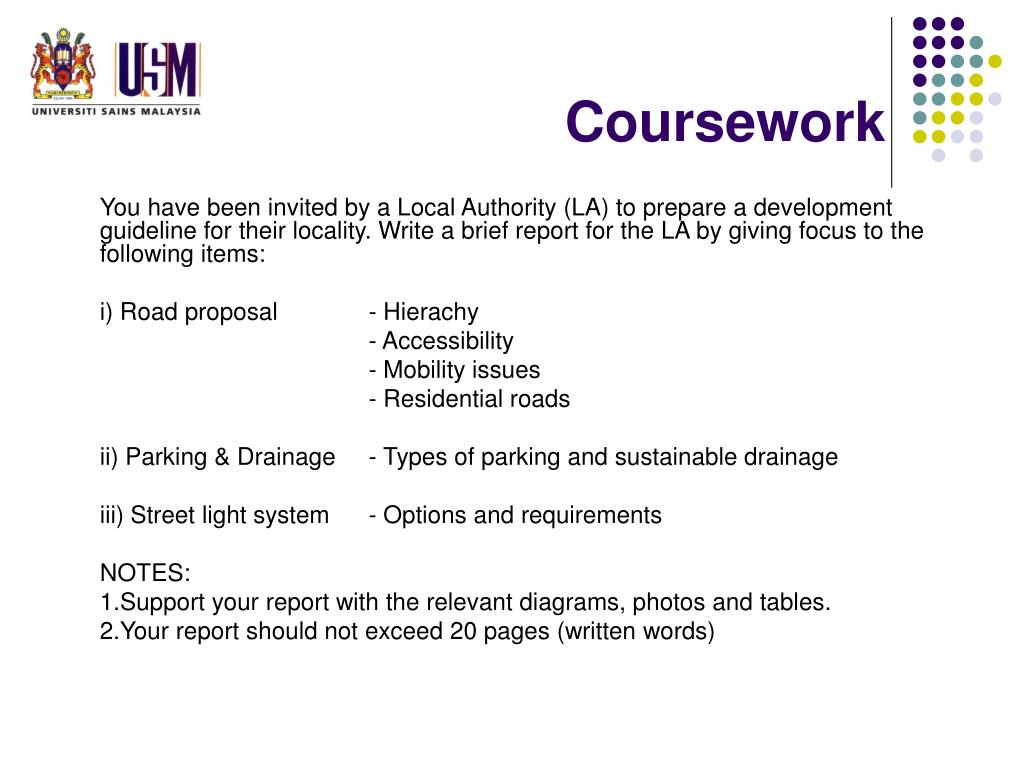

  • You have been invited by a Local Authority (LA) to prepare a development guideline for their locality. Write a brief report for the LA by giving focus to the following items:
