Jpeg

JPEG


Introduction

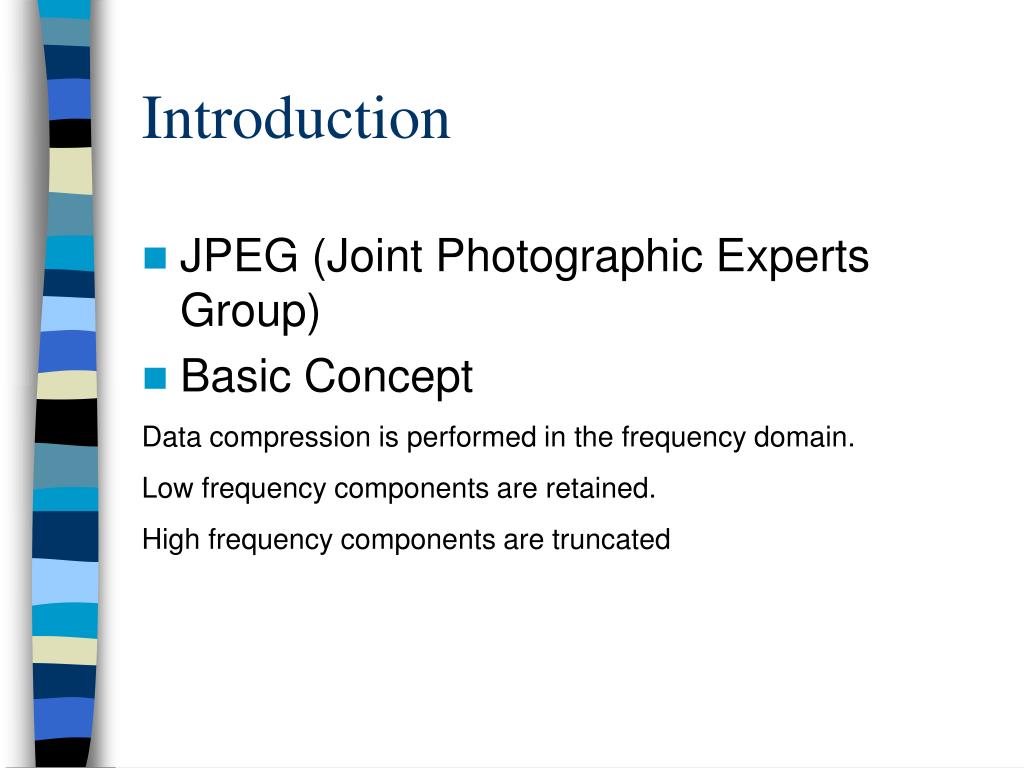

Introduction

  • JPEG (Joint Photographic Experts Group)

  • Basic Concept

    Data compression is performed in the frequency domain.

    Low frequency components are retained.

    High frequency components are truncated


Jpeg system overview

JPEG System Overview

  • The JPEG is a transform coding scheme. Its encoding process can be separated into 3 stages:

Color

Transform

Discrete

Cosine

Transform

Quantization

Bitstream

Formation


Jpeg

Color Transform

  • Process the data in blocks of 8×8 samples

  • Convert RGB into Luminance (Y) and Chrominance (Cr and Cb).

  • Use half resolution for Chrominance (because eye is more sensitive to Luminance)


Jpeg

Discrete Cosine Transform

  • Transform each block of 8×8 samples into 64 DCT coefficients

    • energy tends to be concentrated into a few significant coefficients


Jpeg

Quantization (I)

  • Divide each DCT coefficient by an integer, discard remainder

  • Typically, a few non-zero coefficients are left.


Jpeg

Quantization (II)


Dct transform

DCT Transform

  • The JPEG is based on the 8 × 8 DCT.

  • To use the DCT ,we first divide an image into non-overlapping 8 × 8 blocks.

  • Let x(n,m), 0≦n,m≦7, be the pixel values in the block.

  • Let X(u,v), 0≦u,v≦7, be the DCT coefficients.


Jpeg

The X(u,v) and x(n,m) are related by

where

and

N = 8


Quantization

Quantization

In the JPEG,each of the 64 resulting DCT coefficients is quantized by an uniform scalar quantizer according to the following equation:

where Xq(u,v) is the quantized coefficient and


Jpeg

is the quantization table.


Jpeg

Note that Q should be the same at the encoder and decoder.

Given Xq(u,v) and Q(u,v), 0≦ u,v≦ 7,the dequantized DCT coefficients Xr(u,v),

0≦ u,v≦ 7, are then obtained by

Xr(u,v) = Xq(u,v) Q(u,v)


Example

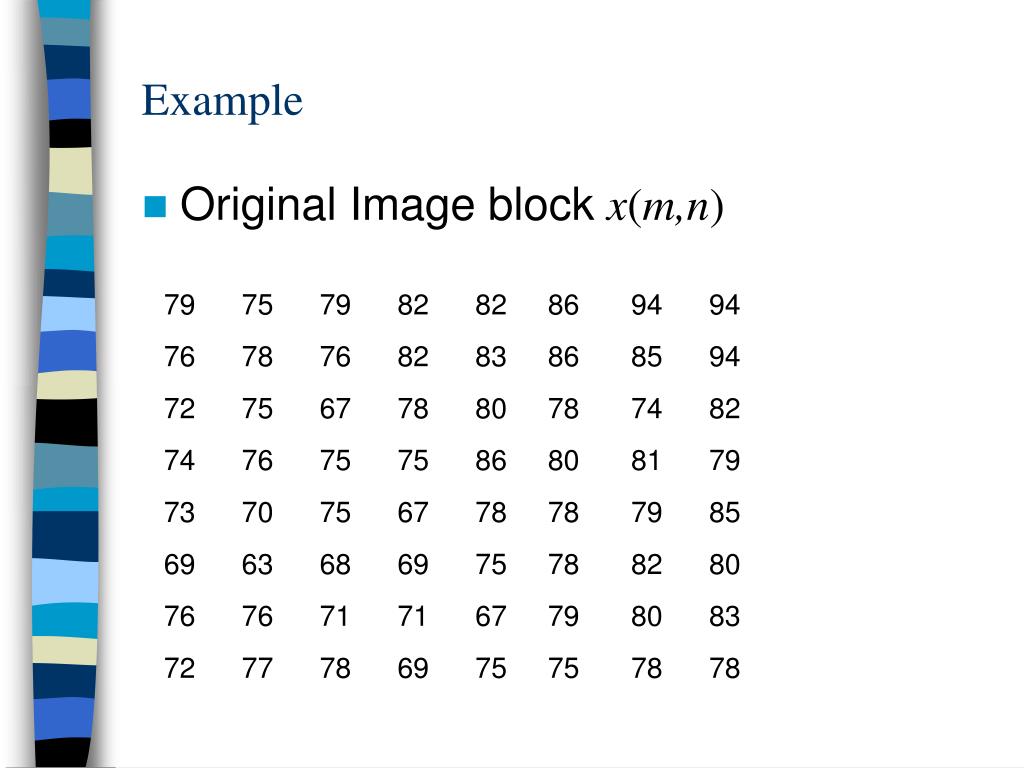

Example

  • Original Image block x(m,n)


Jpeg

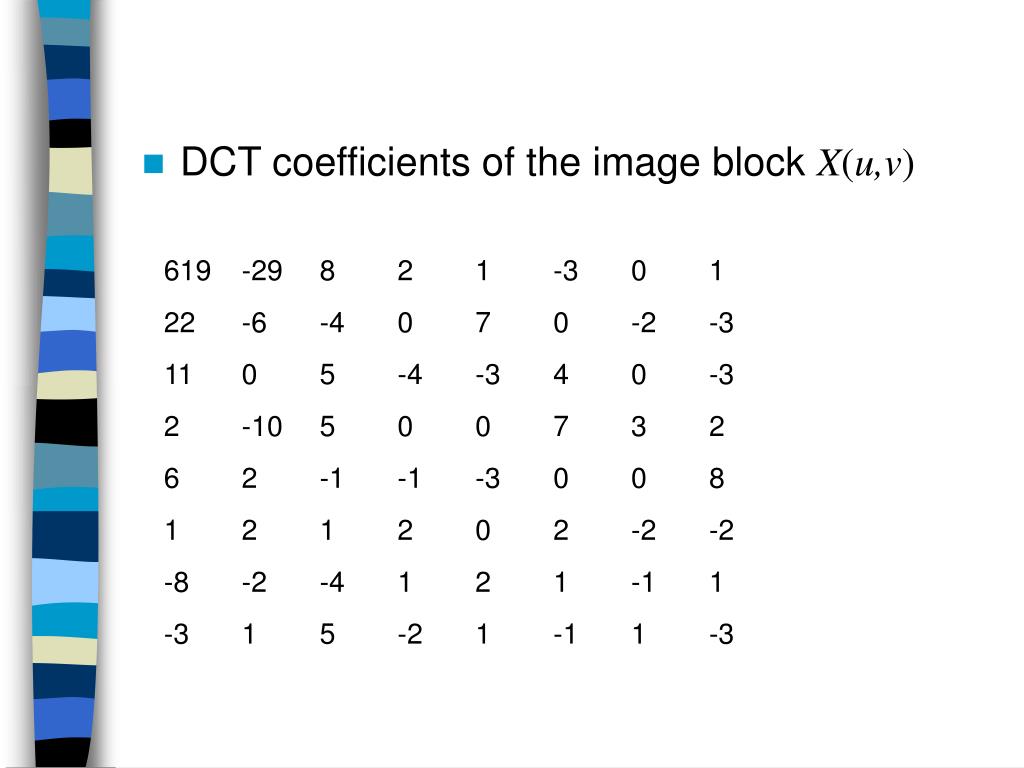

  • DCT coefficients of the image block X(u,v)


Jpeg

  • Quantization table Q(u,v)


Jpeg

  • Quantized DCT coefficients Xq(u,v)


Jpeg

  • Dequantized DCT coefficients Xr(u,v)


Jpeg

  • Reconstructed image block


Jpeg

  • Error block


Bitstream formation

Bitstream Formation

Here we use the Huffman code to form bitstream representing the quantized DCT coefficients.


Jpeg

Before performing the Huffman coding, all the

quantized coefficients are separated into two

groups:

(1)DC coefficient: Xq(0,0)

(2)AC coefficients: Xq(u,v), u≠0 or v≠ 0

These two groups are encoded independently.


Dc coefficient

DC coefficient

The encoding of the DC coefficient is based on the DIFFf value ,defined as

DIFFf = Xqf(0,0)-Xqf-1(0,0)

where

Xqf(0,0) = The DC coefficient of the

current block.

Xqf-1(0,0) = The DC coefficient of the

previous block.


Jpeg

The DIFFf values are classified into 12 classes (Table1).

TABLE 1


Jpeg

The Huffman code representing each

class is shown in Table2.

TABLE 2


When diff f class 0 diff f is represented by codeword 00

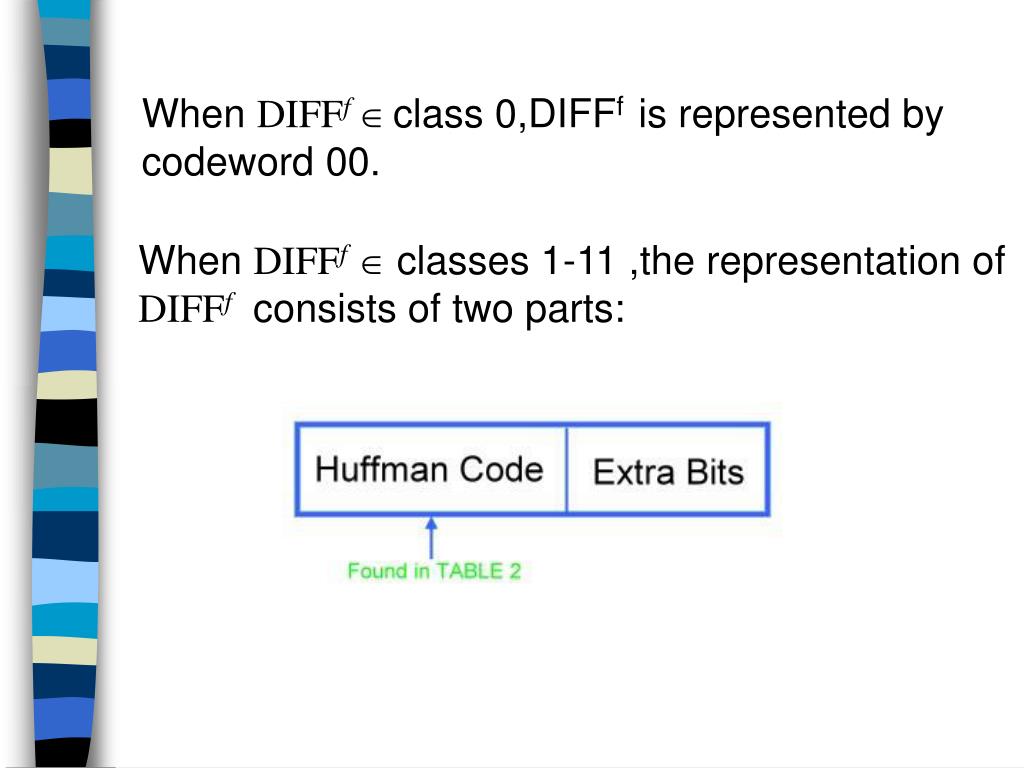

When DIFFf class 0,DIFFf is represented by codeword 00.

When DIFFf classes 1-11 ,the representation of DIFFf consists of two parts:


The extra bits can be expressed in the following form

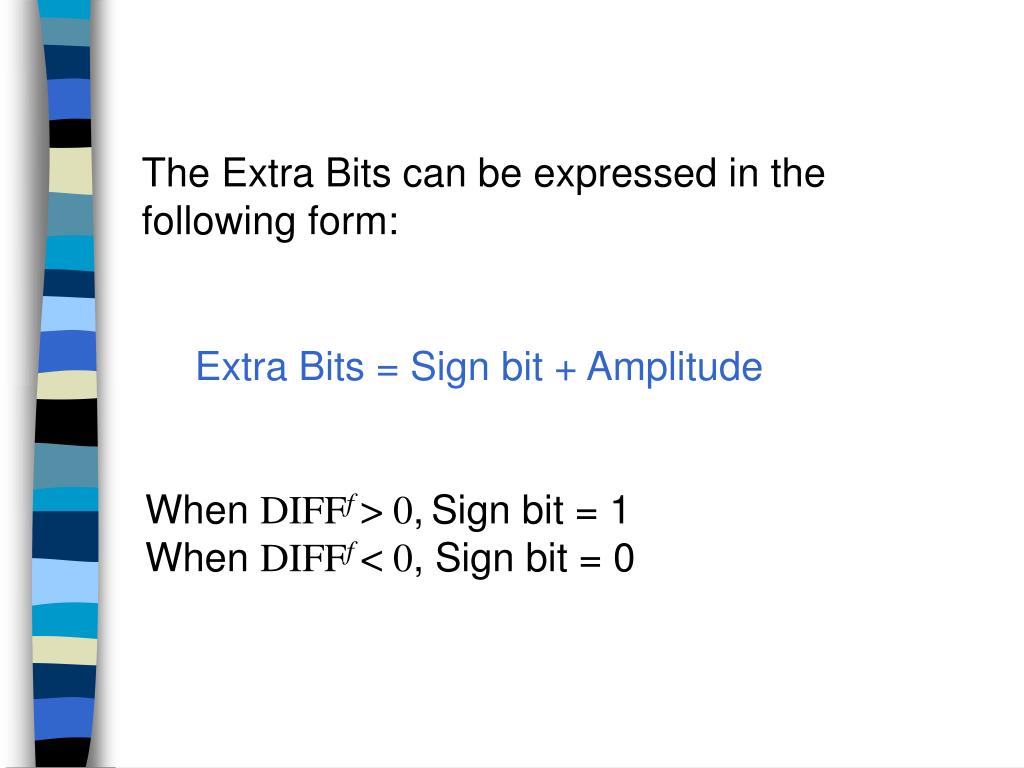

The Extra Bits can be expressed in the following form:

Extra Bits = Sign bit + Amplitude

When DIFFf> 0,Sign bit = 1

When DIFFf< 0, Sign bit = 0


Jpeg

When DIFFf> 0:

Amplitude=Lower-order bit of DIFFf

(MSB is not include.)

When DIFFf< 0:

Amplitude = 1’s complement of

lower-order bits of |DIFFf|


Example1

Example

If DIFFf= 5,then it is represented as

If DIFFf = -5,then it is represented as


Ac coefficients

AC coefficients

The Huffman coding of the AC coefficients can be separated into three stages:

Stage 1: ZigZag ordering of AC

coefficients.

Stage 2: Run/Size Representation of

Nonzero AC coefficients.

Stage 3: Huffman encoding based on

the Run/Size Representation.


Zig zag ordering

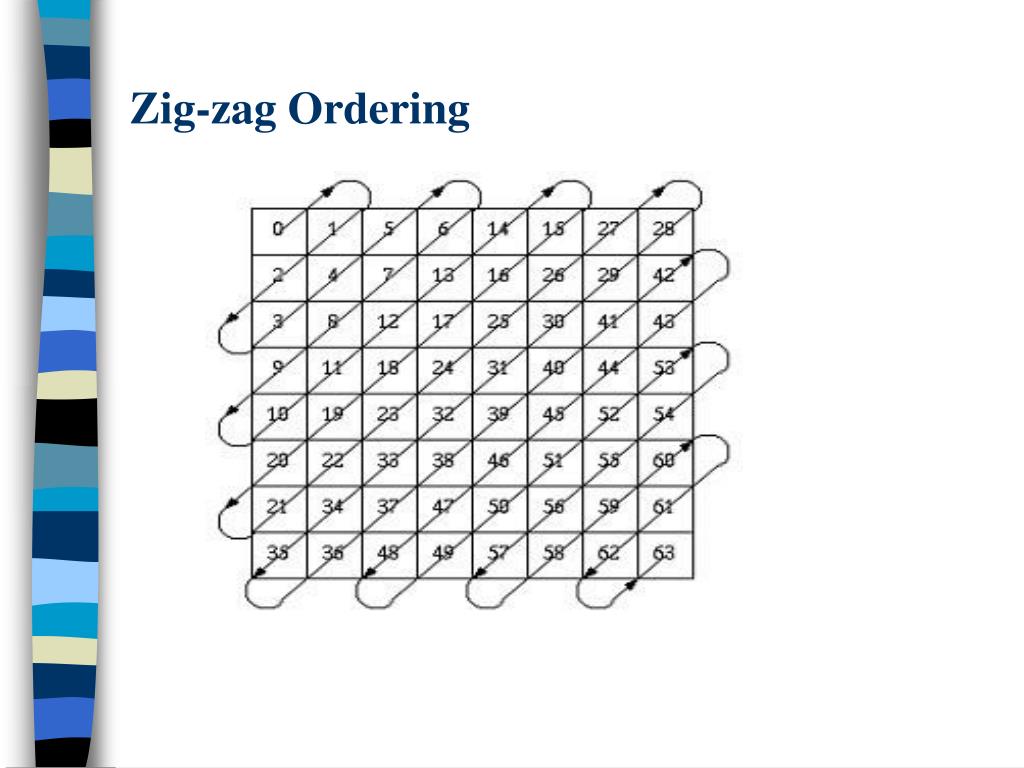

Zig-zag Ordering


Run size representation

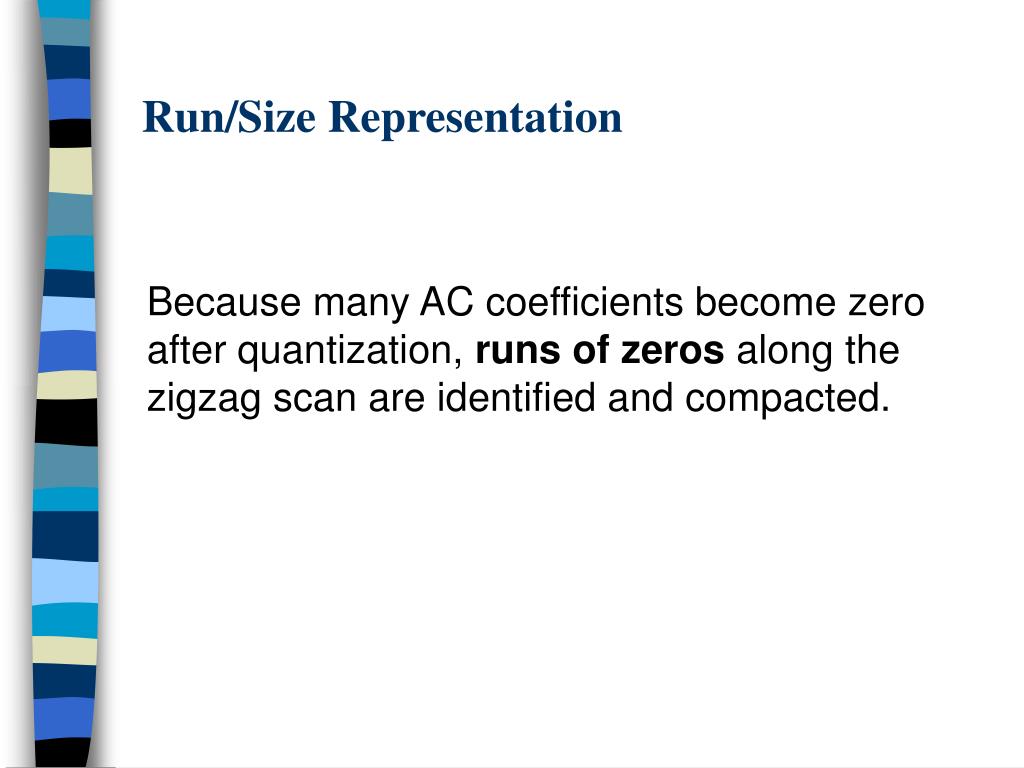

Run/Size Representation

Because many AC coefficients become zero after quantization, runs of zeros along the zigzag scan are identified and compacted.


Jpeg

Each nonzero AC coefficientis descibed

by a composite R/S,where R(Run) is

a 4-bit zero-run from the previous

non-zero value, and S(Size) represents

the size of the non-zero AC coefficient.


The size can be separated into 10 classes as shown in table 3

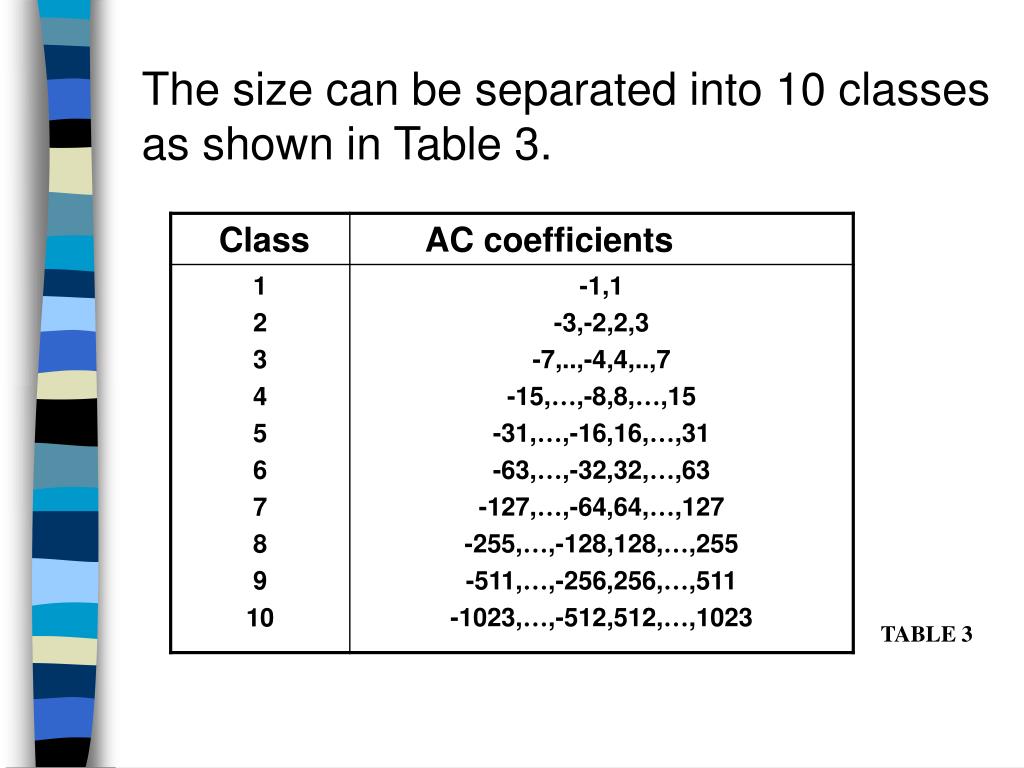

The size can be separated into 10 classes as shown in Table 3.

TABLE 3


Huffman encoding

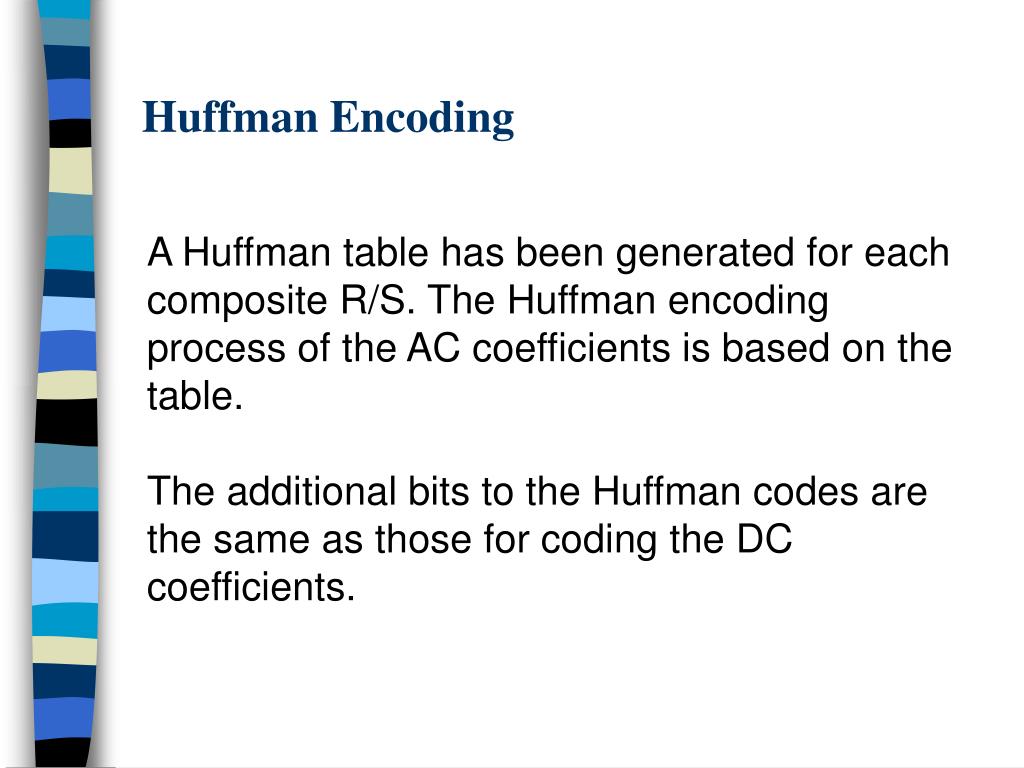

Huffman Encoding

A Huffman table has been generated for each composite R/S. The Huffman encoding process of the AC coefficients is based on the table.

The additional bits to the Huffman codes are the same as those for coding the DC coefficients.


Jpeg

There are two special cases that describe some attention :

Case 1 : all the remaining coefficientsalong the zigzag scan are zero.

In this case,we set R/S =x’00’, which is coded as an EOB code of 1010.


Jpeg

Case 2 : zero-run are greater than 16.

In this case ,we set R/S = x’F0’(15 zero-

runs and 1 zero value).

Therefore 16 zero-runs are coded. The

same procedure is repeated until the

length of zero-runs is less than 16.


Example2

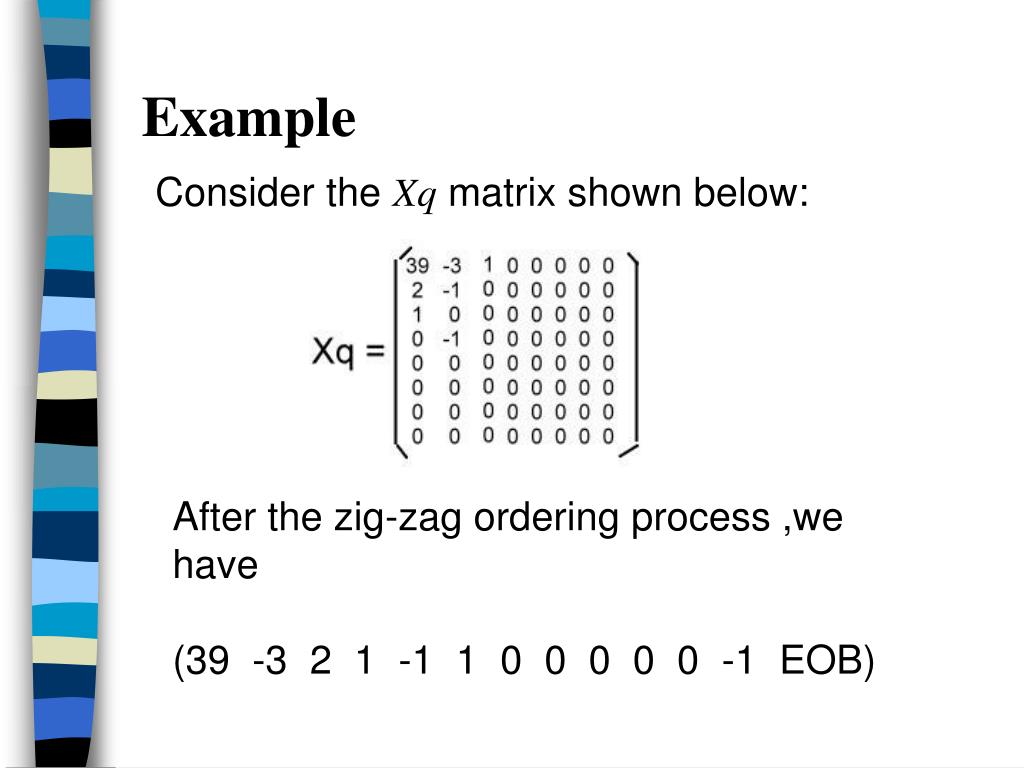

Example

Consider the Xq matrix shown below:

After the zig-zag ordering process ,we have

(39 -3 2 1 -1 1 0 0 0 0 0 -1 EOB)


Jpeg

To encode 39 , we first have to compute DIFFf , Note that Xqf(0,0) = 39 ,Assume

Xqf-1(0,0) = 34.

Then DIFFf= 5 ,From the previous example,

We conclude that 39 can be encoded as 100101


Jpeg

The first AC coefficient is –3.

The R and S values for –3 is R=0 and S=2 ,

respectively.

The corresponding Huffman code is 01. Consequently, -3 is encoded as

Proceed in the similar fashion ,we have

(100101/0100/0110/001/000/001/11110100/1010)


Jpeg

Note that the last nonzero coefficient –1 has R=5 and S=1.

The Huffman code therefore is 1111010. Consequently, -1 is encode as

A total of 35 bits are needed to deliver this block. The bit rate for this block is


Run size table

Run/Size Table


Discussions

Discussions

  • The major drawbacks of JPEG are:

    • The algorithm may have block artifact.

    • It is difficult to perform accurate rate control.
