Presentation Transcript
itae definition

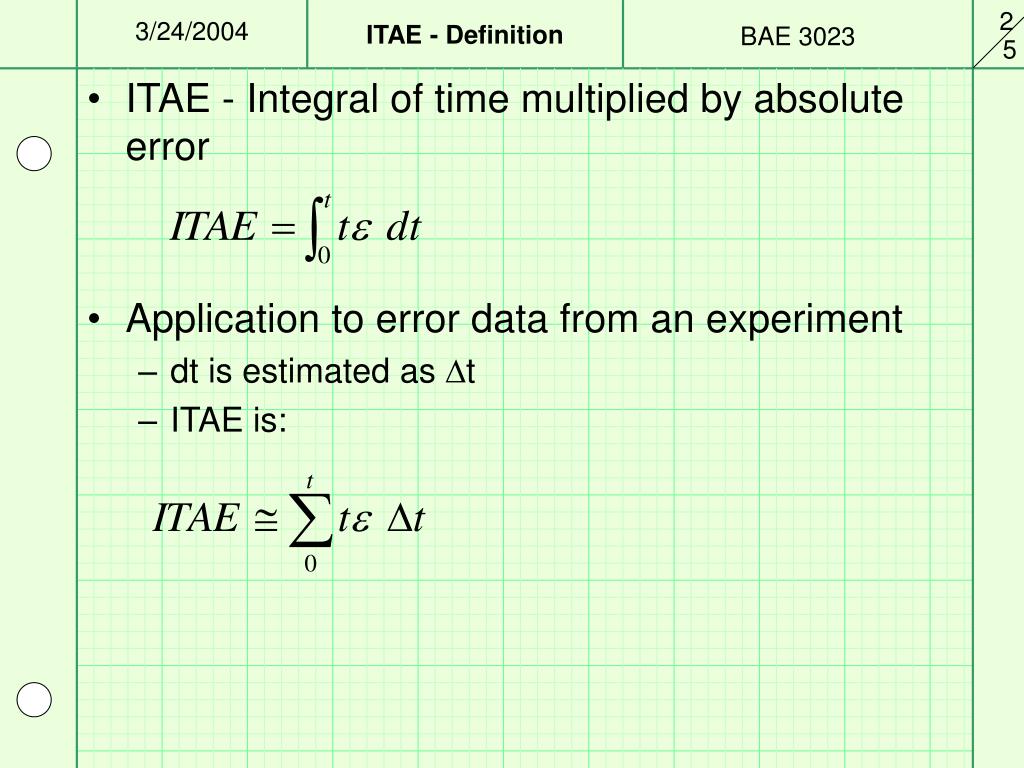

ITAE - Definition

BAE 3023

  • ITAE - Integral of time multiplied by absolute error
  • Application to error data from an experiment
    • dt is estimated as Dt
    • ITAE is:
example data

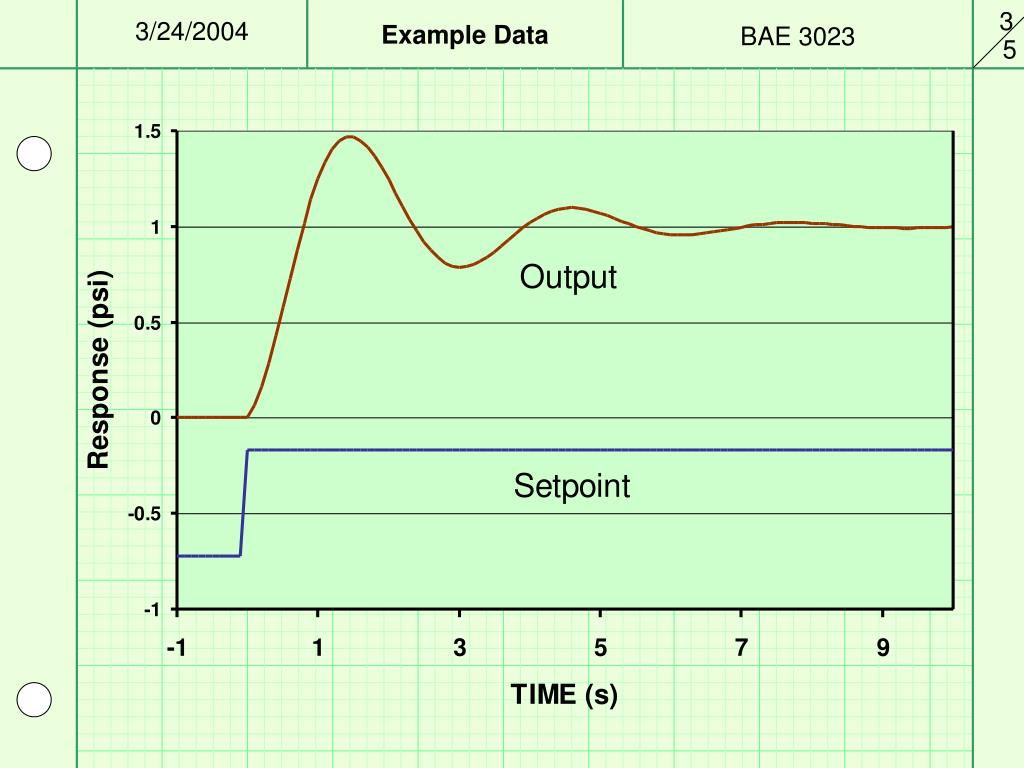

Example Data

BAE 3023

spreadsheet
Spreadsheet

BAE 3023

Response data

Integral of error (setpoint change)

=ABS(Setpoint-Output)*Dt

=t*ABS(Setpoint-Output)*Dt

=((Setpoint-Output)^2)*Dt

integration
Integration

BAE 3023

Integral of error (setpoint change)

= SUM(t*ABS(Setpoint-Output)*Dt)
