Lecture 9 assembly language

Lecture 9: Assembly Language

Computer Engineering 211

Spring 2002


Passing parameters on stack

0x7fff0000

E(LSB)

0x7ffefffc

E(MSB)

0x7ffefff8

Parameter vector

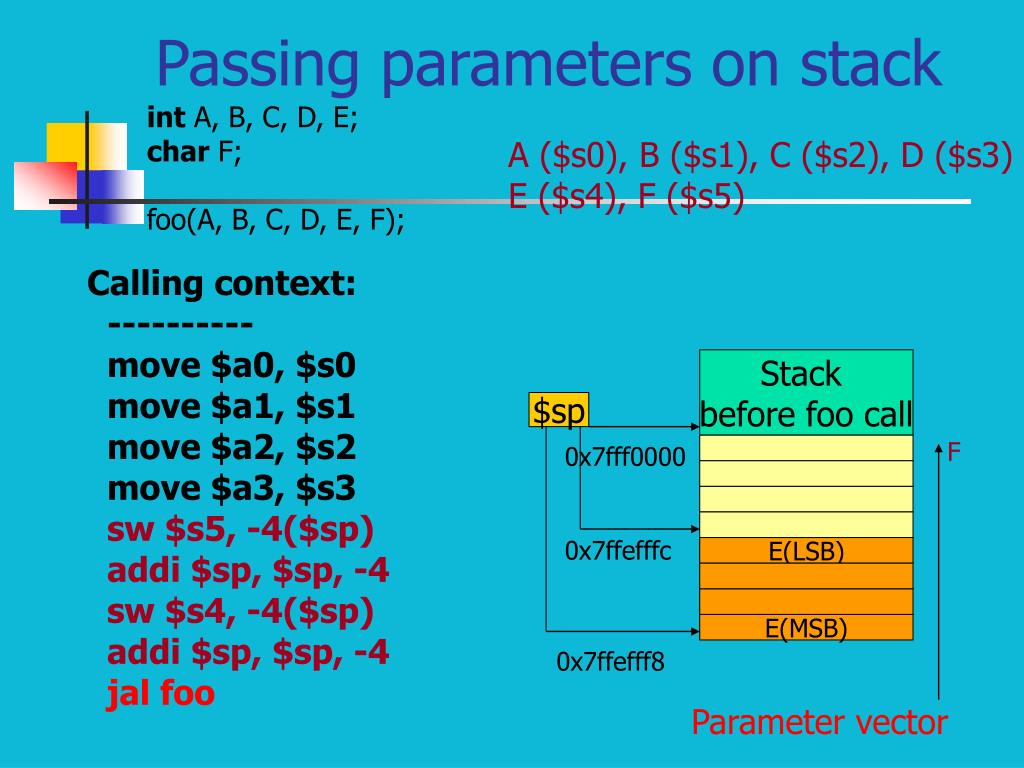

Passing parameters on stack

int A, B, C, D, E;

char F;

foo(A, B, C, D, E, F);

A ($s0), B ($s1), C ($s2), D ($s3)

E ($s4), F ($s5)

Calling context:

----------

move $a0, $s0

move $a1, $s1

move $a2, $s2

move $a3, $s3

sw $s5, -4($sp)

addi $sp, $sp, -4

sw $s4, -4($sp)

addi $sp, $sp, -4

jal foo

Stack

before foo call

$sp

F


Passing parameters on stack contd

Stack

before foo call

0x7ffefff8

$sp

F

E

$ra

0x7ffefff4

Passing parameters on stack, Contd.

Character ‘0’, ASCII code: 0x30

foo (AA, BB, CC, DD, EE, FF)

int AA, BB, CC, DD, EE;

char FF;

{

if (FF != ‘0’)

AA = AA + BB + CC + DD;

else

AA = EE;

}

foo: sw $ra, -4($sp)

addi $sp, $sp, -4

lw $t0, 8($sp)

#$t0 contains FF

li $t1, 0x30

beq $t0, $t1, elsepart

add $a0, $a0, $a1

add $a0, $a0, $a2

add $a0, $a0, $a3

j join

elsepart: lw $a0, 4($sp)

join: lw $ra, 0($sp)

addi $sp, $sp, 4

jr $ra


Passing parameters on stack contd1

Stack

before foo call

$sp

F

E

0x7ffefff8

Passing parameters on stack, Contd.

Calling context:

----------

move $a0, $s0

move $a1, $s1

move $a2, $s2

move $a3, $s3

sw $s5, -4($sp)

addi $sp, $sp, -4

sw $s4, -4($sp)

addi $sp, $sp, -4

jal foo

move $s0, $a0

addi $sp, $sp, 8


Call by value reference for register parameters

A by Value

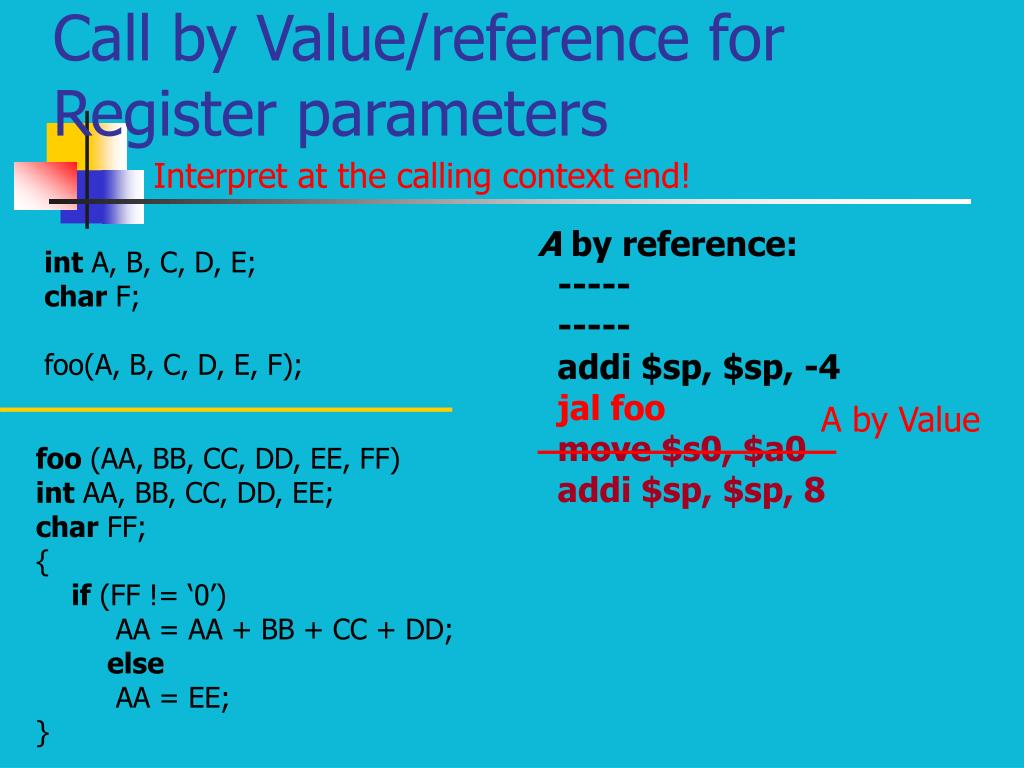

Call by Value/reference for Register parameters

Interpret at the calling context end!

A by reference:

-----

-----

addi $sp, $sp, -4

jal foo

move $s0, $a0

addi $sp, $sp, 8

int A, B, C, D, E;

char F;

foo(A, B, C, D, E, F);

foo (AA, BB, CC, DD, EE, FF)

int AA, BB, CC, DD, EE;

char FF;

{

if (FF != ‘0’)

AA = AA + BB + CC + DD;

else

AA = EE;

}


Call by value reference for stack parameters

Stack

before foo call

$sp

F

E

$ra

0x7ffefff4

E

30

F

10

$gp

Global Data

Call by Value/reference for Stack parameters

# EE & FF by value

foo: sw $ra, -4($sp)

addi $sp, $sp, -4

lw $t0, 8($sp)

#$t0 contains FF

li $t1, 0x30

beq $t0, $t1, elsepart

add $a0, $a0, $a1

add $a0, $a0, $a2

add $a0, $a0, $a3

j join

elsepart: lw $a0, 4($sp)

join: lw $ra, 0($sp)

addi $sp, $sp, 4

jr $ra

Interpret at the called procedure end!

lw $s4, 30($gp); lw $s5, 10($gp)


Call by reference for stack parameters

Stack

before foo call

$sp

Addr(F)

E

$ra

0x7ffefff4

E

30

F

10

$gp

Call by reference for Stack parameters

# FF by reference

foo: sw $ra, -4($sp)

addi $sp, $sp, -4

lw $t0, 8($sp)

lw $t0, 0($t0)

#$t0 contains FF

li $t1, 0x30

beq $t0, $t1, elsepart

add $a0, $a0, $a1

add $a0, $a0, $a2

add $a0, $a0, $a3

j join

elsepart: lw $a0, 4($sp)

join: lw $ra, 0($sp)

addi $sp, $sp, 4

jr $ra


Call by reference for stack parameters1

Stack

before foo call

$sp

Addr(F)

E

$ra

0x7ffefff4

E

30

F

10

$gp

Call by reference for Stack parameters

Calling context:

----------

move $a0, $s0

move $a1, $s1

move $a2, $s2

move $a3, $s3

la $t0, 10($gp)

sw $t0, -4($sp)

addi $sp, $sp, -4

sw $s4, -4($sp)

addi $sp, $sp, -4

jal foo

move $s0, $a0

addi $sp, $sp, 8


Activation record stack frame

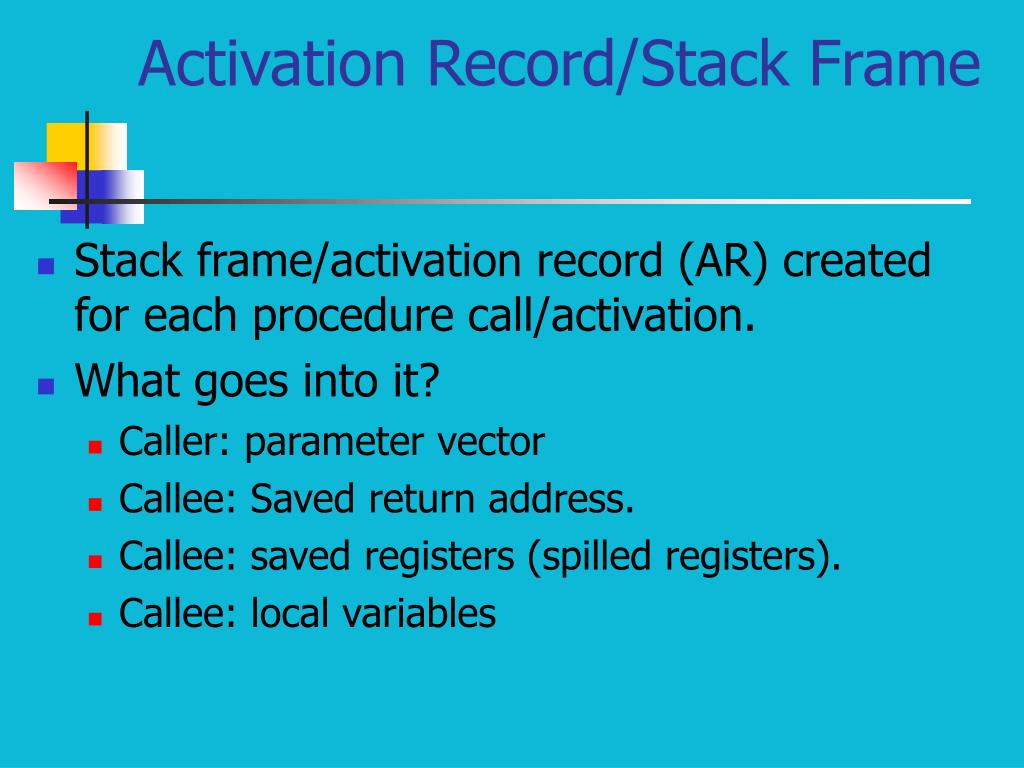

Activation Record/Stack Frame

  • Stack frame/activation record (AR) created for each procedure call/activation.

  • What goes into it?

    • Caller: parameter vector

    • Callee: Saved return address.

    • Callee: saved registers (spilled registers).

    • Callee: local variables


Register saving

Register Saving

$t0-$t9:Temporaries – caller has no guarantee

that the called procedure will not modify them.

$s0-$s7:Saved Temporaries – caller is guaranteed

that the called procedure will retain their value on

return.

  • Caller saves the $t0-$t9 needed after a procedure call

    on the stack before initiating the call.

  • Callee saves the $s0-$s7 it wants to use, and restore

    them before returning from the call.


Register saving1

Register saving

A: $t0, B: $t1, C:$s0,

D:$s1, E: $s2, F:$s3,

Z: $s4

int A, B, C, D, E, F, Z;

---

Z=SUM(A, B, C, D, E, F)

---

#save any temp registers

sw $t0, -4($sp)move $a2, $s0

sw $t1, -8($sp)move $a3, $s1

#stack parametersjal SUM

sw $s3, -12($sp)move $s4, $v0

sw $s4, -16($sp)

addi $sp, $sp, -16

#reg parameters

move $a0, $t0

move $a1, $t1

Caller saved


Register saving2

Register saving

SUM: sw $ra, -4($sp)

# read E & F into $s0 & $s1add $v0, $v0, $t0

sw $s0, -8($sp)#restore $s0 & $s1

sw $s1, -12($sp)lw $s0, 4($sp)

addi $sp, $sp, -12lw $s1, 0($sp)

lw $s0, 12($sp) # load E# restore $ra

lw $s1, 16($sp) # load Flw $ra, 8($sp)

add $v0, $a0, $a1addi $sp, $sp, 12

add $t0, $a2, $a3jr $ra

add $t1, $s0, $s1

add $t0, $t0, $t1

Callee saved


Stack growth in sum

$t0

$t1

F

10000

E

$sp

$ra

9996

$s0

9988

$s1

Stack Growth in SUM

SUM: sw $ra, -4($sp)

sw $s0, -8($sp)

sw $s1, -12($sp)

addi $sp, $sp, -12

lw $s0, 12($sp)

lw $s1, 16($sp) # load F

add $v0, $a0, $a1

add $t0, $a2, $a3

add $t1, $s0, $s1

add $t0, $t0, $t1

add $v0, $v0, $t0

lw $s0, 4($sp)

lw $s1, 0($sp)

lw $ra, 8($sp)

addi $sp, $sp, 12

jr $ra


Result on the stack

Result on the Stack

int A, B, C, D, E, F, Z;

---

X,Y,Z=MAX3(A, B, C, D, E, F)

A: $t0, B: $t1, C:$s0,

D:$s1, E: $s2, F:$s3,

X:$s4, Y:$s5, Z: $s6

---

#save any temp registers

sw $t0, -4($sp)move $a2, $s0

sw $t1, -8($sp)move $a3, $s1

#stack parametersjal MAX3

sw $s3, -12($sp)

sw $s4, -16($sp)

addi $sp, $sp, -16

#reg parameters

move $a0, $t0

move $a1, $t1


Result on the stack contd

Result on the Stack, Contd.

MAX3: sw $ra, -4($sp)

addi $sp, $sp, -4lw $ra, 0($sp)

lw $s0, 4($sp) # load Eaddi $sp, $sp, 4

lw $s1, 8($sp) # load Fjr $ra

# a bunch of if-then-else

# place MAX1: $t0, MAX2: $t1, MAX3: $t3

# return the first two words in $v0 & $v1

move $v0, $t0

move $v1, $t1

# the extra word returned on stack

# overwrites the parameter vector

sw $t3, 4($sp)


Result on the stack contd1

Result on the Stack, Contd.

A: $t0, B: $t1, C:$s0,

D:$s1, E: $s2, F:$s3,

X:$s4, Y:$s5, Z: $s6

---

#save any temp registers

sw $t0, -4($sp) jal SUM

sw $t1, -8($sp)#retrieve result

#stack parametersmove $s4, $v0

sw $s3, -12($sp)move $s5, $v1

sw $s4, -16($sp)lw $s6, 0($sp)

addi $sp, $sp, -16#adjust parameter

#reg parameters#vector

move $a0, $t0lw $t1, 8($sp)

move $a1, $t1lw $t0, 12($sp)

move $a2, $s0addi $sp, $sp, 16

move $a3, $s1
