  1. Earth Science, 6e The Ocean FloorChapter - 9

  2. A-The vast world ocean (page 260) • Earth is often referred to as the blue planet • 71% of Earth’s surface is represented by oceans and marginal seas • Continents and islands comprise the remaining 29 • Oceans represent 97% of the Hydrosphere

  3. Land Hemisphere&Water Hemisphere Figure 9.1

  4. The vast world ocean • Four main ocean basins • Pacific Ocean- the largest and deepest • Atlantic Ocean– about half the size of the Pacific Ocean • Indian Ocean– slightly smaller than the Atlantic • Arctic Ocean– about 7 percent the size of the Pacific

  5. The oceans of Earth Figure 13.2 B

  6. Mapping the ocean floor (page 265) • Bathymetry – measurement of ocean depths and the shape or topography of the ocean floor • Echo sounder(also referred to as sonar) • Invented in the 1920s • Primary instrument for measuring depth • Reflects sound from ocean floor

  7. Echo sounder and multibeam sonar Figure 9.11

  8. Three major topographic units of the Ocean floor • Continental margins(Active and Passive) • Active margins • Passive margins • Ocean basin floor 3. Mid-ocean ridge

  9. Major topographic divisions of the North Atlantic Ocean Figure 9.14

  10. I - Continental margins • Passive continental margins • Found along most coastal areas that surround the Atlantic Ocean • Not associated with plate boundaries • Experience little volcanism and • Few earthquakes • Wider sandy beaches

  11. Features of a passive continental margin Figure 13.9

  12. Passive continental margins • Comprises three features: • Continental Shelf • Continental Slope • Continental Rise

  13. Passive continental margins • Features comprising a passive continental margin 1. Continental shelf • Flooded extension of the continent • Contains oil and important mineral deposits

  14. Passive continental margins • Features comprising a passive continental margin 2. Continental slope • Marks the seaward edge of the continental shelf • Relatively steep structure • Submarine canyons and turbidity currents

  15. Turbidity currents Figure 13.10

  16. Continental margins • Passive continental margins • Features comprising a passive continental margin 3. Continental rise • Found in regions where trenches are absent • Continental slope merges into a more gradual incline – the continental rise • Thick accumulation of sediment

  17. Active continental margins • Continental slope descends abruptly into a deep-ocean trench • Located primarily around the Pacific Ocean • Accumulations of deformed sediment and scraps of ocean crust form accretionary wedges • Some subduction zones have little or no accumulation of sediments (narrow beaches)

  18. An active continental margin Figure 9.18

  19. Active continental margins • Deep-ocean trenches • Long, relatively narrow features • Deepest parts of ocean • Most are located in the Pacific Ocean • Sites where moving lithospheric plates plunge into the mantle • Associated with volcanic activity • Volcanic islands arcs (Japan) • Continental volcanic arcs (Andes, Cascades mts)

  20. II - Ocean basin floor • Abyssal plains • Likely the most level places on Earth • Sites of thick accumulations of sediment • Found in all oceans • Seamounts and guyots • Isolated volcanic peaks • Many form near oceanic ridges

  21. Ocean basin floor • Seamounts and guyots • May emerge as an island • May sink and form flat-topped seamounts called guyots or tablemounts

  22. III - Mid-ocean ridge • Mid-ocean ridge • Characterized by • An elevated position • Extensive faulting • Numerous volcanic structures that have developed on newly formed crust

  23. Mid-ocean ridge • Interconnected ridge system is the longest topographic feature on Earth’s surface • Over 70,000 kilometers (43,000 miles) in length • Twenty-three percent of Earth’s surface • Winds through all major oceans • Along the axis of some segments are deep down faulted structures called rift valleys

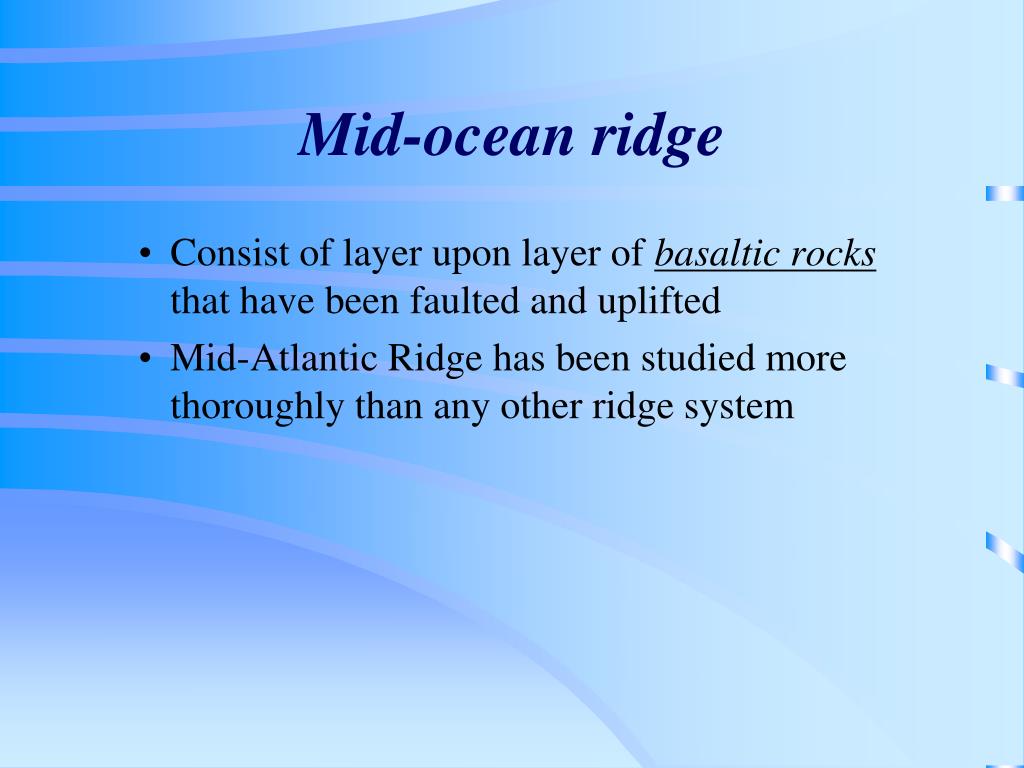

  24. Mid-ocean ridge • Consist of layer upon layer of basaltic rocks that have been faulted and uplifted • Mid-Atlantic Ridge has been studied more thoroughly than any other ridge system

  25. Seafloor sediments • Ocean floor is mantled with sediment • Sources • Turbidity currents • Sediment that slowly settles to the bottom from above • Thickness varies • Thickest in trenches – accumulations may approach 10 kilometers

  26. Seafloor sediments • Thickness varies • Pacific Ocean – about 600 meters or less • Atlantic Ocean – from 500 to 1000 meters thick • Mud is the most common sediment on the deep-ocean floor

  27. Seafloor sediments • Types of seafloor sediments 1. Terrigenous sediment • Material weathered from continental rocks • Virtually every part of the ocean receives some • Fine particles remain suspended for a long time • Oxidation often produces red and brown colored sediments

  28. Seafloor sediments • Types of seafloor sediments 2. Biogenous sediments • Shells and skeletons of marine animals and plants • Most common are calcareous oozes produced from microscopic organisms that inhabit warm surface waters • Siliceous oozescomposed of skeletons of diatoms and radiolarians • Phosphate rich materials derived from the bones, teeth, and scales of fish and other marine organisms

  29. Seafloor sediments • Types of seafloor sediments 3. Hydrogenous sediment • Minerals that crystallize directly from seawater • Most common types include • Manganese nodules • Calcium carbonates • Metal sulfides • Evaporites

  30. Distribution of marine sediments Figure 13.17

  31. Seafloor sediments • Distribution • Coarse terrigenous deposits dominate continental margin areas • Fine-grained terrigenous material is common in deeper areas of the ocean basin • Hydrogenous sediment comprises only a small portion of deposits in the ocean • There are a few places where very little sediment accumulates (Mid-ocean ridges)

  32. Resources from the seafloor • Energy resources • Oil and gas • Gas hydrates • Other resources • Sand and gravel • Evaporative salts • Manganese nodules

  33. End of Section 1

  34. B - Ocean Chemistry (Page 261) • Salinity is the total amount of material dissolved in water. It is the ration of the mass of dissolved substances to the mass of the water. It is expressed in per cent or part per thousand.

  35. Origin of Sea salt • Sources of sea salts • Chemical weathering of rocks • Outgassing – gases from volcanic eruptions • Processes affecting seawater salinity • Variations in salinity are a consequence of changes in the water content of the solution

  36. Composition of seawater • 80% of the ocean depth is salty, cold and dark • Seawater consists of about 33‰ to 38‰ (by weight) dissolved minerals • Salinity is the total amount of solid material dissolved in water • Typically expressed in parts-per-thousand (‰) • Average salinity is 35‰ • Major constituent is sodium chloride

  37. Relative proportions of water and dissolved components in seawater Figure 9.3

  38. Composition of seawater • Processes affecting seawater salinity • Processes that decrease salinity (add water) • Precipitation • Runoff from land • Icebergs melting • Sea ice melting • Processes that increase salinity (remove water) • Evaporation • Formation of sea ice

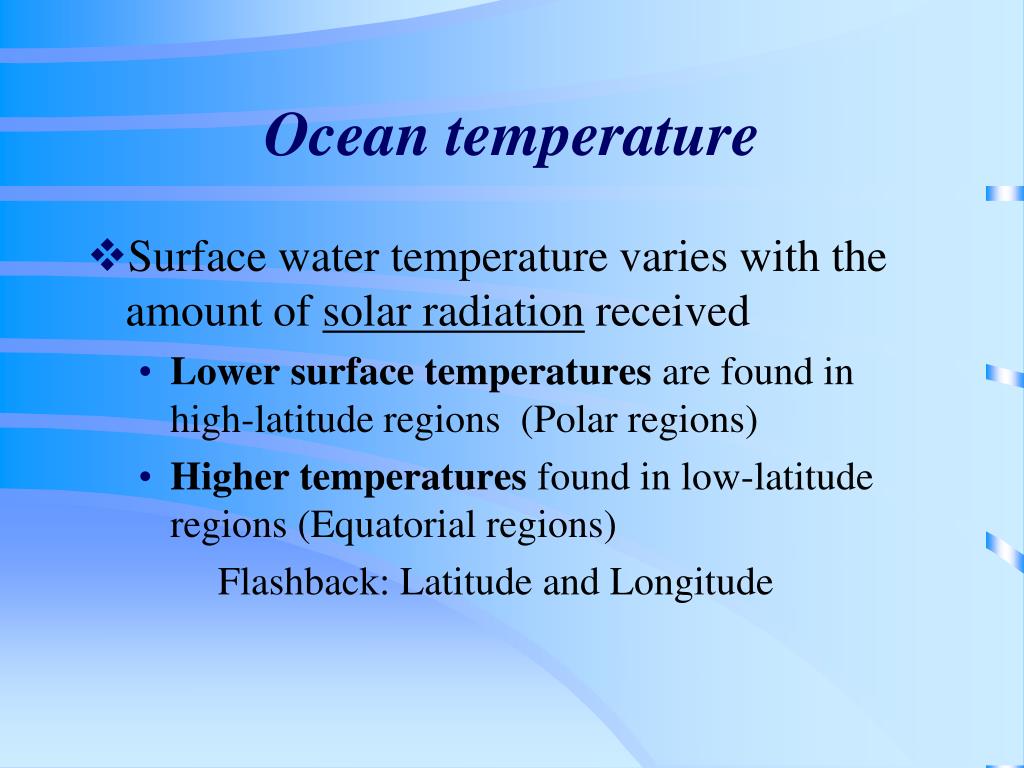

  39. Ocean temperature • Surface water temperature varies with the amount of solar radiation received • Lower surface temperatures are found in high-latitude regions (Polar regions) • Higher temperatures found in low-latitude regions (Equatorial regions) Flashback: Latitude and Longitude

  40. Ocean temperature • Temperature variation with depth • Low-latitudes (Equatorial regions) • High temperature at the surface • Rapid decrease in temperature with depth (thermocline) • High-latitudes (Polar regions) • Cooler surface temperatures • No rapid change in temperature with depth; (thermocline absent)

  41. Variations in ocean water temperature with depth Figure 14.4

  42. Ocean density • Density is mass per unit volume - how heavy something is for its size • Determines the water’s vertical position in the ocean • Factors affecting seawater density • Salinity (function of temperature) • Temperature - the greatest influence

  43. Variations in the ocean’s surface temperature and salinity with latitude Figure 14.3

  44. Ocean density • Ocean Density Variations with depth • Low-latitudes (Equatorial regions) • Low density at the surface • Density increases rapidly with depth (pycnocline) because of colder water • High-latitudes (Polar regions) • High-density (cold) water at the surface • Little change in density with depth (pycnocline absent)

  45. Variations in ocean water density with depth Figure 14.5

  46. Ocean density • Ocean layering • Layered according to density • Three-layered structure 1. Surface mixed zone • Sun-warmed zone • Zone of mixing • Shallow (300 meters)

  47. Ocean density • Ocean layering • Three-layered structure 2. Transition zone • Between surface layer and deep zone • Zone of Thermocline and pycnocline 3. Deep zone • Sunlight never reaches this zone • Temperatures are just a few degrees above freezing • Constant high-density water

  48. Layering in the ocean Figure 14.6

  49. PRS Review Test No talking please.

  50. Which one is NOT part of a passive continental margin? a. Continental shelf b. Continental slope c. Continental rise d. Oceanic trench
