Managing Systems Support & Security

Managing Systems Support & Security

Learning Objectives • Explain how the systems operation, support, and security phase relates to the overall system development process • Describe user support activities, including user training and help desks • Discuss the four main types of system maintenance • Explain various techniques for managing systems operation and support

Learning Objectives • Describe techniques for measuring, managing, and planning system performance • Assess system security at five levels: physical security, network security, application security, file security, and user security • Describe backup and disaster recovery policies and methods • List factors indicating that a system has reached the end of its useful life • Assess future challenges for IT professionals as technology reshapes the workplace

Introduction • Now that the system is operational, the IT staff members must assure that it meets user expectations, supports business objectives, and is secure • More than half of all IT department effort goes into supporting existing systems and making them more valuable to users

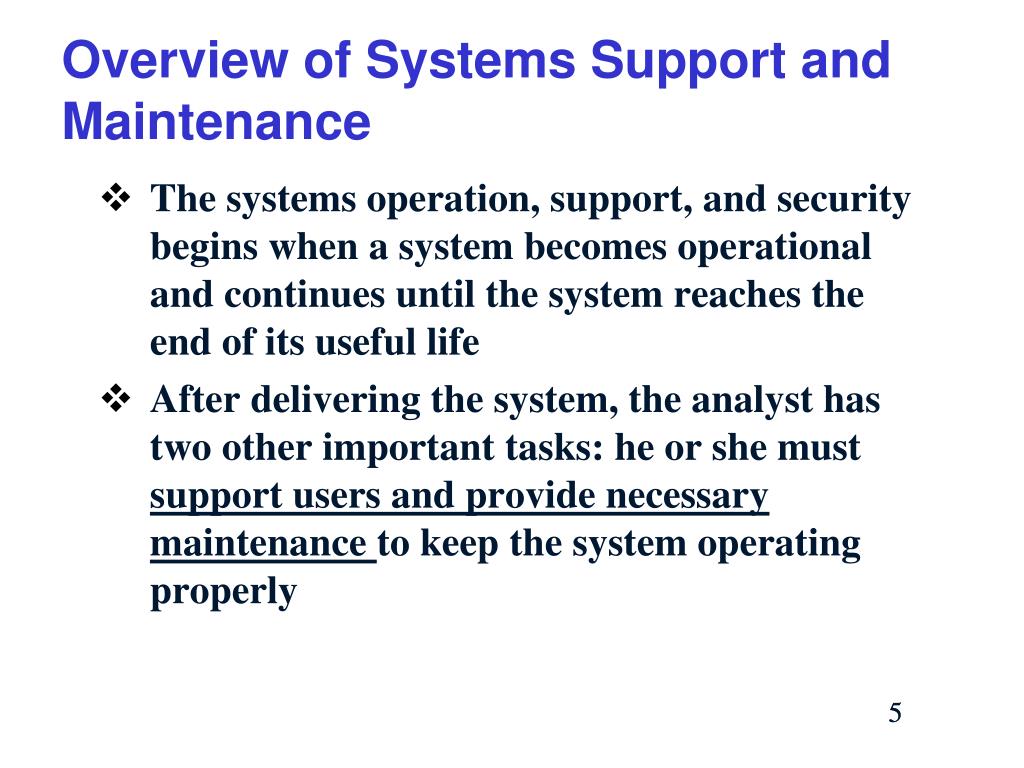

Overview of Systems Support and Maintenance • The systems operation, support, and security begins when a system becomes operational and continues until the system reaches the end of its useful life • After delivering the system, the analyst has two other important tasks: he or she must support users and provide necessary maintenance to keep the system operating properly

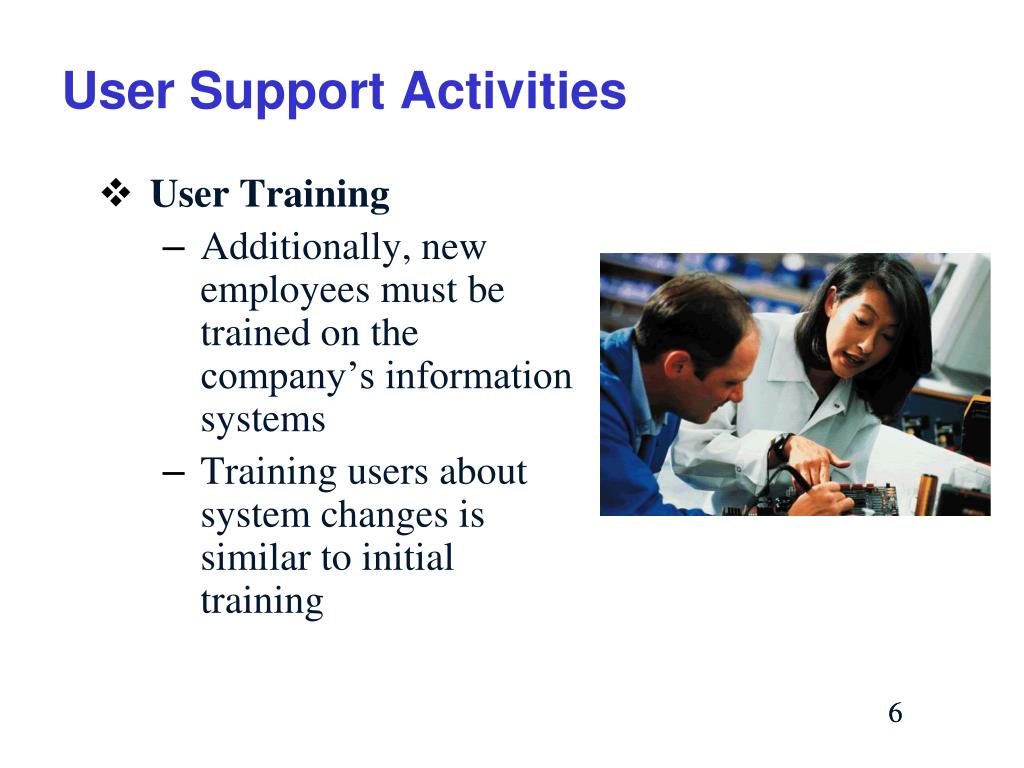

User Support Activities • User Training • Additionally, new employees must be trained on the company’s information systems • Training users about system changes is similar to initial training

User Support Activities • Help Desk • Often called an information center (IC) • Enhance productivity and improve utilization of a company’s information resources

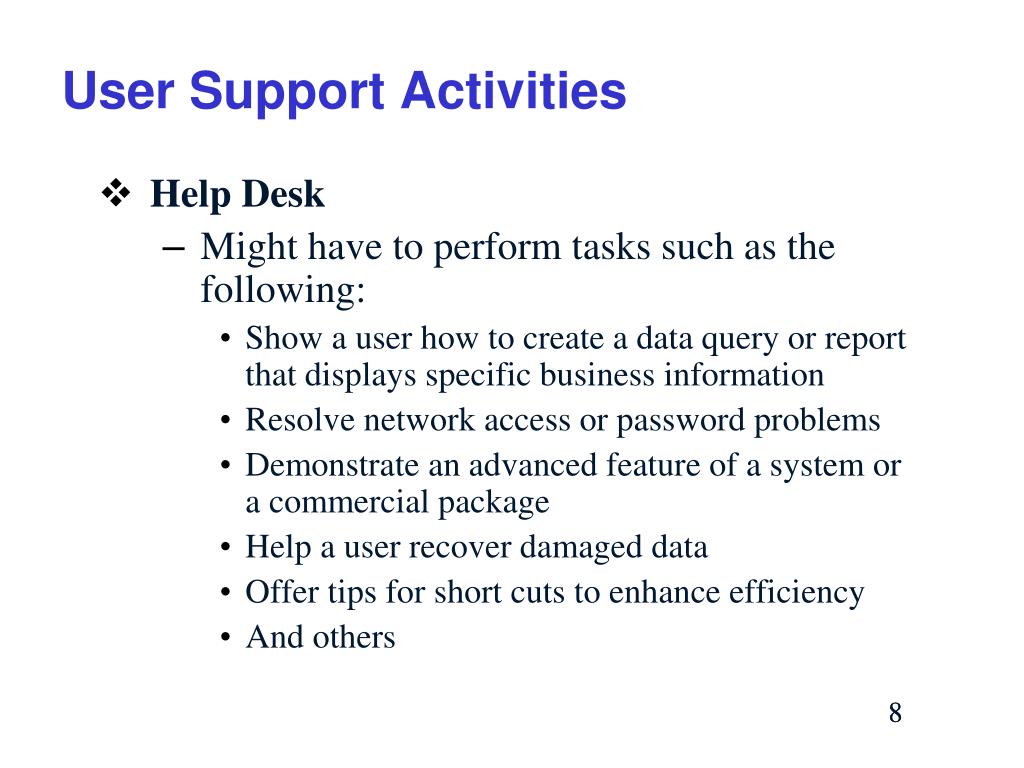

User Support Activities • Help Desk • Might have to perform tasks such as the following: • Show a user how to create a data query or report that displays specific business information • Resolve network access or password problems • Demonstrate an advanced feature of a system or a commercial package • Help a user recover damaged data • Offer tips for short cuts to enhance efficiency • And others

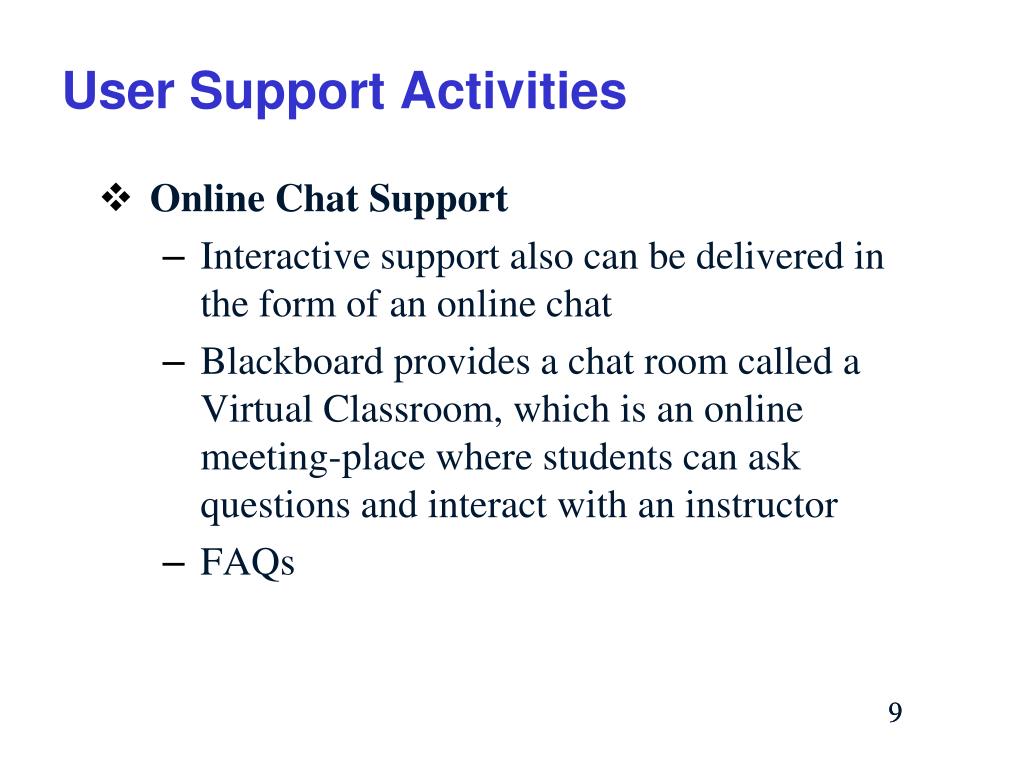

User Support Activities • Online Chat Support • Interactive support also can be delivered in the form of an online chat • Blackboard provides a chat room called a Virtual Classroom, which is an online meeting-place where students can ask questions and interact with an instructor • FAQs

Maintenance Activities • The systems operation, support and security phase is an important component of TCO (total cost of ownership) because ongoing maintenance expenses can determine the economic life of a system • Operational costs • Maintenance expenses • Maintenance activities

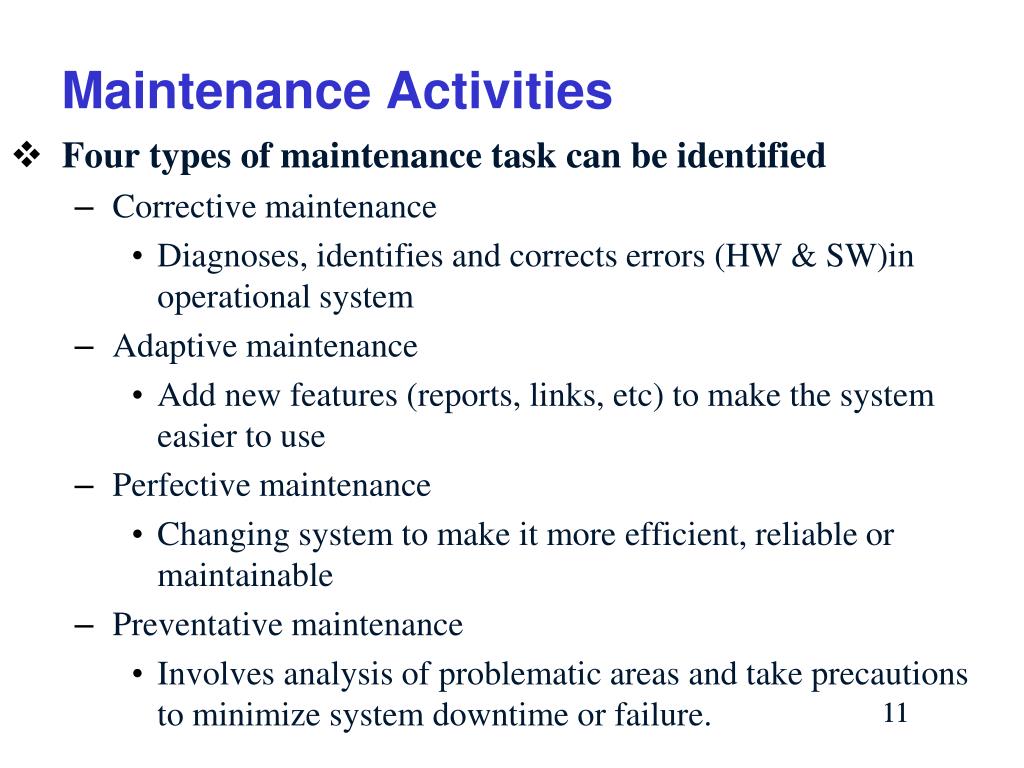

Maintenance Activities • Four types of maintenance task can be identified • Corrective maintenance • Diagnoses, identifies and corrects errors (HW & SW)in operational system • Adaptive maintenance • Add new features (reports, links, etc) to make the system easier to use • Perfective maintenance • Changing system to make it more efficient, reliable or maintainable • Preventative maintenance • Involves analysis of problematic areas and take precautions to minimize system downtime or failure.

Maintenance Activities • Four types of maintenance task can be identified

Managing Systems Support • Maintenance Team • System administrator • Systems analysts • Analysis • Synthesis • Programmers • Applications programmer • Systems programmer • Database programmer • Programmer/analyst

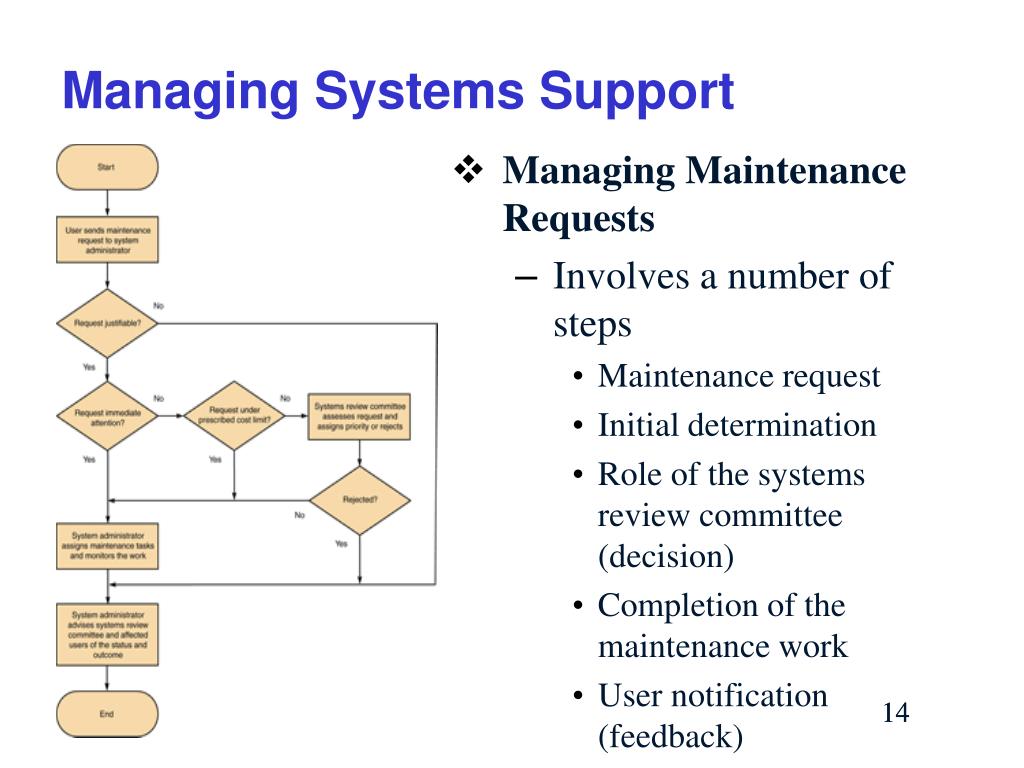

Managing Systems Support • Managing Maintenance Requests • Involves a number of steps • Maintenance request • Initial determination • Role of the systems review committee (decision) • Completion of the maintenance work • User notification (feedback)

Managing Systems Support • Establishing Priorities • In many companies, systems review committee separates maintenance requests from new systems development requests • Many IT managers believe that evaluating all projects together leads to the best possible decisions • Neither approach guarantees an ideal allocation between maintenance and new systems development

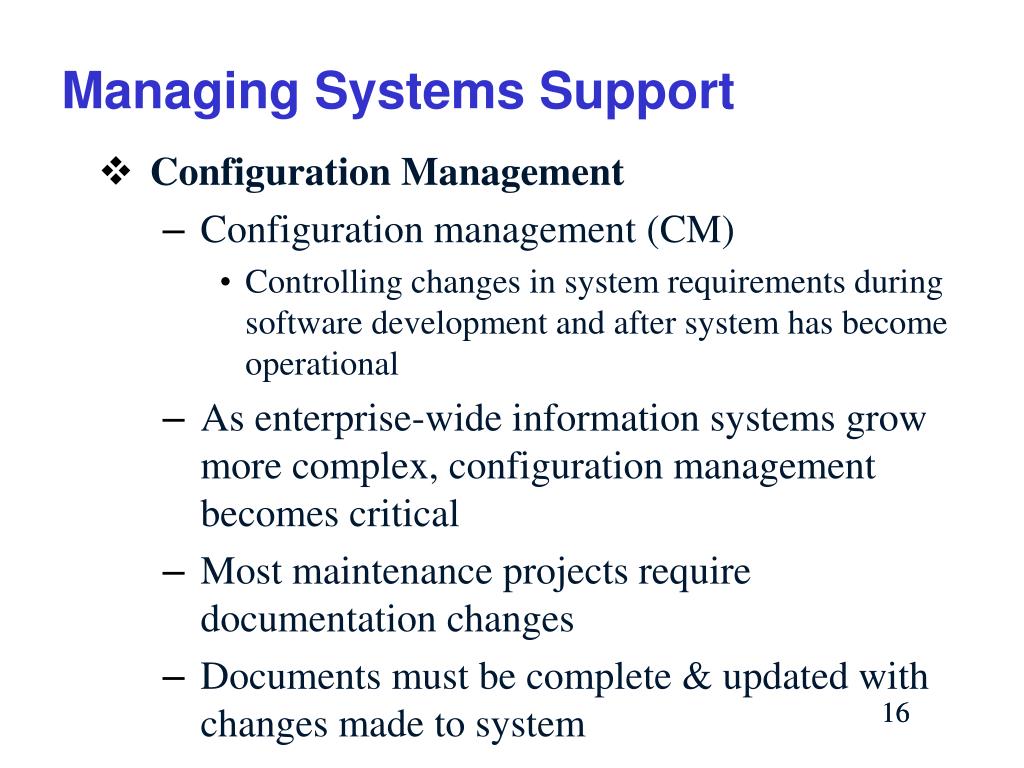

Managing Systems Support • Configuration Management • Configuration management (CM) • Controlling changes in system requirements during software development and after system has become operational • As enterprise-wide information systems grow more complex, configuration management becomes critical • Most maintenance projects require documentation changes • Documents must be complete & updated with changes made to system

Managing Systems Support • Maintenance Releases • Maintenance release methodology to ensure each change is documented as a new version (maintenance release) • A numbering pattern distinguishes the different releases (a form of coding) • All non critical changes are tested & implemented at one tome to reduce the documentation burden • This approach, however, means new features or upgrades are available less often (less responsive to users’ requests) • Service packs maintenance releases from commercial software vendors)

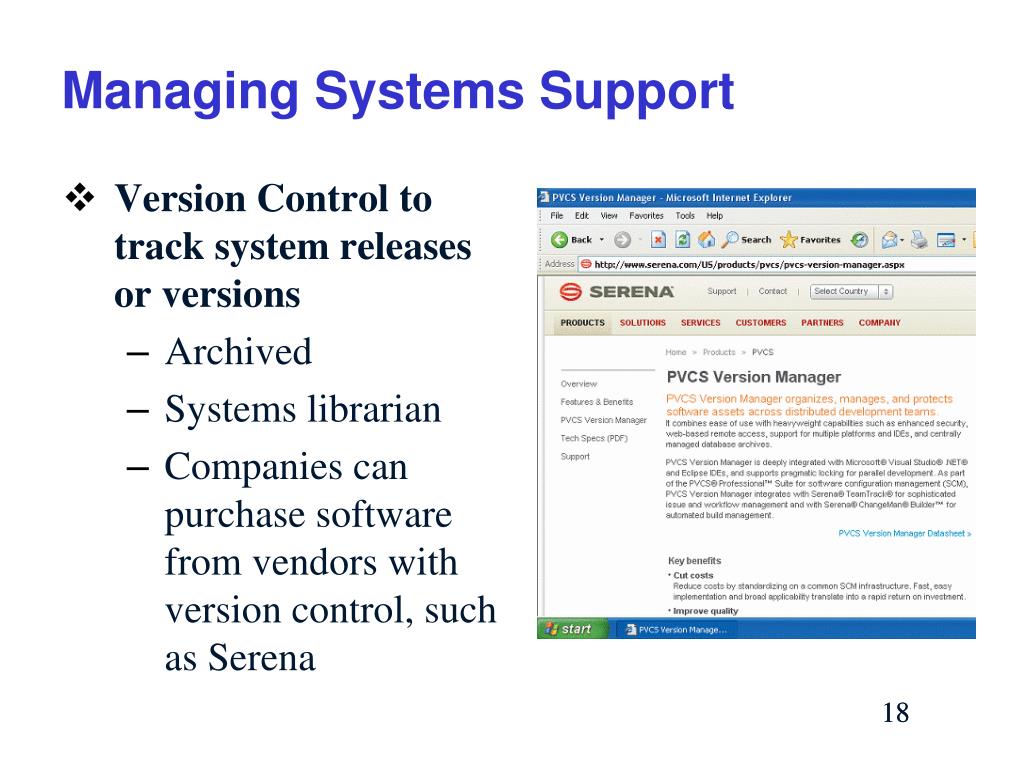

Managing Systems Support • Version Control to track system releases or versions • Archived • Systems librarian • Companies can purchase software from vendors with version control, such as Serena

Managing Systems Support • Baseline • Systems analysts use baselines as yardsticks to document features and performance during the systems development process • Functional baseline • System configuration (necessary requirements & constraints) at beginning of project • Allocated baseline • Identifies changes to designstage since functional baseline • Product baseline • Describes system at beginning of system operation stage

Managing System Performance • Performance and Workload Measurement • Benchmark testing (measured against a set of standards or performance measures called metrics) • Response time to user’s query or request • Bandwidth (data transferred in bits per second) and throughput (actual data transferred in bits per second). Other transfer rates are: • Kbps (kilobits per second) • Mbps (megabits per second) • Gbps (gigabits per second)

Managing System Performance • Performance and Workload Measurement • Turnaround time • Time between submitting request or data to request fulfilled or processed • The IT department often measures response time, bandwidth, throughput, and turnaround time to evaluate system performance both before and after changes to the system or business information requirements • Management uses current performance and workload data as input for the capacity planning process

Managing System Performance • Capacity Planning – to monitor current activity & performance levels, anticipated future activity & forecast resources needed • What-if -analysis • You need detailed information about the number of transactions; the daily, weekly, or monthly transaction patterns; the number of queries; and the number, type, and size of all generated reports

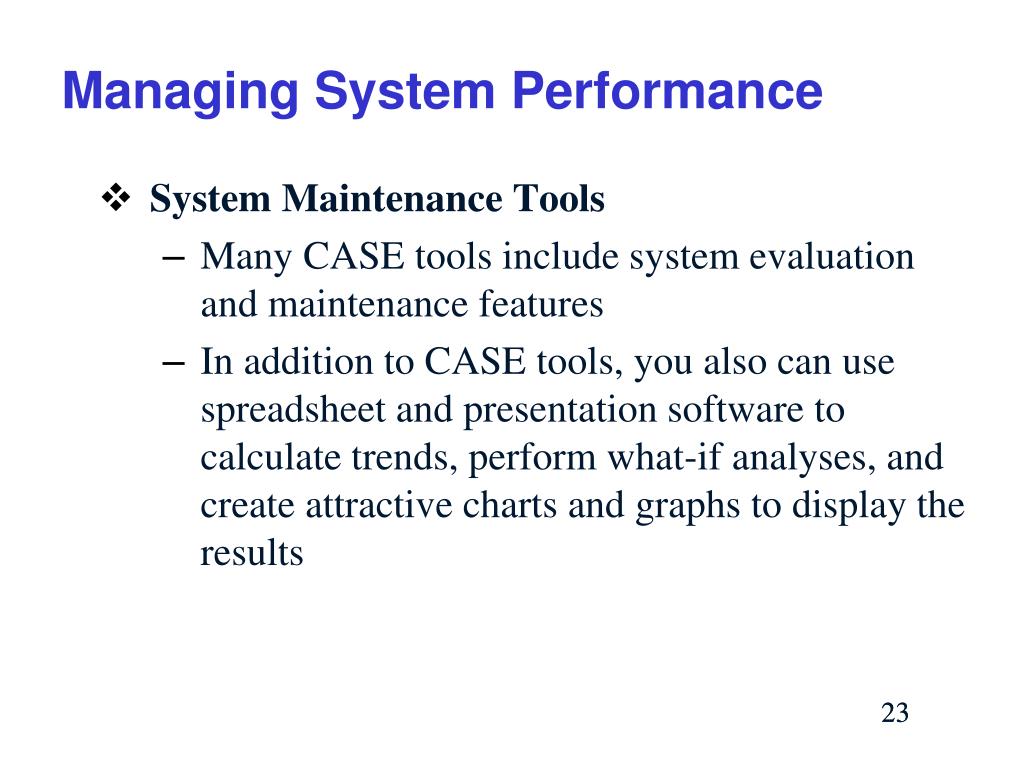

Managing System Performance • System Maintenance Tools • Many CASE tools include system evaluation and maintenance features • In addition to CASE tools, you also can use spreadsheet and presentation software to calculate trends, perform what-if analyses, and create attractive charts and graphs to display the results

System Security • Risk identification & management • Threats to system • Assess probability & potential losses • Mitigation measures • Physical Security • First level of security concerns the physical environment • Computer room • Computer room security • Biometric scanning systems • CCTV • Motion sensor

System Security • Physical Security • Servers and desktop computers • Keystroke logger • Records all keystrokes • Tamper-evident cases • To detect security breach (unlocking computer) • BIOS-level password or boot-level password or power-on password • Uninterruptible power supply (UPS)

System Security • Physical Security • Notebook computers • Select an operating system that allows secure logons and BIOS-level passwords • Mark or engrave the computer’s case • Consider notebook models that have a built-in fingerprint reader • Universal Security Slot (USS) to fasten to a cable or a laptop alarm • Back up all vital data

System Security • Physical Security • Notebook computers • Use tracking software to direct laptop to tracking centre • While traveling, try to be alert to potential high-risk situations • Establish stringent password protection policies

System Security • Network Security • Encrypting network traffic • Public key (PKE) • Private key • Wireless network • Wi-Fi Protected Access (WPA) • Wired Equivalent Privacy (WEP) • WPA2

System Security • Network Security • Private networks • Private network • Virtual private networks • Virtual private network (VPN) that uses a special key exchange to check authenticity of user • Tunnel is a secure network connection

System Security • Network Security • Ports and services • Port identified as a number to facilitate routing of data or messages to the correct application on a computer • Service is an application that monitors a particular port • Port scans to detect services running on a computer and possible weaknesses of ports • Denial of service (DOS) –repeated requests for services to jam a particular server • Distributed denial of service (DDOS) – multiple attacking computers

System Security • Network Security • Firewalls • A main line of defense between a local network or intranet and the Internet • Firewalls can be configured to detect and respond to DOS attacks, port scans, and other suspicious activity

System Security • Network Intrusion Detection system to detect suspicious network pattern • Application Security • Services • Security hole ( a breach in security to hacker) • Administrator – super-user • Permissions or access control matrix • Input validation • Patches and updates • Patches are software modules to repair service holes • Be careful with automatic update service • Software or transaction log to ducument system activities

System Security • User Security • Privilege escalation attack • Attempt to increase access permission levels • Password protection • Social engineering where intruder uses social interaction to gain personal information to gain access to system, e.g., pretexting obtain information under false pretenses • Procedural security, e.g., guard garbage against “dumpster diving” and use paper shredders

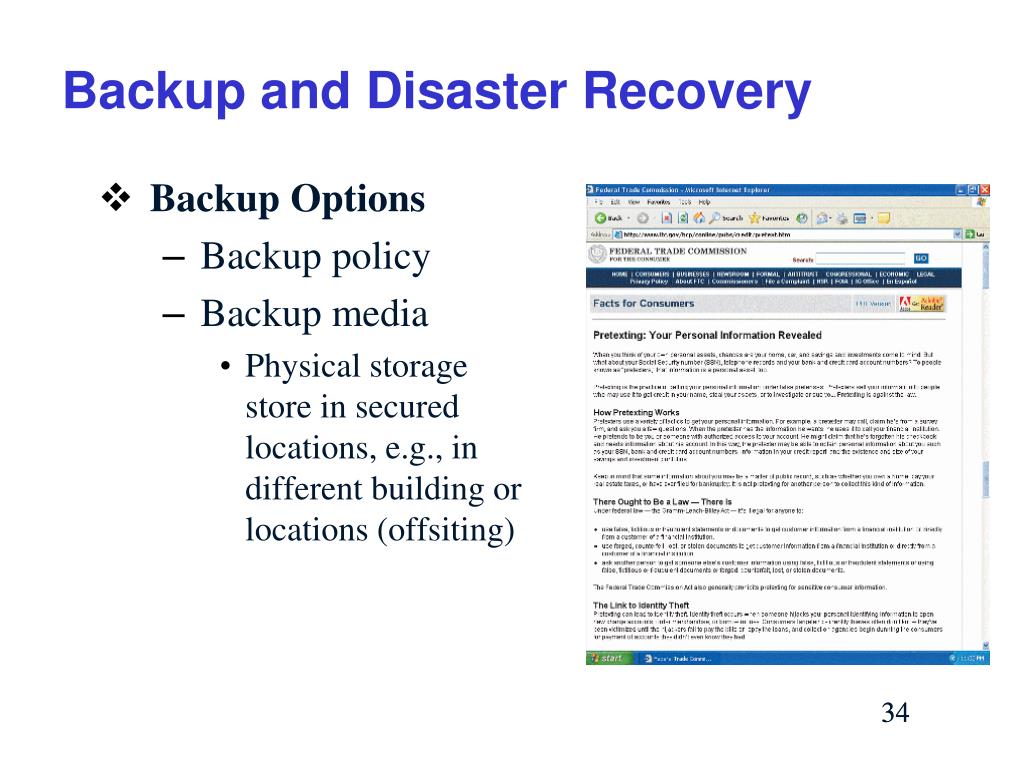

Backup and Disaster Recovery • Backup Options • Backup policy • Backup media • Physical storage store in secured locations, e.g., in different building or locations (offsiting)

Backup and Disaster Recovery • Backup Options • Schedules • Full backup of every file • Differential backup, i..e, back up files that are new or changed since last back up • Incremental backup, i.e., only includes files never have been backed up by any method • Continuous back up using RAID systems that provides real time back up (mirrors data files) • Retention periods

Backup and Disaster Recovery • Disaster Recovery Issues • Hot site that mirrors the primary system through data replication • Companies that require a hot site view it as a justifiable and necessary business expense, whether or not it ever is needed

System Obsolescence • Even with solid support, at some point every system becomes obsolete • Signs: • The system’s maintenance history indicates that adaptive and corrective maintenance is increasing steadily • Operational costs or execution times are increasing rapidly, and routine perfective maintenance does not reverse or slow the trend

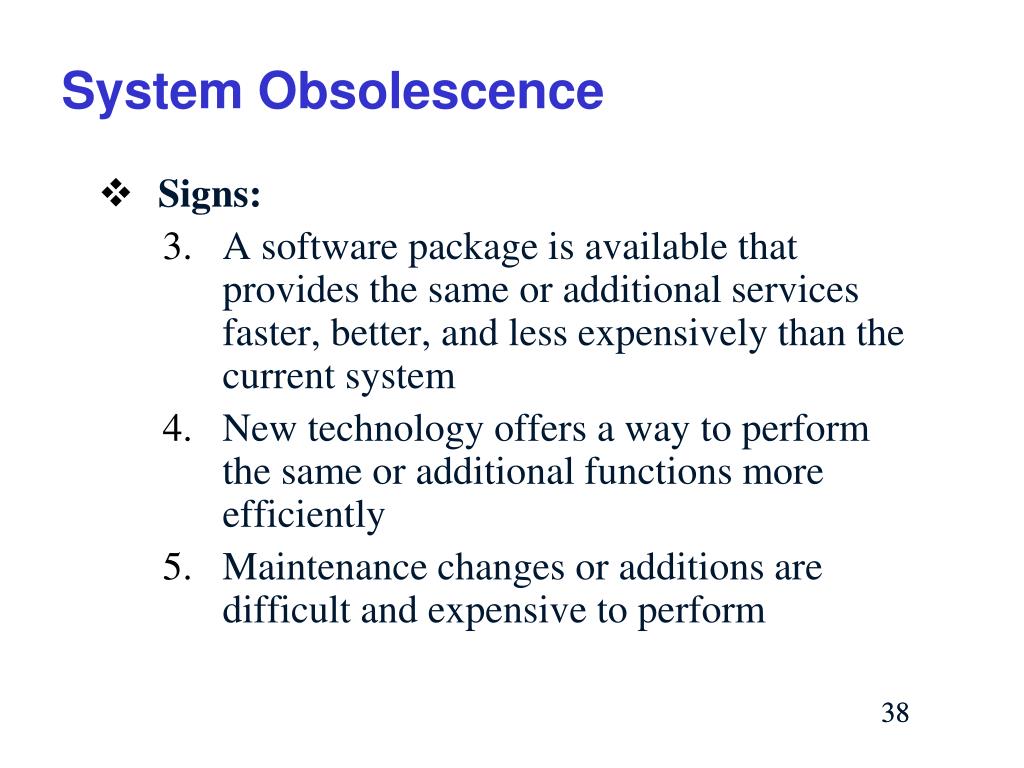

System Obsolescence • Signs: • A software package is available that provides the same or additional services faster, better, and less expensively than the current system • New technology offers a way to perform the same or additional functions more efficiently • Maintenance changes or additions are difficult and expensive to perform

System Obsolescence • Signs: • Users request significant new features to support business requirements

Facing the Future: Challenges and Opportunities • Predictions • It is clear that companies will continue to face intense competition and global change, especially in the wake of economic, social, and political uncertainty • Although disruptions will occur, technology advances will spur business growth and productivity • In fact technology is moving so fast that humans may be left behind • What does seem clear is that the future world of IT must be envisioned, planned, and created by skilled professionals

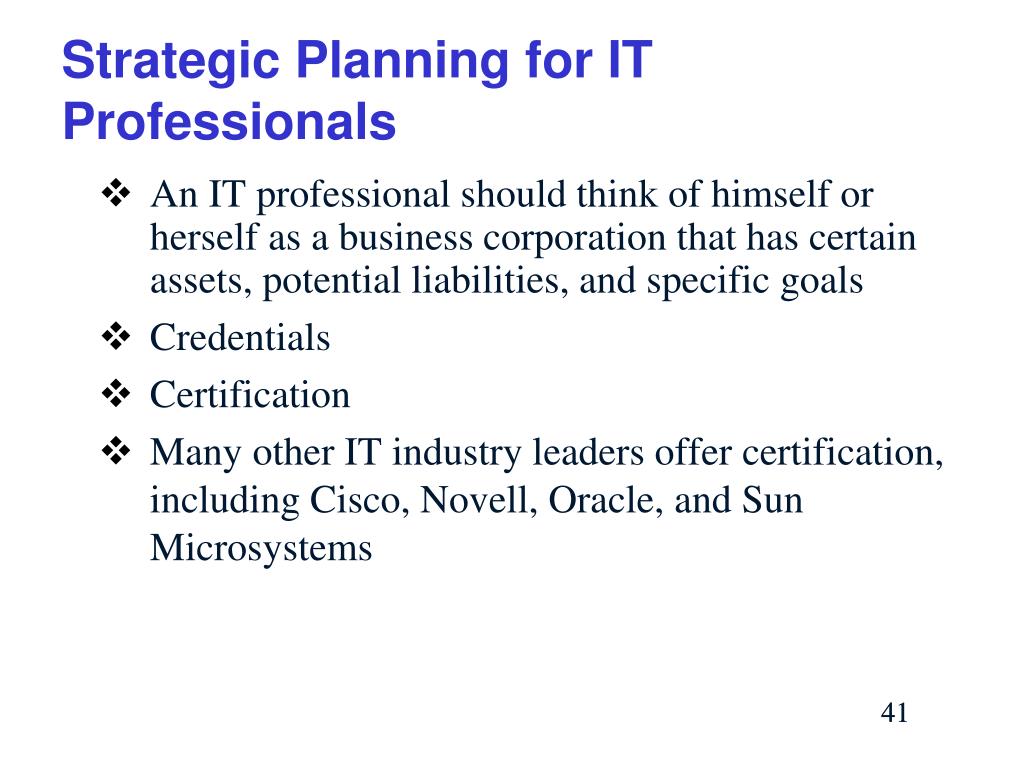

Strategic Planning for IT Professionals • An IT professional should think of himself or herself as a business corporation that has certain assets, potential liabilities, and specific goals • Credentials • Certification • Many other IT industry leaders offer certification, including Cisco, Novell, Oracle, and Sun Microsystems

Summary • Systems operation, security, and support covers the entire period from the implementation of an information system until the system no longer is used • A systems analyst’s primary involvement with an operational system is to manage and solve user support requests

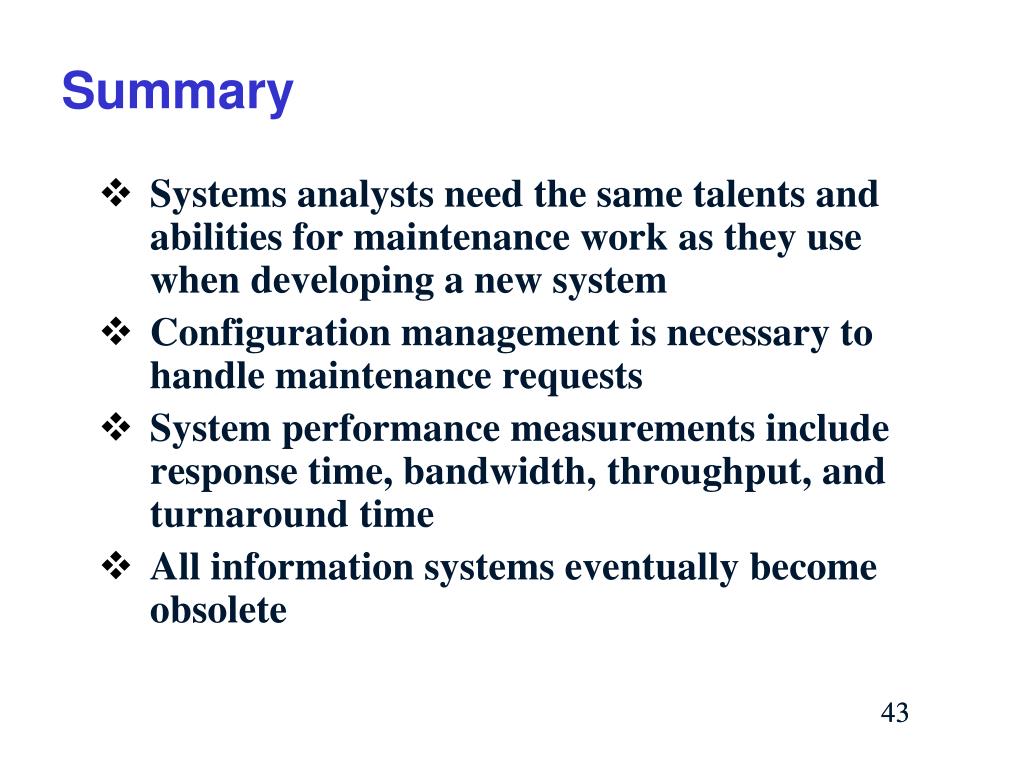

Summary • Systems analysts need the same talents and abilities for maintenance work as they use when developing a new system • Configuration management is necessary to handle maintenance requests • System performance measurements include response time, bandwidth, throughput, and turnaround time • All information systems eventually become obsolete

Summary • An IT professional should have a strategic career plan that includes long-term goals and intermediate milestones • An important element of a personal strategic plan is the acquisition of IT credentials and certifications that document specific knowledge and skills

Managing Systems Support & Security
