How to draw atoms

How to draw atoms

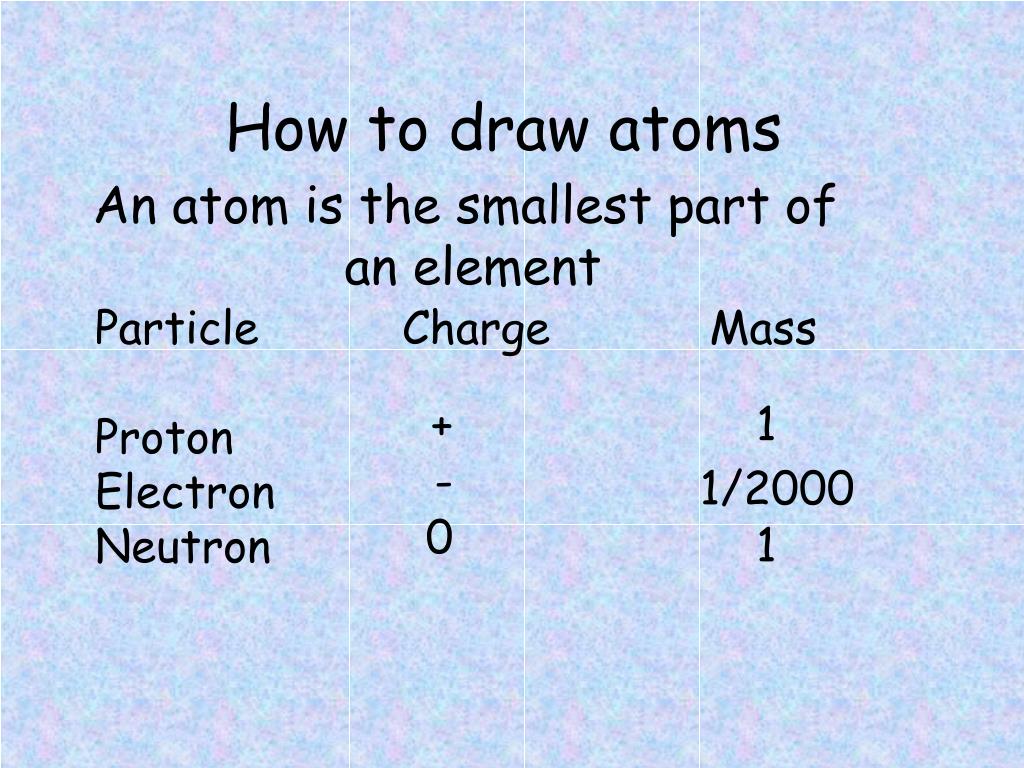

An atom is the smallest part of

an element

ParticleChargeMass

Proton

Electron

Neutron

1

+

-

1/2000

0

1

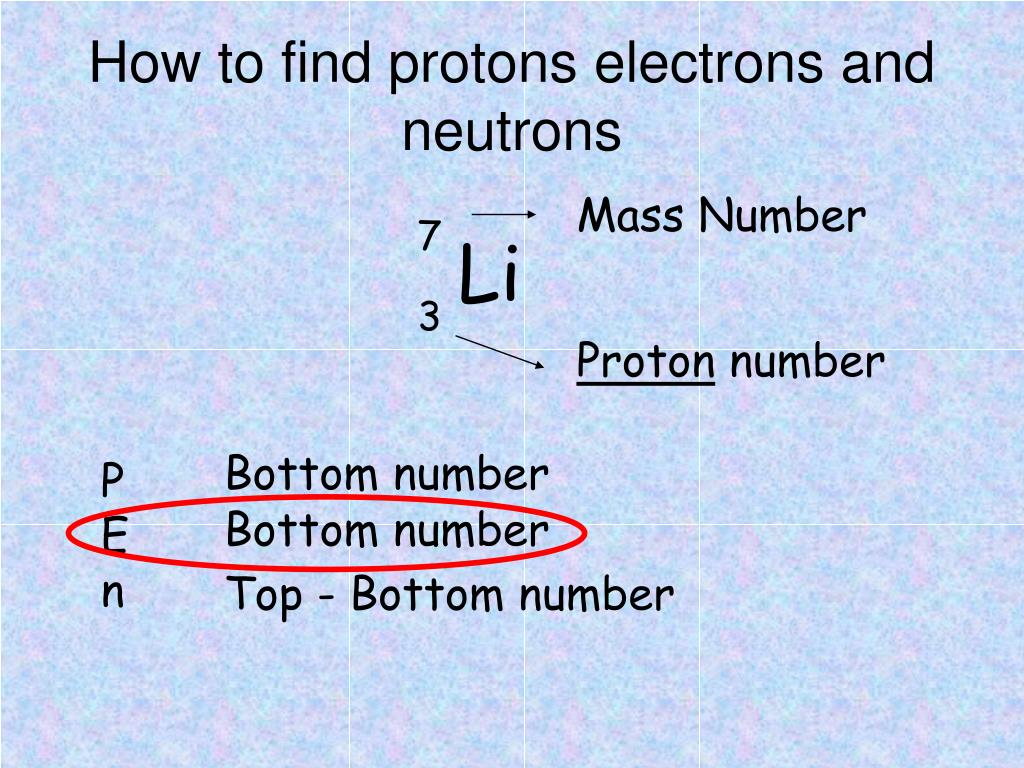

How to find protons electrons and neutrons

How to find protons electrons and neutrons

Mass Number

7

Li

3

Proton number

Bottom number

P

E

n

Bottom number

Top - Bottom number


How to draw atoms

Need to know how to draw the first 20 atoms

Nucleus

2,8,8


How to draw atoms

Ions

Non-metals

Metals

Positive!!!

Negative

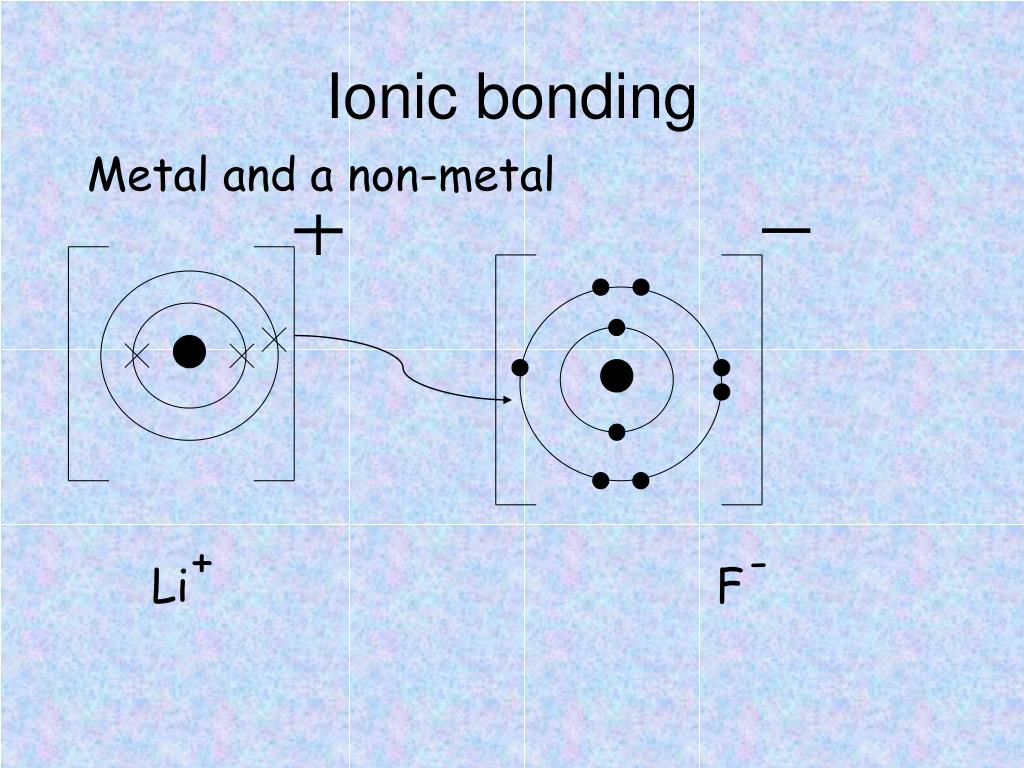

Ionic bonding

Ionic bonding

Metal and a non-metal

+

-

Li

F


Ionic structure

Ionic structure

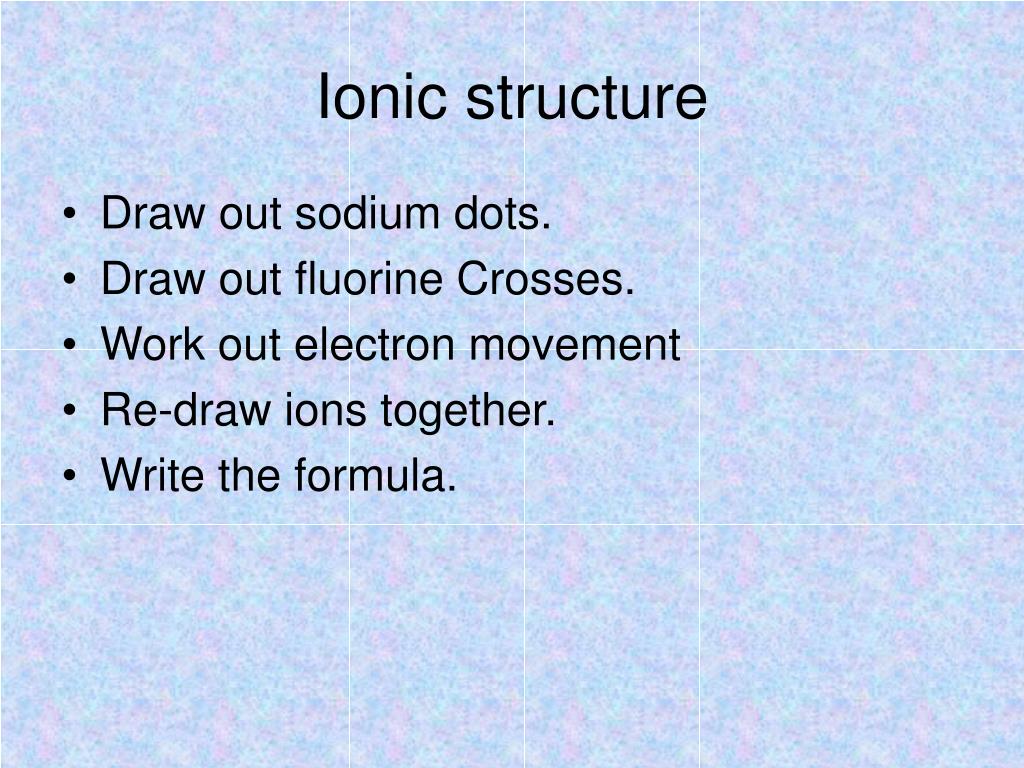

  • Draw out sodium dots.

  • Draw out fluorine Crosses.

  • Work out electron movement

  • Re-draw ions together.

  • Write the formula.


How to draw atoms

Sodium Fluoride

+

-

Na

F

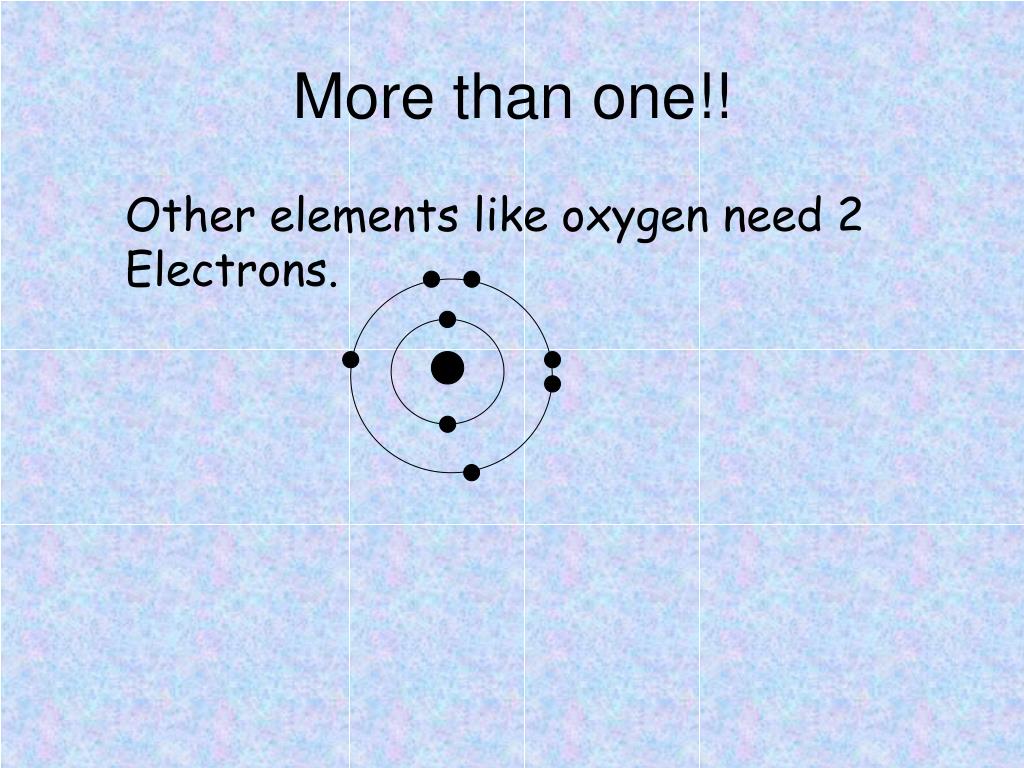

More than one

More than one!!

Other elements like oxygen need 2

Electrons.

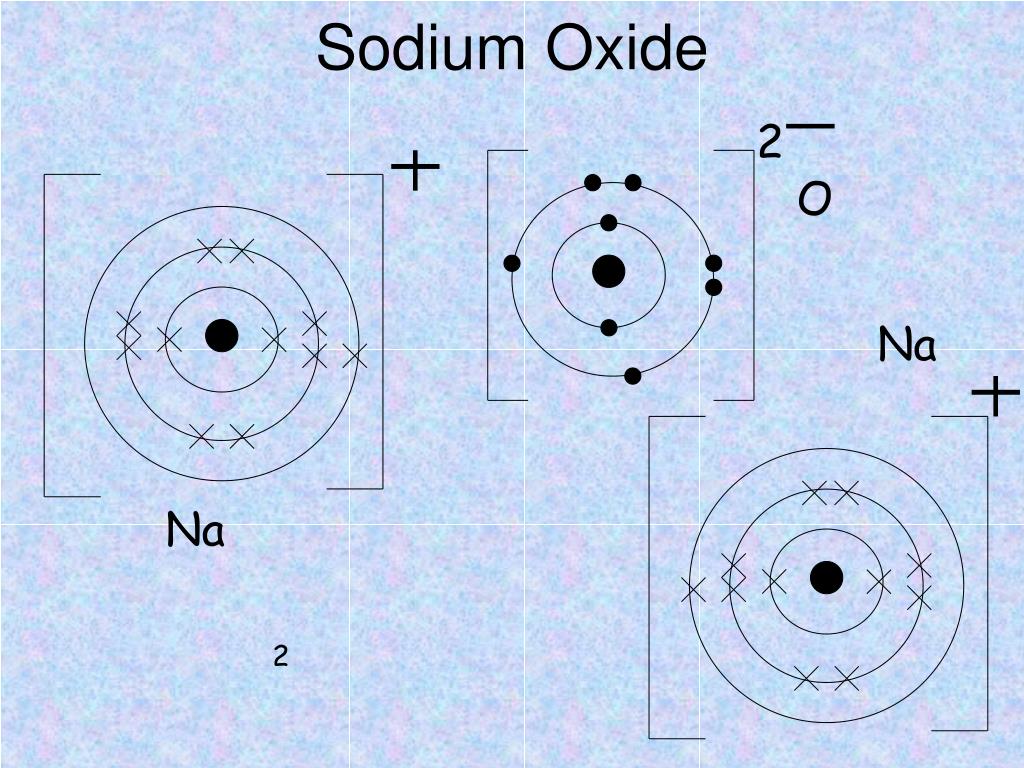

Sodium oxide

Sodium Oxide

2

O

Na

Na

2


How to draw atoms

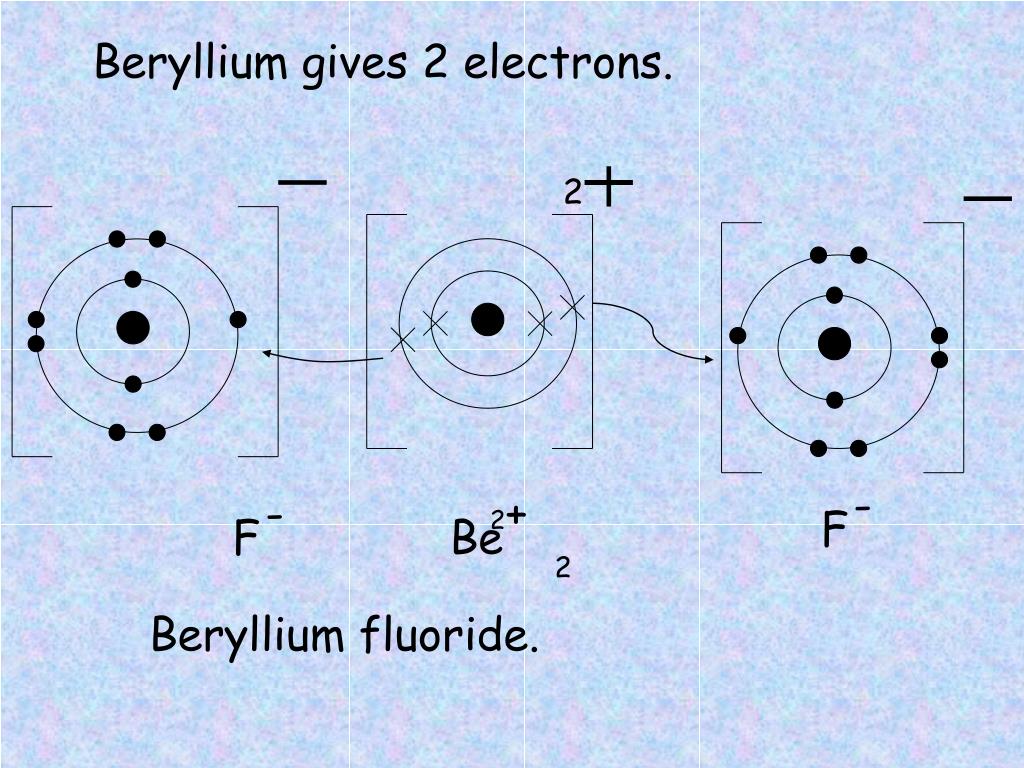

Beryllium gives 2 electrons.

2

-

2+

-

F

Be

F

2

Beryllium fluoride.

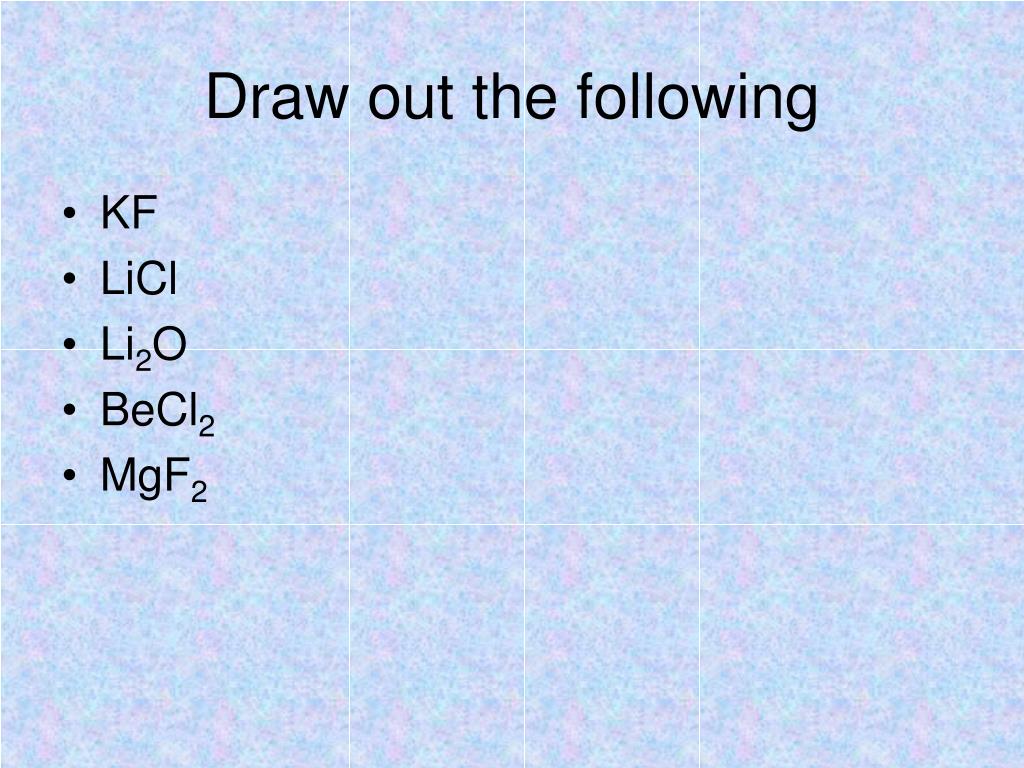

Draw out the following

Draw out the following

  • KF

  • LiCl

  • Li2O

  • BeCl2

  • MgF2
