1 d conduction through cylinders

Lecture on

1-D conduction through cylinders

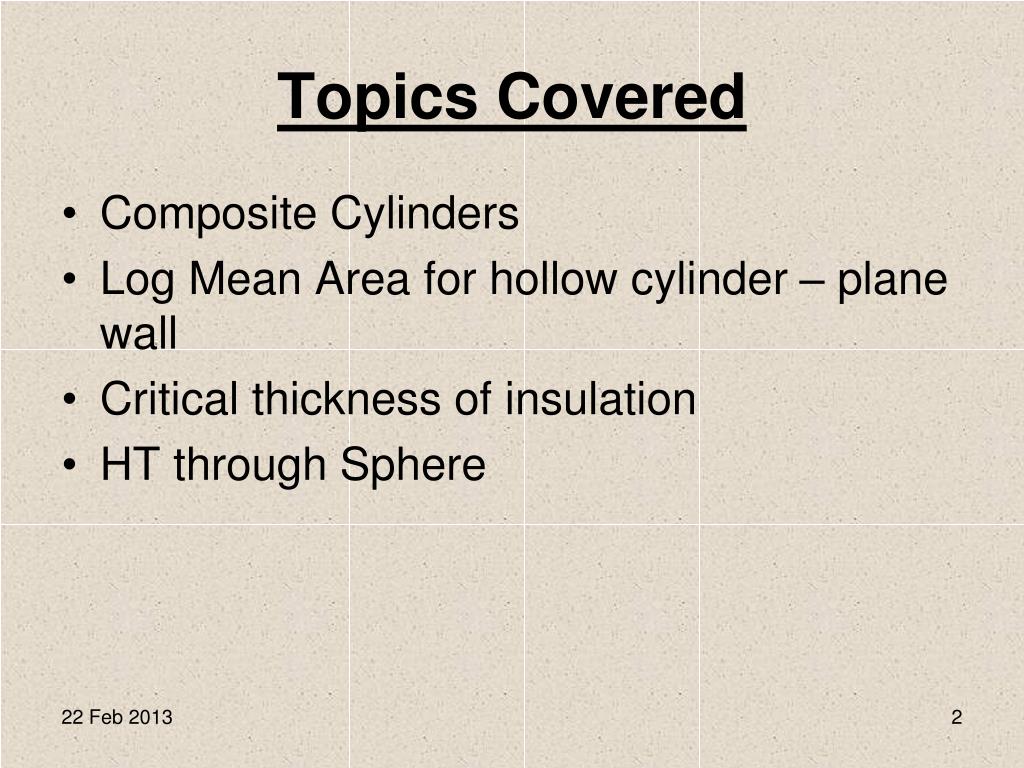

Topics covered

Topics Covered

  • Composite Cylinders

  • Log Mean Area for hollow cylinder – plane wall

  • Critical thickness of insulation

  • HT through Sphere

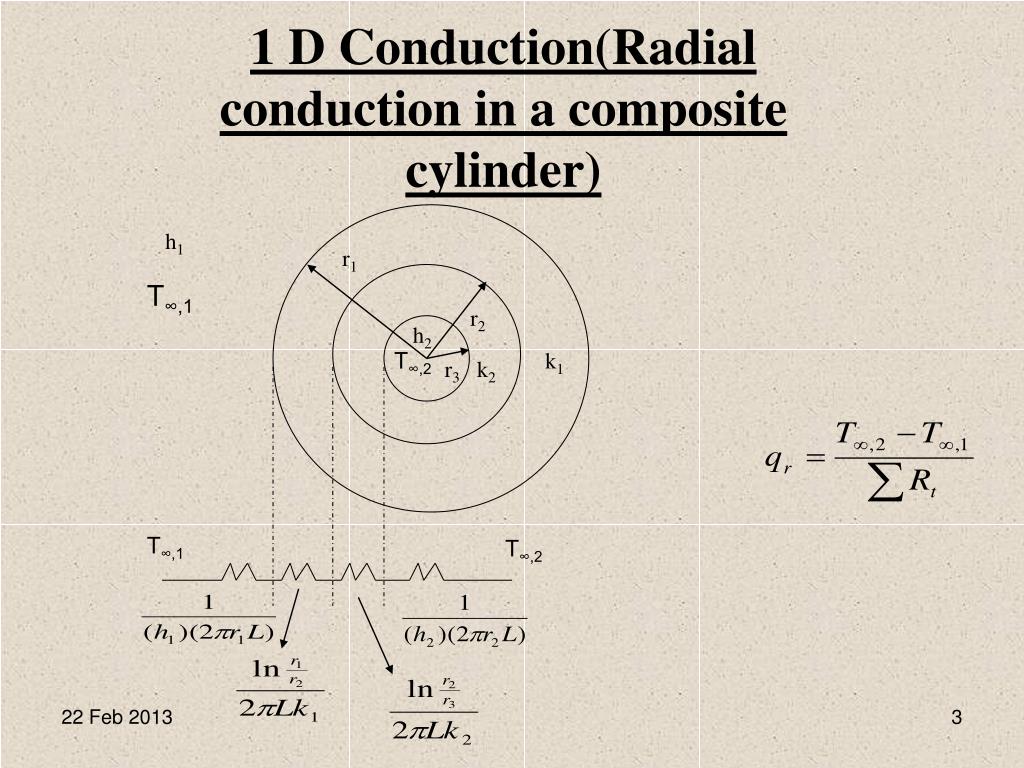

1 d conduction radial conduction in a composite cylinder

h1

r1

T∞,1

r2

h2

T∞,2

k1

r3

k2

T∞,1

T∞,2

1 D Conduction(Radial conduction in a composite cylinder)

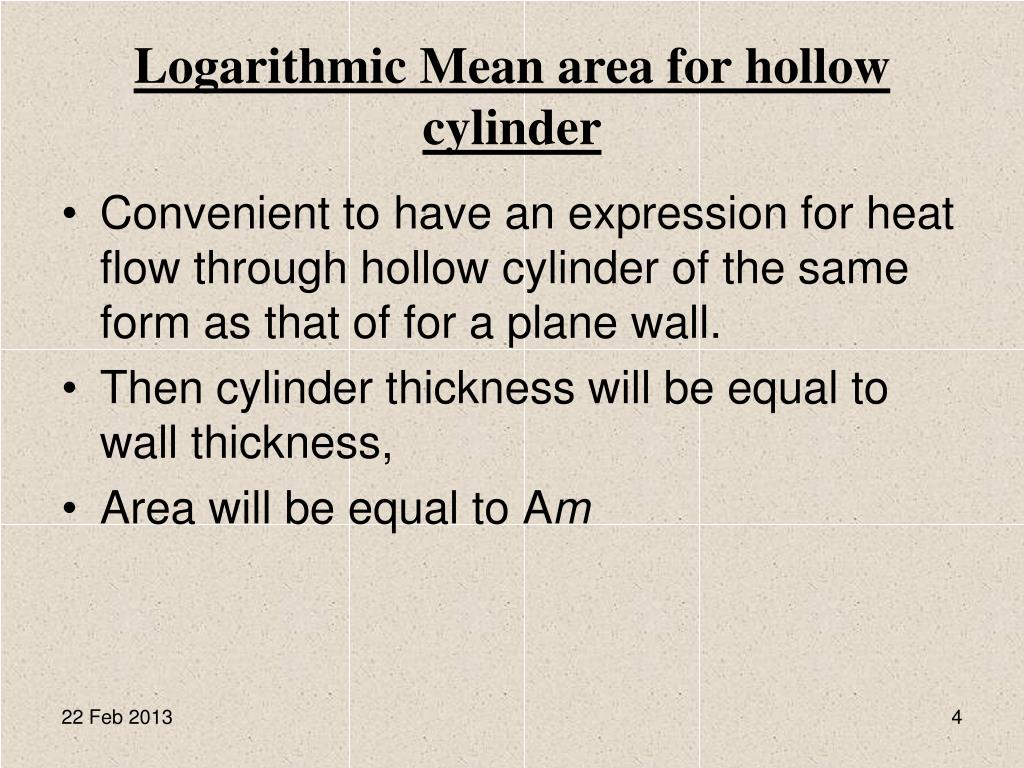

Logarithmic mean area for hollow cylinder

Logarithmic Mean area for hollow cylinder

  • Convenient to have an expression for heat flow through hollow cylinder of the same form as that of for a plane wall.

  • Then cylinder thickness will be equal to wall thickness,

  • Area will be equal to Am

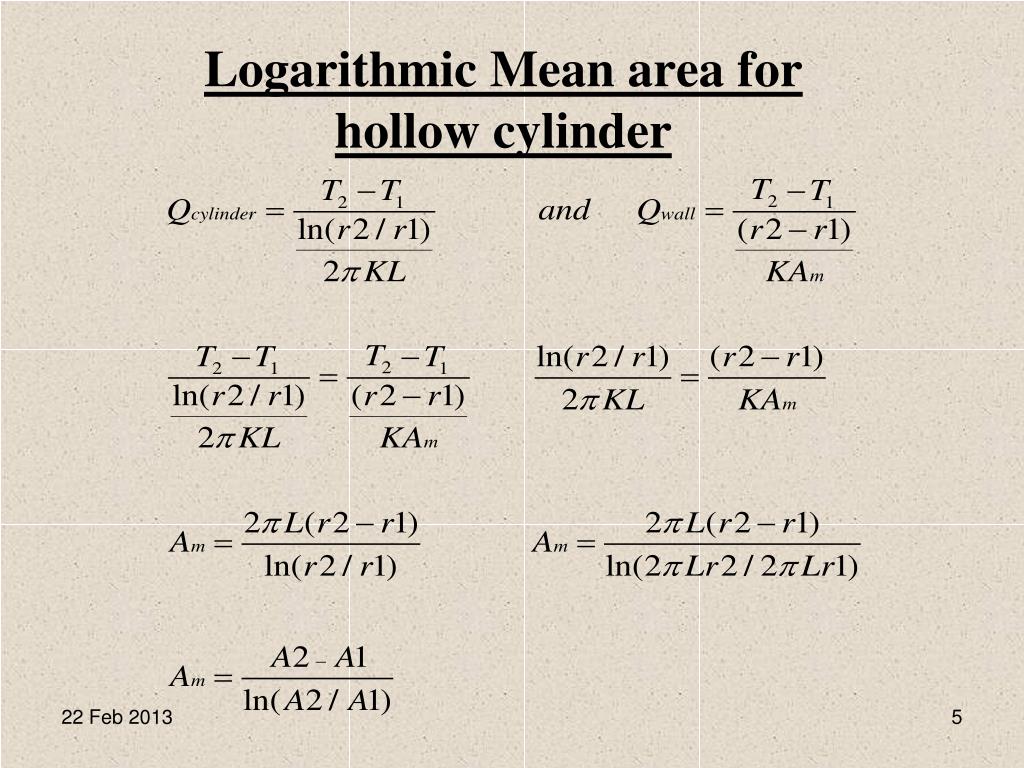

Logarithmic mean area for hollow cylinder1

Logarithmic Mean area for hollow cylinder


1 d conduction through cylinders

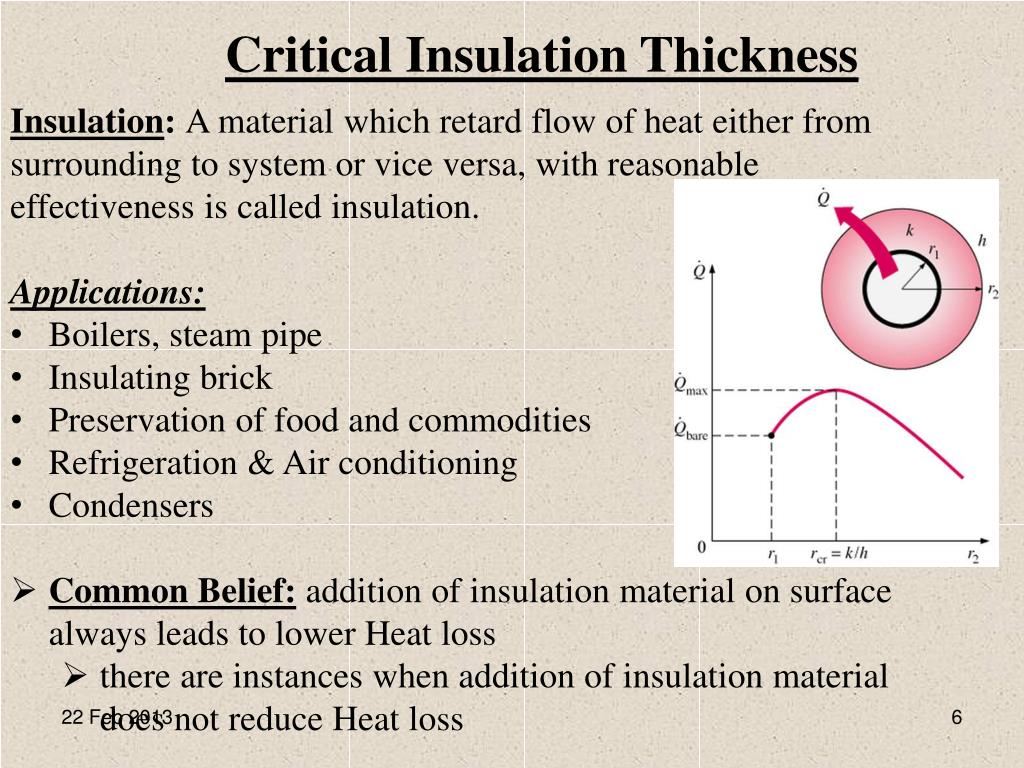

Critical Insulation Thickness

  • Insulation: A material which retard flow of heat either from surrounding to system or vice versa, with reasonable effectiveness is called insulation.

  • Applications:

  • Boilers, steam pipe

  • Insulating brick

  • Preservation of food and commodities

  • Refrigeration & Air conditioning

  • Condensers

  • Common Belief: addition of insulation material on surface always leads to lower Heat loss

    • there are instances when addition of insulation material does not reduce Heat loss

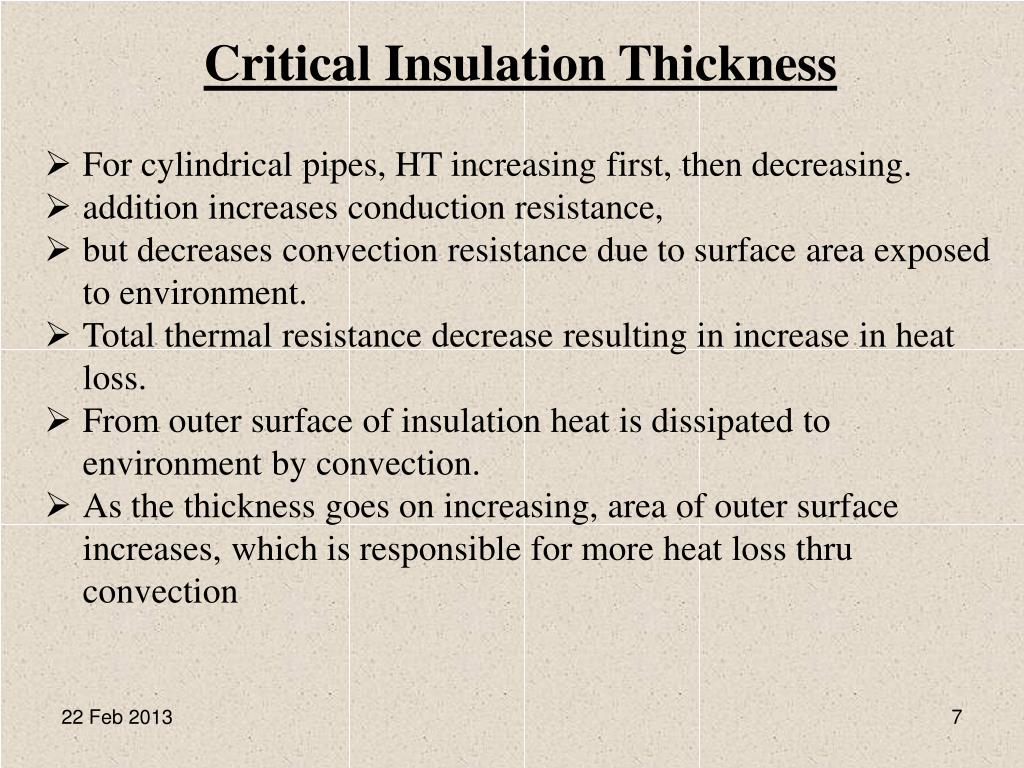

1 d conduction through cylinders

Critical Insulation Thickness

  • For cylindrical pipes, HT increasing first, then decreasing.

  • addition increases conduction resistance,

  • but decreases convection resistance due to surface area exposed to environment.

  • Total thermal resistance decrease resulting in increase in heat loss.

  • From outer surface of insulation heat is dissipated to environment by convection.

  • As the thickness goes on increasing, area of outer surface increases, which is responsible for more heat loss thru convection


1 d conduction through cylinders

T∞

r0

ri

h

Ti

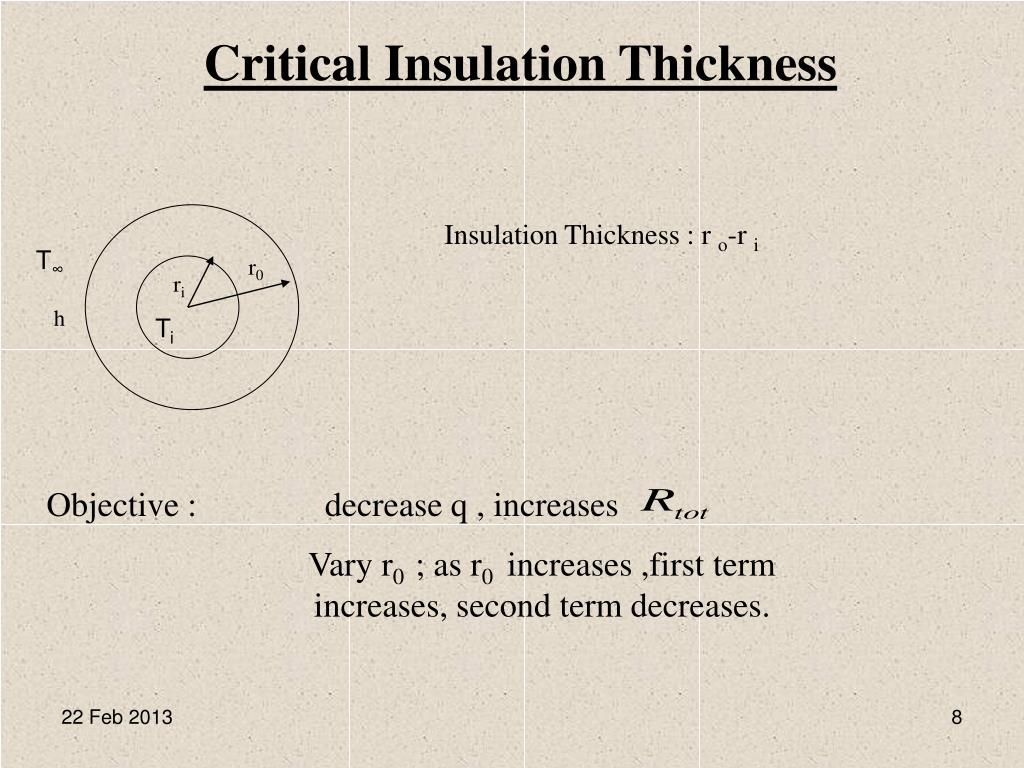

Critical Insulation Thickness

Insulation Thickness : r o-r i

Objective :decrease q , increases

Vary r0 ; as r0 increases ,first term increases, second term decreases.

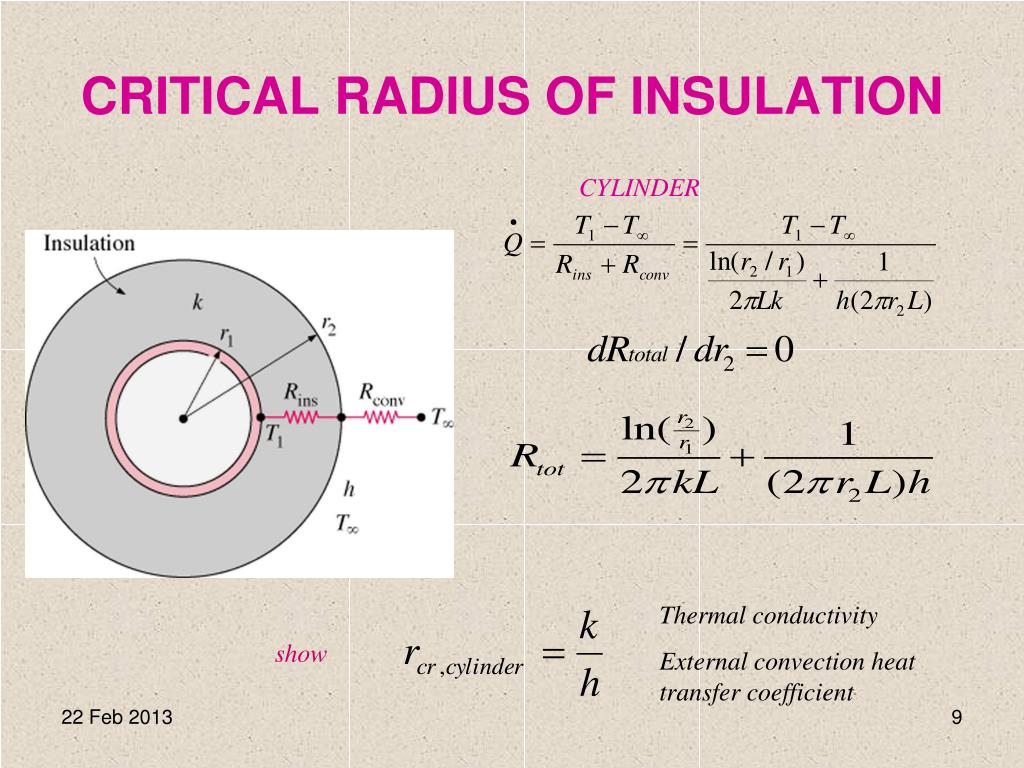

Critical radius of insulation

CRITICAL RADIUS OF INSULATION

CYLINDER

Thermal conductivity

External convection heat transfer coefficient

show


1 d conduction through cylinders

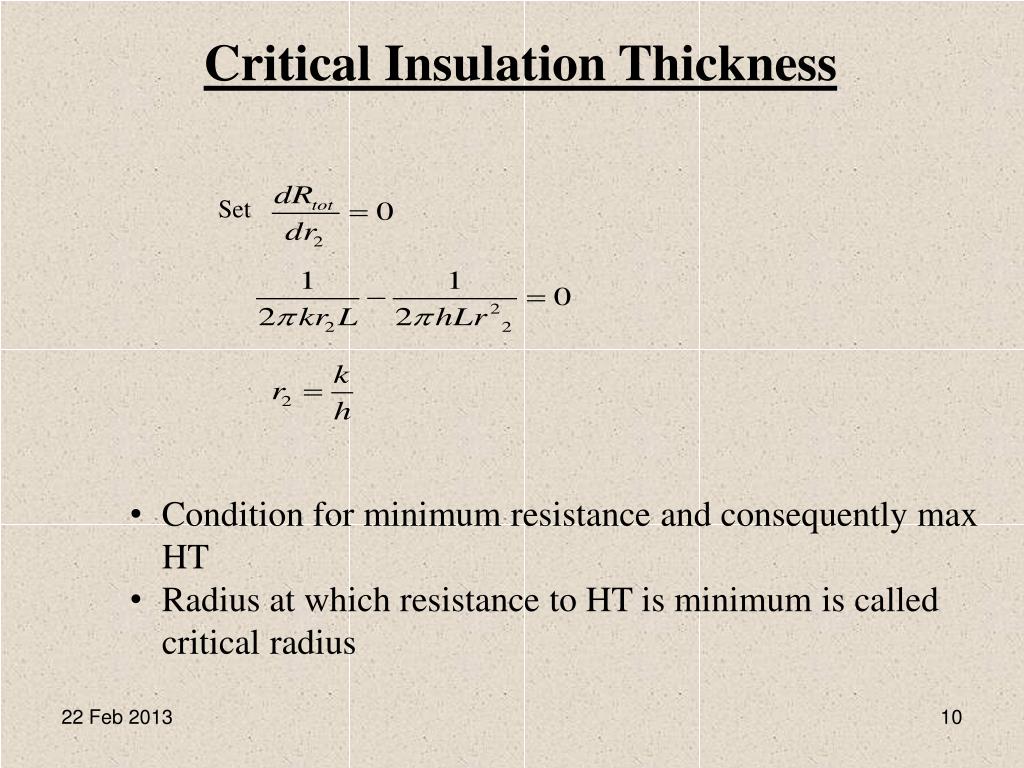

Set

Critical Insulation Thickness

  • Condition for minimum resistance and consequently max HT

  • Radius at which resistance to HT is minimum is called critical radius

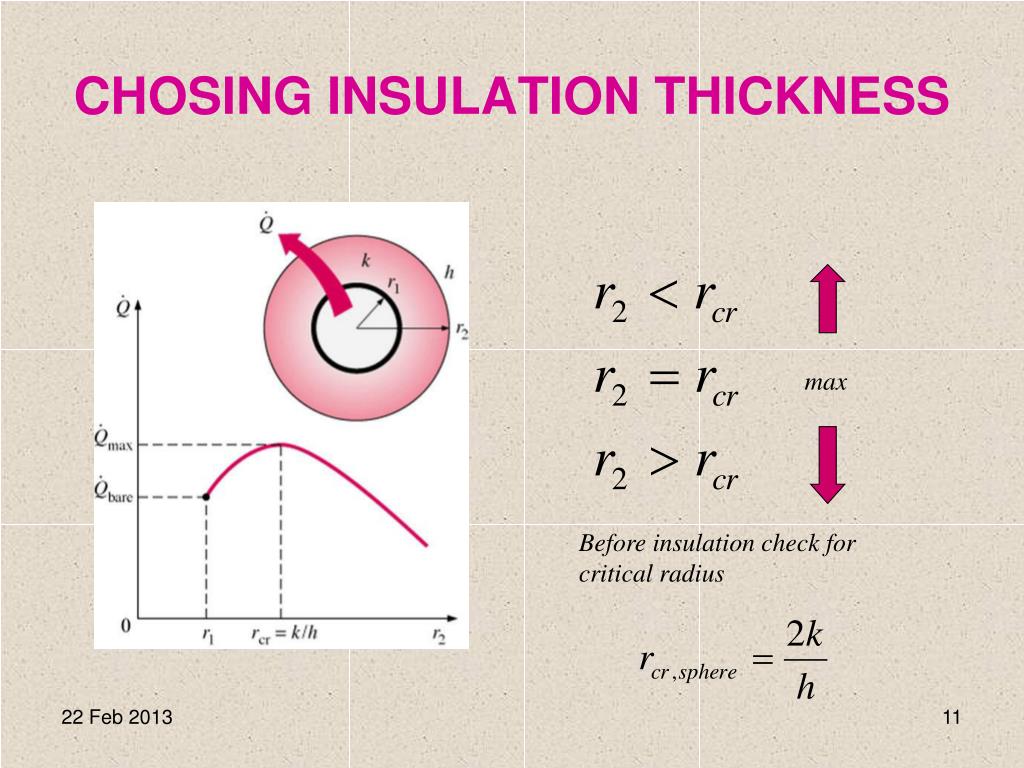

Chosing insulation thickness

CHOSING INSULATION THICKNESS

max

Before insulation check for critical radius

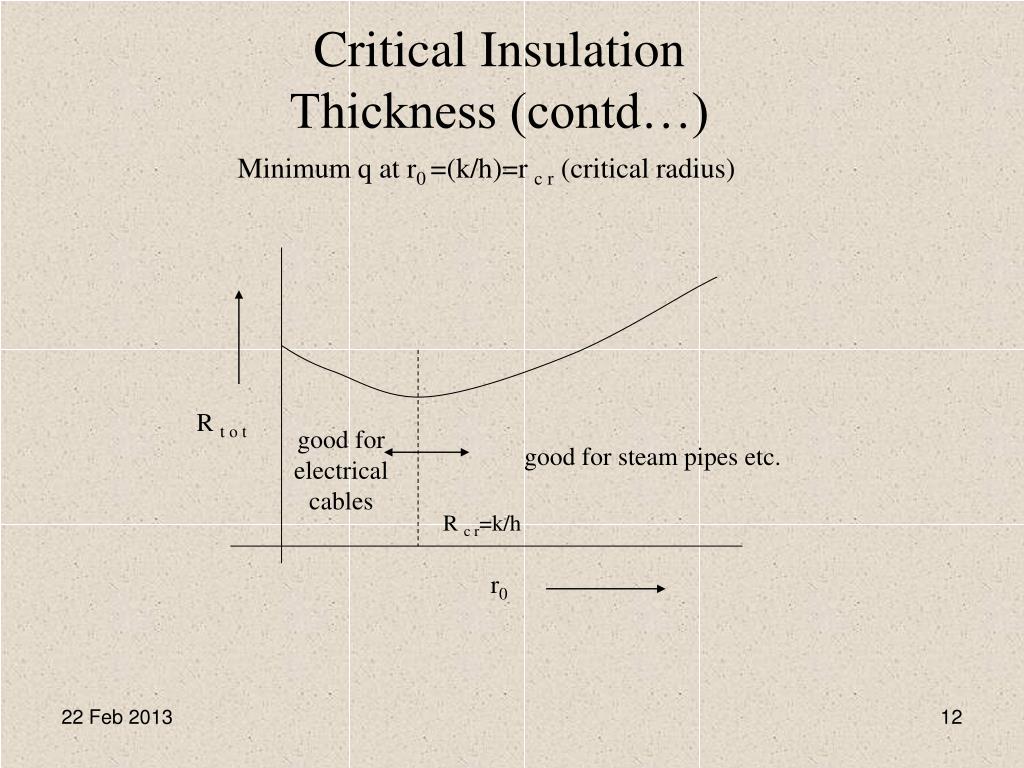

1 d conduction through cylinders

R t o t

good for electrical cables

good for steam pipes etc.

R c r=k/h

r0

Critical Insulation Thickness (contd…)

Minimum q at r0 =(k/h)=r c r (critical radius)

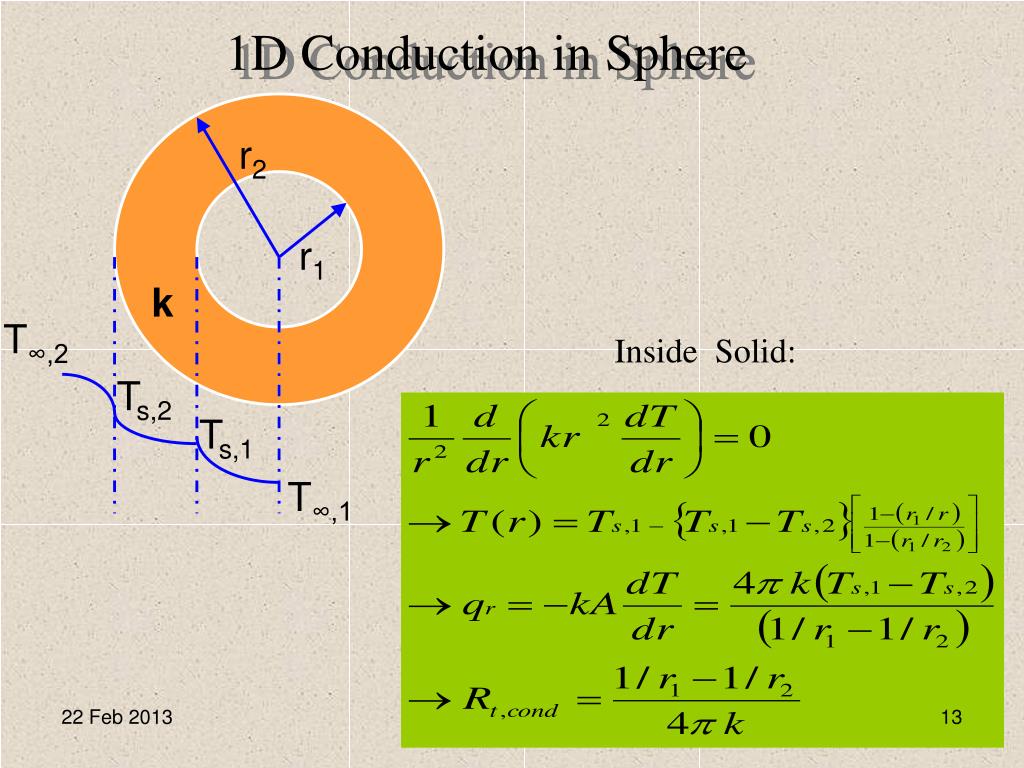

1d conduction in sphere

r2

r1

k

T∞,2

Ts,2

Ts,1

T∞,1

1D Conduction in Sphere

Inside Solid:
