More about decay modes

More About Decay Modes

Nuclear Physics Lesson 9


Homework

Homework

Revise for the skills test.

HWK days:

Tues Wk 1 Period 4

Mon Wk 2 Period 2

Thurs Wk 2 Period 4

Nuclear Physics Test - some time before half term.


Learning objectives

Learning Objectives

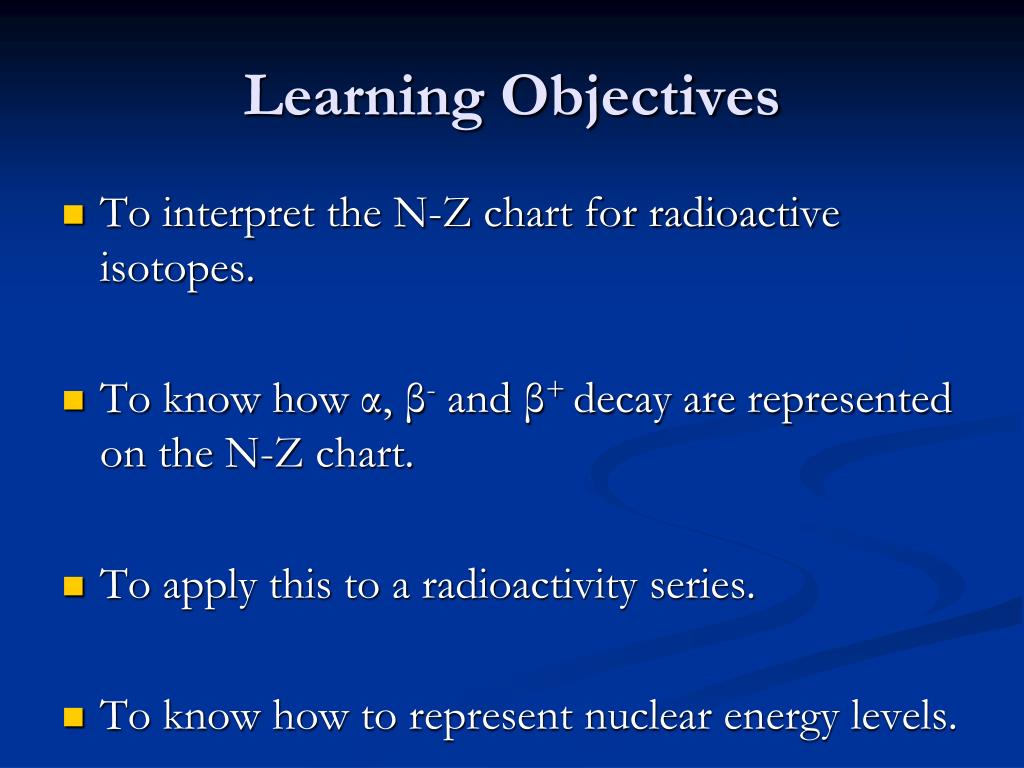

To interpret the N-Z chart for radioactive isotopes.

To know how α, β- and β+ decay are represented on the N-Z chart.

To apply this to a radioactivity series.

To know how to represent nuclear energy levels.


The n z graph

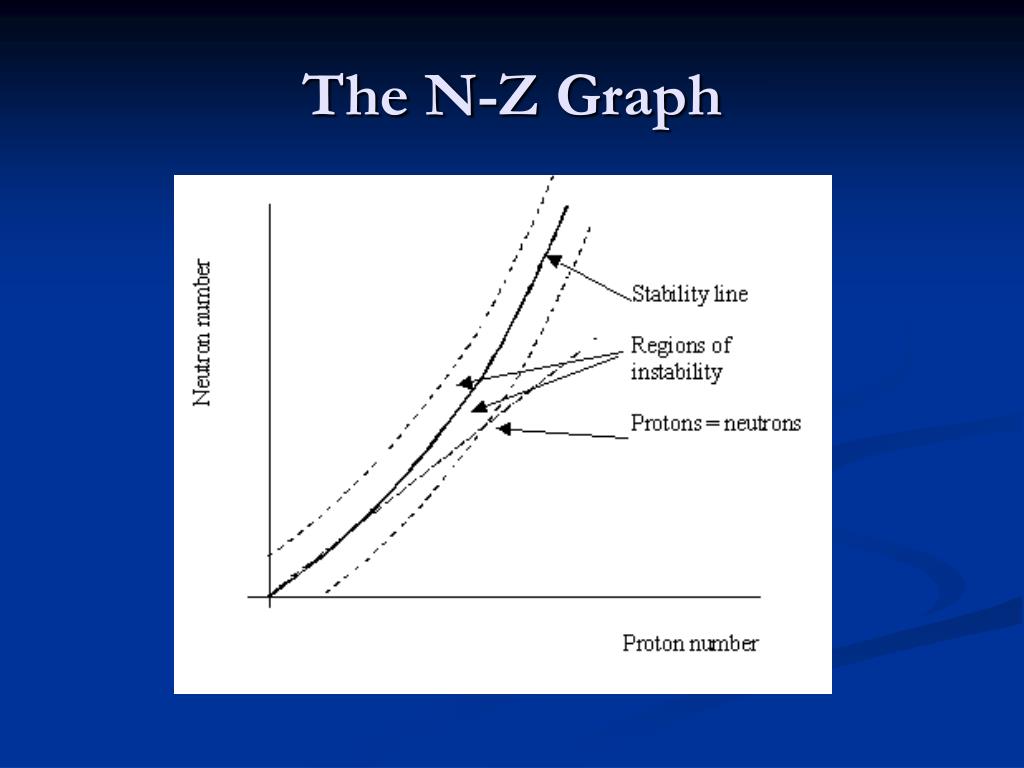

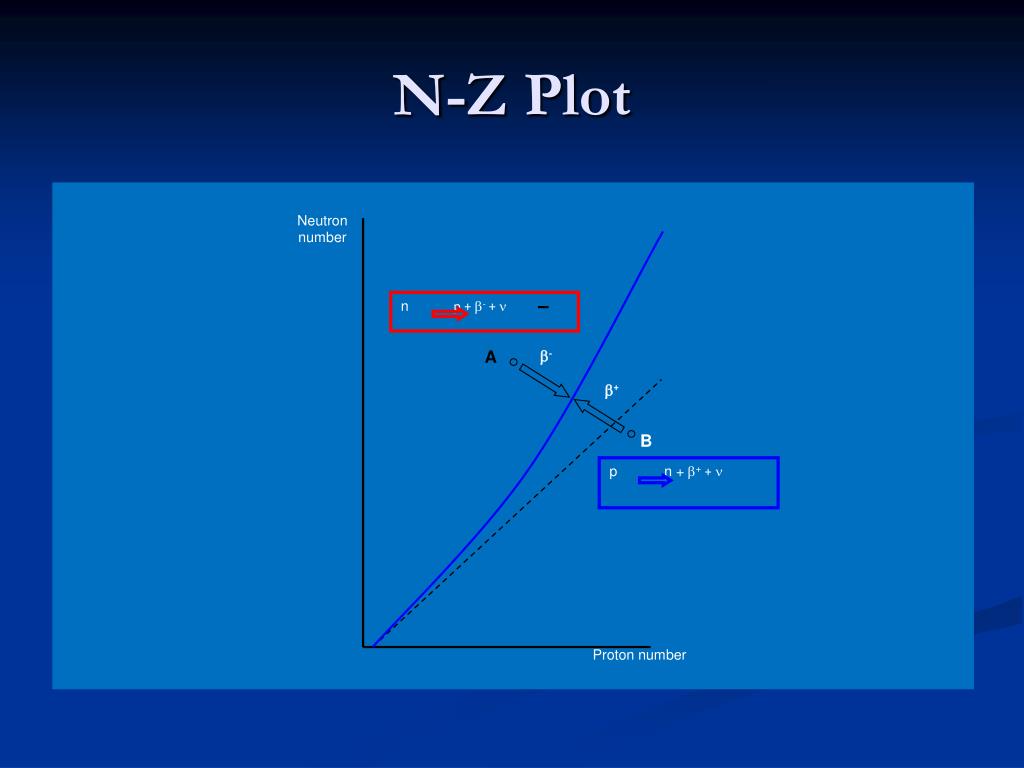

The N-Z Graph


N z plot

b-

A

b+

B

Neutron number

n p + b- + n

p n +b++ n

Proton number

N-Z Plot


Notes on the n z plot

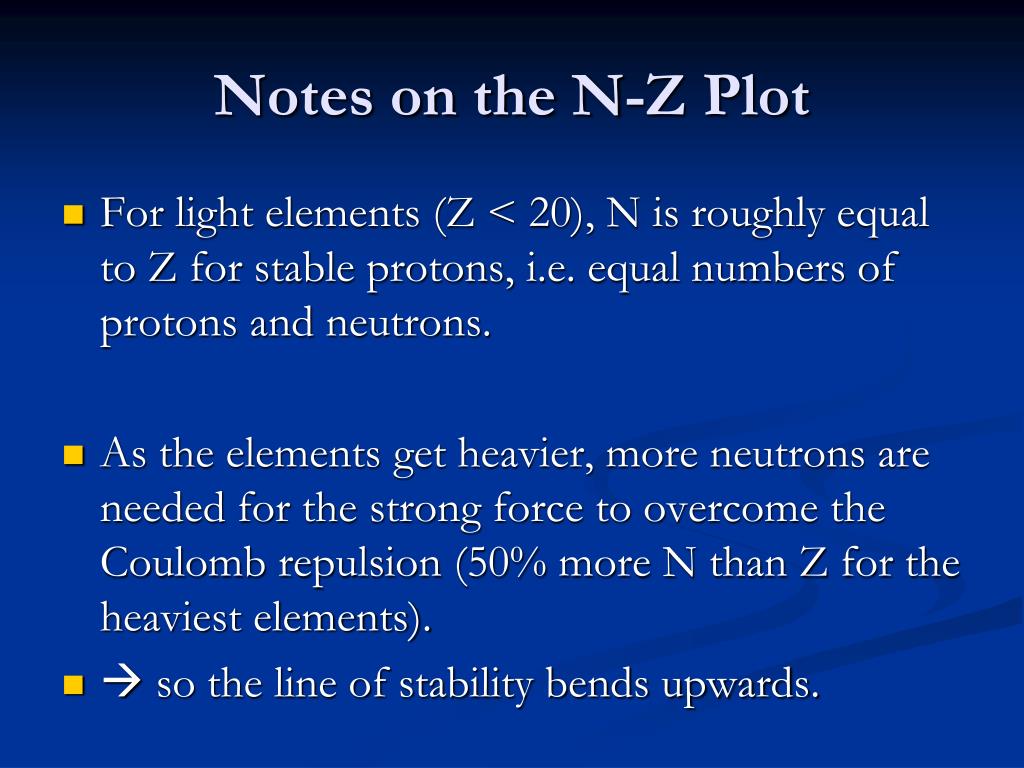

Notes on the N-Z Plot

For light elements (Z < 20), N is roughly equal to Z for stable protons, i.e. equal numbers of protons and neutrons.

As the elements get heavier, more neutrons are needed for the strong force to overcome the Coulomb repulsion (50% more N than Z for the heaviest elements).

 so the line of stability bends upwards.


Notes on the n z plot1

Notes on the N-Z Plot

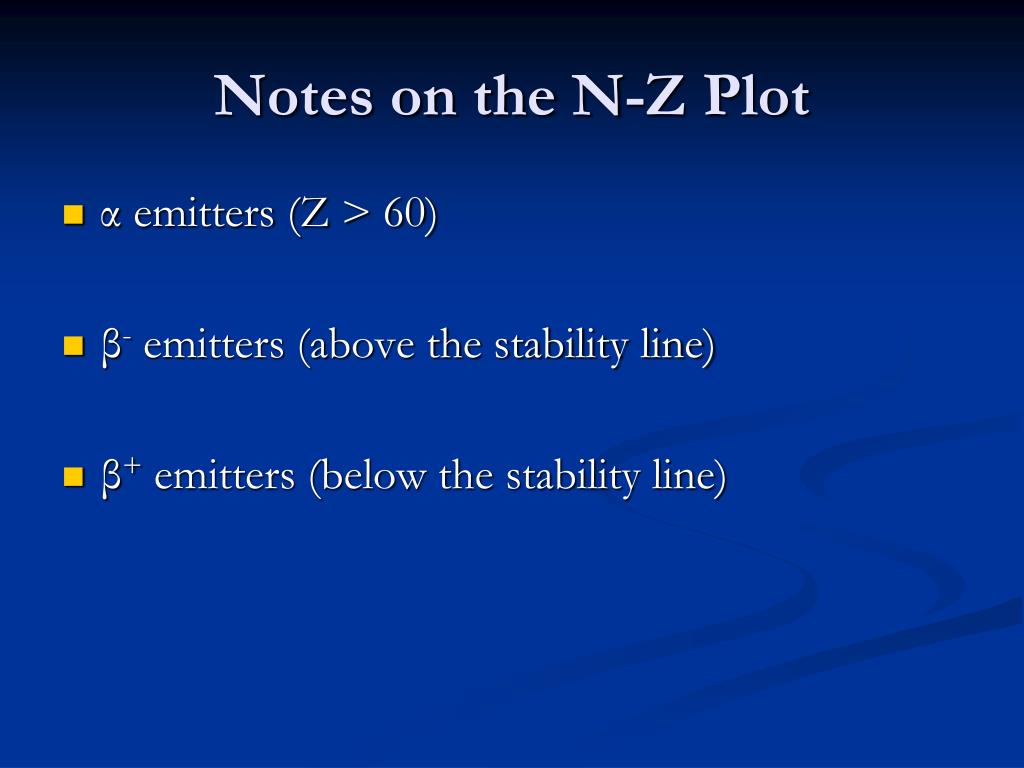

α emitters (Z > 60)

β- emitters (above the stability line)

β+ emitters (below the stability line)


Decays represented on n z plot

Decays Represented on N-Z Plot

You need to know how to show α, β- and β+.

THIS GRAPH IS THE WRONG WAY ROUND!


Exercise

Exercise

Draw the N-Z graph for known isotopes.

Indicate the line of stability and describe how and why it changes as Z is increased.

Indicate where the α, β- and β+ emitters will appear on the graph.

Explain why they appear in these regions of the graph.


Nuclear energy levels

Nuclear Energy Levels

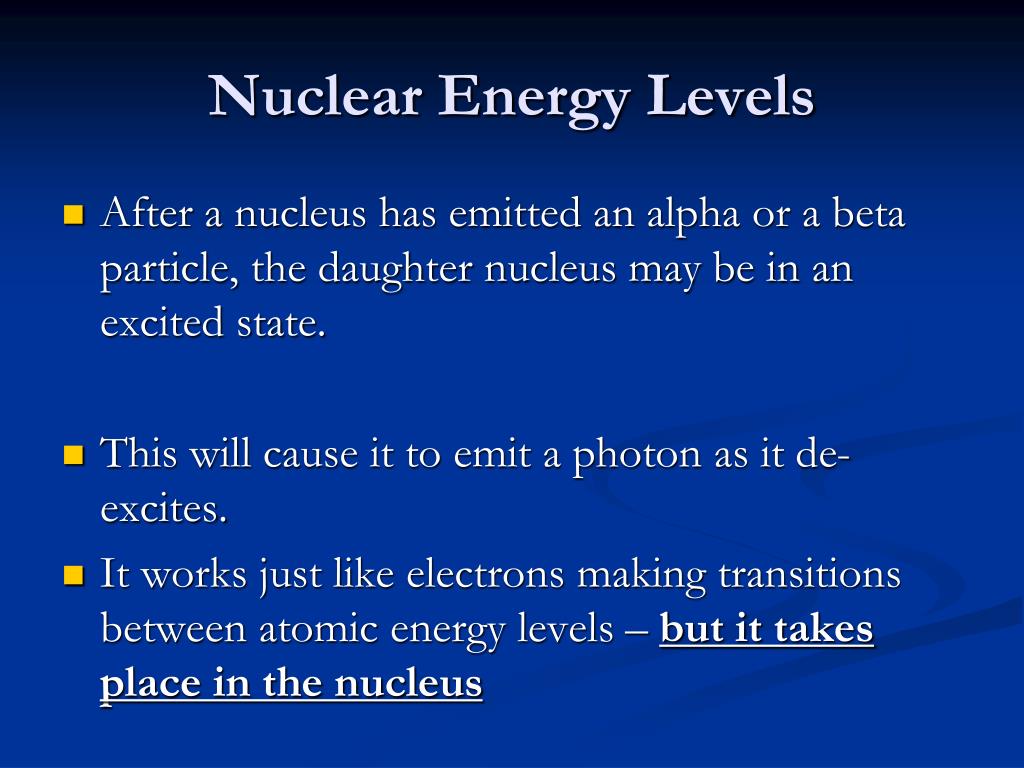

After a nucleus has emitted an alpha or a beta particle, the daughter nucleus may be in an excited state.

This will cause it to emit a photon as it de-excites.

It works just like electrons making transitions between atomic energy levels – but it takes place in the nucleus

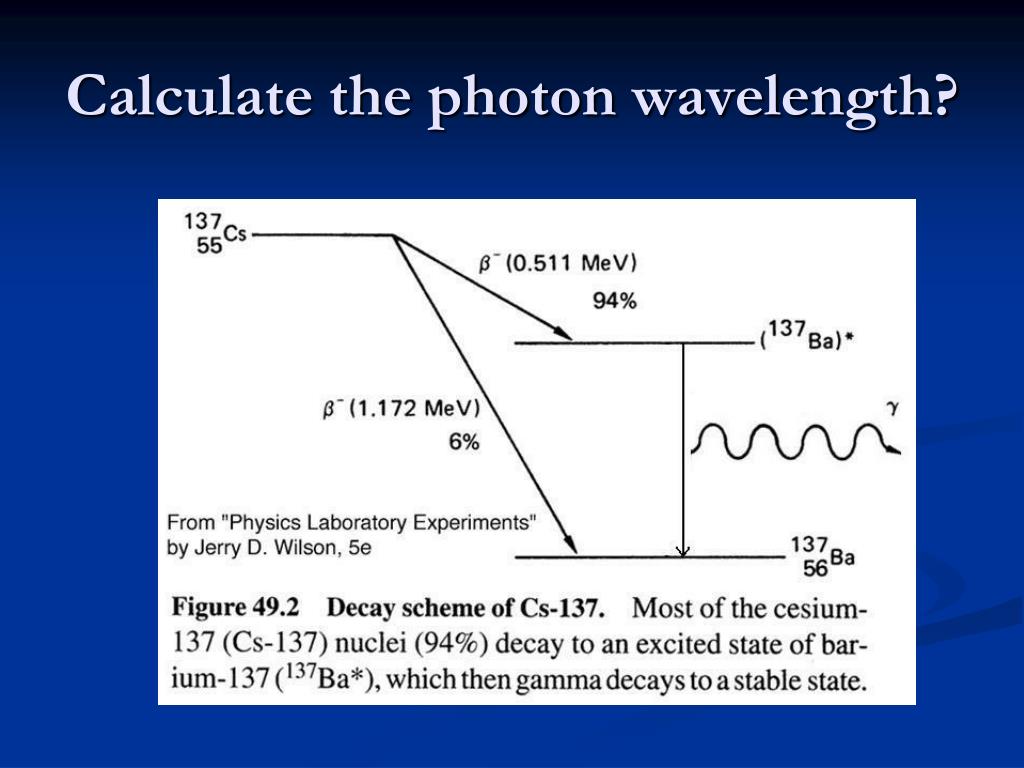

Calculate the photon wavelength

Calculate the photon wavelength?


Exercise1

Exercise

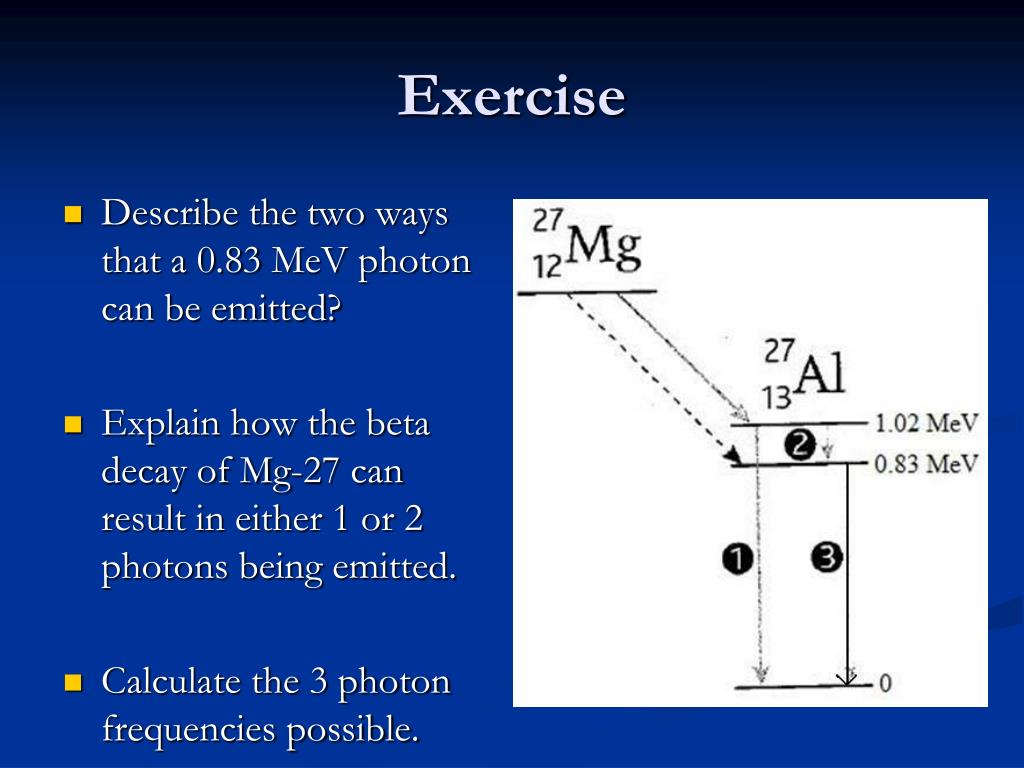

  • Describe the two ways that a 0.83 MeV photon can be emitted?

  • Explain how the beta decay of Mg-27 can result in either 1 or 2 photons being emitted.

  • Calculate the 3 photon frequencies possible.


A bigger picture

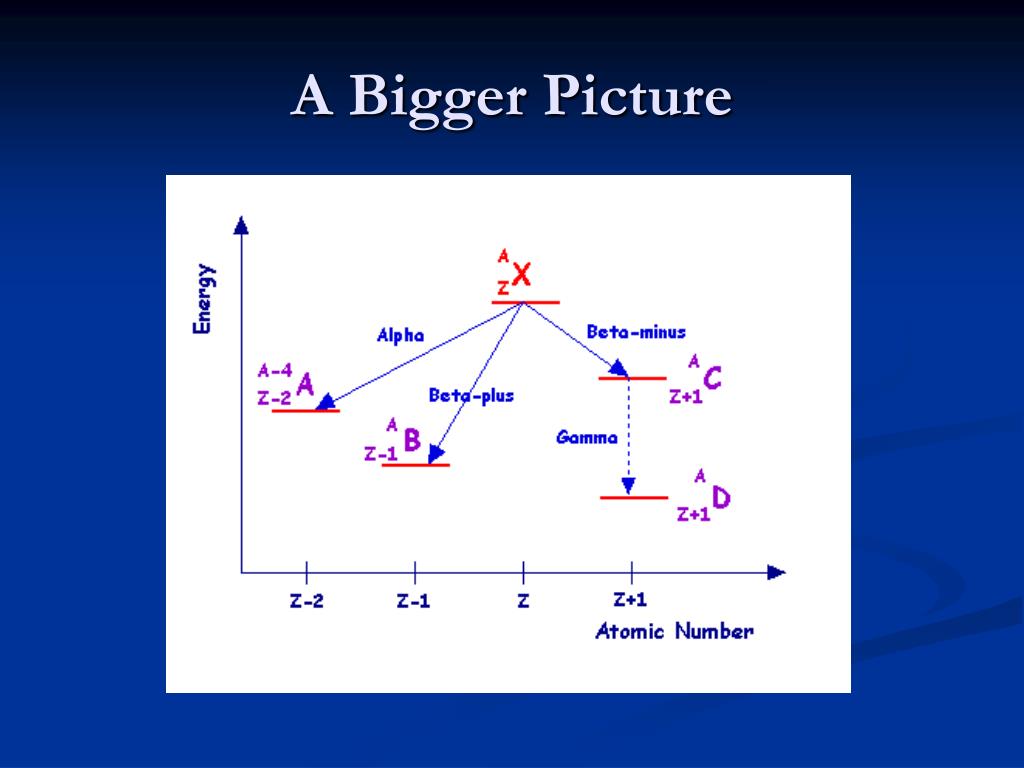

A Bigger Picture


Summary

Summary

A graph of neutron number against proton number shows that there are more neutrons in larger nuclei.

This is needed to ensure stability of the nuclei.

Excited nuclei give off gamma rays after emitting an alpha particle or a beta particle.


Recap

Recap

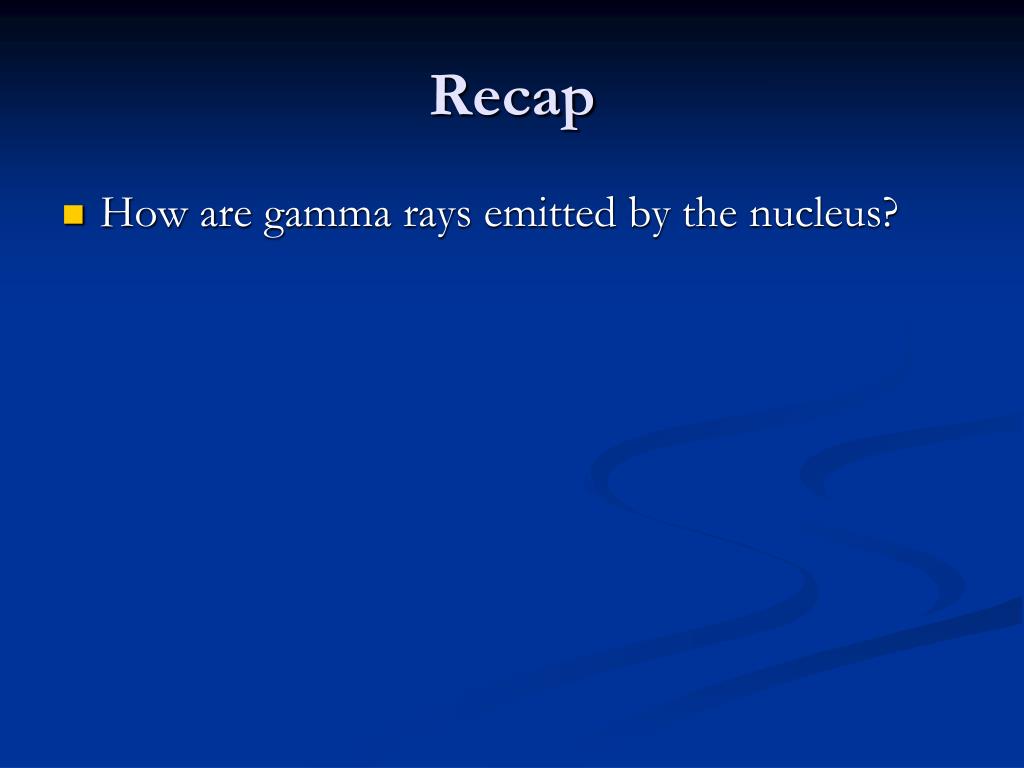

How are gamma rays emitted by the nucleus?
