Muons in famos

Muons in FAMOS

Dimitri Bourilkov

University of Florida

LPC Meeting, January 25, 2005, FNAL


Running famos 1 1 0 i

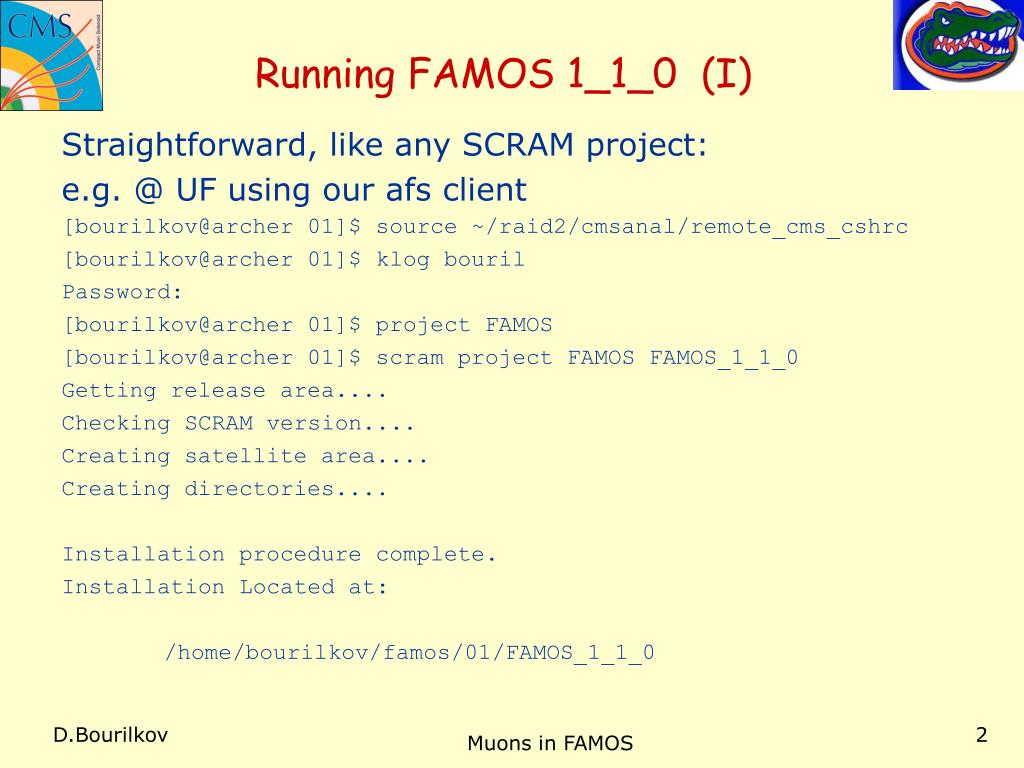

Running FAMOS 1_1_0 (I)

Straightforward, like any SCRAM project:

e.g. @ UF using our afs client

[[email protected] 01]$ source ~/raid2/cmsanal/remote_cms_cshrc

[[email protected] 01]$ klog bouril

Password:

[[email protected] 01]$ project FAMOS

[[email protected] 01]$ scram project FAMOS FAMOS_1_1_0

Getting release area....

Checking SCRAM version....

Creating satellite area....

Creating directories....

Installation procedure complete.

Installation Located at:

/home/bourilkov/famos/01/FAMOS_1_1_0

Muons in FAMOS


Running famos 1 1 0 ii

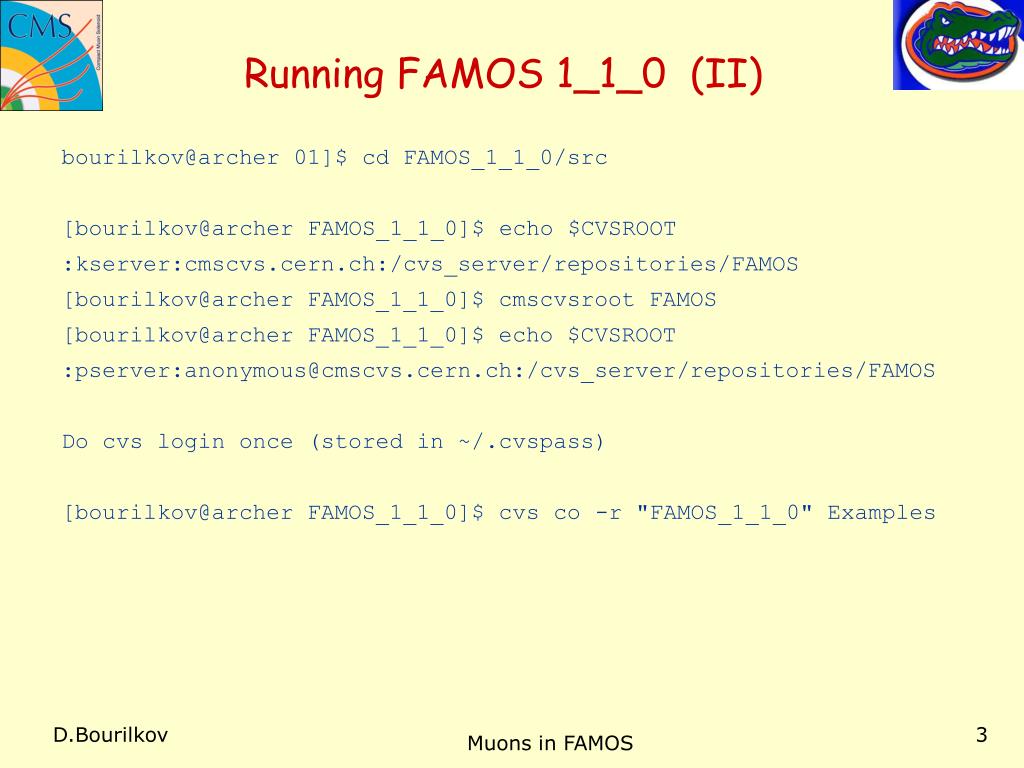

Running FAMOS 1_1_0 (II)

[email protected] 01]$ cd FAMOS_1_1_0/src

[[email protected] FAMOS_1_1_0]$ echo $CVSROOT

:kserver:cmscvs.cern.ch:/cvs_server/repositories/FAMOS

[[email protected] FAMOS_1_1_0]$ cmscvsroot FAMOS

[[email protected] FAMOS_1_1_0]$ echo $CVSROOT

:pserver:[email protected]:/cvs_server/repositories/FAMOS

Do cvs login once (stored in ~/.cvspass)

[[email protected] FAMOS_1_1_0]$ cvs co -r "FAMOS_1_1_0" Examples

Muons in FAMOS


Running famos 1 1 0 iii

Running FAMOS 1_1_0 (III)

[[email protected] FAMOS_1_1_0]$ ll Examples/

total 4

drwxr-xr-x 13 bourilko cms 4096 Jan 24 16:19 .

drwxrwxr-x 8 bourilko cms 78 Jan 24 16:19 ..

drwxr-xr-x 3 bourilko cms 47 Jan 24 16:19 .admin

drwxr-xr-x 2 bourilko cms 58 Jan 24 16:19 CVS

drwxr-xr-x 7 bourilko cms 66 Jan 24 16:19 ExEgamma

drwxr-xr-x 6 bourilko cms 50 Jan 24 16:19 ExElMatching

drwxr-xr-x 6 bourilko cms 50 Jan 24 16:19 ExFTSim

drwxr-xr-x 6 bourilko cms 50 Jan 24 16:19 ExFastBtag

drwxr-xr-x 8 bourilko cms 76 Jan 24 16:19 ExFastMuon

drwxr-xr-x 8 bourilko cms 90 Jan 24 16:19 ExJets

drwxr-xr-x 8 bourilko cms 76 Jan 24 16:19 ExTotem

drwxr-xr-x 5 bourilko cms 39 Jan 24 16:19 Workspace

drwxr-xr-x 5 bourilko cms 39 Jan 24 16:19 domain

Muons in FAMOS


Running famos 1 1 0 iv

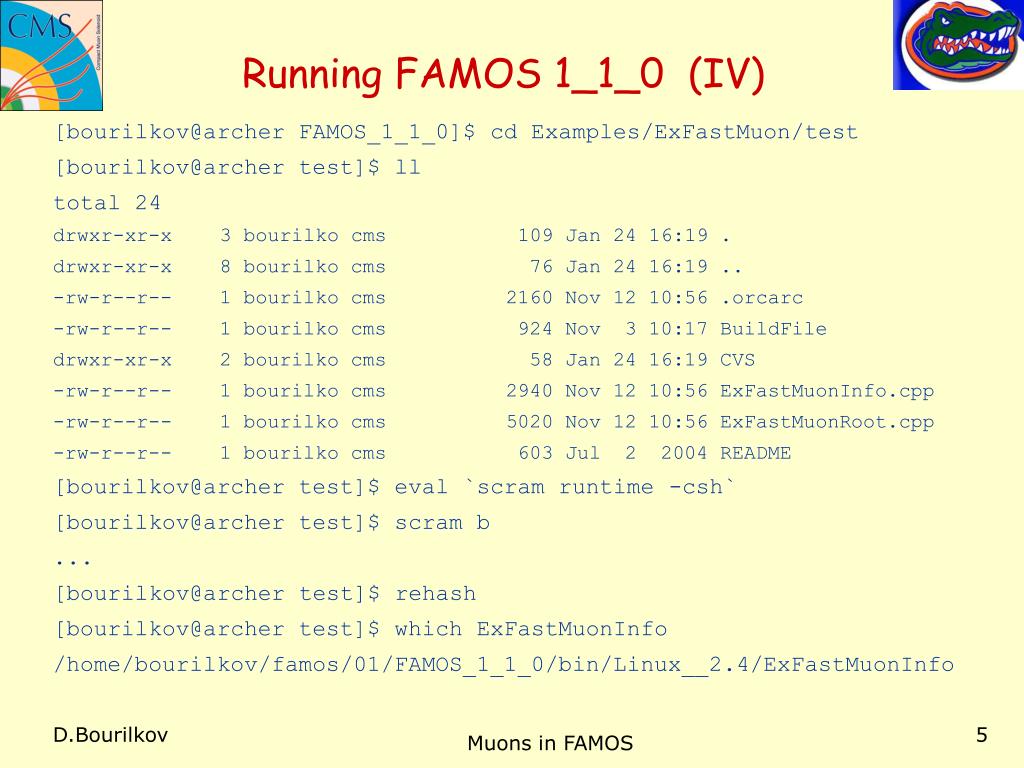

Running FAMOS 1_1_0 (IV)

[[email protected] FAMOS_1_1_0]$ cd Examples/ExFastMuon/test

[[email protected] test]$ ll

total 24

drwxr-xr-x 3 bourilko cms 109 Jan 24 16:19 .

drwxr-xr-x 8 bourilko cms 76 Jan 24 16:19 ..

-rw-r--r-- 1 bourilko cms 2160 Nov 12 10:56 .orcarc

-rw-r--r-- 1 bourilko cms 924 Nov 3 10:17 BuildFile

drwxr-xr-x 2 bourilko cms 58 Jan 24 16:19 CVS

-rw-r--r-- 1 bourilko cms 2940 Nov 12 10:56 ExFastMuonInfo.cpp

-rw-r--r-- 1 bourilko cms 5020 Nov 12 10:56 ExFastMuonRoot.cpp

-rw-r--r-- 1 bourilko cms 603 Jul 2 2004 README

[[email protected] test]$ eval `scram runtime -csh`

[[email protected] test]$ scram b

...

[[email protected] test]$ rehash

[[email protected] test]$ which ExFastMuonInfo

/home/bourilkov/famos/01/FAMOS_1_1_0/bin/Linux__2.4/ExFastMuonInfo

Muons in FAMOS


Running famos 1 1 0 v

Running FAMOS 1_1_0 (V)

[[email protected] test]$ diff .orcarc .orcarc.orig CMKIN or PYTHIA

7c7

< MaxEvents = 1000

---

> MaxEvents = 20

31,32c31,32

< CMKIN:File=/home/bourilkov/cmkin/CMKIN_4_0_0/examples/make_ntpl_jobs/zprime500mumuLHA/zprime500mumuLHA.ntpl

< InputCollections=/Fake/fake/fake/fake

---

> #CMKIN:File=/afs/cern.ch/cms/oo/reconstruction/datafiles/ntuple/h300eemm.ntpl

> #InputCollections=/Fake/fake/fake/fake

41c41

< #InputCollections=/Fake/fake/fake/fake

---

> InputCollections=/Fake/fake/fake/fake

46,47c46

Muons in FAMOS


Running famos 1 1 0 vi

< CMKIN

< #PYTHIA

---

> PYTHIA

51a51,56

> # Kinematic cuts for track selection

> Kine:Cuts = -3.5 3.5

> 0. 360.

> 0.200 9999.

> 0.100 9999.

>

54a60,79

>

> # Pythia's Random generator initialization

> # (automatically random if commented)

> Pydatr:mrpy = 123456789

>

> # User's defined processes

> Pysubs:msel = 0

>

> # Define the process : gg -> ZZ

> Pysubs:msub = 22

>

> # Set the Zmass

> Pydat2:pmas1 =23 91.188

>

> # Switch off all Z decay channels

> Pydat3:mdme0 = 174 187

>

> # Switch on Z -> mu+mu-

> Pydat3:mdme1 = 184 1

> #

Running FAMOS 1_1_0 (VI)

Muons in FAMOS


Running famos 1 1 0 vii

Running FAMOS 1_1_0 (VII)

Run and produce ROOT trees (runs fast!)

CMKIN

ExFastMuonRoot | tee zprime500mumuLHA-famos.out

mv fastmuons.root zprime500mumuLHA-famos.root

==========

PYTHIA

ExFastMuonRoot -c .orcarc.orig | tee ggZZ-famos.out

mv fastmuons.root ggZZ-famos.root

Muons in FAMOS


The muon root tree

The Muon ROOT Tree

Muons in FAMOS


Simulation reconstruction @ uf

Simulation/Reconstruction @ UF

  • Four samples of Z’ -> μ+μ- with masses 0.5, 1.0, 1.5, 2.0 TeV generated at UF to study TeV muons and the mass resolution

  • CMKIN_4_0_0, OSCAR_3_6_1, ORCA_8_6_0 used to produce digis; filter after CMKIN to retain only muons and Final State Radiation 

  • Root trees produced from digis with Global Muon Reconstructor; set of C++ modules developed to analyze them

  • The full chain generator -> plots and results is operational

  • Using FAMOS_1_1_0

Muons in FAMOS


Efficiency for z i e two muons

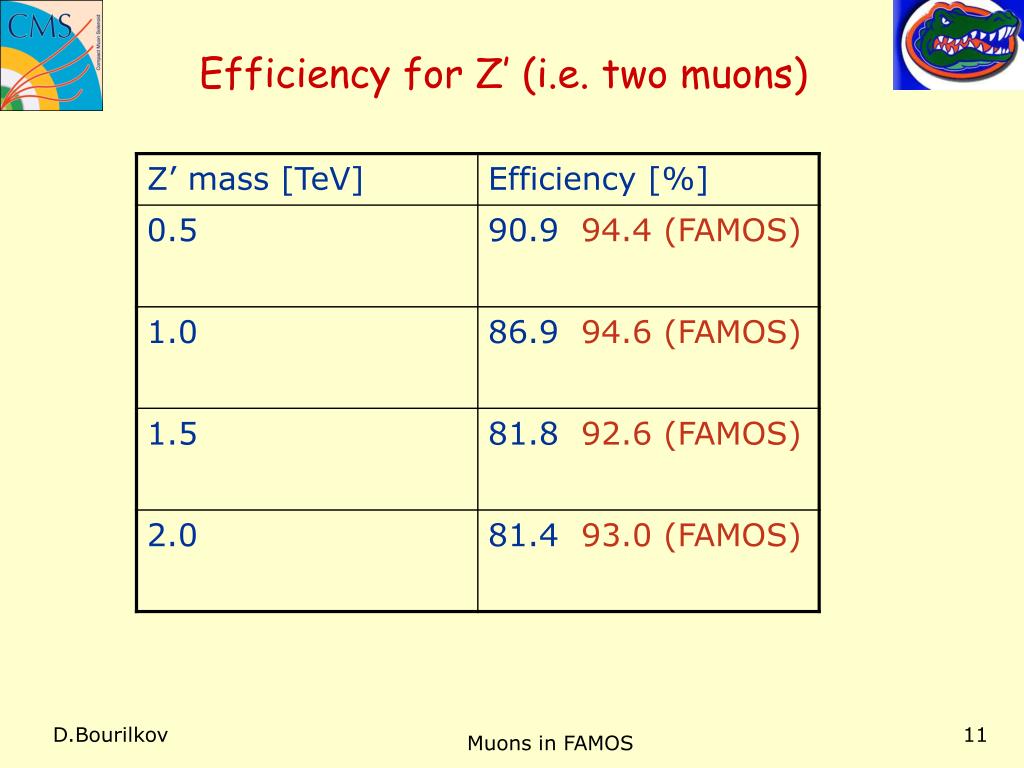

Efficiency for Z’ (i.e. two muons)

Muons in FAMOS


Fit for the famos mass resolution

Fit for the FAMOS Mass Resolution

Strange tails ?! (from December 04 talk)

Muons in FAMOS


Famos mass resolution bug fixed

FAMOS Mass Resolution (Bug fixed)

Muons in FAMOS


Mass resolution as function of mass

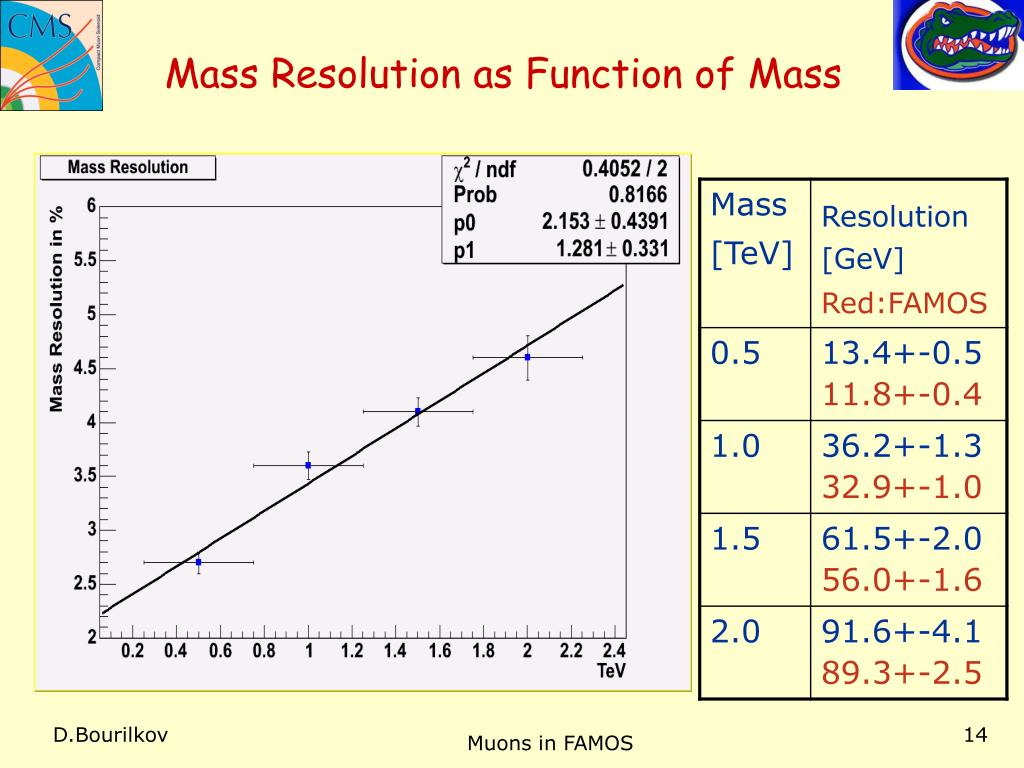

Mass Resolution as Function of Mass

Muons in FAMOS


Outlook

Outlook

  • FAMOS is running and starting to be useful for muons of all energies

  • Need a standard ROOT tree for easier sharing/reuse of analyses and code

  • TeV muons are a challenge – working on a specialized parametrization for FAMOS in addition to the standard one (the efficiency is a problem)

    Concentrate on systematic effects e.g. muon simulation and reconstruction for different parts of the detector
