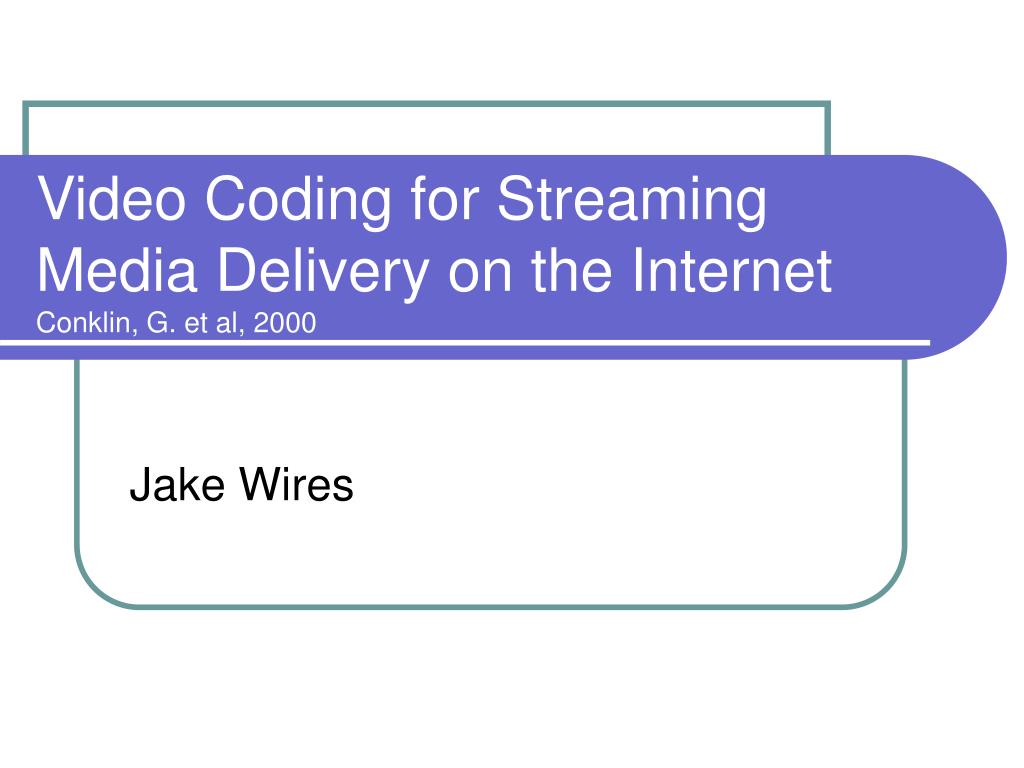

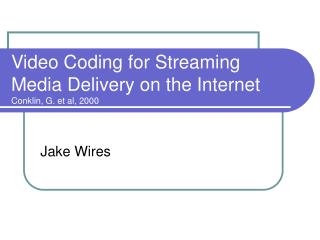

Video Coding for Streaming Media Delivery on the InternetConklin, G. et al, 2000

Jake Wires

Motivation l.jpg


  • Original standards designed for constant bit rate encoding

  • Constant bit rate encoding does not account for the channel variability inherent in many network applications

  • Large demand for streaming multimedia—over 350,000 hours of live content broadcast per week

History of streaming media technologies l.jpg

History of Streaming Media Technologies

  • VivoActive 1.0

    • HTTP server-client transactions via TCP

    • H.263 video codec, G.723 audio codec

    • Multiplexing protocol to combine audio & video

    • Very simple

History vivoactive l.jpg

History: VivoActive

  • Problems

    • HTTP’s lack of flow control and TCP’s guaranteed delivery mechanisms resulted in large fluctuations of fragment delivery times

      • Necessitated large preroll buffer (5 – 20 sec)

      • Rebuffering (filling empty buffer) diminished user expereince

    • Session Control (i.e. f.f., rew.) difficult

History realaudio 1 0 l.jpg

History: RealAudio 1.0

  • Introduced in March 1995

  • Relied on Progressive Networks Architecture—a suite of dedicated network protocols

    • Used 2 connections:

      • TCP-based session control connection

      • UDP-based audio transmission connection

History realaudio 1 06 l.jpg

History: RealAudio 1.0

  • Use of UDP-based transmission introduced possibility for lost, delayed, and out of order packets

    • Automatic Repeat-Request mechanism allowed clients to request retransmission of lost packets

    • Frame interleaving technique minimized perceptual damage

      • Send packets of interleaved (rather than continuous) audio frames

      • Dropped packet results in multiple small disruptions rather than single large disruption

History realvideo l.jpg

History: RealVideo

  • RealVideo design features:

    • Produced compressed data that can be streamed at a fixed bit rate

      • Non-uniform nature of video clips (scene changes, transitions, etc.) results in unequal distribution of bits between frames when encoded at same level of distortion

      • To maintain fixed bit rate, encoder must introduce unequal distortion between frames, neglect encoding some frames, or both

      • Use of preroll buffer increases bit rate flexibility—only average rate must be kept constant

      • Variable-bit-rate (VBR) rate-control algorithm

History realvideo8 l.jpg

History: RealVideo

  • Facilitated random access by inserting Intra frames

  • Employed unequal error protection

    • Large video frame size precluded simple interleaving techniques

    • Instead, RealVideo combined forward error correction codes for the most sensitive data with various error concealment mechanisms

History realsystem g2 l.jpg

History: RealSystem G2

  • SureStream technology improved adaptive streaming capabilities:

    • A single SureStream file contains multiple streams of the original content

    • Different streams optimized for different channel capacities

    • Client of stream monitors connection performance, dynamically requests optimal stream from server

  • Used IETF standardized RTP and RTSP protocols

History network strategies l.jpg

History: Network Strategies

  • Multicasting reduces amount of redundant data transferred

  • Streaming media delivery networks allow for multiple, geographically scattered servers (achieved either by splitting or caching)

  • Dedicated networks guarantee bandwidth

  • Multiple-access transmissions over Internet—requested info sent from several different locations simultaneously

Streaming media l.jpg

Streaming Media

  • Three modes in which video information can be streamed:

    • Live broadcasting

    • On-demand streaming

    • Conferencing

Streaming media live broadcasting system structure l.jpg

Streaming Media: Live Broadcasting System Structure

Streaming media live broadcasting l.jpg

Streaming Media: Live Broadcasting

  • Live video encoded on-the-fly, passed to server, which disperses compressed info to all splitters and/or clients

    • Splitters are additional servers that can be used to distribute server workload over a number of machines

      • Push splitting: initiated by server

      • Pull splitting: initiated by a client connecting to a local splitter; request propagated to nearest active splitter

      • Multiple-access splitting: lower-tier splitters can connect to multiple upper-tier splitters

Streaming media on demand system structure l.jpg

Streaming Media: On-demand System Structure

Streaming media on demand l.jpg

Streaming Media: On-demand

  • Distribution system similar to live broadcasting system, except:

    • No direct connection between encoder and server

    • Remote proxy servers can cache popular files

    • Clients allowed to rewind, fast forward, etc.

    • Server proxy transfers only initiated by client

Video coding problems l.jpg

Video Coding Problems

  • Channel capacity fluctuations

    • Adaptive client-driven serving

      • Allow client to inform server of network performance

        • Congestion control

        • Error control: use bandwidth prescribed by congestion control algorithm to minimize effects of packet loss

    • Dynamic prediction

      • Combined with sufficient preroll buffer, a broad set of statistical techniques can (possibly) be used to throttle transfer rate to improve user experience

Video coding problems17 l.jpg

Video Coding Problems

  • Random access

    • Can provide random access by inserting

      I-frames at the boundaries of small video intervals

    • Reduces achievable compression rates

  • Processing resources

    • Diverse range of client machines

    • Live encoding often done on computer with limited resources

Video coding algorithms for streaming l.jpg

Video Coding Algorithms for Streaming

  • Original motion-compensated hybrid video coding algorithms produced single-rate encoded versions of input signals

    • Inadequate for many network applications

  • Need scalable coding algorithms

Scalable streaming techniques l.jpg

Scalable Streaming Techniques

  • Simulcast: produce several, redundant, independently coded streams, each optimized for specific channel conditions

    • Not suitable for splitting, where the combined representation of all streams should be as small as possible

  • Scalable coding

    • Based on spatio-temporal pyramid decomposition of source signal

      • Temporal, spatial, and Signal to Noise Ratio (quantizer size) scalability modes

Scalable streaming techniques20 l.jpg

Scalable Streaming Techniques

  • Multiple-description coding for use in multiple-access systems

    • Achieved by replacing scalar quantization with multiple-description quantization scheme

Realsystem 8 l.jpg

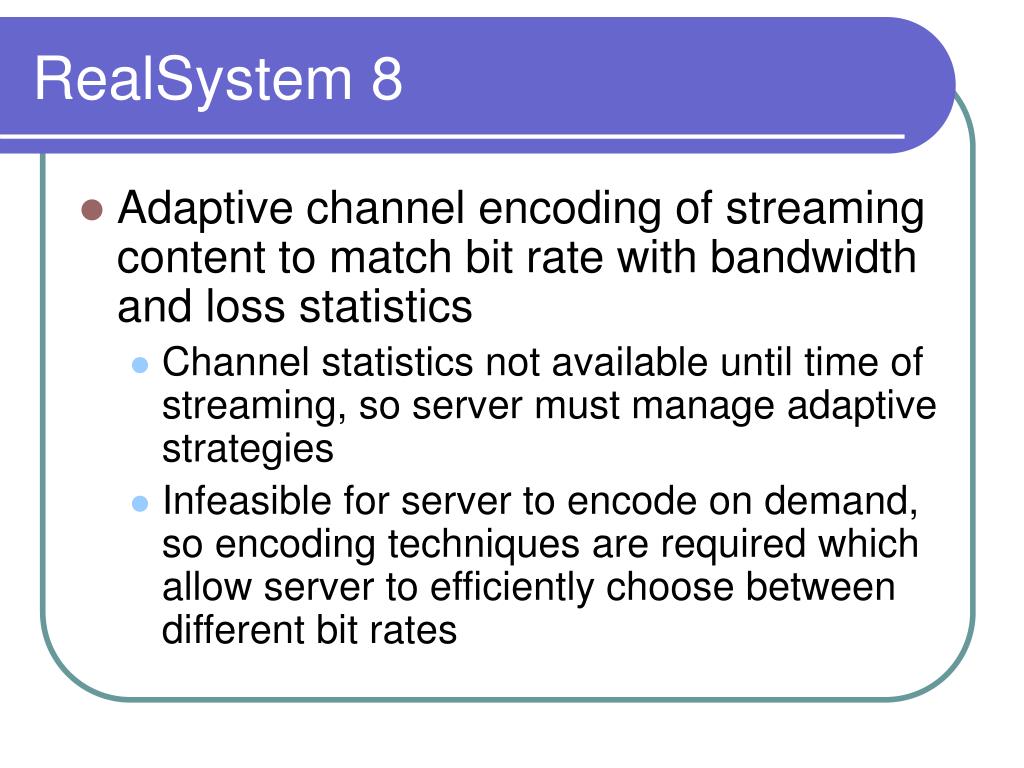

RealSystem 8

  • Adaptive channel encoding of streaming content to match bit rate with bandwidth and loss statistics

    • Channel statistics not available until time of streaming, so server must manage adaptive strategies

    • Infeasible for server to encode on demand, so encoding techniques are required which allow server to efficiently choose between different bit rates

Realsystem 822 l.jpg

RealSystem 8

  • SureStream components:

    • Adaptive Stream Management (ASM)

    • SureStream file format

    • Source and channel coding algorithms

Realsystem 823 l.jpg

RealSystem 8

  • ASM

    • Allows clients to communicate which type of encoding should be ‘synthesized’ by server

    • File format plug-in uses ASM rules to produce various combinations of encoded streams from compressed media files

    • Rules expressed by fully programmable syntax

    • Client subscribes to appropriate rule based on channel characteristics

    • ASM is format-independent

Realsystem 824 l.jpg

RealSystem 8

  • RealVideo 8 encoding module:

Realvideo 8 algorithm l.jpg

RealVideo 8 Algorithm

  • Input filters: remove noise and potential artifacts introduced by edits and conversions of video signal

    • Remove low-energy spatial noise

    • De-interlace analog signals to produce progressive frames without “jaggy”-shaped artifacts

    • Inverse telecine filter: remove redundant 5.97 frames introduced by NTSC video

Realvideo 8 algorithm26 l.jpg

RealVideo 8 Algorithm

  • Spatial resampler: downscale input frames to spatial resolutions suitable for streaming

  • Codecs: motion-compensated hybrid scheme

  • Rate control determines which frames to encode

    • Low bit rates: perceived quality impacted by relationship between framerate and frame quality

    • High bit rates: must maintain framerate, want to maintain appearance of uniform high quality

    • Parameterized preroll buffer size

    • Rate control important in providing resiliency and random access

Realvideo 8 algorithm27 l.jpg

RealVideo 8 Algorithm

  • CPU scalability control module: throttles complexity of different components of algorithm to maintain best quality level for encoding live presentations

Realvideo 8 algorithm28 l.jpg

RealVideo 8 Algorithm

  • Client-side video postprocessing: filters aimed at improving subjective quality of decoded signals

    • Frame rate upsampler: special temporal filter that attempts to interpolate intermediate frames

      • Especially useful when many original frames were regularly skipped to decrease bit rate of encoding

Pointers l.jpg


  • Helix Community

    • “The Helix community is a collaborative effort among Real, independent developers, and leading companies to extend the Helix DNA™ platform, the first open multi-format platform for digital media creation, delivery and playback.”


Conclusion l.jpg


  • Streaming multimedia poses many challenges to video encoders

    • Variability of channel performance

    • High server workloads

  • Need to adapt coded bit rate to match channel capacities; must be done efficiently and on the fly

  • “RealSystem 8 provides an open and extensible platform, capable of accommodating various future needs of streaming media infrastructure on the Internet, and in particular, new demands for improved video-coding techniques.”
