V 18 the bridge between old and future communication for deaf people products concepts l.jpg

V.18The bridge between old and future communication for deaf peopleProducts & Concepts

George Skorkowski

DSPG/Sensory Communication


Slide2 l.jpg

Contents

  • V.18 practical aspects & misconceptions

  • Current developments in V.18 Recommendation

  • Consumer products based on V.18 technology

  • V.18 Mobile access

  • Simultaneous Voice and Text products

  • Service type products based on V.18 technology

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


V 18 practical aspects of the standard and general misconceptions about it l.jpg
V.18 Practical aspects of the standard and general misconceptions about it

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide4 l.jpg

Why V.18 ?

  • International standard

    - Accepted as a standard in all European countries, Australia & New Zealand

  • Bridge between old and new technologies

    - Higher speed modems

    - Multimedia

  • Inter-working

  • - Can inter-work with any existing text Telephone

    - Future global integration with Internet & Multimedia

  • Ease of use

    - More reliable call set-up

    - User friendly operation

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide5 l.jpg

V.18 Modes

Compatibility Mode V.18 Mode

Used with existing TextphonesUsed between two V.18 Textphones

- V.21 (Sweden, UK)

- Baudot (45 and 50bps) (USA, UK, Ireland)

- EDT (Italy,Germany)

- Bell 103 (USA)

- V.23 (France)

- DTMF (Denmark, Sweden, Netherlands)

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide6 l.jpg

Current development of V.18

  • CTM Mobile access for the textphones

  • Simultaneous Text & Voice

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


V 18 conformance testing to the standard why it is important l.jpg
V.18 Conformance testing to the standardWhy it is important

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide8 l.jpg

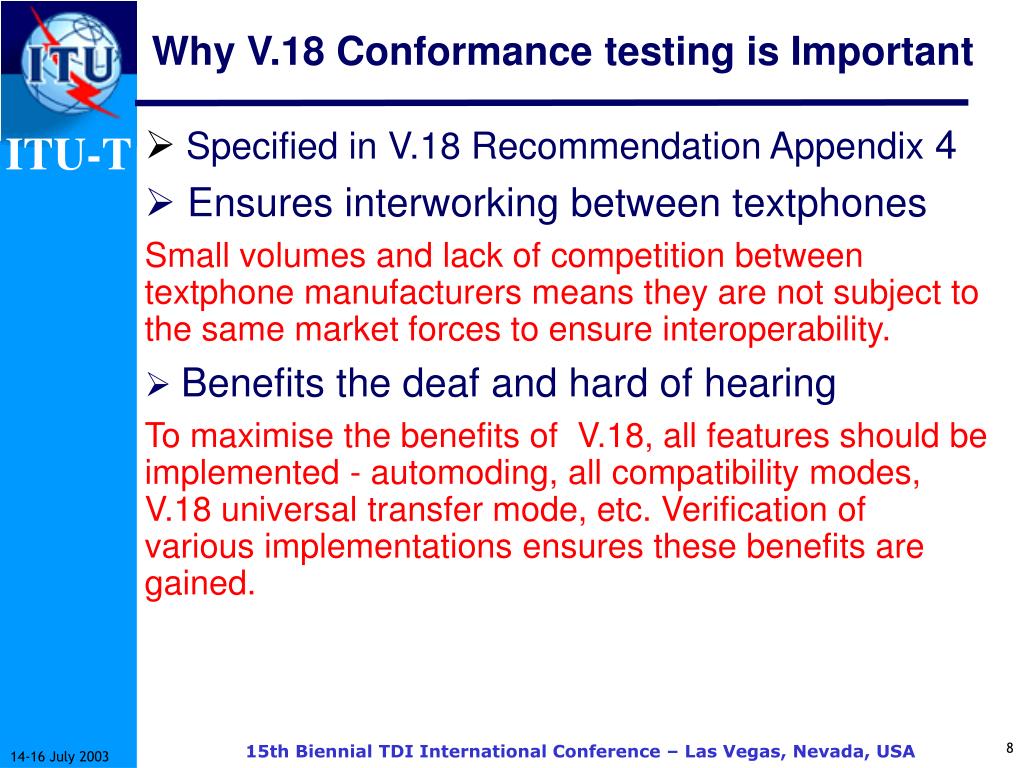

Why V.18 Conformance testing is Important

  • Specified in V.18 Recommendation Appendix 4

  • Ensures interworking between textphones

  • Small volumes and lack of competition between textphone manufacturers means they are not subject to the same market forces to ensure interoperability.

  • Benefits the deaf and hard of hearing

    To maximise the benefits of V.18, all features should be implemented - automoding, all compatibility modes, V.18 universal transfer mode, etc. Verification of various implementations ensures these benefits are gained.

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide9 l.jpg

Why V.18 Conformance testing is Important

  • Reduces complaints about textphones

    - Tighter control of textphone quality in the market ensures better reliability of textphone operation and reduces failure rate.

  • Benefits V.18 implementers

    - Allows verification of the implementation.

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide10 l.jpg

V.18 based Text Telephony Products

V.18 conformance Tester

Applications:

Verification of proper implementation of V.18

according to the

Appendix 4 of V.18 ITU-T Recommendation

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Review of some of existing legacy text telephone products used in europe l.jpg
Reviewof some of existing legacytext telephone products used in Europe

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide12 l.jpg

Existing Text Telephony Products

Type: DTS

Manufacturer:Ecotron (Italy)

View: Front

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide13 l.jpg

Existing Text Telephony Products

Type: Uniphone

Manufacturer:Ultratec (USA)

View: Front

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Existing text telephony products l.jpg
Existing Text Telephony Products

Type:Qwerty phone

Manufacturer:BT Merlin (UK)

Status: discontinued

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide15 l.jpg

Existing Text Telephony Products

Type: Minicom pro 400

Manufacturer:Ultratec (USA)

View: Front

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


V 18 implementation of the standard products concepts l.jpg
V.18 Implementation of the standardProducts & Concepts

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide17 l.jpg

TextLink Mobile textphone

Speaker

Microphone (optional)

DC Power

Ultra bright LED

Line In

Ext Telephone

Expansion Port

(incl. Printer port)

GSM Mobile Port

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide18 l.jpg

TexLink Mobile main features

  • Two modes of operation

    - PSTN ( includes parallel phone support)

    - Mobile supports any type of GSM phone with hands-free interface

  • Incoming Call Indicator

  • Two lines by 40 characters Text display

  • Emergency Alarm Button (only in PSTN mode)

  • Full implementation of V.18 protocol in PSTN

  • Full implementation of CTM in Mobile mode

  • Standard & Custom Automatic Greetings (Voice & text)

    CLI and Call Sign implementation

  • Future-proof, no proprietary chips (software driven)

    - Remote Upgrade Via Telephone Line

  • Easy maintenance

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide19 l.jpg

Examples of TextLink Mobile use

Home stationary use

with optional telephone pedestal

Portable use

with “Filofax” type case & optional mobile phone

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide20 l.jpg

PC Link working environment

RRS232cable

Features

  • Emulates Texlink keyboard display and function keys on any PC via Com-port interface

  • Allows touch typing in the office environment

  • Selection of fonts for vision impaired deaf persons

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide21 l.jpg

PC Link working environment

TexLink Function keys emulated on the screen

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide22 l.jpg

TextLink 800 portable V.18 Modem

Lighter for comparison only

Features

  • Com-port connection to laptop/palm top PC.

  • Battery or mains operated.

  • Full implementation of V.18 & CTM Recommendations

  • User friendly GUI,

  • Long battery (PP3) operation

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


V 18 ctm mobile access l.jpg
V.18CTM Mobile Access

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide24 l.jpg

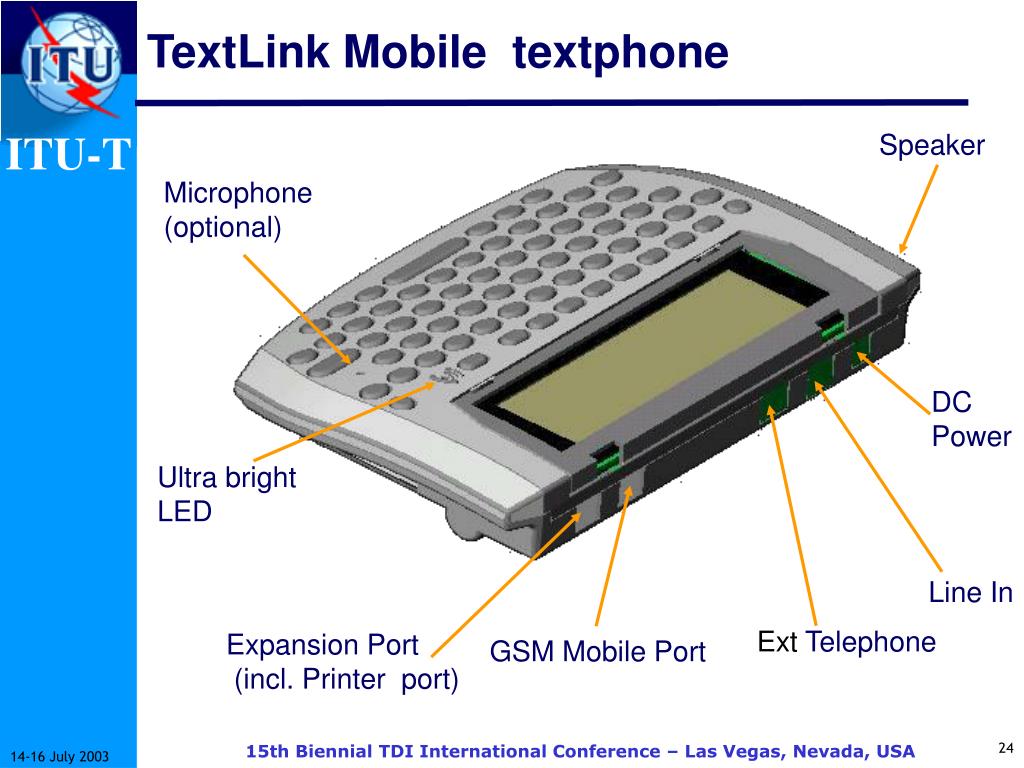

TextLink Mobile textphone

Speaker

Microphone (optional)

DC Power

Ultra bright LED

Line In

Ext Telephone

Expansion Port

(incl. Printer port)

GSM Mobile Port

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide25 l.jpg

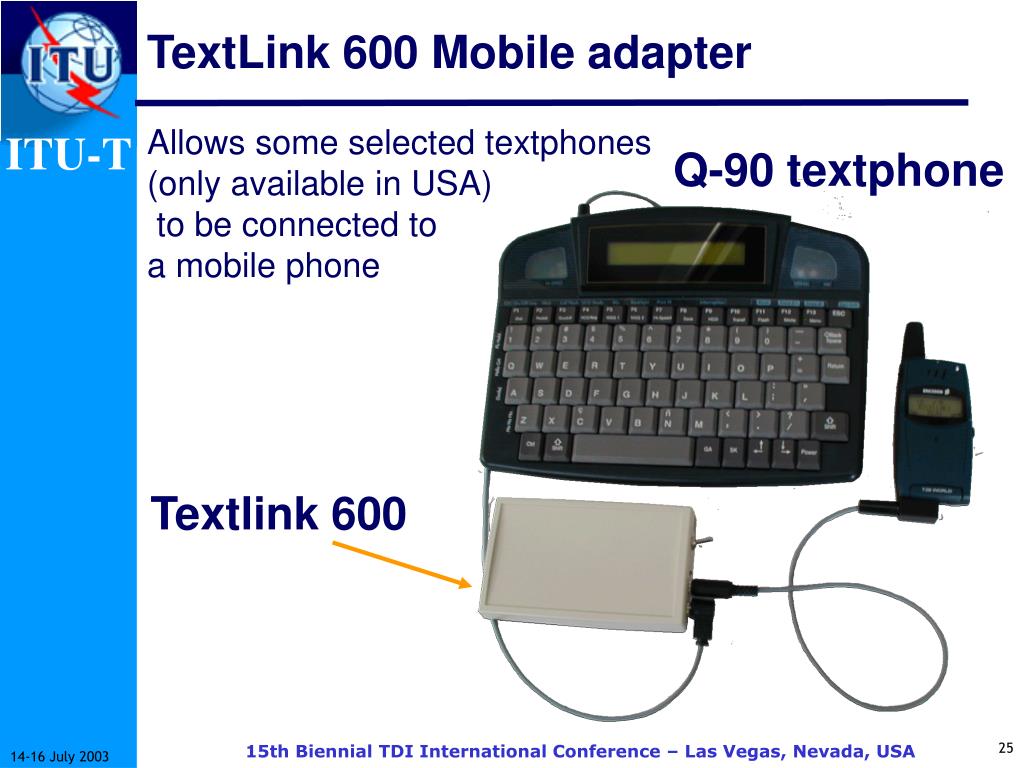

TextLink 600 Mobile adapter

Textlink 600

Allows some selected textphones

(only available in USA)

to be connected to

a mobile phone

Q-90 textphone

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


V 18 simultaneous voice text relay server l.jpg
V.18Simultaneous Voice & Text Relay Server

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide27 l.jpg

TextLink 9200Simultaneous Voice & Data

Combines V.18 and Simultaneous Voice & Data

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide28 l.jpg

Textlink 9100 mobile applications

Textlink user

Textlink user

Other textphone user

SMS messages

FAX

email messages

TexGate server

TexBox

Call centre operator

LAN

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Wireless home monitoring security panic alarms l.jpg
WirelessHome monitoring,security & panic alarms

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide30 l.jpg

Textlink 9100 home security centre

Vibrating

Pad

PIR

Detector

Smoke

Detector

Door Sensor

Panic Button

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


V 18 implementation of standard commercially available products in services aimed at deaf people l.jpg
V.18 Implementation of standardCommercially available Productsin Services aimed at deaf people

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


What is texbox l.jpg
What is TexBox?

Tower Based System

Rack Based System

TexBox is a text gateway which connects hard of hearing, deaf or speech impaired customers who use textphones, to almost anyone in the organisation or business via existing internal computer network (LAN or WAN), where the textphone call is routed via menu system to a relevant person’s PC.

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Texbox specification l.jpg
TexBox Specification

TexBox is a stand-alone solution with no need for integration with existing call centre equipment.

  • PC platform running Linux (Unix).

  • Custom designed and built V.18 hardware text modems which connect to standard analogue telephone lines.

  • Connection to the local area network via 10/100 Base T Ethernet connection.

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Advantages of texbox l.jpg
Advantages of TexBox

  • Elimination of textphones in the organisation.

  • User friendly.

  • No additional software to be installed on the users PC’s.

  • Internal text calls between deaf and hearing colleagues.

  • Stores personal or group messages from incoming calls.

  • Incoming call & text conversation transfers.

  • Low maintenance costs.

  • Simple training.

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Texbox communicator l.jpg
TexBox Communicator

Call dialler

User login/ logout

Message handling

User settings

Save conversation

Conversation window

Internal call/ Call transfer

Status bars

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide36 l.jpg

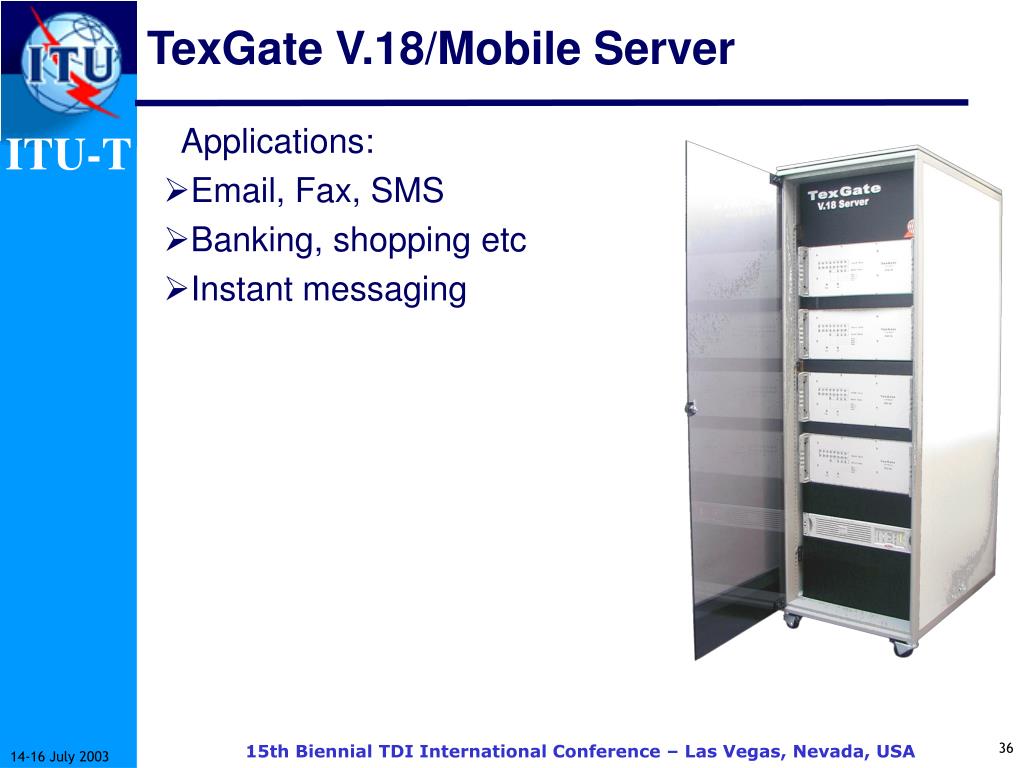

TexGate V.18/Mobile Server

Applications:

  • Email, Fax, SMS

  • Banking, shopping etc

  • Instant messaging

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide37 l.jpg

V.18/CTM Global Integration

Information

Service

Internet Mail

Service

V.18 Textphone

Internet

PC & V.18 Modem

V.18 Gateway

Information

Gateway

Any Textphone

Text to/from Voice

Service

Standard Telephone

15th Biennial TDI International Conference – Las Vegas, Nevada, USA


Slide38 l.jpg

Thank You

15th Biennial TDI International Conference – Las Vegas, Nevada, USA
