A practical approach to anemia

A Practical Approach to Anemia

Dr.R.V.S.N.Sarma., M.D., M.Sc., (Canada)

Consultant Physician & Chest Specialist

Visit us at : www.drsarma.in

How to efficiently and accurately work up an anemic patient ?

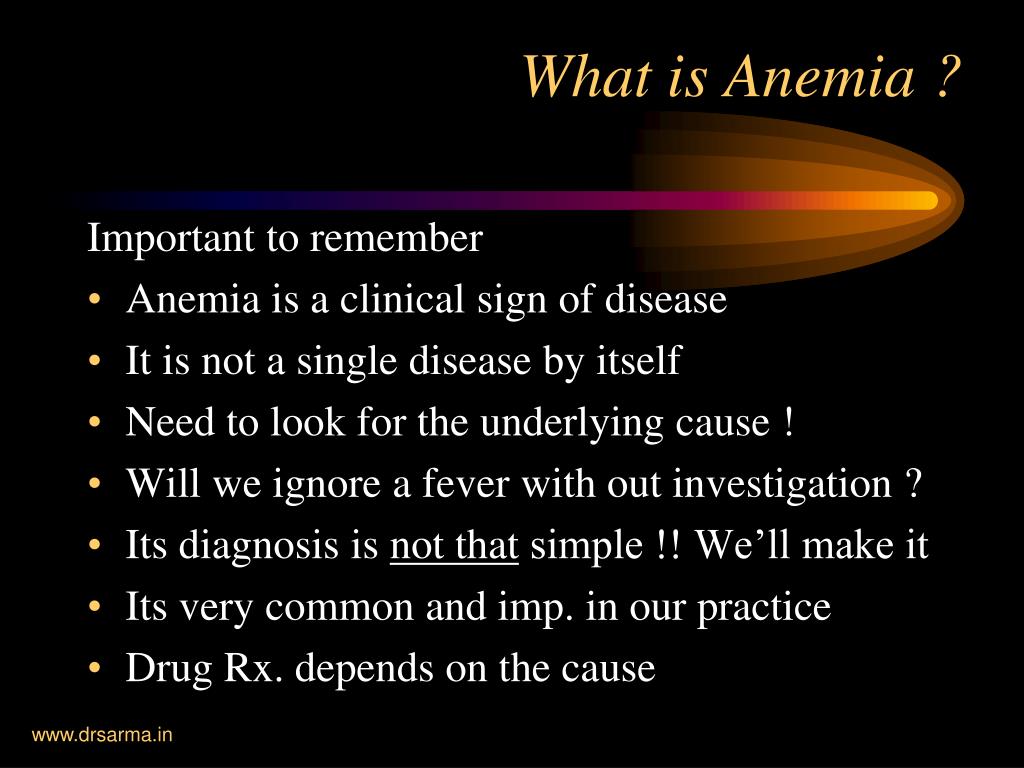

What is anemia

Important to remember

Anemia is a clinical sign of disease

It is not a single disease by itself

Need to look for the underlying cause !

Will we ignore a fever with out investigation ?

Its diagnosis is not that simple !! We’ll make it

Its very common and imp. in our practice

Drug Rx. depends on the cause

What is Anemia ?

www.drsarma.in


Definition of anemia

Decrease in the quantum of circulating red blood cell mass and there by ↓ O2 carrying capacity

Most common hematological disorder by far

Almost always a secondary disorder

As such, critical for all practitioners to know how to evaluate / determine its cause / treat

Definition of Anemia

www.drsarma.in

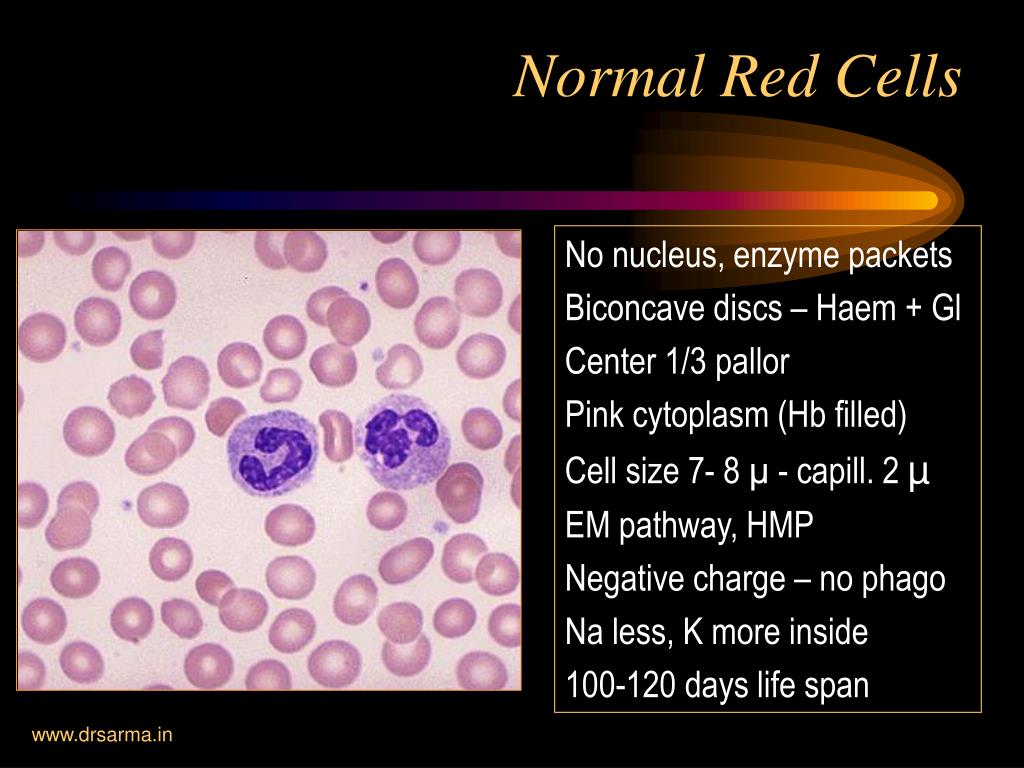

Normal red cells
Normal Red Cells and there by ↓ O

No nucleus, enzyme packets

Biconcave discs – Haem + Gl

Center 1/3 pallor

Pink cytoplasm (Hb filled)

Cell size 7- 8 µ - capill. 2 µ

EM pathway, HMP

Negative charge – no phago

Na less, K more inside

100-120 days life span

www.drsarma.in


The factory bone marrow
The Factory – Bone Marrow and there by ↓ O

Sternum, pelvis, vertebrae, long bones, skull bones, Tibia (paed)

From stem cells (pleuripotent)

75% of marrow for WBC

25% of BM for Red cells

Erythrod / Granulocyte Ratio 1:3

E:G ratio increases in Anemia

Large white areas are marrow fat

www.drsarma.in


Hemoglobin hb
Hemoglobin (Hb) and there by ↓ O

www.drsarma.in


www.drsarma.in and there by ↓ O


www.drsarma.in and there by ↓ O


First question

The onset of Anemia and there by ↓ O

Acute versus chronic

Clues

Hemodynamic stability

Previous CBC

Overt blood loss

First Question

www.drsarma.in


Screening tests anemia

Clinical Signs and symptoms of Anemia and there by ↓ O

Look for bleeding – all possible sites

Look for the causes for anemia

Routine Hemoglobin examination

Cut off marks for Hb –

US < 13.5 g WHO < 12.5 g

India (ICMR) Less than 12 g%

Screening Tests – Anemia

www.drsarma.in

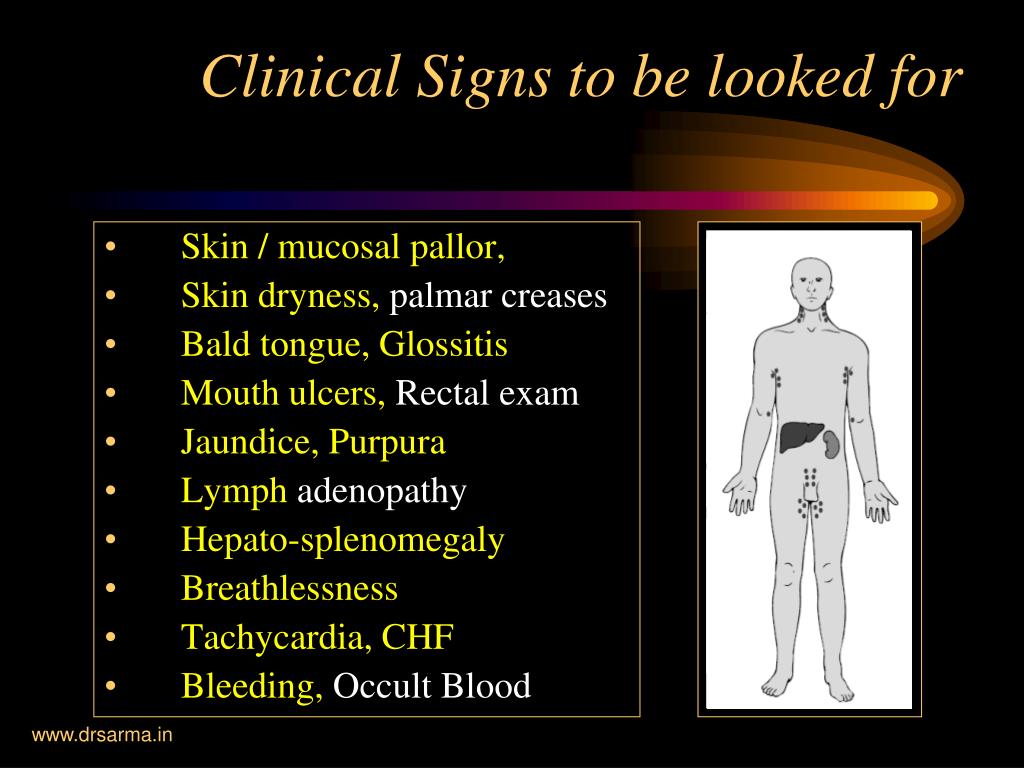

Clinical signs to be looked for

Skin / mucosal pallor, and there by ↓ O

Skin dryness, palmar creases

Bald tongue, Glossitis

Mouth ulcers, Rectal exam

Jaundice, Purpura

Lymph adenopathy

Hepato-splenomegaly

Breathlessness

Tachycardia, CHF

Bleeding, Occult Blood

Clinical Signs to be looked for

www.drsarma.in

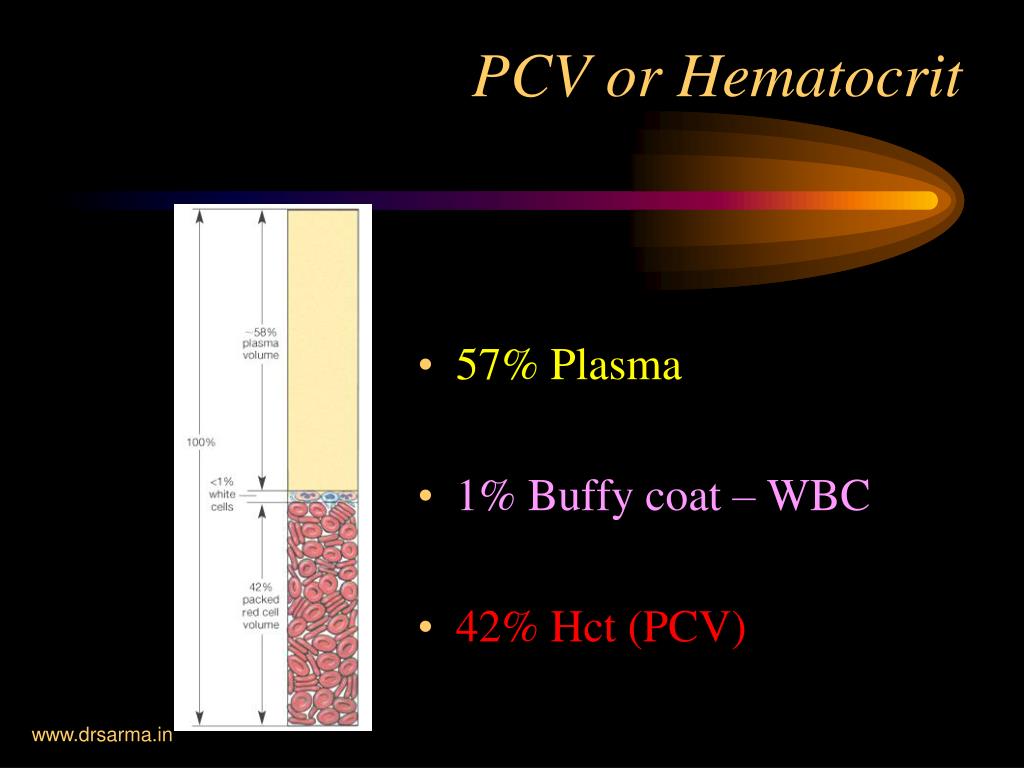

Pcv or hematocrit

57% Plasma and there by ↓ O

1% Buffy coat – WBC

42% Hct (PCV)

PCV or Hematocrit

www.drsarma.in


The three primary measures

Measurement Normal Range and there by ↓ O

RBC count (RCC) 5 million 4 to 5.7

Hemoglobin 15 g% 12 to 17

Hematocrit (PCV) 45 38 to 50

A x 3 = B x 3 = C - This is the rule of thumb

Check whether this holds good in a given result

If not -indicates micro or macrocytosis or hypochro.

The Three Primary Measures

www.drsarma.in


The three derived indicies

Measurement Normal Range and there by ↓ O

RCC 5 million 4 to 5.7

Hemoglobin 15 g% 12 to 17

Hematocrit 45 % 38 to 50

MCV C ÷ A x 10 = 90 fl

MCH B ÷ A x 10 = 30 pg

MCHC (%) B ÷ C x 100 = 33%

The Three Derived Indicies

www.drsarma.in


Types of anemia
Types of Anemia and there by ↓ O

www.drsarma.in


Causes of anemia

Decreased and there by ↓ Oproduction of Red Cells

- Hypo proliferative, marrow failure

Increased destruction of Red Cells

- Hemolysis (decreased survival of RBC)

Loss of Red Cells due to bleeding

- Acute / chronic blood loss (hemorrhagic)

M = P x S ( L)

Causes of Anemia

www.drsarma.in


Hypoproliferative anemias

Failure of cell maturation and there by ↓ O

Nuclear breakdown

Cytoplasmic breakdown

Folate or B12 deficiency

Globin defect

Haem defect

Sickle cell A

Defective DNA synthesis

Fe

Phorph

IDA, SA

Megaloblastic Anemia

Thalassemia

Hypoproliferative Anemias

www.drsarma.in


Anemia second test

RETICULOCYTE COUNT % and there by ↓ O

Anemia – Second Test

  • ‘RBC to be’ or Apprentice RBC

  • Fragments of nuclear material

  • RNA strands which stain blue

Normal

Less than 2%

www.drsarma.in

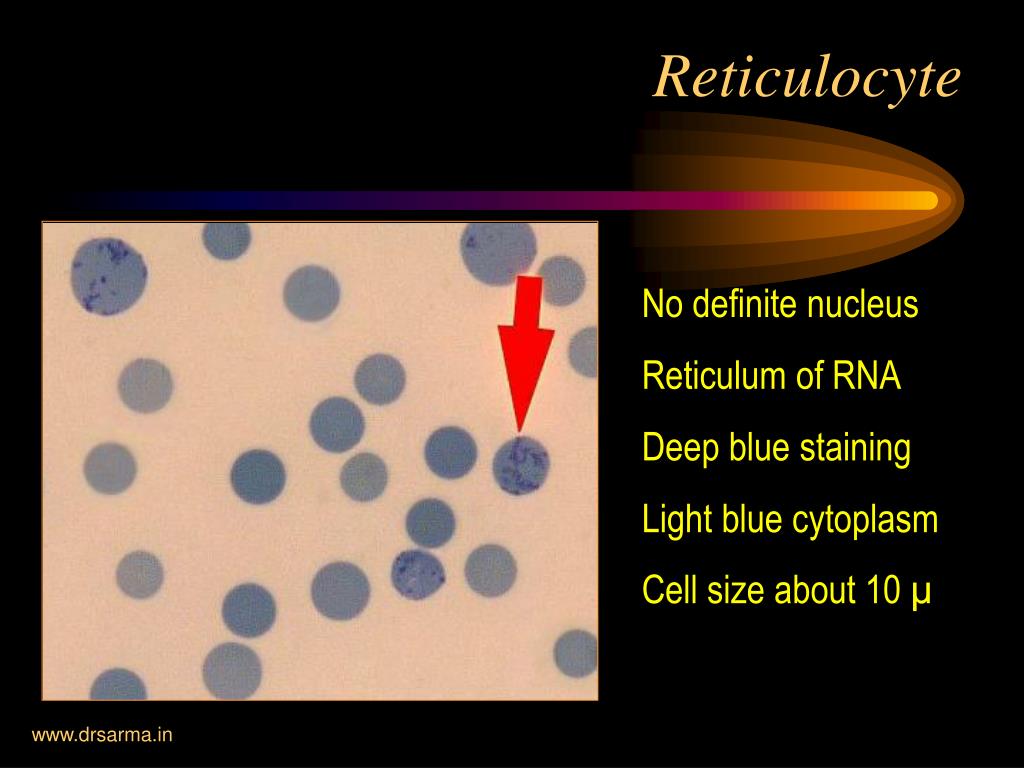

Reticulocyte
Reticulocyte and there by ↓ O

No definite nucleus

Reticulum of RNA

Deep blue staining

Light blue cytoplasm

Cell size about 10 µ

www.drsarma.in


Reticulocytes
Reticulocytes and there by ↓ O

Supravital

Leishman’s

www.drsarma.in

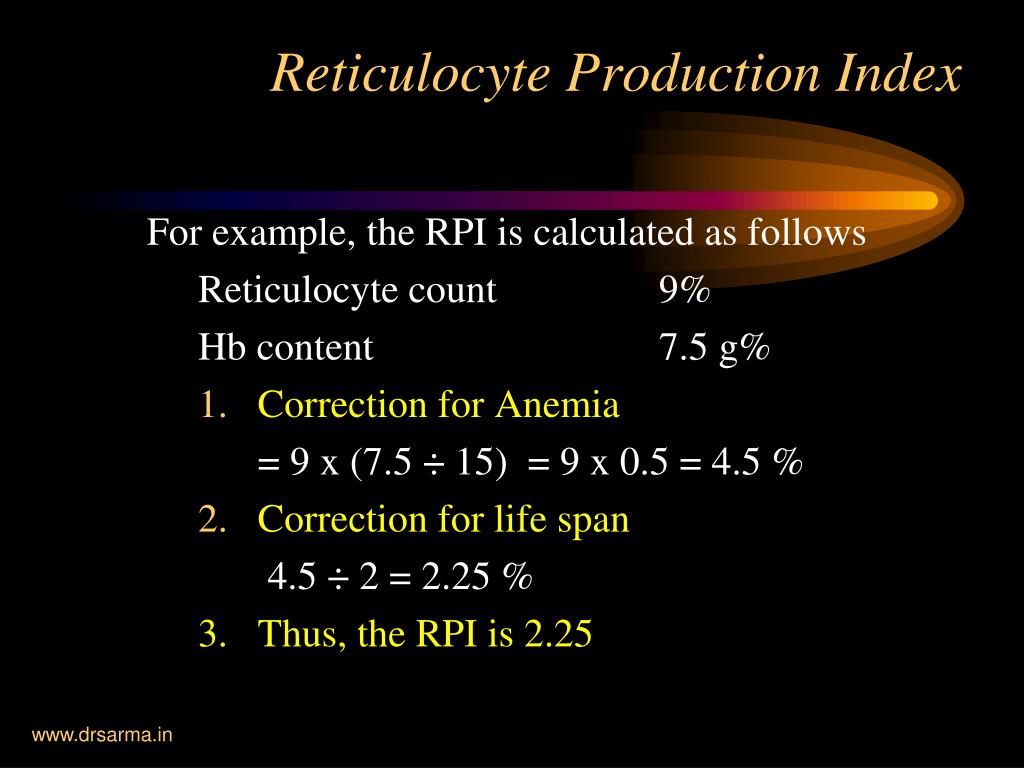

Reticulocyte production index

For example, the RPI is calculated as follows and there by ↓ O

Reticulocyte count 9%

Hb content 7.5 g%

Correction for Anemia

= 9 x (7.5 ÷ 15) = 9 x 0.5 = 4.5 %

Correction for life span

4.5 ÷ 2 = 2.25 %

3. Thus, the RPI is 2.25

Reticulocyte Production Index

www.drsarma.in

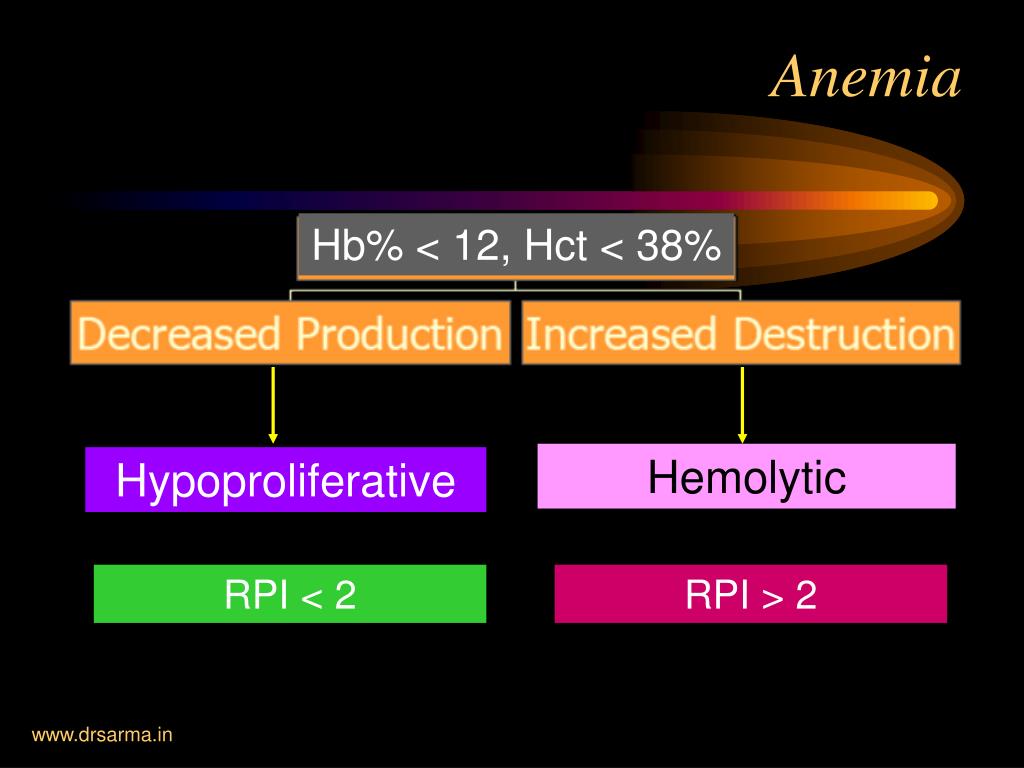

Anemia
Anemia and there by ↓ O

Hb% < 12, Hct < 38%

Hemolytic

Hypoproliferative

RPI < 2

RPI > 2

www.drsarma.in


Workup third test

The next step is and there by ↓ O‘What is the size of RBC’ ?

MCV indicates the Red cell volume (size)

Both the MCH & MCHC tell Hb content of RBC

If the RPI is 2 or less

We are dealing with either

Hypoproliferative Anemia (lack of raw material)

Maturation defect with less production

Bone marrow suppression (primary/ secondary)

Workup – Third Test

www.drsarma.in


Red cell size
Red Cell Size and there by ↓ O

www.drsarma.in

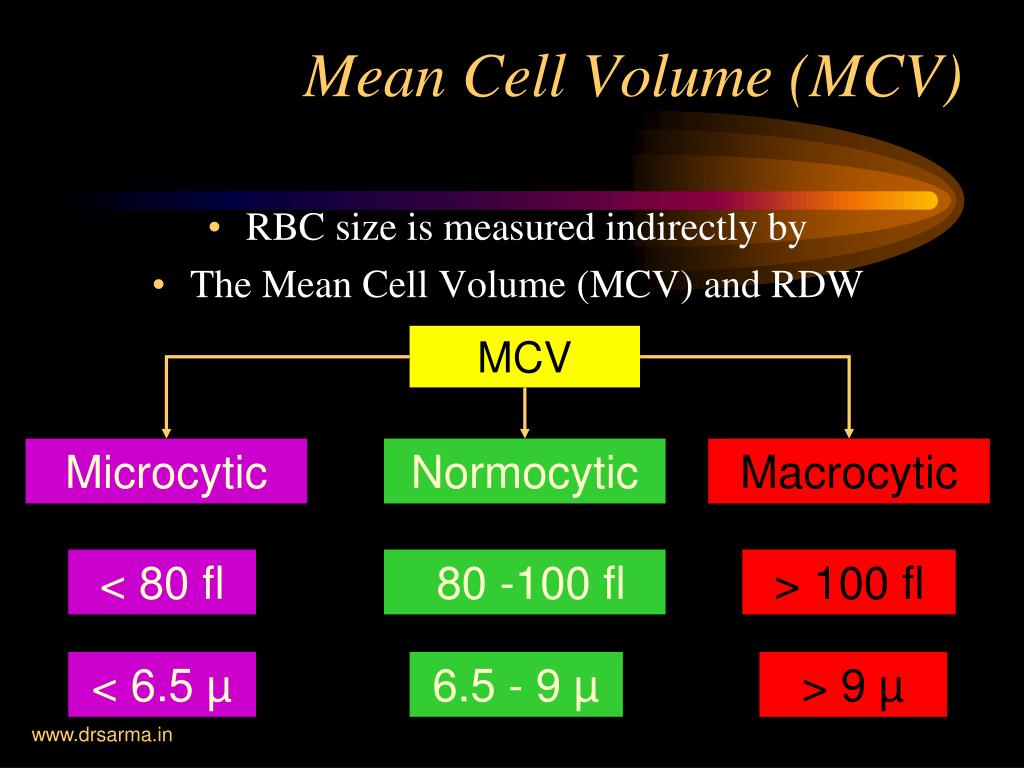

Mean cell volume mcv

RBC size is measured indirectly by and there by ↓ O

The Mean Cell Volume (MCV) and RDW

MCV

Microcytic

Normocytic

Macrocytic

< 80 fl

80 -100 fl

> 100 fl

< 6.5 µ

6.5 - 9 µ

> 9 µ

Mean Cell Volume (MCV)

www.drsarma.in


Anemia workup mcv

MCV and there by ↓ O

Microcytic

Normocytic

Macrocytic

Iron Deficiency (IDA)

Chronic Infections

Thalassemias

Hemoglobinopathies

Sideroblastic Anemia

Chronic diseases, CKD

Early IDA

Hemoglobinopathies

Primary marrow disorders

Combined deficiencies

Increased destruction

Megaloblastic anemias

Liver disease/alcohol

Hemoglobinopathies

Metabolic disorders

Marrow disorders

Increased destruction

Anemia Workup - MCV

www.drsarma.in


Anemia workup 4 th test red cell distribution width rdw
Anemia Workup – 4 and there by ↓ Oth TestRed cell Distribution Width – RDW

RDW < 13

Mean 90 fl

RDW is 13

MCV 90 fl

www.drsarma.in


Red cell distribution width rdw
Red cell Distribution Width - RDW and there by ↓ O

MCV

Microcytic

Normocytic

Macrocytic

Left

Mean 90

Right

www.drsarma.in

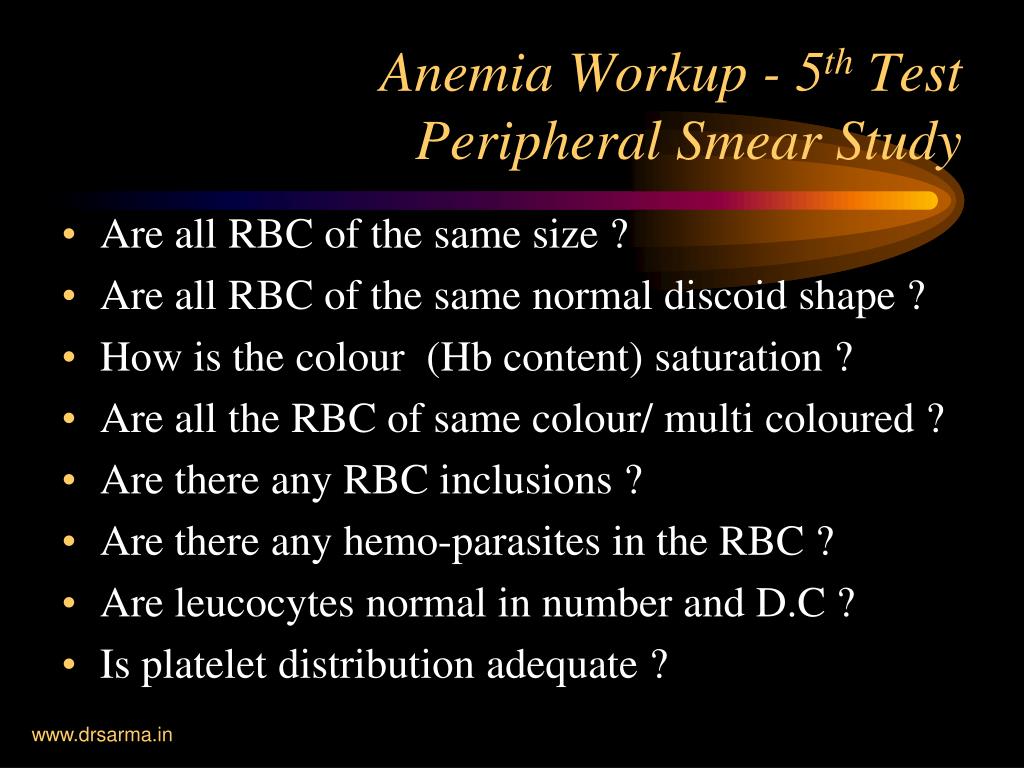

Anemia workup 5 th test peripheral smear study

Are all RBC of the same size ? and there by ↓ O

Are all RBC of the same normal discoid shape ?

How is the colour (Hb content) saturation ?

Are all the RBC of same colour/ multi coloured ?

Are there any RBC inclusions ?

Are there any hemo-parasites in the RBC ?

Are leucocytes normal in number and D.C ?

Is platelet distribution adequate ?

Anemia Workup - 5th TestPeripheral Smear Study

www.drsarma.in

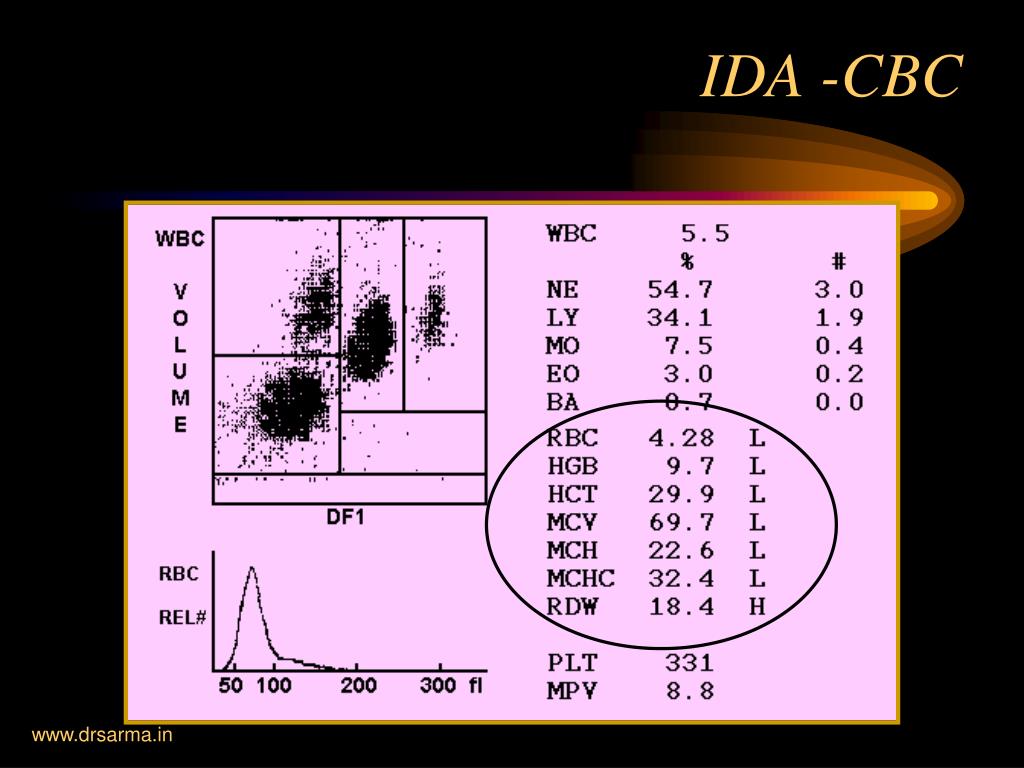

Ida cbc
IDA -CBC and there by ↓ O

www.drsarma.in


Severe hypochromia
Severe Hypochromia and there by ↓ O

www.drsarma.in


Microcytic hypochromic ida
Microcytic Hypochromic - IDA and there by ↓ O

www.drsarma.in


Microcytic hypochromic anemia

Serum Ferritin and there by ↓ O

< 33 pmol / l

33-270 pmol / l

> 270pmol / l

TIBC (300-340)

N or ↓

HIGH

-

+

BM Fe

Not IDA, Other Mi A

Iron Deficiency Anemia IDA

Microcytic Hypochromic Anemia

www.drsarma.in


Ida summary

Microcytic MCV < 80 fl, RBC < 6 and there by ↓ Oµ

RDW Widened and shifted to left

Hypochromic MCH < 27 pg, MCHC < 30%

RPI < 2

Retic. count May be > 2 %

Serum ferritin Very low < 33 (p mols/L)

TIBC Increased > 340 (µg/dL)

BM Iron stain Iron is Absent

Response to Fe Rx. Excellent

IDA Summary

www.drsarma.in

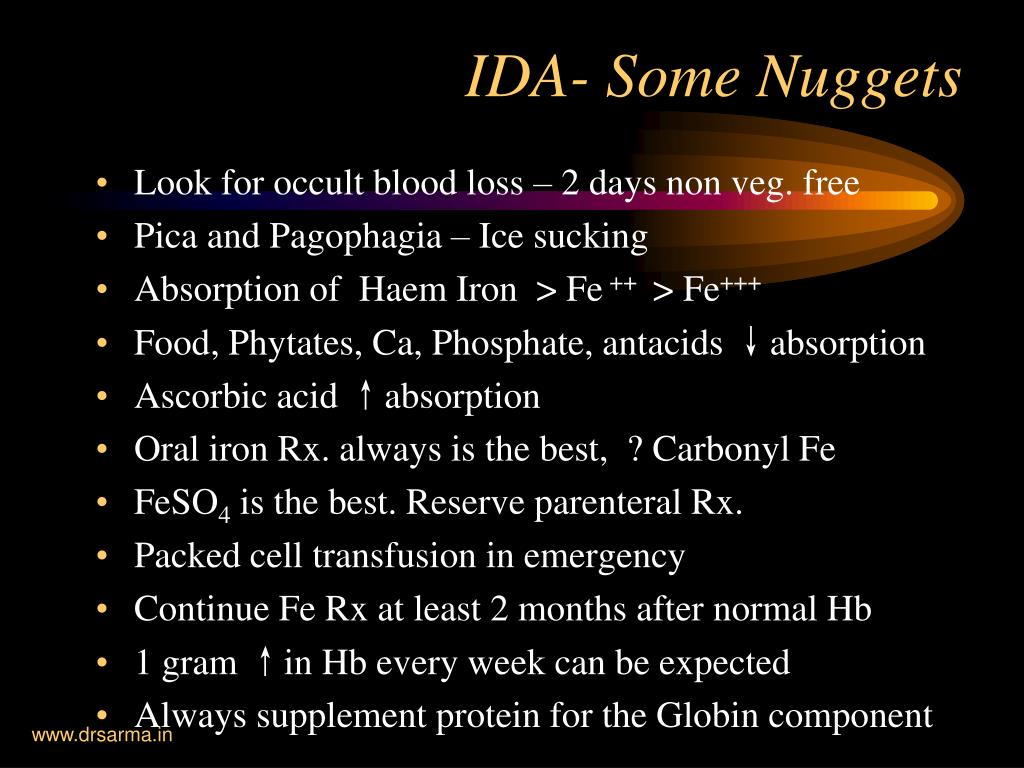

Ida some nuggets

Look for occult blood loss – 2 days non veg. free and there by ↓ O

Pica and Pagophagia – Ice sucking

Absorption of Haem Iron > Fe ++ > Fe+++

Food, Phytates, Ca, Phosphate, antacids ↓absorption

Ascorbic acid ↑absorption

Oral iron Rx. always is the best, ? Carbonyl Fe

FeSO4 is the best. Reserve parenteral Rx.

Packed cell transfusion in emergency

Continue Fe Rx at least 2 months after normal Hb

1 gram ↑in Hb every week can be expected

Always supplement protein for the Globin component

IDA- Some Nuggets

www.drsarma.in


Microcytic anemias
Microcytic Anemias and there by ↓ O

www.drsarma.in


Ringed sideroblasts in bm
Ringed Sideroblasts in BM and there by ↓ O

Prussian Blue Stain

www.drsarma.in


Macrocytic anemias

A. Megaloblastic Macrocytic and there by ↓ O– B12 and Folate↓

B. Non Megaloblastic Macrocytic Anemias

Liver disease/alcohol

Hemoglobinopathies

Metabolic disorders, Hypothyroidism

Myelodystrophy, BM infiltration

Accelerated Erythropoesis -↑destruction

Drugs (cytotoxics, immuno suppressants, AZT, anticonvulsants)

Macrocytic Anemias

www.drsarma.in


Anemia macrocytic mcv 100

Premature gray hair – consider MBA and there by ↓ O

Macrocytic anemias may be asymptomatic until

the Hb is as low as 6 grams

MCV 100-110 fl

must look for other causes of macrocytosis

MCV > 110 fl

almost always folate or B12 deficiency

Anemia - Macrocytic (MCV > 100)

www.drsarma.in


Macrocytosis of alcoholism

25-96% of alcoholics and there by ↓ O

MCV elevation usually slight (100-110 fl)

Minimal or no anemia

Macrocytes round (not oval)

Neutrophil hyper segmentation absent

Folate stores normal

Smoking increases the Red Cell Mass

Macrocytosis of Alcoholism

www.drsarma.in

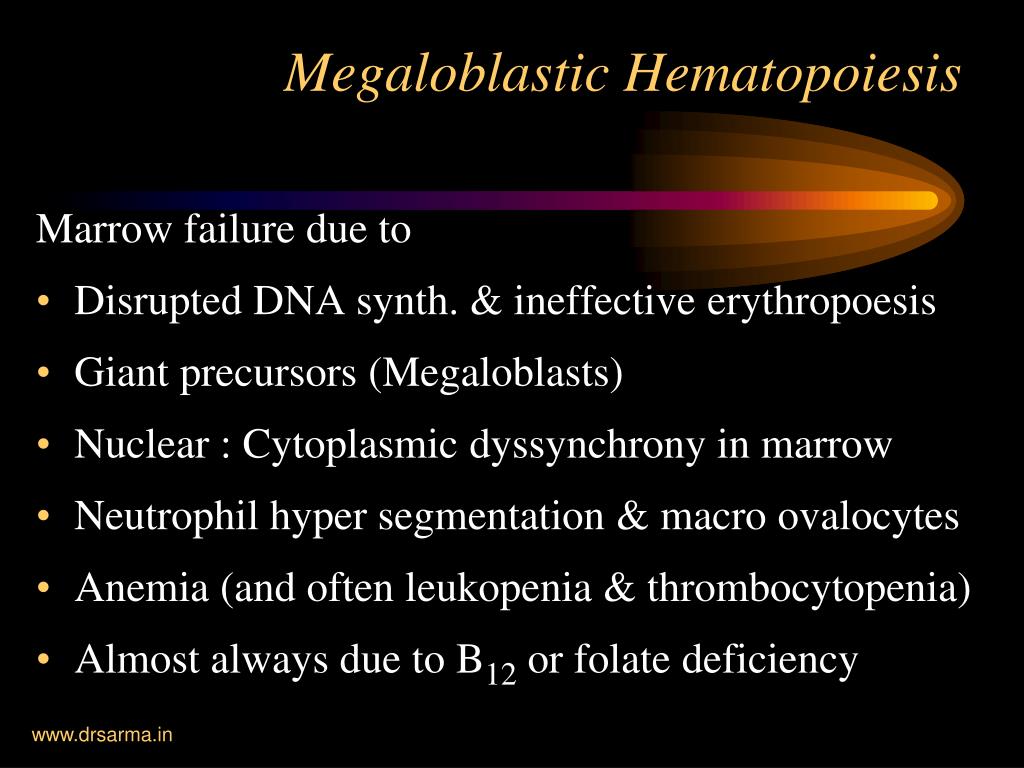

Megaloblastic hematopoiesis

Marrow failure due to and there by ↓ O

Disrupted DNA synth. & ineffective erythropoesis

Giant precursors (Megaloblasts)

Nuclear : Cytoplasmic dyssynchrony in marrow

Neutrophil hyper segmentation & macro ovalocytes

Anemia (and often leukopenia & thrombocytopenia)

Almost always due to B12 or folate deficiency

Megaloblastic Hematopoiesis

www.drsarma.in


MBA and there by ↓ O

www.drsarma.in


Macrocytosis mba
Macrocytosis -MBA and there by ↓ O

www.drsarma.in


Anisocytosis macrocytic anemia
Anisocytosis - Macrocytic Anemia and there by ↓ O

www.drsarma.in


Hsn mba
HSN - MBA and there by ↓ O

www.drsarma.in


Basophilic stippling mba
Basophilic Stippling - MBA and there by ↓ O

BS occurs in Lead poisoning also

www.drsarma.in


Megalocyte in ps
Megalocyte in PS and there by ↓ O

www.drsarma.in


Mba bm
MBA - BM and there by ↓ O

www.drsarma.in


Mba bm1
MBA - BM and there by ↓ O

www.drsarma.in

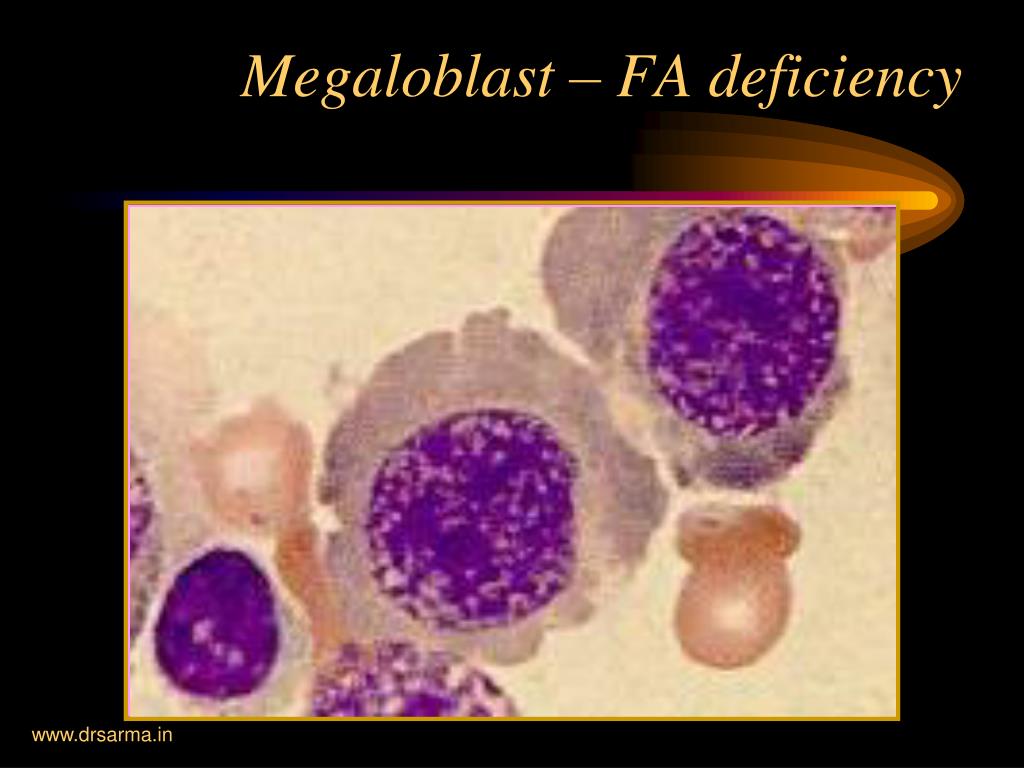

Megaloblast fa deficiency
Megaloblast – FA deficiency and there by ↓ O

www.drsarma.in


Pernicious anemia tongue
Pernicious Anemia - Tongue and there by ↓ O

Bald, smooth, lemon yellowish red tongue

www.drsarma.in


Normocytic anemias

Chronic diseases, CKD and there by ↓ O

Early IDA

Hemoglobinopathies

Primary marrow disorders

Combined deficiencies

Increased destruction

Anemia of investigations -ICU

Normocytic Anemias

www.drsarma.in


Anemia of chronic disease

Thyroid diseases and there by ↓ O

Malignancy

Collagen Vascular Disease

Rheumatoid Arthritis

SLE

Polymyositis

Polyarteritis Nodosa

Anemia of Chronic Disease

  • IBD

    • – Ulcerative Colitis

    • – Crohn’s Disease

  • Chronic Infections

  • – HIV, Osteomyelitis

  • – Tuberculosis

  • CKD, Renal Failure

www.drsarma.in


Dimorphic anemia

Folate & Fe deficiency (pregnancy, alcoholism) and there by ↓ O

B12 & Fe deficiency (PA with atrophic gastritis)

Thalassemia minor & B12 or folate deficiency

Fe deficiency & hemolysis (prosthetic valve)

Folate deficiency & hemolysis (Hb SS disease)

Peripheral smear exam is critical to assess these

RDW is increased very much

‘Dimorphic’ Anemia

www.drsarma.in


Algorithm for Diagnosis of Anemia and there by ↓ O

Anemia Suspected

Thorough Clin, Bleed

Hb%, RCC, Hct Decreased

Ca, Leukemia, Ulcer

RPI, Retic count <2

RPI, Retic count >2

Identify the cause

MCV, MCH, MCHC, PSE

Hemolytic Anemia

Microcytic hypochromic

Macrocytic hypo/normo

Coombs DAT, IDAT

Iron Def. Anemia

Megaloblastic

Normoblastic

Hb electrophoresis

Ferritin, TIBC, BM Fe

Folate defici.

ALD, CLD, Drug

Osmotic fragility

Thalassemia, Hb pathy

B12 def., PA

Chr. Renal dis.

Acid hemolysis

Sederoblastic Anaem.

Hypothyroid

Cold agglutinins

Chr. Infection, Lead

BM infiltration

Coagulopathy, DIC

www.drsarma.in


Let us look at some reports of patients

In order to make a differential diagnosis and there by ↓ O

Let us look at some reports of patients

www.drsarma.in


www.drsarma.in and there by ↓ O


www.drsarma.in and there by ↓ O


www.drsarma.in and there by ↓ O


www.drsarma.in and there by ↓ O


www.drsarma.in and there by ↓ O


www.drsarma.in and there by ↓ O


Anemia summary

If Hb% is low – and there by ↓ ODo not start on Iron straight away

Ask for RCC, Hematocrit – Derive MCV, MCH, MCHC

Order for Reticulocyte count – Is RPI < 2 % or > 2%

Thoroughly look for blood loss – acute / chronic / occult

Is it hypo-proliferative or hemolytic or hemorrhagic Anemia

If hypo proliferative – Microcytic or Macrocytic? (MCV, RDW)

If microcytic – IDA or others – Sr Ferritin TIBC, BM Iron

If macrocytic – Megaloblastic (B12, FA) or Normoblastic BM

If normocytic – Anemia of chr. Disease – Liver, CKD, Ca

Peripheral smear study for RBC size, shape, colouration etc.

If retic. count is ↑- HA work up; Hb EP, spl. tests

Anemia - Summary

www.drsarma.in


Rbc size anisocytosis different sizes of rbc
RBC Size – Anisocytosis and there by ↓ ODifferent sizes of RBC

www.drsarma.in


Poikilocytosis different shapes of rbc
Poikilocytosis and there by ↓ ODifferent Shapes of RBC

www.drsarma.in


Polychromasia spherocytosis
Polychromasia - Spherocytosis and there by ↓ O

www.drsarma.in


Target cells
Target Cells and there by ↓ O

  • Liver Disease

  • Thalassemia

  • Hb D Disease

  • Post splenectomy

www.drsarma.in


Tear drop cells
Tear Drop Cells and there by ↓ O

  • Myelofibosis

  • Infiltration of BM

  • Tumours of BM

  • Thalassemia

www.drsarma.in


Hair on end thalassemia major
Hair on end - Thalassemia Major and there by ↓ O

www.drsarma.in


Drepanocytes ss
Drepanocytes - SS and there by ↓ O

www.drsarma.in


Sickle cell anemia
Sickle Cell Anemia and there by ↓ O

www.drsarma.in


Autosplenectomy ss
Autosplenectomy - SS and there by ↓ O

Normal spleen is 8 to 12 cm

www.drsarma.in


Hemolytic anemia

Anemia of increased RBC destruction and there by ↓ O

– Normochromic, normocytic anemia

– Shortened RBC survival

– Reticulocytosis – due to ↑ RBC destruction

Will not be symptomatic until the RBC life span is

reduced to 20 days – BM compensates 6 times

Hemolytic Anemia

www.drsarma.in


Tests used to diagnose hemolysis

Reticulocyte count and there by ↓ O

Combined with serial Hb

Hemoglobin electrophotesis

Serum LDH

Serum bilirubin

Haptoglobin

Urine hemosiderin

Hemoglobinuria

Tests Used to Diagnose Hemolysis

www.drsarma.in


Findings in hemolytic anemia
Findings in Hemolytic Anemia and there by ↓ O

www.drsarma.in


Tests to define the cause of hemolysis

Hemoglobin electrophoresis and there by ↓ O

Hemoglobin A2 (βeta-Thalassemia trait)

RBC enzymes (G6PD, PK, etc)

Direct & indirect antiglobulin tests (immune)

Cold agglutinins

Osmotic fragility (spherocytosis)

Acid hemolysis test (PNH)

Clotting profile (DIC)

Tests to define the cause of hemolysis

www.drsarma.in


MAHA and there by ↓ O

Micro Angiopathic Hemolytic Anemia

www.drsarma.in


MAHA and there by ↓ O

Micro Angiopathic Hemolytic Anemia

www.drsarma.in


Hyperactive bm skull hemolytic anemia
Hyperactive BM – Skull and there by ↓ OHemolytic Anemia

www.drsarma.in


Spherocytosis
Spherocytosis and there by ↓ O

www.drsarma.in


Spherocytosis1
Spherocytosis and there by ↓ O

Hereditary Spherocytosis

www.drsarma.in


Spherocytosis2
Spherocytosis and there by ↓ O

www.drsarma.in


Elliptocytes
Elliptocytes and there by ↓ O

Hereditary Elliptocytosis, B12 or Folate↓

www.drsarma.in


Stomatocytes s lit like central pallor in rbc
Stomatocytes and there by ↓ OSlit like central pallor in RBC

  • Liver Disease

  • Acute Alcoholism

  • H Stomatocyosis

  • Malignancies

www.drsarma.in


Echinocytes evenly distributed spicules 10
Echinocytes and there by ↓ OEvenly distributed spicules > 10

  • Uremia

  • Peptic ulcer

  • Gastric Ca

  • PK-D

  • Called Burr Cells

www.drsarma.in


Acanthocytes 5 8 spikes of varying length irregular intervals
Acanthocytes and there by ↓ O5-8 spikes of varying length, irregular intervals

Called Spur Cells, Occur in A H A

www.drsarma.in


Shistocytes
Shistocytes and there by ↓ O

Fragmented, Helmet or triangle shaped RBC

  • MAHA

  • Prosthetic valves

  • Uremia

  • Malignant HT

www.drsarma.in


Leukoplakia aplastic anemia
Leukoplakia - Aplastic Anemia and there by ↓ O

  • Chloramphenicol

  • Neomercazole

  • Sulfonamides

  • Analgin

  • Phenytoin

  • Butazolidin group

  • Anti Ca drugs

www.drsarma.in


Normal bm high power
Normal BM High Power and there by ↓ O

E : G = 1 : 3

www.drsarma.in


Shift in e g ratio
Shift in E : G Ratio and there by ↓ O

E : G = 2 : 1

www.drsarma.in


Bm aplastic anemia
BM - Aplastic Anemia and there by ↓ O

www.drsarma.in


Myelofibrosis
Myelofibrosis and there by ↓ O

www.drsarma.in


Post transfusion cbc
Post transfusion - CBC and there by ↓ O

www.drsarma.in


Howell jolly bodies
Howell-Jolly Bodies and there by ↓ O

Absence of Splenic function; Nuclear chromatin in RBC

www.drsarma.in


Pelger huet anomaly
Pelger-Huet Anomaly and there by ↓ O

  • Inherited condition

  • PMN - Spectacles

  • Heterozygous

  • Homozygous fatal

  • Neutrophil Bands ↑

  • Normal WCC

  • No e/o infection

www.drsarma.in


Thank you all
Thank You ALL and there by ↓ O

www.drsarma.in


ad
