Presentation Transcript
Slide1 l.jpg

Metal Halide

“when you need more efficient light”


Slide2 l.jpg

Metal Halide

Introduction

Metal Halide lamps offer a white light solution at a reasonable

light efficacy and a good to very good optical performance.

The Philips High Wattage Metal Halide lamps are the solution for professional & recreational sports lighting

(main application) and professional area lighting.

The track record of the range in stadiums for the Olympic Games, World Championships and Premier League

Soccer is extensive.

HPI-T Pro 2000W 400V HO

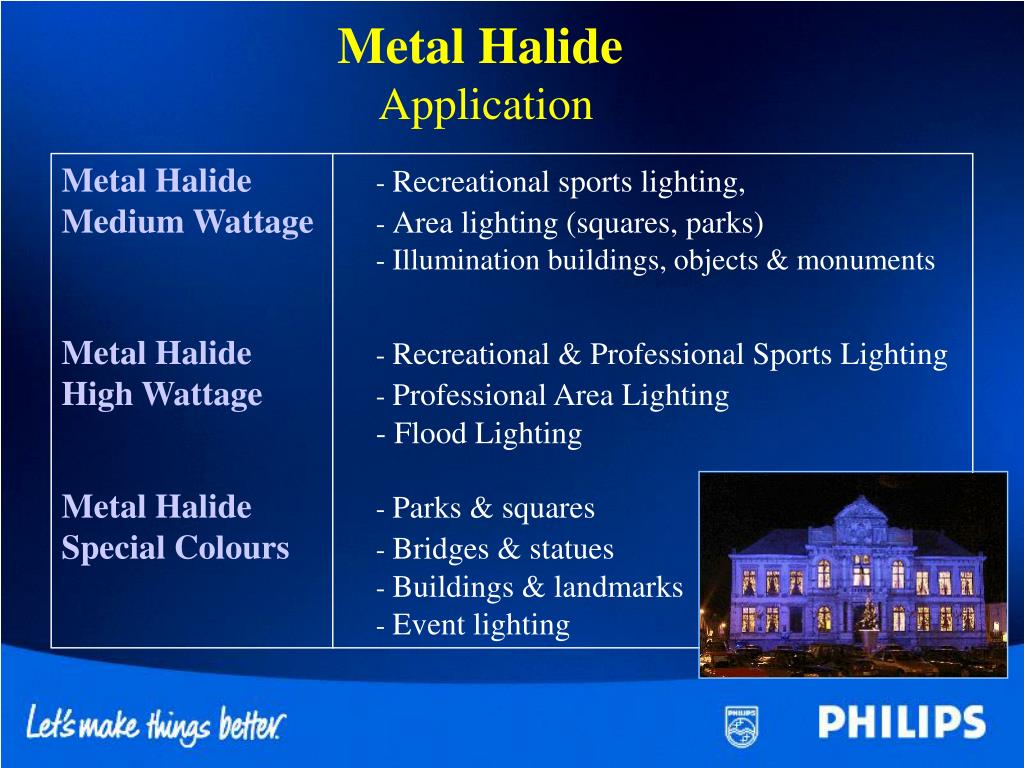

Slide3 l.jpg

Metal Halide

Application

Metal Halide - Recreational sports lighting,

Medium Wattage - Area lighting (squares, parks)

- Illumination buildings, objects & monuments

Metal Halide- Recreational & Professional Sports Lighting

High Wattage- Professional Area Lighting

- Flood Lighting

Metal Halide- Parks & squares

Special Colours - Bridges & statues

- Buildings & landmarks

- Event lighting


Slide4 l.jpg

Metal Halide

Benefits & Features

Metal Halide Medium Wattages:

For detailed information on the Metal Halide Medium

Wattages, the range and their benefits and features please visit following link: http://www.masterhpiplus.com

MASTER HPI Plus

MASTER HPI-T Plus


Slide5 l.jpg

Metal Halide

Benefits & Features

Metal Halide High Wattages:

HPI-T Pro 1000W/ 2000W

Benefits

Features

  • Use of the unique 3-band HPI salts

  • Clear tubular outer bulb

  • High luminous efficacy

  • Colour point on the black body locus gives a natural white colour appearance

  • Use of the unique 3-band HPI salts

  • Excellence lumen maintenance and long life

  • ensure high maintained illuminance levels

  • and minimal maintenance costs.

  • Good colour rendering creates a pleasant

  • ambience with high visual comfort

  • Excellent colour stability ensures good

  • colour uniformity over lifetime, even with

  • spot replacements


Slide6 l.jpg

Metal Halide

Benefits & Features

Metal Halide High Wattages:

MASTER MHN-SA / MHN-LA

Benefits

Features

  • Unique double pinch seal

  • Compact lampshape

  • Excellent Ra (up to 90)

  • Very short arc distance (25mm)

  • Minimum in maintenance costs and long life

  • Continuous spectral power distribution which is ideal for optimised television broadcasting

  • Best system-efficacy and lowest spill-light reduces the number of luminaires needed, minimising both intial and running costs.

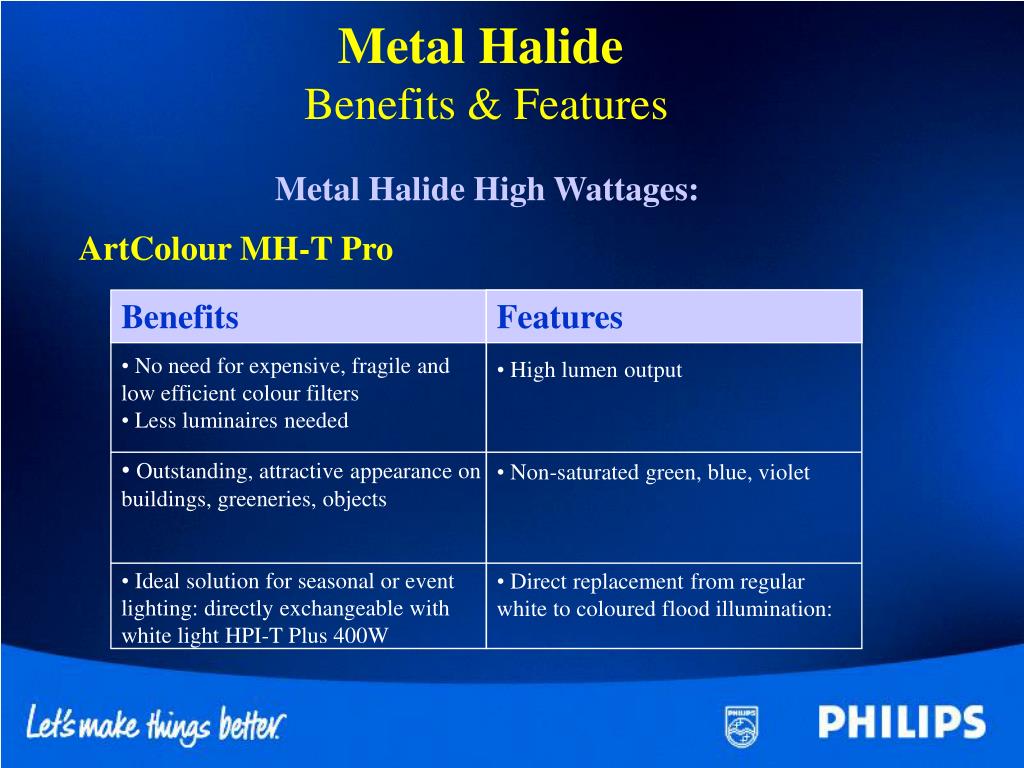

Slide7 l.jpg

Metal Halide

Benefits & Features

Metal Halide High Wattages:

ArtColour MH-T Pro

Benefits

Features

  • No need for expensive, fragile and low efficient colour filters

  • Less luminaires needed

  • Outstanding, attractive appearance on buildings, greeneries, objects

  • Ideal solution for seasonal or event lighting: directly exchangeable with

  • white light HPI-T Plus 400W

  • High lumen output

  • Non-saturated green, blue, violet

  • Direct replacement from regular white to coloured flood illumination:


Slide8 l.jpg

Metal Halide

Range Overview

Metal Halide Medium & Coloured Wattages:

When operated on SON gear, HPI Plus lamps run at higher power:

Colour

Designation

Colour Temp.

HPL/SON

Gear (K)

Lamp

base

Type designation

CRI

MASTER HPI Plus 400W 69 Cool White 4300/3800 E40

MASTER HPI-T Plus 250W 65 Cool White 4500/4000 E40

MASTER HPI-T Plus 400W 65 Cool White 4300/4000 E40

ArtColour MH-T Pro 400W Blue NA Blue NA E40

ArtColour MH-T Pro 400W Green NA Green NA E40

ArtColour MH-T Pro 400W Violet NA Violet NA E40


Slide9 l.jpg

Metal Halide

Technical Specification

Metal Halide Medium & Coloured Wattages:

Light Output

HPL/SON

Gear (lm)

Lamp

Power

(W)

Lamp Efficacy

HPL/SON

Gear (lm/W)

Type designation

MASTER HPI Plus 400W 400W 30000/35000 87/93

MASTER HPI-T Plus 250W 250W 19000/25500 76/78

MASTER HPI-T Plus 400W 400W 35000/42500 90/85

ArtColour MH-T Pro 400W Blue 400W 10000/ - 26

ArtColour MH-T Pro 400W Green 400W 29000/ - 76

ArtColour MH-T Pro 400W Violet 400W 10000/ - 26


Slide10 l.jpg

Metal Halide

Range Overview

Metal Halide High Wattages:

Colour

Temp.

(K)

Colour

Designation

Lamp

base

Type designation

CRI

HPI-T Pro 1000W /643 230V 65 Cool White 4300 E40

HPI-T Pro 2000W /646 230 V 65 Cool White 4600 E40

HPI-T Pro 2000W /642 400 V HO 65 Cool White 4200 E40

MASTER MHN-SA 1800W /856 230V 85 Daylight 5600 X830R

MASTER MHN-SA 1800W /956 230V 90 Daylight 5600 X830R

MASTER MHN-SA 1800W /956 230V 90 Daylight 5600 (P)SFC

MASTER MHN-SA 1800W /956 400V 90 Daylight 5600 (P)SFC

MASTER MHN-SA 2000W /956 400V 90 Daylight 5600 X830R

MASTER MHN-LA 1000W /842 230V 80 Cool White 4200 X528

MASTER MHN-LA 1000W /956 230V 90 Daylight 5600 X528

MASTER MHN-LA 2000W /842 400V 80 Cool White 4200 X528

MASTER MHN-LA 2000W /956 400V 90 Daylight 5600 X528


Slide11 l.jpg

Metal Halide

Technical Specification

Metal Halide High Wattages:

Lamp

Power

(W)

Light

Output

(lm)

Lamp

Efficacy

(lm/W)

Type designation

HPI-T Pro 1000W /643 230V 1000W 85000 86

HPI-T Pro 2000W /646 230 V 2000W 189000 96

HPI-T Pro 2000W /642 400 V HO 2000W 200000 102

MASTER MHN-SA 1800W /856 230V 1800W 170000 95

MASTER MHN-SA 1800W /956 230V 1800W 155000 86

MASTER MHN-SA 1800W /956 230V 1800W 155000 86

MASTER MHN-SA 1800W /956 400V 1800W 160000 86

MASTER MHN-SA 2000W /956 400V 2000W 180000 87

MASTER MHN-LA 1000W /842 230V 1000W 100000 96

MASTER MHN-LA 1000W /956 230V 1000W 90000 87

MASTER MHN-LA 2000W /842 400V 2000W 220000 108

MASTER MHN-LA 2000W /956 400V 2000W 190000 93


Slide12 l.jpg

Metal Halide

Product Pictures

MASTER MHN-SA 1800W

HPI-T Pro

1000W

HPI-T Pro

2000W

MASTER MHN-LA 2000W

MH-T Colour Pro / MASTER HPI-T Plus


Slide13 l.jpg

Product

References

HPI-T Pro

MHN-SA

HPI-T Plus
