Lecture 5: Topology Control

Anish Arora

CIS788.11J

Introduction to Wireless Sensor Networks

Material uses slides from Paolo Santi and Alberto Cerpa


Problems affected by link quality

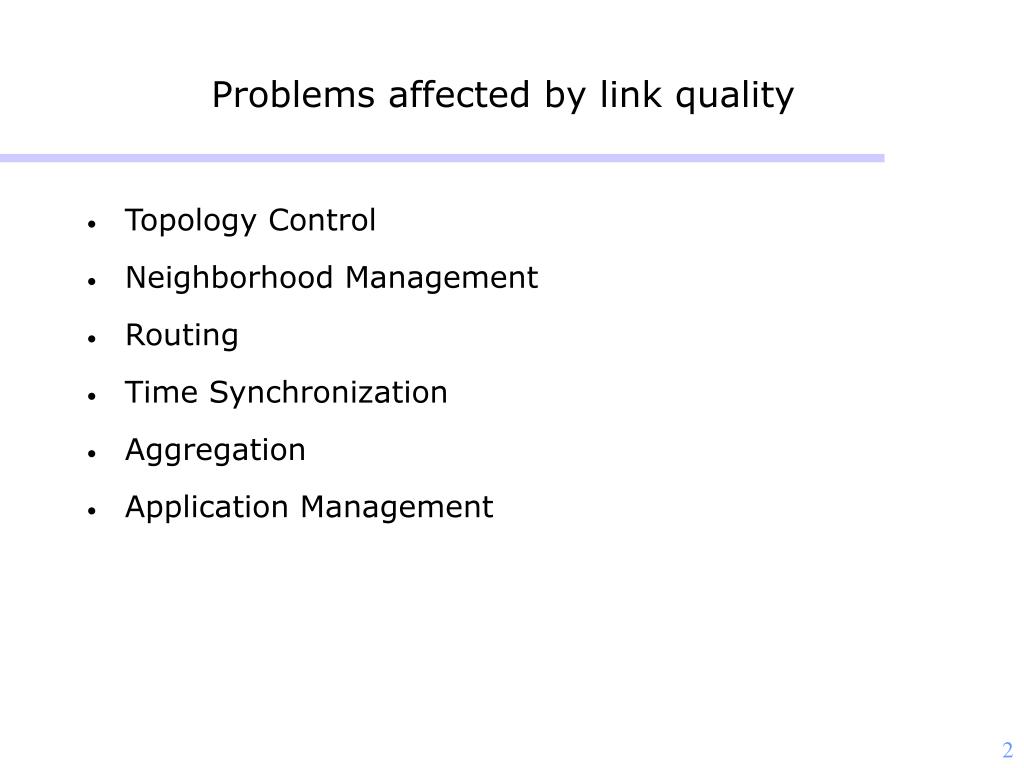

Problems affected by link quality

  • Topology Control

  • Neighborhood Management

  • Routing

  • Time Synchronization

  • Aggregation

  • Application Management


References
References

  • Topology Control tutorial, Mobihoc’04, Paolo Santi

  • SPAN, Benjie Chen, Kyle Jamieson, Robert Morris, Hari Balakrishnan, MIT

  • GAF/CEC, Y. Xu, S. Bien, Y. Mori, J . Heidemann & D. Estrin, USC/ISI – UCLA

  • ASCENT, Alberto Cerpa and Deborah Estrin, UCLA

  • GS3: Scalable Self-configuration and Self-healing in Wireless Networks, PODC 2002, Hongwei Zhang, Anish Arora

  • M. Demirbas, A.Arora, V.Mittal, FLOC: A Fast Local Clustering Service for Wireless Sensor NetworksDIWANS 2004

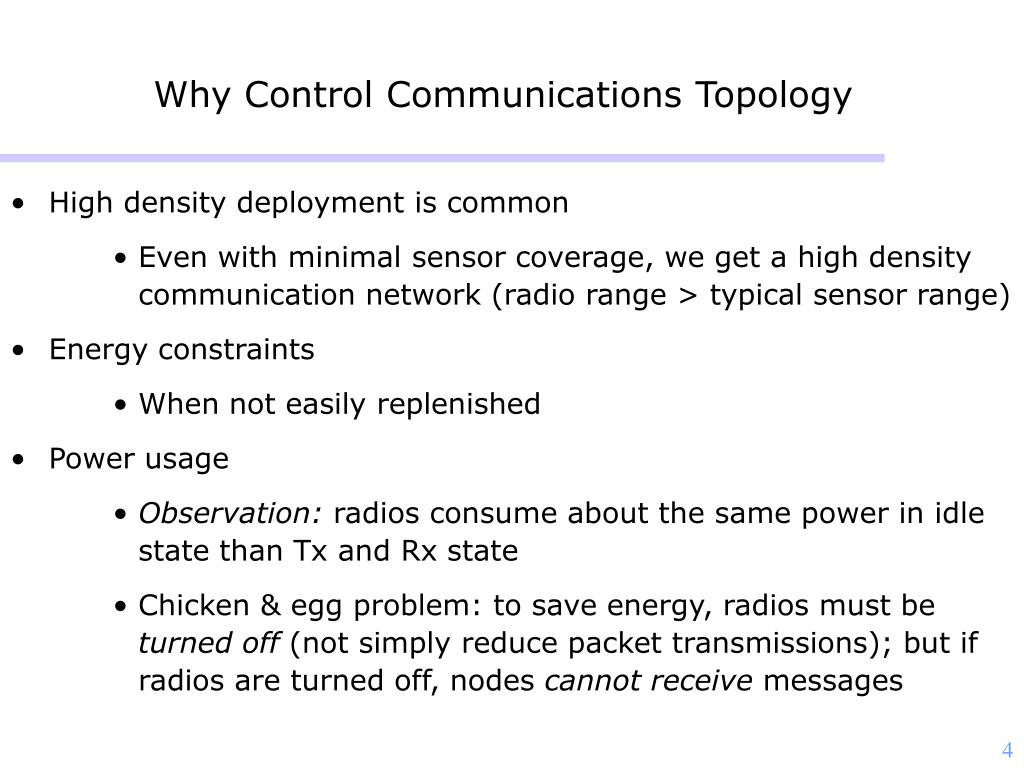

Why Control Communications Topology

  • High density deployment is common

    • Even with minimal sensor coverage, we get a high density communication network (radio range > typical sensor range)

  • Energy constraints

    • When not easily replenished

  • Power usage

    • Observation: radios consume about the same power in idle state than Tx and Rx state

    • Chicken & egg problem: to save energy, radios must be turned off (not simply reduce packet transmissions); but if radios are turned off, nodes cannot receive messages


  • Problem statement s
    Problem Statement(s)

    • Find an MCDS, i.e. a minimum subset of nodes that is both:

      • Set cover

      • Connected

    • Choose a transmit-power level whereby network is connected

      • per node or same for all nodes

      • with per node there is the issue of avoiding asymmetric links

      • cone-based algorithm:

        • node u transmits with the minimum power ρu s.t. there is at least one neighbor in every cone of angle x centered at u

      • k-neighbors algorithm:

        • each node chooses nearest k neighbors for its subgraph

        • k is chosen s.t. the graph generated is connected w.h.p.


    Problem statement s1
    Problem Statement(s)

    • Find a minimum subset of nodes that provides some density

      • in each geographic region  connectivity

      • we’ll look at the examples of GAF, SPAN, GS3, ASCENT

    • Given a connected graph G, find a subgraph G’ which can route messages between nodes in energy-efficient way

      • both unicast and broadcast spanners

      • reduces interference as well

        Sub-problems:

      • Prune asymmetric links

      • Tolerate node perturbations

      • Load balance


    Where should tc be positioned in the protocol stack
    Where should TC be positioned in the protocol stack?

    No clear answer in the literature

    One view:

    Routing Layer

    TC Layer

    MAC Layer

    Routing protocol may trigger TC execution (to get better routes)

    • Routing (structure) involves only active nodes

      MAC protocol may trigger TC execution (if neighborhood changes)

    • TC controls coarse-grain duty-cycling, MAC controls fine-grain

    • Mode changes need to be coordinated to avoid conflicts


    Assumptions radio mac
    Assumptions: Radio/MAC

    • Circular or Isotropic Models: GS3

    • Grid-based connectivity: GAF, GS3

    • Radio/MAC dependencies:

      • 802.11 Power Saving mode: Span

      • Promiscuous mode: ASCENT, CEC


    Assumptions neighbor information
    Assumptions: Neighbor Information

    • Locality:

      • 1-hop neighbor: GS3, ASCENT

      • n-hop neighbor (with various n > 1): GAF, CEC, Span …

      • Dependency on routing: GS3, Span

    • Measurement-based: ASCENT, CEC


    Properties reactivity to dynamics load balancing
    Properties: Reactivity to dynamics & load balancing

    • Local re-calculation of state: GS3

    • Global re-calculation of state: Span

    • Local recovery: GS3, GAF, CEC, ASCENT

    • Explicit load balancing mechanisms: GS3, Span, GAF, CEC


    SPAN

    • Goal: preserve fairness and capacity & still provide energy savings

    • SPAN elects “coordinators” from all nodes to create backbone topology

    • Other nodes remain in power-saving mode and periodically check if they should become coordinators

    • Tries to minimize # of coordinators while preserving network capacity

    • Depends on an ad-hoc routing protocol to get list of neighbors & the connectivity matrix between them

    • Runs above the MAC layer and “alongside” routing


    Coordinator election announcement
    Coordinator Election & Announcement

    • Rule: if 2 neighbors of a non-coordinator node cannot reach each other (either directly or via 1 or 2 coordinators), node becomes coordinator

    • Announcement contention is resolved by delaying coordinator announcements with a randomized backoff delay

    • delay = ((1 – Er/Em) + (1 – Ci/(Ni pairs)) + R)*Ni*T

      Er/Em: energy remaining/max energy

      Ni: number of neighbors for node i

      Ci: number of connected nodes through node i

      R: Random[0,1]

      T: RTT for small packet over wireless link


    Coordinator withdrawal
    Coordinator Withdrawal

    • Each coordinator periodically checks if it should withdraw as a coordinator

    • A node withdraws as coordinator if each pair of its neighbors can reach each other directly of via some other coordinators

    • To ensure fairness, after a node has been a coordinator for some period of time, it withdraws if every pair of nodes can reach each other through other neighbors (even if they are not coordinators)

    • After sending a withdraw message, the old coordinator remains active for a “grace period” to avoid routing loses until the new coordinator is elected



    Gaf cec geographical adaptive fidelity

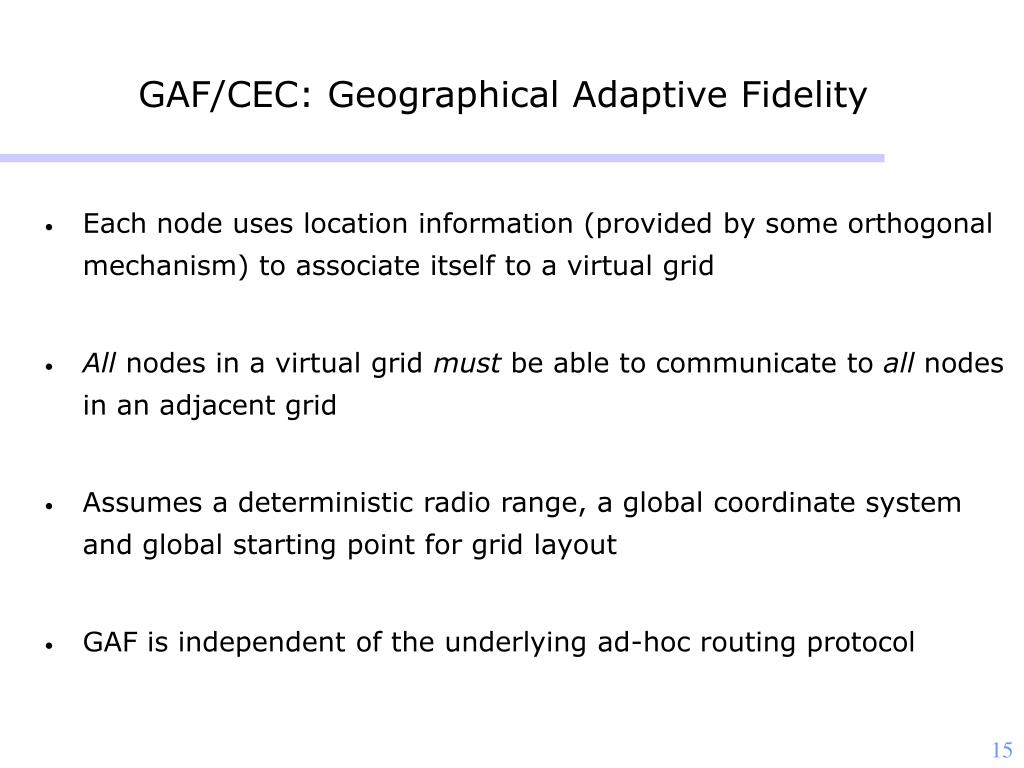

    GAF/CEC: Geographical Adaptive Fidelity

    • Each node uses location information (provided by some orthogonal mechanism) to associate itself to a virtual grid

    • All nodes in a virtual grid must be able to communicate to all nodes in an adjacent grid

    • Assumes a deterministic radio range, a global coordinate system and global starting point for grid layout

    • GAF is independent of the underlying ad-hoc routing protocol


    Virtual grid size determination
    Virtual Grid Size Determination

    • r: grid size, R: deterministic radio range

    • r2 + (2r)2 R2

    • r  R/sqrt(5)


    Parameters settings

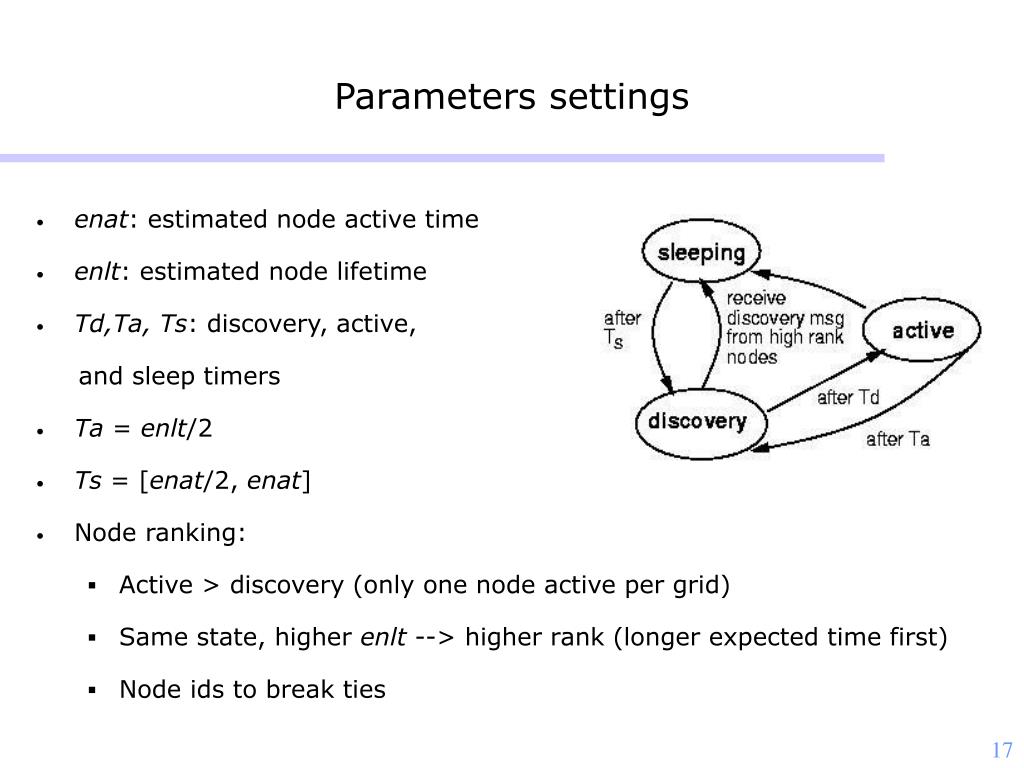

    Parameters settings

    • enat: estimated node active time

    • enlt: estimated node lifetime

    • Td,Ta, Ts: discovery, active,

      and sleep timers

    • Ta = enlt/2

    • Ts = [enat/2, enat]

    • Node ranking:

      • Active > discovery (only one node active per grid)

      • Same state, higher enlt --> higher rank (longer expected time first)

      • Node ids to break ties



    CEC

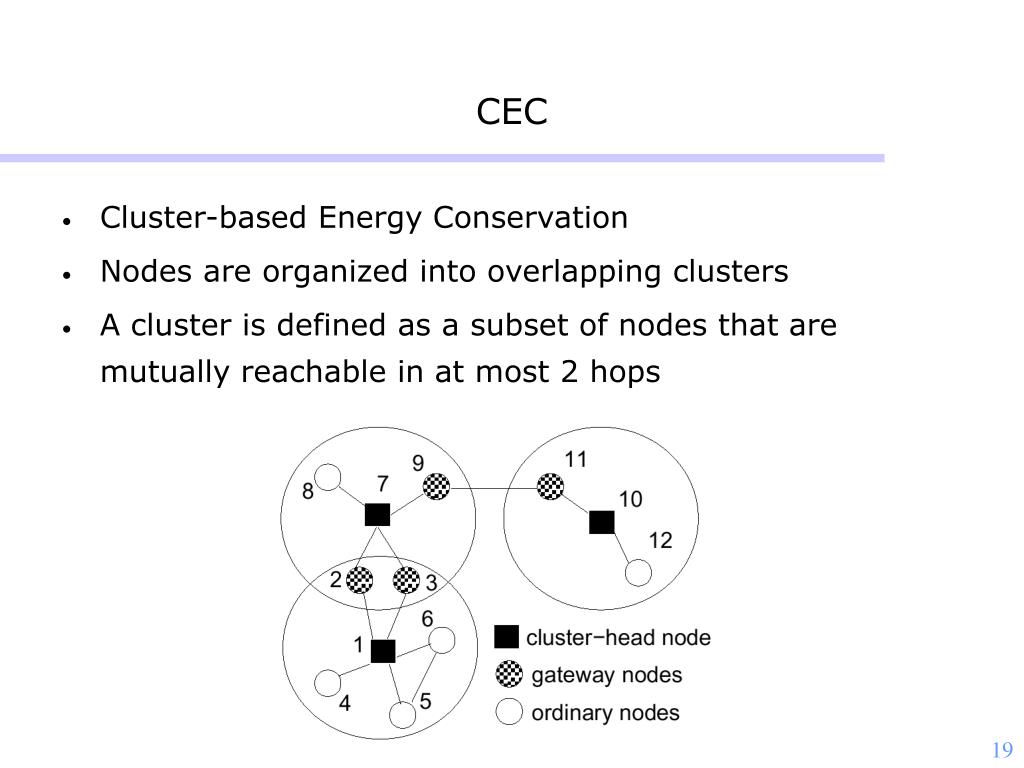

    • Cluster-based Energy Conservation

    • Nodes are organized into overlapping clusters

    • A cluster is defined as a subset of nodes that are mutually reachable in at most 2 hops


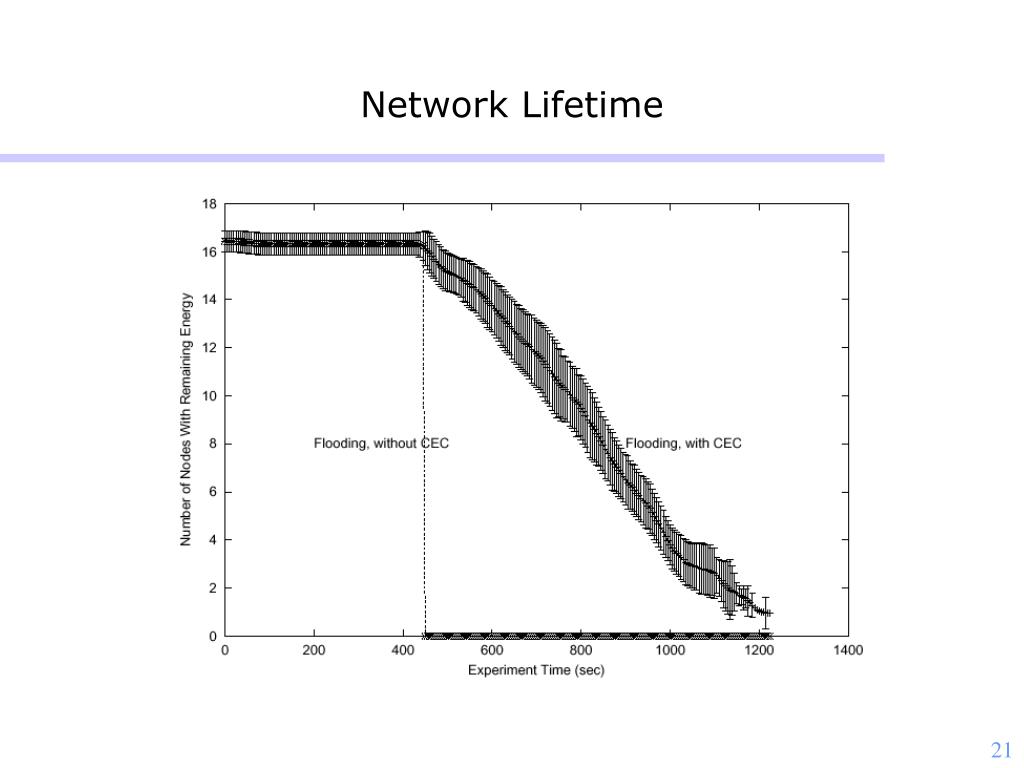

    Cluster formation
    Cluster Formation

    • Cluster-head Selection: longest lifetime of all its neighbors (breaking ties by node id)

    • Gateway Node Selection:

      • primary gateways have higher priority

      • gateways with more cluster-head neighbors have higher priority

      • gateways with longer lifetime have higher priority



    Challenges for local healing of solid disc clustering

    (

    (

    )

    (

    )

    )

    (

    )

    cascading

    )

    (

    )

    (

    )

    (

    )

    (

    A

    B

    new node

    Challenges for local healing of solid-disc clustering

    • Equi-radius solid-disc clustering with bounded overlaps is not achievable in a distributed and local manner


    Floc protocol
    FLOC protocol

    • Solid-disc clustering with bounded overlaps is achievable in a distributed and local manner for approximately equal radius

      • Stretch factor, m≥2, produces partitioning that respects solid-disc

        • Each clusterhead has all the nodes within unit radius of itself as members, and is allowed to have nodes up to m away of itself

    • FLOC is locally self-healing, for m≥2

      • Faults and changes are contained within the respective cluster or within the immediate neighboring clusters


    Floc program
    FLOC program …

    • By taking unit distance to be reliable comm. radius & m be maximum comm. radius, FLOC

      • exploits the double-band nature of wireless radio-model

      • achieves communication- and energy-efficient clustering

    • FLOC achieves clustering in O(1) time regardless of the size of the network

      • Time, T, depends only on the density of nodes & is constant

      • Through simulations and implementations, we suggest a suitable value for T for achieving fast clustering without compromising the quality of resulting clusters


    Model

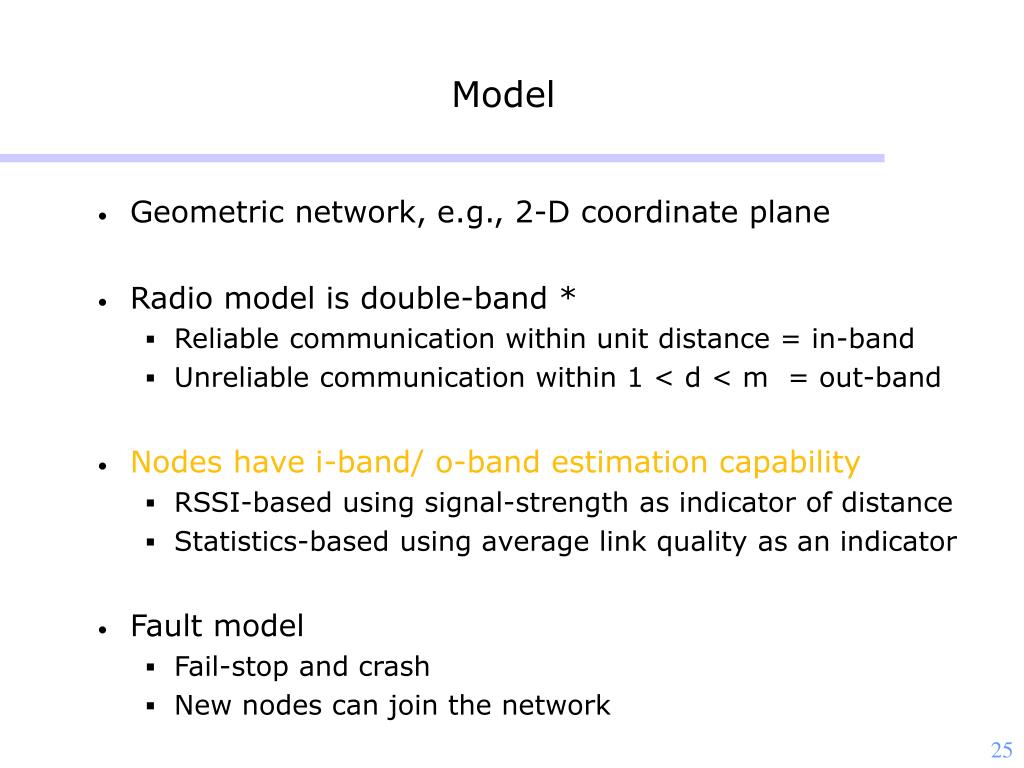

    Model

    • Geometric network, e.g., 2-D coordinate plane

    • Radio model is double-band *

      • Reliable communication within unit distance = in-band

      • Unreliable communication within 1 < d < m = out-band

    • Nodes have i-band/ o-band estimation capability

      • RSSI-based using signal-strength as indicator of distance

      • Statistics-based using average link quality as an indicator

    • Fault model

      • Fail-stop and crash

      • New nodes can join the network


    Problem statement
    Problem statement

    • A distributed, local, scalable, and self-stabilizing clustering program, FLOC, to construct network partitions such that

      • a unique node is designated as a leader of each cluster

      • all nodes in the i-band of each leader belong to that cluster

      • maximum distance of a node from its leader is m

      • each node belongs to a cluster

      • no node belongs to multiple clusters


    Justification for stretch factor 2

    (

    (

    )

    (

    )

    )

    (

    )

    )

    (

    )

    (

    )

    (

    )

    new node subsumed

    Justification for stretch factor > 2

    • For m≥2 local healing is achieved: a new node is

      • either subsumed by one of the existing clusters,

      • or allowed to form its own cluster without disturbing neighboring clusters

    )

    (

    (

    )

    (

    (

    )

    )

    (

    )

    new cluster


    Basic floc program

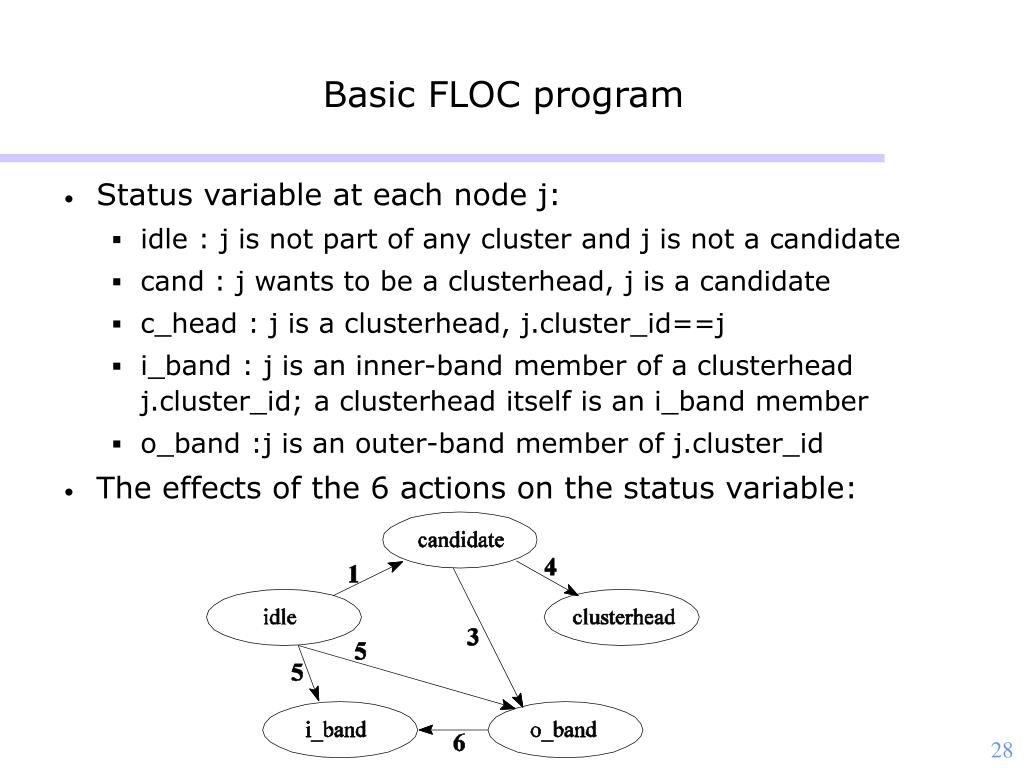

    Basic FLOC program

    • Status variable at each node j:

      • idle : j is not part of any cluster and j is not a candidate

      • cand : j wants to be a clusterhead, j is a candidate

      • c_head : j is a clusterhead, j.cluster_id==j

      • i_band : j is an inner-band member of a clusterhead j.cluster_id; a clusterhead itself is an i_band member

      • o_band :j is an outer-band member of j.cluster_id

    • The effects of the 6 actions on the status variable:


    Floc actions

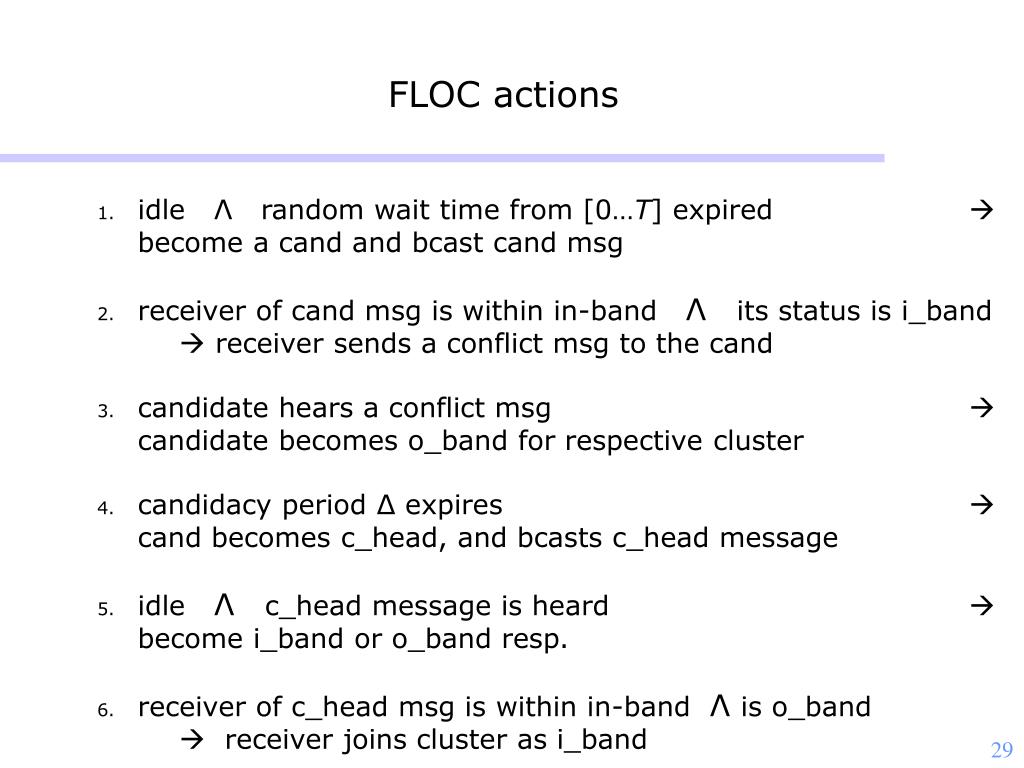

    FLOC actions

    • idle Λ random wait time from [0…T] expired  become a cand and bcast cand msg

    • receiver of cand msg is within in-band Λ its status is i_band  receiver sends a conflict msg to the cand

    • candidate hears a conflict msg  candidate becomes o_band for respective cluster

    • candidacy period Δ expires  cand becomes c_head, and bcasts c_head message

    • idle Λ c_head message is heard  become i_band or o_band resp.

    • receiver of c_head msg is within in-band Λis o_band  receiver joins cluster as i_band


    Floc is fast
    FLOC is fast

    • Assumption: atomicity condition of candidacy is observed by T

    • Theorem: Regardless of the network size FLOC produces the partitioning in T+Δ time

    • Proof:

      • An action is enabled at every node within at most T time

      • Once an action is enabled at a node, the node is assigned a clusterhead within Δtime

      • Once a node is assigned to a clusterhead, this property cannot be violated

        • action 6 makes a node change its clusterhead to become an i-band member, action 2 does not cause clusterhead to change


    Floc is locally healing

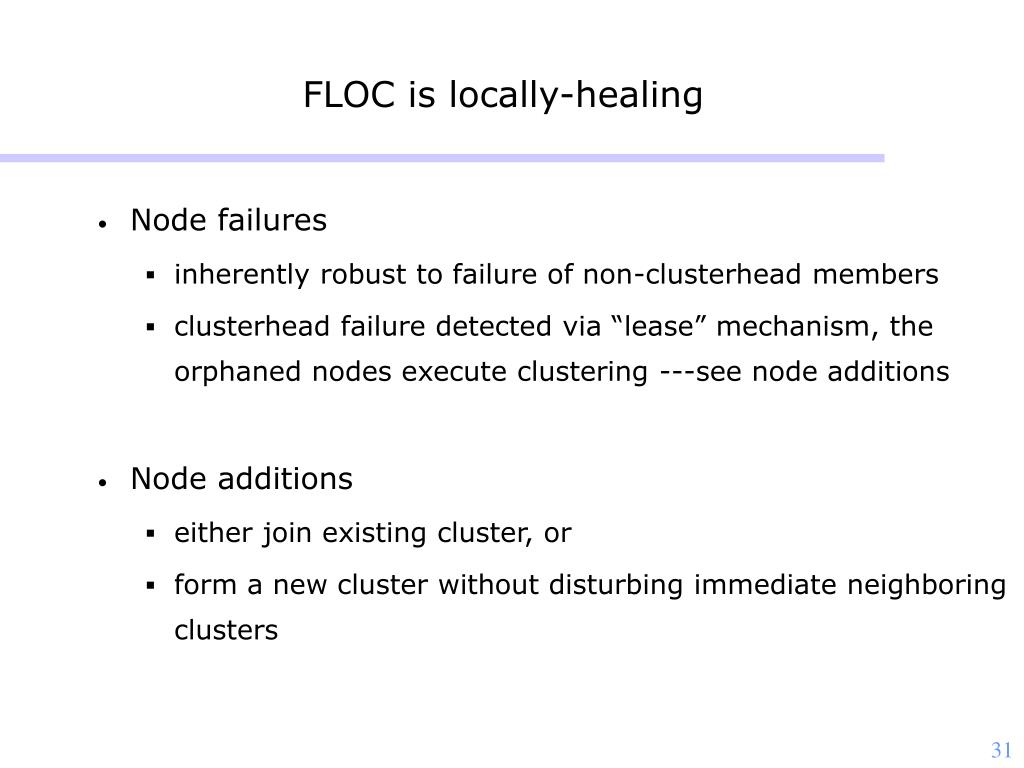

    FLOC is locally-healing

    • Node failures

      • inherently robust to failure of non-clusterhead members

      • clusterhead failure detected via “lease” mechanism, the orphaned nodes execute clustering ---see node additions

    • Node additions

      • either join existing cluster, or

      • form a new cluster without disturbing immediate neighboring clusters


    Extensions to basic floc algorithm

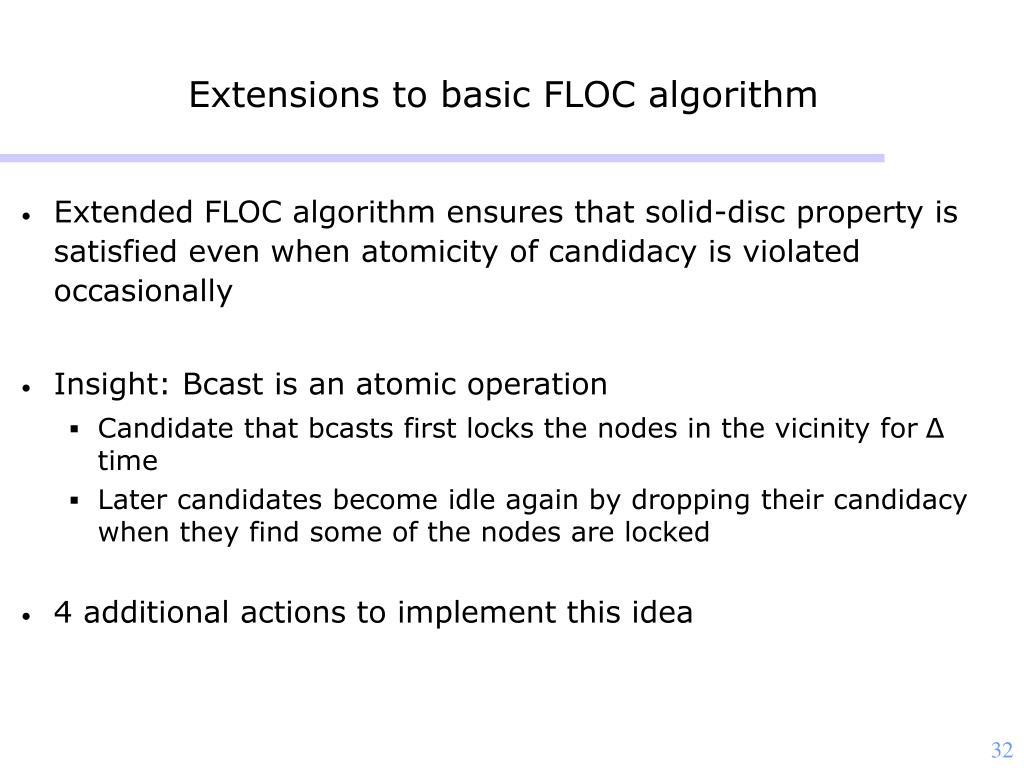

    Extensions to basic FLOC algorithm

    • Extended FLOC algorithm ensures that solid-disc property is satisfied even when atomicity of candidacy is violated occasionally

    • Insight: Bcast is an atomic operation

      • Candidate that bcasts first locks the nodes in the vicinity for Δ time

      • Later candidates become idle again by dropping their candidacy when they find some of the nodes are locked

    • 4 additional actions to implement this idea


    Simulation for determining t
    Simulation for determining T

    • Prowler, realistic wireless sensor network simulator

      • MAC delay 25ms

    • Tradeoffs in selection of T

      • Short T leads to network contention, and hence, message losses

      • Tradeoff between faster completion time and quality of clustering

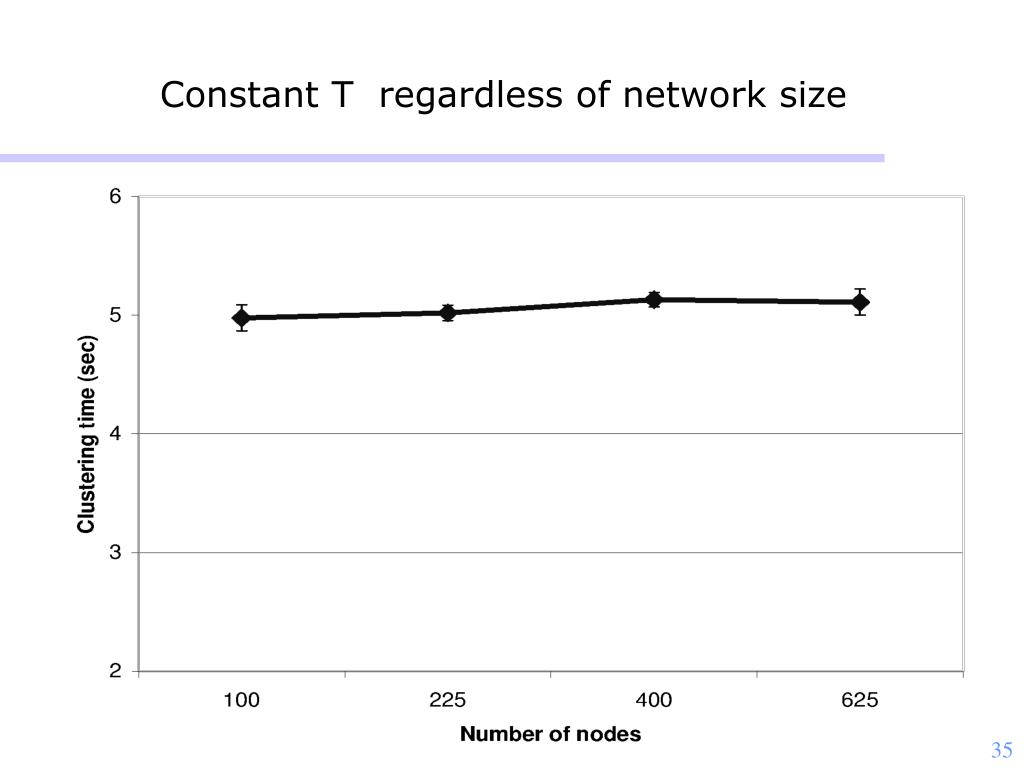

    • Scalability wrt network size

      • T depends only on the node density

        • In our experiments, the degree of each node is between 4-12

      • a constant T is applicable for arbitrarily large-scale networks




    Implementation
    Implementation

    • Mica2 mote platform, 5-by-5 grid

    • Confirms simulation



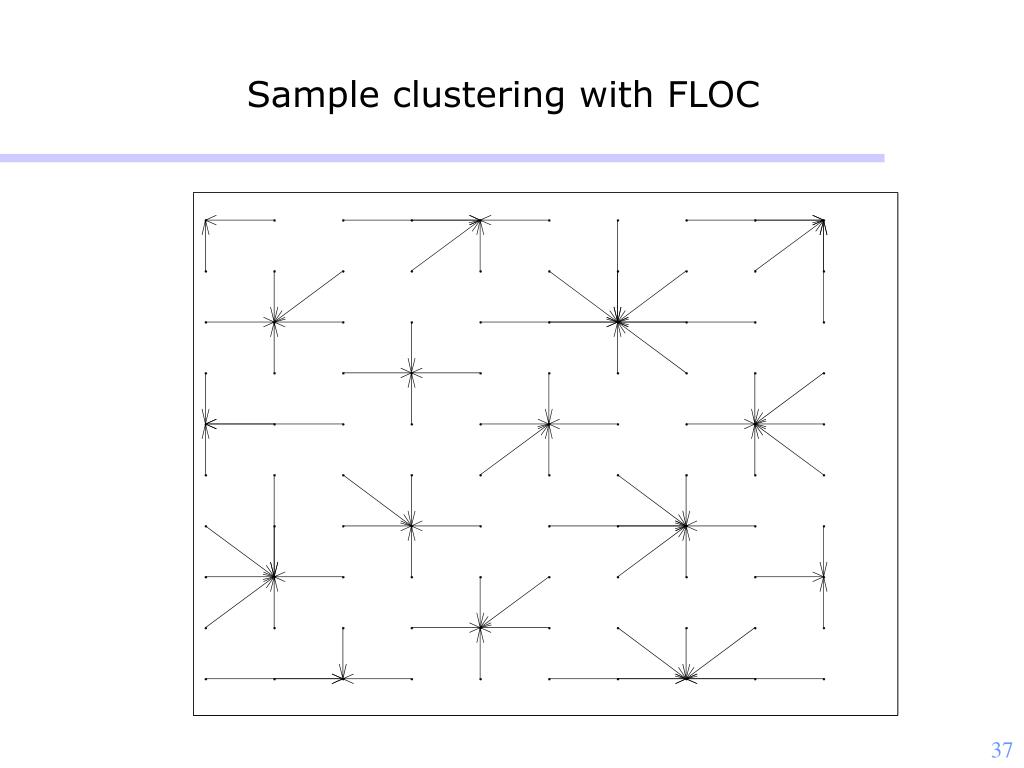

    Gs 3 scalability via locality
    GS3: Scalability via locality

    • Locality is hard for some graph problems

      • e.g., self-configuration and self-healing of routing tree

    • An ideal goal for locality: self-healing should be a function of the size of perturbation (in time, space, and energy)

    • Locality depends on model


    System model
    System model

    • System

      • multiple “small” nodes and one “big” node, on a plane

      • node distribution

        • density: ( Rts.t. with high probability,

          there are multiple nodes in any circular area of radius Rt)

        • localization: relative location between nodes can be estimated

    • Perturbations

      • dynamic nodes

        • joins, leaves (deaths), state corruptions

      • mobile nodes


    Problem geography aware self configuration

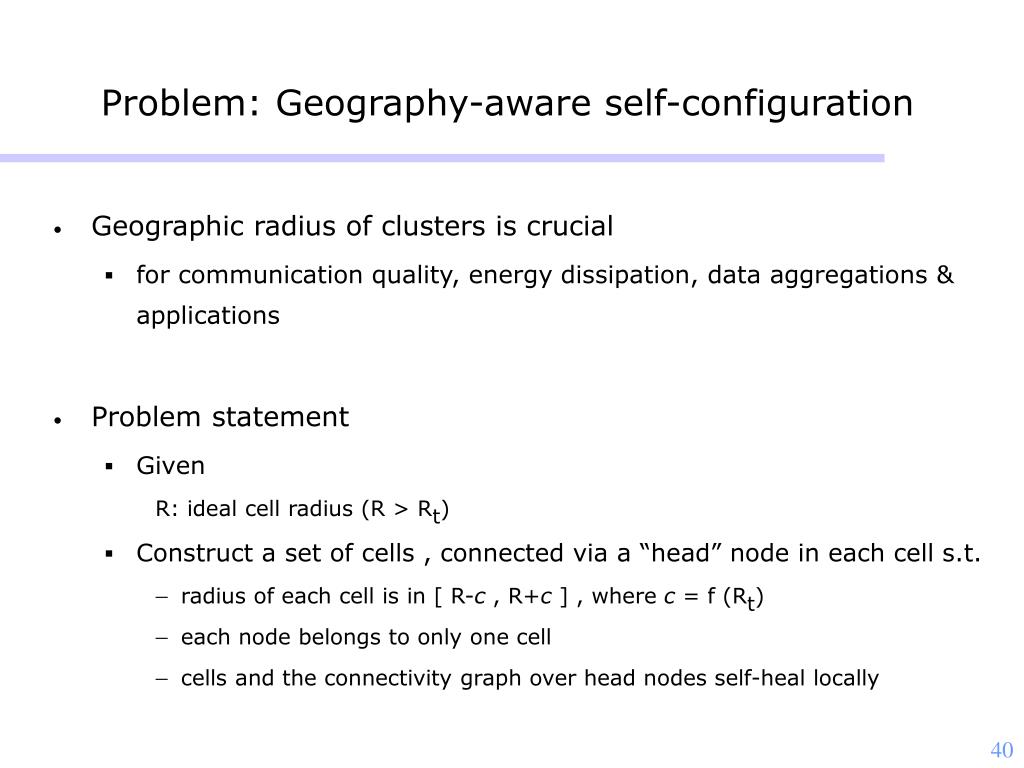

    Problem: Geography-aware self-configuration

    • Geographic radius of clusters is crucial

      • for communication quality, energy dissipation, data aggregations & applications

    • Problem statement

      • Given

        R: ideal cell radius (R > Rt)

      • Construct a set of cells , connected via a “head” node in each cell s.t.

        • radius of each cell is in [ R-c , R+c ] , where c = f (Rt)

        • each node belongs to only one cell

        • cells and the connectivity graph over head nodes self-heal locally


    Static networks
    Static networks

    • An ideal case:

    • In reality: no node may exist at some geometric centers (ILs), but, with high probability there are nodes no more than Rt away from any IL

    (IL = Ideal Location)


    How to find the set of cell heads
    How to find the set of cell heads

    • Bottom-up ?

      • hard to guarantee the placement and size of clusters

    • Top-down w.r.t. big node

      • use diffusing computation

      • but, accumulation in deviation of head location from IL is a problem

    i


    Organizing neighboring clusters heads
    Organizing neighboring clusters & heads

    Deviation problem is handled locally

    • instead of using real locations, node i uses its and its parent’s ILs

    • i calculates the ILs of next band cells in its search region < LD , RD >

      • big node: <0o , 360o>

      • other nodes: <-60o-a , 60o+a> , where a Sin-1(Rt / R)

    • for each IL, i ranks nodes within Rt radius of the IL (by <D, A>), and selects the highest ranked node as the corresponding cluster head


    Summary static networks
    Summary: static networks

    • Cell structure is hexagonal

      • cell radius:

    • Time taken to form the structure is (Db), where Db = the maximum distance between the big node and the small nodes

    • Scalability in self-configuration:

      • local coordination: only with nodes within range

      • local knowledge: each node maintains info about a constant number of nearby nodes


    Dynamic networks
    Dynamic networks

    • Dynamics include:

      • node join, leave (death), state corruption

    • Common vs. rare

      • common perturbations: node density is preserved

      • rare perturbations: node density is destroyed

    • Scalable self-healing is achieved via locality in:

      • intra-cell healing

      • inter-cell healing

      • sanity checking of state (invariants)


    Local intra cell healing
    Local intra-cell healing

    • Head shift

      • upon head leaving (death)

      • local in a radius of Rt

    • Cell shift

      • upon the death of all the nodes in an area of radius Rt

      • local in a radius of R

      • independent but consistent shift at individual cells sliding of the global head level structure


    Local inter cell healing sanity checking
    Local inter-cell healing & sanity checking

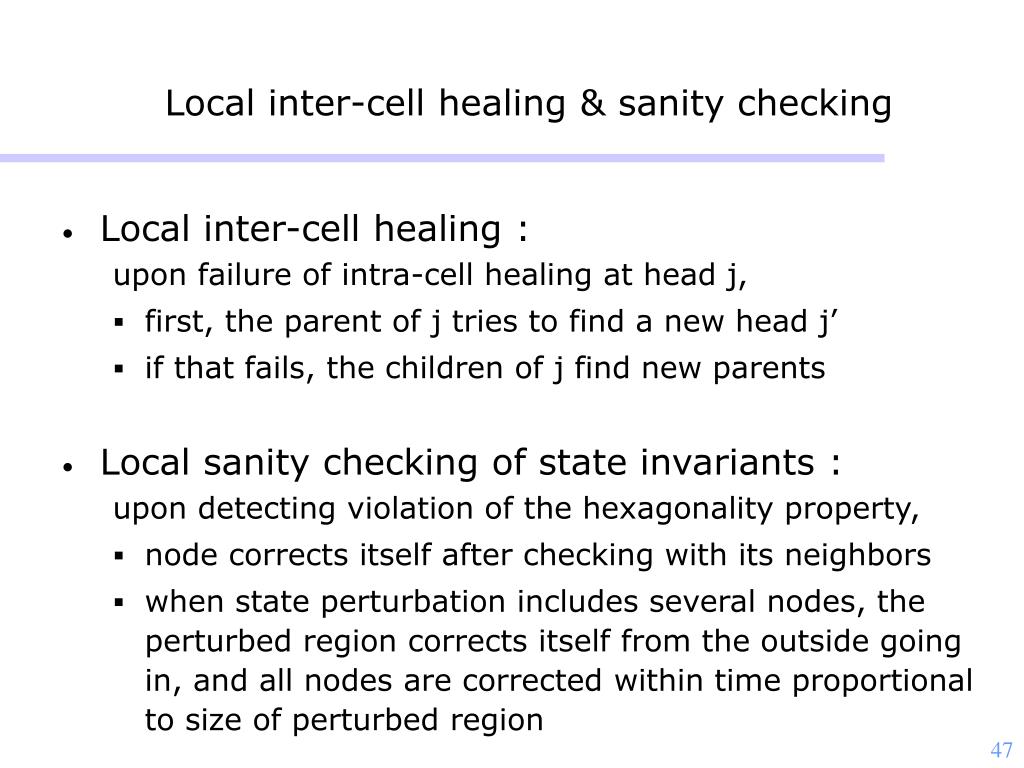

    • Local inter-cell healing :

      upon failure of intra-cell healing at head j,

      • first, the parent of j tries to find a new head j’

      • if that fails, the children of j find new parents

    • Local sanity checking of state invariants :

      upon detecting violation of the hexagonality property,

      • node corrects itself after checking with its neighbors

      • when state perturbation includes several nodes, the perturbed region corrects itself from the outside going in, and all nodes are corrected within time proportional to size of perturbed region


    Summary dynamic networks
    Summary: dynamic networks

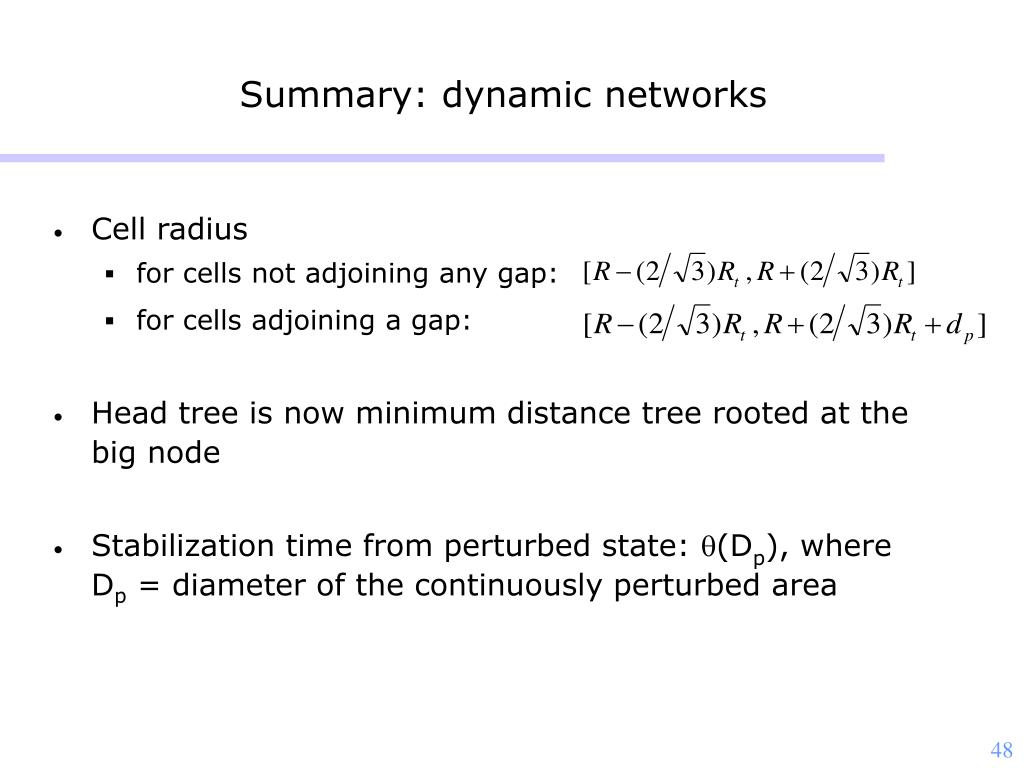

    • Cell radius

      • for cells not adjoining any gap:

      • for cells adjoining a gap:

    • Head tree is now minimum distance tree rooted at the big node

    • Stabilization time from perturbed state: (Dp), where Dp = diameter of the continuously perturbed area


    Summary dynamic networks contd
    Summary: dynamic networks (contd.)

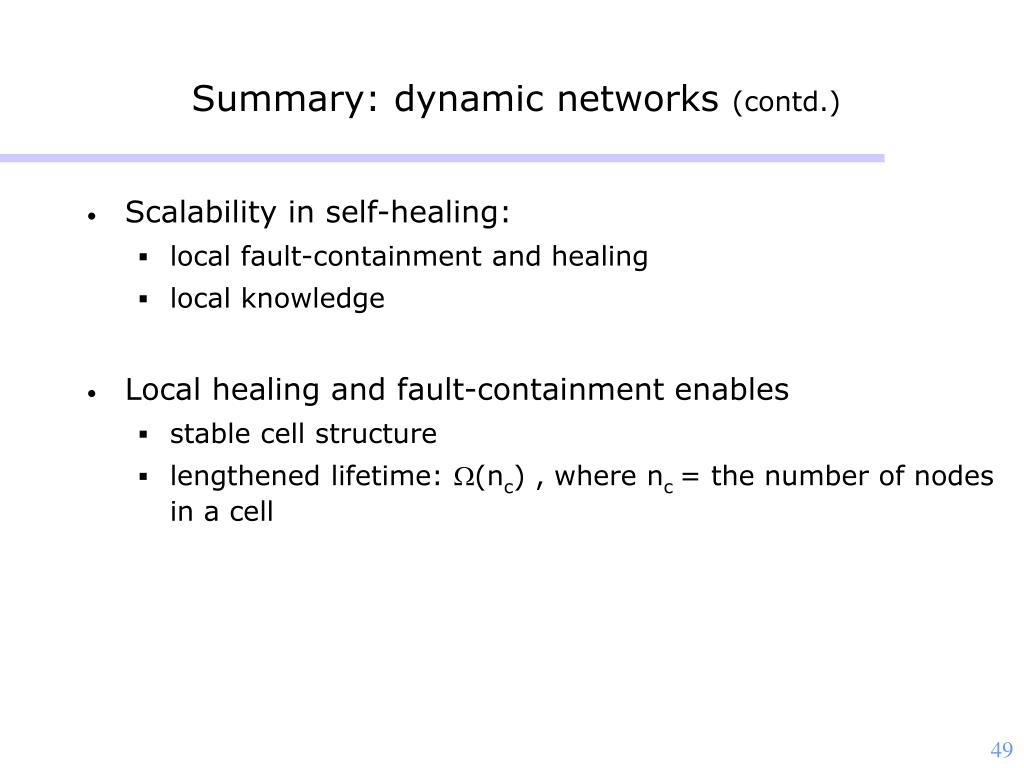

    • Scalability in self-healing:

      • local fault-containment and healing

      • local knowledge

    • Local healing and fault-containment enables

      • stable cell structure

      • lengthened lifetime: (nc) , where nc = the number of nodes in a cell


    Related work
    Related work

    • Cellular hexagon structure (Mac Donald ’79)

      • Preconfigured & not considering self-healing

    • LEACH (Heinzelman et al’00)

      • No guarantee about the placement and size of clusters

      • Perturbations dealt with by globally repeating the whole clustering process

    • Logical-radius based clustering (in Banerjee ’01)

      • non-local cluster maintenance, and no consideration of state corruption

      • only logical radius  long links and link asymmetry are possible

      • multiple rounds of diffusion


    Ascent
    ASCENT

    • Adaptive Self-Configuring sEnsor Networks Topologies

    • Observation: different applications may require the underlying topology to have different characteristics. For example:

      • Minimal

      • Homogeneous with a certain degree of connectivity

      • Heterogeneous with different degrees of connectivity in different regions

    • Examples of these different regions may be:

      • Along a data flow path

      • Avoiding a data flow path

      • In the border of an event of interest

    • Input: application tolerance specified in terms of acceptable loss rate at any node


    Model1
    Model

    • Adapt to empirical measurements of link quality: each node assesses its connectivity & adapts its participation in the multi-hop topology based on the measured operating region

    • Assumptions: ASCENT needs to

      • turn off the radio (sleep state)

      • turn the NIC/MAC in promiscuous mode (passive state)

    • ASCENT runs on top of MAC and below routing; does not uses any information gathered by routing


    Neighbor Announcements

    Messages

    Help Messages

    Data Message

    Data Message

    Source

    Source

    Sink

    Sink

    Sink

    Source

    Passive Neighbor

    Active Neighbor

    (a) Communication Hole

    (b) Self-configuration transition

    (c) Final State

    ASCENT Basics

    • Node state: active or passive

      • Active nodes are in topology & forward data packets (using orthogonal routing mechanism that runs on topology)

      • Passive nodes can sleep or collect network measurements

    • Each node measures # of neighbors and packet loss locally

    • Each node then decides to join the network topology or to adapt (e.g. reducing its duty cycle to save energy)


    after Tt

    Test

    Active

    • neighbors < NT

    • and

    • loss > LT

    • loss < LT & help

    neighbors > NT (high ID for ties)

    or

    loss > loss T0

    after Tp

    Sleep

    Passive

    after Ts

    State Transitions

    NT: neighbor threshold

    LT: loss threshold

    Tx: state timer values (x = p: passive, s: sleep, t: test)


    Details
    Details

    • Each node adds a sequence number per packet (for loss detection)

    • Neighbor estimator: based on a neighbor loss threshold (NLT) = 1 – 1/N (N: number of neighbors in the previous cycle)

    • Neighbor threshold value (NT) determines the average degree of connectivity in the network

    • Loss threshold determines the maximum data loss application can tolerate

    • Relation between Tp/Ts (passive & sleep timers) determines amount of energy savings and convergence time


    Performance results2
    Performance Results

    Energy Savings (normalized to the Active case, all nodes turn on) as a function of density. ASCENT provides energy savings up to 5.5 times for high density scenarios


    ASCENT Energy Savings Analysis

    NT: neighbor threshold

    Tp: passive state timer

    Ts: sleep state timer

    Sleep: power radio off

    Idle: power radio on

    = Tp/Ts

    = Sleep/Idle = 0.004


    Topology control from a sensing perspective
    Topology Control from a Sensing Perspective

    So far we have considered only the communications perspective

    Sensing coverage model:

    • typically unit disk sensing

    • note: depends on object being sensed

      Node deployment model:

    • deterministic with (no failures or with isolated failures)

    • approximated by a pdf or is random (as a result of rampant errors)

      Coverage requirements:

    • Point coverage (deterministic or probabilistic guarantee)

    • Barrier coverage (deterministic or probabilistic guarantee)

    • Worst-case coverage: least exposed path

    • Tracking coverage: any uncovered path has length at most l


    Sensing coverage references
    Sensing Coverage References

    • Survey:

      “Coverage in Wireless Sensor Network”, Mihaela Cardei, Jie Wu

    • For 1-coverage:

      Pater Hall, "An Introduction to the Theory of Coverage Processes”, 1988

    • For k-coverage:

      Santosh Kumar and Balogh, Mobisys 2004

    • For k-coverage poisson deployment:

      Honghai Zhang and Jennifer Hou, Mobihoc 2004


    Coverage results
    Coverage Results

    • 1-point coverage with deterministic placement:

      • hexagonal layout is optimal

    • k-point coverage with deterministic placement :

      • question of optimal placement is open

    • k-point probabilistic coverage:

      • almost always k-coverage for poisson deployment

        nr2 ≥ ln(n) + k ln(ln(n)) + … (error term)

        where n is #sensors and r is sensing radius

      • almost always k-coverage for random uniform deployment

        has essentially same result


    Coverage algorithms
    Coverage Algorithms

    • Checking whether network is not suitably covered

      • point coverage violation check is possible locally

    • Maintaining coverage via sleep-wakeup

      • optimal scheme is NP-Complete, if deployment unknown

        (so heuristics used)

      • random independent scheduling, if deployment uniformly random

      • sentry rotation between redundant nodes in each cluster/region


    Both communication and sensing topology control
    Both Communication and Sensing Topology Control

    • Relation between sensing radius and communication radius

    • If Comm radius ≥ 2 x Sensing radius

      then (k-coverage  k-connectivity)


    ad
