Presentation Transcript
Slide1 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Neuroregeneration

Bear M. F., Connors B. W. Paradiso M. A. Neuroscience. Exploring the brain. 2007, 3d ed.

Lippincott Williams and Wilkins


Slide2 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Neuroregeneration

  • Terminology

  • Axon regeneration

  • Molecular and cellular mechanisms limiting axon

  • regeneration in CNS

  • Therapeutic strategies to promote axon regeneration

  • Neural stem cells

  • Stem cell therapy


Slide3 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Neuroregeneration

  • Terminology

  • Axon regeneration

  • Molecular and cellular mechanisms limiting axon

  • regeneration in CNS

  • Therapeutic strategies to promote axon regeneration

  • Neural stem cells

  • Stem cell therapy


Slide4 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Terminology

  • NEURODEGENERATION

The loss of neuronal processes (axons and dendrites) and death of nerve cells

  • NEURODEGENERATIVE DISORDER

A type of neurological disease marked by the loss of nerve cells: e.g. Alzheimer’s disease (AD), Parkinson’s disease PD), Huntington’s disease (HD)

  • REGENERATION

  • Growth anew of lost tissue or destroyed parts or organs

  • NEUROREGENERATION

  • Regeneration of the nervous tissue manifested by

  • Nerve (axon) regeneration

  • Neural stem-cell proliferation, migration and differentiation


Slide5 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Neuroregeneration

  • Terminology

  • Axon regeneration

  • Molecular and cellular mechanisms limiting axon

  • regeneration in CNS

  • Therapeutic strategies to promote axon regeneration

  • Neural stem cells

  • Stem cell therapy


Slide6 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Axon regeneration

  • Traumatic injury of the spinal cord that transects axon processes

  • results in permanent functional impairment, even when the neuronal

  • cell bodies that are located away from the injury site remain alive.

  • At present there are no clinical treatments available to stimulate

  • regeneration of cut axons within the CNS.

  • Although many CNS neurons can survive for years after axotomy, the

  • severed axons ultimately fail to regenerate beyond the lesion site, in

  • contrast to those in the PNS or embryonic nervous system.

  • Spinal cord injured patients receive high doses of the steroid

  • methylprednisolone immediately following injury to suppress an

  • unfavorable inflammatory reaction. This drug, however, does not

  • restore functions that are lost when axons are cut.


Slide7 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Changes in CNS environment after maturation and injury


Slide8 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Plastic mechanisms potentially contributing to recovery

after spinal cord injury


Slide9 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Methods

  • In vivo: animal models

  • In vitro: cell cultures

Left: neurons were grown on control fibroblasts

Right: neurons were grown on fibroblasts genetically engineered to express CAM


Slide10 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Neuroregeneration

  • Terminology

  • Axon regeneration

  • Molecular and cellular mechanisms limiting axon

  • regeneration in CNS

  • Therapeutic strategies to promote axon regeneration

  • Neural stem cells

  • Stem cell therapy


Slide11 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

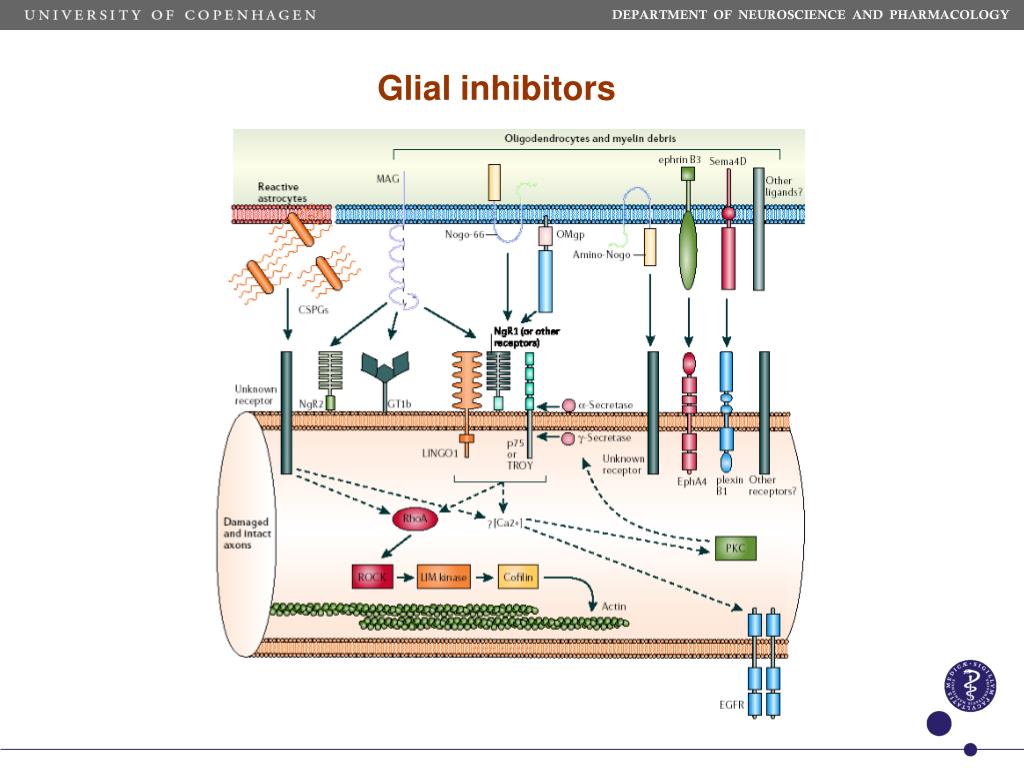

Inhibitors of axon regeneration

Growth inhibitory activity associated with myelin

  • Myelin-associated glycoprotein (MAG)

  • Growth inhibitory protein Nogo

  • Oligodendrocyte-myelin glycoprotein (OMgp)

  • Oligodendrocyte-proteoglycan NG2

Growth inhibitory activity present at the glial scar

  • Chondroitin sulfate proteoglycans (CSPG):

  • - versican

  • - phosphocan

  • - neurocan

Other factors limiting axon-regrowth

  • Inflammatory response

  • Alterations in the ECM

  • Upregulation of semaphorins, ephrins, tenascin-C



Slide13 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Neuroregeneration

  • Terminology

  • Axon regeneration

  • Molecular and cellular mechanisms limiting axon

  • regeneration in CNS

  • Therapeutic strategies to promote axon regeneration

  • Neural stem cells

  • Stem cell therapy


Slide14 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Strategies to promote axon regeneration

1. Neutralization of the inhibitory factors in the injured CNS

- Ab infusion (MonAb, IN-1, against Nogo-A )

- A therapeutic vaccine approach

- Passive immunization at the time of lesion

- Antagonist peptide (Nogo-66 NEP1-40 peptide)

- Inhibition of Rho signaling (Y-27632, an inhibitor of p160ROCK)

- Inhibiting CSPG (Chondroitinase ABC)

- Anti-scarring treatment (inhibition of fibroblast proliferation)

2. Stimulation of axon regeneration by modulating the neuronal

signaling responses:

- Treatment with neurotrophic factors (NGF, BDNF, NT-3,

GDNF, LIF, FGF-2)

3. Cell transplantation: e.g. Schwann cells, fibroblasts modified to

express trophic factors, fetal spinal cord transplants, embryonic

stem cells etc.


Slide15 l.jpg

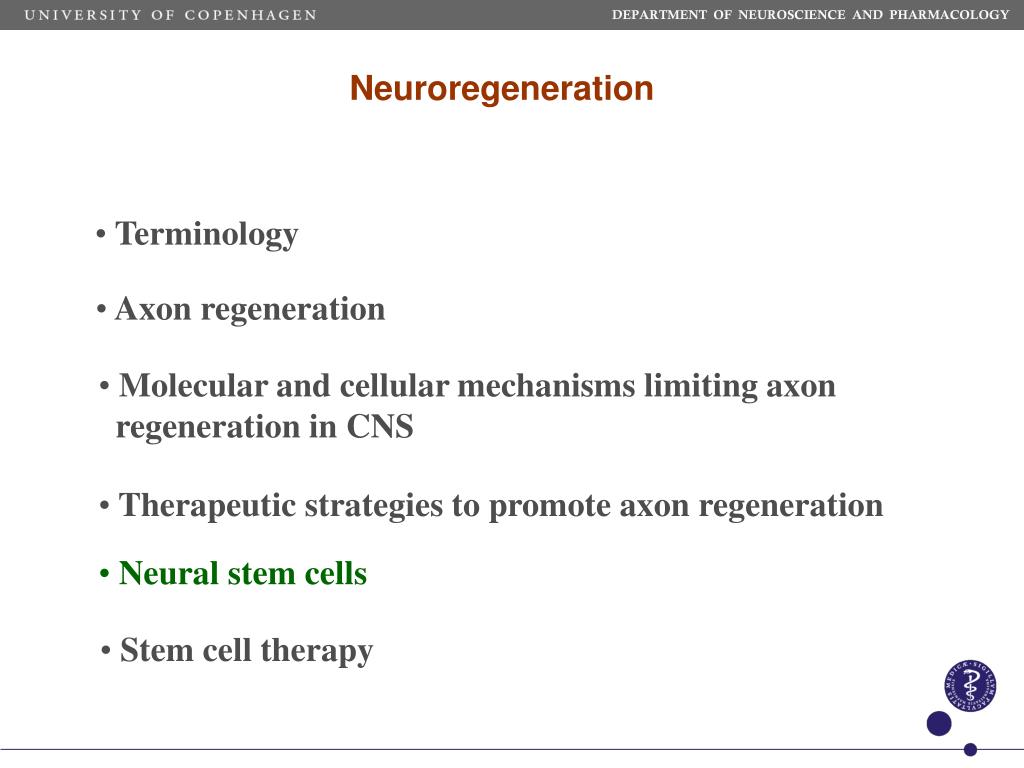

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Neuroregeneration

  • Terminology

  • Axon regeneration

  • Molecular and cellular mechanisms limiting axon

  • regeneration in CNS

  • Therapeutic strategies to promote axon regeneration

  • Neural stem cells

  • Stem cell therapy


Slide16 l.jpg

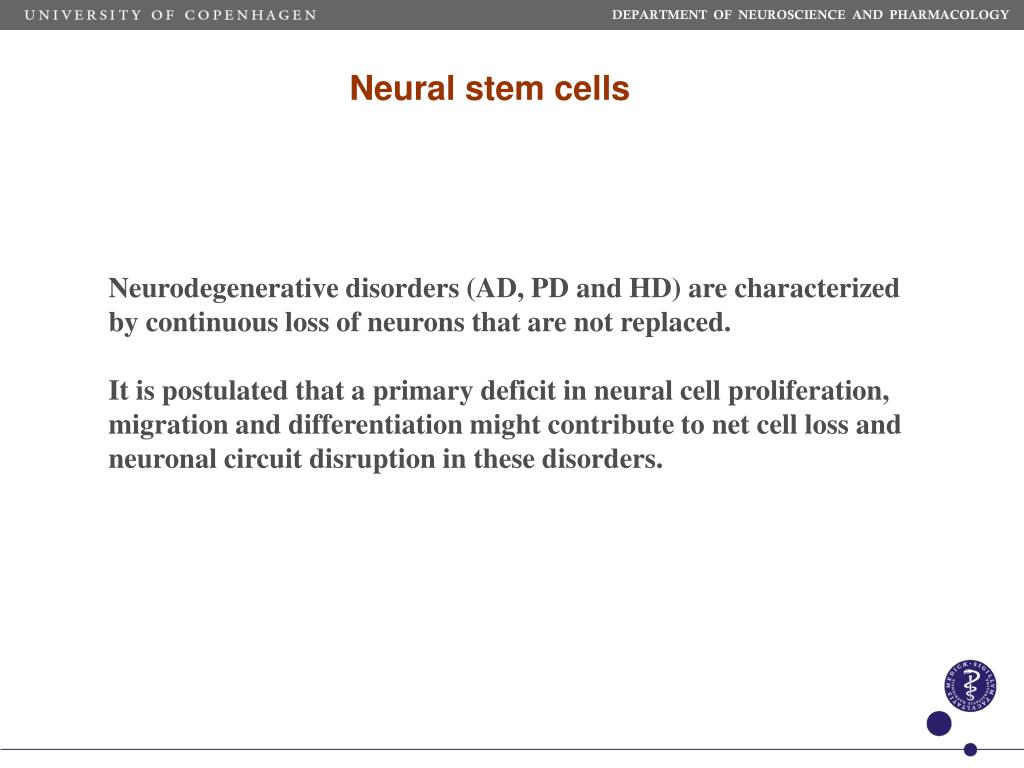

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Neural stem cells

Neurodegenerative disorders (AD, PD and HD) are characterized

by continuous loss of neurons that are not replaced.

It is postulated that a primary deficit in neural cell proliferation,

migration and differentiation might contribute to net cell loss and

neuronal circuit disruption in these disorders.


Slide17 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Neural stem cells

Ventricular and subventricular zones

in the wall of the lateral ventricle

adjacent to the caudate-putamen

Subgranular

zone of the

hippocampus

NSC

Migration of NSC

Olfactory bulb

Differentiation

Integration

NSC

Neurons

Dentate gyrus

NPC

Differentiation

Local interneurons


Slide18 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Neural stem cell niches

The SVZ niche, cell types

and stem cell lineage

The DG neurogenic niche,

cell types and lineage

SVZ, subventricular zone; DG, dentate gyrus; LV, lateral ventricle; BL, specialized

basal lamina; BV, blood vessels; A (red), neuroblasts; B (blue), neural stem cells

(SVZ astrocytes); C (green), transit rapidly amplifying cells; D (yellow), precursors;

G (red), neurons


Slide19 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Stem and progenitor cells in the adult human brain

The human temporal lobe: it includes periventricular neural stem cells (red) that generate at least

three populations of potentially neurogenic transit amplifying progenitors of both neuronal and

glial lineages (yellow). These include the neuronal progenitor cells of the ventricular subependyma,

those of the SGZ of the dentate gyrus, and the glial progenitor cells of the subcortical white matter.

Each transit amplifying pool may then give rise to differentiated progeny appropriate to their

locations, including neurons (purple), oligodendrocytes (green), and parenchymal astrocytes

(blue).


Slide20 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Neuroregeneration

  • Terminology

  • Axon regeneration

  • Molecular and cellular mechanisms limiting axon

  • regeneration in CNS

  • Therapeutic strategies to promote axon regeneration

  • Neural stem cells

  • Stem cell therapy


Slide21 l.jpg

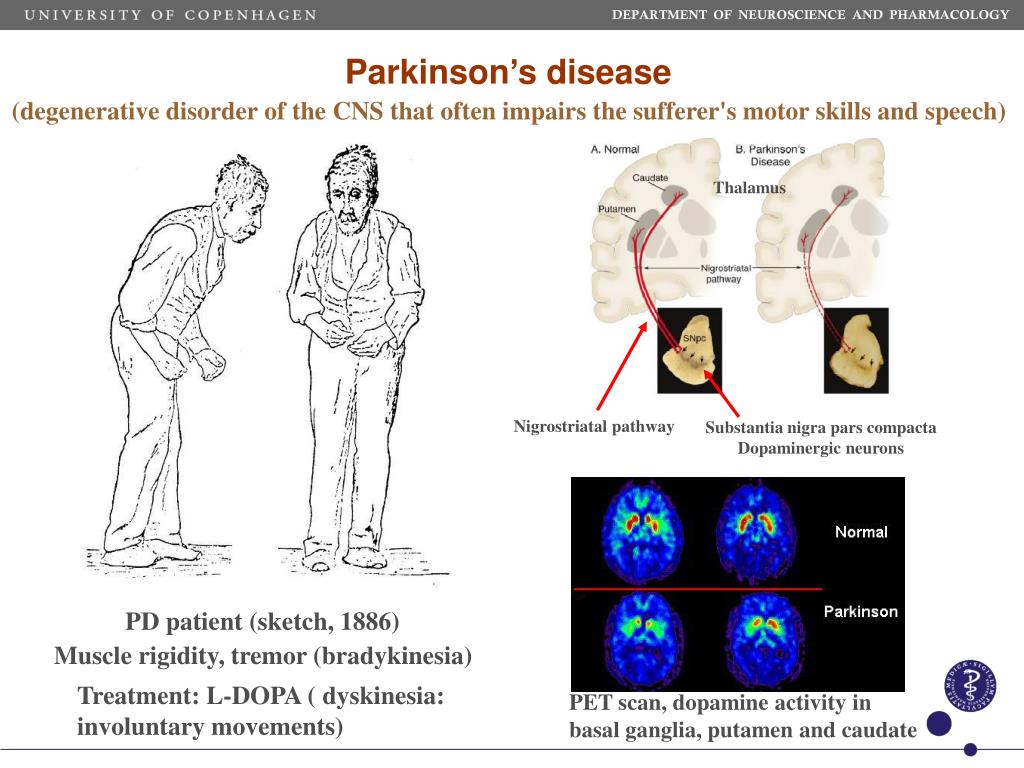

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Thalamus

Nigrostriatal pathway

Substantia nigra pars compacta

Dopaminergic neurons

Parkinson’s disease

(degenerative disorder of the CNS that often impairs the sufferer's motor skills and speech)

PD patient (sketch, 1886)

Muscle rigidity, tremor (bradykinesia)

Treatment: L-DOPA ( dyskinesia:

involuntary movements)

PET scan, dopamine activity in

basal ganglia, putamen and caudate


Slide22 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Developmental pathway of dopamine neurons


Slide23 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Alternative sources of stem cells for transplantation in PD


Slide24 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Present limitations in the development of the hESC-based therapy for PD


Slide25 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Generation of dopamine neurons from autologous human mesenchimal stem cells (MSCs)


Slide26 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Main points

Neural degeneration in the central nervous system is manifested by the loss of neuronal processes (axons

and dendrites) and death of nerve cells resulting in dysfunctional plasticity and cognitive impairment.

Traumatic injury of the spinal cord that transects neuronal processes results in permanent functional

impairment, even when the neuronal cell bodies that allocated away from the injury site remain alive.

The glial environment in the adult CNS, which includes inhibitory

molecules in CNS myelin as well as proteoglycans associated with astroglial scaring, might present a major

hurdle for successful axon regeneration.

Therefore, targeting the inhibitory components of the adult glial environment might not only promote the

regeneration of the damaged nerve fibers but also enhance axon sprouting and plasticity after CNS injury.

Neural stem cells, able to self renew and give rise to both neurons and glia, line the cerebral ventricles of

the adult human brain. These various stem and progenitor cell types may provide targets for

pharmacotherapy for a variety of disorders of the central nervous system. Each resident progenitor type

may be immortalized and induced to differentiate in vivo by the actions of both exogenous factors and

small molecule, modulators of progenitor selective signaling pathways.

Stem cell transplantation to replace the degenerated neurons may be a promising therapy for PD.

There are three sources of stem cells currently in testing: embryonic stem cell, neural stem cells and

mesenchymal stem cells. Future stem cell research should focus not only on ameliorating the symptoms

of PD, but also on neuroprotection or neural rescue that can favorably modify the natural course and

slow the progression of the disease.


Slide27 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Helpful reading

  • Blesch A and Tuzhynski MH (2009) Spinal cord injury: plasticity, regeneration and the challenge of translational drug development. TINS 32:41-47.

  • Li J-Y et al. (2008) Lewy bodies in grafted neurons in subjects with Parkinson’s disease suggest host-to-graft disease propagation. Nat Medicine 14:501-503.

  • Goldman SA (2007) Disease targets and strategies for the therapeutic modulation of endogenous neural stem and progenitor cells. Clin Pharm Therapeutics. 82:453-460.

  • Ma QH et al. (2007) Physiological role of neurite outgrowth inhibitors in myelinated axons of the central nervous system – implications for the therapeutic neutralization on neurite outgrowth inhibitors. Curr Pharm Des. 13:2529-2537.

  • Trzaska KA et al. (2007) Current advances in the treatment of Parkinson's disease with stem cells. Curr Neurovasc Res. 4:99-109.

  • Yiu G et al. (2006) Glial inhibition of CNS axon regeneration. Nat Rev Neurosci. 7:617-627.

  • Correia AS et al. (2005) Stem cell-based therapy for Parkinson's disease. Ann Med. 37:487-498.

  • Wang Y et al. (2007) Stem cell transplantation: A promising therapy for Parkinson’s disease. J Neuroimmune Pharmacol. 2:243-250.


Slide28 l.jpg

DEPARTMENT OF NEUROSCIENCE AND PHARMACOLOGY

Presentation

http://plab.ku.dk

Professors

Vladimir Berezin

Neuroregeneration
