Ambulance dispatch system l.jpg

Ambulance Dispatch System

Design Document


Goals l.jpg
Goals

  • Meet national standard

    • Dispatch within 3 minutes of call

    • Arrive within 11 minutes

    • Total of 14 minutes response time

  • Constraint

    • Cost

    • Ready by Q1 2007


Current system l.jpg
Current system

  • A paper-based system is currently in place

    • Difficult to organize

    • Inefficient

    • One incident may have multiple ambulances accidentally dispatched to it


Proposed system l.jpg
Proposed System

  • Operators submit incidents through a computer interface

  • Dispatchers handle incidents and dispatch ambulances

    • Dispatcher interface shows map of incidents and ambulances

    • Ambulances tracked through GPS


Reliability l.jpg

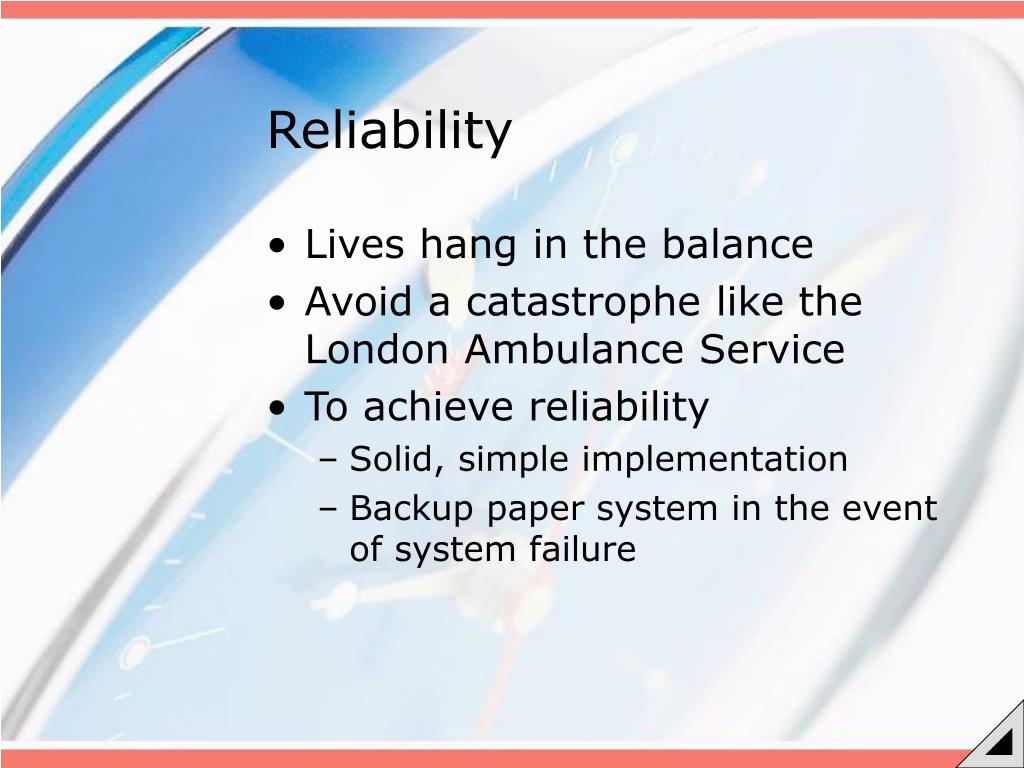

Reliability

  • Lives hang in the balance

  • Avoid a catastrophe like the London Ambulance Service

  • To achieve reliability

    • Solid, simple implementation

    • Backup paper system in the event of system failure


Backup paper system l.jpg

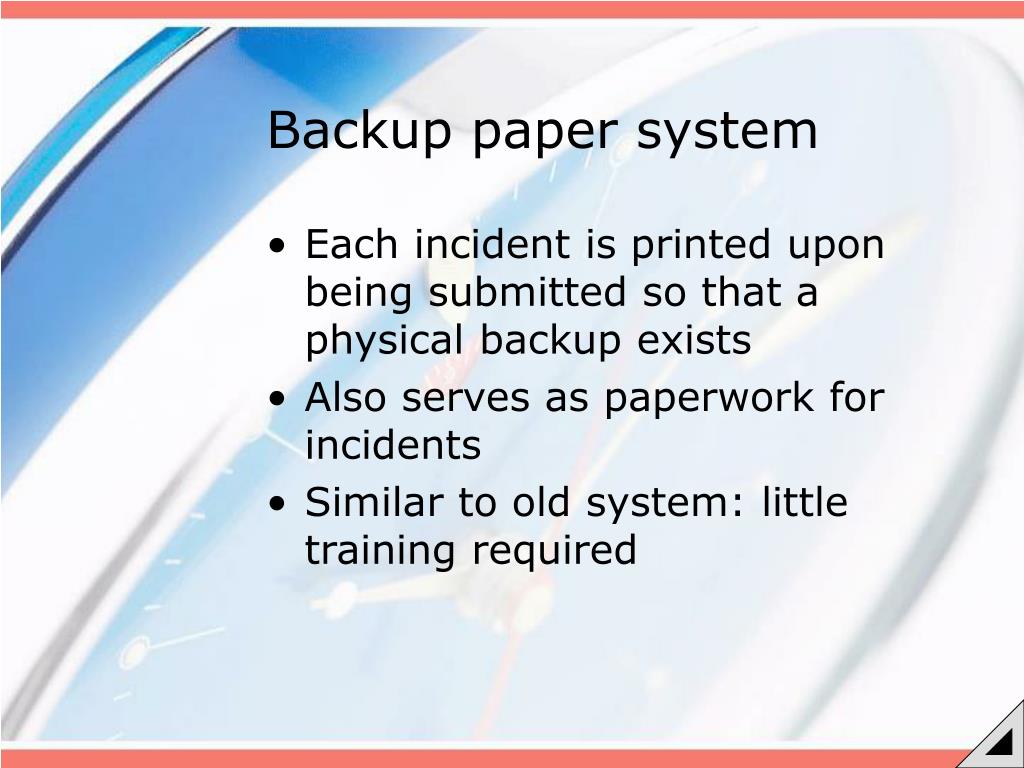

Backup paper system

  • Each incident is printed upon being submitted so that a physical backup exists

  • Also serves as paperwork for incidents

  • Similar to old system: little training required


Phase 1 l.jpg
Phase 1

  • Electronic Form Database

  • Operator interface

  • Dispatch interface

    • Manual ambulance dispatch status


Phase 2 l.jpg
Phase 2

  • Install Ambulance GPS System

  • Best route algorithm

  • Duplicate form check

  • Incident printouts

  • Roads changeable (for traffic, construction)



Databases l.jpg
Databases

  • Form database stores current and past incidents

  • Ambulance database keeps updated information of ambulance GPS locations and status

  • Map data will be acquired from NAVTEQ, processed into regions, and saved as files on the server


Operator interface l.jpg
Operator Interface

  • Allows Operator to add, edit, and search for forms

  • Submitting to database will call a checkDuplicate() function

    • Prompts operator to edit, replace, or keep existing form

  • Tabbed interface to switch between multiple forms


Operator interface mockup l.jpg

New form

3 car pileup

Person fainted

File Edit Window Help

-

x

  • 2:15 - 3 car pileup, Route 44 and Freemont

  • 2:03 – heart attack, 1301 Lily Ln

  • 1:30 – person fainted, 900 Pearson Dr.

Operator Interface Mockup

x

Brief description

Address

Caller name

Contact number

Full Description

New

Edit

Submit

Search


Operator interface mockup13 l.jpg

New form

3 car pileup

Person fainted

File Edit Window Help

-

x

  • 2:15 - 3 car pileup, Route 44 and Freemont

  • 2:03 – heart attack, 1301 Lily Ln

  • 1:30 – person fainted, 900 Pearson Dr.

Operator Interface Mockup

x

Brief description

Address

3 car pileup

Route 44 and Freemont

Caller name

Contact number

Thomas Peterson

555-555-0921

Full Description

Front two cars were rear-ended at high speed and spun out of control. One person is unconcious and two others may have neck injuries.

New

Edit

Submit

Search



Functions of operator interface l.jpg
Functions of Operator Interface

checkDuplicateForm()

  • Checks each new form against database

  • Looks for similar caller or close address


Advantages l.jpg
Advantages

  • Reduce labor costs normally required to keep paper system organized

  • Automatically prioritizes incidents to meet three minute national standard for dispatch time

  • Detects potential duplicate forms


Dispatcher interface l.jpg
Dispatcher Interface

  • Allows dispatcher to see region.

  • System recommends best ambulances for an incident and displays route.

  • Dispatcher can remove incidents once resolved.

  • Dispatcher can change map to reflect traffic and construction.



Dispatcher interface mockup l.jpg

Region 2

3 car pileup

Person fainted

File Edit Window Help

-

x

  • 2:15 - 3 car pileup, Route 44 and Freemont

  • 2:03 – heart attack, 1301 Lily Ln

  • 1:30 – person fainted, 900 Pearson Dr.

Dispatcher Interface Mockup

1

H

Amb. 904

Dispatched to incident 1

2

H

Search


Functions dispatcher interface l.jpg
Functions Dispatcher Interface

  • Roads and Junctions

    • Load a region map

    • Make road passable or impassable for checkBestAmbulance function

  • checkBestAmbulance()

    • Picks recommends best ambulance, displays route

    • Uses Dijkrstra’s Shortest Path Algorithm

    • Dispatcher makes final decision


Advantages21 l.jpg
Advantages

  • Dispatcher interface

    • Automatically maps incidents and shows ambulance locations

    • Recommends ambulance and provides route information

    • Dispatcher has final say in which ambulance to dispatch

    • Will provide information necessary to meet eleven minute national standard for travel time


Conclusion l.jpg
Conclusion

  • Three Part System:

    • Database

    • Operators

    • Dispatchers

  • Reliability in Data Handling and System Function

  • Easy-to-navigate interface

    Much more efficient than old model
