SEMESTER EXAM. REVIEW. S. T. U. V. Which of the following best describes what  SVT and TVU have in common?. A. A. B. C. O. F. D. E. Which of the following is a pair of supplementary angles?. D. A. F. B. N. J. C. G. M. K. H. D. E. I. S. Q. T. U.

Download Presentation

SEMESTER EXAM

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Semester exam

SEMESTER

EXAM

REVIEW


Semester exam

S

T

U

V

Which of the following

best describes what

 SVTand TVU have in common?

A


Semester exam

A

B

C

O

F

D

E

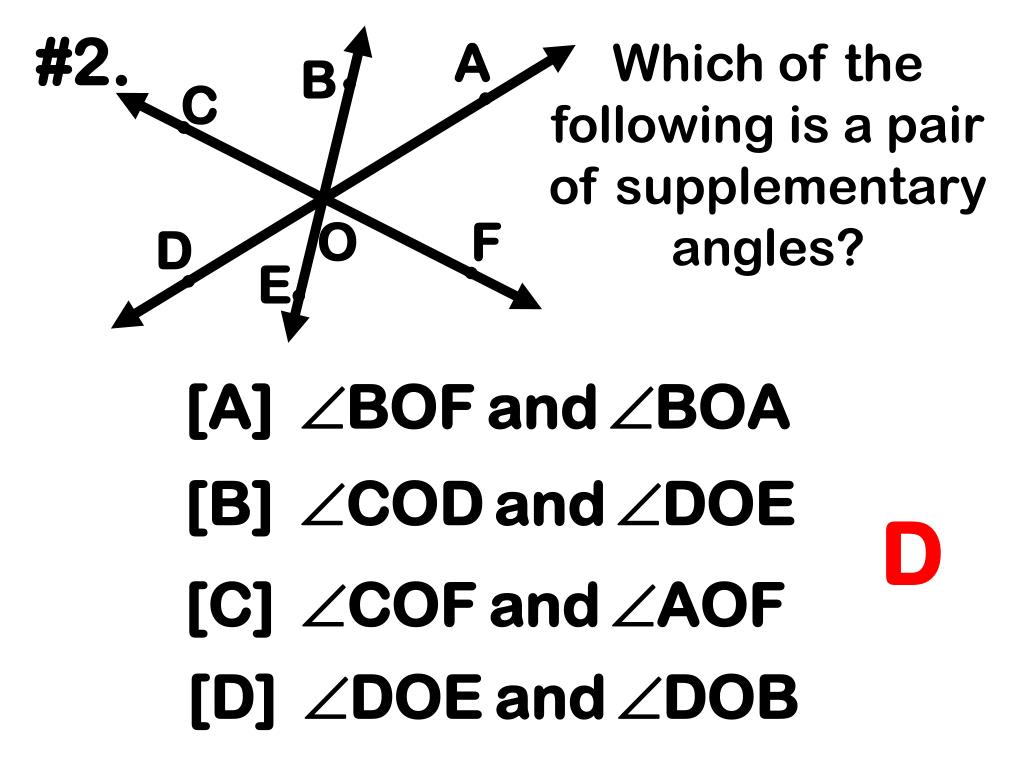

Which of the following is a pair of supplementary angles?

D


Semester exam

A

F

B

N

J

C

G

M

K

H

D

E

I

S

Q

T

U

Which two angles

are adjacent?

C


Semester exam

Plane P contains points A, B, and C. A different plane, plane Q, contains points B, C, and D. Which of the following represents the intersection of P and Q?

B


Semester exam

What are the coordinates of the midpoint of

EF?

F(- 6, 10, 0)

E(3, 4, - 5)

B


Semester exam

What is the approximate distance between the points (- 13, 8) and

(206, 196) in the xy-plane?

C


Semester exam

Mt. Lookout (78,71)

Using the map, the highway department locates two exits between Tomstown and Mount Lookout. From Tomstown, Exit 1 is halfway to Mount Lookout, and Exit 2 is three-fourths of the way to Mount Lookout. What are the coordinates for Exit 2?

Exit 2

Exit 1

Tomstown (2, 3)

B


Semester exam

In the xy-plane, (-3, 1) and (4, 3) are endpoints of a diameter of a circle. What are the coordinates of the center of the circle?

A


Semester exam

(12, 9)

(0,8)

(12, 3)

(0,2)

The county planning department designs a new park in the shape of a parallelogram. They put in two diagonal walkways.

What will be the coordinates of the intersection of the diagonal walkways?

D


Semester exam

Given: m1 = 4 x,

m 2 = (3 x + 10), and

m 3 = (2 x + 17). What is m  2?

A


Semester exam

A

B

1

C

D

If ABCD is a rhombus and

m  ABC = 80, what is the measure of

 1?

A


Semester exam

ABCD is a parallelogram. If

m BCD = (6 x – 20) and

m DAB = (2 x + 80), what is the value of x?

D


Semester exam

M

12 in.

25 in.

N

28 in.

O

Which of the following statements about the picture is true?

B


Semester exam

If two angles are supplementary, then they form a linear pair.

If two angles are not supplementary, then they form a linear pair.

If two angles form a linear pair, then they are supplementary.

If two angles do not form a linear pair, then they are supplementary.

Write the following statement in “If-then” form.

B

“Two angles that form a linear pair are supplementary.”


Semester exam

If the triangle is not scalene, then there are two congruent angles.

If two angles of a triangle are congruent, then the triangle is scalene.

If there are two congruent angles in a triangle, then the triangle is not scalene.

If the triangle is not scalene, then there are no congruent angles.

What is the inverse of the statement below?

If a triangle is scalene, then no two angles are congruent.

A


Semester exam

If the triangle does not have two congruent sides, then it is not isosceles.

If a triangle has two congruent sides, then it is isosceles.

If a triangle is isosceles, then it has two congruent sides.

A triangle has two congruent sides if and only if it is isosceles.

What is the contrapositive ofthe statement below?

If a triangle is isosceles, then it has two congruent sides.

A


Semester exam

A is an acute angle.

A is not an acute angle.

The complement of A is not an acute angle.

The supplement of A is not an acute angle.

The conditional statement “All 45° angles are acute angles” is true. Based on the conditional statement, which of the following can be concluded from the additional statement “The measure of  A is 45°”?

A


Semester exam

then alternate interior angles are congruent.

then vertical angles are congruent.

then alternate exterior angles are congruent.

then corresponding angles are congruent.

t

n

If k | | m | | n,

Which of the statements justifies the conclusion that 1  2  3?

3

m

2

k

1

D


Semester exam

A

D

C

B

It is given that AC  AD andCAB  DAB. By the reflexive property of congruent segments, AB  AB.

side-angle-side

hypotenuse-leg

side-side-side

angle-side-angle

Which reason could be used to prove

ΔABC  ΔABD?

A


Semester exam

A

M

B

C

D

Given: ABCD is an isosceles trapezoid. M is the midpoint of AB.

Prove: DM  CM


Semester exam

AM  MB

Def of midpoint

AD  BC

DM  CM

M is the

midpoint of AB.

ABCD is an

isosceles trap.

given

given

Def isos.trap.

CPCTC

?

ΔADM ΔBCM


Semester exam

What is the missing statement and reason that completes the proof?

AD  BC; the legs of an isosceles trapezoid are congruent.

MAD  MBC; the base angles of an isos. trap. are congruent

AM  BM; corresponding parts of congruent triangles are congruent

 ABC  DAB; if lines are parallel, s-s int.angles are supp.

B


Semester exam

X

Y

B

A

C

Given: Δ ABC

Prove: m  BAC + m  ABC + m  BCA

= 180


Semester exam

STATEMENTS

REASONS

  • Exactly one parallel line can be

  • drawn to given line from pt. not on

  • line.

  • Draw XY through B and parallel

  • to AC.

2) XBA and ABY form a linear pair.

2) Definition of a linear pair

3) m  XBA + m ABY = 180

3) The sum of the measures of the

angles of a linear pair is 180.

4) m  ABC + m CBY = m  ABY

4) Angle Addition Postulate

5) Substitution

5) m  XBA + m ABC + m  CBY

= 180

6) ____________________________

6) CBY  BCA and  XBA   BAC

7) Definition of congruent angles

7) m CBY = m BCA and

m  XBA = m  BAC

  • Substitution

  • m  BAC + m  ABC + m  BCA

  • = 180


Semester exam

What is the reason for statement 6 in the proof?

Alternate interior angles of parallel lines are congruent.

Alternate exterior angles of parallel lines are congruent.

Vertical angles of parallel lines are congruent.

Corresponding angles of parallel lines are congruent.

A


Semester exam

40°

y

x

40

60

60°

100

80

What is the measure of angle y?

D


Semester exam

B

BD is the angle bisector of ABC. If m A = m  C = 50, what is m  ABD?

C

A

D

30

40

50

45

B


Semester exam

OB bisects  AOC. If m AOB = (3 x + 16) and m  BOC = (8 x – 14), what is m  AOB?

18

26

48

34

C


Semester exam

c

2

1

a

Line a is parallel to line b.

4

3

Line a is parallel to line c.

b

Line a is perpendicular to line c.

Line b is perpendicular to line c.

  • 1 is supplementary to

  • 3 under which of the following conditions?

A


Semester exam

triangle

hexagon

pentagon

quadrilateral

For which type of convex polygon is the sum of the measures of the interior angles equal to the sum of the measures of the exterior angles, one at each vertex?

D


Semester exam

Q

R

S

120°

P

T

240

360

U

720

600

If m  P = 120º, what is the sum of the measures of the remaining interior angles?

C


Semester exam

4

5

8

9

The measure of each exterior angle of a regular polygon is 45. How many sides does the polygon have?

C


Semester exam

(2, 1)

(3, 2)

(4, 1)

(5, 1)

An isosceles triangle has vertices at (1,1) and (3, 3). Which of the following could be the coordinates of the third vertex?

D


Semester exam

isosceles

right

scalene

equilateral

Triangle MNO has vertices with coordinates M (0, 2),

N (1, 0), and O (5, 1). What type of triangle is ΔMNO?

C


Semester exam

In triangle XYZ, W is between Y and Z. The coordinates are X (2, 3),

Y (5, 0), Z (0, 0), and

W (2, 0). What is

XW?

altitude

angle bisector

median

perpendicular bisector of the side

A


Semester exam

parallelogram

rectangle

rhombus

trapezoid

What is the most specific name for quadrilateral ABCD with vertices A (0, 0), B (3, 4), C (6, 0), and

D (3, - 4)?

C


Semester exam

16

18

24

32

In rectangle ABCD, diagonal

AC = (3 x – 9) and diagonal

BD = (x + 13). What is AC?

C


Semester exam

20

16

10

8

In parallelogram RSTU, the diagonals intersect at E.

If RE = 10 and

SU = 16, what is RT?

A


Semester exam

C

B

A

3

2

1

an infinite number

If points A, B, C, and D form a trapezoid, how many ordered pairs could represent D?

D


Semester exam

ABCD is a trapezoid with median EF. What is the length of AB?

A

B

x - 5

13

15

12

E

F

C

D

2x - 1

5 units

7 units

9 units

10 units

A


Semester exam

4 < x < 10

4 ≤ x ≤ 10

x > 4

x < 10

If the sides of a triangle are 3, 7, and x, which of the following best describes x?

A


Semester exam

C

Y

X

A

B

In ΔABC, X is the midpoint of AC and Y is the midpoint of BC. If m  C = 67 and

m  A = 72, what is m  CYX?

41

36

72

67

B


Semester exam

A triangle has interior angles that measure 3 x,

(2 x + 15), and (x + 45). What is the measure of the largest exterior angle?

B


Semester exam

In ΔABC, Z is the midpoint of AC and Y is the midpoint of BC. If YZ = 21 and

AB = (2 x – 4), what is x?

B

Y

C

Z

A

C


Semester exam

PQ is parallel to RS.

PQ is perpendicular to RS.

PR is perpendicular to QS.

PR is parallel to QS.

Given points P (7, 5),

Q (8, 3), R (0, - 1), and

(- 1, 1), which of the following is true?

A


Semester exam

Which is an equation of a line parallel to:

A


Semester exam

What is the slope of the line that is perpendicular to the line whose equation is:

C


Semester exam

ABCD is a rhombus. The slope of AB is 3/8. What is the slope of DC?

B


Semester exam

Which of the following is an equation of the line perpendicular to:

D


Semester exam

P

k

Line k contains point P and the origin. Which is an equation of the line that is perpendicular to line k and passes through point P?

D
