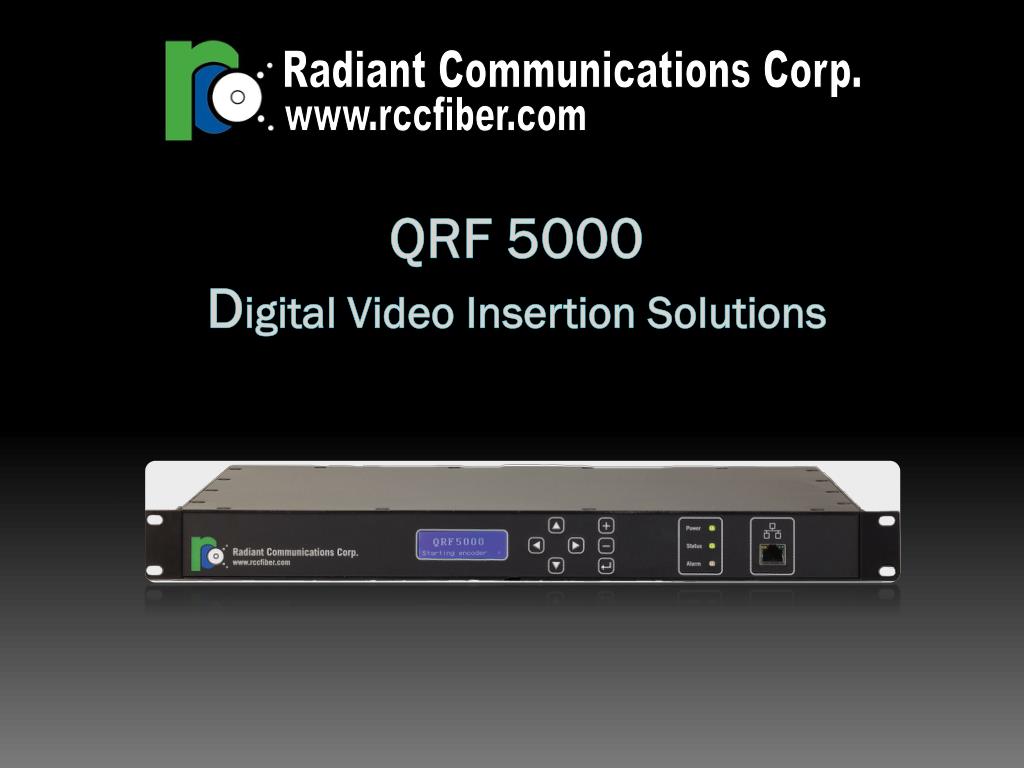

Qrf 5000 d igital video insertion solutions

Radiant Communications Corp.

www.rccfiber.com

QRF 5000Digital Video Insertion Solutions


Overview

Overview

  • The QRF 5000 product family allows cable operators to easily insert analog video(s) into existing digital cable networks.

    • QRF5000-1(2)- One (Two) Channel Inserter

    • QRF5010 - Two Channel Expansion

    • QRF5200 - QAM Tuner/Filter

    • QRF5000DQ-1(2) - Integrated Tuner/Inserter 1 (2)Ch.

    • QRF5000-HD- High Definition insertion

    • QRF5005- ASI->QAM Modulator

    • QRF5000/W - Wall Mount Package

    • QRF5000/M- Mini Package


Qrf5000 1 qrf5000 2

QRF5000-1 / QRF5000-2

  • One or two channel inserter

  • Single Box Solution – Includes:

    • Encoder(s)

    • QAM

    • RF up-converter

    • Front Panel LCD

    • Network Interface

    • RS-232 Interface


Qrf5000 1 qrf5000 2 cont

QRF5000-1 / QRF5000-2 (cont.)

  • Easy Connectivity

Connect Video and Audio Sources

Connect Power

Connect Expansion port (if used)

Connect Output to Cable Network


Network connectivity

Network Connectivity

Notch *

Coupler

Cable In

Cable Out

QRF5000

* Notch Required only if desired channel is currently utilized


Qrf5010

QRF5010

  • Two channel daisy chain expansion encoder

  • Single Box Solution – Includes:

    • Encoders

    • Front Panel LCD

    • Network Interface

    • RS-232 Interface

  • Expansion capability limited only by accumulated encoding bit rates and QAM rate


Qrf5010 cont

QRF5010 (cont.)

  • Daisy Chain for increased capacity

QRF5000

QRF5010

QRF5010

QRF5010


Qrf5200

QRF5200

  • Digital QAM Tuner / Filter

  • 57-861MHz Tuning Range

  • 64 / 256 QAM capable

  • Standard set-top box input range

  • Add filters to create bandwidth for local channels

  • ASI output for direct connectivity into QRF5000


Qrf5200 connectivity

QRF5200 Connectivity

QRF5200

ASI output to QRF5000 / QRF5010

Cable In

  • Connect Cable from plant to QRF5200

  • Tune QRF5200 to digital QAM channel

  • Use QRF5200 to see active services

  • Use QRF5200 to filter unwanted services to create bandwidth for local insertion

  • QRF5200 outputs directly to QRF5000 or QRF5010


System connectivity example

System Connectivity Example

Coupler

Notch

Coupler

Cable In

Cable Out

QRF5010

QRF5010

QRF5200

QRF5000

1. Start with QRF5000 and set output frequency as desired

2. Add QRF5010 expansions as needed

3. Add QRF5200, set tuner frequency and filter out unwanted channels to create bandwidth for local insertion

4. Connect to cable network as shown.


Qrf5000dq 1 qrf5000dq 2

QRF5000DQ-1 / QRF5000DQ-2

  • Single Box solution combines:

    • Digital QAM Tuner

    • Digital Service Filter

    • Local Video / Audio Encoder(s)

    • QAM Modulation

    • Agile RF Up-conversion

  • Maintains ASI expansion port for adding more channels via QRF5010.


System connectivity qrf5000dq

System Connectivity –QRF5000DQ

Coupler

Coupler

Notch

Cable In

Cable Out

QRF5000DQ

  • Simplifies system connectivity by integrating multiple functions into one product.

  • Notch remains separate to maintain frequency flexibility

  • Additional channels can still be added using QRF5010’s as required.


Qrf5000 w wall mount

QRF5000/W Wall Mount

  • New Rugged Wall mount package includes the following features:

    • 1 or 2 channels, with Tuner

    • Mount for integrated notch filter

    • Integrated couplers and splitters

    • Optional Integrated Bypass switch

    • Input and Output test ports

    • Cable modem port

    • Lockable cabinet


Qrf5000 w wall mount1

QRF5000/W Wall mount


Qrf5000 m mini enclosure

QRF5000/M Mini enclosure

  • Cost effective, small enclosure

  • 1 or 2 channels with tuner (DQ) optional

  • Tiny, lightweight package - 7” x 3” x 9”

  • Front Panel indicators

    • Power, Status, Alarm

  • Network controlled and configured


Qrf5000 w wall mount2

QRF5000/W Wall mount


Qrf5000 configuration

QRF5000 Configuration

  • Front Panel

  • RS232 Serial Interface

  • Telnet

  • REP Manager - Application GUI


Qrf5000 hd

QRF5000-HD

  • High Definition digital insertion

  • Single Box solution combines:

    • IEEE-1394 (Firewire) STB interface

    • QAM Modulation

    • Agile RF Up-conversion


System connectivity qrf5000 hd

System Connectivity –QRF5000-HD

Coupler

Coupler

Notch

Cable

In

Cable Out

STB

QRF5000HD

  • Tune STB to High Definition channel for decryption.

  • Connect IEEE-1394 port to QRF5000HD

  • Modulate into system for clear channel HD distribution


Qrf5005

QRF5005

  • ASI – QAM Modulation

  • Single Box solution combines:

    • Digital ASI interface

    • QAM Modulation

    • Agile RF Up-conversion


Front panel configuration

Front Panel Configuration

  • 122x32 pixel Graphical LCD

  • 7 control buttons

  • 3 Bi-Color LED’s

    • Power

    • Status

    • Alarm

  • Full menu navigation and configuration capability

  • Password protected


Rep manager

REP Manager

  • Discover Utility

  • Remote Configuration

  • Remote status monitoring

  • Handles multiple units simultaneously

  • Utilizes configuration files for saving and loading system settings.


Rep manager screen shots

REP Manager – screen shots


Applications

Applications

  • MDU-Gated Communities.

  • High Rise Buildings

  • College Campuses

  • Hotels-Hospitalities

  • PEG Channels


Specifications

Specifications

  • Encoding:

    • MPEG2

    • 1-15Mbps CBR encoding range

    • Composite or S-Video Inputs

    • Variable PID selections

  • Modulation

    • QAM 64/256 Annex A,B,C

    • Adjustable Inter-leaver

  • RF Output

    • Agile RF up-conversion

    • 46-62dBmV output power

    • 93-876MHz output frequency

  • Tuner

    • 57-861MHz Tuning Range

    • 64 / 256 QAM capable

    • 0 dBmv nominal input +/- 12dB input range


Availability

Availability

  • Contact factory for pricing and availability

  • Radiant Communications, Inc.

    5001 Hadley Road

    South Plainfield, NJ 07080

    (908) 757-7444

    www.rccfiber.com
