How do Temp & Pressure affect mass flow rate?. m – Mass flow rate A – Area of valve opening P – Pressure T – Temperature γ – Specific Heat Ratio R – Gas Constant. How do Temp & Pressure affect mass flow rate?. Volume remains constant in chamber
E N D
How do Temp & Pressure affect mass flow rate? • m – Mass flow rate • A – Area of valve opening • P – Pressure • T – Temperature • γ – Specific Heat Ratio • R – Gas Constant

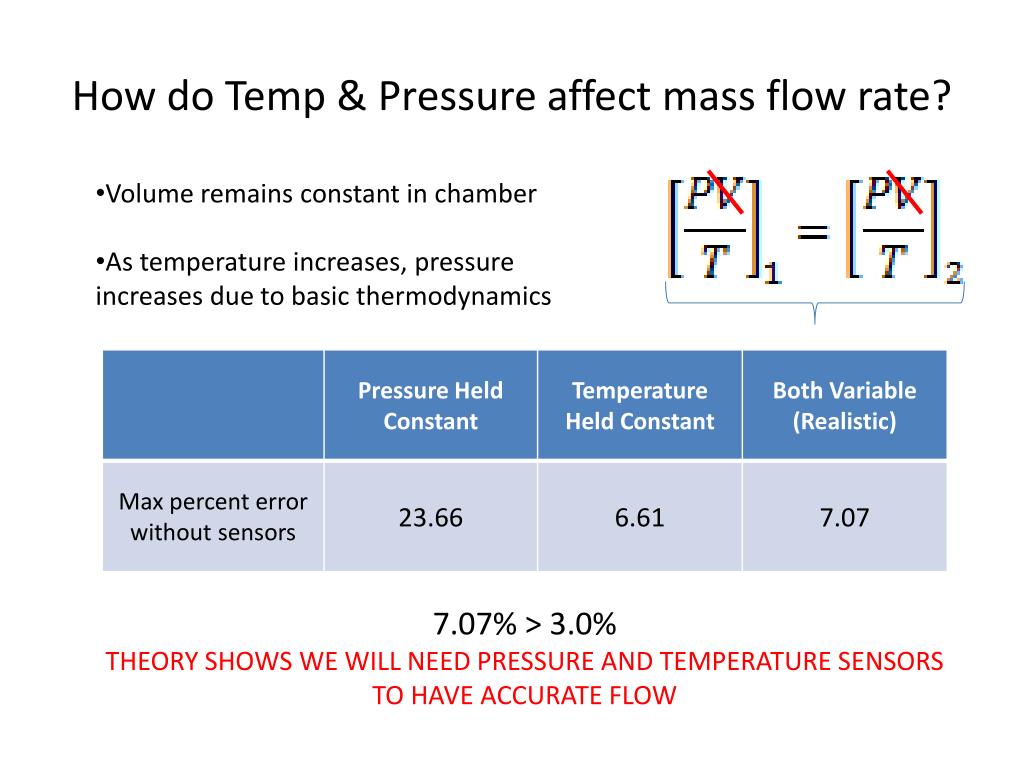

How do Temp & Pressure affect mass flow rate? • Volume remains constant in chamber • As temperature increases, pressure increases due to basic thermodynamics 7.07% > 3.0% THEORY SHOWS WE WILL NEED PRESSURE AND TEMPERATURE SENSORS TO HAVE ACCURATE FLOW
