Key negotiation for BAB

Key negotiation for BAB. Per hop HMAC – keyed hash function Symmetric keys Keys negotiated via LU protocol at right PKI used is Identity Based Encryption Public key is EID Elliptic curve crypto system Built on MIRACL cryptography library Keys and negotiation state stored in LU keystore

nishi
Download Presentation

Key negotiation for BAB

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

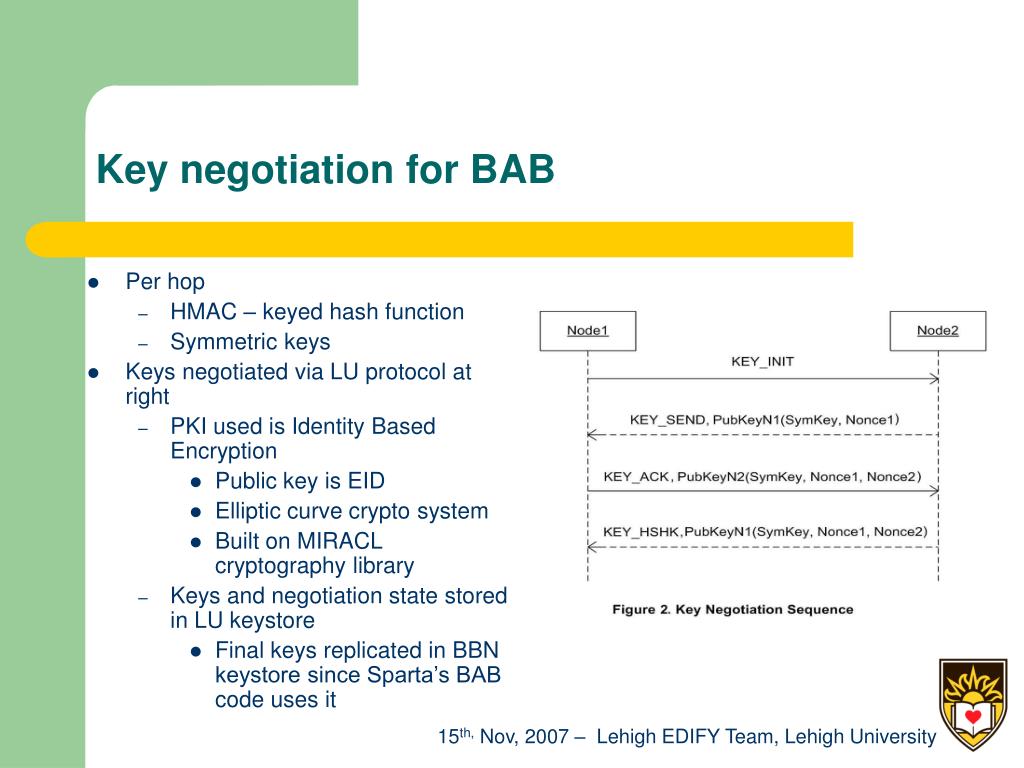

  1. Key negotiation for BAB 15th, Nov, 2007 – Lehigh EDIFY Team, Lehigh University • Per hop • HMAC – keyed hash function • Symmetric keys • Keys negotiated via LU protocol at right • PKI used is Identity Based Encryption • Public key is EID • Elliptic curve crypto system • Built on MIRACL cryptography library • Keys and negotiation state stored in LU keystore • Final keys replicated in BBN keystore since Sparta’s BAB code uses it

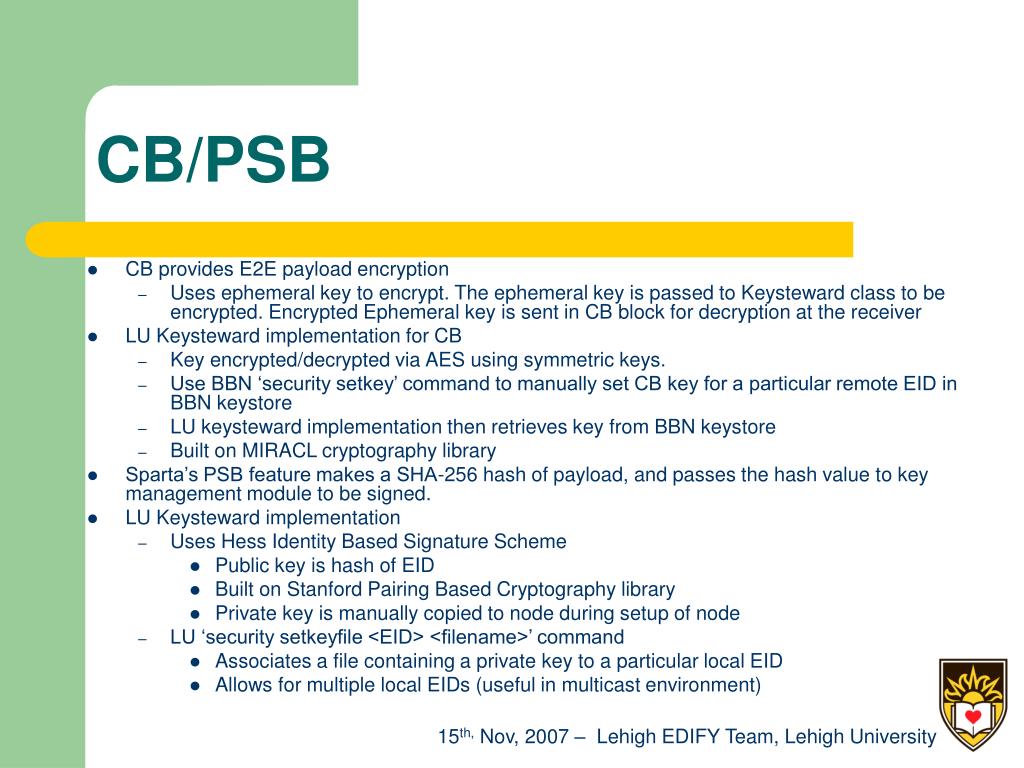

  2. CB/PSB 15th, Nov, 2007 – Lehigh EDIFY Team, Lehigh University • CB provides E2E payload encryption • Uses ephemeral key to encrypt. The ephemeral key is passed to Keysteward class to be encrypted. Encrypted Ephemeral key is sent in CB block for decryption at the receiver • LU Keysteward implementation for CB • Key encrypted/decrypted via AES using symmetric keys. • Use BBN ‘security setkey’ command to manually set CB key for a particular remote EID in BBN keystore • LU keysteward implementation then retrieves key from BBN keystore • Built on MIRACL cryptography library • Sparta’s PSB feature makes a SHA-256 hash of payload, and passes the hash value to key management module to be signed. • LU Keysteward implementation • Uses Hess Identity Based Signature Scheme • Public key is hash of EID • Built on Stanford Pairing Based Cryptography library • Private key is manually copied to node during setup of node • LU ‘security setkeyfile <EID> <filename>’ command • Associates a file containing a private key to a particular local EID • Allows for multiple local EIDs (useful in multicast environment)
