Ch4s4 1

Ch4s4-1

第四节

非线性有源电路的设计


Ch4s4 2

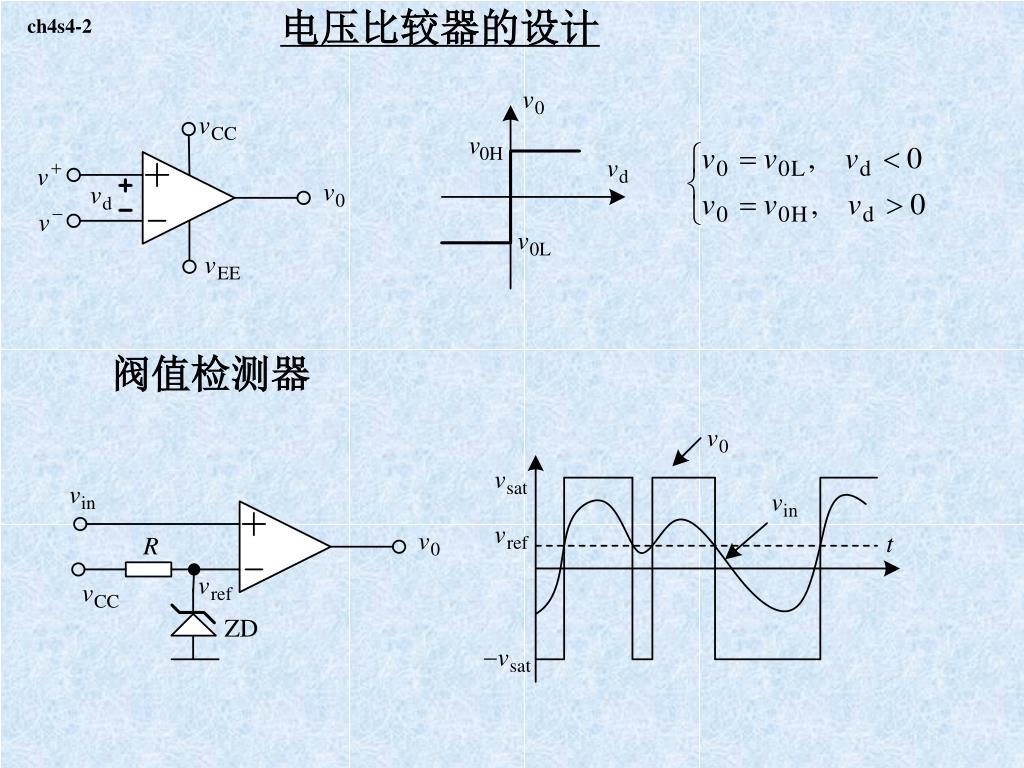

电压比较器的设计

ch4s4-2

阀值检测器


Ch4s4 3

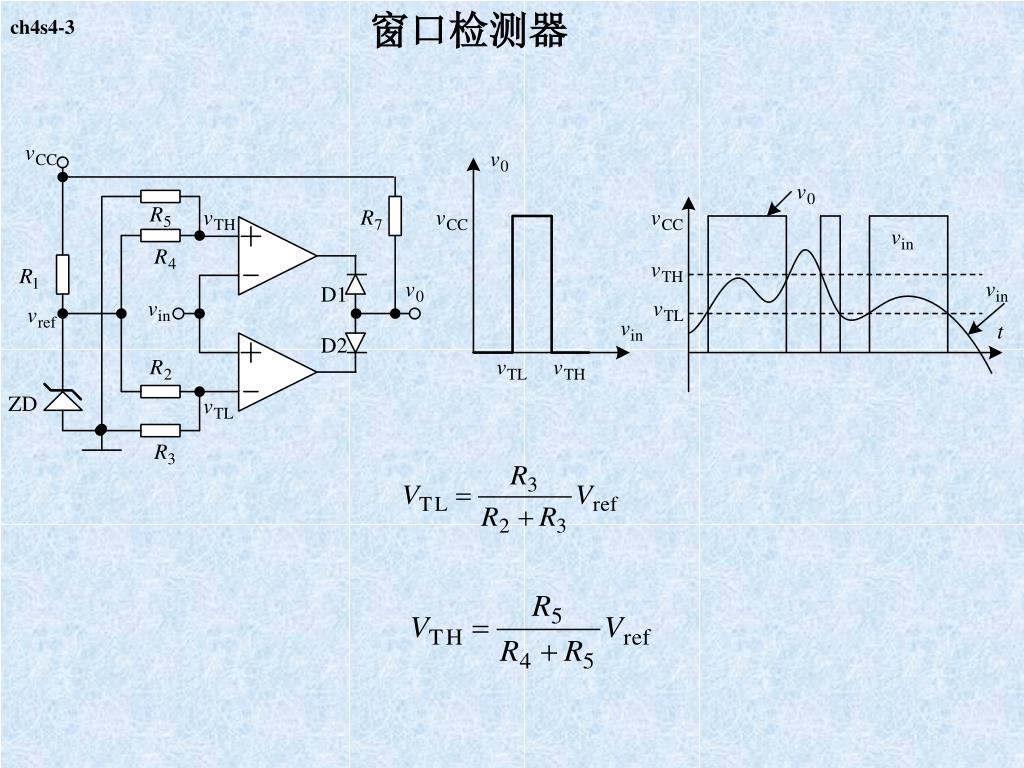

窗口检测器

ch4s4-3


Ch4s4 4

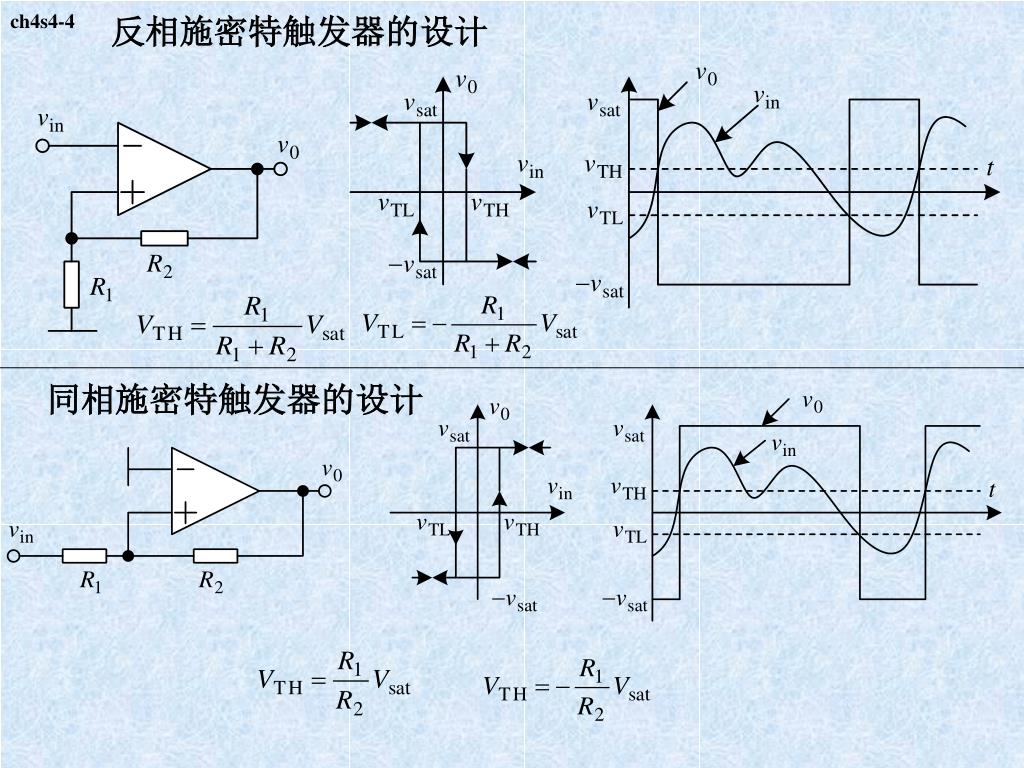

反相施密特触发器的设计

ch4s4-4

同相施密特触发器的设计


Ch4s4 5

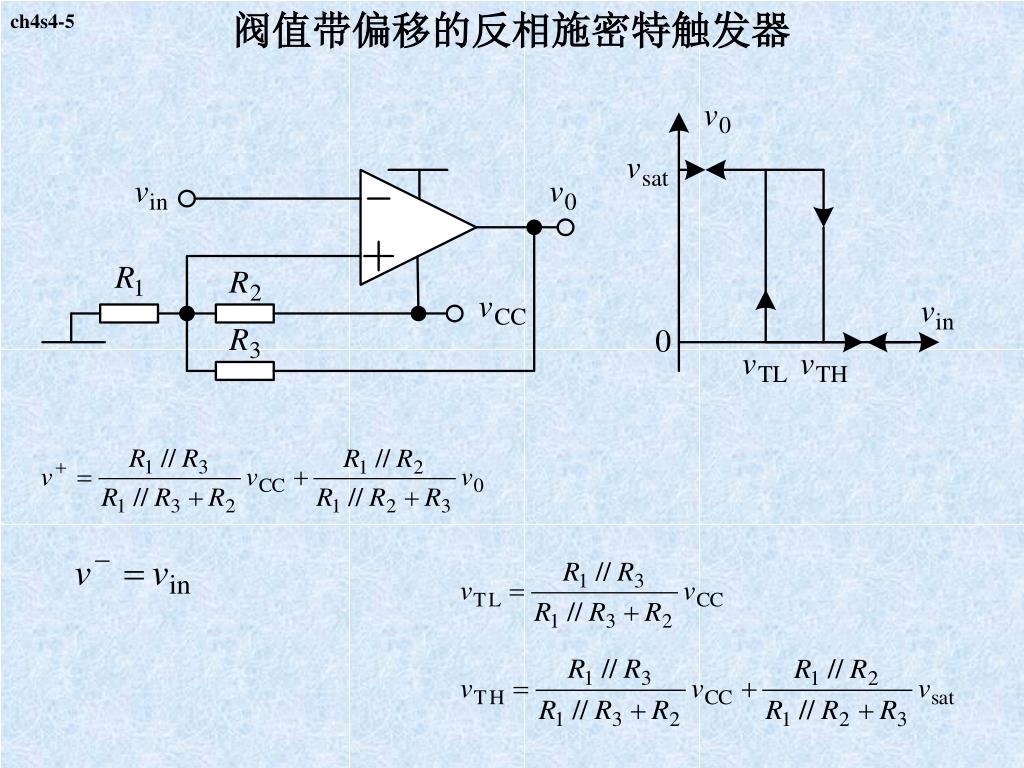

阀值带偏移的反相施密特触发器

ch4s4-5


Ch4s4 6

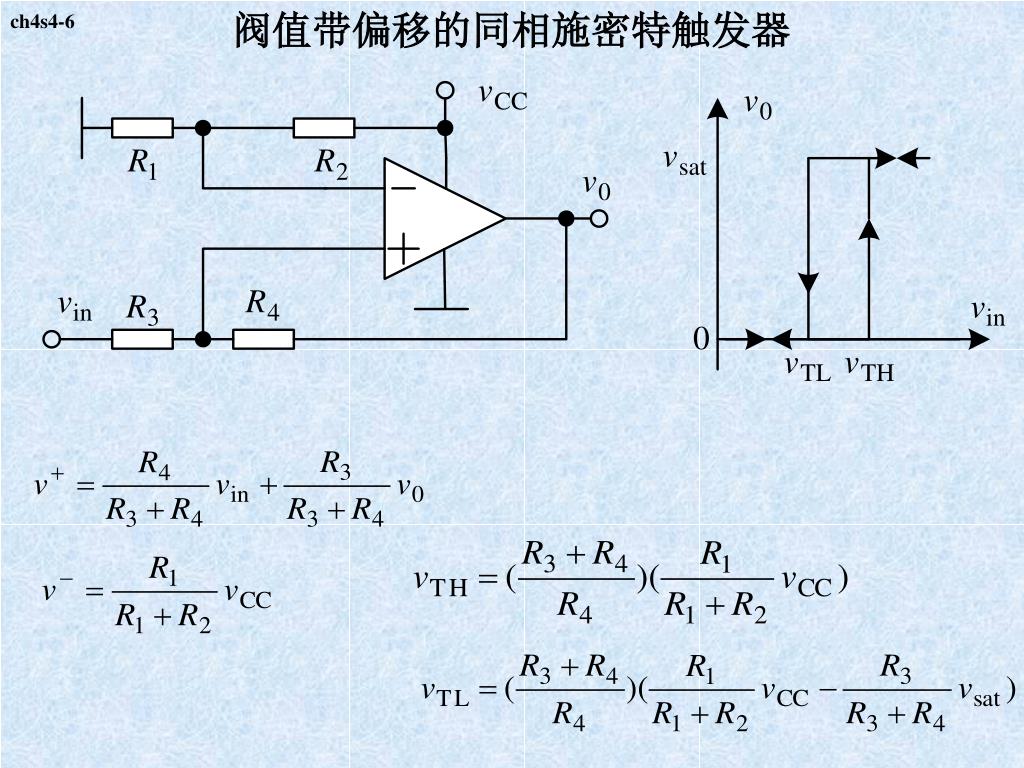

阀值带偏移的同相施密特触发器

ch4s4-6


Ch4s4 7

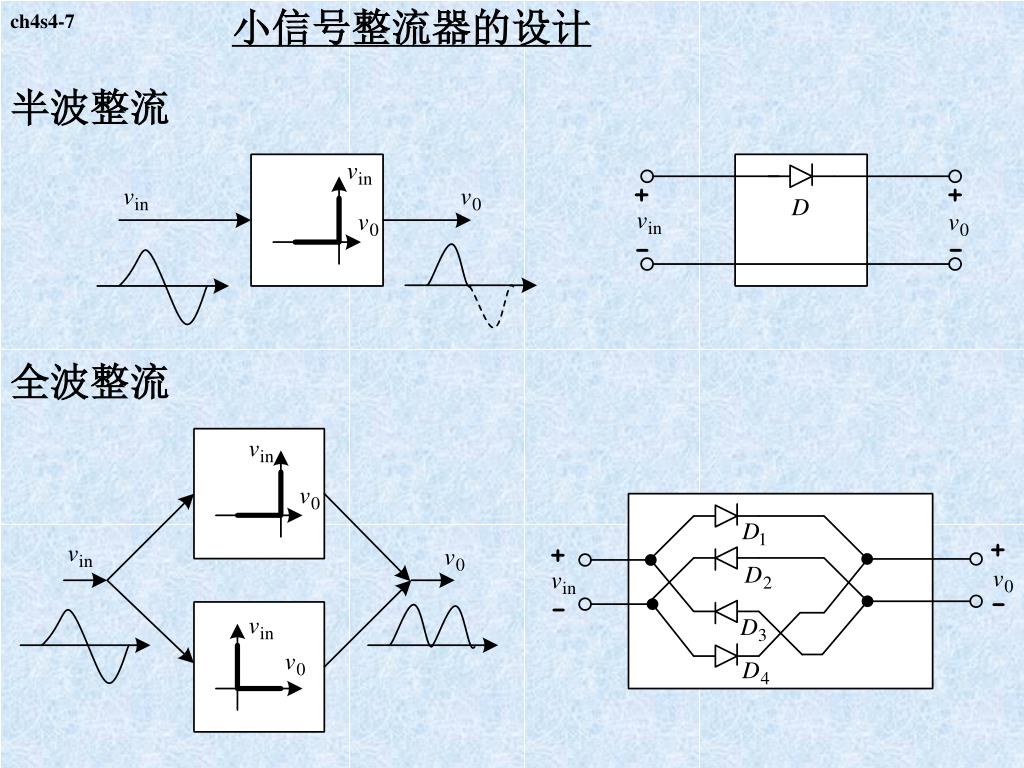

小信号整流器的设计

ch4s4-7

半波整流

全波整流


Ch4s4 8

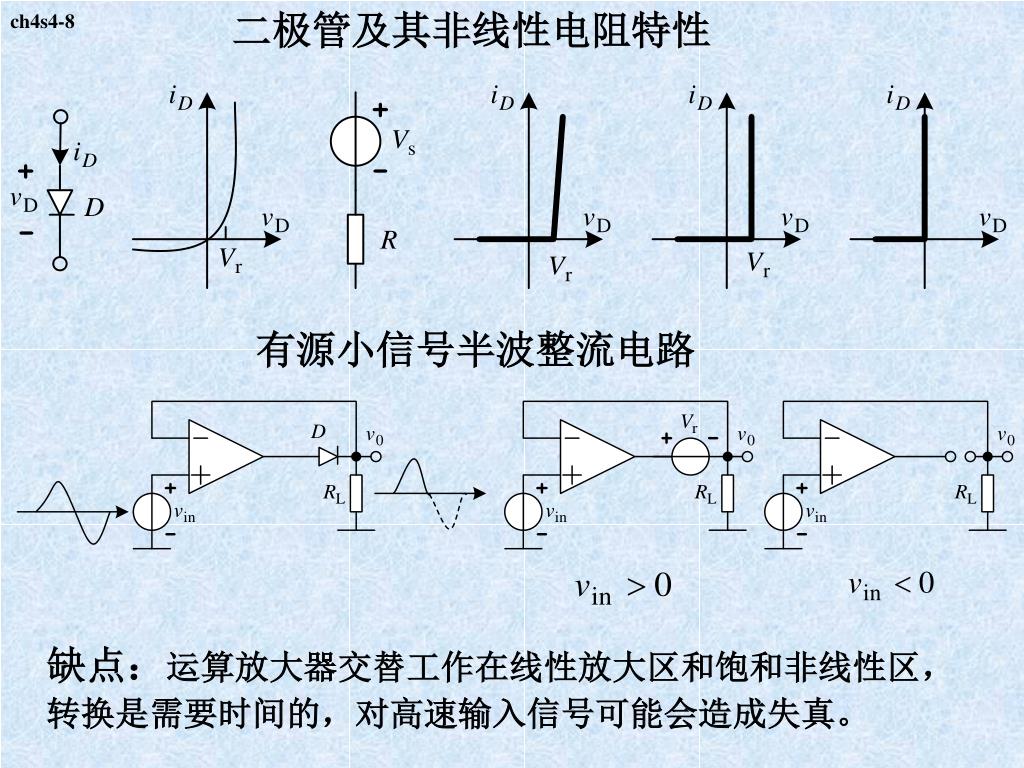

二极管及其非线性电阻特性

ch4s4-8

有源小信号半波整流电路

缺点:运算放大器交替工作在线性放大区和饱和非线性区,

转换是需要时间的,对高速输入信号可能会造成失真。


Ch4s4 9

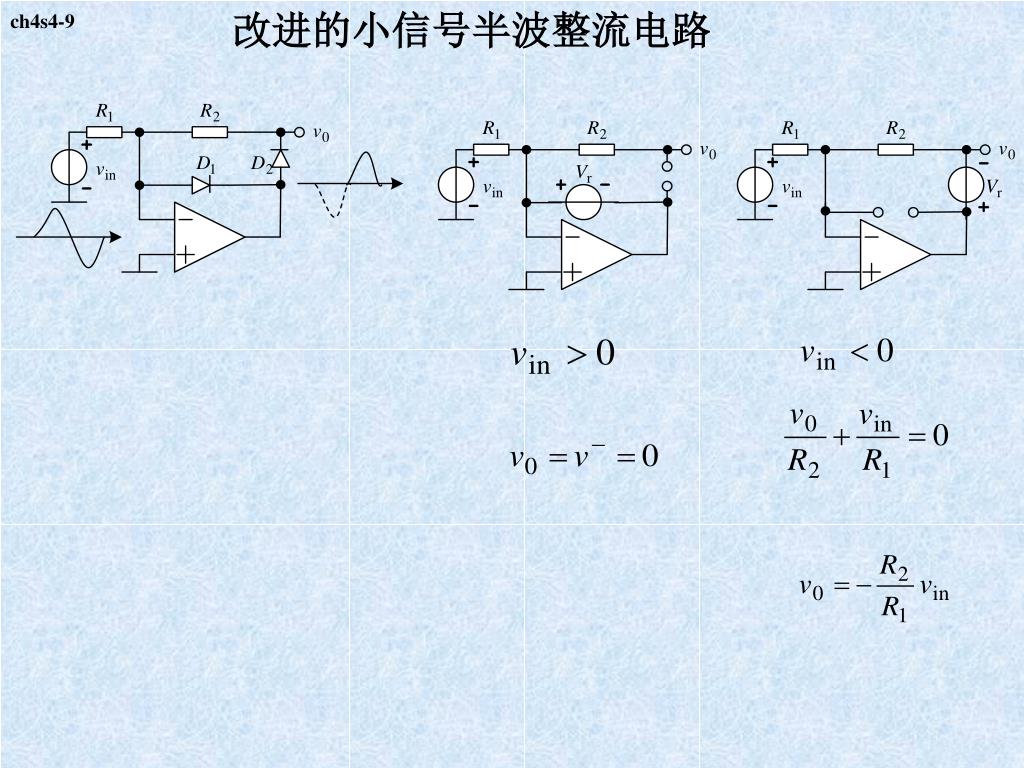

改进的小信号半波整流电路

ch4s4-9


Ch4s4 10

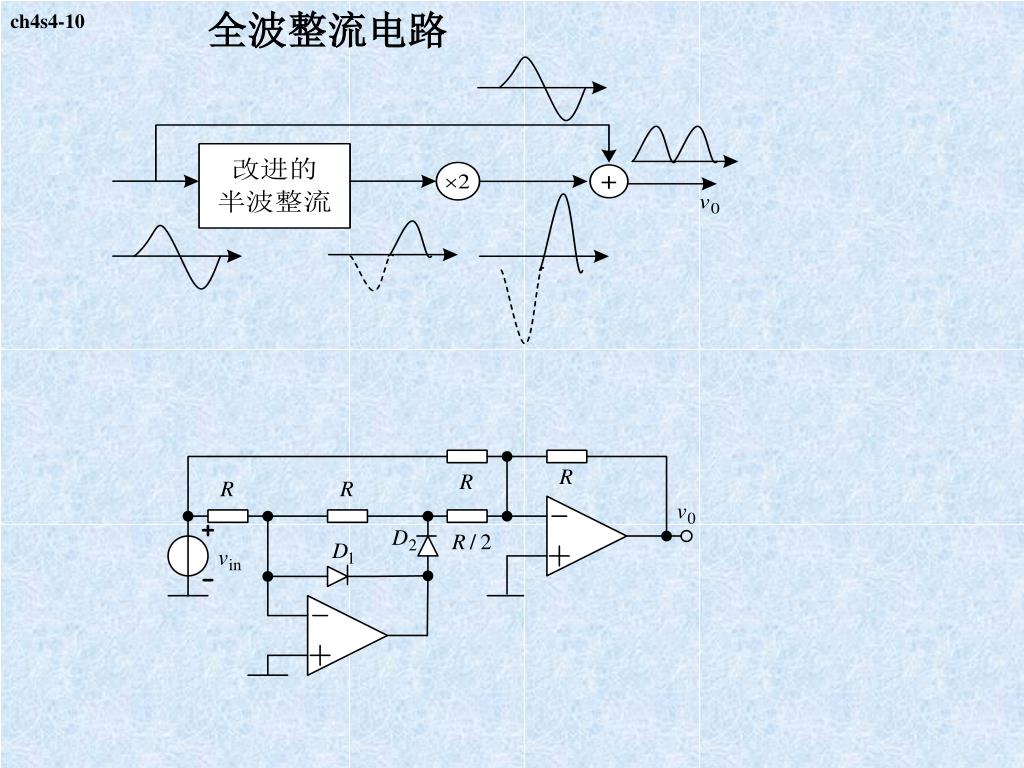

全波整流电路

ch4s4-10


Ch4s4 11

ch4s4-11

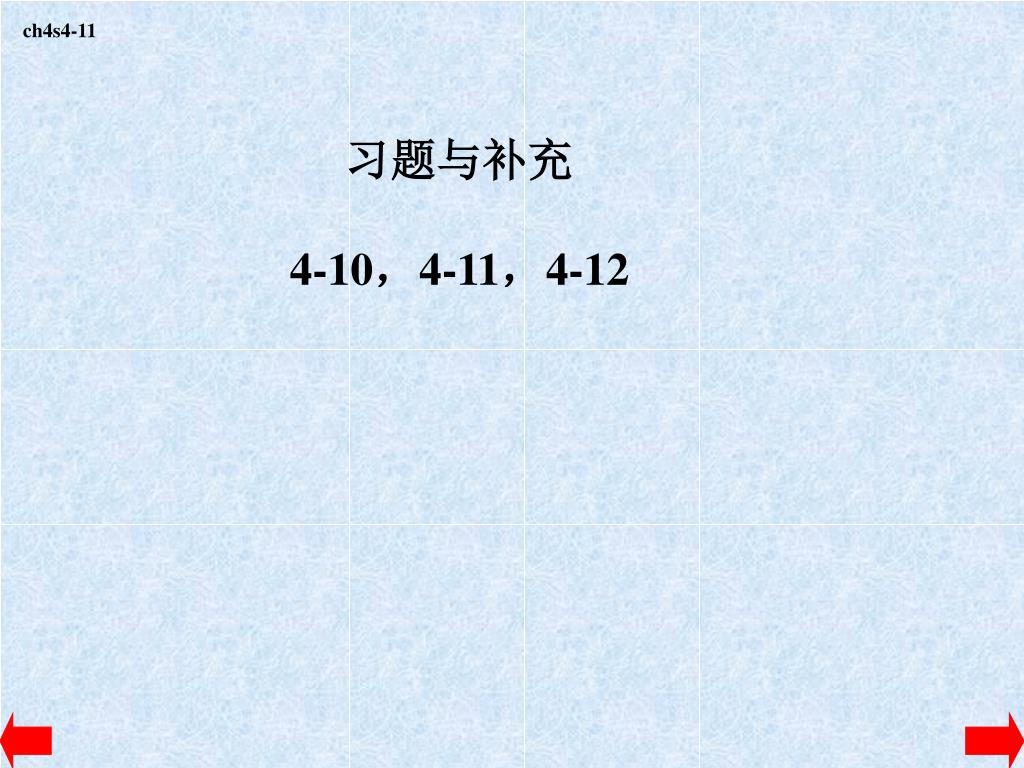

习题与补充

4-10,4-11,4-12
