Atomic football

Atomic Football


Rules

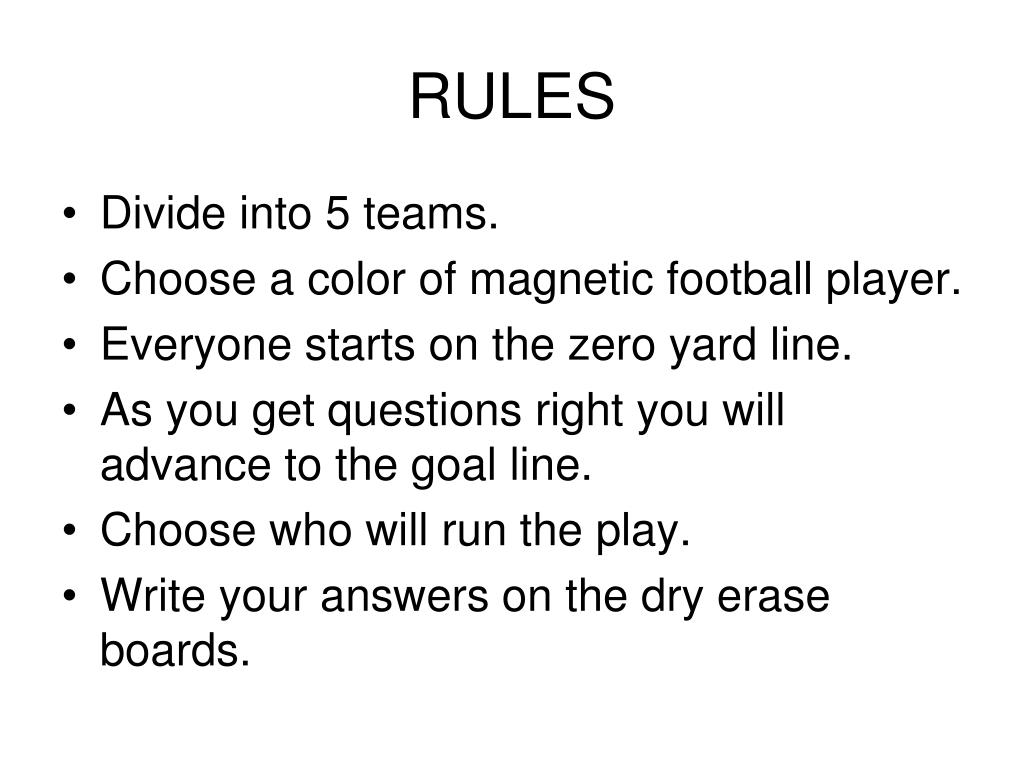

RULES

  • Divide into 5 teams.

  • Choose a color of magnetic football player.

  • Everyone starts on the zero yard line.

  • As you get questions right you will advance to the goal line.

  • Choose who will run the play.

  • Write your answers on the dry erase boards.


5 yards

5 yards

  • Which is an element and which is a compound?

  • SI Si I

  • ANSWER: Si and I are elements

  • SI is a compound


10 yards

10 yards

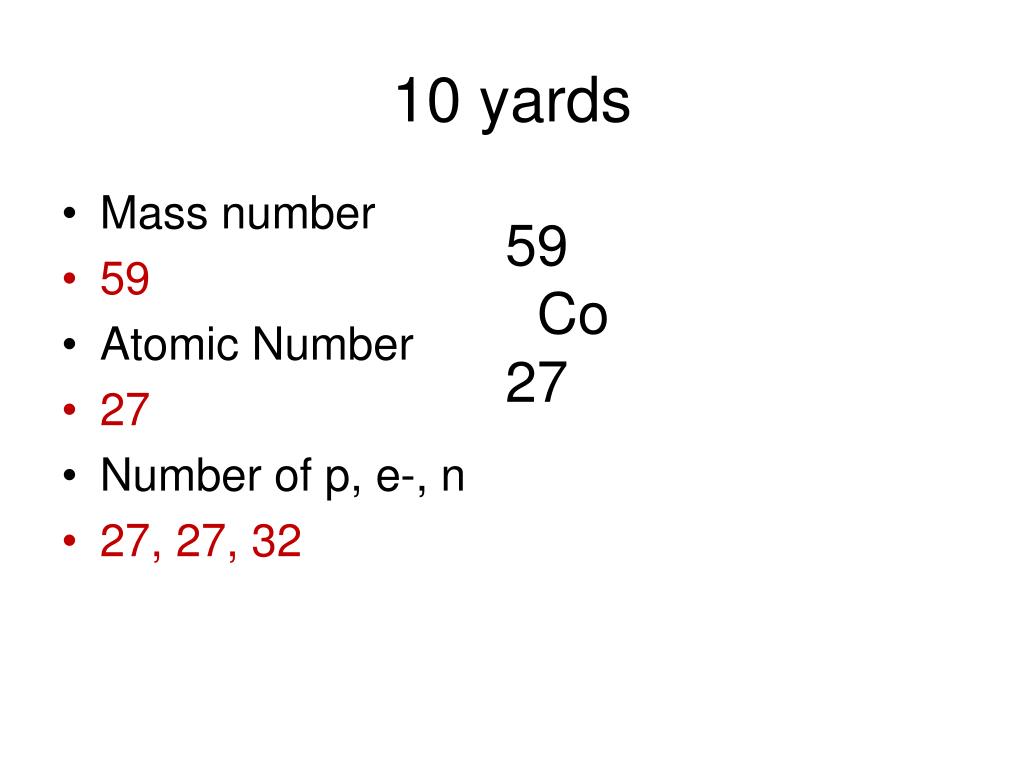

  • Mass number

  • 59

  • Atomic Number

  • 27

  • Number of p, e-, n

  • 27, 27, 32

59

Co

27


5 yards1

5 yards

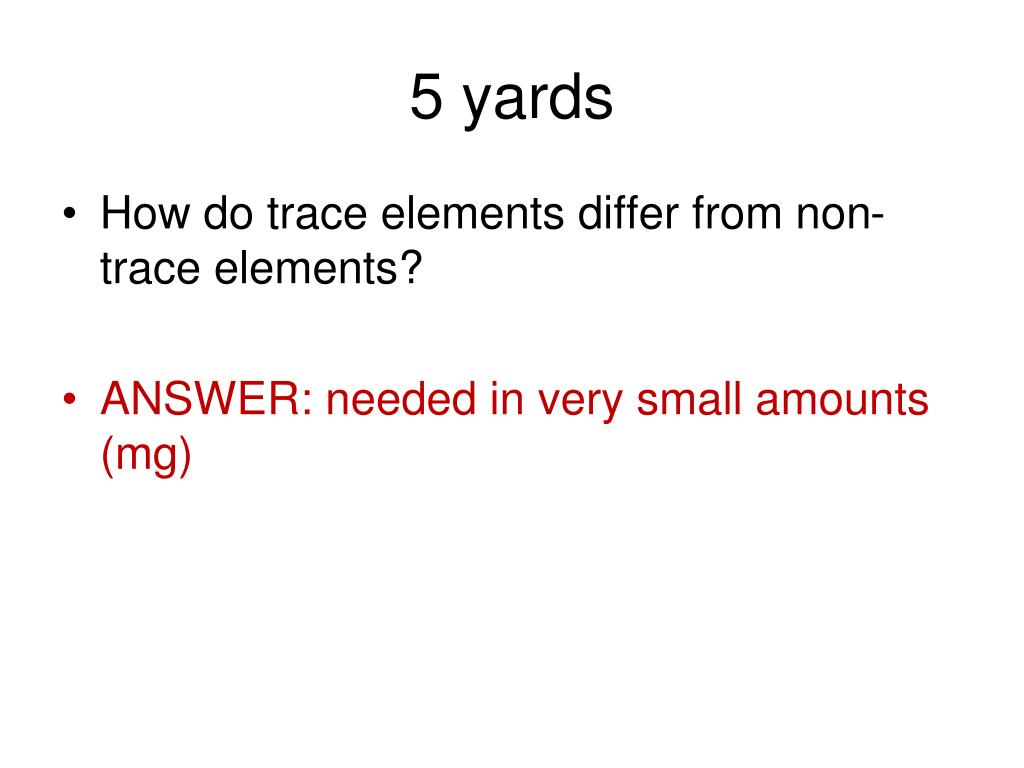

  • How do trace elements differ from non-trace elements?

  • ANSWER: needed in very small amounts (mg)


5 yards2

5 yards

  • How does a radioactive isotope behave differently from a stable isotope?

  • ANSWER: nucleus decays and gives off particles and/or energy to become more stable


5 yards3

5 yards

  • Why do atoms join to form compounds?

  • ANSWER: to fill outer electron shells


10 points

10 points

  • How do ions and isotopes differ from the form of the element on the Periodic Table?

  • ANSWER: ions have different numbers of e- and isotopes have different numbers of neutrons (and mass numbers)


5 yards4

5 yards

  • H – H share electrons. What type of bond would this be?

  • A. metallic

  • B. hydrogen

  • C. covalent

  • D. ionic

  • ANSWER: C


5 yards5

5 yards

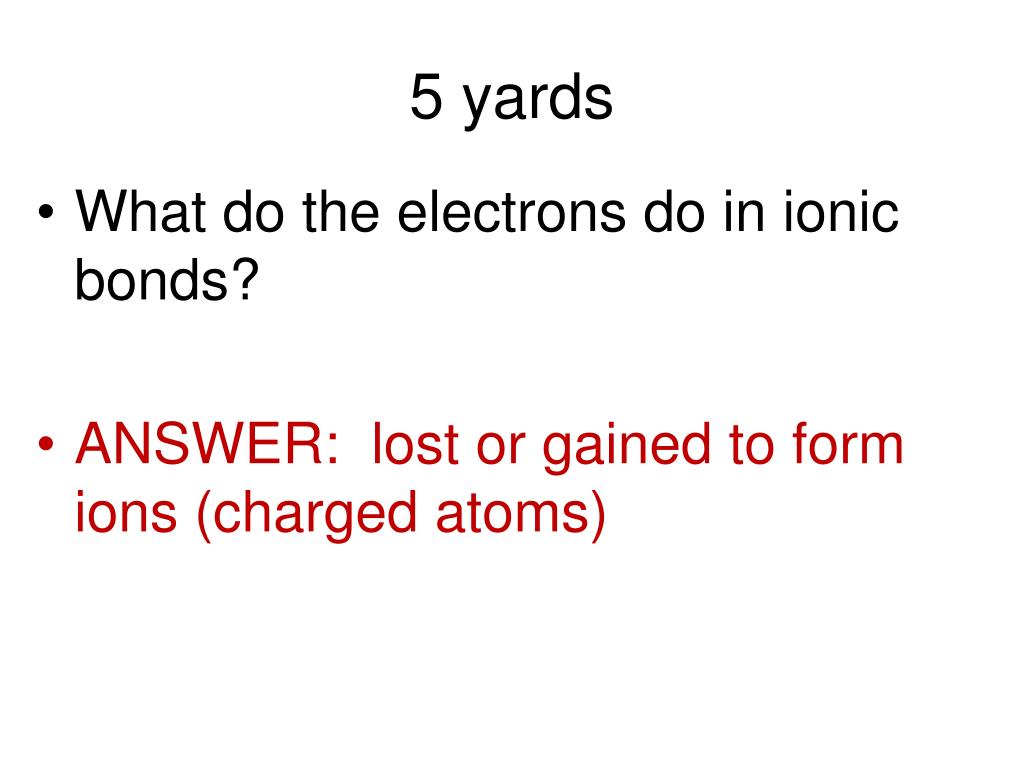

  • What do the electrons do in ionic bonds?

  • ANSWER: lost or gained to form ions (charged atoms)


10 yards1

10 yards

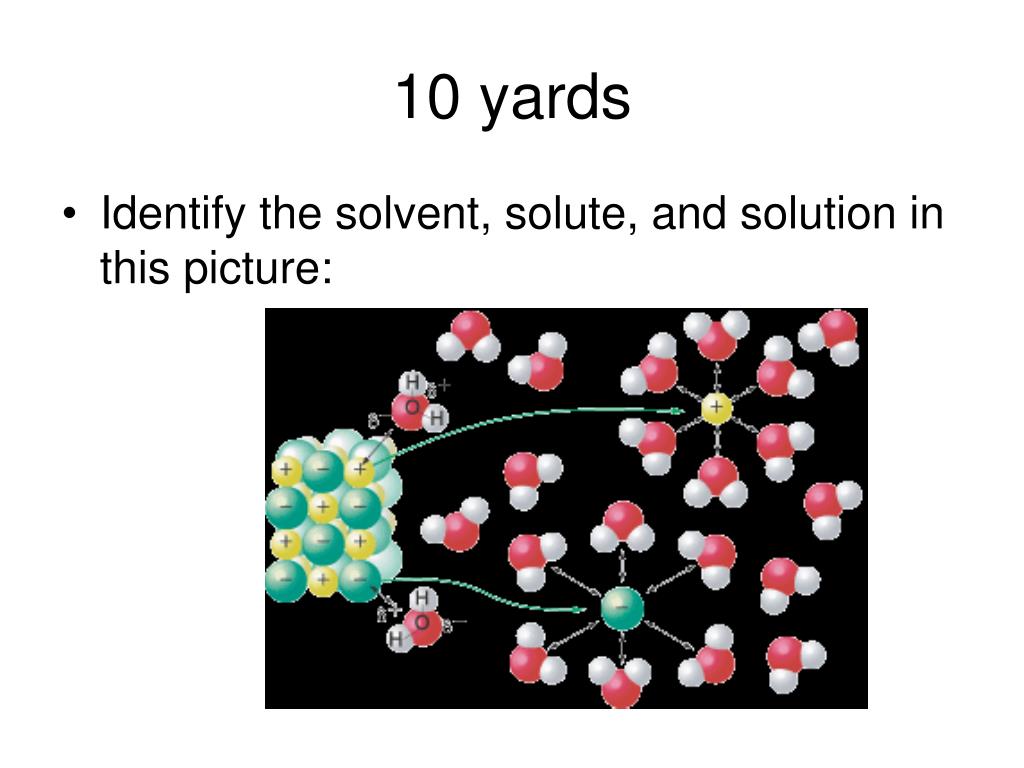

  • Identify the solvent, solute, and solution in this picture:


10 yards answer

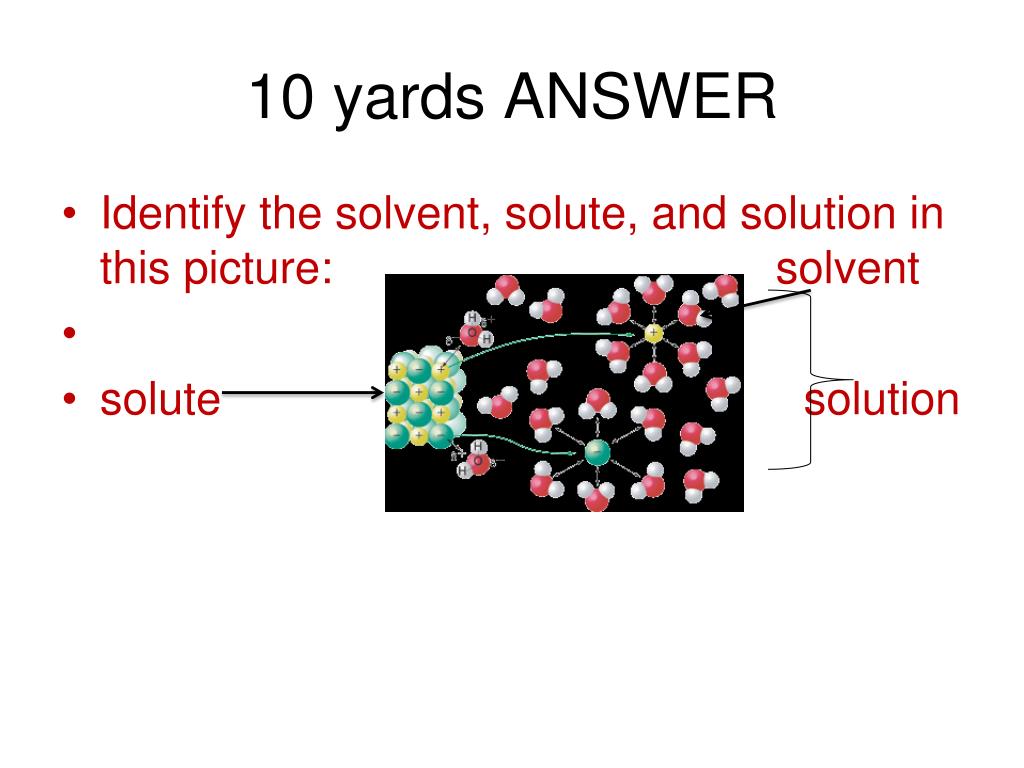

10 yards ANSWER

  • Identify the solvent, solute, and solution in this picture: solvent

  • solute solution


10 yards2

10 yards

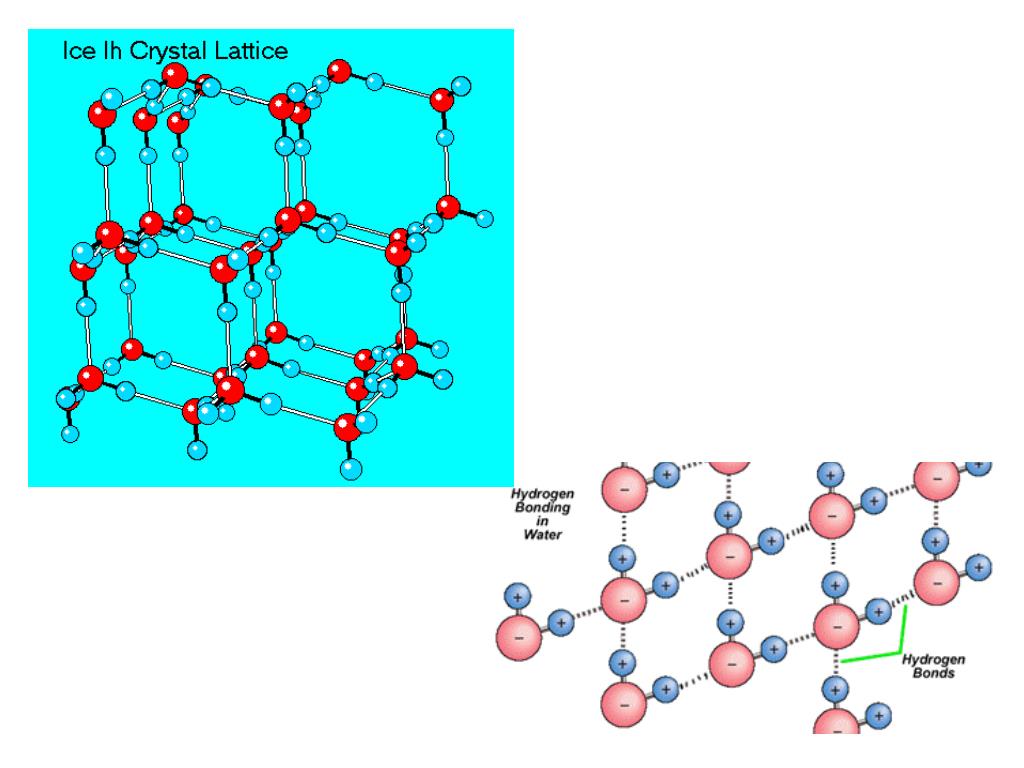

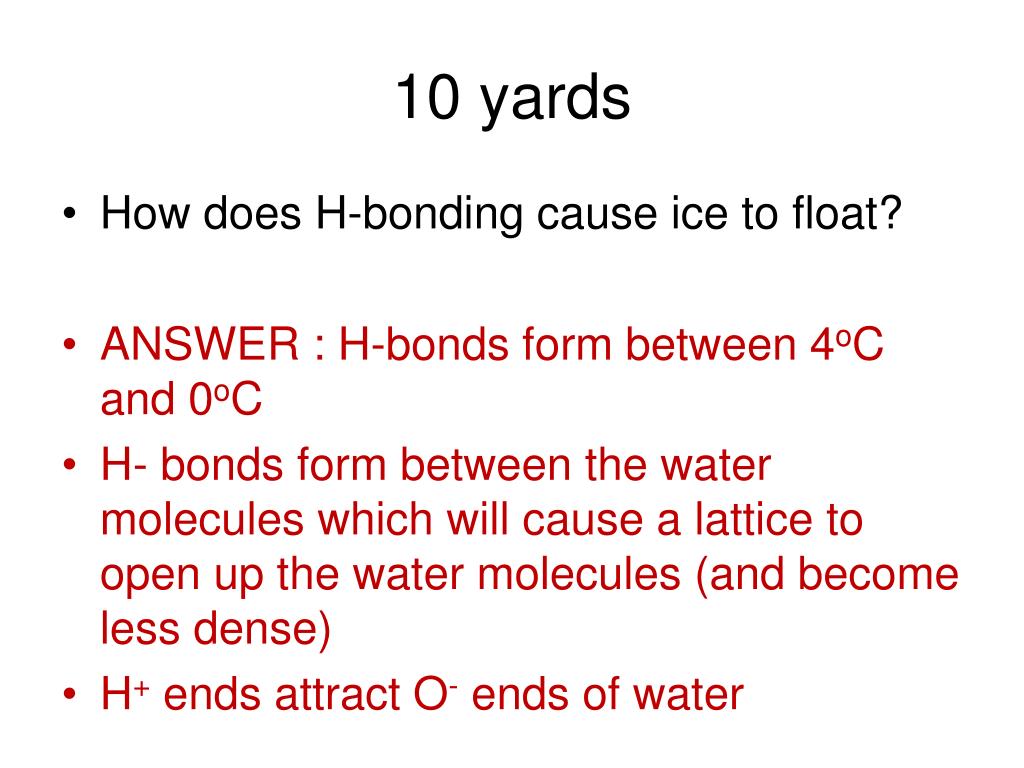

  • How does H-bonding cause ice to float?

  • ANSWER : H-bonds form between 4oC and 0oC

  • H- bonds form between the water molecules which will cause a lattice to open up the water molecules (and become less dense)

  • H+ ends attract O- ends of water


Atomic football

yr


10 yards3

10 yards

  • How does H-bonding cause surface tension?

  • ANSWER: Water creates a “film” on its surface when H-bonding pulls the water molecules in on each other


5 yards6

5 yards

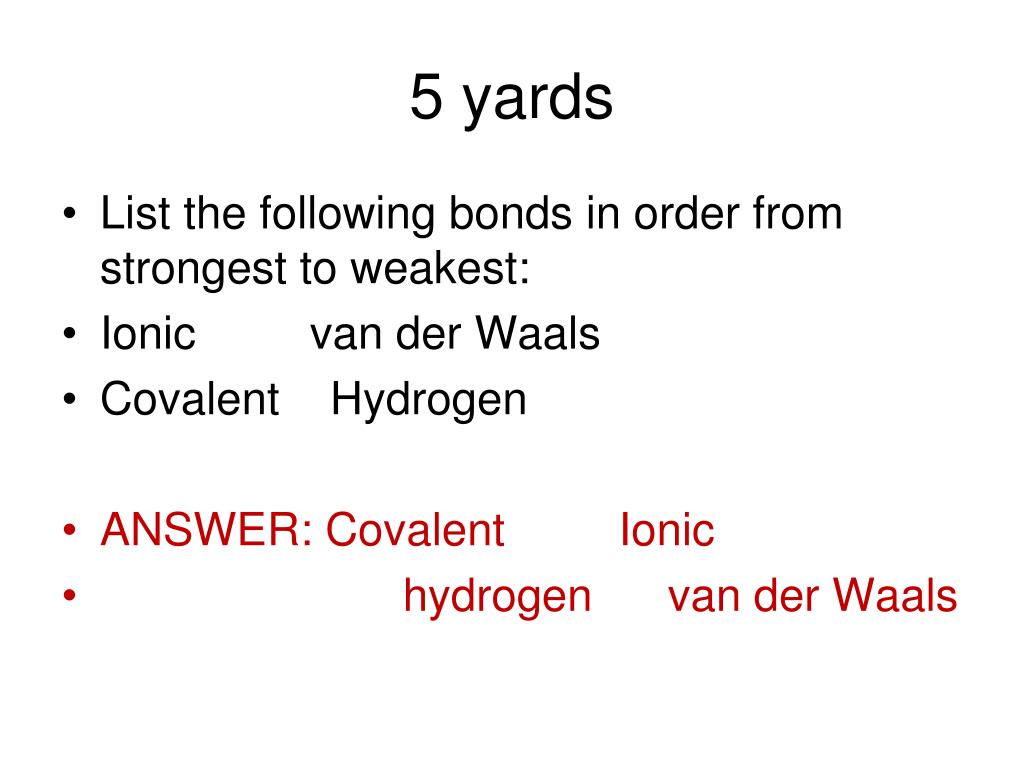

  • List the following bonds in order from strongest to weakest:

  • Ionic van der Waals

  • Covalent Hydrogen

  • ANSWER: Covalent Ionic

  • hydrogen van der Waals


5 yards7

5 yards

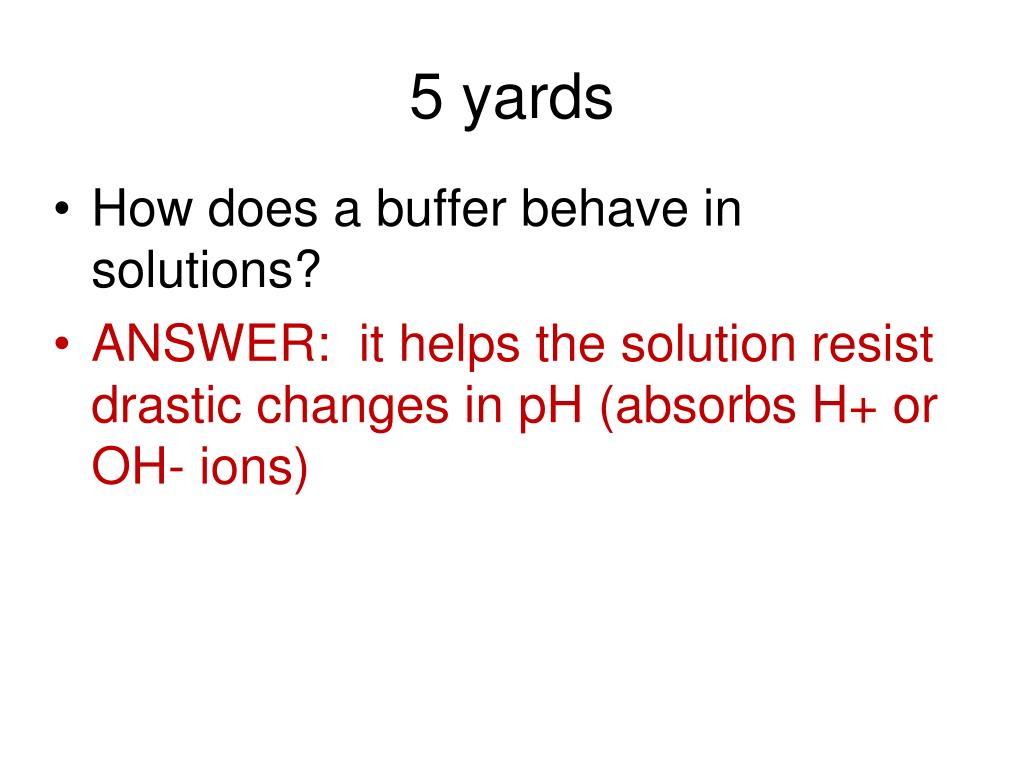

  • How does a buffer behave in solutions?

  • ANSWER: it helps the solution resist drastic changes in pH (absorbs H+ or OH- ions)


5 yards8

5 yards

  • 24

    Na This is an example of:

    11

  • Neutral sodium C. isotope of sodium

  • Ion of sodium D. neutral iron

    ANSWER: C


10 yards4

10 yards

  • What is cohesion? Describe how the molecules line up to other water molecules.

  • Cohesion is the attraction of like molecules (such as water to water).

  • H+ ends attract to O- ends


10 yards5

10 yards

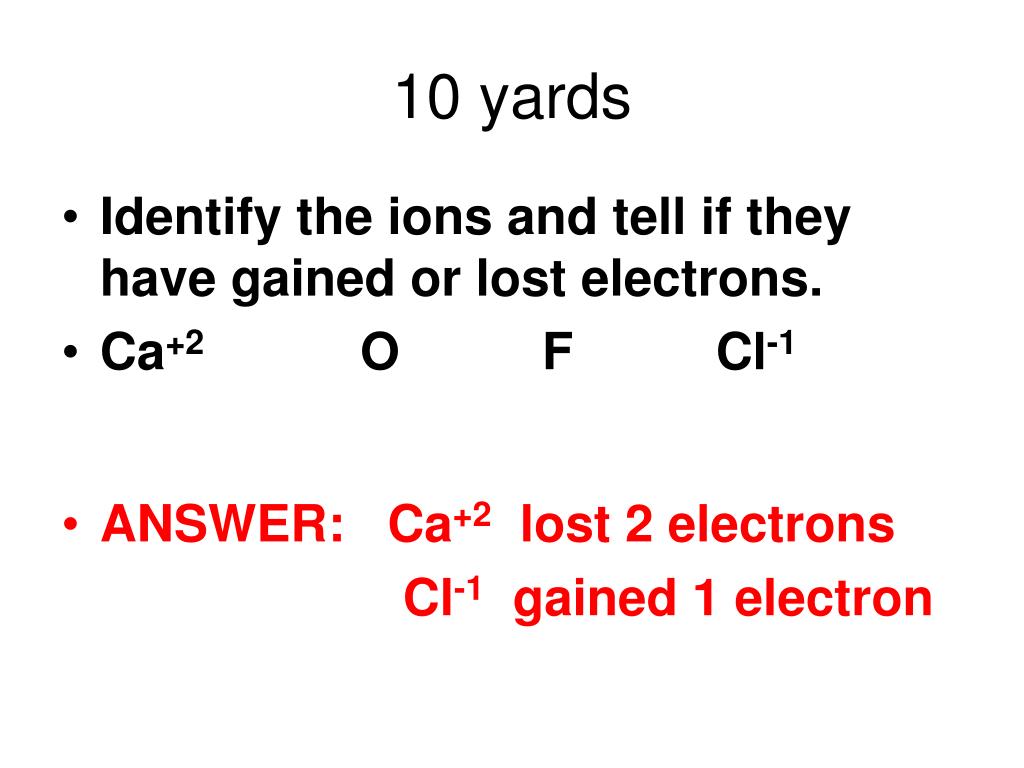

  • Identify the ions and tell if they have gained or lost electrons.

  • Ca+2 O F Cl-1

  • ANSWER: Ca+2 lost 2 electrons

    Cl-1 gained 1 electron


15 yards

15 yards

  • What does the size of the tube affect capillarity? Describe how cohesion and adhesion make it work.

  • The smaller the tube, the higher the water rises.

  • Cohesion=attraction of water to water creates a column

  • Adhesion of water to glass =creeps up sides of the glass


5 yards9

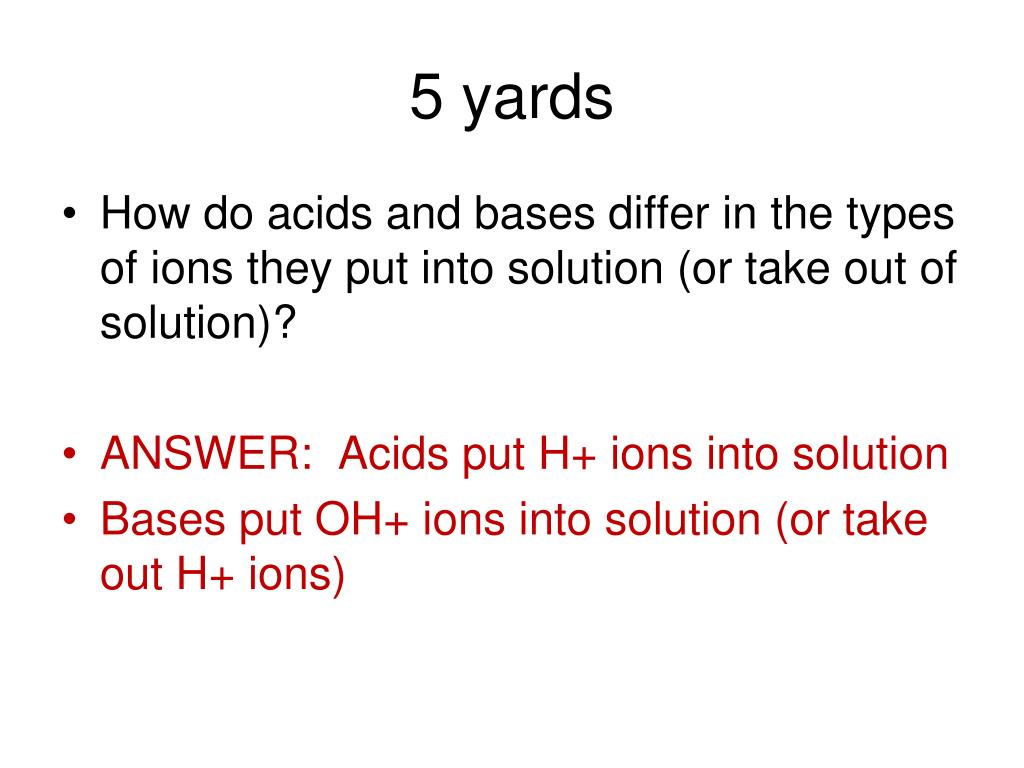

5 yards

  • How do acids and bases differ in the types of ions they put into solution (or take out of solution)?

  • ANSWER: Acids put H+ ions into solution

  • Bases put OH+ ions into solution (or take out H+ ions)


15 yards1

15 yards

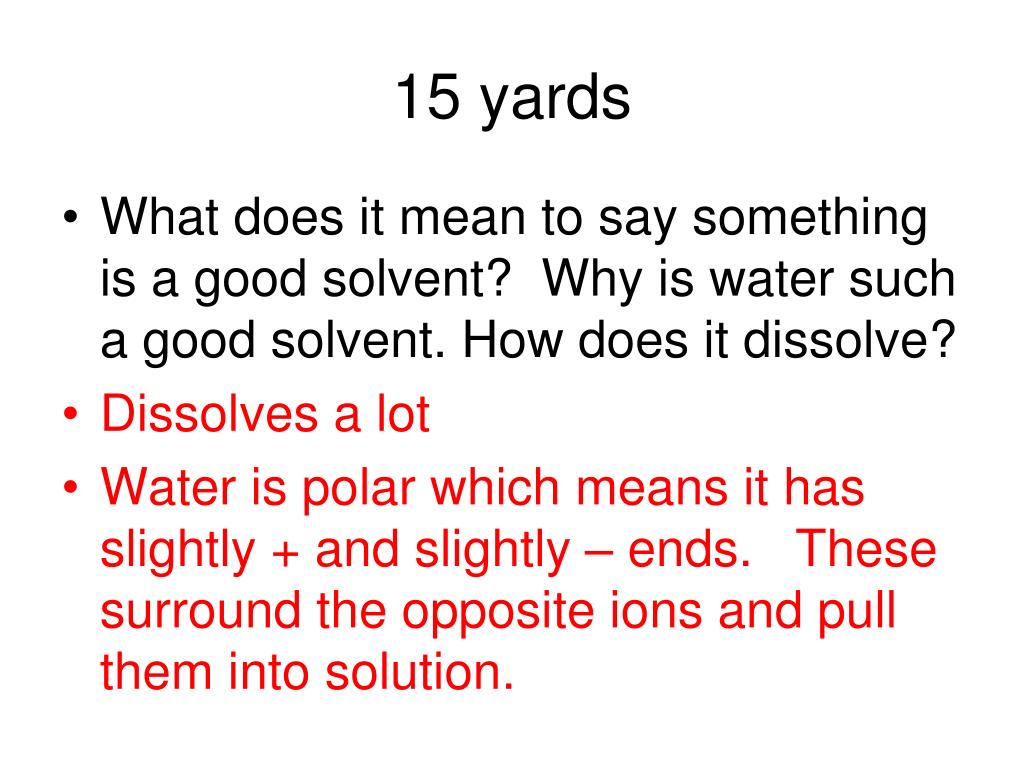

  • What does it mean to say something is a good solvent? Why is water such a good solvent. How does it dissolve?

  • Dissolves a lot

  • Water is polar which means it has slightly + and slightly – ends. These surround the opposite ions and pull them into solution.


5 yards10

5 yards

  • Why do coastal regions have milder climates than inland regions?

  • ANSWER: Water is slow to change its temperature due to H-bonds need to form or break.


10 yards matching

10 yards Matching

  • Strong acid

  • Weak acid

  • Neutral

  • Weak base

  • Strong base

  • A. pH 2

  • B. pH 7

  • C. pH 14

  • D. pH 8

  • E. pH 6


10 yards matching answers

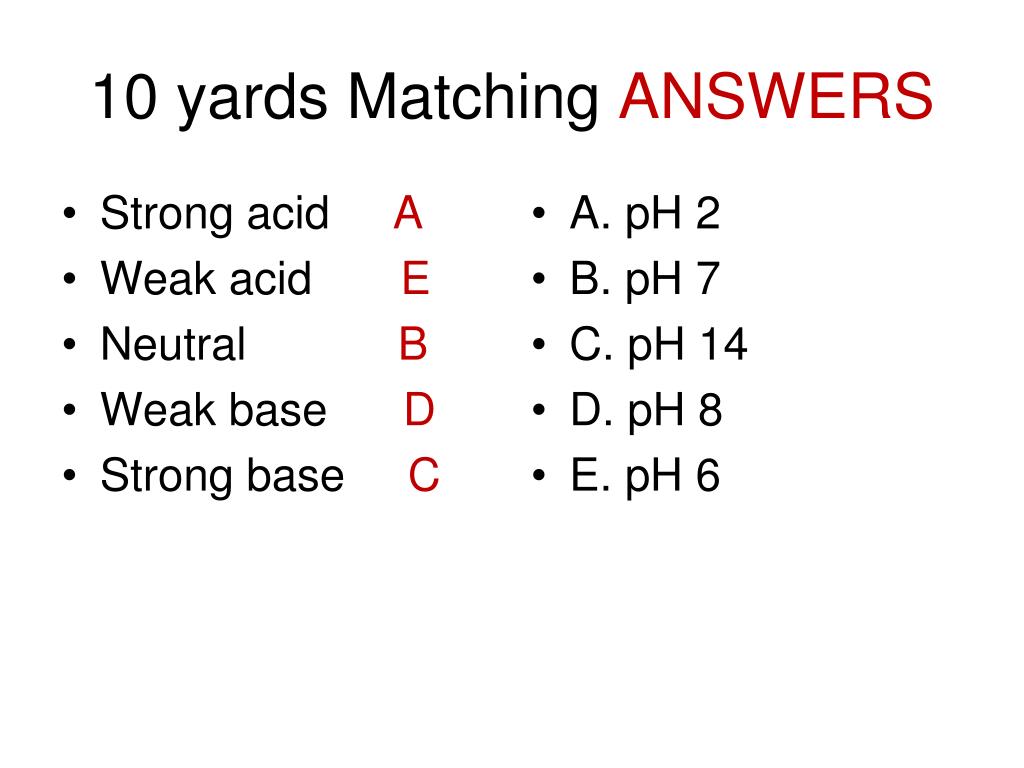

10 yards Matching ANSWERS

  • Strong acid A

  • Weak acid E

  • Neutral B

  • Weak base D

  • Strong base C

  • A. pH 2

  • B. pH 7

  • C. pH 14

  • D. pH 8

  • E. pH 6


10 yards6

10 yards

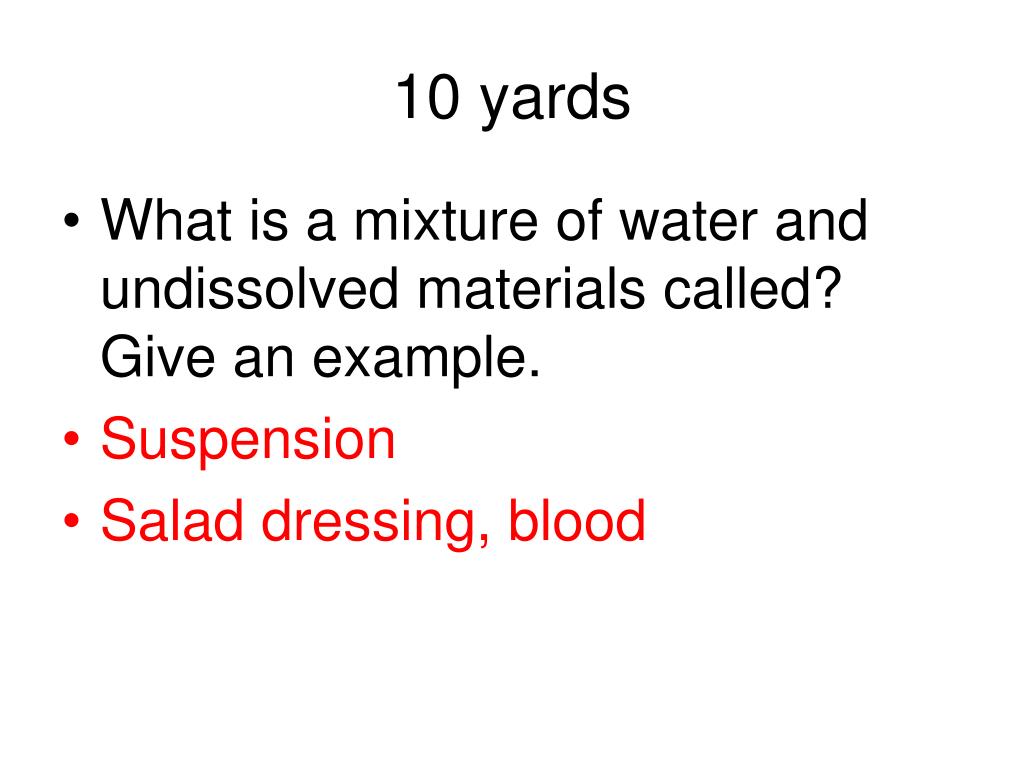

  • What is a mixture of water and undissolved materials called? Give an example.

  • Suspension

  • Salad dressing, blood


10 yards7

10 yards

  • MATCH THESE:

  • 1. Solvent A. substance being dissolved

  • 2. Solute B. substance that does the dissolving

  • 3. solution C. combination of the other two

  • ANSWER: 1-B 2-A 3-C


10 yards8

10 yards

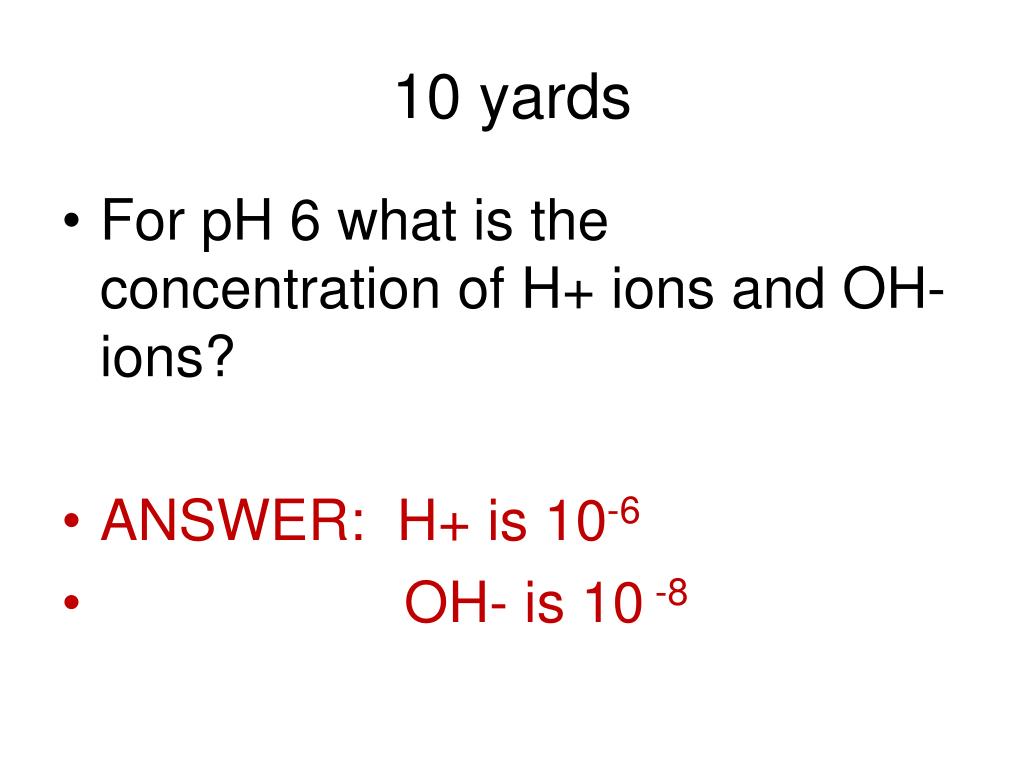

  • For pH 6 what is the concentration of H+ ions and OH- ions?

  • ANSWER: H+ is 10-6

  • OH- is 10 -8


5 yards11

5 yards

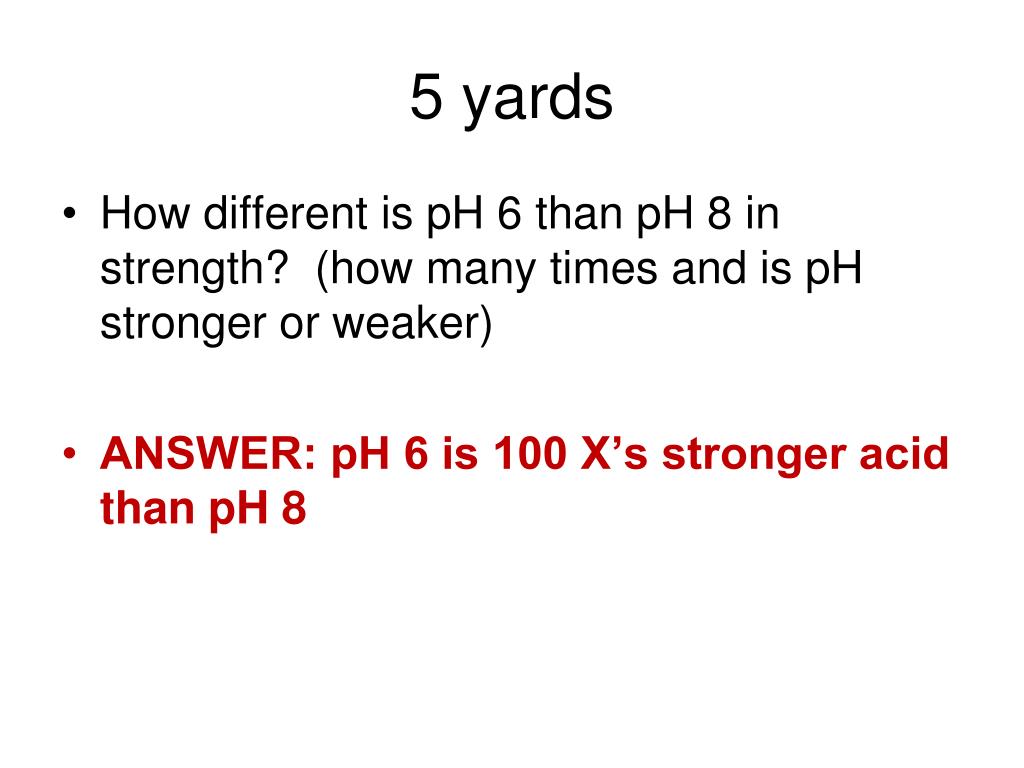

  • How different is pH 6 than pH 8 in strength? (how many times and is pH stronger or weaker)

  • ANSWER: pH 6 is 100 X’s stronger acid than pH 8


10 yards9

10 yards

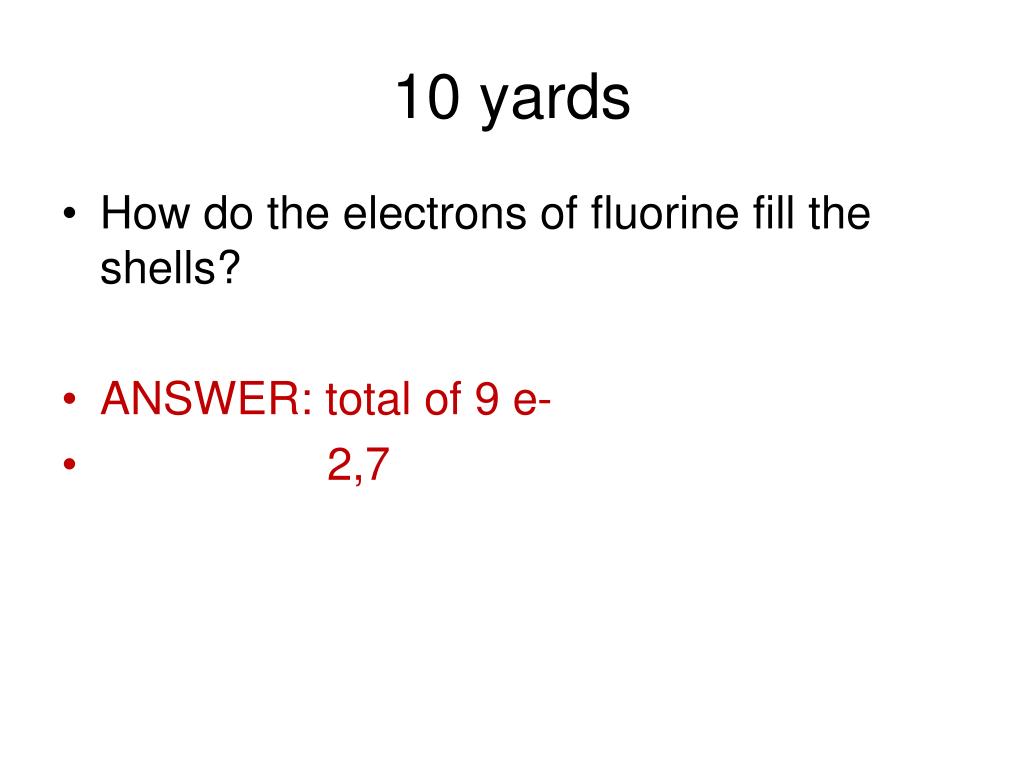

  • How do the electrons of fluorine fill the shells?

  • ANSWER: total of 9 e-

  • 2,7


5 yards12

5 yards

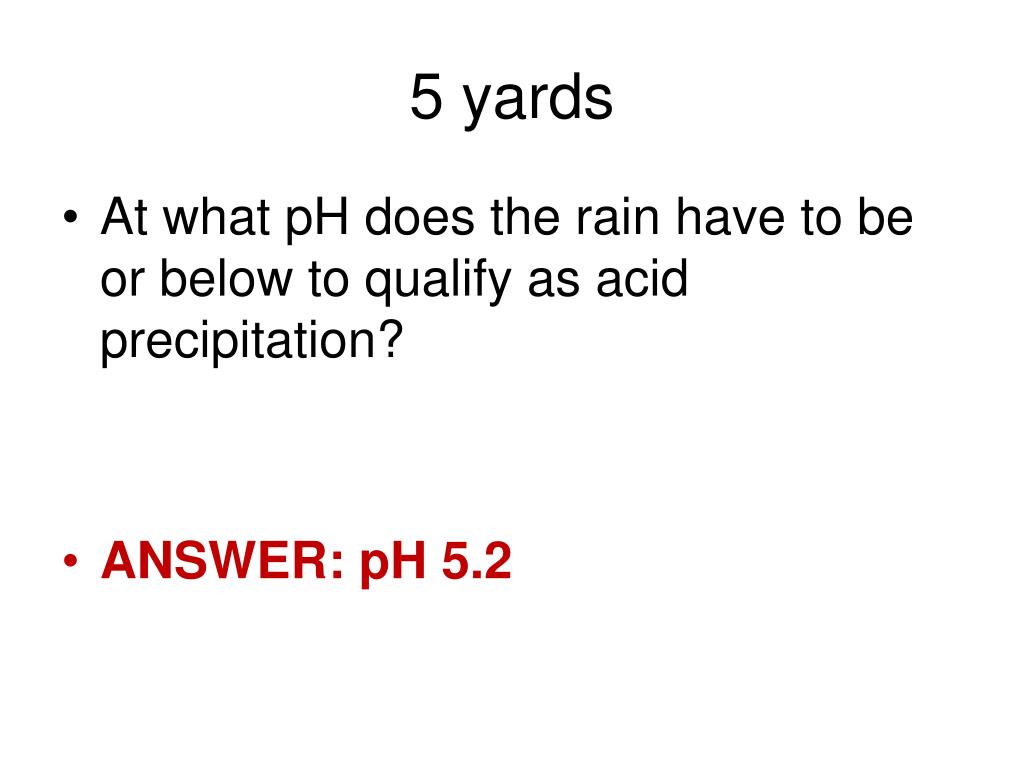

  • At what pH does the rain have to be or below to qualify as acid precipitation?

  • ANSWER: pH 5.2


10 yards10

10 yards

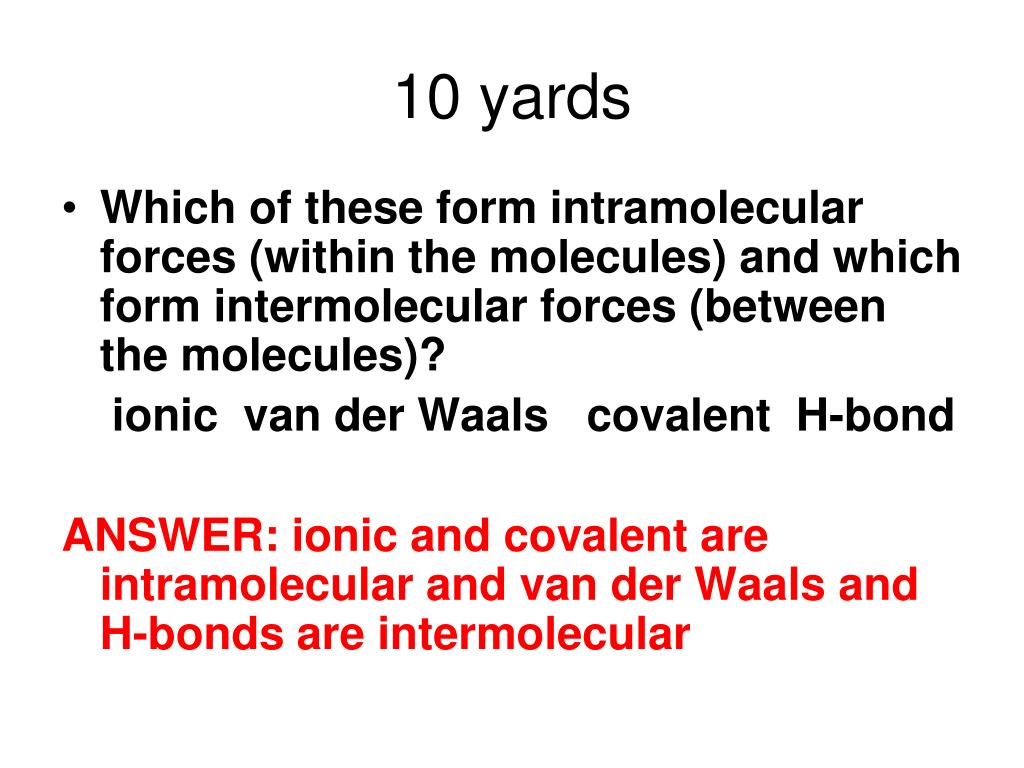

  • Which of these form intramolecular forces (within the molecules) and which form intermolecular forces (between the molecules)?

    ionic van der Waals covalent H-bond

    ANSWER: ionic and covalent are intramolecular and van der Waals and H-bonds are intermolecular


5 yards13

5 yards

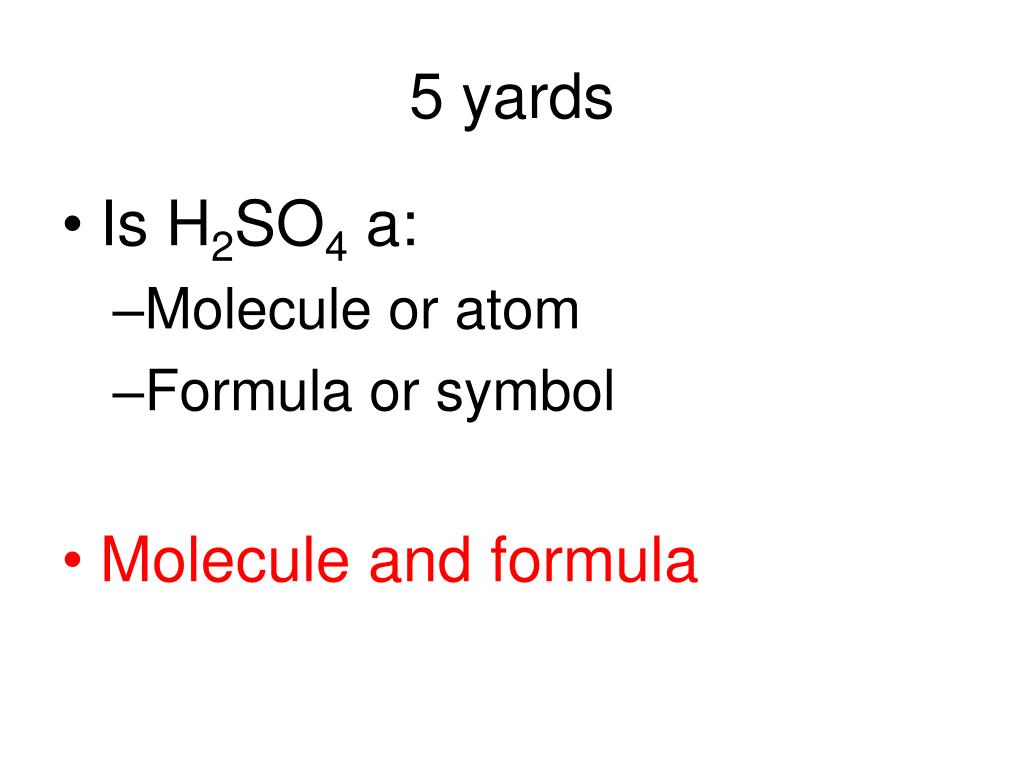

  • Is H2SO4 a:

    • Molecule or atom

    • Formula or symbol

  • Molecule and formula


10 yards11

10 yards

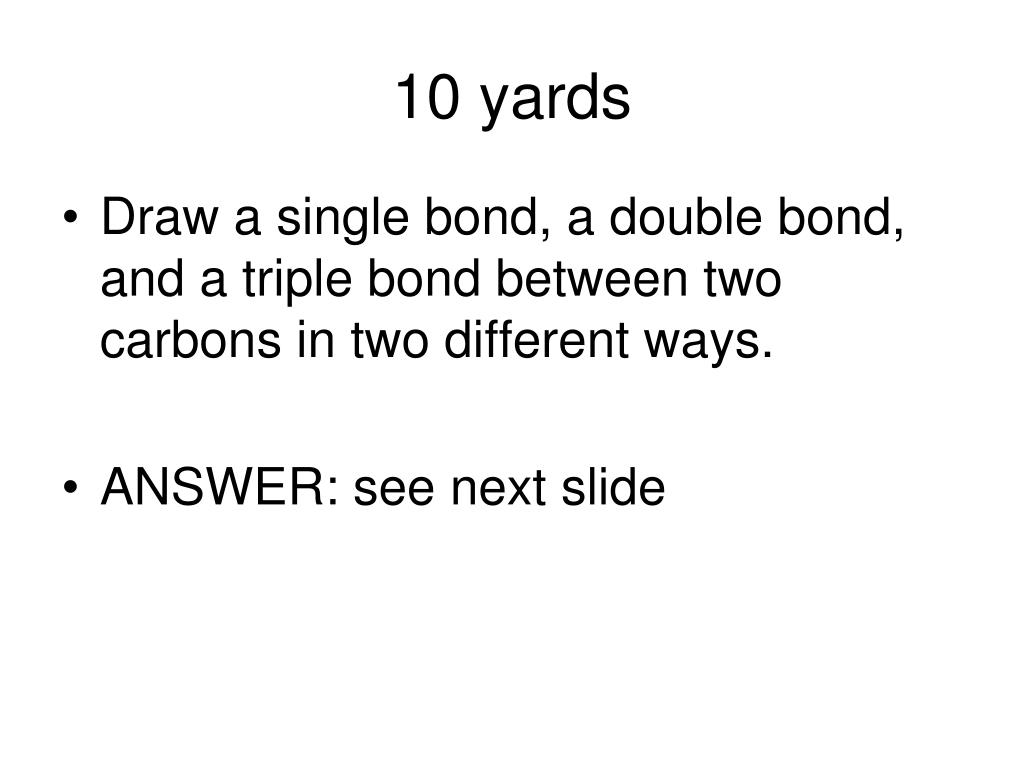

  • Draw a single bond, a double bond, and a triple bond between two carbons in two different ways.

  • ANSWER: see next slide


5 yards14

5 yards

  • What do you call a solution that donates a lot of H+ ions?

  • A. acid B. base C. salt

  • ANSWER: acid


10 yards12

10 yards

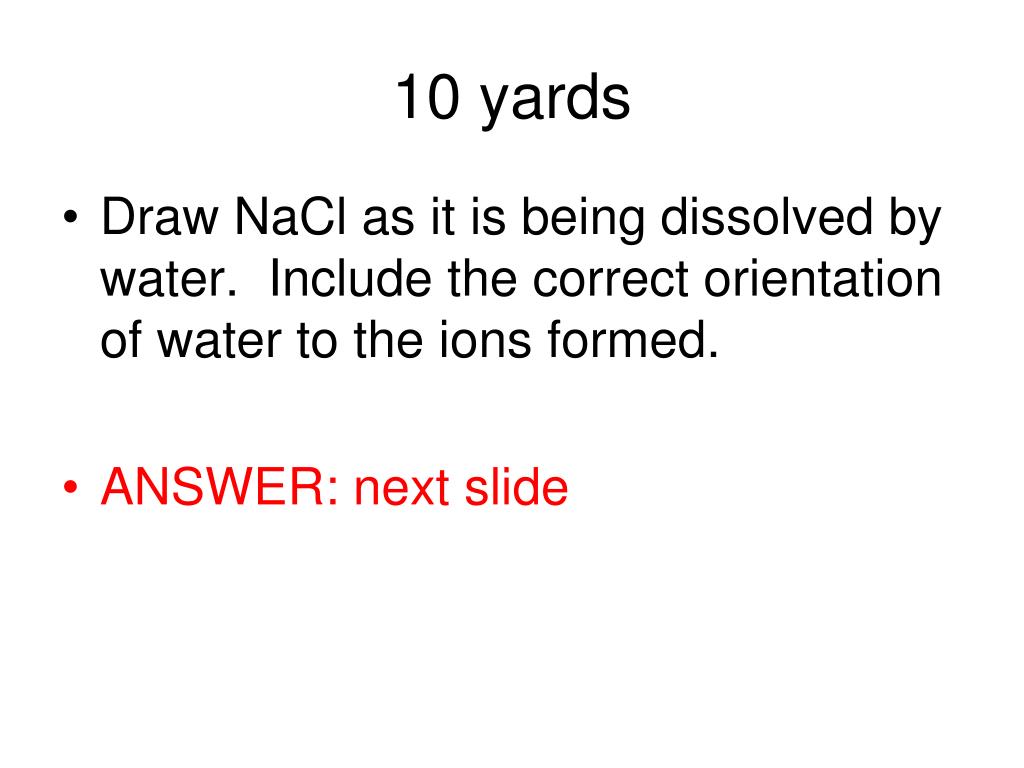

  • Draw NaCl as it is being dissolved by water. Include the correct orientation of water to the ions formed.

  • ANSWER: next slide


5 points

5 points

  • What are the reactants and what are the products in this chemical reaction?

  • C10H8 + 12 O2 ---> 10 CO2 + 4 H2O


5 points1

5 points

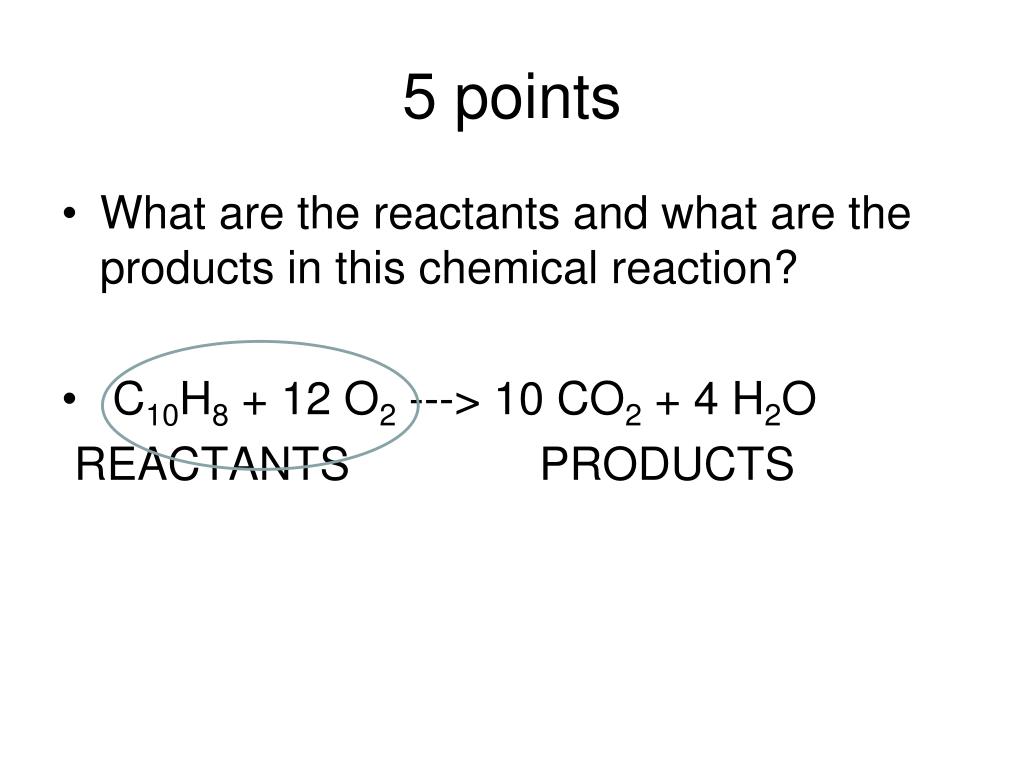

  • What are the reactants and what are the products in this chemical reaction?

  • C10H8 + 12 O2 ---> 10 CO2 + 4 H2O

    REACTANTS PRODUCTS


10 yards13

10 yards

  • What are the number of valence e- and ion charges of the7 columns?


10 yards answers

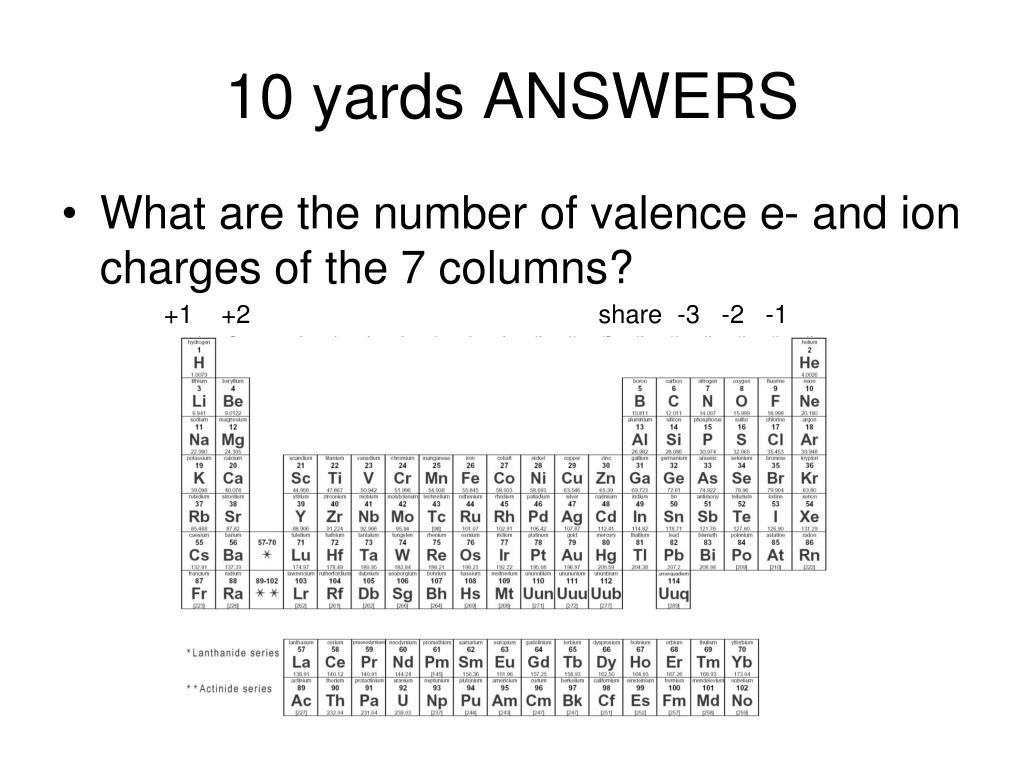

10 yards ANSWERS

  • What are the number of valence e- and ion charges of the 7 columns?

+1 +2 share -3 -2 -1


5 yards15

5 yards

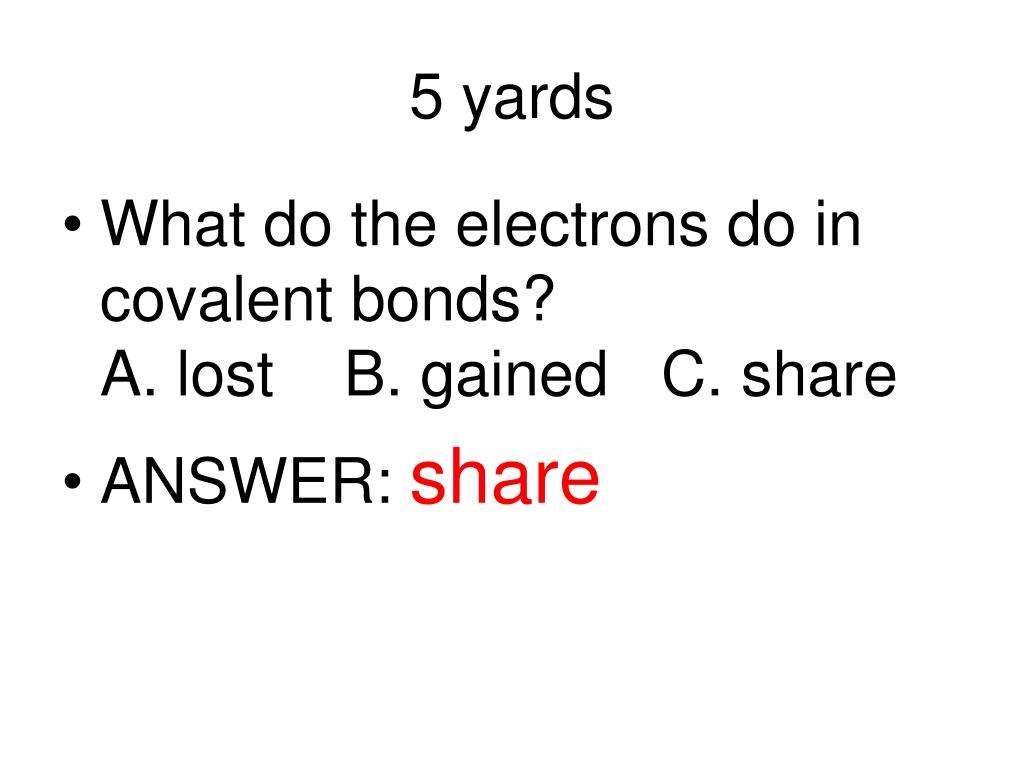

  • What do the electrons do in covalent bonds?A. lost B. gained C. share

  • ANSWER: share


5 yards16

5 yards

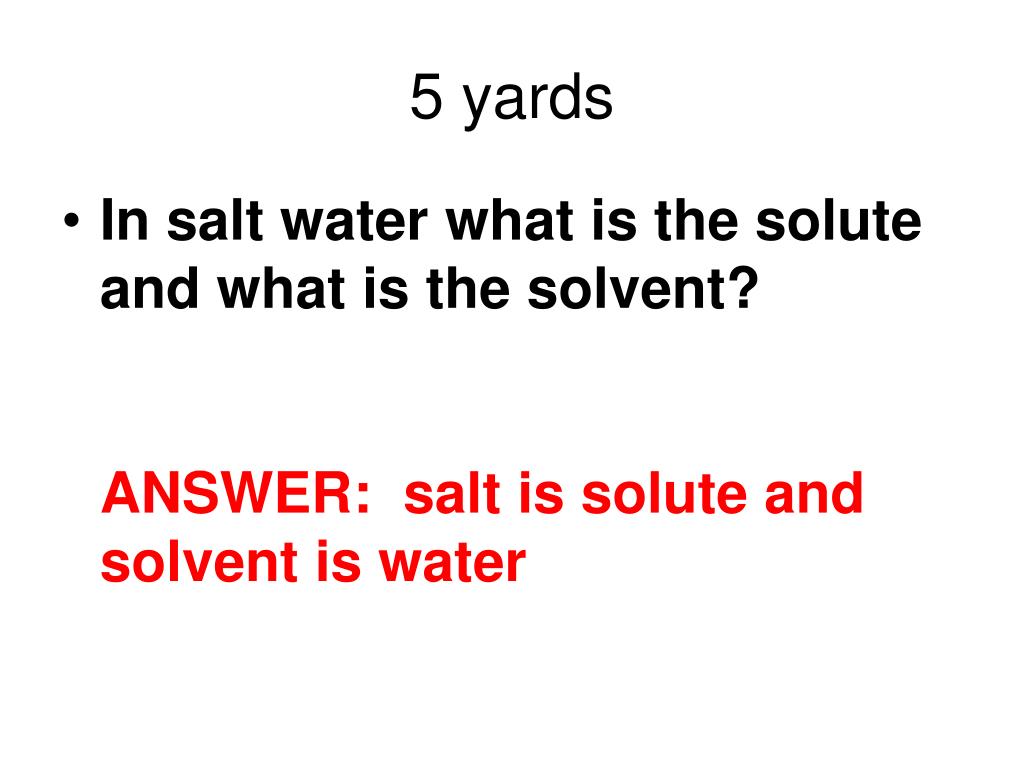

  • In salt water what is the solute and what is the solvent?ANSWER: salt is solute and solvent is water


10 yards14

10 yards

  • Which of the following are mixtures?

    Sand and salt water

    solution of water and dye CO2

    ANSWER: sand and salt

    solution of water and dye

    (the other two are compounds, chemically joined)


5 yards17

5 yards

  • What are the two ions that water dissociates into?

  • H+ and OH-


5 yards18

5 yards

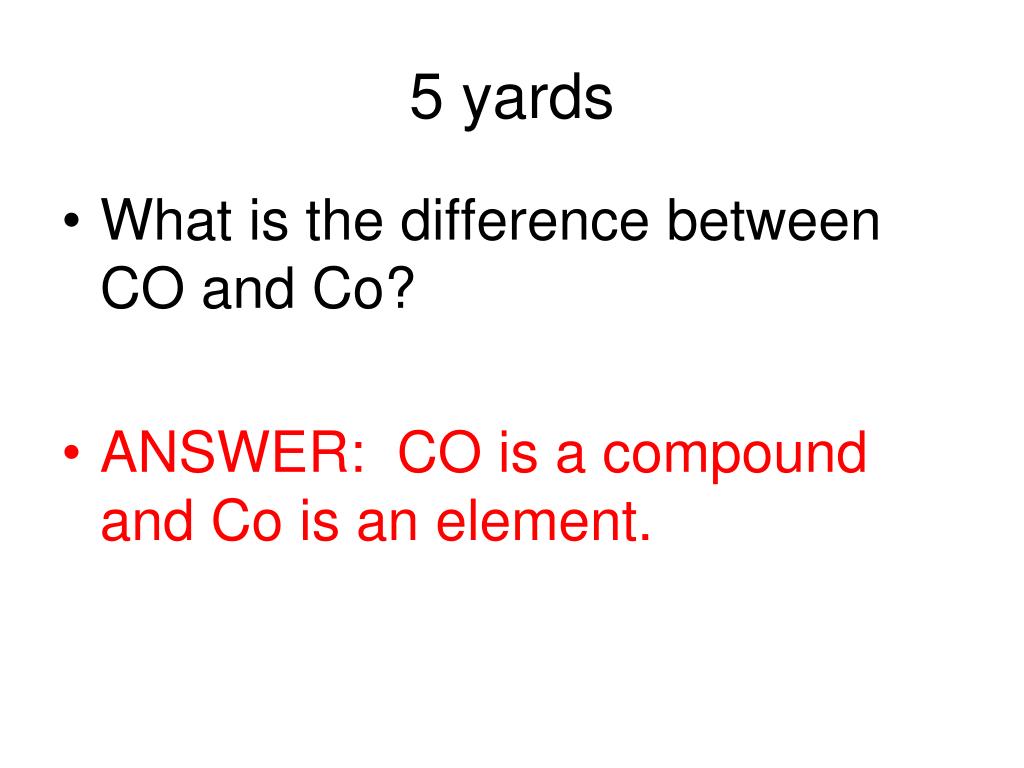

  • What is the difference between CO and Co?

  • ANSWER: CO is a compound and Co is an element.


5 yards19

5 yards

  • What subatomic particles make up the atom’s nucleus?

  • ANSWER: neutrons and protons


5 yards20

5 yards

  • Which elements behave more alike chemically?

  • ANSWER: those in same column (such as those with same valence e- numbers, and ion charges)


5 yards21

5 yards

  • Which elements are more likely to form ionic bonds?

  • ANSWER: far left (+ ions) and far right (not noble gases) that form (- ions)


5 yards22

5 yards

  • Contrast polar covalent and nonpolar covalent molecules.

  • ANSWER: polar covalent have unequal sharing of electrons

  • Nonpolar covalent electrons have equal sharing of electrons


15 yards2

15 yards

  • Draw a Bohr model of these three atoms:

  • Na Al He


10 yards15

10 yards

  • Determine the type of bonds formed if given these atoms formed in the bonds:

  • Li2O O2

  • Ionic covalent


5 yards23

5 yards

  • What two properties of water describe its unusual characteristics such as cohesion and surface tension?

  • ANSWER: polarity and H-bonding


5 yards24

5 yards

  • What are the top four elements found in the human body?

  • ANSWER: CHON


5 yards25

5 yards

  • What makes the elements different from each other on the periodic table?

  • ANSWER: they all have different atomic numbers (number of protons)

  • The ones in the same column have the same number of electrons in their outer shells.


5 yards26

5 yards

  • What is the same and what is different about the various isotopes of a atom?

  • ANSWER: SAME NUMBER OF PROTONS

  • DIFFERENT NUMBER OF NEUTRONS


10 yards16

10 yards

  • How do you determine the number of valence shell electrons?How do you determine the charge that ion forms?

  • ANSWER: electrons fill 2,8,8 rule

  • The electrons will gain or lose to fill an outer electron shell


10 yards17

10 yards

  • What is the maximum number of bonds these atoms can form with other atoms?

  • carbon

  • Fluorine

  • ANSWER: carbon can add 4 more bonds

  • fluorine can add one bond

  • (see next slide)


10 yards18

10 yards

  • Van der Waals

  • How do they form?

  • Strength compared to H-bonding

  • H-bonding

  • How do they form?

  • Strength compared to

    Van der Waals


10 yards19

10 yards

  • Van der Waals

  • How do they form?

  • Strength compared to H-bonding

  • Formed between polar molecules (dipole-dipole) or between nonpolar molecules (London)

  • H-bonding

  • How do they form?

  • Strength compared to

    Van der Waals

    Formed between H and F O N

    Stronger than van der Waals


5 points2

5 points

  • What are cations?

  • ANSWER: positive ions

  • What are anions?

  • ANSWER: negative ions


5 points3

5 points

  • Why does water have a high heat of fusion and a high heat of vaporization?

  • ANSWER: High heat of fusion (long time to form the H-bonds in ice) and High Heat of evaporation (long time to break bonds when water escapes a water vapor)


5 yards27

5 yards

  • What is the equation to determine the

    pH and [H+] and [OH-]?

  • ANSWER: pH = [H+] [OH-] = 10 -14


5 yards28

5 yards

  • Write the correct ionic compound formulas:

  • GIVEN: Mg2+ Cl-

  • K+ I-

  • Ca2+ P3-

  • ANSWERS: MgCl2 KI

  • Ca3P2


15 yards3

15 yards

  • Use capillarity, cohesion, and adhesion to describe what happens to ink on chromatography paper when placed in water.

  • Ink dissolved in the water adheres to the sides of the paper pores (adhesion). The ink water forms a column (cohesion) to push up the paper with (+) ends attracted to the (-) ends.


15 yards4

15 yards

  • How does the shape of the water droplet change when placed on wax paper and on glass? Explain with cohesion, adhesion, and hydrogen bonds.

  • On wax paper the water coheres more to itself and adheres less to the wax paper.

  • On the glass the water adheres well to the glass and makes a flatter drop.


5 yards29

5 yards

  • H-bonds in ice are:more stable than in liquid water

    Less stable than in liquid water

  • ANSWER: more stable


5 yards30

5 yards

  • Why do atoms join with other atoms to form compounds?

  • ANSWER: To fill outer electron shell


5 yards31

5 yards

  • Alkaline is another name for:A. bases C. buffers

    B. acids D. salts

    ANSWER: A. bases


5 yards32

5 yards

  • NaOH is:

  • A. element and atom

  • B. element and symbol

  • C. molecule and symbol

  • D. molecule and formula

    ANSWER: D


5 yards33

5 yards

  • Which best describes a water molecule?Polar ionicnonpolar ionic

  • Polar covalentnonpolar covalent

  • ANSWER: polar covalent


5 yards34

5 yards

  • If H+ joins S-2, what kind of bond would form?Covalent ionic hydrogen

  • ANSWER: ionic (note they are ions)


5 yards35

5 yards

  • In this diagram what are the dots?

    A. solution B. solvent C. solute

  • ANSWER: solute


5 points4

5 points

  • When water dissolves ions, what part of the water molecule will surround a negative ion?

  • ANSWER: The positive H+ ends


  • Login
