Presentation Transcript


California soft spinal system l.jpg

CALIFORNIA SOFT SPINAL SYSTEM™


California soft spinal system to treat l.jpg

CALIFORNIA™ SOFT SPINAL SYSTEM TO TREAT:

  • BACK PAIN

  • DISCOGENIC DISEASE

  • POST OPERATIVE SPINAL FUSIONS

  • LAMINECTOMIES

  • SPONDYLOLISTHESIS

  • SPONDYLOLYSIS


California soft spinal system3 l.jpg

CALIFORNIA™ SOFT SPINAL SYSTEM

FEATURES:

  • Totally modular, interchangeable componentry

  • Compound pull closure system

  • Soft, hypoallergenic, breathable fabric

  • Removable anterior & posterior panels

  • Converts from:

    • LSO-- Lumbo Sacral Orthosis

    • TLSO-- Thoraco Lumbo Sacral Orthosis


California soft spinal system4 l.jpg

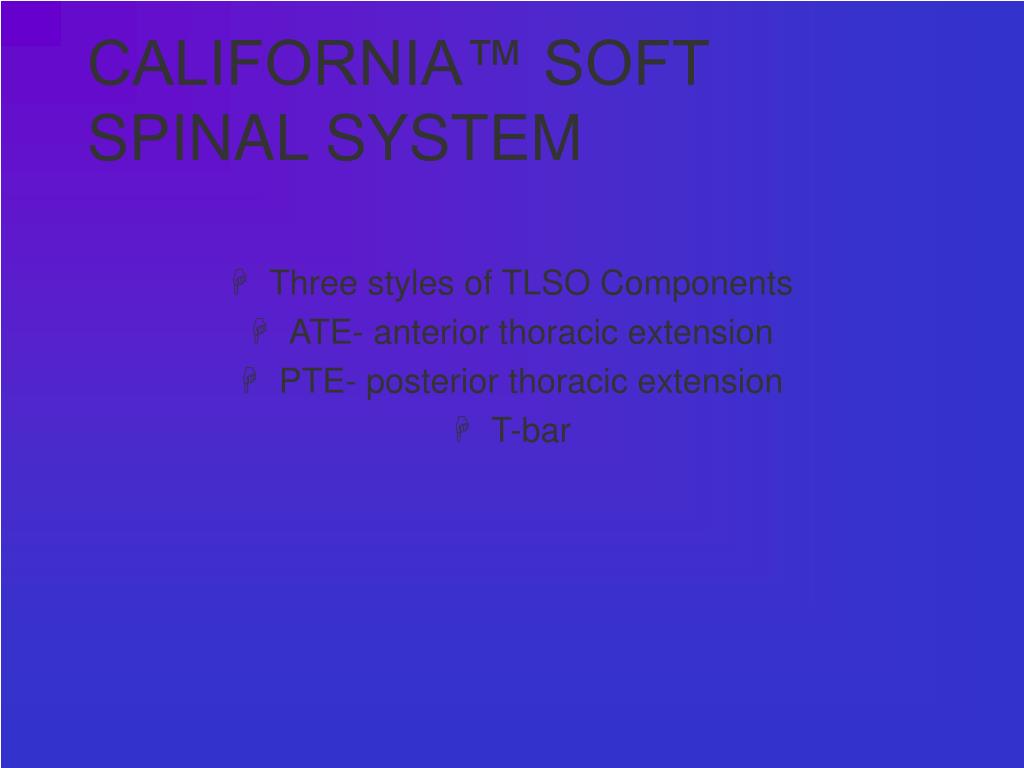

CALIFORNIA™ SOFT SPINAL SYSTEM

  • Three styles of TLSO Components

  • ATE- anterior thoracic extension

  • PTE- posterior thoracic extension

  • T-bar


California soft spinal system5 l.jpg

CALIFORNIA™ SOFT SPINAL SYSTEM

  • Rigid, Semi-Rigid or “Soft” Control

  • Lateral control panels (optional)

  • 10 Sizes (5 Female, 5 Male)


Available custom to measurements l.jpg

Available Custom-to-Measurements

  • phone

  • faxed

  • modem


California soft spinal system7 l.jpg

CALIFORNIA™ SOFT SPINAL SYSTEM

FITTING:

  • Take required measurements:

    • Chest Circumference at Xyphoid Process

    • Waist Circumference

    • Hip Circumference

  • Choose LSO or TLSO design

  • For TLSO measure:

    • Pubic Symphysis to Sternal notch


California soft spinal system8 l.jpg

CALIFORNIA™ Soft Spinal System

FITTING (continued)

  • Choose TLSO components

    • Anterior Thoracic Extension (ATE) or

    • Posterior Thoracic Extension (PTE)or

    • T-bar

  • Choose Front and Back Panels

    • Front Panel- Flat or Pendulous

    • Back Panel- 0 or 15 Lordosis

    • Choose lateral support panels

  • Assemble componentry


California soft spinal system9 l.jpg

CALIFORNIA™ Soft Spinal System

  • remoldable and removable ABS plastic panel

  • easy side closure with dual straps


California soft spinal system10 l.jpg

CALIFORNIA™ Soft Spinal System

  • Easy to attach side closure

  • Easy to apply and remove


California soft spinal system11 l.jpg

CALIFORNIA™ Soft Spinal System

  • PTE Attachment

    • provides thoracic support

    • promotes thoracic extension

    • Straps go under arms and crisscross in back


California soft spinal system12 l.jpg

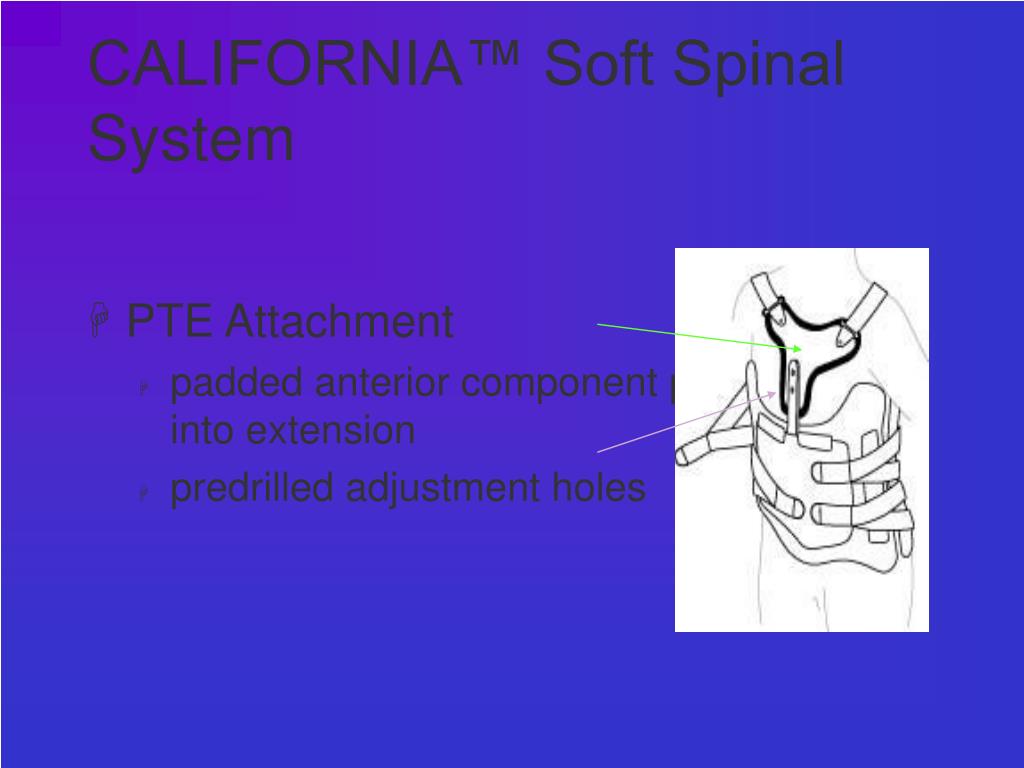

CALIFORNIA™ Soft Spinal System

  • PTE Attachment

    • padded anterior component pushes patient into extension

    • predrilled adjustment holes


California soft spinal system13 l.jpg

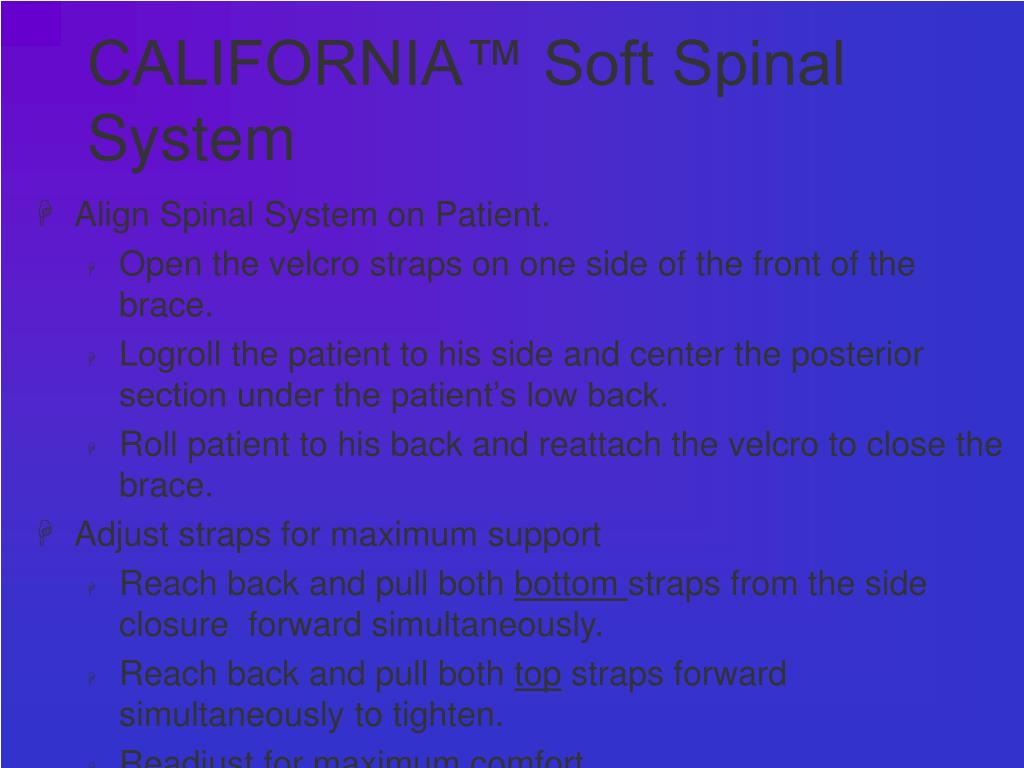

CALIFORNIA™ Soft Spinal System

  • Align Spinal System on Patient.

    • Open the velcro straps on one side of the front of the brace.

    • Logroll the patient to his side and center the posterior section under the patient’s low back.

    • Roll patient to his back and reattach the velcro to close the brace.

  • Adjust straps for maximum support

    • Reach back and pull both bottom straps from the side closure forward simultaneously.

    • Reach back and pull both top straps forward simultaneously to tighten.

    • Readjust for maximum comfort


California soft spinal system14 l.jpg

CALIFORNIA™ Soft Spinal System

  • With patient laying supine, slide the posterior section under the patient. “Logroll” the patient carefully if required


California soft spinal system15 l.jpg

CALIFORNIA™ Soft Spinal System

  • Be sure back portion of brace is aligned properly.


California soft spinal system16 l.jpg

CALIFORNIA™ Soft Spinal System

  • Place front panel on abdomen with top of panel at approximately the xyphoid process.


California soft spinal system17 l.jpg

CALIFORNIA™ Soft Spinal System

  • Reattach the velcro at the side to close the brace.


California soft spinal system18 l.jpg

CALIFORNIA™ Soft Spinal System

  • Adjust straps by pulling both bottom straps forward simultaneously.

  • Repeat with both top straps.


California soft spinal system19 l.jpg

CALIFORNIA™ Soft Spinal System

KEY BENEFITS

  • Both front and back panels are made of ABS plastic and can be heated and modified with a heat gun.

    • Panels are easy to trim.

    • Heat panel with heat gun

    • Cut with strong scissors

  • Panels can be removed,

    • Creates a more flexible system

    • Allows patient’s muscles to work more

    • Easier to tolerate for elderly patients


California soft spinal system20 l.jpg

CALIFORNIA™ Soft Spinal System

  • KEY BENEFITS

    • Back and Front panel inserts are predrilled for ease of attaching/retrofitting TLSO components.

    • Modular lateral components attach to anterior portion with Velcro® tabs.

    • Optional Posterior air bladder is also available.

    • With back and front panel inserts and straps removed, brace can be hand washed


Slide21 l.jpg

KEY BENEFITS

Models available for men and women

  • Female version is more pear shaped than male, with greater widths at the hips than the male version.

  • Front panels are not as high on the female version, reducing the chance of breast irritation


California soft spinal system22 l.jpg

CALIFORNIA™ Soft Spinal System

  • CARE:

    • Remove plastic inserts.

    • Hand wash coolfoam pads in the sink with mild detergent

    • Rinse thorougly

    • Pads should be line dried

    • Replacement pads are available

    • California™ Soft Spinal is also available custom to measurement.

      • contact customer service for measurement requirements.


New for october 2000 two new designs california compression orthosis california low profile l.jpg

NEW FOR OCTOBER 2000!TWO NEW DESIGNSCalifornia Compression OrthosisCalifornia Low Profile


California compression orthosis l.jpg

California Compression Orthosis

  • Extremely low profile design

    • available in 8” and 10” posterior heights

    • incomparable compression

    • universal right/left pull tab


Slide25 l.jpg

California Compression OrthosisIndications:Indicated for pain caused by specific activity:work related activityheavy liftinggolfgardeningtwisting/repetitive activities


California compression l.jpg

California Compression


California low profile orthosis l.jpg

California Low Profile Orthosis

  • Uses compound closure for easy one handed compression

  • Available with either ABS posterior panel or Coolfoam pad


California low profile l.jpg

California Low Profile

  • 6” Anterior panel

    • supports the abdomen

    • reduces respiratory compression

    • prevents the orthosis from “riding up”


Slide29 l.jpg

California Low Profile OrthosisLow back pain:obese patientspatients in late pregnancypatients with a short staturepatients who can not tolerate xiphoid height orthoses


Slide30 l.jpg

GRACIAS !
