  1. This PowerPoint is a quick guide to configuration of SheepShaver (v 2.3) for running Mac OS 8.5 to 9.0.2 on a PC under Windows XP Any comment ? : click <here> Jean-Pascal Cogné Université de Paris 7 - Denis Diderot IPG 4 Place Jussieu 75252 Paris Cedex 05 France This is a helper. In no case the author can be considered liable of bad issues on your computer…

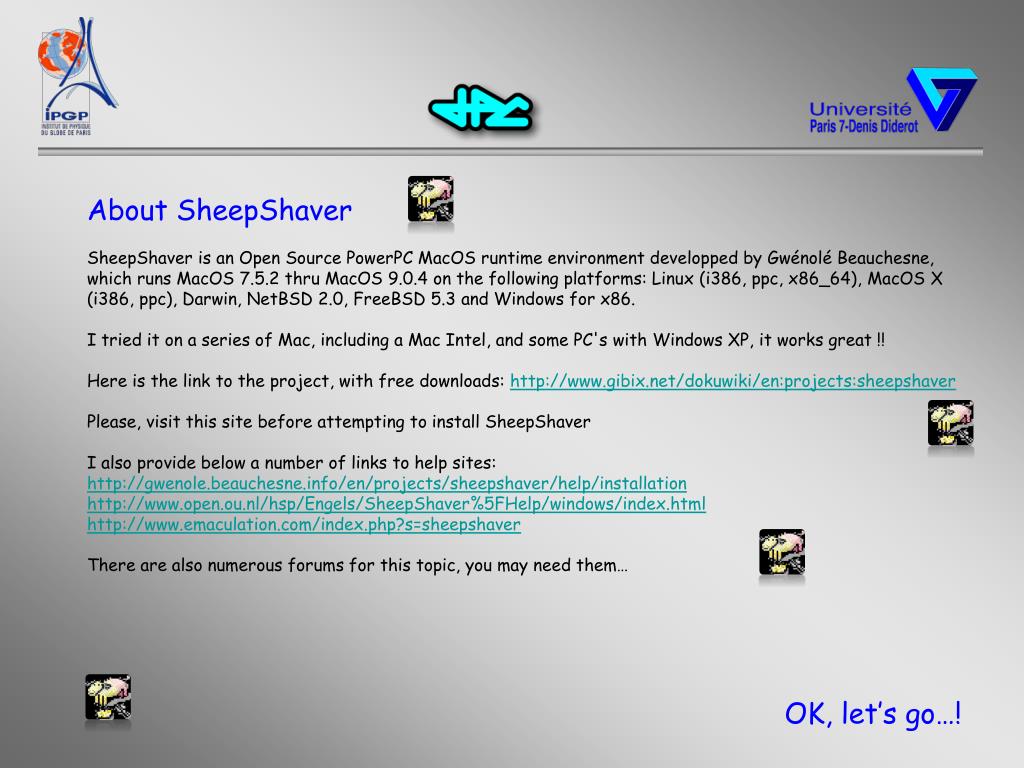

  2. About SheepShaver SheepShaver is an Open Source PowerPC MacOS runtime environment developped by Gwénolé Beauchesne, which runs MacOS 7.5.2 thru MacOS 9.0.4 on the following platforms: Linux (i386, ppc, x86_64), MacOS X (i386, ppc), Darwin, NetBSD 2.0, FreeBSD 5.3 and Windows for x86. I tried it on a series of Mac, including a Mac Intel, and some PC's with Windows XP, it works great !! Here is the link to the project, with free downloads: http://www.gibix.net/dokuwiki/en:projects:sheepshaver Please, visit this site before attempting to install SheepShaver I also provide below a number of links to help sites: http://gwenole.beauchesne.info/en/projects/sheepshaver/help/installation http://www.open.ou.nl/hsp/Engels/SheepShaver%5FHelp/windows/index.html http://www.emaculation.com/index.php?s=sheepshaver There are also numerous forums for this topic, you may need them… OK, let’s go…!

  3. Installing SheepShaver under Windows XP Here is the content of SheepShaver folder, after download, and following the instructions of Gwenolé Beauchesne at:http://gwenole.beauchesne.info/en/projects/sheepshaver/help/installation

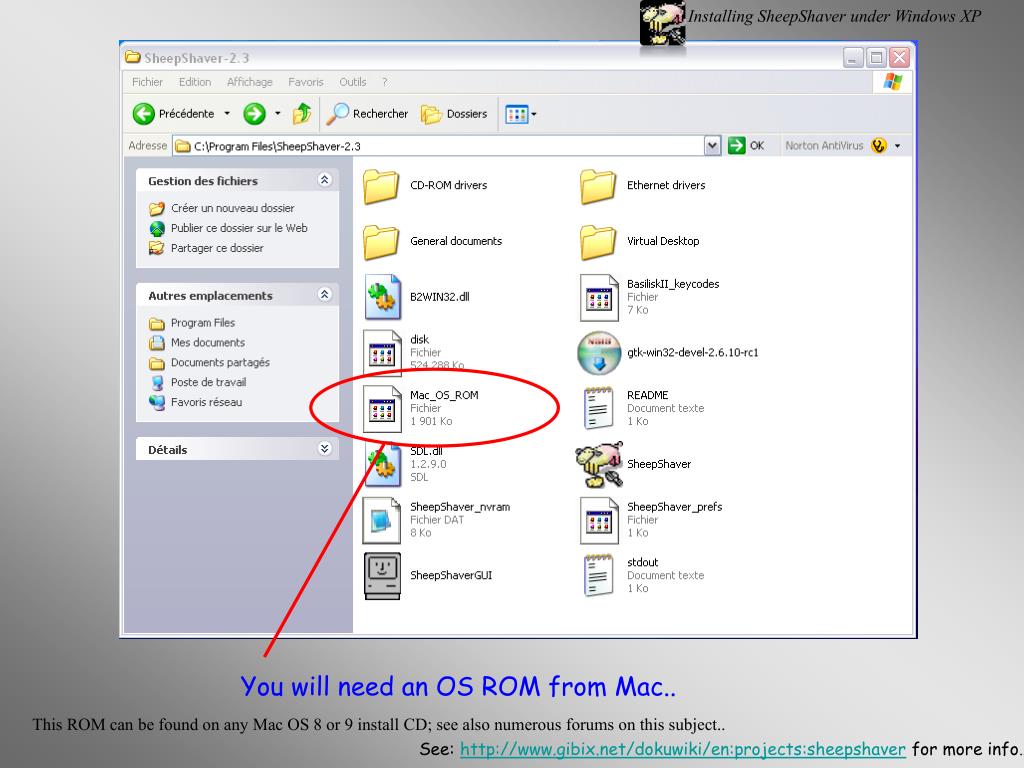

  4. Installing SheepShaver under Windows XP You will need an OS ROM from Mac.. This ROM can be found on any Mac OS 8 or 9 install CD; see also numerous forums on this subject.. See: http://www.gibix.net/dokuwiki/en:projects:sheepshaver for more info…

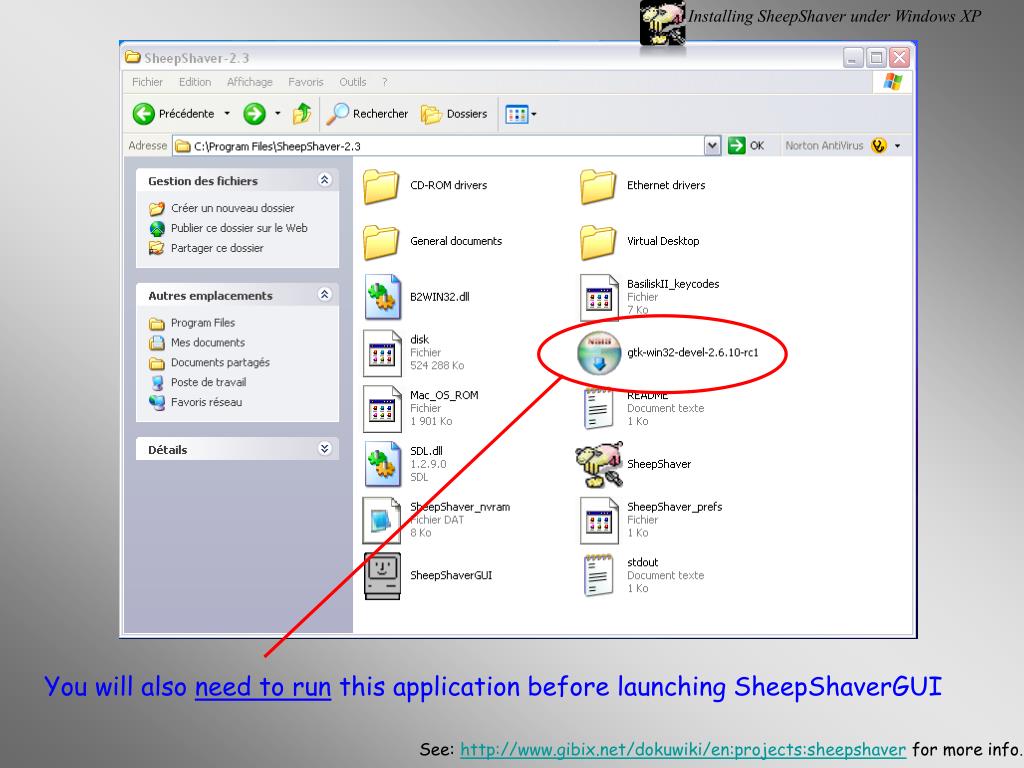

  5. Installing SheepShaver under Windows XP You will also need to run this application before launching SheepShaverGUI See: http://www.gibix.net/dokuwiki/en:projects:sheepshaver for more info…

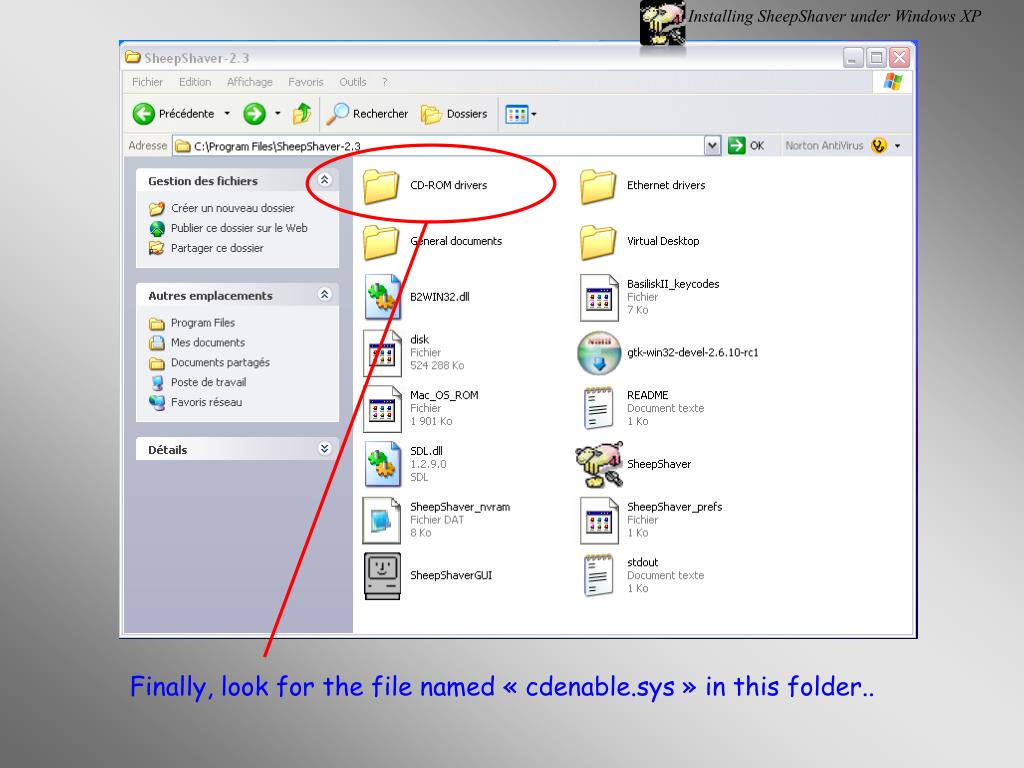

  6. Installing SheepShaver under Windows XP Finally, look for the file named « cdenable.sys » in this folder..

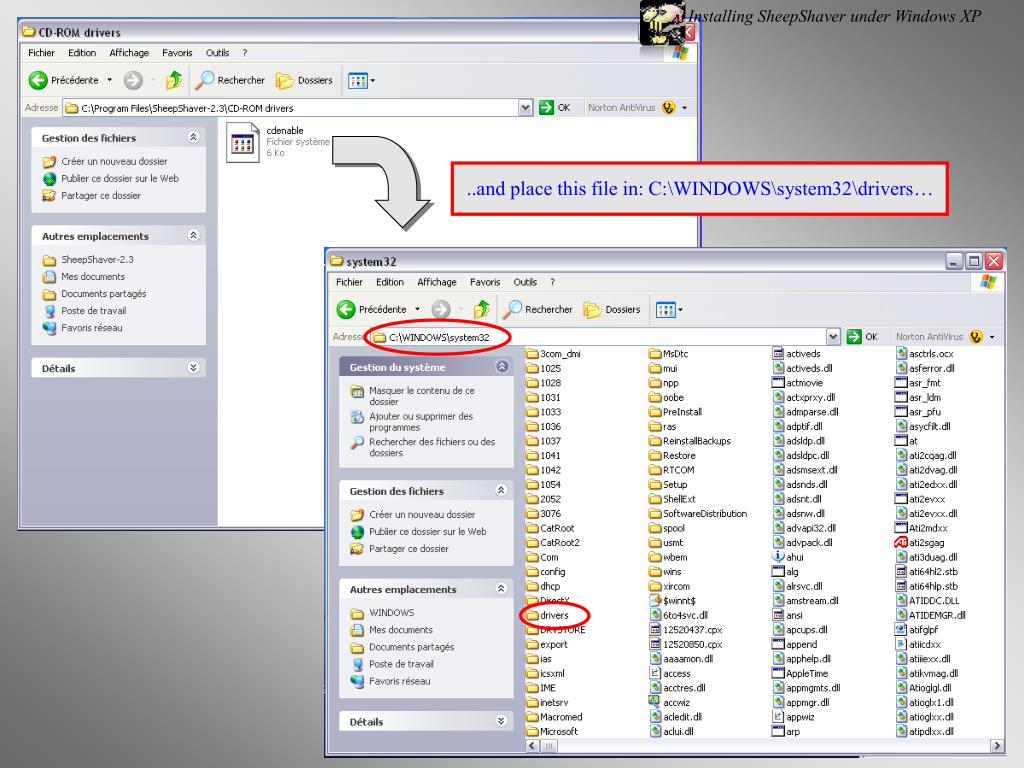

  7. Installing SheepShaver under Windows XP ..and place this file in: C:\WINDOWS\system32\drivers…

  8. Installing SheepShaver under Windows XP Then… run SheepShaverGUI..

  9. Installing SheepShaver under Windows XP Here is the first Tab of SheepShaverGUI: The place where you define volumes and shared folders…

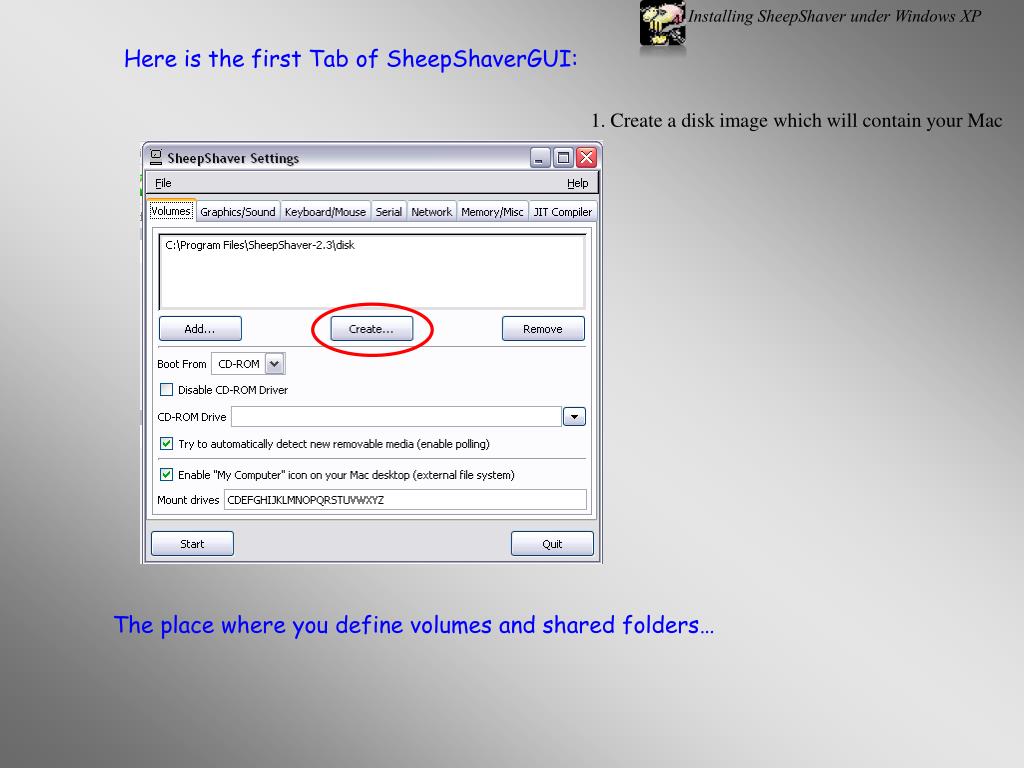

  10. Installing SheepShaver under Windows XP Here is the first Tab of SheepShaverGUI: 1. Create a disk image which will contain your Mac The place where you define volumes and shared folders…

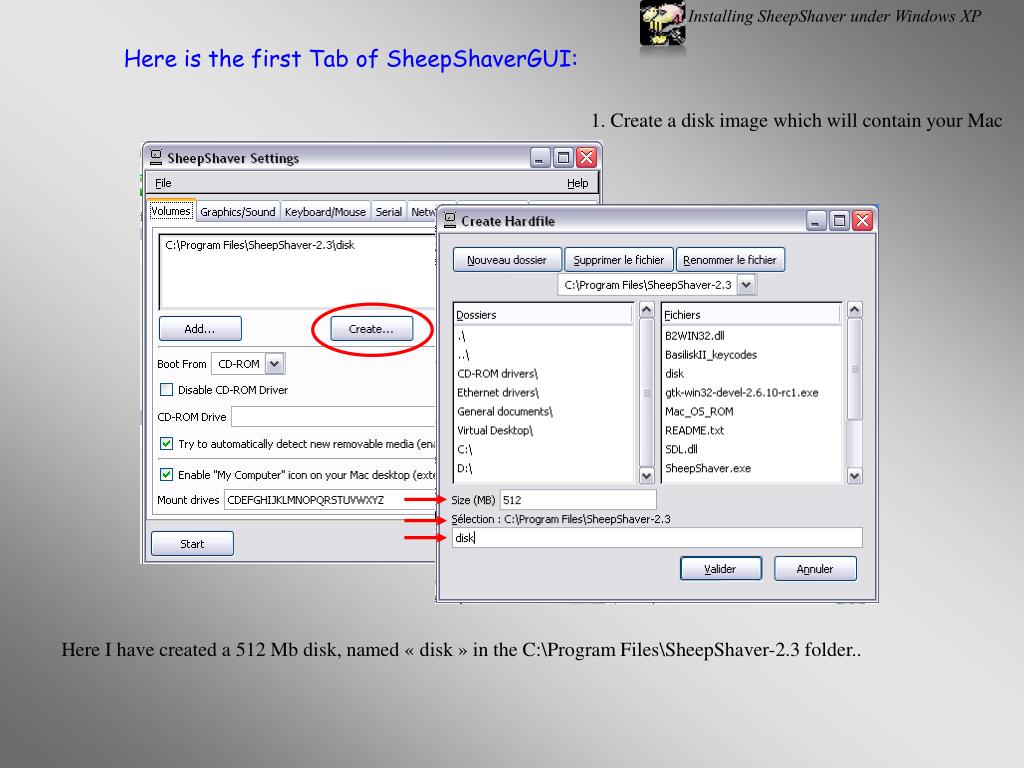

  11. Installing SheepShaver under Windows XP Here is the first Tab of SheepShaverGUI: 1. Create a disk image which will contain your Mac Here I have created a 512 Mb disk, named « disk » in the C:\Program Files\SheepShaver-2.3 folder..

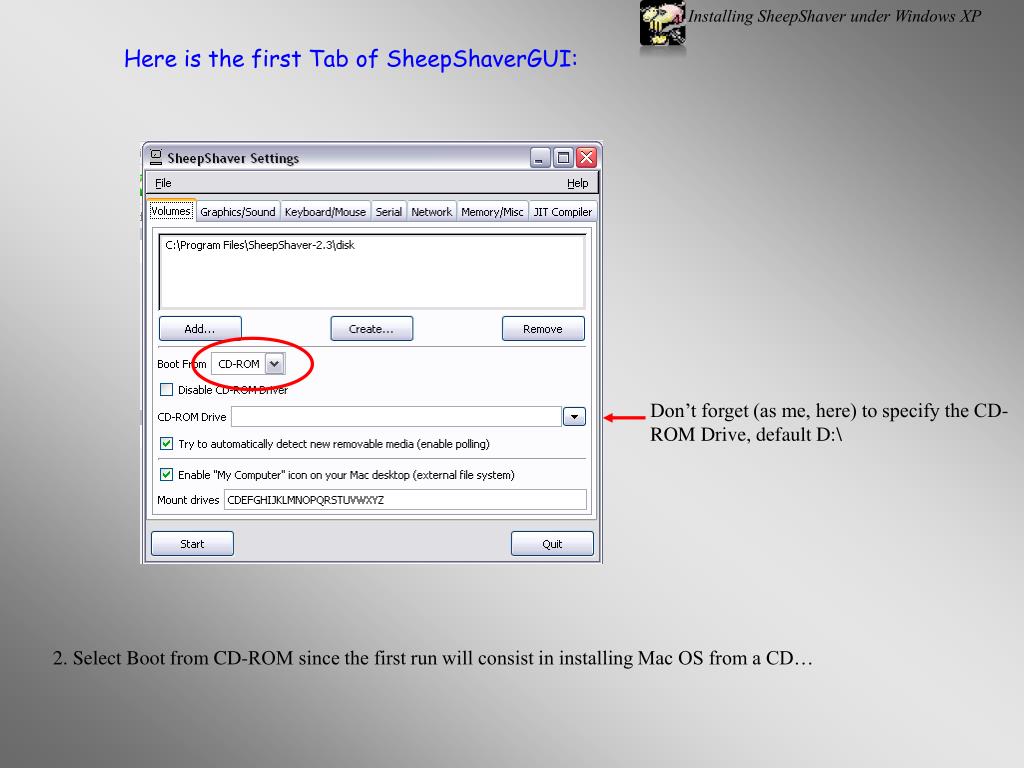

  12. Installing SheepShaver under Windows XP Here is the first Tab of SheepShaverGUI: Don’t forget (as me, here) to specify the CD-ROM Drive, default D:\ 2. Select Boot from CD-ROM since the first run will consist in installing Mac OS from a CD…

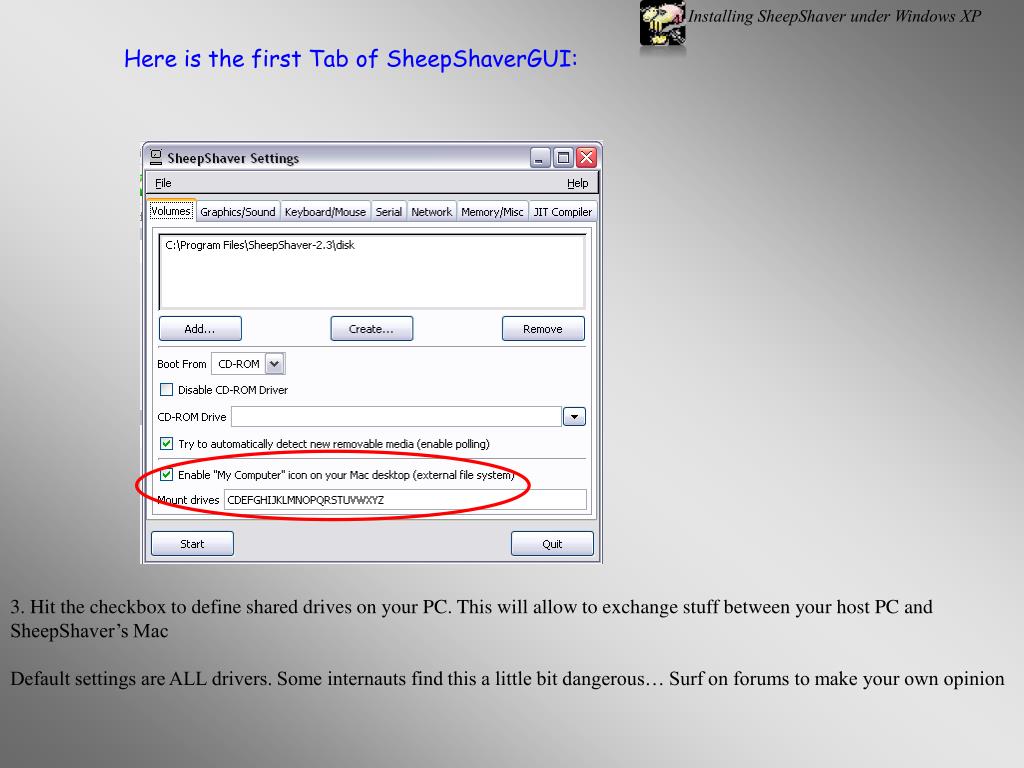

  13. Installing SheepShaver under Windows XP Here is the first Tab of SheepShaverGUI: 3. Hit the checkbox to define shared drives on your PC. This will allow to exchange stuff between your host PC and SheepShaver’s Mac Default settings are ALL drivers. Some internauts find this a little bit dangerous… Surf on forums to make your own opinion

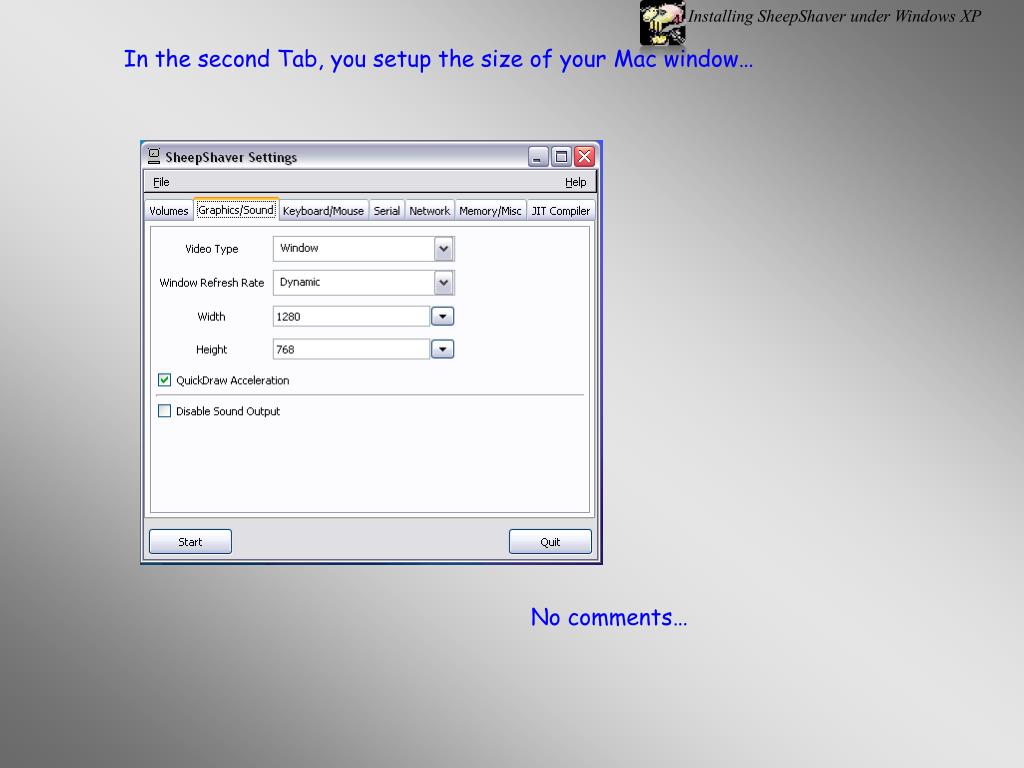

  14. Installing SheepShaver under Windows XP In the second Tab, you setup the size of your Mac window… No comments…

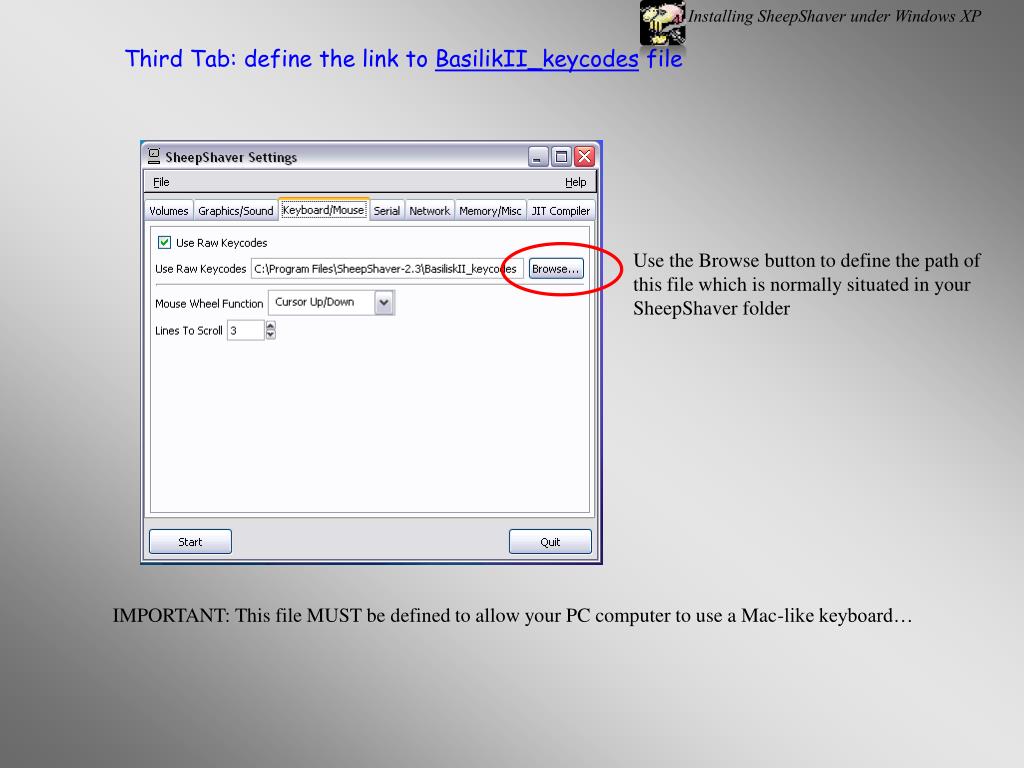

  15. Installing SheepShaver under Windows XP Third Tab: define the link to BasilikII_keycodes file Use the Browse button to define the path of this file which is normally situated in your SheepShaver folder IMPORTANT: This file MUST be defined to allow your PC computer to use a Mac-like keyboard…

  16. Installing SheepShaver under Windows XP Fourth Tab: defining serial ports… I did not make anything here.. There are numerous forums on this subject, if needed…

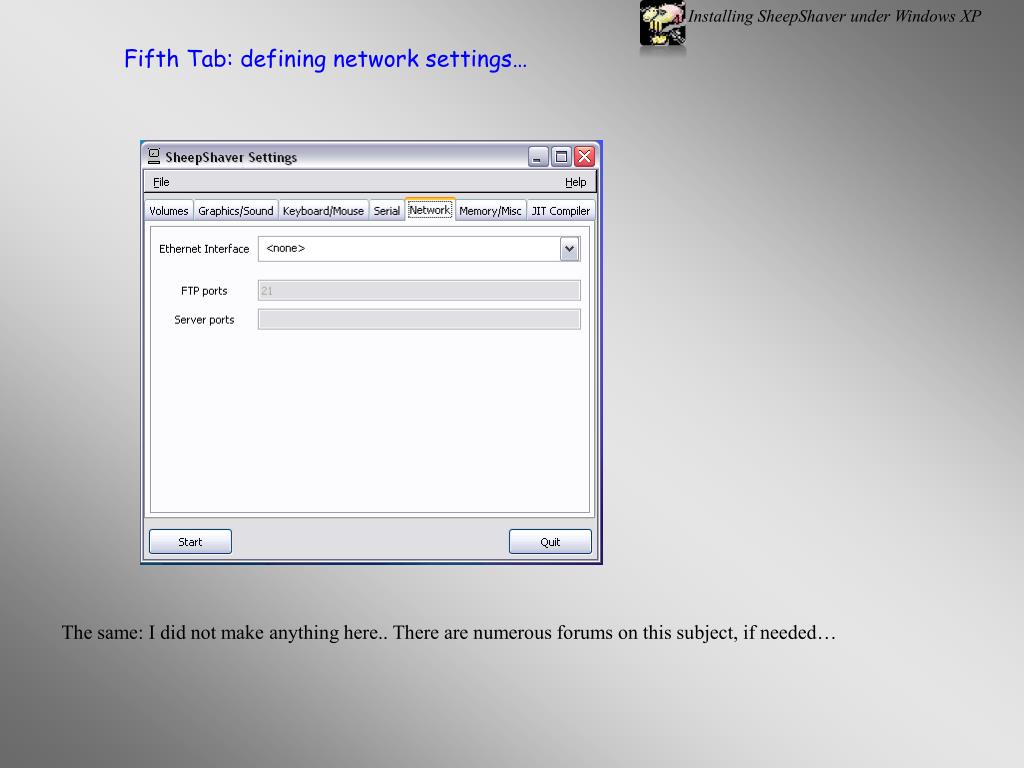

  17. Installing SheepShaver under Windows XP Fifth Tab: defining network settings… The same: I did not make anything here.. There are numerous forums on this subject, if needed…

  18. Installing SheepShaver under Windows XP Sixth Tab: one of the most important settings, memory..!

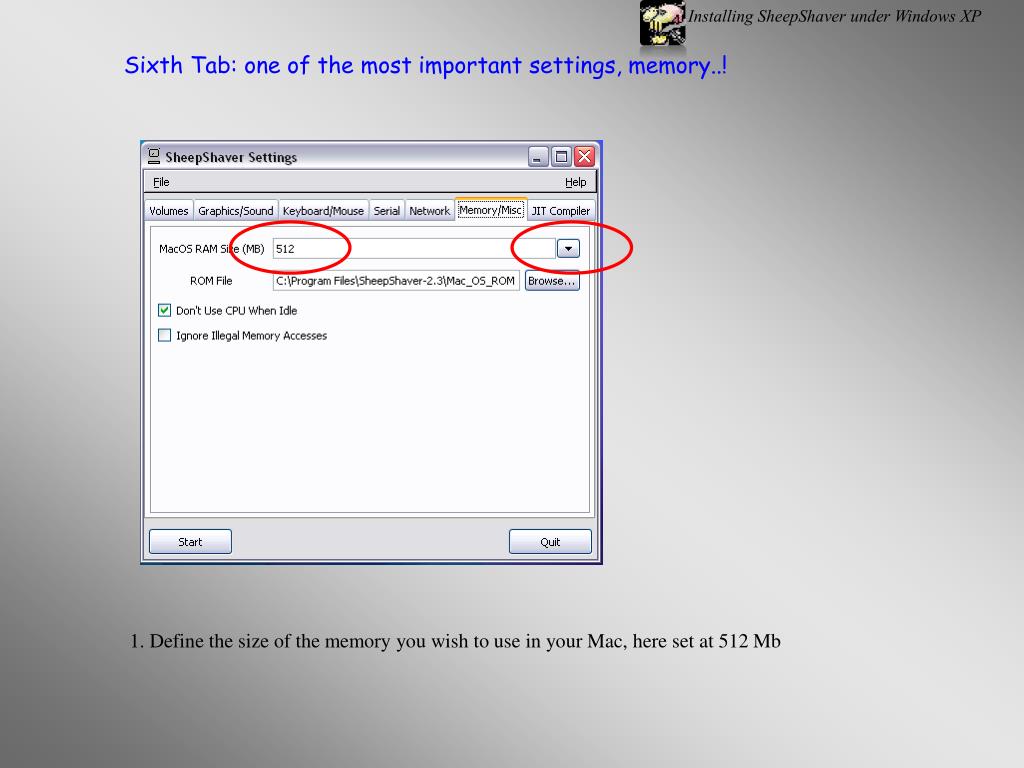

  19. Installing SheepShaver under Windows XP Sixth Tab: one of the most important settings, memory..! 1. Define the size of the memory you wish to use in your Mac, here set at 512 Mb

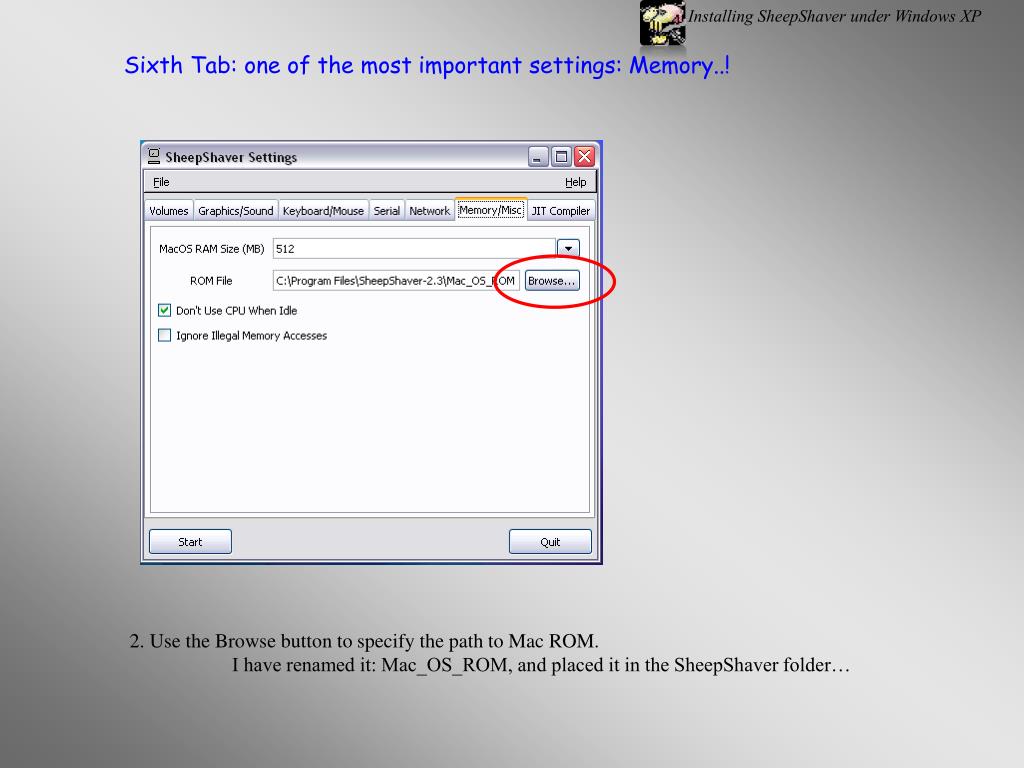

  20. Installing SheepShaver under Windows XP Sixth Tab: one of the most important settings: Memory..! 2. Use the Browse button to specify the path to Mac ROM. I have renamed it: Mac_OS_ROM, and placed it in the SheepShaver folder…

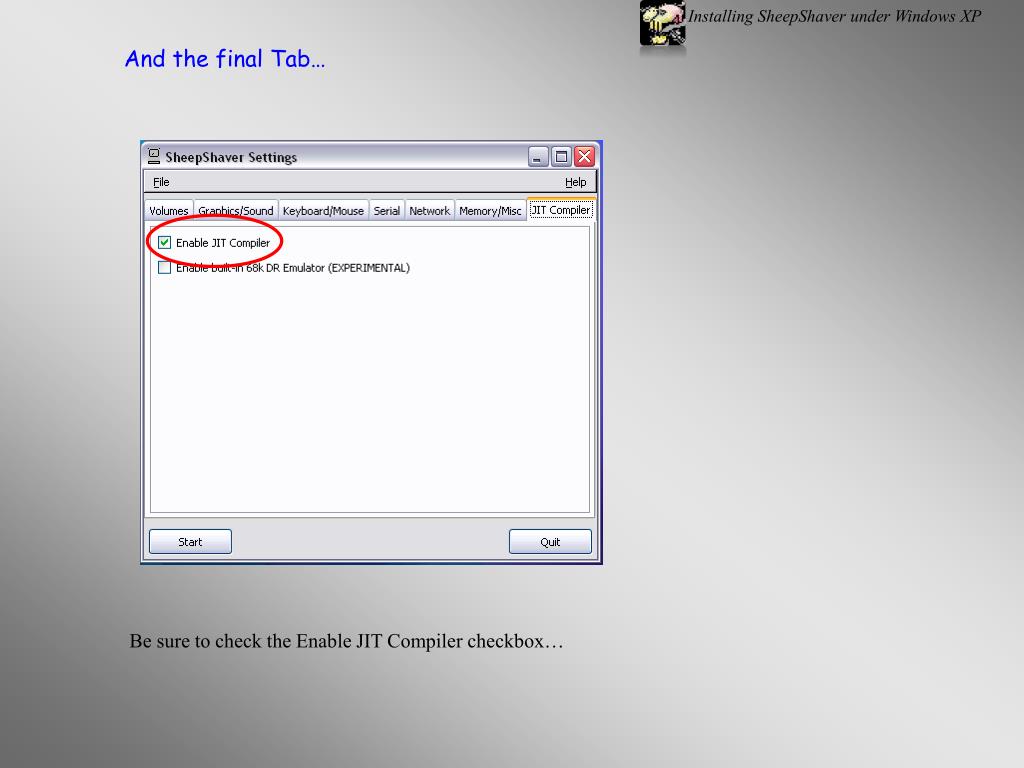

  21. Installing SheepShaver under Windows XP And the final Tab… Be sure to check the Enable JIT Compiler checkbox…

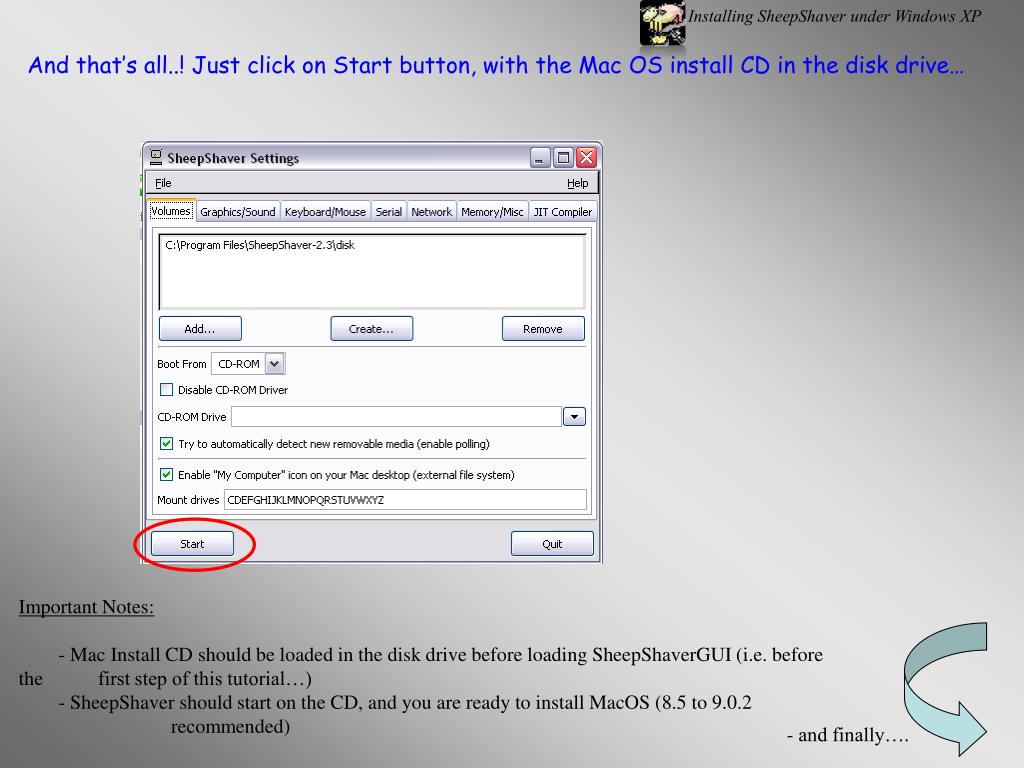

  22. Installing SheepShaver under Windows XP And that’s all..! Just click on Start button, with the Mac OS install CD in the disk drive… Important Notes:         - Mac Install CD should be loaded in the disk drive before loading SheepShaverGUI (i.e. before the           first step of this tutorial…)         - SheepShaver should start on the CD, and you are ready to install MacOS (8.5 to 9.0.2           recommended) - and finally….

  23. Installing SheepShaver under Windows XP You will be fascinated by this wonderful PaleoMac application running under Mac OS 9 on your PC…!

  24. Installing SheepShaver under Windows XP You will be fascinated by this wonderful PaleoMac application running under Mac OS 9 on your PC…! This is the way both worlds can exchange… PC desktop Mac desktop

  25. Any comment or suggestion? cogne@ipgp.jussieu.fr
