Verification of shur macro cell library in a fault tolerant digital signal processor application

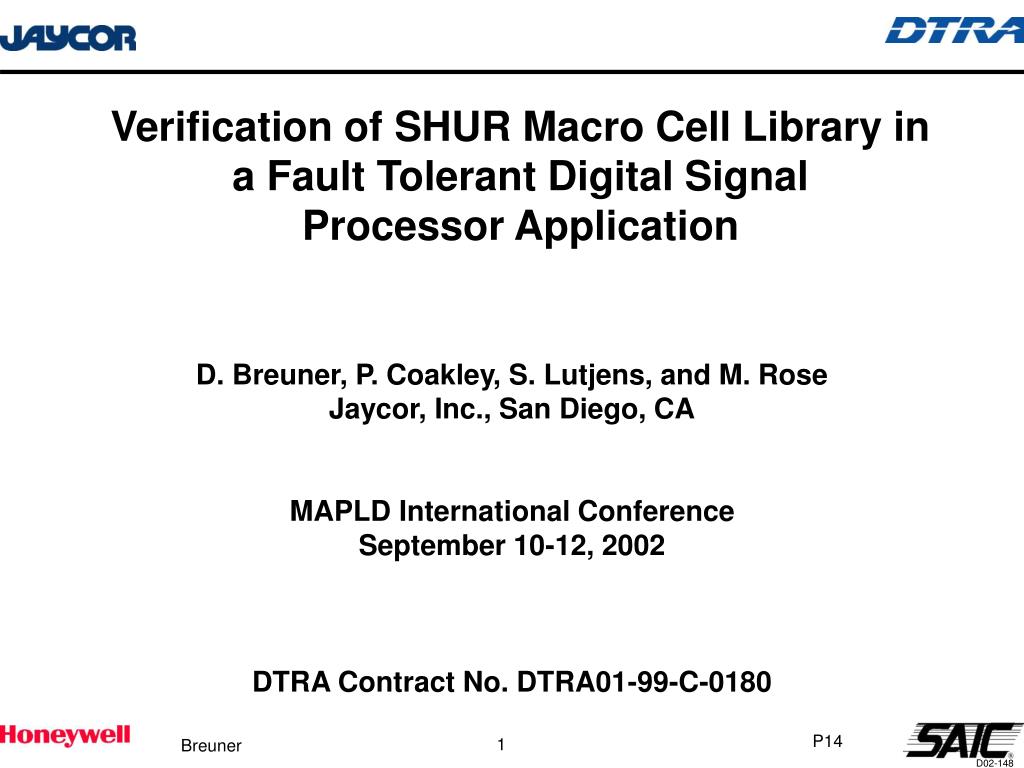

Verification of SHUR Macro Cell Library in a Fault Tolerant Digital Signal Processor Application

D. Breuner, P. Coakley, S. Lutjens, and M. Rose

Jaycor, Inc., San Diego, CA

MAPLD International Conference

September 10-12, 2002

DTRA Contract No. DTRA01-99-C-0180


Program objective

Program Objective

Develop and Demonstrate a Library of Macro Cells to Implement System Hardening – Upset Recovery (SHUR) in Application-Specific Integrated Circuits (ASICs) and Programmable Logic Devices (PLDs)


Shur develops and demonstrates upset recovery technologies

SHUR Develops and DemonstratesUpset Recovery Technologies

As a “Gate Keeper” SHUR Preserves Signal Integrity


Applications for shur functions

Applications for SHUR Functions

  • You should consider SHUR if:

    • Your system relies on critical data to complete its mission

    • Your system needs to detect and recover from electronic upsets

    • Your system must recover rapidly from upset

    • Your system relies on HW/SW to control upset recovery

    • Your system uses COTS

Offers Recovery Insurance


Shur technology products

SHUR Technology Products

  • SHUR provides system designers

    • Library of upset and recovery building blocks (macro cells)

    • Performance specifications for library cells

    • Application guidelines for using library cells

    • ASIC demonstrating SHUR building block performance

    • POD’s for contractor evaluation

    • Software recommendations for rapid recovery

SHUR Provides the Building Blocks -- You Providethe Creative Engineering


Verification of shur macro cell library in a fault tolerant digital signal processor application

SHUR Macro Library Combines Features of

Circumvention Recovery and Fault Tolerance

  • Circumvention Recovery

    • Event detection1

    • Protect electronics and critical data2

    • Reset post event or timed period4

    • Restart at a known state5

    • Recover essential data8

    • Complete recovery – operational system9

  • Fault Tolerance

    • Errors trapped3

    • Errors purged6

    • System returned to state without fault7

  • * Numbers represent sequence of events executed using SHUR technology


Critical data and command control functions passed through shur

Critical Data and Command/Control FunctionsPassed Through SHUR

When upset is detected:

  • Prevents critical data corruption

  • Prevents execution of erroneous commands

  • Monitors interruption time

  • Initiates rapid data/system recovery

As a “Gate Keeper” SHUR Preserves Signal Integrity


Shur macro library implements four major system functions

Major Function

Capability

1.System clock generation

2.Parallel I/O interface

3.Fault Processing

4.General purpose interfaces

  • Single primary oscillator used to generate internal clock frequencies 66 MHz via phase-locked loop

  • User selectable output frequency for power saving with glitch free transition

  • Gated and free running outputs

  • SRAM like interface provides compatibility with any processor architecture

  • False-write protection preserves data integrity

  • Outputs clamped to known state during fault condition

  • Multiple fault inputs and responses

  • Configurable matrix for masking or mapping fault signals to corrective responses

  • Retained data facilitates rapid system recovery

  • Compliant with system specific hardware sequencing requirements

  • Bidirectional discrete data lines with false-write protection to enhance system operability, test, and diagnostic capability.

  • Interfaces can be tailored to meet unique system requirements

SHUR Macro Library Implements Four Major System Functions


False write macro

False-Write Macro

Features

  • Latches address and data into internal SHUR registers

  • Delays write pulse to non-upsettable memory to ensure data integrity

    (30 ns minimum)

  • Generates memory acknowledge signal for processors using automatic wait-state allocation

Port Description

NameTypeFunction

CLKISystem clock

NSM_SEL I Selects SHUR function (low)

NRESET I Resets logic during power-up (low)

INHIBIT I Halts generation of NHWR (low)

NHWRODelayed write pulse ( )

NLATCHOLatches data into SHUR register (low)

DMACKOMemory acknowledge

Timing


A proof of design asic used for macro library verification for system upset recovery hardening

A Proof-of-Design ASIC Used for Macro LibraryVerification for System Upset/Recovery Hardening

  • Synthesized into Honeywell HX2000 gate array technology to achieve high dose rate upset threshold

  • ASIC designed to accomplish these objectives:

    • Demonstrate functional performance of each SHUR macro cell

    • Validate macro simulation models

    • Verify macro performance specifications

    • Provide data to develop macro library application guidelines

    • Explore SHUR macro application flexibility

    • Provide a test vehicle for independent contractor evaluation

  • Extensive laboratory and radiation testing used to fully validate the macro library designs and system applicability


Proof of design asic data sheet

Proof-of-Design ASIC Data Sheet

DATA SHEET

JAYCOR

  • SRAM False-Write Protection

  • Prompt Immune Signal Pass-through

  • Clock Generation Circuitry

  • Recall Registers:

  • Last SHUR Address Written

  • Last SHUR SRAM Address Written

  • Off-Line Timer

  • Interrupt Handler, Router, Sorter

  • 16 Storage Registers

  • 2 Programmable Reset Timers / Outputs

  • 16 Discrete Output Lines

  • 16 Discrete Input Lines

  • Event Counter

  • Latchup Immune

  • Total Dose Hardness to 106Rad(Si)

  • Prompt Dose Upset Level >1010Rad(Si)/sec.

  • Prompt Dose Survivability Level 1012Rad(Si)/sec.

  • 5 Volt Operation

  • 352 Pin Quad Flat Pack

SHUR POD ASIC

D02-080 11


Top level block diagram of pod asic

DMWR

DMRD

SM_SEL

DMACK

PRIW_N

- Non-upsettable interfaces

SHUR_RST

SPWR_OK

Top Level Block Diagram of POD ASIC

SRAM_DATA(15:0)

Free-running clocks (4)

D_SRAM(15:0)

DISC_IN(15:0)

22 MHz

A_SRAM(19:0)

Gated clocks (4)

DISC_OUT(15:0)

CRYSTAL

Internal clock nets (4)

FREQ_SEL(2)

DO_ENB

NOE

(66 MHz, CPU_CLK, 1 MHz, 100 kHz)

Monitor

System Clocks

NCS

PLL

System Clocks

Discrete I/O

NWE

66MHz CLK

SRAM Interface

Read/Write Control

SRAM Interface

HWR_N

66MHz CLK

IDATA(31:0)

DATA_SYS(31:0)

IADD(31:0)

ADD_SYS(31:0)

SHUR_OUT(31:0)

LAST_RADD(31:0)

LAST_ADD(31:0)

INT_DATA(31:0)

INHIBIT

RESET

Register File

CLAMP_N

(16x32)

Parallel I/O

66MHz CLK

HWR_N

Read/Write Control Signals

66MHz CLK

EC_OUT(31:0)

OFF_TIME(23:0)

SHUR_STATUS(31:0)

FAULT(3:0)

PTO(2:0)

DATA_EXT_OUT(11:0)

DATA_EXT_IN(11:0)

STO(2:0)

DATA_VAL

FLT_INT

PWR_EXTN

CLAMP

Ext Cmd/Control Pass-Through

HALT

CPU_CLK

PRST

SRST

RESET

Fault I/O

Fault I/O

Fault Processing

66MHz,1MHz,100kHz CLKS


Testability and risk reduction primary considerations for pll insertion

Testability and Risk Reduction Primary Considerations for PLL Insertion

Phase-Lock Loop

PLL Output

External Clock

MUX

Clock Select

ASIC Core


Example of shur components in dsp system

Example of SHUR Components in DSP System

  • SHUR set up like system Memory

  • Control signals protected from false signals by using SHUR

  • Minimal system interrupt

  • Critical data saved

  • Minimum hardware for system protection

  • FSR (Fast System Recovery)


Shur test evaluation board

SHUR Test Evaluation Board


Single supply power strobe simplifies hardware design

Single Supply Power StrobeSimplifies Hardware Design


Onboard diagnostics enhance testability

Onboard Diagnostics Enhance Testability


Shur integration into system design

SHUR Integration Into System Design

SHUR Functions Provide Flexible Upset Recovery Solutions


Shur functions integrated in a star tracker asic

SHUR Functions Integratedin a Star Tracker ASIC

R01-0455


Shur functions reduce recovery timeline for gps ins

SHUR Functions Reduce RecoveryTimeline for GPS/INS

Ship or Ground Platform GPS

GPS/INS Hot Start Block Diagram

Crypto Key

Loaded At Factory

MISSILE

GPS Board

GPS Data

Collection System

GPS Receiver

GPS Receiver

Fiber-optic Interface

Timemark or PTTI Pulse (1 Hz)

Initialization

Message From Mission CPU

Almanac, Ephemeris, Position, Velocity, Time

Data Processor

Navigation Processor

Missile

GPS/INS

Block Diagram

Navigation

Processor

[CPU]

RAM

ROM

GPS

Antenna

Gate Array

(ASIC)

GPS

Receiver

Module

To Mission

CPU

Fiber Optic Link

IMU Digital Data

To Missile I/O

IMU

Extend GPS/INS “Hot Start” Concept to In-Flight Nuclear Upset/Recovery via SHUR Technology


Verification of shur macro cell library in a fault tolerant digital signal processor application

SHUR Functional Implementationin a Multiple Processor Subsystem


Status and lessons learned

Status and Lessons Learned

  • Status

    • PODs available for user evaluation

      • POD ASIC data sheet

      • SHUR test board user’s manual

    • Software for macro library verification developed

    • Bench testing to demonstrate SHUR capabilities began in June

    • Radiation testing completed in August

    • Application of SHUR technology to Sensor ASIC and GPS/INS underway

  • Lessons learned

    • Rad hard mixed signal design talent in short supply

    • ASIC design takes longer than VHDL circuit definition

    • ASIC design tools do not support asynchronous functions

    • Design simulations never end

    • Testability-Testability-Testability
