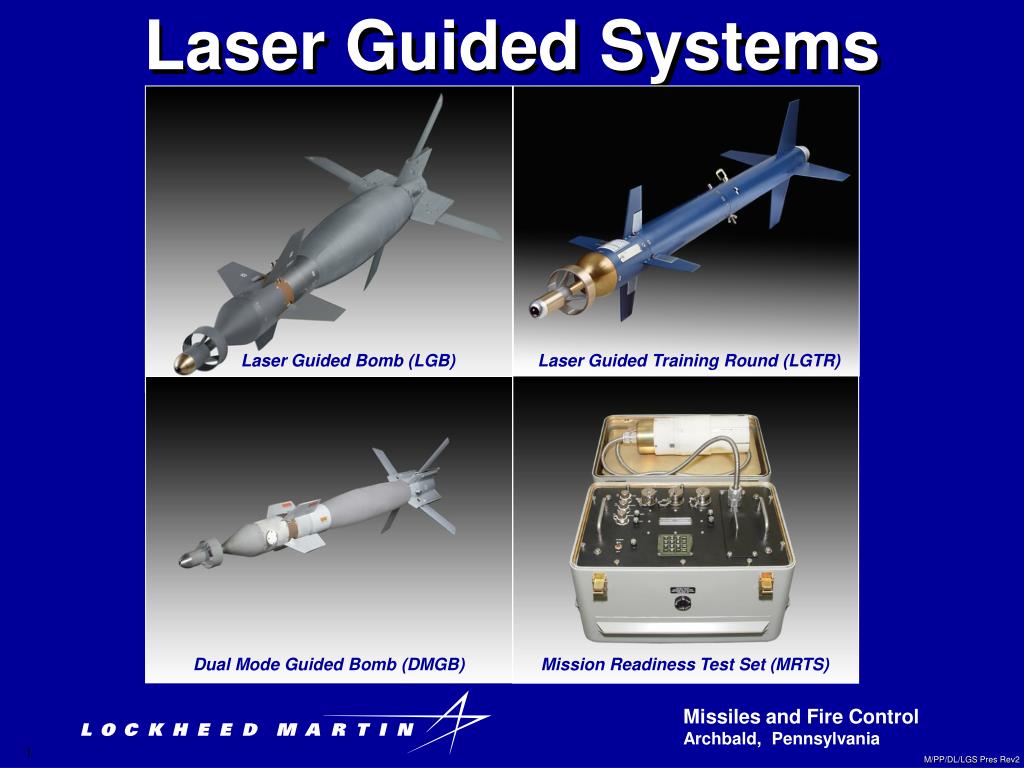

  1. Laser Guided Systems Laser Guided Bomb (LGB) Laser Guided Training Round (LGTR) Dual Mode Guided Bomb (DMGB) Mission Readiness Test Set (MRTS) Missiles and Fire Control Archbald, Pennsylvania M/PP/DL/LGS Pres Rev2

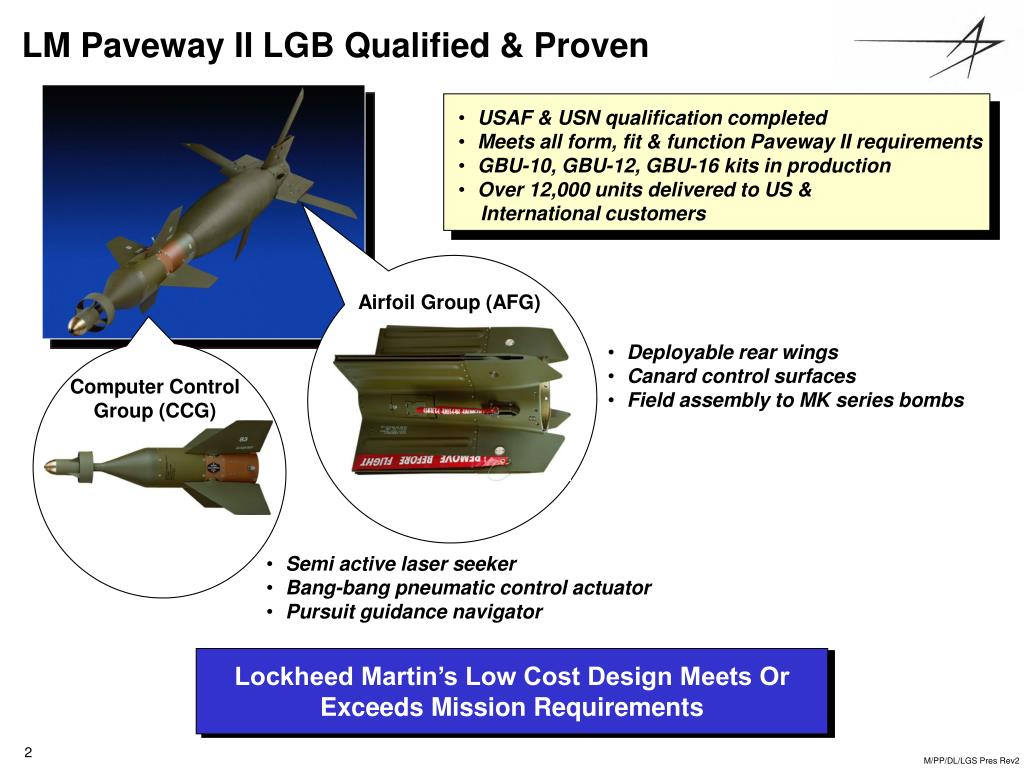

  2. LM Paveway II LGB Qualified & Proven • USAF & USN qualification completed • Meets all form, fit & function Paveway II requirements • GBU-10, GBU-12, GBU-16 kits in production • Over 12,000 units delivered to US & • International customers Airfoil Group (AFG) • Deployable rear wings • Canard control surfaces • Field assembly to MK series bombs Computer Control Group (CCG) • Semi active laser seeker • Bang-bang pneumatic control actuator • Pursuit guidance navigator Lockheed Martin’s Low Cost Design Meets Or Exceeds Mission Requirements

  3. Mission Readiness Test Set (MRTS) • Designed to replace TTU-373, TTU-392, TTU-394 • TTU-550 and TTU-555 test sets • Efficiently tests MAU-169 and MAU-209 Computer Control Group (CCG) • Lightweight design (45 lbs.) provides one-man portability • User friendly fully automated operation provides go/no go test capability • Capable of operating from multiple power sources • Upgradeable for future systems The MRTS Provides A Low Cost, Efficient, Light Weight Test Capability

  4. Laser Guided Training Round (LGTR) • Permits live-fire training at a fraction of the cost • Emulates the LGB • Release envelope • Flight characteristics • Guidance and control functions • Target designation requirements • Accuracy • Qualified and in production for over 11 years • Produced over 30,000 units for US Navy and International customers • COTS proven design provides reliability at an extremely low cost • Cleared on: F-16, A-6, F-14, F/A-18 and Mirage F-1 • Demonstrated on: A-7, F-4, Mirage 2000 and Jaguar • Design compatible on: Tornado, Eurofighter, AMX and AV-8 Conserves LGB Inventory While Providing A Low Cost Training Solution

  5. Dual Mode Guided Bomb (DMGB) All Weather Capability • COMBINES proven Paveway II laser terminal • guidance with GPS/INS • “Fire & Forget” • Utilizes MIL-STD-1760 interface to aircraft • Incorporates anti-jam technology • DMGB provides increased accuracy with reduced • Collateral damage and number of sorties to • Accomplish mission requirements GPS Satellites generate RF signals Warheads Carriage and Release Envelopes Target Types Guidance Methods Employment Modes Impact Accuracy Aircraft Compatibility Fire Control Interface Mission Planning Weapons Logistics (storage, handling, assembly, test) MK 82 (500lb) (Future: MK83, MK84) GBU-12 (Future: GBU-10, GBU-16) High priority fixed and relocatable, and mobile targets DMGB uses INS data with GPS updates to align flight path with ballistic path to the target Semi-Active Laser (SAL) terminal guidance GPS aided inertial (All weather) Reflected laser energy from autonomous “buddy” aircraft, or ground designator leads to target position Laser only, all weather only, dual mode Laser: 30 foot CEP Performance Spec. All-weather: 13 meter SEP (goal). Dual w/terminal laser: 15ft CEP (goal) After laser acquisition, DMGB performs as an LGB and aligns its flight path with the reflected laser energy F/A-18, F-16, F-15, F-117 and others Emulate JDAM (goal: no changes to aircraft software) Laser Spot Similar to existing LGB and JDAM planning methods and tools If no laser energy is detected, DMGB continues to target using INS data with GPS updates Fixed or moving target Maximize compatibility with Paveway II logistics. Exceptions: TTU-373/MRTS replaced by CMBRE; BIT added Dual Mode Effectively Combines Technology At A Low Cost

  6. Laser Guided Systems • Lockheed Martin – The One Company that Provides an “End-to-End” System • Aircraft • Laser Designators • Training Bombs • Warheads • LGBs • LGB Tester • LongShot TM F-16 LANTIRN, Pantera LGTR BLU-109, 116 GBU-10, 12 & 16 MRTS XR Wing Kit • Business Development Points of Contact Name Title Phone Email • Keith Rayborn • Joe Garcia • David Landis Director, Business Development Manager, Business Development Sr. Manager, Business Development (570) 803-2444 (570) 803-2460 (570) 803-2230 keith.r.rayborn@lmco.com fred.n.garcia@lmco.com david.c.landis@lmco.com
