Images analyzed

Images Analyzed

DVD-R demo


Wobble analysis by pitch before deleting outliers found at or near pre pits

Wobble analysis by Pitch (before deleting outliers found at or near pre-pits)

DVD-R demo

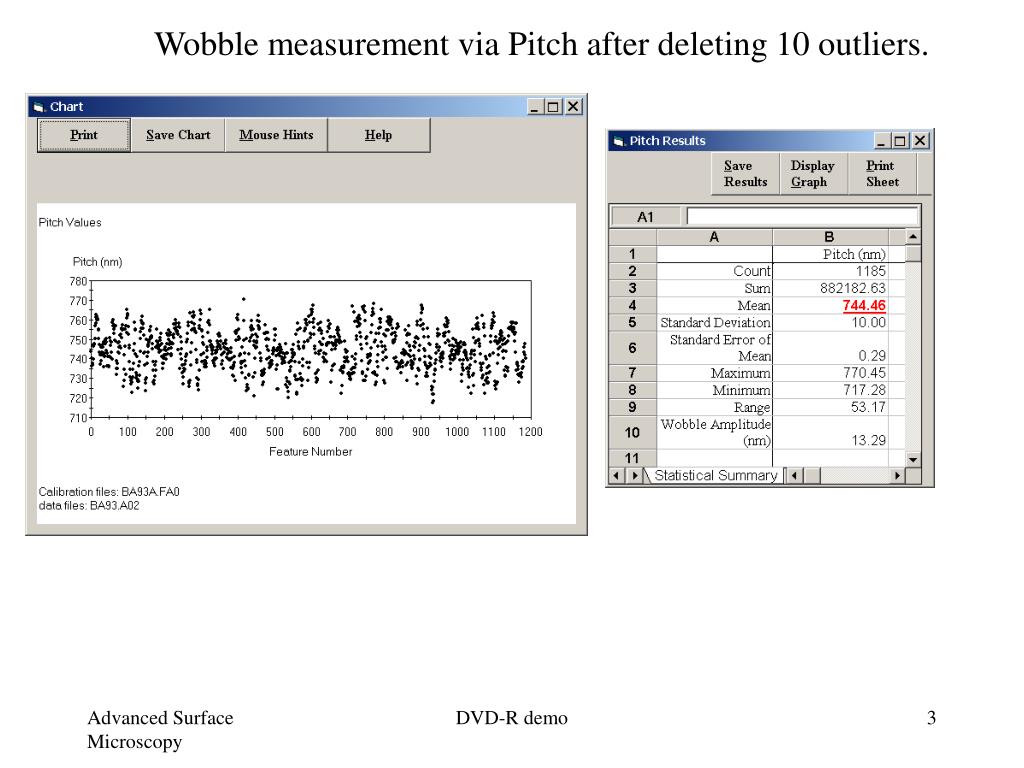

Wobble measurement via pitch after deleting 10 outliers

Wobble measurement via Pitch after deleting 10 outliers.

DVD-R demo


Pitch results for a few tracks

Pitch results for a few tracks

DVD-R demo


Pre pit shape analysis using nanoscope sections and dtp ridge geometry

Pre-pit shape analysis using NanoScope sections and DTP Ridge Geometry

DVD-R demo

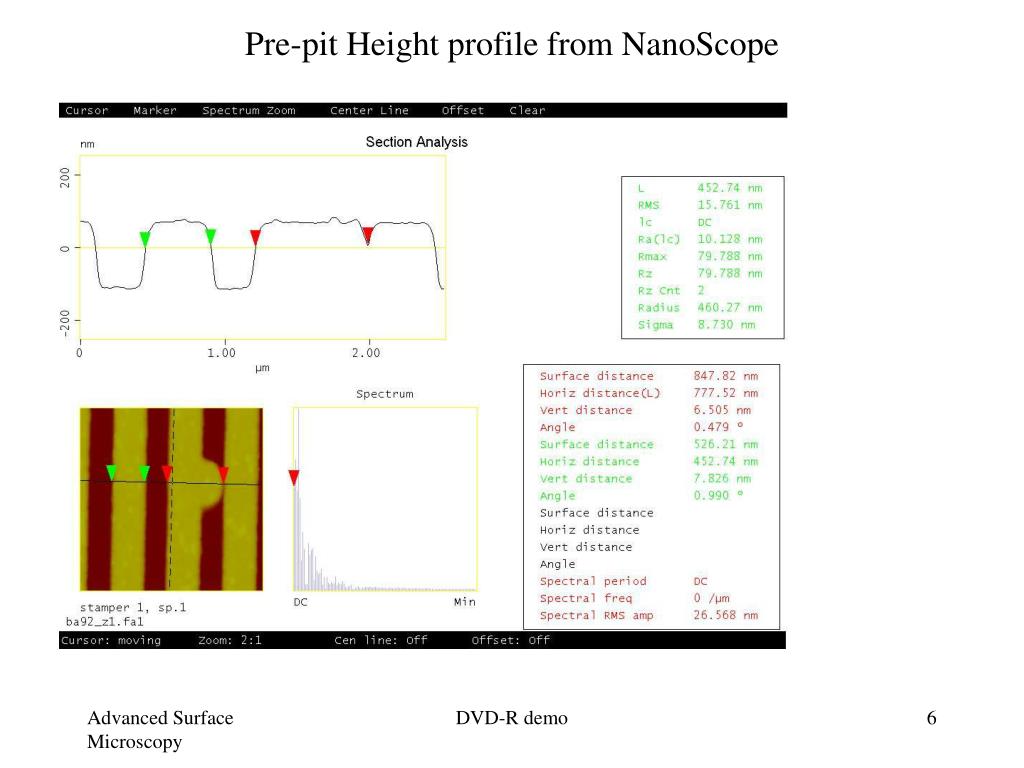

Pre pit height profile from nanoscope

Pre-pit Height profile from NanoScope

DVD-R demo

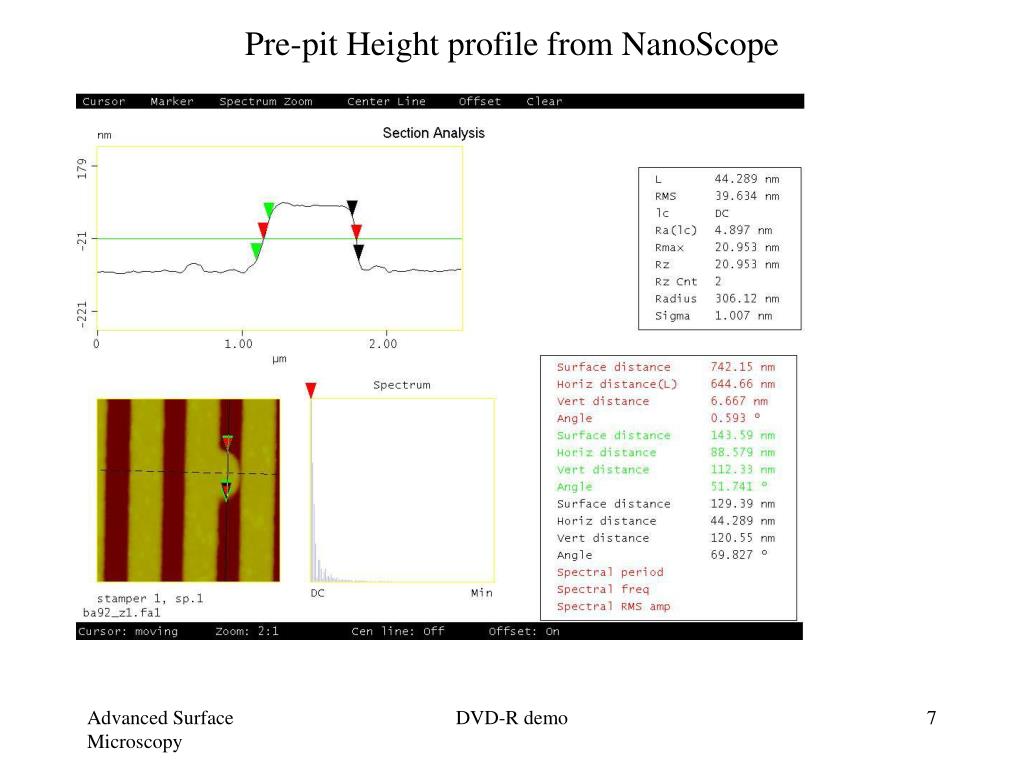

Pre pit height profile from nanoscope1

Pre-pit Height profile from NanoScope

DVD-R demo

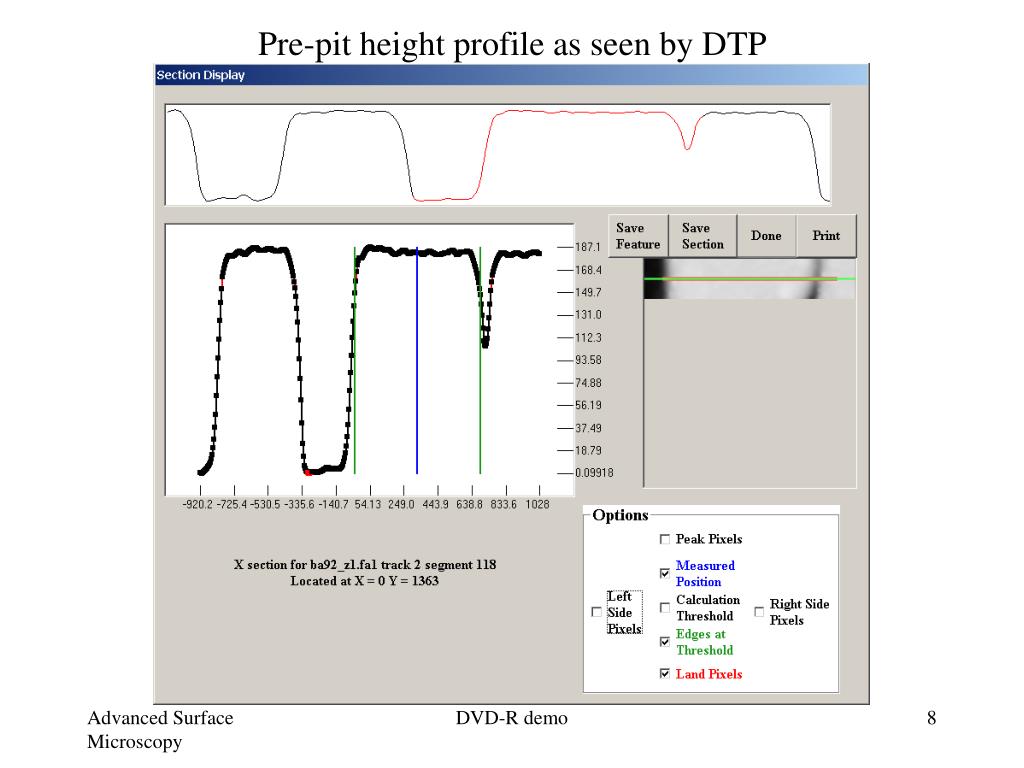

Pre pit height profile as seen by dtp

Pre-pit height profile as seen by DTP

DVD-R demo

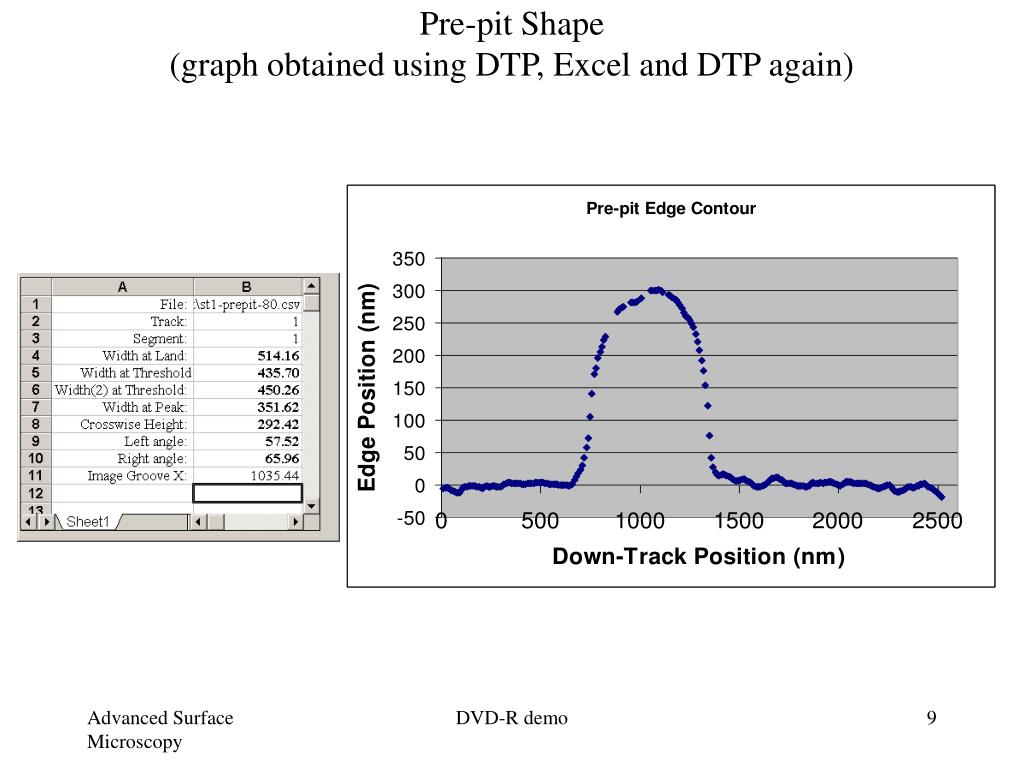

Pre pit shape graph obtained using dtp excel and dtp again

Pre-pit Shape(graph obtained using DTP, Excel and DTP again)

DVD-R demo

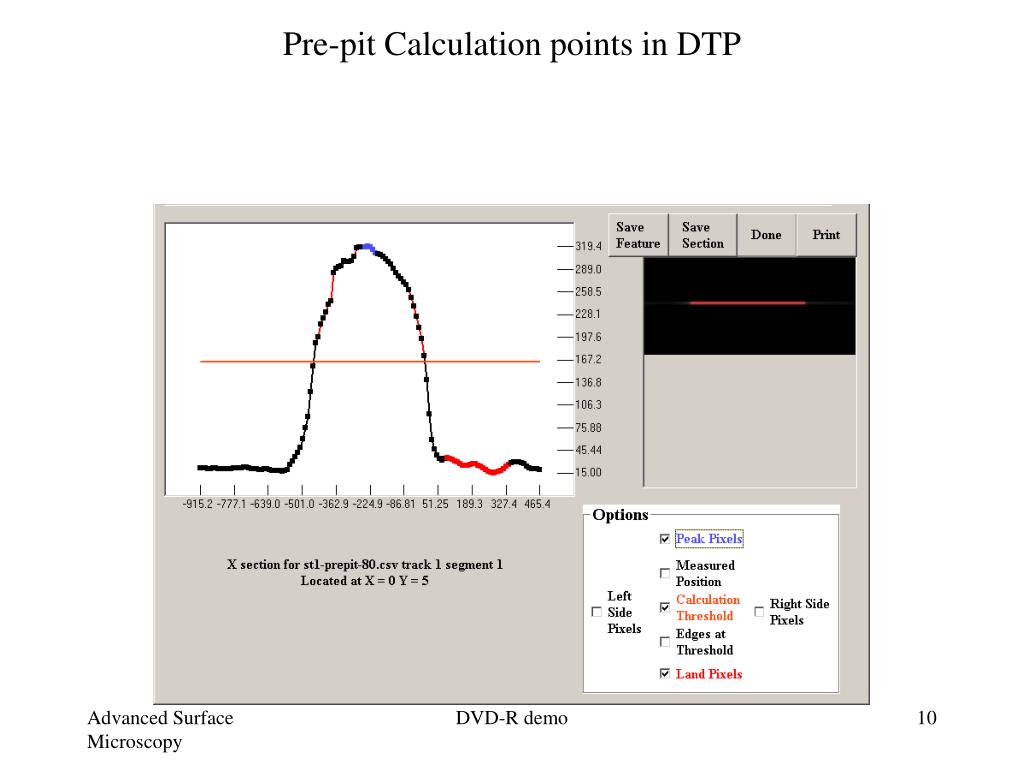

Pre pit calculation points in dtp

Pre-pit Calculation points in DTP

DVD-R demo


Images analyzed

DVD-R demo


Images analyzed

DVD-R demo


Images analyzed

DVD-R demo


Images analyzed

DVD-R demo


Images analyzed

DVD-R demo


Images analyzed

DVD-R demo


Images analyzed

DVD-R demo


Images analyzed

DVD-R demo


Images analyzed

DVD-R demo


Images analyzed

DVD-R demo


Images analyzed

DVD-R demo


Images analyzed

DVD-R demo
