Presentation Transcript


Slide1 l.jpg

Esophageal - tracheal

COMBITUBE

„Pharyngeal“

lumen No. 1

Perforations

Distal

cuff

„Esophago-

tracheal“

lumen No. 2

Oropharyngeal

balloon


Slide2 l.jpg

Large (blue) syringe:

85 ml large balloon

Elbow deflector

Distal

cuff

Ringmarks

Oropha-

ryngeal

ballon

Small syringe:

10 ml distal cuff

Suction catheter


Slide3 l.jpg

Open

mouth,

press

away

tongue

Head:

Neutral

position


Slide4 l.jpg

Flat

insertion

along

tongue


Slide5 l.jpg

Elective cases:

Elective cases:

Emergency:

No. 2: 10 ml

Emergency:

No. 1: 85 ml

(or more)

Ringmarks

at level of

upper teeth


Slide6 l.jpg

Ventilation

via longer

blue tube

No. 1

Esophageal

position

Self-

fixation

behind

hard palate

Active

decom-

pression

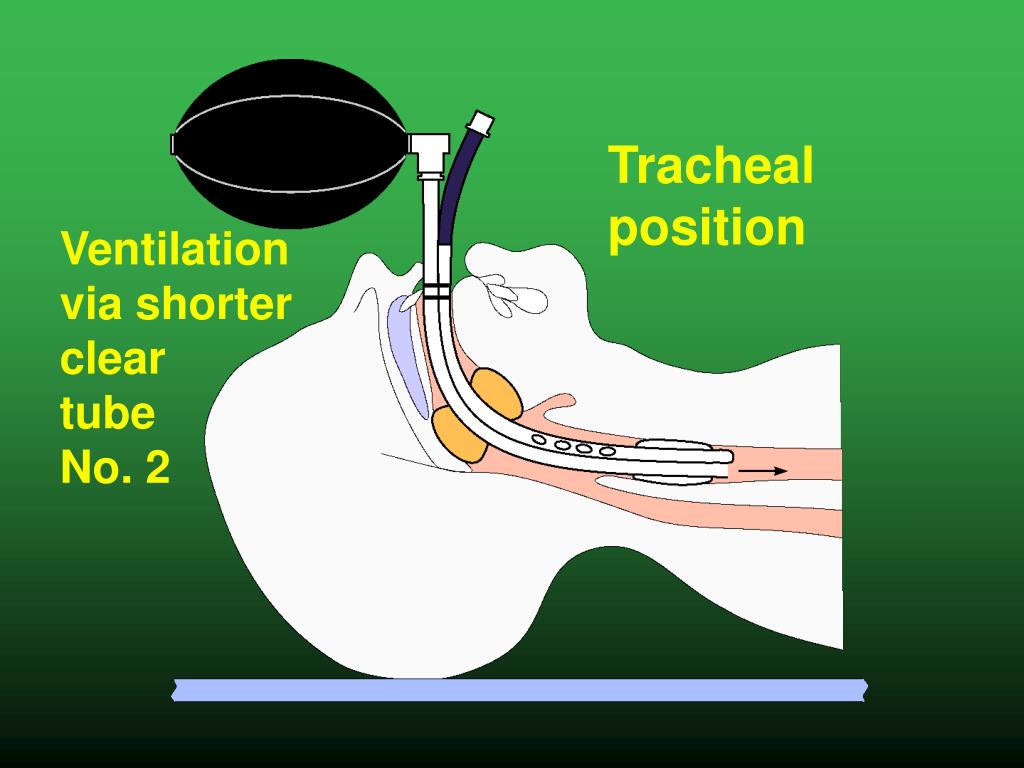

Slide7 l.jpg

Tracheal

position

Ventilation

via shorter

clear

tube

No. 2


Slide9 l.jpg

Lipp maneuver

Markus Lipp

University Mainz


Slide10 l.jpg

Frass Maneuver


Slide11 l.jpg

Urtubia Maneuver


Combitube l.jpg

Combitube

Produced by:

TYCO -

HEALTHCARE KENDALL

Mansfield, MA


Size of combitube and height of patient l.jpg

Size of COMBITUBE and height of patient

GUIDELINES*

STUDIES**

*TYCO

**Gaitini, Urtubia,

Panning, Krafft


Slide14 l.jpg

Combitube

Specially useful:

  • Difficult intubation

  • Blind intubation

  • Difficult circumstances

    (space, illumination)


Slide15 l.jpg

Indications Combitube

  • Emergency intubation

  • Bleeding and vomiting

  • Immediate decompression

    of esophagus and stomach


Slide16 l.jpg

Combitube 37 SA:

ALL - IN - ONE

CONCEPT


Slide17 l.jpg

Conclusions

the 37 Fr Combitube SA is...

  • the “standard“ Combitube

  • safe and efficient

  • insertion under direct vision recommended

  • slow inflation of oropharyngeal balloon

  • inflation volume: height (cm) - 100 or weight (kg) - 5

  • suitable for all patients in whom tracheal

  • intubation has to be avoided


Failed rapid sequence intubation in trauma pts l.jpg

FAILED RAPID SEQUENCE INTUBATION IN TRAUMA PTS.

Blostein, Koestner, Hoak

J Trauma 1998; 44: 534-537

  • Use of ETC in trauma pts. in whom orotracheal rapid sequence intubation failed

  • Flight nurses trained with ETC

  • 12 pts. had ETC, 10 included


Failed rapid sequence intubation in trauma pts19 l.jpg

FAILED RAPID SEQUENCE INTUBATION IN TRAUMA PTS.

  • Successful in all patients

  • Definitive airway control in ED: orotracheal (7), tracheostomy (2), cricothyroidotomy (1)

  • 7 mandible fractures, 4 TBI, 2 fa-cial fractures, 1 hemopneumoth


Slide20 l.jpg

Paramedic

-Main indication-

  • Bridge between BVM and endotracheal tube


Complications associated with the use of the combitube l.jpg

COMPLICATIONS ASSOCIATED WITH THE USE OF THE COMBITUBE

  • 1139 pts. CPR with ETC + SAED

  • 2 pts. transparietal lacerations of anterior wall of esophagus

  • Distal cuff inflated with 20 to 40 ml !!! Maximum 12 ! CPR; CPPV

Vézina, Lessard, Bussières, et al.

Can J Anaesth 1998; 45:76-80


Use of the esophageal tracheal combitube by basic emergency medical technicians l.jpg

USE OF THE ESOPHAGEAL TRACHEAL COMBITUBE BY BASIC EMERGENCY MEDICAL TECHNICIANS

Lefrançois DP, Dufour DG

Resuscitation 2002; 52:77-83

  • 420 Emergency medical technicians + automatic external defibrillator (EMT-Ds)

  • Firefighters with BLS-D

  • 125-350 h course curriculum for EMTs

  • 18 h training with AED and Combitube

  • Assessment of location with EDD (syringe) + auscultation


Use of the esophageal tracheal combitube by basic emergency medical technicians23 l.jpg

USE OF THE ESOPHAGEAL TRACHEAL COMBITUBE BY BASIC EMERGENCY MEDICAL TECHNICIANS

  • Montérégie / Quebec: 11,000 square km, population of 1.3 million

  • Successful placement in 725 out of 760 cardiac arrest patients (95.4 %)

  • Ventilation successful in 695 (91.4 %) pts.

  • Autopsy in 133 pts.: no esophageal lesions or injury to airway structures

  • EMT-Ds can use ETC safely + effectively


Merits of combitube l.jpg

Merits of COMBITUBE

  • Low price, all-in-one device

  • Non invasive

  • No preparations necessary

  • Rapid and easy intubation

  • Immediate fixation

  • PREVENTION OF ASPIRATION

  • HIGH VENTILATORY PRESSURES

  • No power supply


Slide25 l.jpg

American Heart Association

Guidelines for Cardiopulmonary Resuscitation and Emergency Cardiac Care

JAMA 1992; 268:2203

2 / 2000: Class IIa DEVICE !!!


American society of anesthesiologists l.jpg

American Society of Anesthesiologists

Task Force on

Management of the

Difficult Airway.

Practice Guidelines

for Management of

the Difficult Airway.

Anesthesiology

1993; 78:597-602


European resus citation council l.jpg

European Resus-citation Council

Baskett PJF, Bossaert L, Carli P, Chamberlain D, Dick W, Nolan JP, Parr MJA, Scheidegger D, Zideman D: Guidelines for the advanced management of the airway and ventilation during resuscitation. Resuscitation 1996; 31:201-230


Conclusion combitube l.jpg

ConclusionCOMBITUBE

  • Whenever endotracheal intubation not immediately possible

  • Short training time

  • Adequate ventilation


Combitube homepage l.jpg

Combitube® - Homepage:

  • http://www.combitube.org

    or

  • http://www.combitube.net

    Webmaster: Roland Hofbauer
