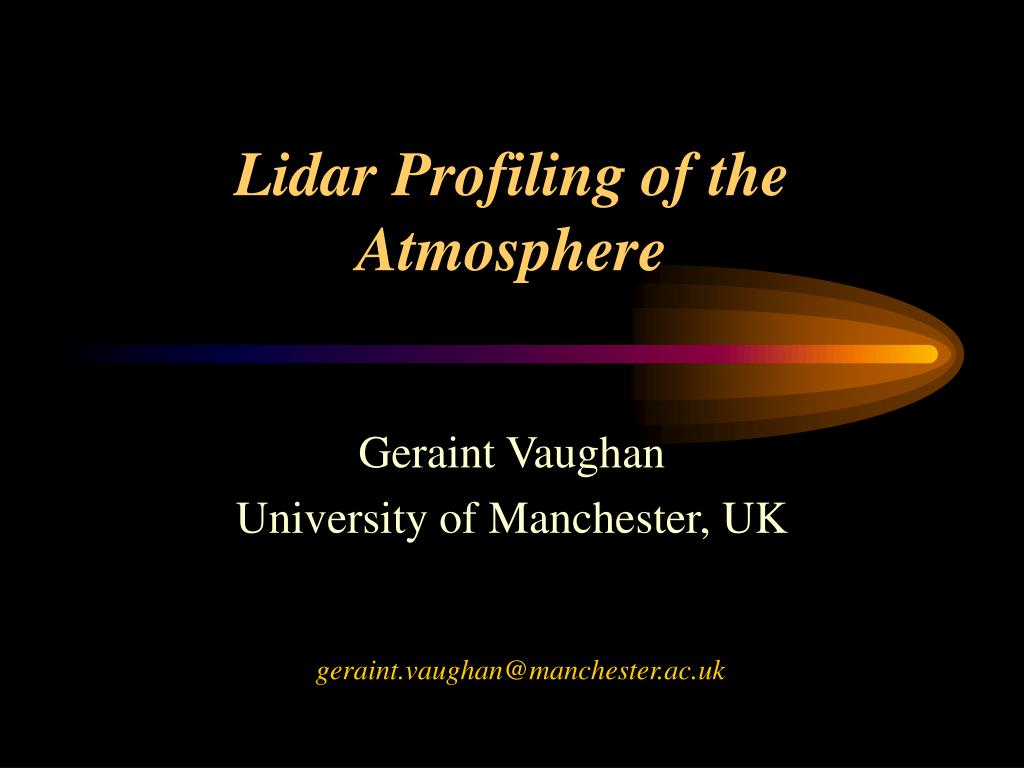

  1. Lidar Profiling of the Atmosphere Geraint Vaughan University of Manchester, UK geraint.vaughan@manchester.ac.uk

  2. Basic principles • LIDAR – Light Detection and Ranging • Similar principle to RADAR – pulses of light emitted into the atmosphere and scattered back by clouds, aerosols or air molecules • Light collected by a telescope • Spectrometers or interference filters isolate wavelength concerned • Photon-counting or analogue detection • Time-of-flight gives scattering height z=2ct z

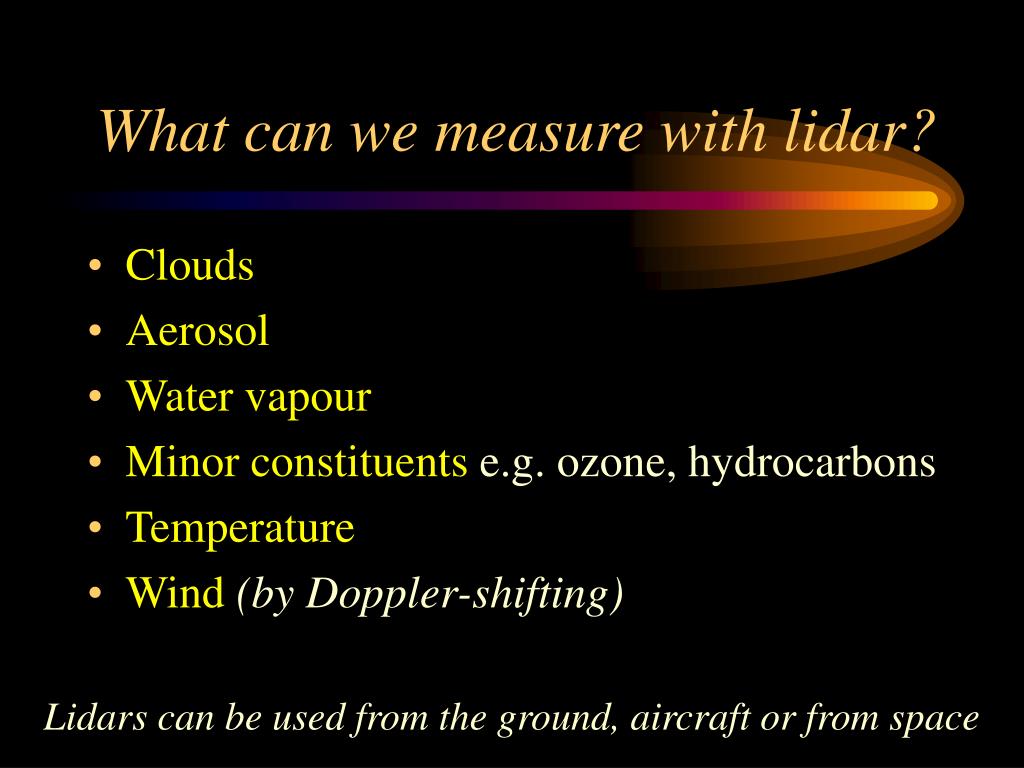

  3. What can we measure with lidar? • Clouds • Aerosol • Water vapour • Minor constituents e.g. ozone, hydrocarbons • Temperature • Wind(by Doppler-shifting) Lidars can be used from the ground, aircraft or from space

  4. Good height and time resolution Backscattered signals readily interpreted May be mounted on trailers or aircraft for mobile operation Affected by cloud (light can’t get through) Background light is a problem in daytime Systems to observe the stratosphere tend to be large (and expensive) Precise alignment must be maintained Properties of lidar as a remote sensing tool Disadvantages Advantages

  5. 355 nm Nd-YAG laser X10 Beam expander (refracting telescope) Example: Aberystwyth aerosol/water vapour lidar Transmitter To atmosphere From atmosphere Receiver

  6. Transmitter characteristics • High power pulsed laser (UV/Vis/IR) • Typical pulse energy 10 – 400 mJ • Typical rep rate 10 – 50 s-1 (much higher for excimer or copper vapour laser) • Typical pulse length 3 ns (1 m) • Linearly polarised • Usually fixed wavelength – dye lasers and some solid state lasers tuneable. Neodymium-YAG lasers a popular choice (1.06µm, 532, 355, 266 nm)

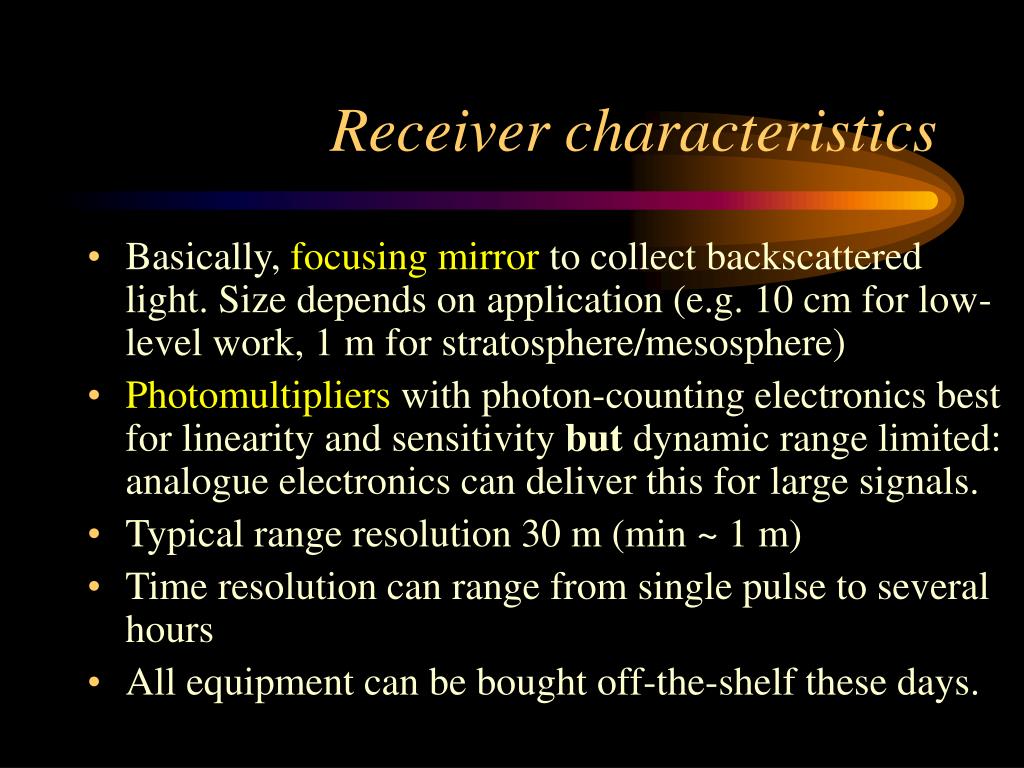

  7. Receiver characteristics • Basically, focusing mirror to collect backscattered light. Size depends on application (e.g. 10 cm for low-level work, 1 m for stratosphere/mesosphere) • Photomultipliers with photon-counting electronics best for linearity and sensitivity but dynamic range limited: analogue electronics can deliver this for large signals. • Typical range resolution 30 m (min ~ 1 m) • Time resolution can range from single pulse to several hours • All equipment can be bought off-the-shelf these days.

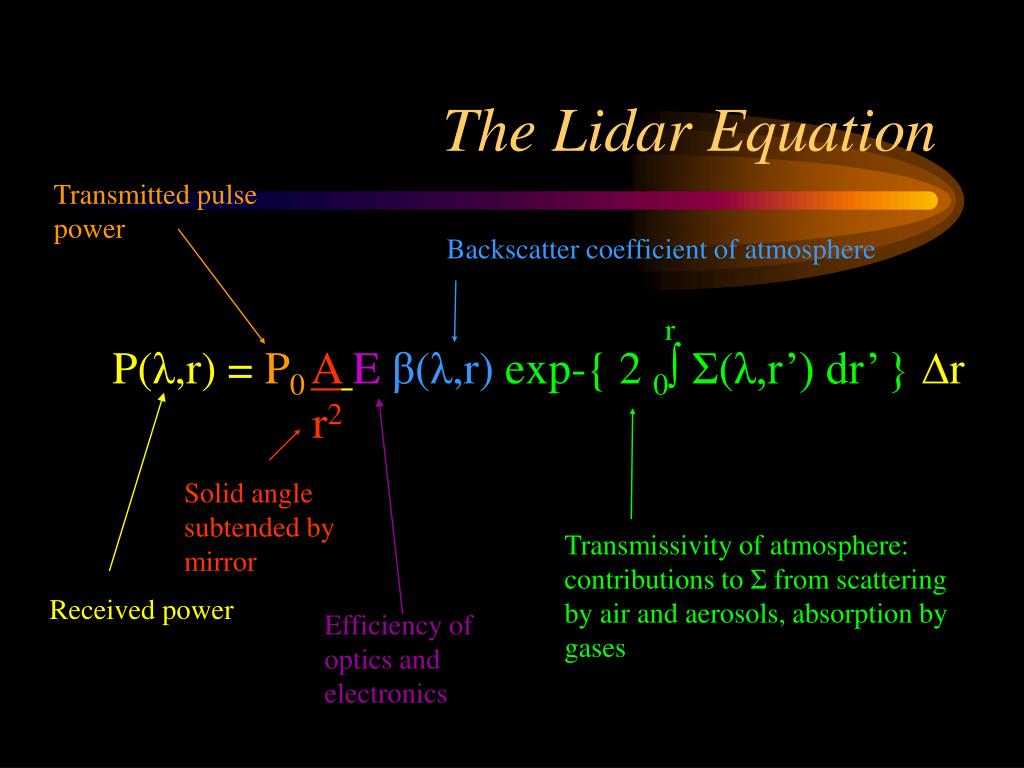

  8. The Lidar Equation Transmitted pulse power Backscatter coefficient of atmosphere r P(λ,r) = P0AEβ(λ,r)exp-{ 2 0∫ Σ(λ,r’) dr’ }r r2 Solid angle subtended by mirror Transmissivity of atmosphere: contributions to Σ from scattering by air and aerosols, absorption by gases Received power Efficiency of optics and electronics

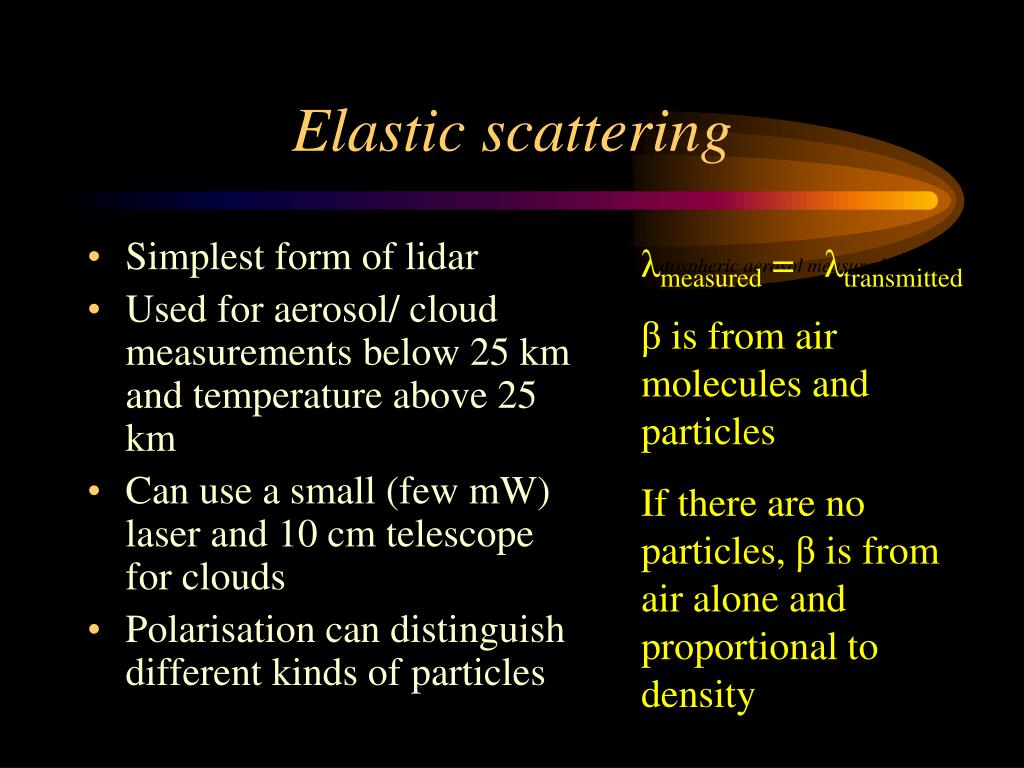

  9. Elastic scattering • Simplest form of lidar • Used for aerosol/ cloud measurements below 25 km and temperature above 25 km • Can use a small (few mW) laser and 10 cm telescope for clouds • Polarisation can distinguish different kinds of particles λmeasured = λtransmitted β is from air molecules and particles If there are no particles, β is from air alone and proportional to density Stratospheric aerosol measured with polarisation lidar, 9 Dec 2001

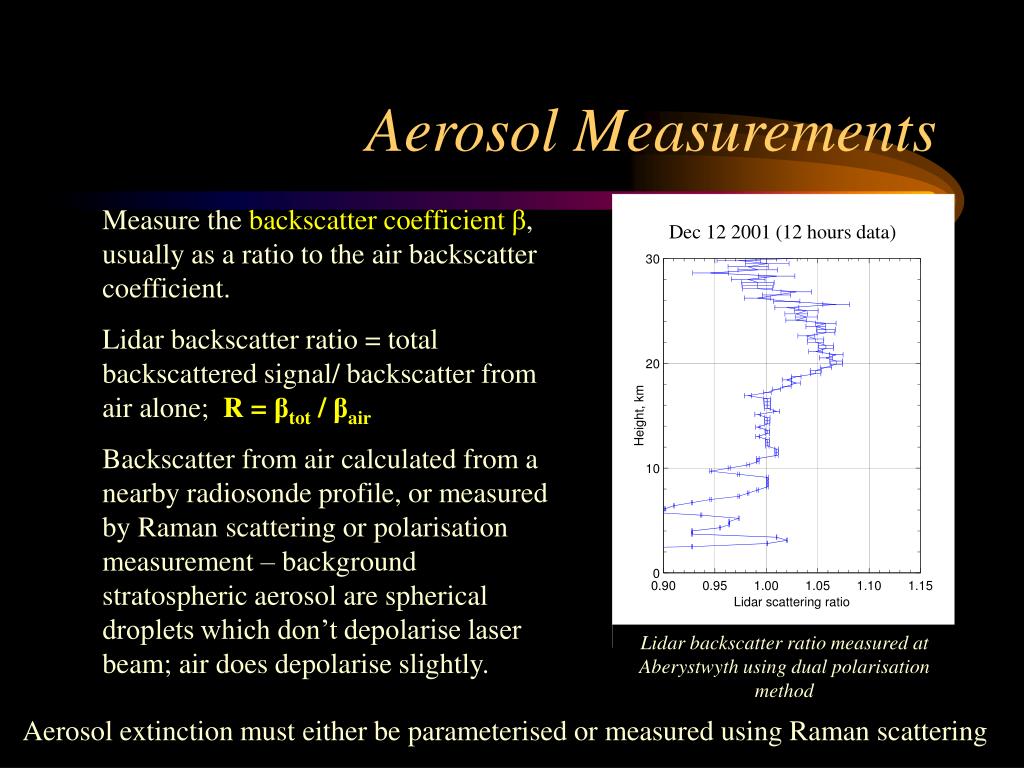

  10. Aerosol Measurements Measure the backscatter coefficient β, usually as a ratio to the air backscatter coefficient. Lidar backscatter ratio = total backscattered signal/ backscatter from air alone; R = βtot / βair Backscatter from air calculated from a nearby radiosonde profile, or measured by Raman scattering or polarisation measurement – background stratospheric aerosol are spherical droplets which don’t depolarise laser beam; air does depolarise slightly. Dec 12 2001 (12 hours data) Lidar backscatter ratio measured at Aberystwyth using dual polarisation method Aerosol extinction must either be parameterised or measured using Raman scattering

  11. Temperature measurements Above 30 km, atmosphere generally aerosol-free. Then lidar signal measures density. Use p = ρrT and dp/dz = -ρg Assume p and T at upper boundary of profile and solve equations by stepping down the profile. Within ~15 km effect of boundary condition negligible Can be used to measure T up to 80 km with very powerful systems. Extension to 100 km+ possible using resonance fluorescence Daily mean temperature measured at ALOMAR, Andoya, Jan 1998

  12. Cloud measurements Airborne lidar measurements of cirrus outflow from thunderstorm near Darwin Backscatter (arbitrary scale) Path of in-situ aircraft (Egrett) Depolarisation Measurements from ARA King Air 23/11/02 – courtesy Jim Whiteway and Clive Cook

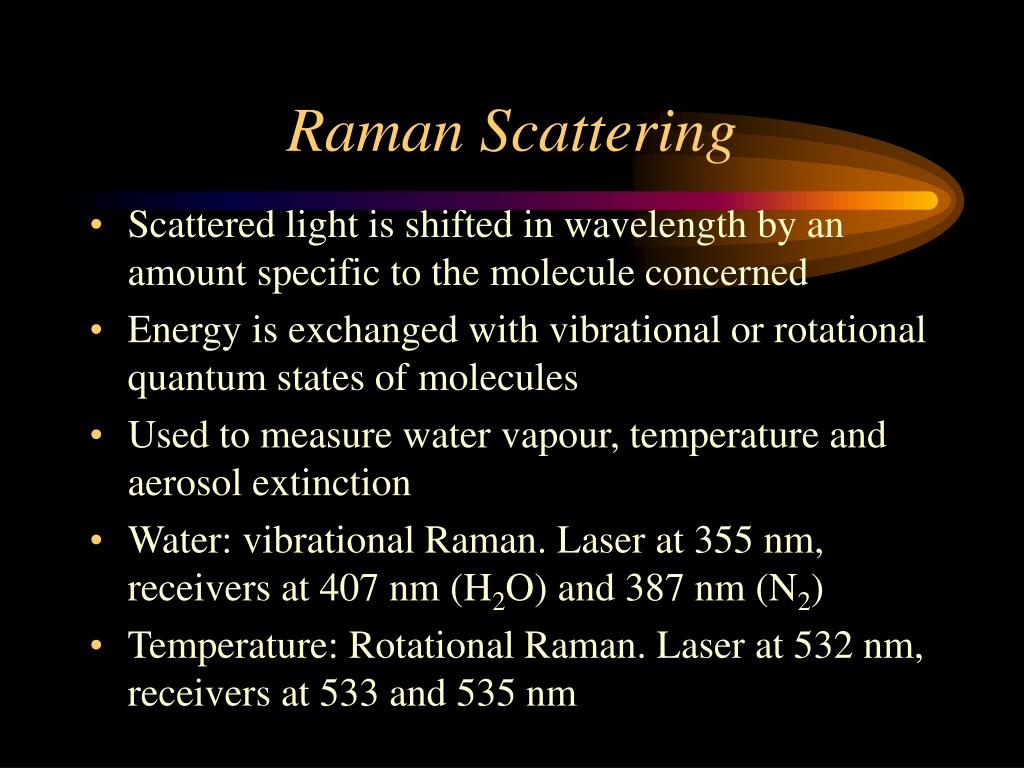

  13. Raman Scattering • Scattered light is shifted in wavelength by an amount specific to the molecule concerned • Energy is exchanged with vibrational or rotational quantum states of molecules • Used to measure water vapour, temperature and aerosol extinction • Water: vibrational Raman. Laser at 355 nm, receivers at 407 nm (H2O) and 387 nm (N2) • Temperature: Rotational Raman. Laser at 532 nm, receivers at 533 and 535 nm

  14. Specific to particular molecules Ratio to N2 directly measures mixing ratio Insensitive to extinction Many systematic errors cancel in ratio Properties of Raman lidars Disadvantages Advantages • Raman scattering is very weak • Need large lidars • For UTLS, measurements restricted to night-time • Spectroscopic uncertainties

  15. Rotational Raman Spectrum Interference Filters 290K 210K Wavelength, nm Wavelength, nm Raman scattering from nitrogen, relative intensity Raman scattering from oxygen, relative intensity

  16. Water vapour measurements, Aberystwyth Dec 9 2001

  17. Differential Absorption • Used for ozone and other absorbers • Transmit two wavelengths – one weakly and one strongly absorbed • Difference in attenuation through the atmosphere gives absorber profile • For ozone, we use laser at 266 nm shifted by Stimulated Raman Scattering to 289, 299 and 316 nm.

  18. DIAL method P(λ,r).r2 αβ(λ,r) exp-{2 ∫ Σ(λ,r) dr } Σ is the extinction coefficient of the atmosphere per unit length. In the absence of aerosols, Σ = σairnair + σmoleculenmolecule By measuring at two wavelengths with a large difference in σmolecule, and taking the ratio, the effect of that molecule can be isolated. Rat(r) = P(λ1,r)/P(λ2,r) = β(λ1,r)/β(λ2,r) exp –{ 2∫ Σ(λ1,r) - Σ(λ2,r) dr} The backscatter coefficients vary with distance in the same way for the two wavelengths, as these are determined by air and aerosol So d ln(Rat) /dr = - 2{σmoleculenmolecule + σair nair} Method gives absolute concentration

  19. Ozone measurements, June 5 2000 Above: tropospheric measurements from 289/299 nm pair. Below: stratospheric measurements from 299 alone. (We now do DIAL with 299/316 for stratosphere)

  20. Mobile 5-wavelength Ozone/aerosol lidar • Supplied by elight, Germany • Uses 266, 289, 299, 316 and 355 nm • Ozone and aerosol profiles 100 m – 4 km • Used on field campaigns

  21. Ozone and aerosol profiles, Sept 24 2003

  22. What else can you measure with DIAL? Courtesy of National Physical Laboratory, Teddington, UK

  23. Summary • Lidar technique allows continuous monitoring of profiles with good height resolution • Different scattering mechanisms permit different kinds of measurement • New technology offers more compact sources and development of transportable and mobile systems
