  1. Endicott Research Group, Inc. The Power Behind the Display www.ergpower.com Distributor Training 12/08/03

  2. Open Frame Inverters • Single or Multiple Lamp Designs • Mating I/O connectors • Standard 5v and 12v Models • Designed for Plug-n-Play • Custom Variations Available (Input Voltages, Input Connectors)

  3. Encapsulated Inverters • Board Mountable Design • Standard and Custom Models Available • Excellent Resistance to Shock, Vibration, and Humidity • Great for Medical Applications

  4. High Power Inverters Open Frame Design with Encapsulated Transformers • Multiple Lamp Designs • High Power • Excellent for Industrial and High Bright Applications

  5. ERG Product Platforms

  6. 8m Series

  7. S Series

  8. SE Series

  9. E200 Series

  10. P44 Series

  11. K Series

  12. 8mA Series

  13. L Series

  14. LD Series

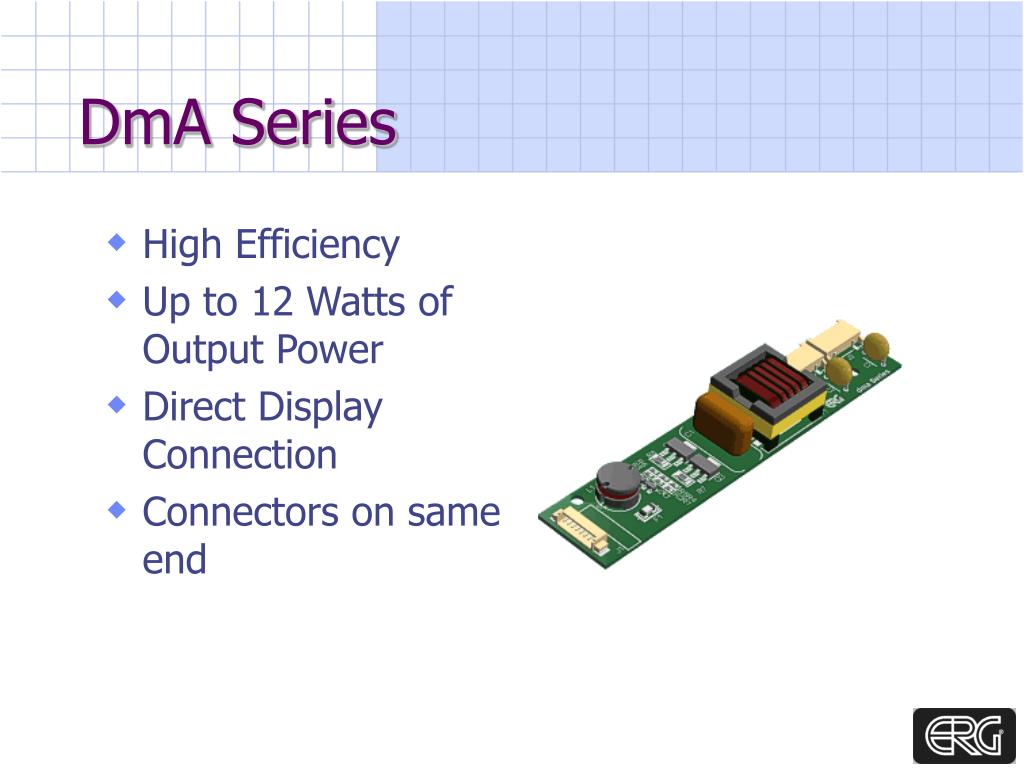

  15. DmA Series • High Efficiency • Up to 12 Watts of Output Power • Direct Display Connection • Connectors on same end

  16. DmC Series

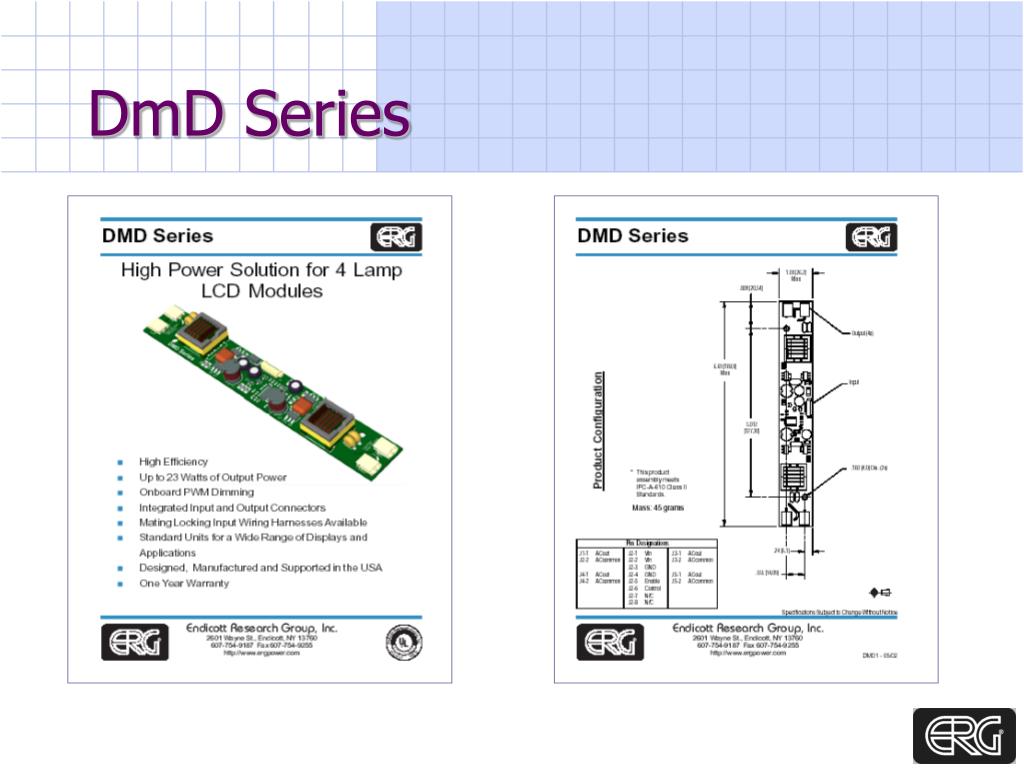

  17. DmD Series

  18. 8mF Series • Low Profile • High Efficiency • Optimized Form Factor • 6 Lamp Inverter • Direct Display Connection • Onboard PWM Dimming

  19. 8mD Series • Single Lamp Inverter • Wide Range Dimming • Mounting hole compatible with 8m Series • Up to 5W of Output Power

  20. SE2 Series • Dual Lamp Inverter • PCB Mountable • External PWM Dimming • Up to 5 Watts of Output Power • Fully Encapsulated for Resistance to Shock, Vibration, and Humidity

  21. 8mAD Series • Low Cost • Dual Lamp Inverter • High Efficiency • Up to 5 Watts Typical Output Power • 8mm High • Integrated PWM Dimming with Analog Control

  22. P44W Series • PCB Mountable • Up to 15 Watts of Output Power • 1 or 2 Lamps • Boost Current Available • Starting Voltage up to 2400V • Operating Range of -30 to +85C

  23. P44WD Series • One or Two Lamp Inverter • Up to 15 Watts of Output Power • Wide Temperature Operation • Available with Boost Current • Onboard PWM Dimming • Up to 2400v Start • One Year Warranty

  24. MS Series • Six lamp Inverter • For Large LCD Modules • Up to 45 Watts of Output Power • Fully Encapsulated Transformers • Multi-Transformer Design for Reliable Lamp Ignition • Custom Designs Available • One Year Warranty

  25. MD Series • Up to 16 Lamps • Up to 80 Watts of Output Power • Encapsulated Transformers • On Board PWM Dimming • Mating Input and Output Harnesses Available

  26. 8m Kit Series • Space saving layout • World Class Support

  27. What’s New?

  28. Smart Force CCFL Inverters • ERG Generic Series of CCFL Inverters • Designed for Production Applications • Covers a wide range of displays • Drop in replacements for TDK • Production quantities in stock

  29. Smart Force LED Solutions • Drivers for OEM backlit LCD Panels • Drop in replacements for CCFL Rails • Designed for Production Applications • Covers most LCD Manufacturers • Samples quantities in stock

  30. Thank You for Your Time The power behind the display
