  1. Lecture 5 Applying Process to Computer Forensics Winter 2010 CSCD496Computer Forensics

  2. Introduction • Look at digital data acquisition • Just what is called static acquisition for now • Disk and other storage media • Live acquisition is another technique • And includes capturing RAM and any other volatile data from a live machine

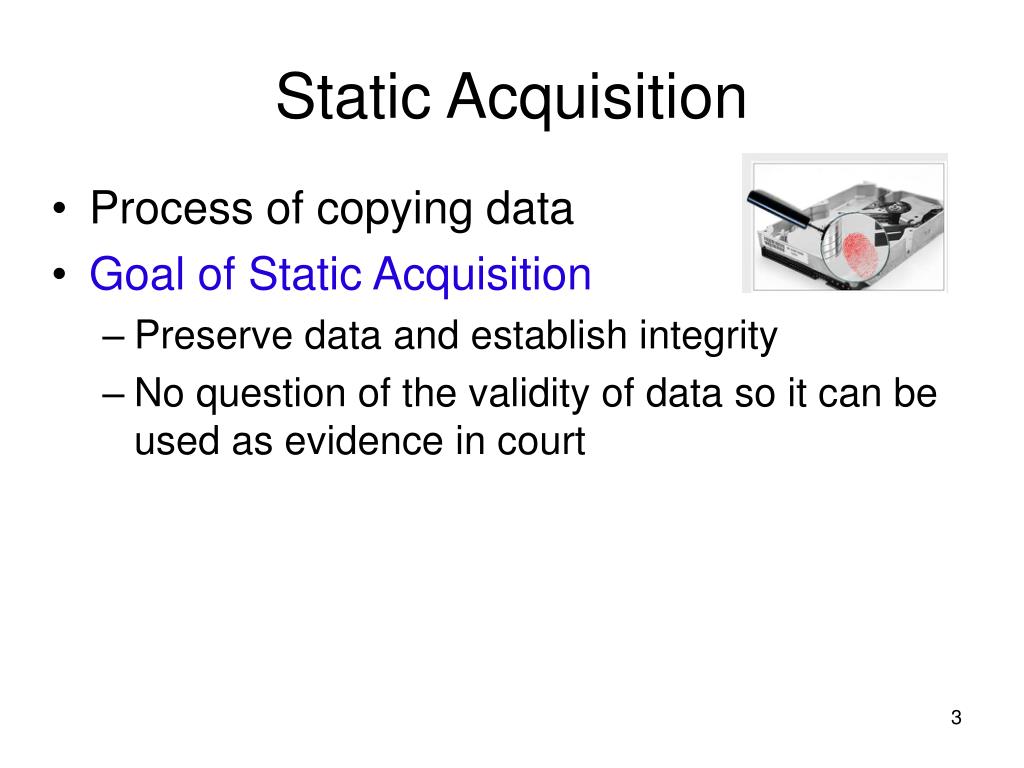

  3. Static Acquisition • Process of copying data • Goal of Static Acquisition • Preserve data and establish integrity • No question of the validity of data so it can be used as evidence in court

  4. Formats for Acquisition • Different Formats of digital files from copying forensics software • Proprietary format • Most commercial tools produce their own format • One popular standard supported by many tools • Open Source • Free with most Linux distributions • Raw format from Linux dd tool • Bit-by-bit copy of the media • Also supported by commercial tools • Creates a sequential flat file of suspect drive

  5. Advantages or Disadvantages • Advantages of Raw • Fast transfer, important for large disk copies • Can handle minor data read errors • Universal format, most tools can read it • Disadvantages of Raw • Requires as much storage space as original disk • Fail to collect bad sectors on disk • Commercial tools make more effort to collect all data

  6. Advantages or Disadvantages • Advantages of Proprietary Format • Offer features not available with Raw • Compress image, saves space • Can flexibly split images into smaller files to fit onto other media • Can integrate meta data into image, hash value of original disk, date and time of copy • Disadvantages of Proprietary Format • Can't share image between vendors analysis tools

  7. Advantages or Disadvantages • Example Propriety Format • lLook Iximager produces three proprietary formats • IDIF, IRBF and IEIT • Can copy to raw format for use by other tools • Ilook is only available to Law Enforcement agencies http://www.perlustro.com/

  8. Standard Formats • Encase's format, Expert Witness • Closest to a standard • Recognized by other commercial tools • Can generate generic versions of Expert Witness format • X-Ways Forensics, Access Data Forensic Toolkit (FTK), and SMART • Can be compressed or uncompressed http://www.guidancesoftware.com/computer-forensics-ediscovery-software-digital-evidence.htm

  9. Standard Formats • Another proposed OpenSource acquisition format • Advanced Forensic Format (AFF)‏ • AFF is a new format proposed by Dr. Simson Garfinkel, a forensics researcher • Expectation is that AFF will become standard of the future for acquisition of data • Both Sleuthkit and Autopsy support the aff image format http://www.afflib.org/

  10. AFF Format • An open standard enables investigators to use their preferred tools to solve crimes and gather intelligence • Proprietary file formats means you will convert from one format to another to use multiple tools • Converting between formats risks data corruption if the formats are not well understood • Metadata may be lost if all formats do not support the same forms of metadata • Read more about the AFF format http://www.forensicswiki.org/wiki/AFF

  11. Techniques of Acquisition • Several ways to do static acquisition • Typically done on computer or digital media seized as evidence • Most Common • Disk-to-image file • Provides greatest flexibility • Bit-by-bit copy of original drive • Can use a variety of tools to read and analyze data

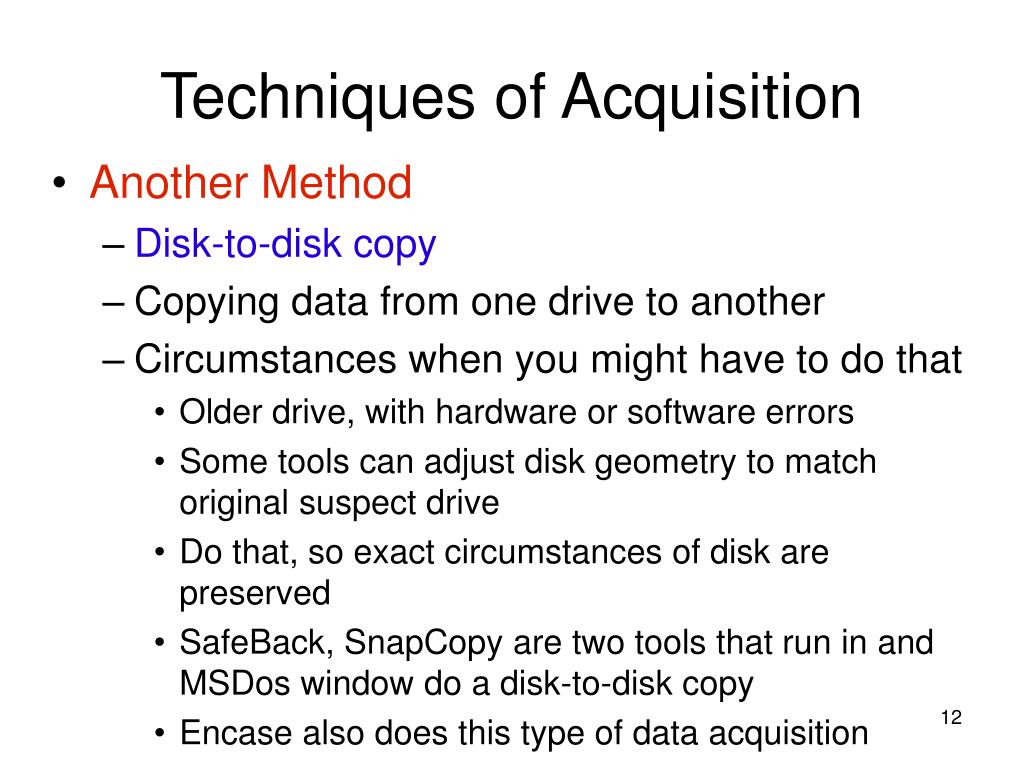

  12. Techniques of Acquisition • Another Method • Disk-to-disk copy • Copying data from one drive to another • Circumstances when you might have to do that • Older drive, with hardware or software errors • Some tools can adjust disk geometry to match original suspect drive • Do that, so exact circumstances of disk are preserved • SafeBack, SnapCopy are two tools that run in and MSDos window do a disk-to-disk copy • Encase also does this type of data acquisition

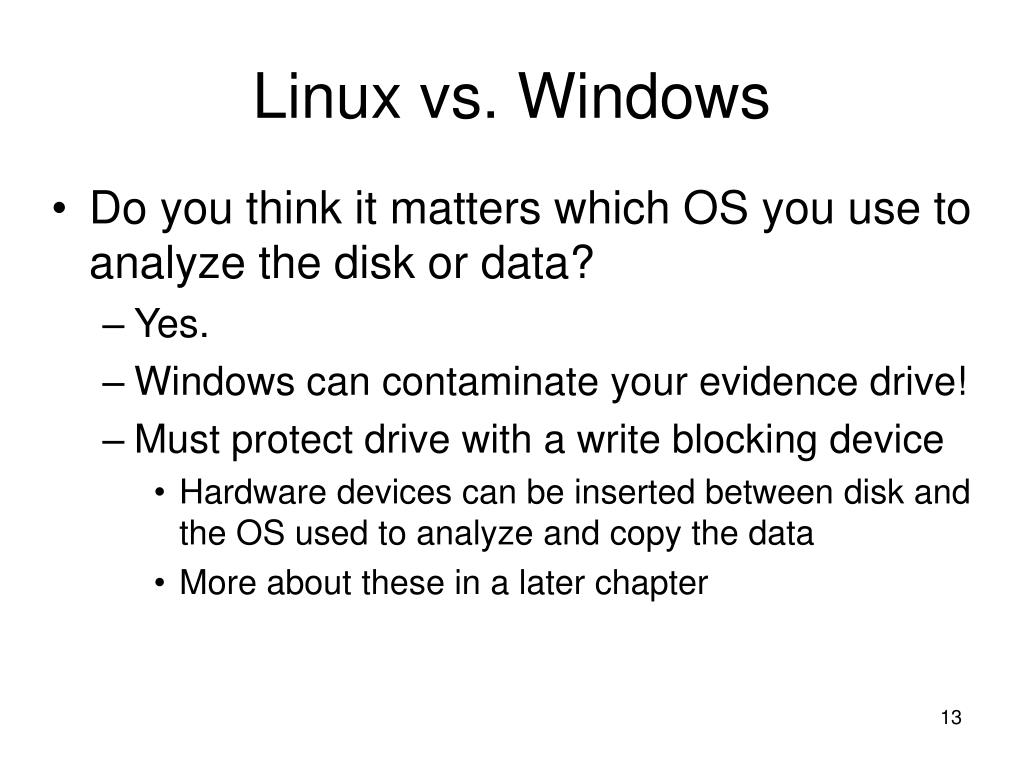

  13. Linux vs. Windows • Do you think it matters which OS you use to analyze the disk or data? • Yes. • Windows can contaminate your evidence drive! • Must protect drive with a write blocking device • Hardware devices can be inserted between disk and the OS used to analyze and copy the data • More about these in a later chapter

  14. Linux vs. Windows • Windows XP Blocking Feature • Since Service Pack 2, • Feature added to XP to turn off writing to USB devices • Must edit registry to do this, book has step-by-step instructions, Chapter 4 • Connect suspect drive to USB external drive after you turn off write permission to that USB device • Will not allow you to write to device • Make a copy of data

  15. Linux Live Boot CD • Linux can access a drive that is not mounted, means you can't read or write to it in usual way • However, newer Linux distributions automatically mount and allow access to connected drives • Can allow alteration of data • Answer: Linux Live Boot CD

  16. Linux Live Boot CD • CAINE Live CD • http://www.caine-live.net/ • Knoppix • http://www.knoppix-std.org/download.html • F.I.R.E. • http://fire.dmzs.com/ • Penguin Sleuth • http://www.linux-forensics.com/ • DeftLinux • http://www.deftlinux.net/

  17. Live CD's for Data Acquisition • Live CD's • Advantages, • Have a number of tools in one distribution • Configured by default to mount as read-only any connected storage media • Can then access and examine media connected to suspect machine • We will be exploring Live CD's in more detail later

  18. Validating Data Acquisitions • Anything you can do to validate evidence to prove it wasn't compromised • Typically, accepted technique – data hash • Linux • Two hash functions, md5sum and sha1sum • Take hash of original drive – save it • Take hash of copied image file – save it • Compare it – Does it match?

  19. Validating Data Acquisitions • Windows • Sigh ... No built-in hash utilities • Third party hex editors • Xways WinHex http://www.x-ways.net/winhex/index-m.html • Breakpoint Software Hex Workshop http://www.bpsoft.com/ • Produce hashes of files • Commercial Tools • Uses built-in hash capabilities • ProDiscover .eve file – stores metadata with file • Date, time and hash value of original media • Each time you load image ProDiscover checks hash value • Insures it matches saved hash of original media

  20. Protocol of Images • Strongly Recommended • Make 2 copies of your media • Why? • Stuff happens to images • Don't want to be caught without another image • Destroy your case – lose evidence, no more case

  21. Linux dd Command • dd • Oldest imaging tool still used • Although it is functional and requires only minimal resources to run, it lacks some useful features found in more modern imagers • Metadata gathering, • Error correction, • Piecewise hashing, • User-friendly interface • Ported to Linux, Mac and Windows

  22. Newer Version of dd • dcfldd is an enhanced version of dd developed by the U.S. Department of Defense Computer Forensics Lab Useful features for forensic investigators such as: • On-the-fly hashing of the transmitted data. • Progress bar of how much data has already been sent. • Verification image is identical to original drive, bit-for-bit • Output can be split into multiple files. • Logs and data can be piped into external applications

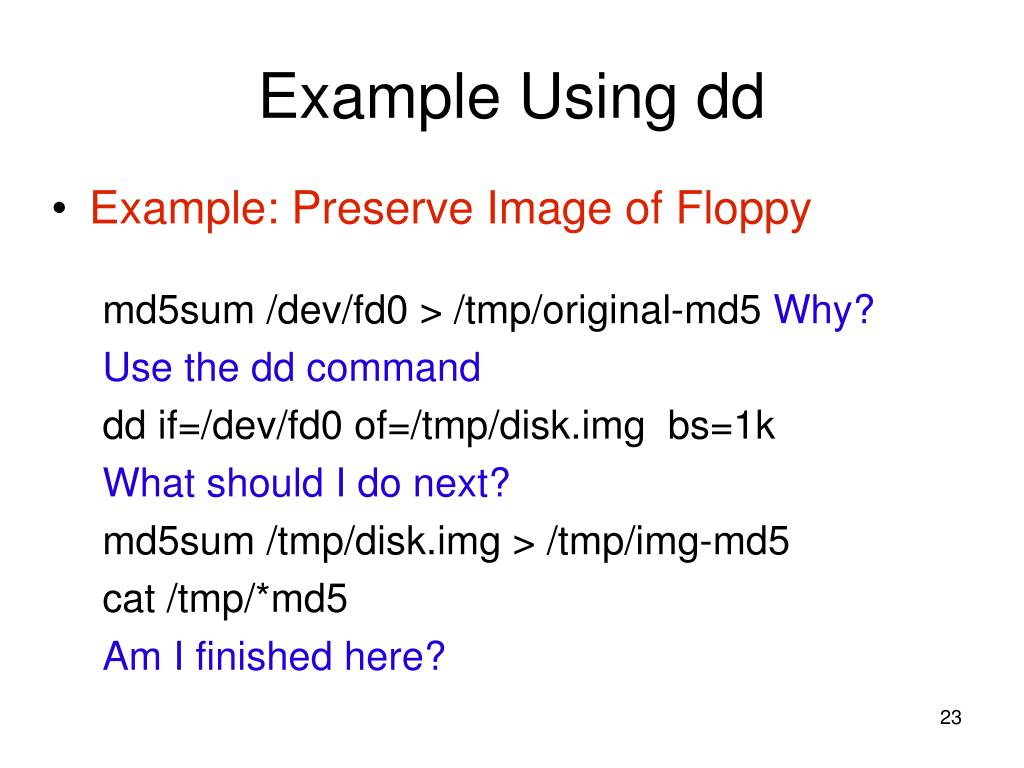

  23. Example Using dd • Example: Preserve Image of Floppy md5sum /dev/fd0 > /tmp/original-md5 Why? Use the dd command dd if=/dev/fd0 of=/tmp/disk.img bs=1k What should I do next? md5sum /tmp/disk.img > /tmp/img-md5 cat /tmp/*md5 Am I finished here?

  24. Summary • Data Acquisition critical part of the forensics process • Mess this up, and your evidence is useless • Need to be very careful to not impact the data you are trying hard to preserve • Live CD's, write-blockers – hardware and software, help preserve integrity

  25. Finish • Friday – Guest Speaker – Brian Kamp • Think about good questions you can ask!!!
