Presentation Transcript


M ayloon electronic company ltd 32 40 17 e flat e 17 f houston ind bldg 32 40 wang lung st

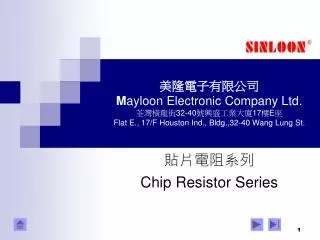

美隆電子有限公司Mayloon Electronic Company Ltd.荃灣橫龍街32-40號興盛工業大廈17樓E座Flat E., 17/F Houston Ind., Bldg.,32-40 Wang Lung St.

貼片電阻系列

Chip Resistor Series


Chip resistor series main menu

Chip Resistor Series (貼片電阻系列) Main menu (產品規格名細)


Thick film chip resistor cr

厚膜貼片電阻系列Thick Film Chip Resistor - CR


High power chip resistor crhp

功率型厚膜貼片電阻系列High Power Chip Resistor - CRHP


High ohm chip resistor hcr

高阻值厚膜貼片電阻系列High Ohm Chip Resistor - HCR


Low ohm chip resistor lcr

低阻值厚膜貼片電阻系列Low Ohm Chip Resistor - LCR


3w ultra low ohm chip resistor lr

3W 超合金低阻值貼片電阻系列Ultra Low Ohm Chip Resistor - LR


Metal alloy chip resistor mlr

合金貼片電阻系列Metal Alloy Chip Resistor - MLR


1g high ohm chip resistor mqrh

超高阻(>1G)貼片電阻系列High Ohm Chip Resistor - MQRH

Max. resistance value: 150G Ω

Halogen*1 and Antimony*2 free product

*1. Cl or Br ≦900ppm, Cl=Br ≦1500ppm

*2. Sb2O3 ≦900ppm

Suitable for compact instrumentation, infrared rays, sensors, etc.


Precision chip resistor pcr

高精密厚膜貼片電阻系列Precision Chip Resistor - PCR


Trimmable chip resistor tcr

可調整厚膜貼片電阻系列Trimmable Chip Resistor - TCR


Anti sulfur chip resistor asc

抗腐蝕高精密薄膜貼片電阻系列Anti-sulfur Chip Resistor - ASC


Current sensing chip res sc

電流感測貼片電阻系列Current Sensing Chip Res. - SC


Hp30 high power chip resistor hp30

大功率厚膜貼片電阻 HP30系列High Power Chip Resistor – HP30

Application (應用)

Appliance: Air conditioner, Refrigerator (冷氣機電子電路控制板及電冰箱)

Motor Vehicle and industrial use electrical products (汽車及工業用電子產品)

Computer & relative products: Main board, PDA (電腦及相關產品:主板、PDA.)

Communication equipment: Call phone, Fax machine (通訊設備:手機、傳真機 )

Power equipment: Power supply, Illumination equipment (電力設備:電源、照明設備)

Entertainment: Stereo, TV tuners, Tape recorder (娛樂:立體音響、電視選配器、錄音器)

Measuring instrument: Electric meter, Navigation equipment (測量工具:電子儀錶、導航設備 )


Mma molded metal high power chip resistor mma series

大功率模壓合金貼片電阻 MMA系列Molded Metal High Power Chip Resistor – MMA Series

  • 優勢特點:

  • 無感,電極採用激光焊接工藝。

  • 外型採用模壓包封型成,防潮。

  • 本體採用合金電阻材質溫飄系數低,長期電性有極佳的穩定性。

  • 產品特性參數要求符合SONY-SS00259標準要求。

  • 功率: 2W, 3W , 5W.

  • 封裝: 2W- 2512; 3W- 4527; 5W – 4527

  • 阻值: 0.005R ~ 1R0 (5m ~ 1000m)

  • 高精密誤差: ±0.1%; ±1%.

  • 低溫度系數: 25ppm ~ 75ppm.

  • 產品用途:

  • 適用於電流敏感,分壓及電器類電源電路之使用。

  • 更多規格參數詳情,請聯絡美隆電子有限公司,留下你完整的聯絡資訊和我們的業務代表聯絡。


Cra chip resistor array cra series

綱路貼片電阻 CRA系列Chip Resistor Array– CRA Series


Melf melf resistor series

晶圓電阻 MELF系列MELF Resistor Series


Melf anti surge melf resistor mas series

耐衝轚晶圓電阻 MELF系列Anti-surge MELF Resistor – MAS Series

美隆電子生產之脈衝晶電阻 MAS,採用特殊導電膜,增強塗料絕緣承受UL94V-0條件能力,它作為

有害浪湧能量吸收器,因此可以防止因電路開關產品的火花所引起的危險和浪湧能量造成的電路損壞.


Melf carbon film melf resistor mcf series

碳膜晶圓電阻 MELF系列Carbon Film MELF Resistor – MCF Series


Melf metal film melf resistor mmf series

金屬膜晶圓電阻 MELF系列Metal Film MELF Resistor – MMF Series


Melf metal glaze melf resistor mmg series

玻璃釉晶圓電阻 MELF系列Metal Glaze MELF Resistor – MMG Series

MMG 金屬釉膜超小型尺寸,使用特制材質,有較高的額定功率及比一般電阻有更高的工作電壓

高脈衝負載能力,抗高溫及抗濕度。


Melf metal oxide film melf resistor mmo series

氧化膜晶圓電阻 MELF系列Metal Oxide Film MELF Resistor – MMO Series

MAYLOON : 對於電阻需要在高溫下表期穩定表現,電阻薄膜的面積必須承受更大

的負荷,小型高性能金屬氧化物薄膜電阻器(MMO)採用高品質陶瓷棒,大大降低了

與RS的比較,而且它有相同大型電阻同樣的性能。)


Melf precision metal film melf resistor mpm series

高精密晶圓電阻 MELF系列Precision Metal Film MELF Resistor – MPM Series


Melf fusible melf resistor frm series

保險絲晶圓電阻 MELF系列Fusible MELF Resistor – FRM Series


Smd ntc chip thermistor smd series

貼片型熱敏電阻 SMD 系列NTC Chip Thermistor – SMD Series


The and

結尾The and.

美隆電子有限公司

Mayloon Electronic Company Limited
