Chapter 4 planning the active directory and security

Chapter 4: Planning the Active Directory and Security


Learning objectives

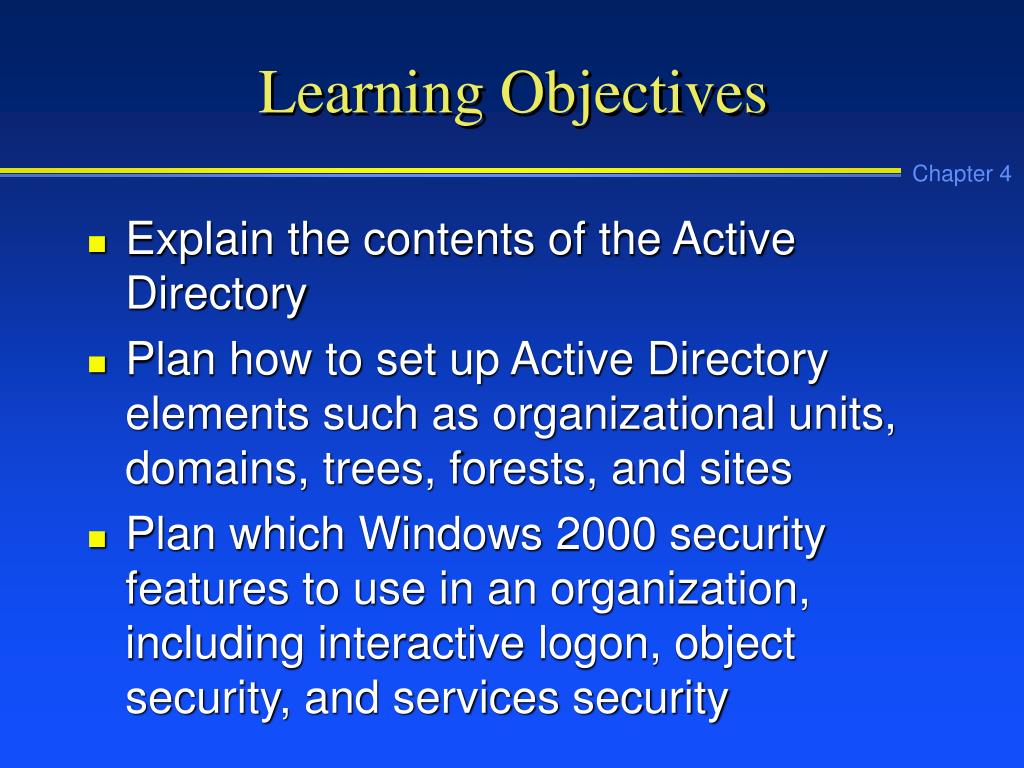

Learning Objectives

  • Explain the contents of the Active Directory

  • Plan how to set up Active Directory elements such as organizational units, domains, trees, forests, and sites

  • Plan which Windows 2000 security features to use in an organization, including interactive logon, object security, and services security


Learning objectives continued

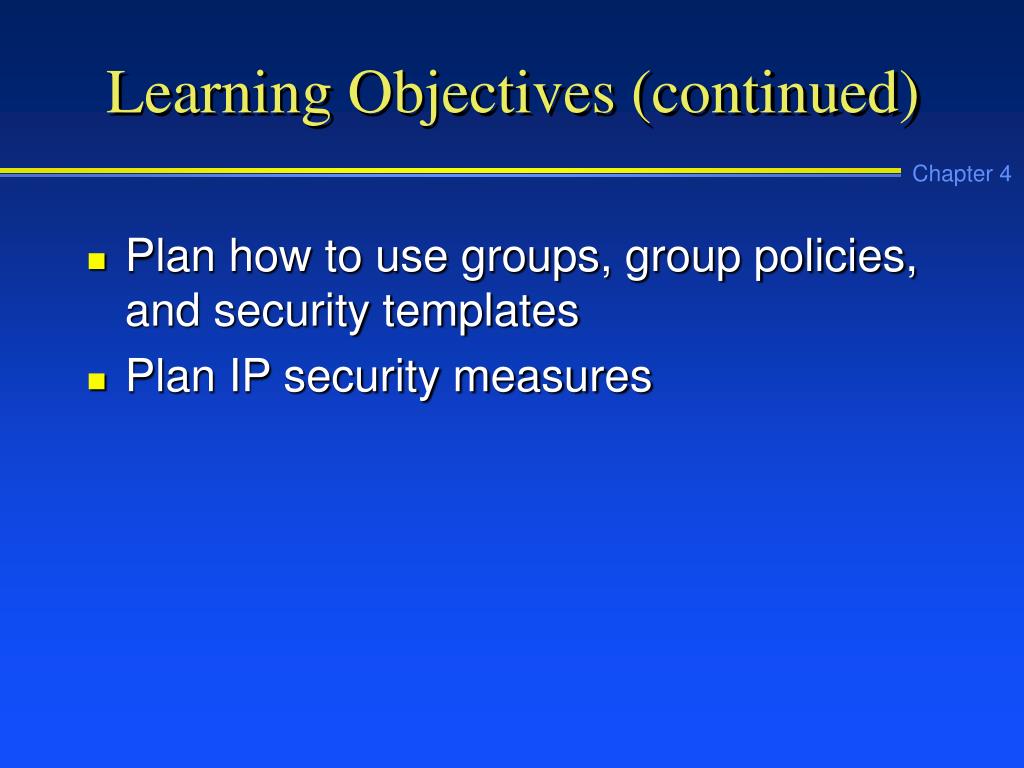

Learning Objectives (continued)

  • Plan how to use groups, group policies, and security templates

  • Plan IP security measures


Windows nt domain structure
Windows NT Domain Structure

  • Security Accounts Manager (SAM) database holds data on user accounts, groups, and security privileges

  • One primary domain controller (PDC) has master copy of the SAM

  • One or more backup domain controllers (BDCs) have backup copies of the SAM


Using a pdc bdcs and the sam database
Using a PDC, BDCs, and the SAM database

Figure 4-1

Windows NT

SAM architecture


Windows 2000 active directory
Windows 2000 Active Directory

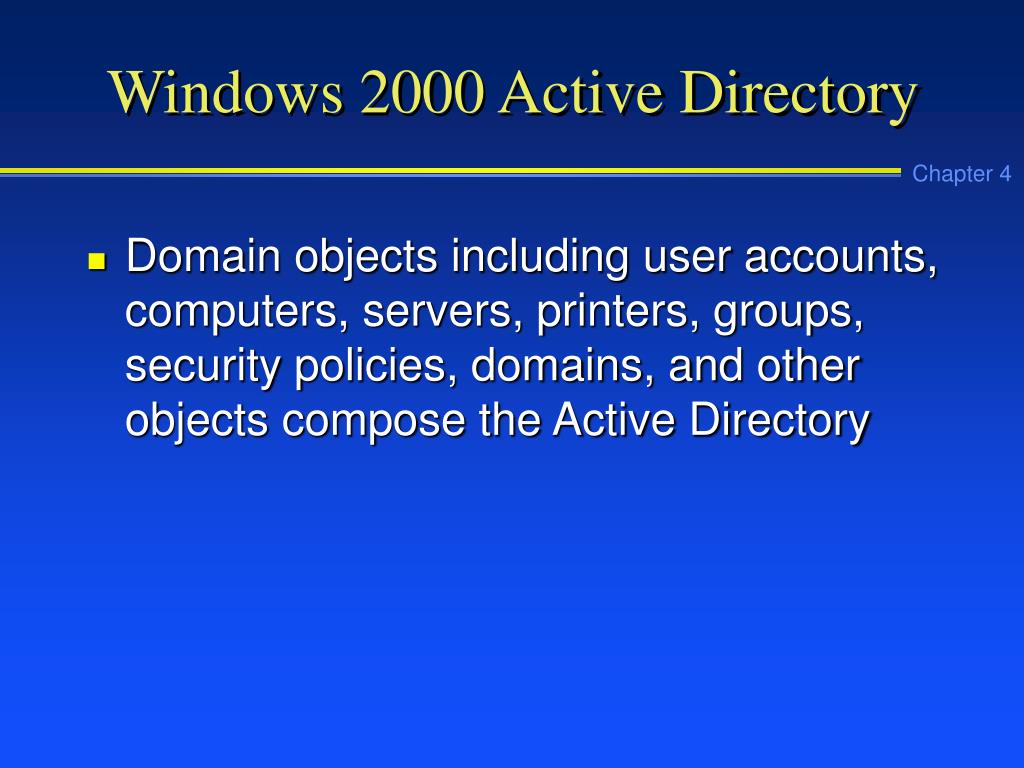

  • Domain objects including user accounts, computers, servers, printers, groups, security policies, domains, and other objects compose the Active Directory


Active directory objects
Active Directory Objects

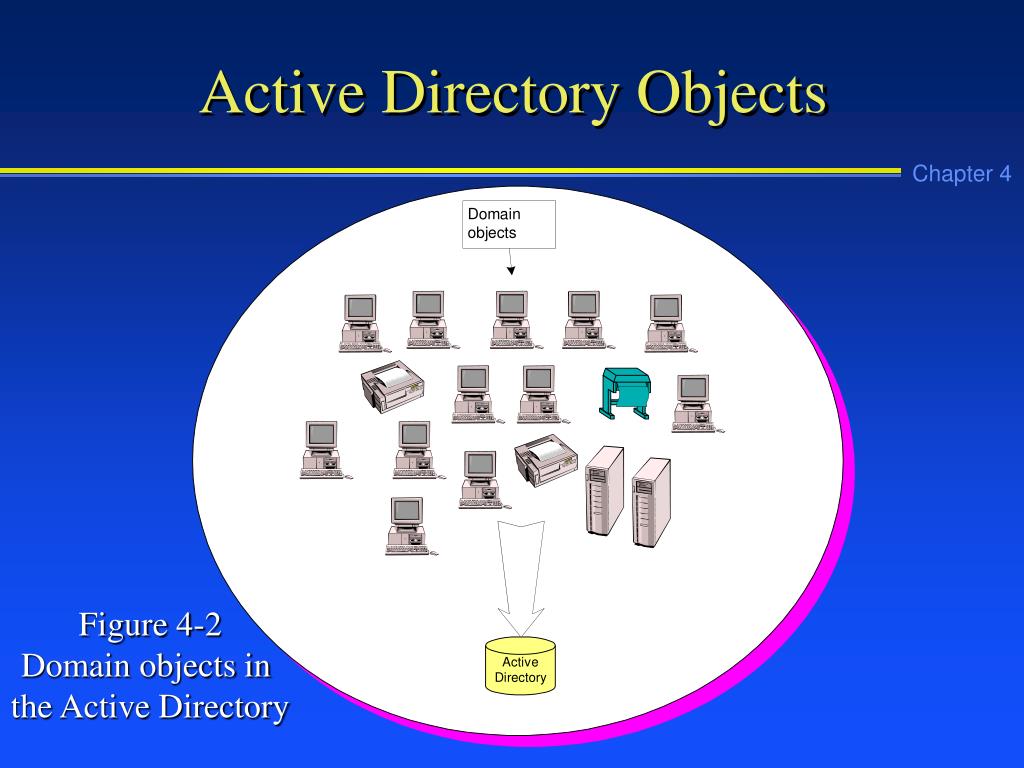

Figure 4-2

Domain objects in

the Active Directory


Multimaster replication
Multimaster Replication

  • Multimaster replication: In Windows 2000 there can be multiple servers, called domain controllers (DCs), that store the Active Directory and replicate it to each other. Because each DC acts as a master, replication does not stop when one is down. Each DC is a master in its own right.


Multimaster architecture
Multimaster Architecture

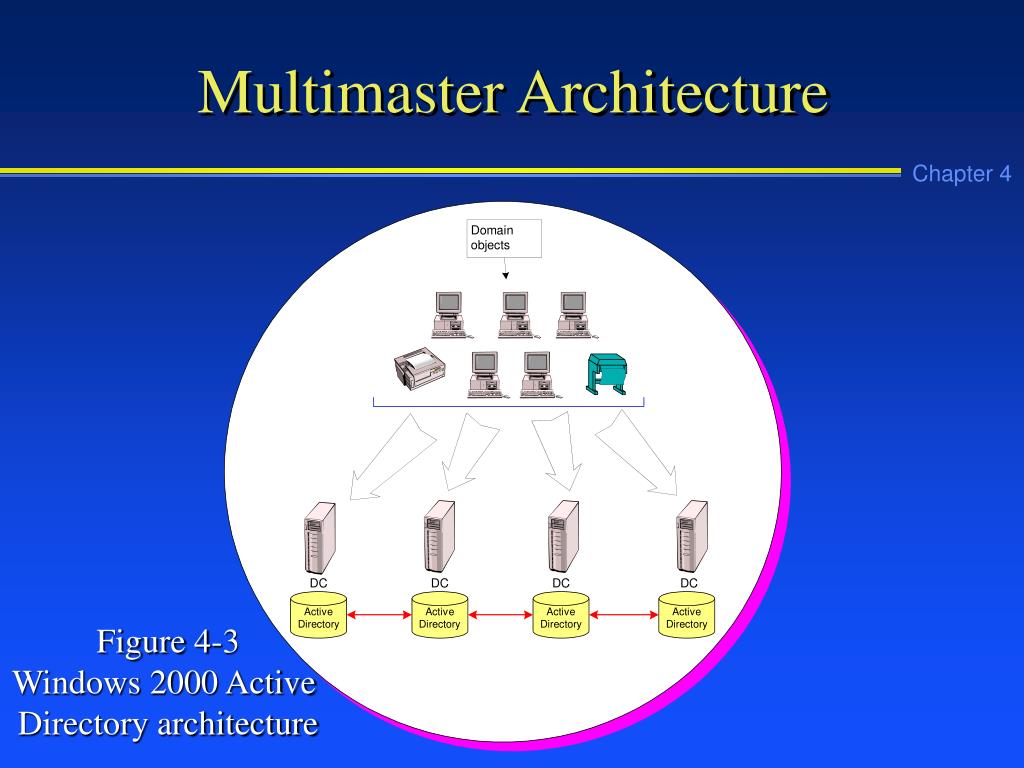

Figure 4-3

Windows 2000 Active

Directory architecture


Schema
Schema

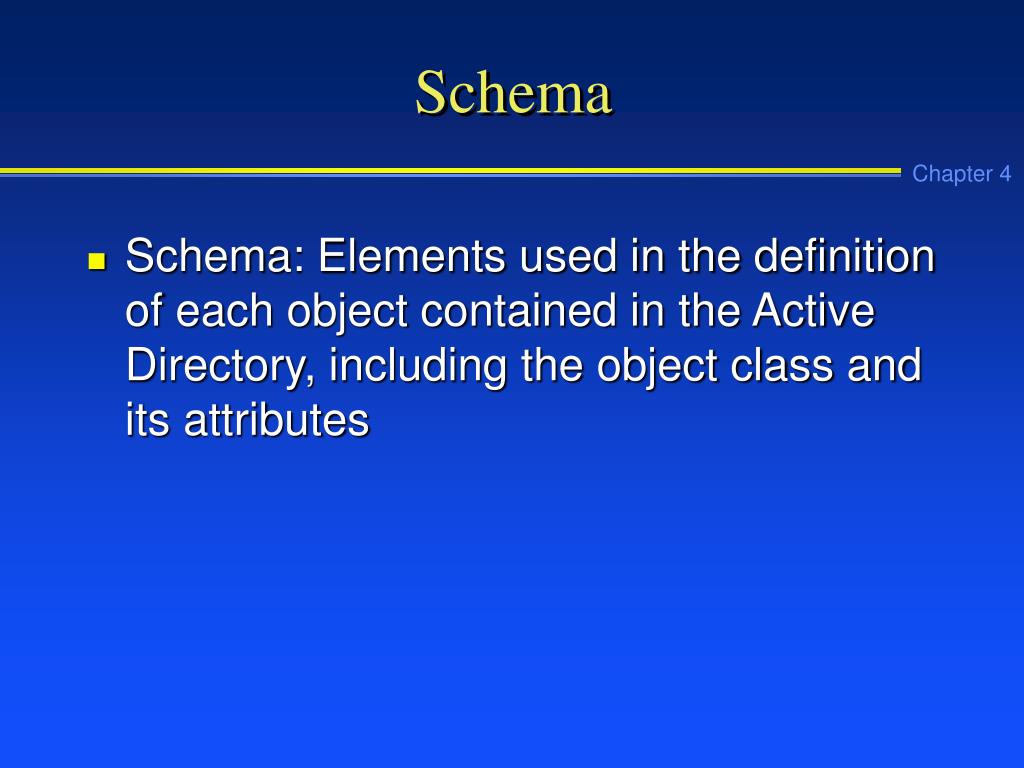

  • Schema: Elements used in the definition of each object contained in the Active Directory, including the object class and its attributes


Example schema characteristics of the user account class

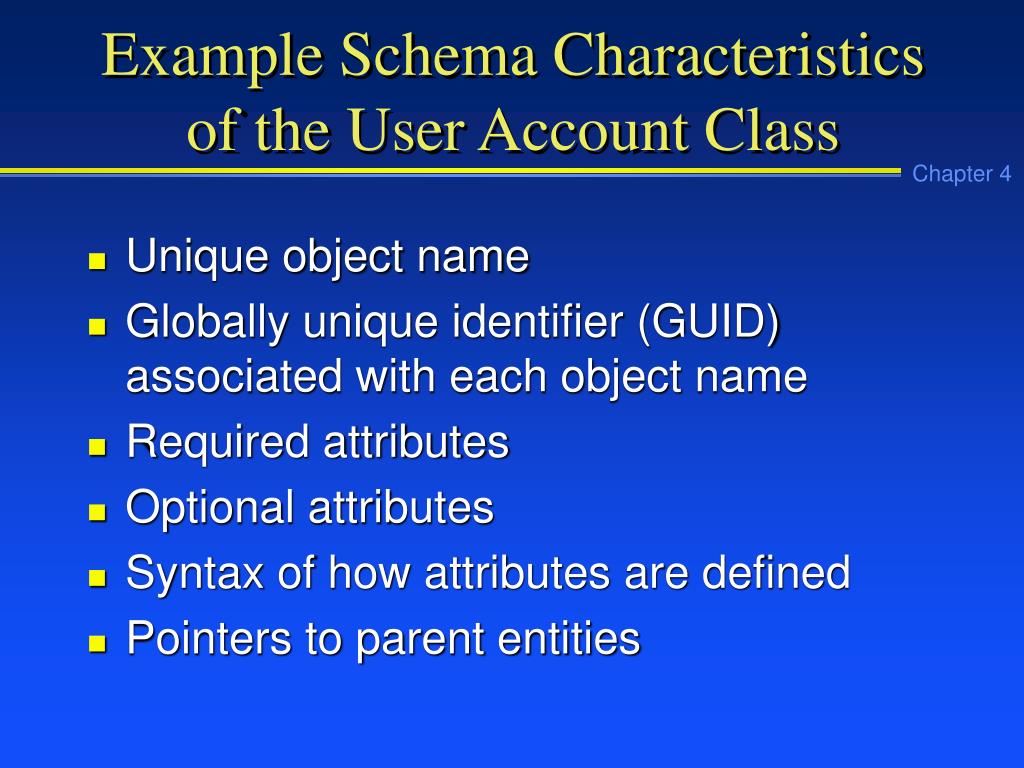

Example Schema Characteristics of the User Account Class

  • Unique object name

  • Globally unique identifier (GUID) associated with each object name

  • Required attributes

  • Optional attributes

  • Syntax of how attributes are defined

  • Pointers to parent entities


Example user account attributes
Example User Account Attributes

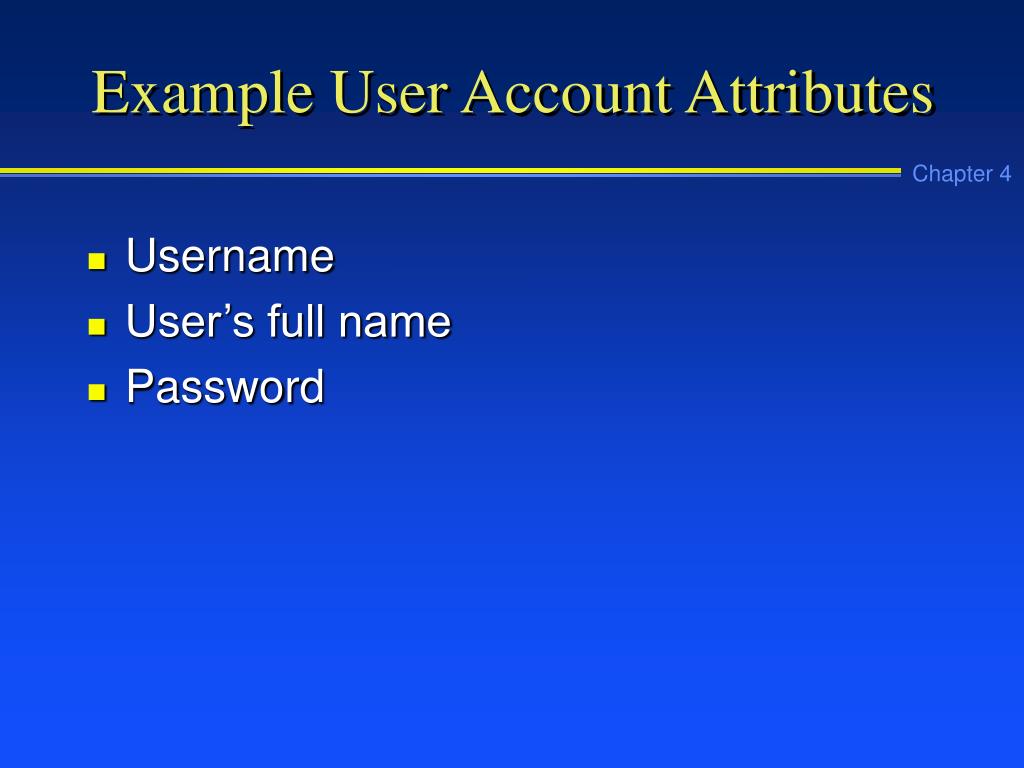

  • Username

  • User’s full name

  • Password


Schema example
Schema Example

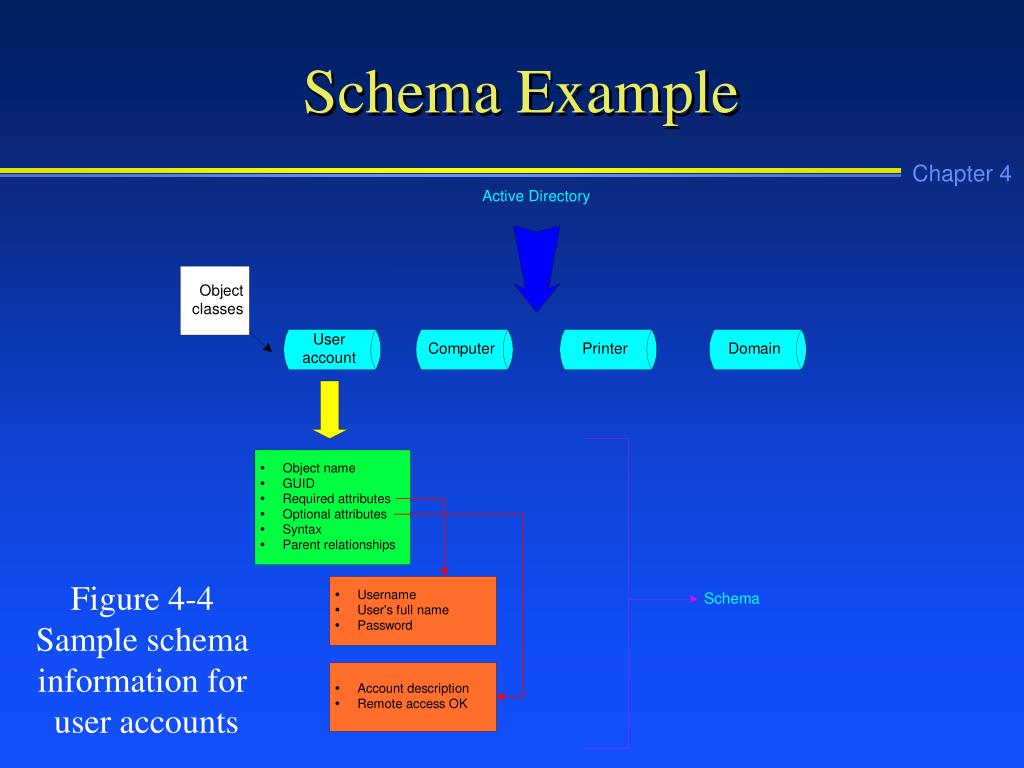

Figure 4-4

Sample schema

information for

user accounts


Default object classes

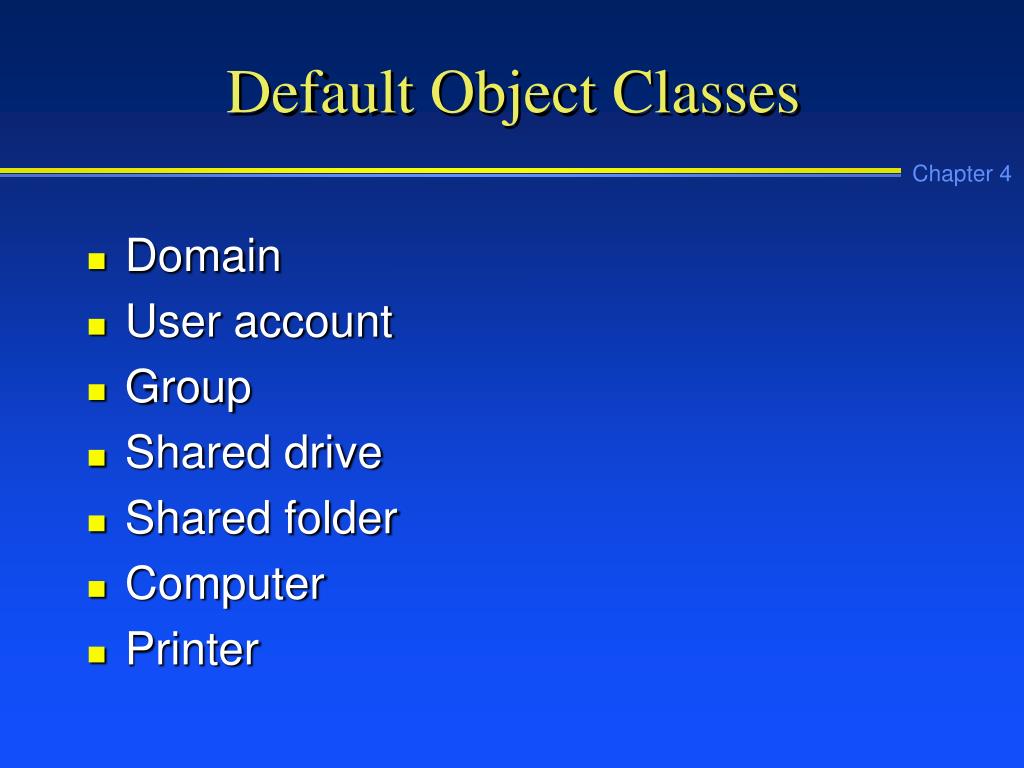

Default Object Classes

  • Domain

  • User account

  • Group

  • Shared drive

  • Shared folder

  • Computer

  • Printer


Object naming

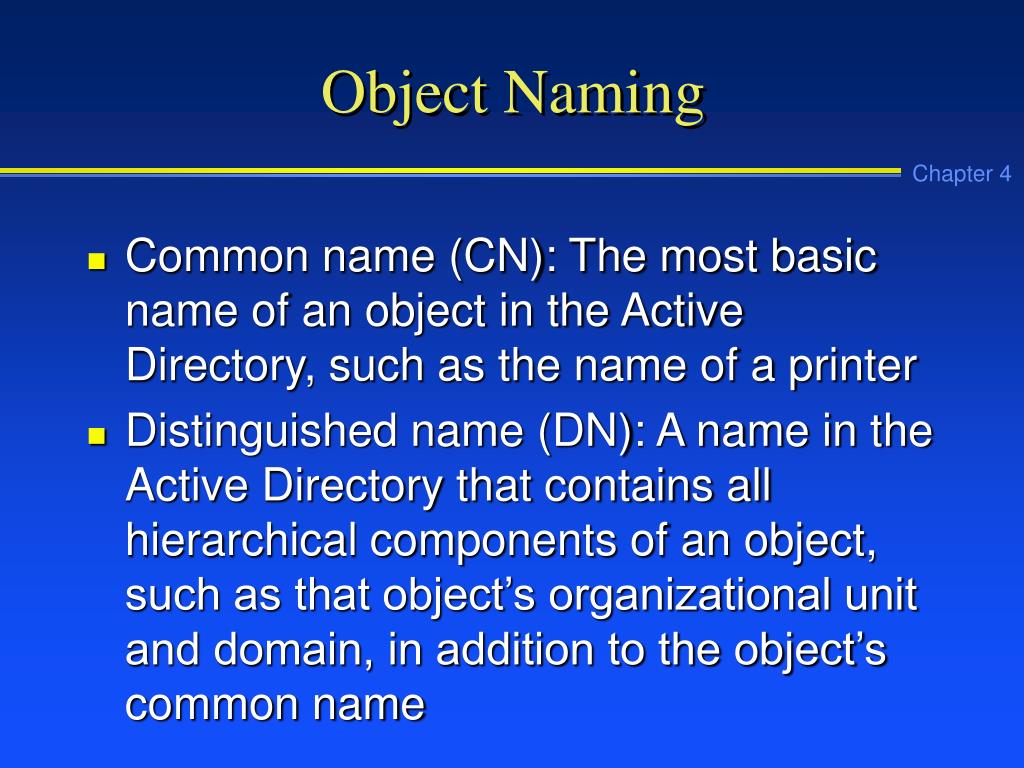

Object Naming

  • Common name (CN): The most basic name of an object in the Active Directory, such as the name of a printer

  • Distinguished name (DN): A name in the Active Directory that contains all hierarchical components of an object, such as that object’s organizational unit and domain, in addition to the object’s common name


Object naming continued
Object Naming (continued)

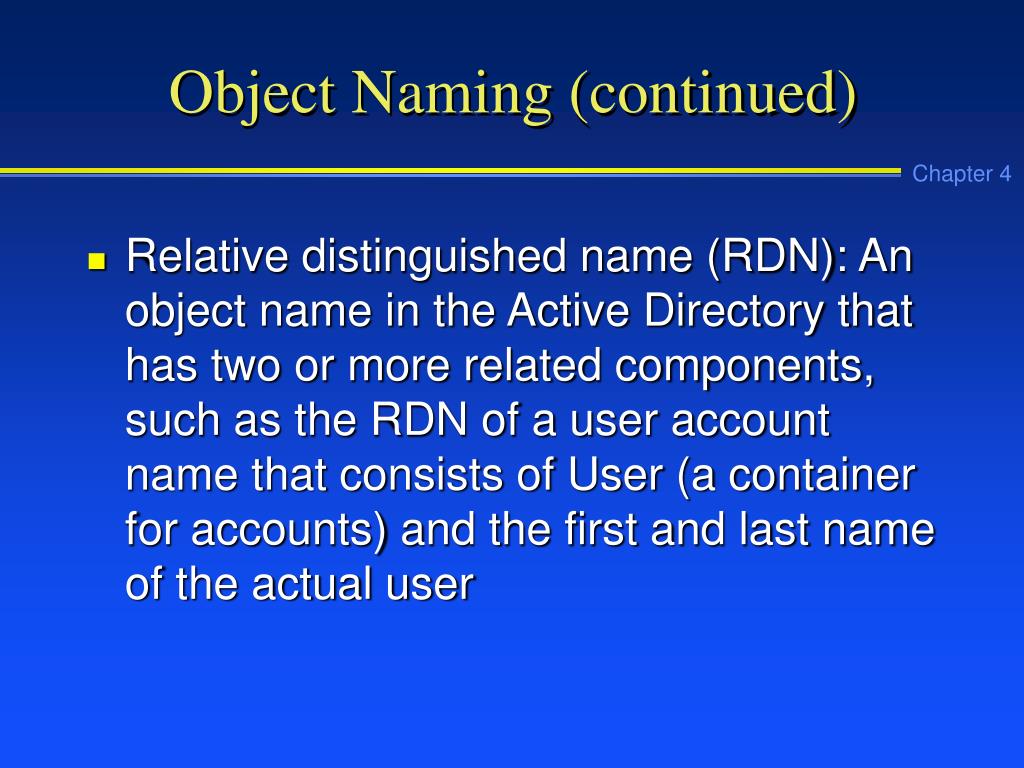

  • Relative distinguished name (RDN): An object name in the Active Directory that has two or more related components, such as the RDN of a user account name that consists of User (a container for accounts) and the first and last name of the actual user


Namespace
Namespace

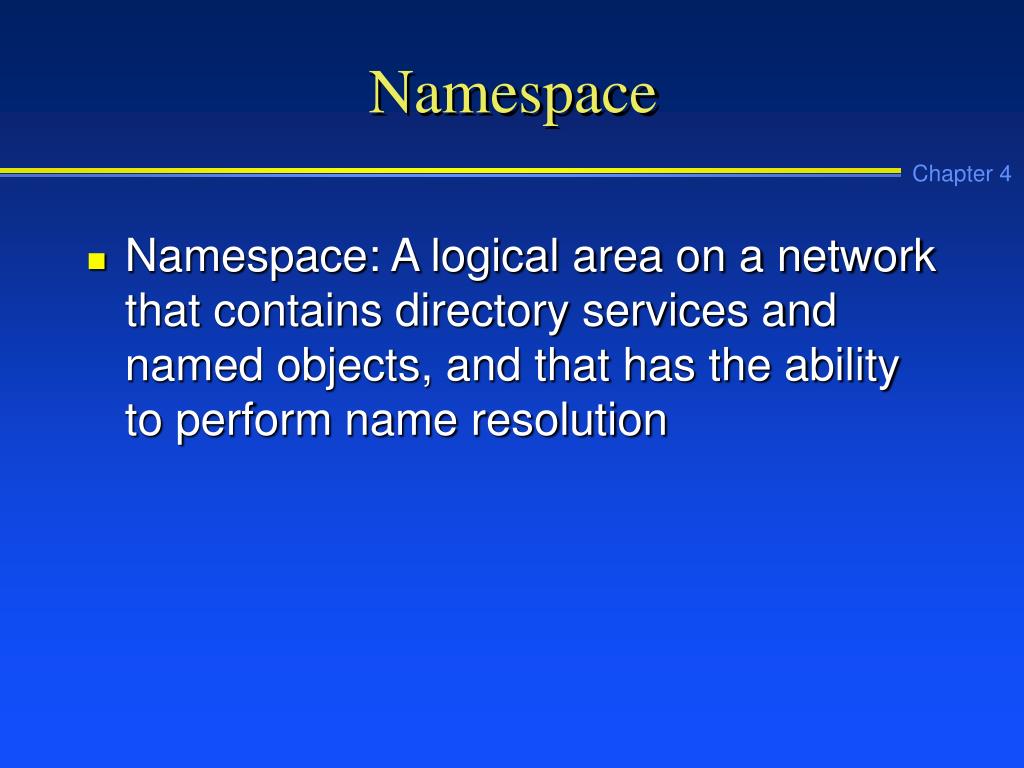

  • Namespace: A logical area on a network that contains directory services and named objects, and that has the ability to perform name resolution


Types of namespaces
Types of Namespaces

  • Contiguous namespace: A namespace in which every child object contains the name of its parent object

  • Disjointed namespace: A namespace in which the child object name does not resemble the name of its parent object


Active directory elements

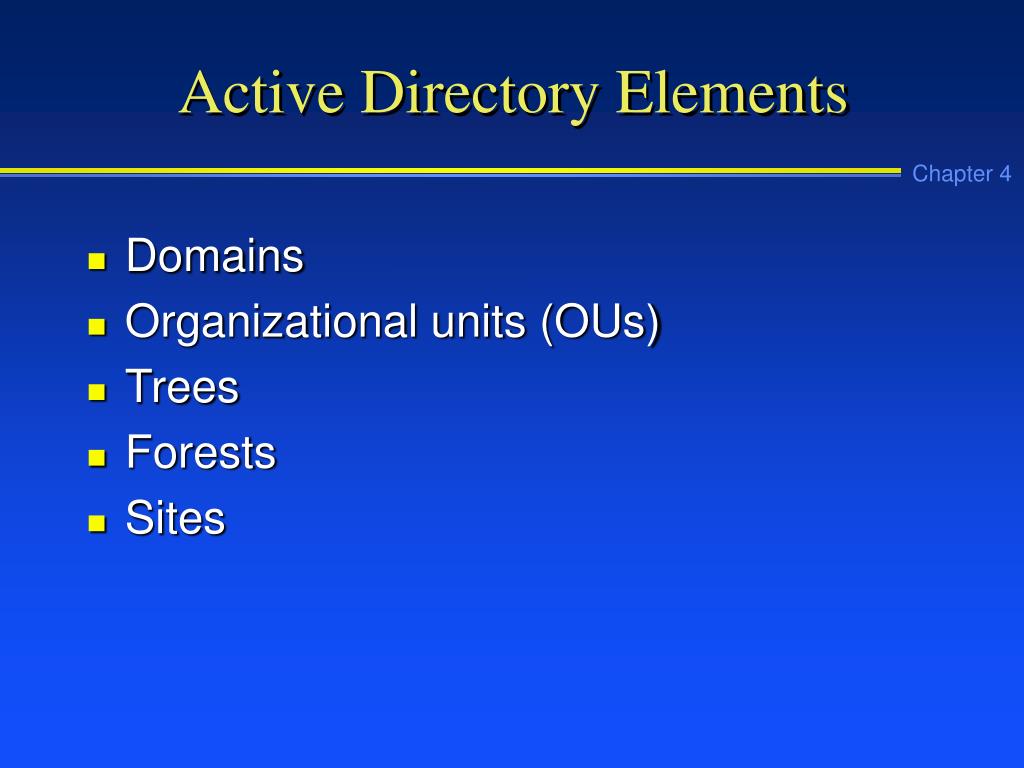

Active Directory Elements

  • Domains

  • Organizational units (OUs)

  • Trees

  • Forests

  • Sites


Active directory architecture
Active Directory Architecture

Figure 4-5

Active Directory

hierarchical containers


Functions of a domain
Functions of a Domain

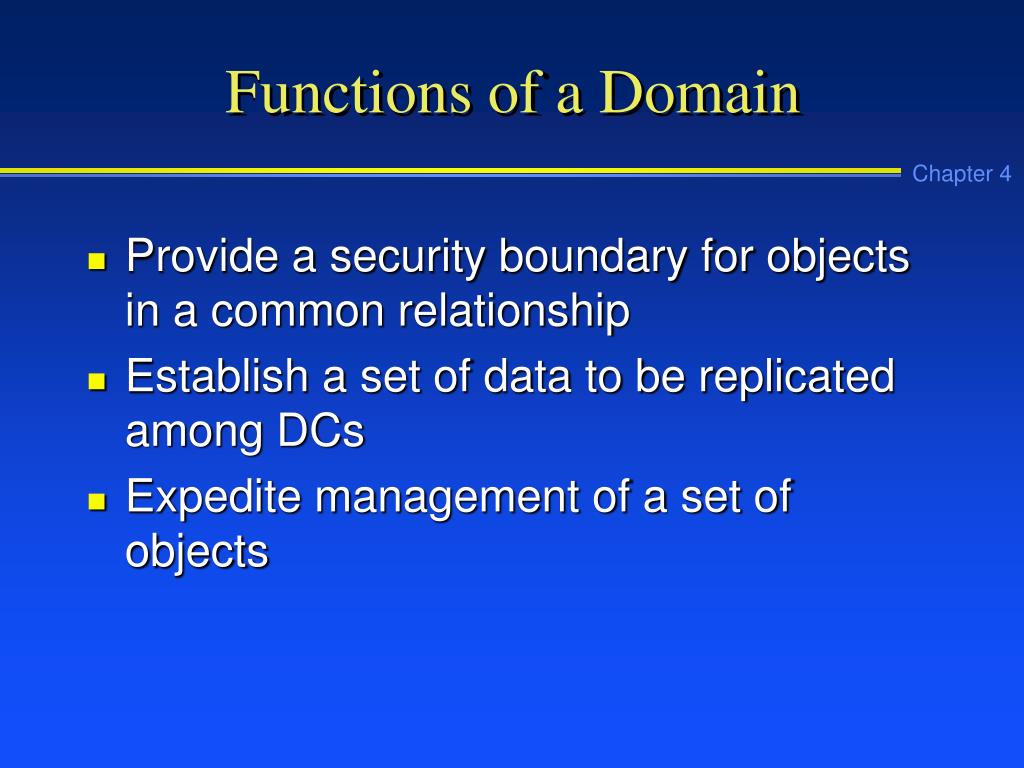

  • Provide a security boundary for objects in a common relationship

  • Establish a set of data to be replicated among DCs

  • Expedite management of a set of objects


Using a single domain
Using a Single domain

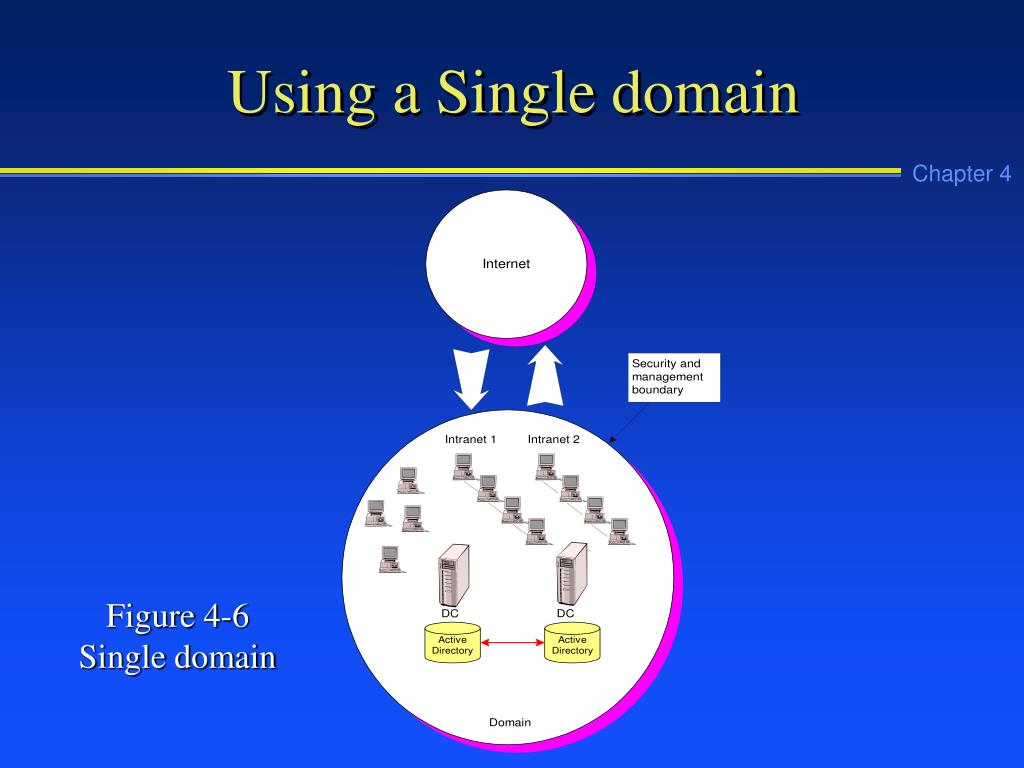

Figure 4-6

Single domain


Using multiple domains
Using Multiple Domains

Figure 4-7

Using multiple

domains



Domain creation dos and don ts continued
Domain Creation Dos and Don’ts (continued)


Functions of an ou
Functions of an OU

  • Group related objects, such as user accounts and printers, for easier management

  • Reflect the structure of an organization

  • Group objects to be administered using the same group policies


Using ous to reflect organizational structure
Using OUs to Reflect Organizational Structure

Figure 4-8

OUs used to reflect

the divisional

structure of a company


Design tips for using ous
Design Tips for Using OUs

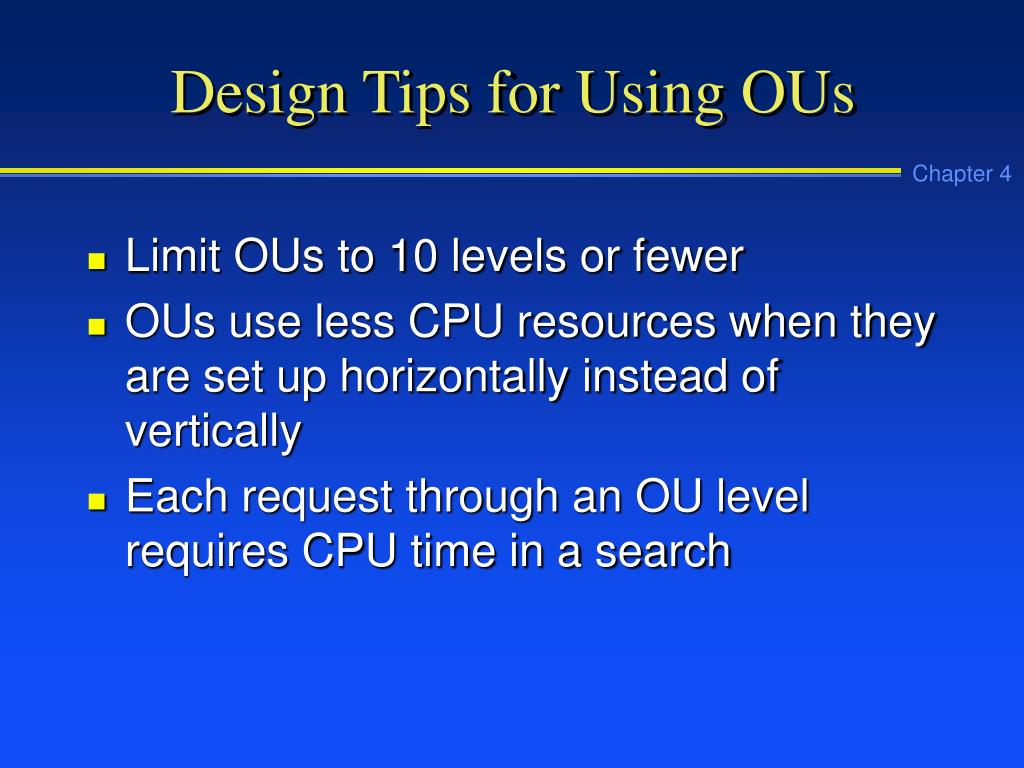

  • Limit OUs to 10 levels or fewer

  • OUs use less CPU resources when they are set up horizontally instead of vertically

  • Each request through an OU level requires CPU time in a search



Ou creation dos and don ts continued

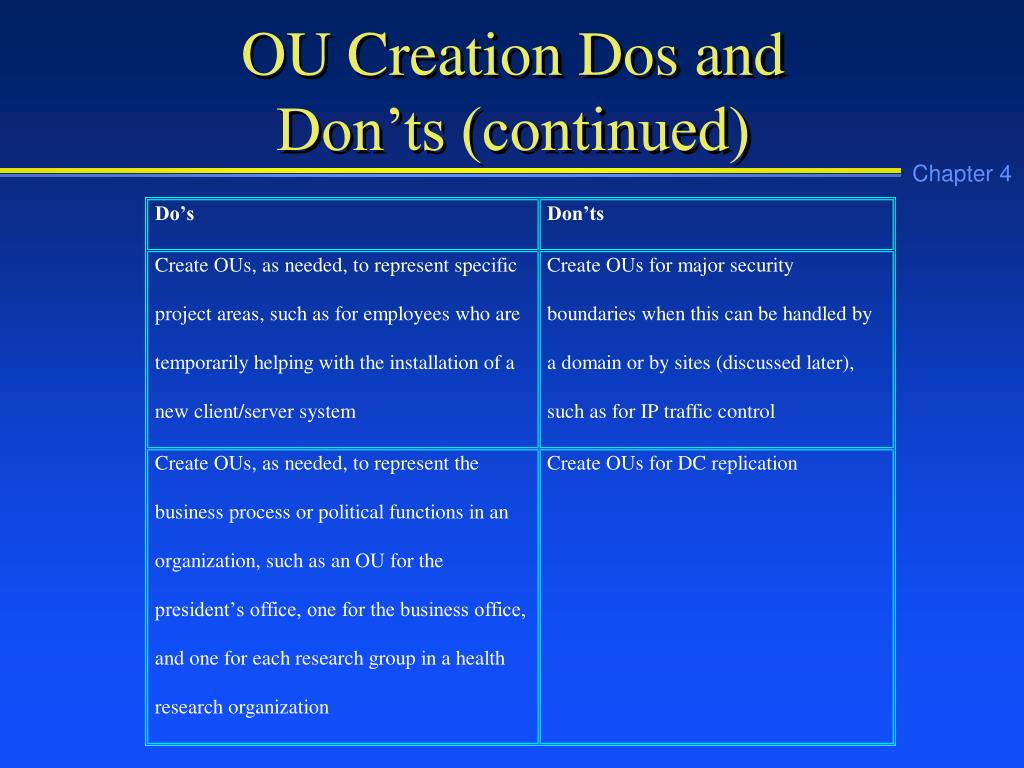

OU Creation Dos and Don’ts (continued)


Characteristics of a tree
Characteristics of a Tree

  • Member domains are in a contiguous namespace

  • Member domains can compose a hierarchy

  • Member domains use the same schema for common objects

  • Member domains use the same global catalog


Global catalog
Global Catalog

  • Global catalog: A grand repository for all objects and the most frequently used attributes for each object in all domains. Each tree has one global catalog.


Global catalog functions

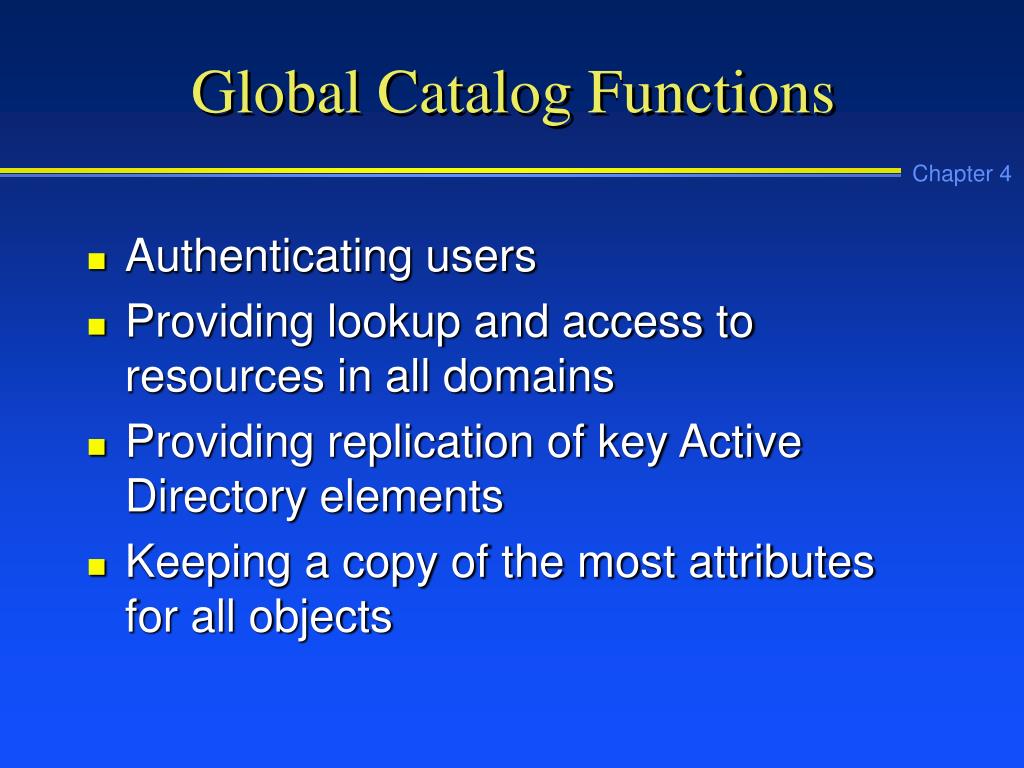

Global Catalog Functions

  • Authenticating users

  • Providing lookup and access to resources in all domains

  • Providing replication of key Active Directory elements

  • Keeping a copy of the most attributes for all objects


Hierarchical domains in a tree
Hierarchical Domains in a Tree

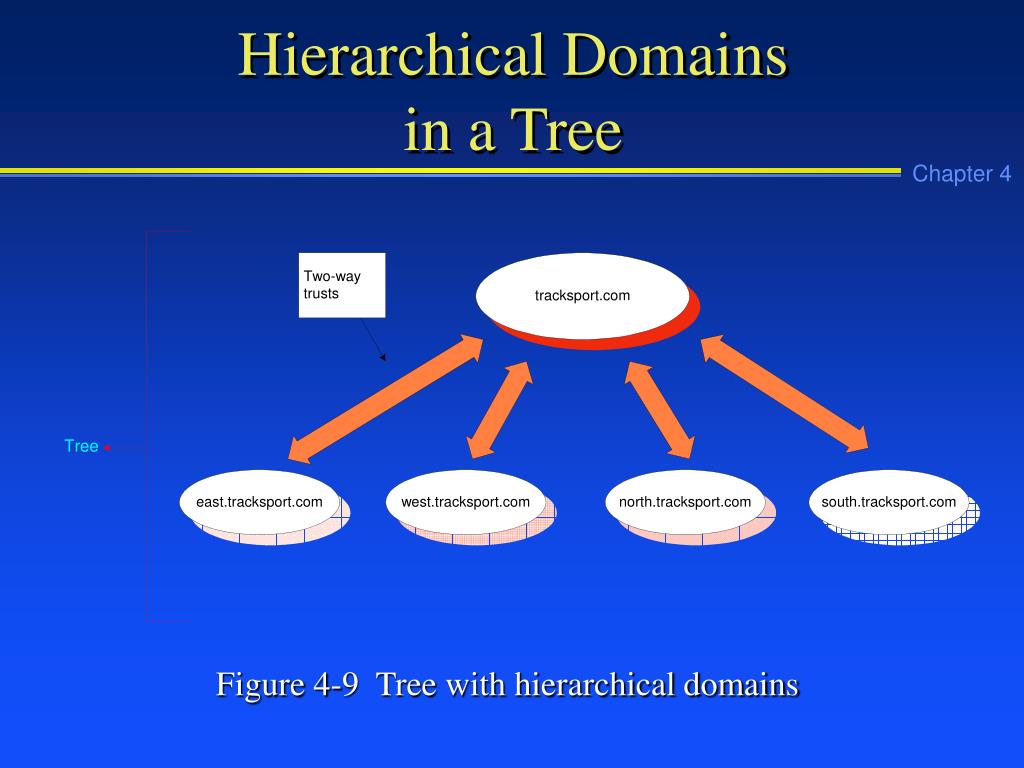

Figure 4-9 Tree with hierarchical domains


Kerberos transitive trust
Kerberos Transitive Trust

  • Kerberos Transitive Trust Relationship: A set of two-way trusts between two or more domains in which Kerberos security is used.


Trusted and trusting domains
Trusted and Trusting Domains

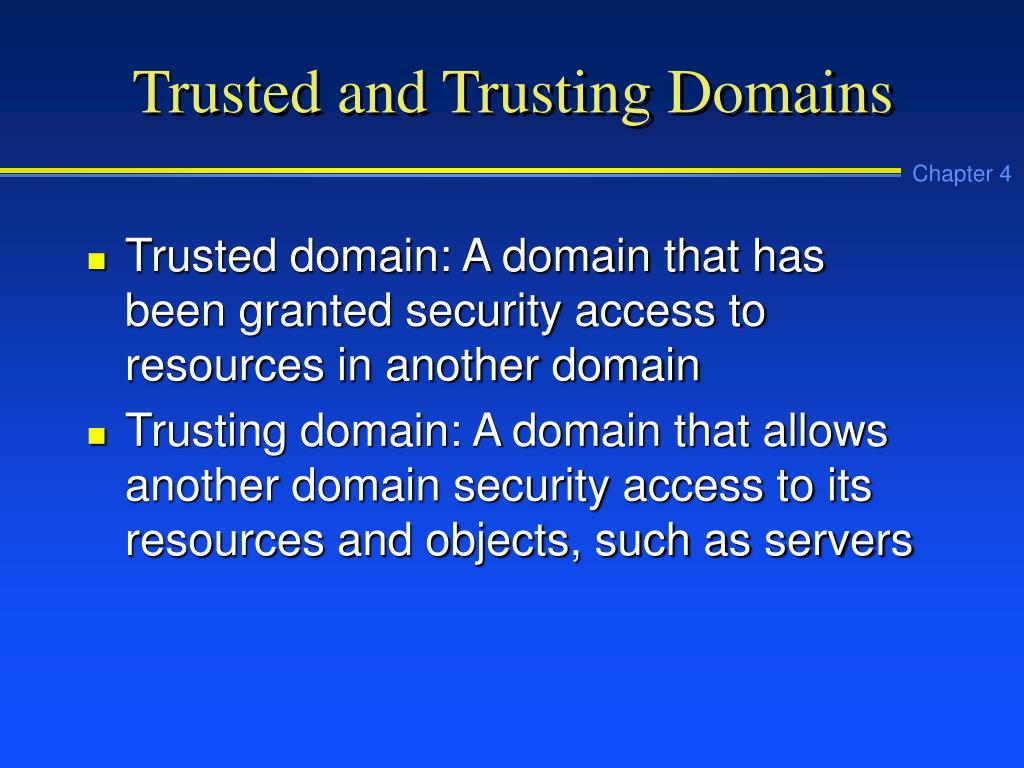

  • Trusted domain: A domain that has been granted security access to resources in another domain

  • Trusting domain: A domain that allows another domain security access to its resources and objects, such as servers

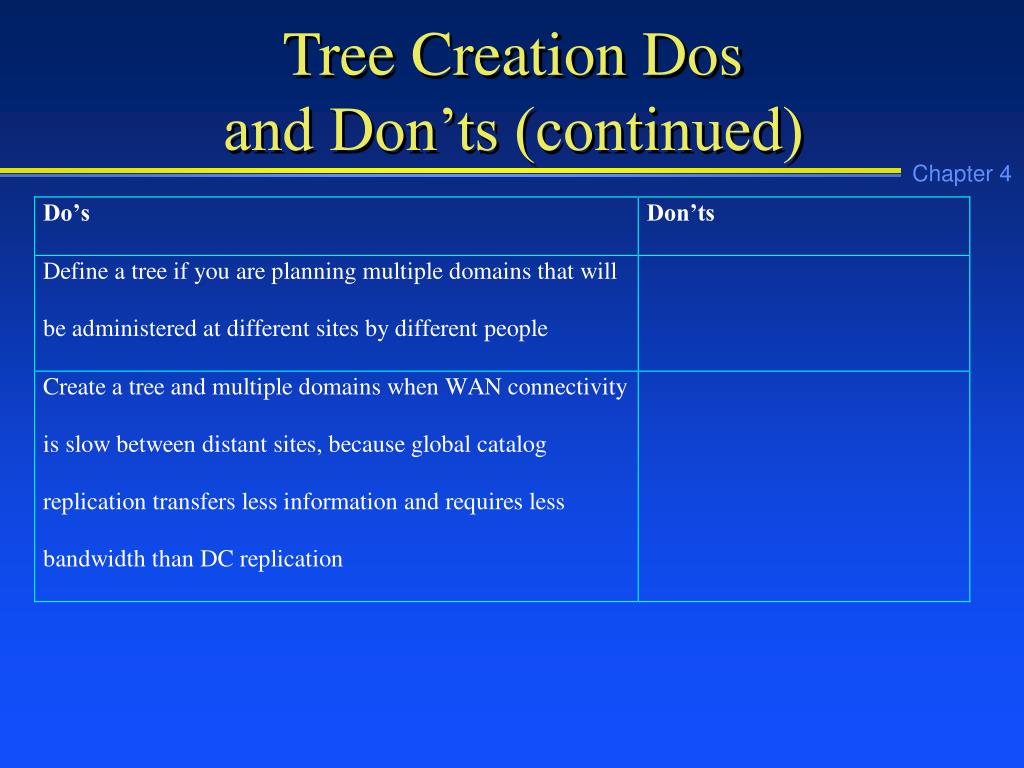

Tree creation dos and don ts continued

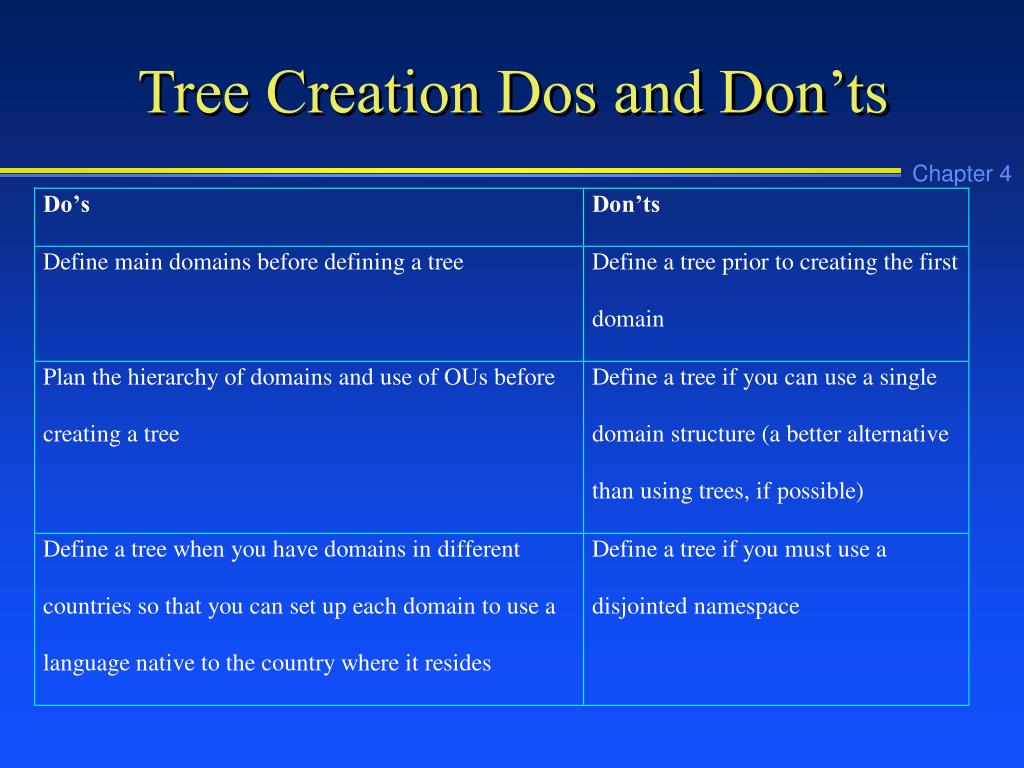

Tree Creation Dos and Don’ts (continued)


Planning tip
Planning Tip

  • Make sure each tree has at least one DC that is also configured as a global catalog

  • Locate global catalog servers in a network design architecture that enables fast user authentication (so that authentication does not have to be performed over a WAN link, for example)


Characteristics of a forest
Characteristics of a Forest

  • Member trees use a disjointed namespace (but contiguous namespaces within trees)

  • Member trees use the same schema

  • Member trees use the same global catalog


Single forest
Single Forest

  • Single forest:An Active Directory model in which there is only one forest with interconnected trees and domains that use the same schema and global catalog


Single forest architecture
Single Forest Architecture

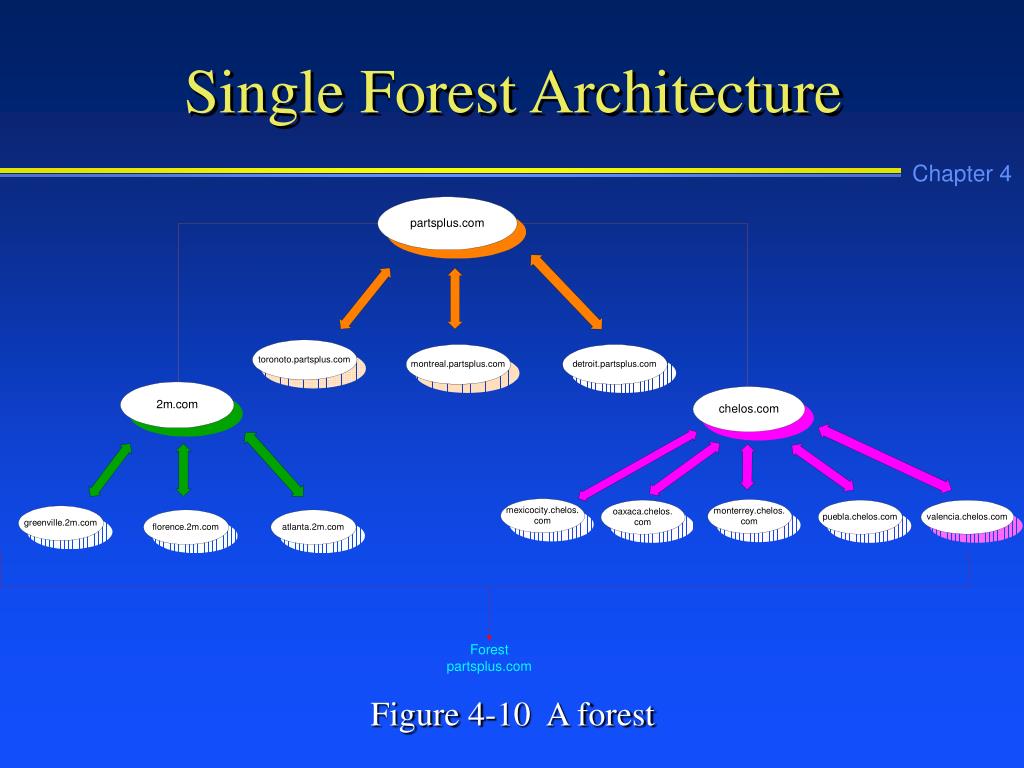

Figure 4-10 A forest


Separate forest
Separate Forest

  • Separate forest: An Active Directory model that links two or more forests in a partnership, but the forests cannot have Kerberos transitive trusts or use the same schema


Separate forest architecture
Separate Forest Architecture

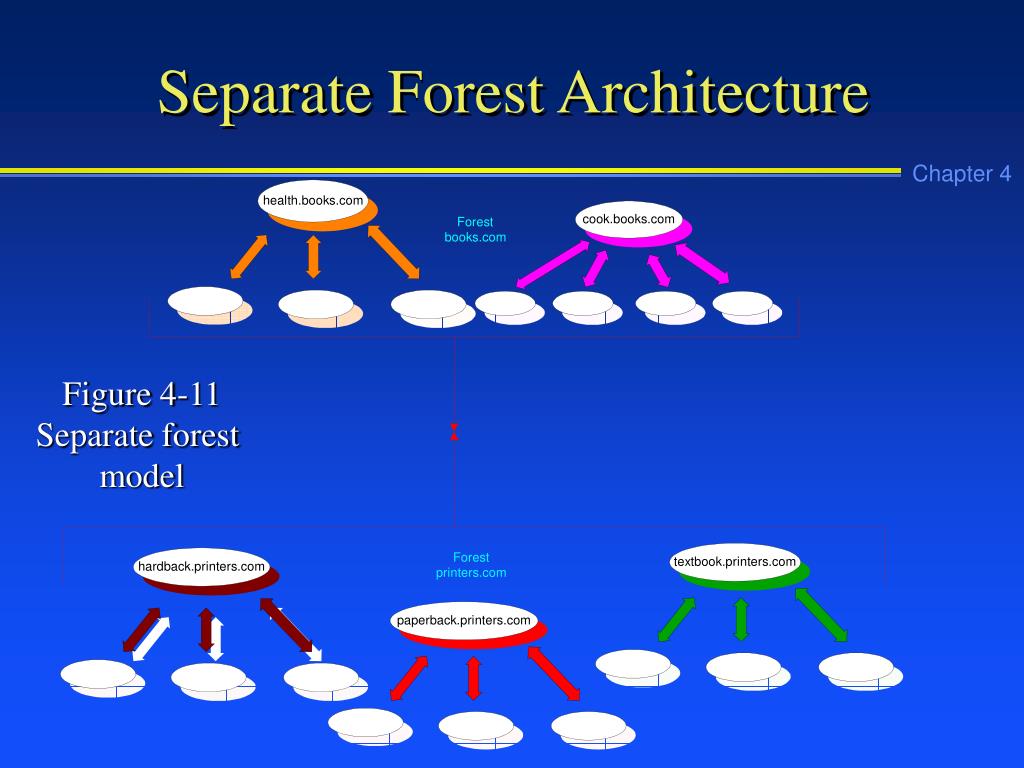

Figure 4-11

Separate forest

model



Forest creation dos and don ts continued
Forest Creation Dos and Don’ts (continued)


Design tip
Design Tip

  • When you create a separate forest structure remember that:

    • Replication cannot take place between forests

    • The forests use different schema and global catalogs

    • The forests cannot be easily blended into a single forest in the future


Site

  • Site: An option in the Active Directory to interconnect IP subnets so that it can determine the fastest route to connect clients for authentication and to connect DCs for replication of the Active Directory. Site information also enables the Active Directory to create redundant routes for DC replication.


Characteristics of a site
Characteristics of a Site

  • Reflects one or more interconnected subnets (512 Kbps or faster)

  • Reflects the same boundaries as the LAN

  • Used for DC replication

  • Enables clients to access the closest DC

  • Composed of servers and configuration objects


Site links
Site Links

  • Site link object: An object created in the Active Directory to indicate one or more physical links between two different sites

  • Site link bridge: An Active Directory object (usually a router) that combines individual site link objects to create faster routes when there are three or more site links


Site link architecture
Site Link Architecture

Figure 4-12 Site link bridge



Site creation dos and don ts continued
Site Creation Dos and Don’ts (continued)


Design tip1
Design Tip

  • Define sites in the Active Directory on networks that have multiple global catalog servers that reside in different subnets

  • Use sites to enhance network performance by optimizing authentication and replication


Active directory guidelines
Active Directory Guidelines

  • Keep the Active Directory implementation as simple as possible

  • Implement the least number of domains possible

  • Implement only one domain on most small networks

  • Use OUs to reflect the organizational structure (instead of using domains for this purpose)


Active directory guidelines continued
Active Directory Guidelines (continued)

  • Create only the number of OUs that are necessary

  • Do not create OUs more than 10 levels deep

  • Use domains for natural security boundaries

  • Implement trees and forests only as necessary


Active directory guidelines continued1
Active Directory Guidelines (continued)

  • Use trees for domains that have a contiguous namespace

  • Use forests for multiple trees that have disjointed namespaces between them

  • Use sites in situations where there are multiple IP subnets and geographic locations to improve performance


Basic types of active directory security
Basic Types of Active Directory Security

  • Account or interactive logon security

  • Object security

  • Services security


Interactive logon security
Interactive Logon Security

  • DC checks that the user account is in the Active Directory

  • DC verifies the exact user account name and password


Object security
Object Security

  • Security descriptor: An individual security property associated with a Windows 2000 Server object, such as enabling the account MGardner (the security descriptor) to access the folder, Databases

  • Access control list (ACL): A list of all security descriptors that have been set up for a particular object, such as for a shared folder or a shared printer


Typical acl types of information
Typical ACL Types of Information

  • User account(s) that can access an object

  • Permissions that determine the type of access

  • Ownership of the object


Typical object permissions
Typical Object Permissions

  • Deny: No access to the object

  • Read: Access to view or read the object’s contents

  • Write: Permission to change the object’s contents or properties

  • Delete: Permission to remove an object

  • Create: Permission to add an object

  • Full Control: Permission for nearly any activity


Example special permissions
Example Special Permissions

Figure 4-13 Special permissions for a folder


Troubleshooting tip
Troubleshooting Tip

  • Deny permission supercedes other permissions, thus if there is a permissions conflict for one of your users, check the deny permissions associated with that user’s account


Services security
Services Security

  • Windows 2000 enables you to set up security on individual services, such as DHCP


Setting services security
Setting Services Security

Figure 4-14 DHCP security


Using groups
Using Groups

  • Set up security groups of user accounts as a way to more easily manage security


Setting up members of a group
Setting Up Members of a Group

Figure 4-15 DHCP Administrators group


Group policies
Group Policies

  • Use group policies to manage security for local servers, OUs, and domains

  • Employ security templates when you need to manage several different group policies


Example areas covered by group policies
Example Areas Covered by Group Policies

  • Account polices

  • Local server and domain policies

  • Event log tracking policies

  • Group restrictions

  • Service access security

  • Registry security

  • File system security


Setting up security templates
Setting Up Security Templates

Figure 4-16 Security Templates snap-in


Chapter summary
Chapter Summary

  • Active Directory and security implementation are interrelated

  • The Active Directory is a set of services for managing Windows 2000 servers

  • Use Active Directory elements such as OUs, domains, trees, and forests to help manage server objects and resources


Chapter summary1
Chapter Summary

  • Use sites to configure network communications for better performance through taking advantage of existing subnets

  • Groups and group policies enable you to manage security


ad
