3g mobile technologies umts

3G MOBILE TECHNOLOGIESUMTS

MEHMET ALİ GÖKGÖZ

ERDEM SUNAR

17 December 2010


A janda
Ajanda

1. MOBILE TECHNOLOGIES EVOLATION

2. WIDEBAND CDMA

3. 3G NETWORK AND MANAGEMENT

4. 3G MARKET ON THE WORLD

5. MOBILE TECHNOLOGIES ROADMAP


1

MOBILE TECHNOLOGIES EVOLATION

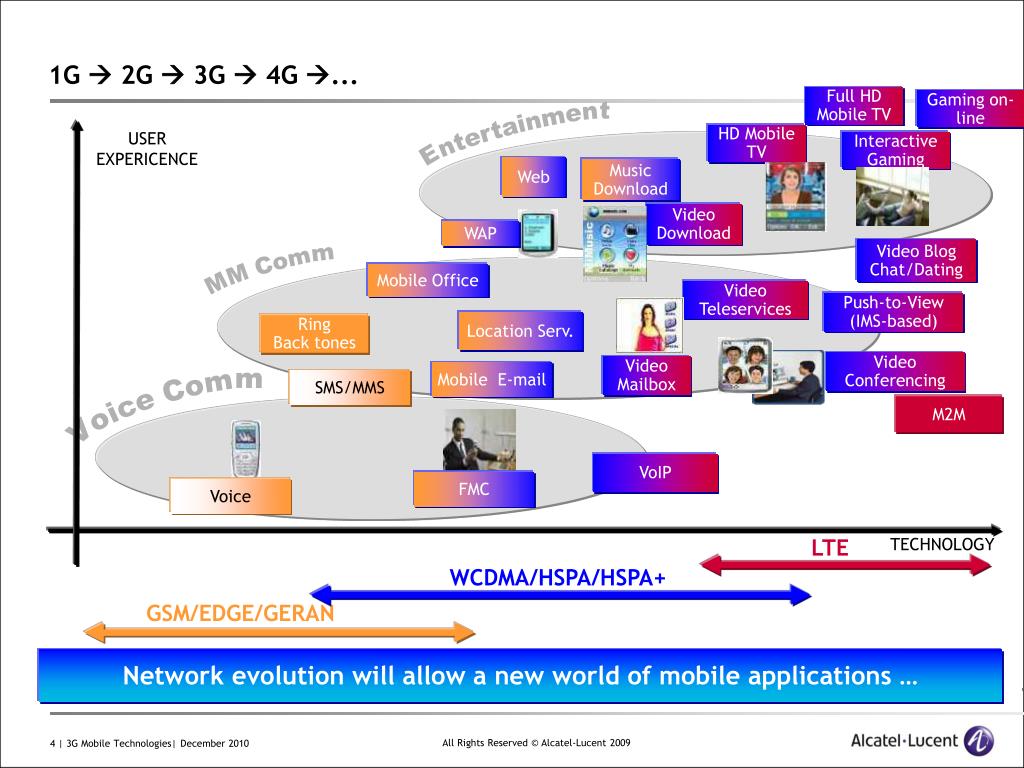

1g 2g 3g 4g
1G  2G  3G  4G ...

Full HD Mobile TV

Gaming on-line

USER EXPERICENCE

HD Mobile TV

Interactive Gaming

Entertainment

Web

Music

Download

Video Download

WAP

Video Blog

Chat/Dating

Mobile Office

MM Comm

Video Teleservices

Push-to-View

(IMS-based)

Location Serv.

Ring

Back tones

Video Conferencing

Video Mailbox

Mobile E-mail

SMS/MMS

M2M

Voice Comm

VoIP

FMC

Voice

TECHNOLOGY

LTE

WCDMA/HSPA/HSPA+

GSM/EDGE/GERAN

Network evolution will allow a new world of mobile applications …


Mobile technologies evolation
MOBILE TECHNOLOGIES EVOLATION

22.8 kbps ---> 14.4 Mbps


2

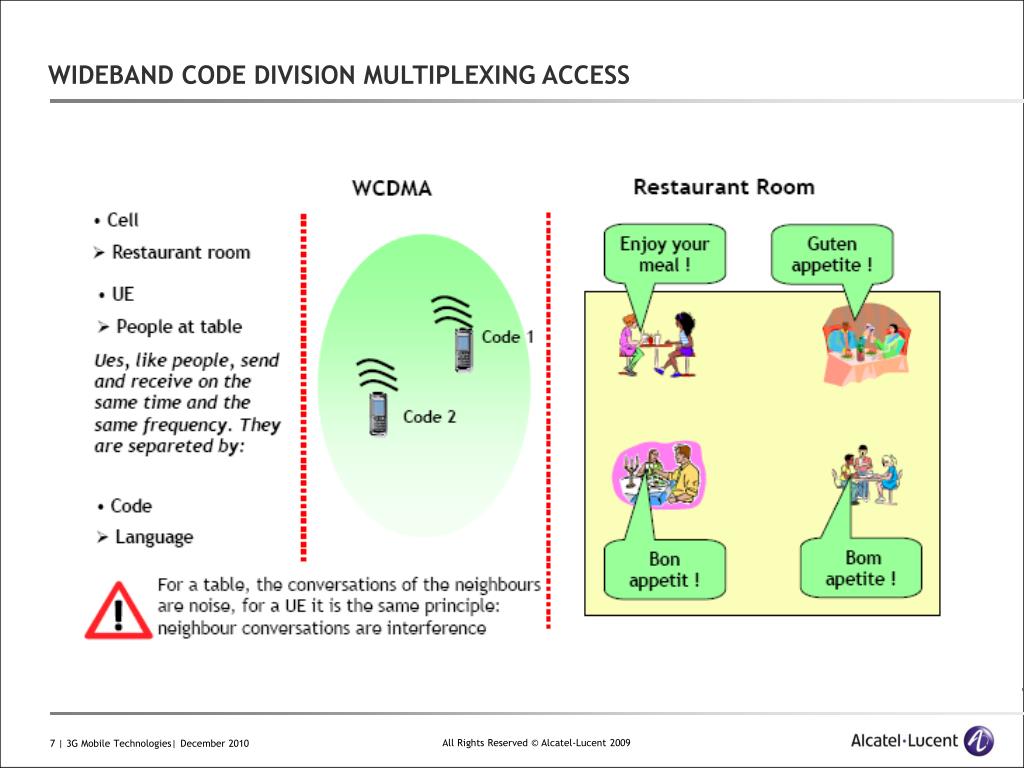

WIDEBAND CDMA



Ortagonal spreading factor
ORTAGONAL SPREADING FACTOR

  • 4 code for signalling (SF=128)

  • 15 codes for users (SF=16)

  • 15 codes per 2 ms


Scrambling code ortagonal spreading factor
SCRAMBLING CODE & ORTAGONAL SPREADING FACTOR

SIGNAL SEND UNDER NOISE LEVEL


3

3G NETWORK AND MANAGEMENT


3g network topology
3G NETWORK TOPOLOGY

  • RADIO ACCESS NETWORK:

  • NODEB- Base Tranciver Station

  • RNC- Radio Network Controler

  • CIRCUIT CORE NETWORK:

  • MSC-Mobile Switching Center

  • GMSC- Gateway MSC

  • PACKET CORE NETWORK:

  • SGSN-Serving GPRS Support Node

  • GGSN-Gateway GPRS Support Node

  • HLR- Host Location Register



4

3G MARKET ON THE WORLD


Mobile users

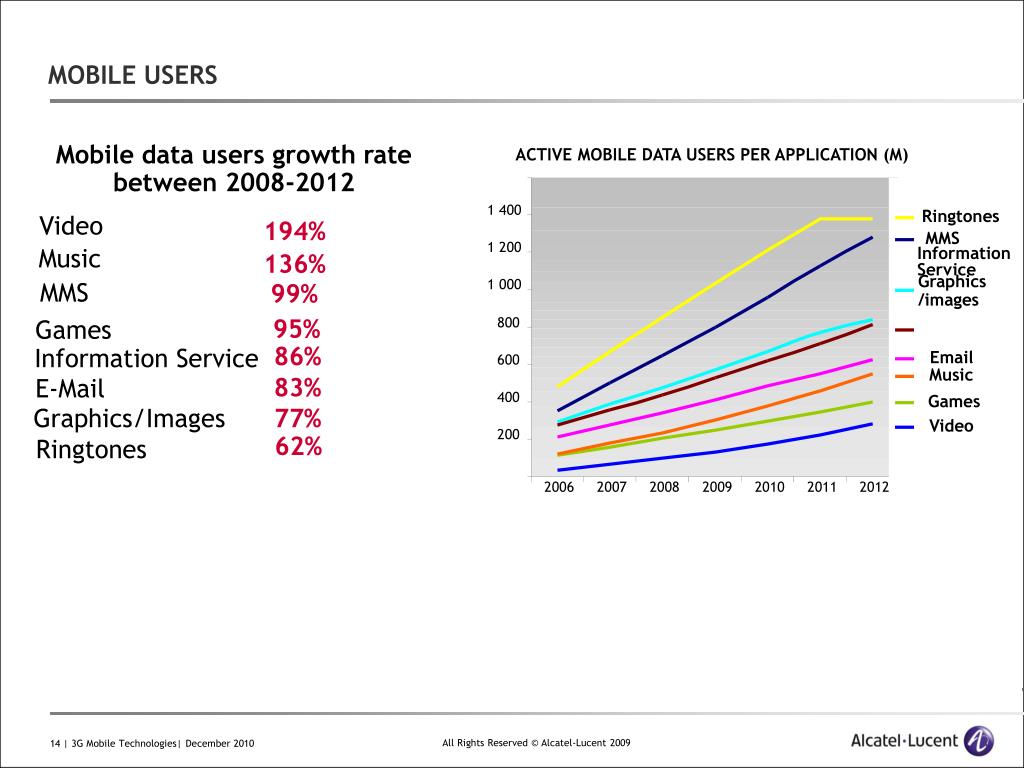

MOBILE USERS

Mobile data users growth rate between 2008-2012

  • ACTIVE MOBILE DATA USERS PER APPLICATION (M)

1 400

Ringtones

Video

194%

MMS

1 200

Music

Information Service

136%

Graphics /images

1 000

MMS

99%

800

95%

Games

86%

Information Service

Email

600

Music

83%

E-Mail

400

Games

Graphics/Images

77%

Video

200

62%

Ringtones

2006

2007

2008

2009

2010

2011

2012


The world market
THE WORLD MARKET

  • GSM/W-CDMA DEVICES

  • W-CDMA: 939 handsets in market

  • HSDPA: 422 models in market

  • HSUPA: 12 models in market

  • GPRS: 3428 models in market

  • EDGE: 921 models in market

  • 120 WCDMA models support WIFI

  • 21 WCDMA models support VoIP

  • 254 W-CDMA networks launched in +110 countries

  • 237 operators launched HSDPA

  • 66 operators launched HSUPA


Alcatel lucent w cdma references

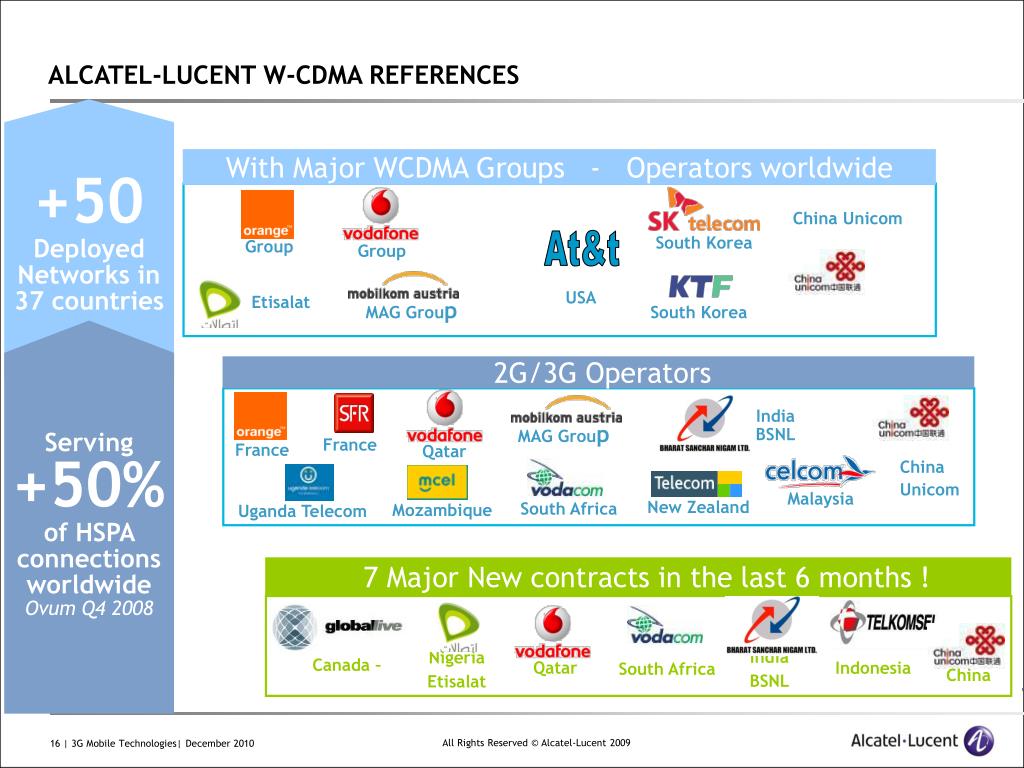

ALCATEL-LUCENT W-CDMA REFERENCES

With Major WCDMA Groups - Operators worldwide

+50

Deployed Networks in 37 countries

South Korea

  • Group

Group

China Unicom

USA

Etisalat

At&t

  • South Korea

  • MAG Group

2G/3G Operators

India BSNL

  • MAG Group

France

  • France

Qatar

Malaysia

Serving

+50%

of HSPA connections worldwide

Ovum Q4 2008

New Zealand

South Africa

  • Uganda Telecom

Mozambique

China

Unicom

7 Major New contracts in the last 6 months !

Canada –

Qatar

Indonesia

South Africa

China

Nigeria

Etisalat

India

BSNL


ALCATEL-LUCENT W-CDMA REFERENCES

France – Bouygues Telecom

Cyprus - MTN

France - Orange

France - SFR

Bulgaria - Mobitel

  • China – China Mobile (TD-SCDMA)

Austria - Mobilkom

S. Korea – KTF

Portugal - Vodafone

Italy - Vodafone

Qatar - Vodafone

S. Korea – SKT

USA – At&t

at&t

India – BSNL

Uruguay - Antel

Malaysia – Celcom

Slovenia - Simobil

New Zealand – TNZ

UK (Isle of Man) – Mobile Operator

UK – Mobile Operator

UK (Guernsey) – Mobile Operator

UK - Vodafone

Slovakia – Mobile Operator

Serbia – Mobile Operator

UK (Jersey) – Mobile Operator

Monaco – Mobile Operator

Globalive Orascom Group CanadaNew Win

Malta – Mobile Operator

Aruba – Mobile Operator

Uganda – Uganda Telecom

Brunei – Scan

Sudan – Mobile Operator

Cambodia – CamGSM

Indonesia New Win

French Polynesia – Tikiphone (Vini)

Nigeria - Globacom

EMTS Etisalat - Nigeria

France (Réunion) – Mobile Operator

Mozambique - mcel

South Africa - Vodacom

  • Not publicly disclosed Reference

  • Publicly disclosed Reference

  • Reference added in the last 2 months

  • TD-SCDMA Contract


5

MOBILE TECHNOLOGIES ROADMAP


Femto cell

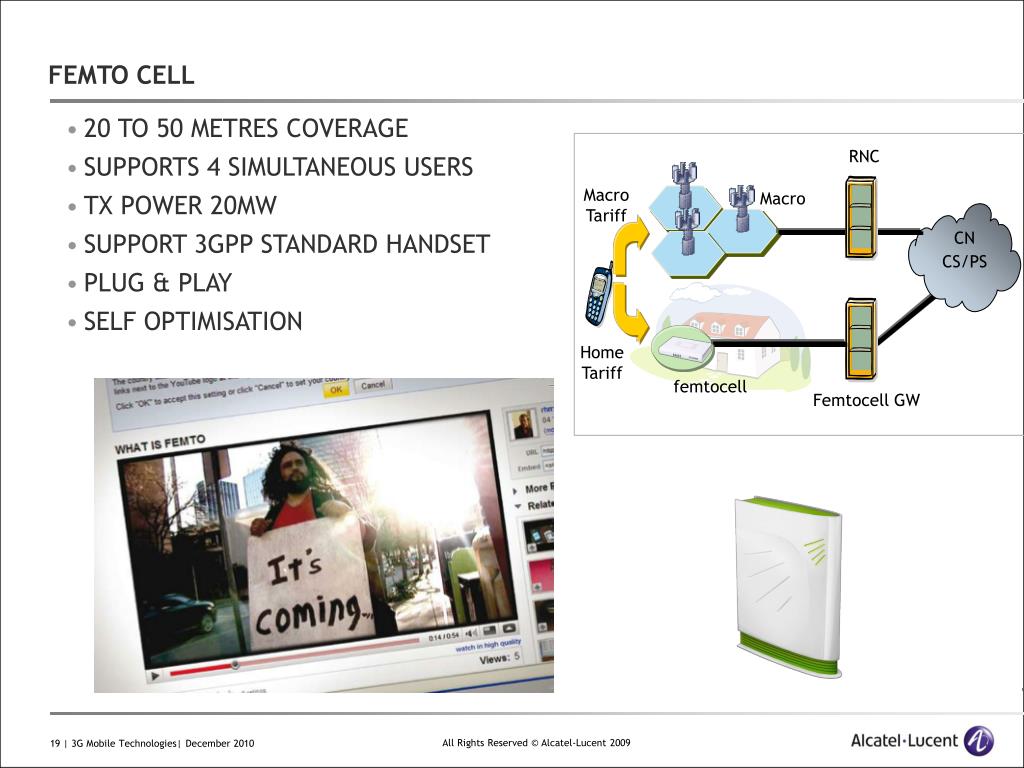

FEMTO CELL

  • 20 TO 50 METRES COVERAGE

  • SUPPORTS 4 SIMULTANEOUS USERS

  • TX POWER 20MW

  • SUPPORT 3GPP STANDARD HANDSET

  • PLUG & PLAY

  • SELF OPTIMISATION

RNC

Macro Tariff

Macro

CN

CS/PS

Home Tariff

femtocell

Femtocell GW


Towards hspa to further boost data offering

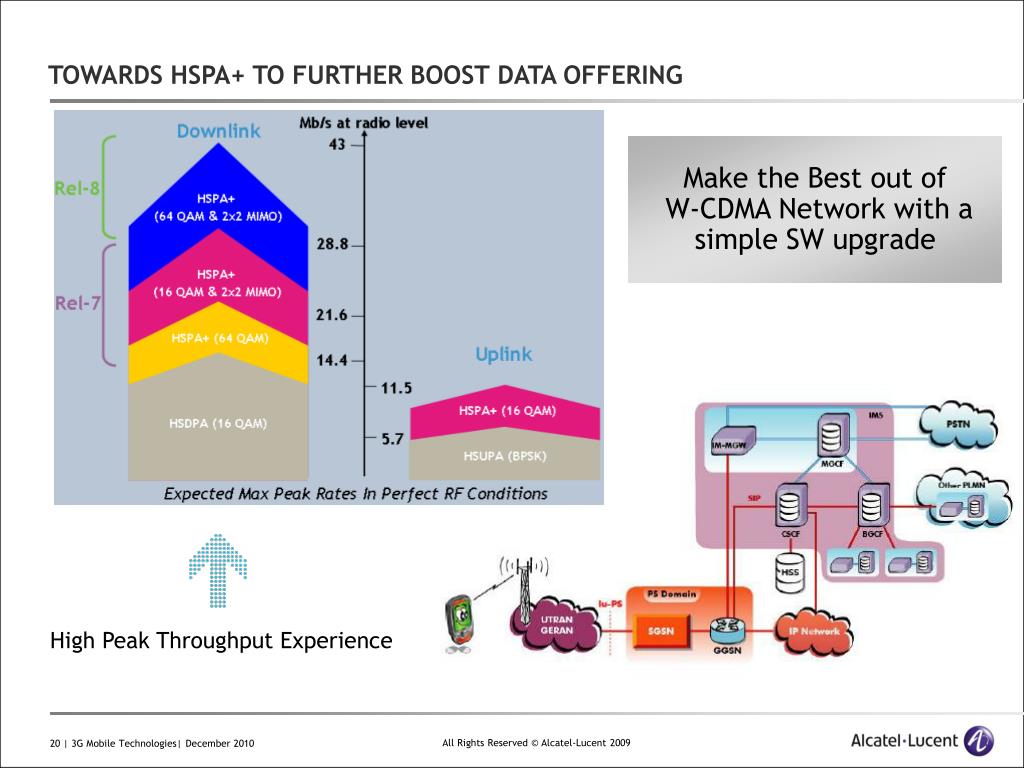

TOWARDS HSPA+ TO FURTHER BOOST DATA OFFERING

Make the Best out of

W-CDMA Network with a simple SW upgrade

High Peak Throughput Experience


4g long term evolution
4G LONG TERM EVOLUTION

  • OFDMA ORTHAGONAL FREQUENCY DIVISION MULTIPLEXING ACCESS

  • 64 QUATRATIRE AMPLITUDE MODULATION (64QAM)

  • MULTIPLE INPUT MULTIPLE OUTPUT (MIMO)

  • BEAM FORMING

  • SCALABLEBANDWIDTH1.25 Mhz- 20 Mhz

  • SELF OPTIMISING NETWORKS

  • ALL-IP ENVIRONMENT

  • REDUCED LATENCY 10ms

  • FLEXIBLE RADIO PLANNING UP to 30km

  • UL: 75 Mbps

  • DL: 300 Mbps

Bell Labs

VERIZON in USA SIGNED

1. LTE CONTRACT


www.alcatel-lucent.com

www.alcatel-lucent.com
