  1. Soft Phone Installation and Registration Step by Step Instructions By Prof. Yousif @ Valencia Community College

  2. Installing Cisco IP Communicator

  3. Network Requirements • For Cisco IP Communicator to successfully operate as an endpoint in your network, your network must meet the following requirements: • Voice over IP (VoIP) configured on your Cisco routers and gateways • Cisco CallManager Release 3.3(3) SR 3 or higher installed in your network and configured to handle call processing • If you want Cisco IP Communicator to auto-locate its TFTP server, you also need an IP network that supports DHCP with Cisco Option 150 configured with the address of your TFTP servers.

  4. Client PC Requirements • Windows 2000 Professional with service pack 3 or later • Windows XP Professional with service pack 1 or later • Minimum connection bandwidth of 128 Kbps

  5. Configuring CIPC Set up manually if the PC where CIPC is installed was configured with a static IP Address The TFTP Server address is the same as your CallManager address

  6. CIPC Registration Your CIPC will get a local Directory Number (LDN) Automatically just like your 7960 Phone when Auto-Registration is enabled.

  7. Computer Telephony Integration (CTI) in Windows From the Control Panel….

  8. Computer Telephony Integration (CTI) in Windows

  9. Verifying the CIPC Registration • Devices Phones Find Button • CIPC gets a Local Directory Number Using Auto Registration Just like Cisco 7960 IP Phone

  10. Manual Registration Option Devices Phones  Add a New Phone

  11. Adding a User

  12. Assigning a Device to a User“Device Association” Scroll down and click on “update selected”

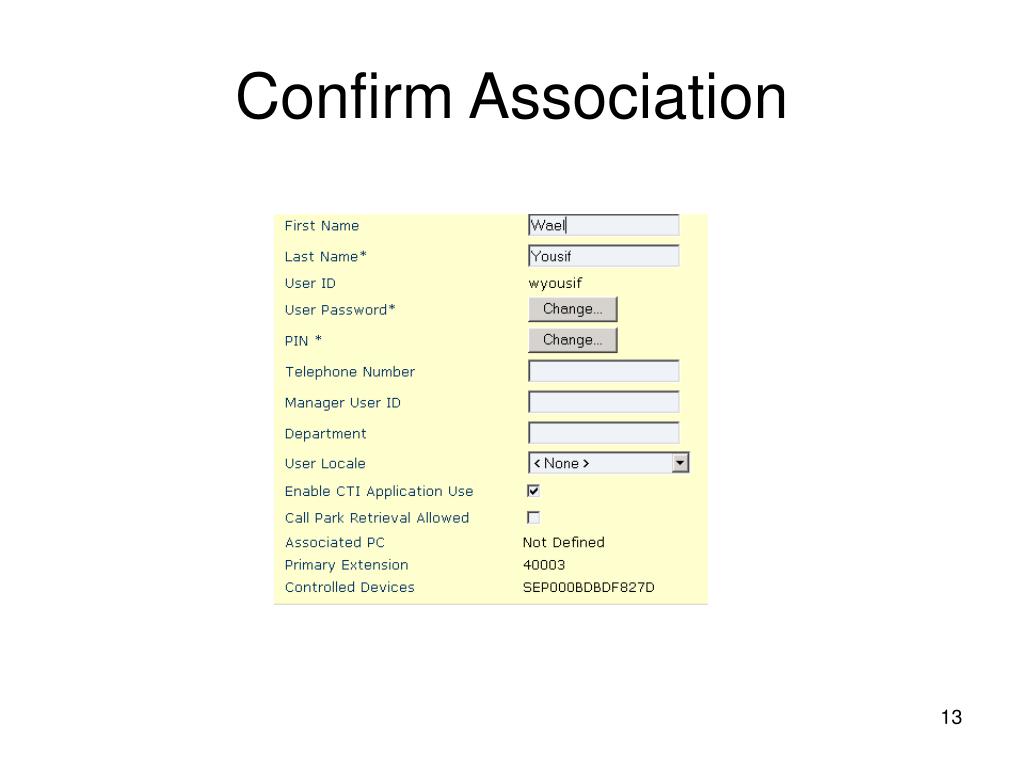

  13. Confirm Association

  14. Restarting the CIPC

  15. Changing Internal Caller ID • Scroll Up and Click Update • You will have to restart the phone afterwards. From the same page click on “Reset Device”/

  16. Installing CIPC Admin Tool on CallManager What the admin Tool Does for You.

  17. Integrating Directories and Dialing Rules in CIPC Click Next then Choose Auto-Detect after verifying the values

  18. Integrating Directories and Dialing Rules in CIPC
