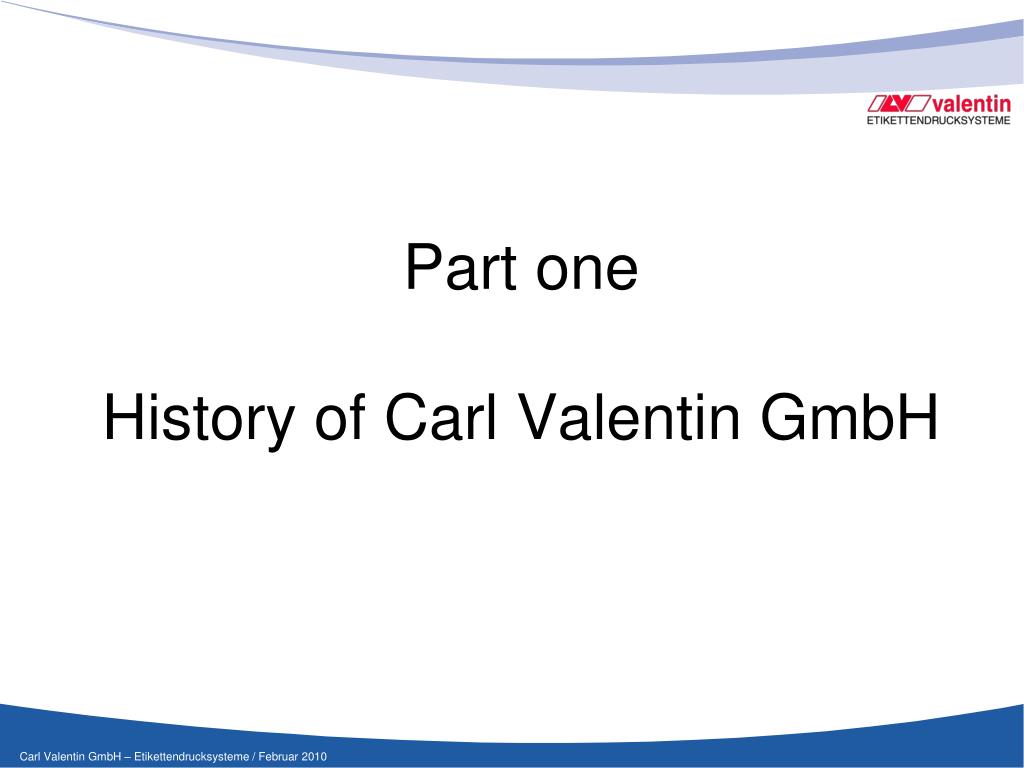

  1. Part one Historyof Carl Valentin GmbH

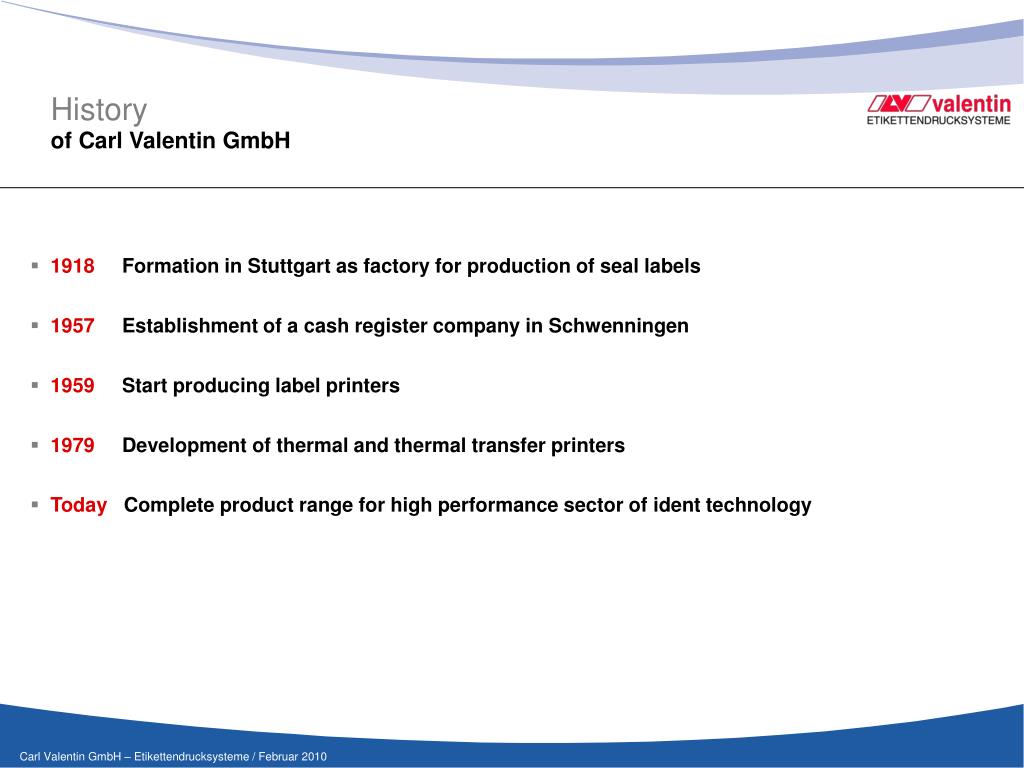

  2. History ofCarl Valentin GmbH • 1918 Formation in Stuttgart as factory for production of seal labels • 1957Establishment of a cash register company in Schwenningen • 1959 Start producing label printers • 1979 Development of thermal and thermal transfer printers • TodayComplete product range for high performance sector of ident technology

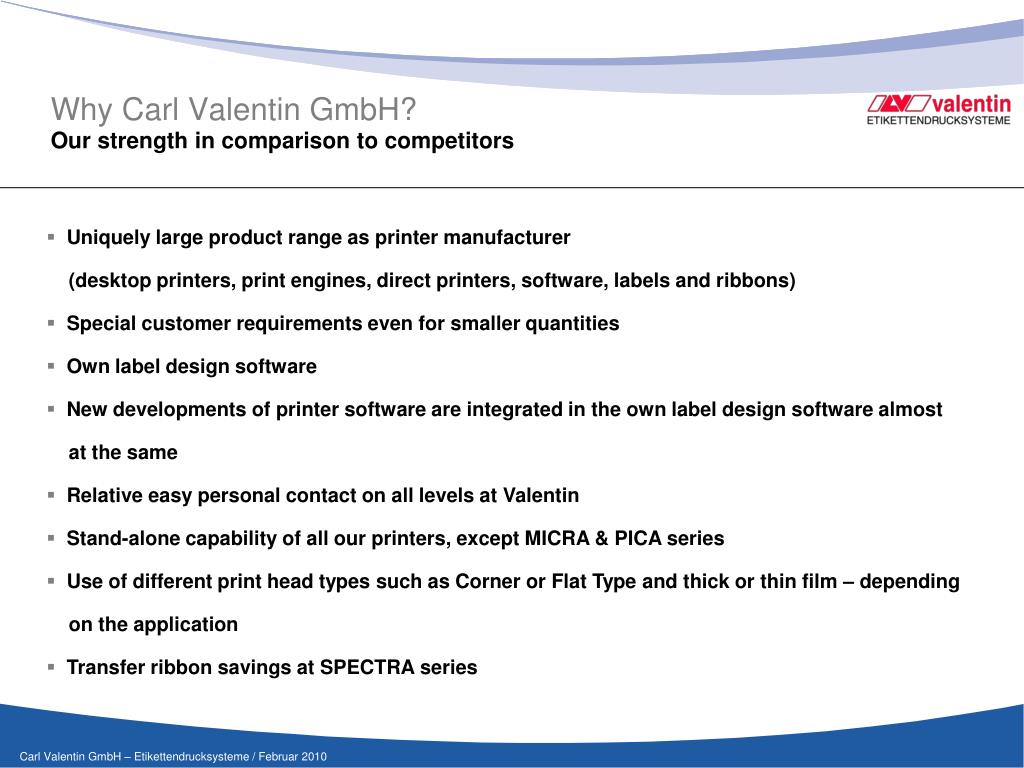

  3. Why Carl Valentin GmbH? Our strength in comparison to competitors • Uniquely large product range as printer manufacturer (desktop printers, print engines, direct printers, software, labels and ribbons) • Special customer requirements even for smaller quantities • Own label design software • New developments of printer software are integrated in the own label design software almost at the same • Relative easy personal contact on all levels at Valentin • Stand-alone capability of all our printers, except MICRA & PICA series • Use of different print head types such as Corner or Flat Type and thick or thin film – depending on the application • Transfer ribbon savings at SPECTRA series

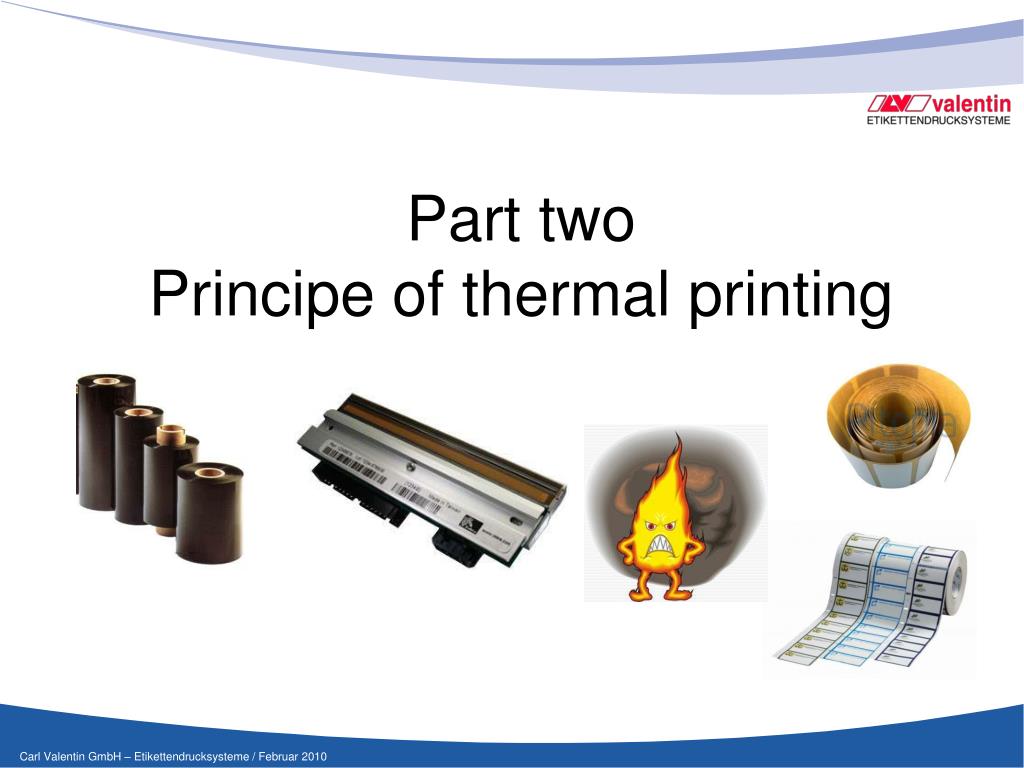

  4. Part two Principeof thermal printing

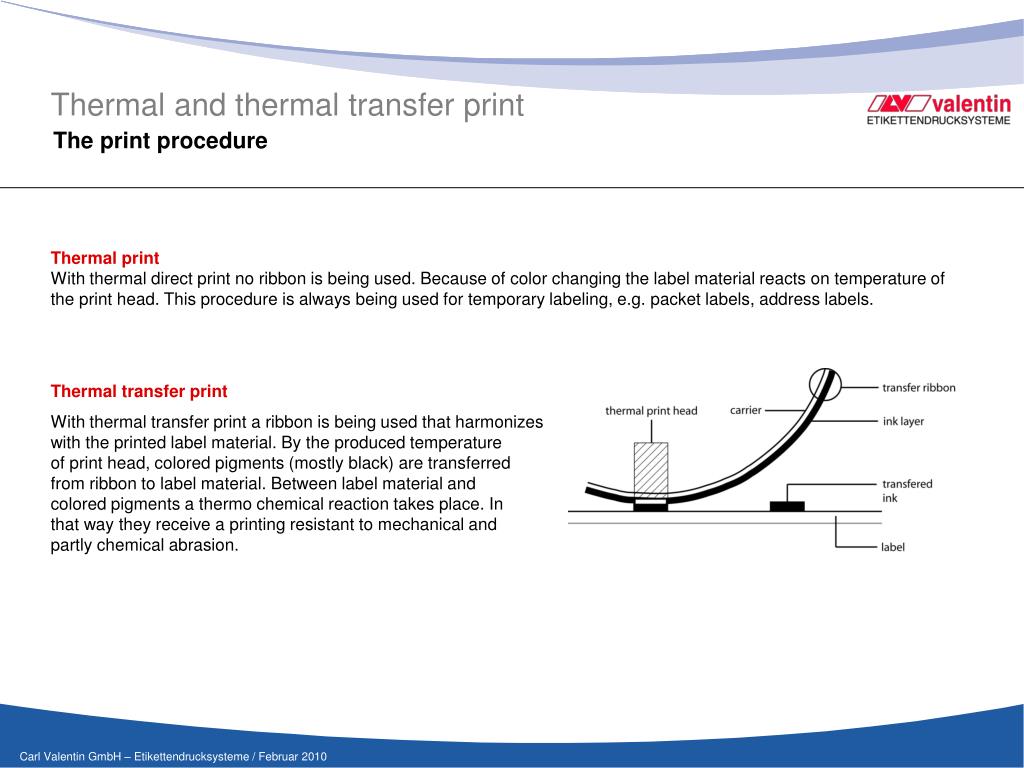

  5. Thermal and thermal transfer print The print procedure Thermal print With thermal direct print no ribbon is being used. Because of color changing the label material reacts on temperature of the print head. This procedure is always being used for temporary labeling, e.g. packet labels, address labels. Thermal transfer print With thermal transfer print a ribbon is being used that harmonizeswith the printed label material. By the produced temperatureof print head, colored pigments (mostly black) are transferredfrom ribbon to label material. Between label material andcolored pigments a thermo chemical reaction takes place. Inthat way they receive a printing resistant to mechanical andpartly chemical abrasion.

  6. Printheads What is to consider and which print head can I offer? The Flat Head is the most used print head: the dot line is about 5 – 10 mm from the edge of carrier plate. The ribbon is usually led away to the top by an additional roll. The separation of media is effected with a certain temporal and special delay after transmission of color. The heat impulse has a moderate amplitude but lasts relatively for a long time. The life expectancy of the Flat Heads are usually much higher than the ones of the Corner Type / Near Edge print heads. Flat Type With the Corner Type or Near Edge print head the dot line is complete near by the edge of the ceramic carrier plate – „Near-edge“. The ribbon is led away to the top without additional direction change in a sharp angle. The separation of ribbon and label is effected immediately after transmission of color. The heat impulse is strong, but short! For printers with Near Edge print heads the use of special ribbons is recommended. The Corner Type / Near Edge print head makes a better print quality possible. Yet the disadvantage is that this type of print head needs a special ribbon material. Corner Type (Near Edge Type)

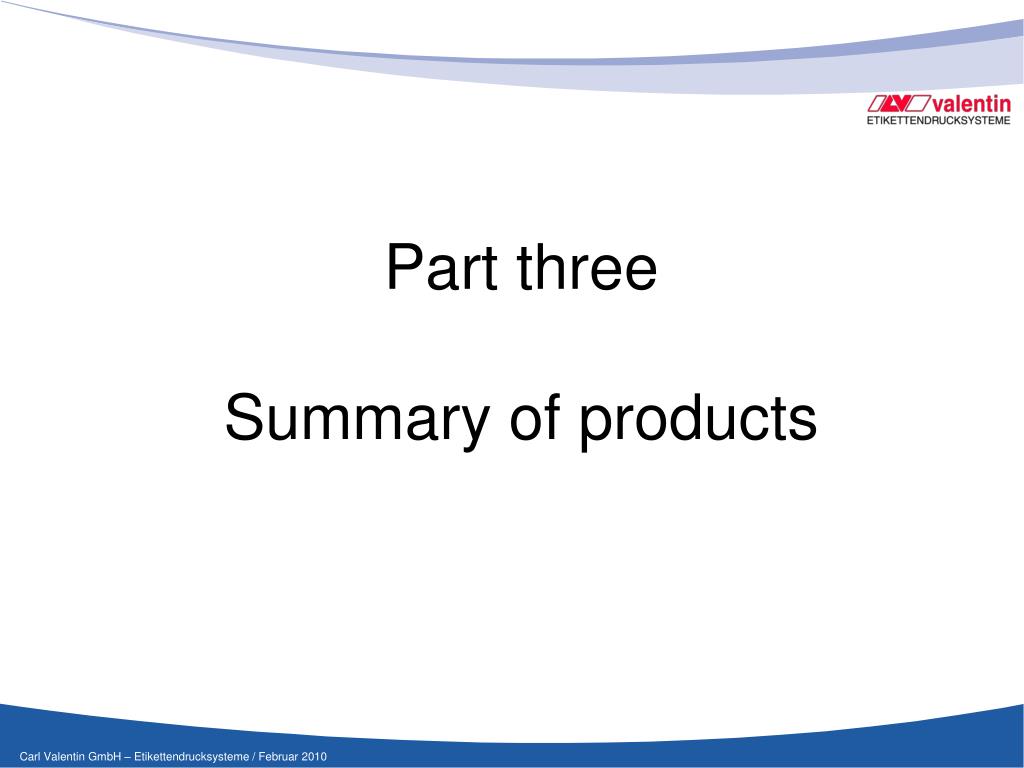

  7. Part three Summaryofproducts

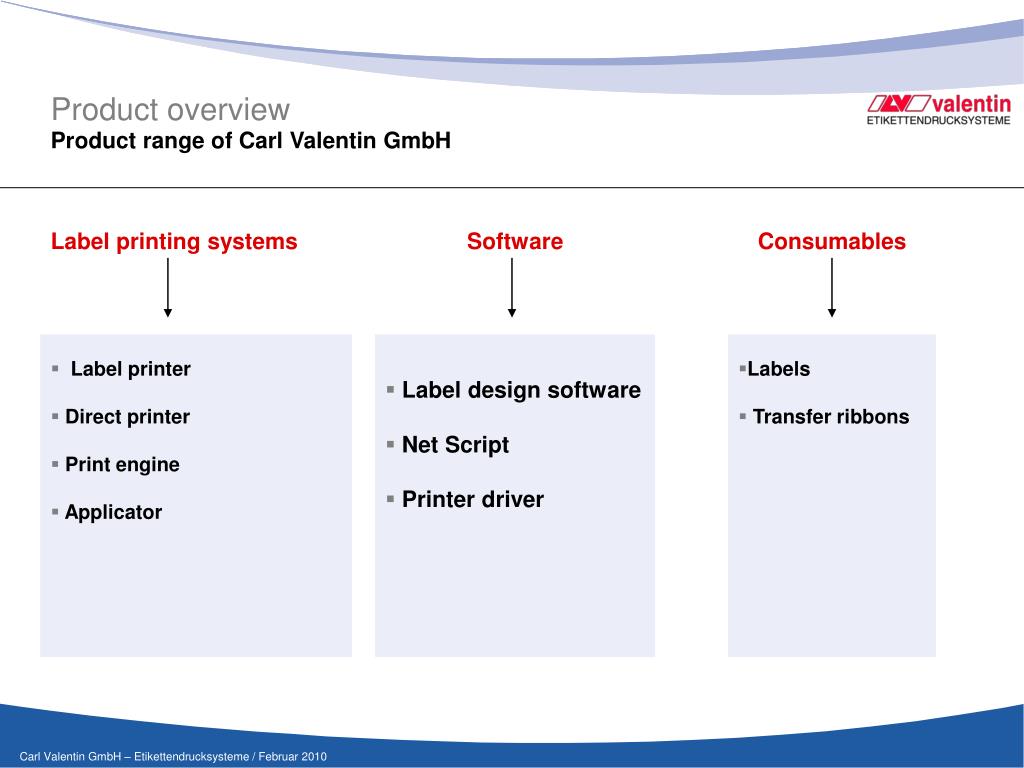

  8. Productoverview Product range of Carl Valentin GmbH Label printing systems Software Consumables • Label printer • Direct printer • Print engine • Applicator • Label design software • Net Script • Printer driver • Labels • Transfer ribbons

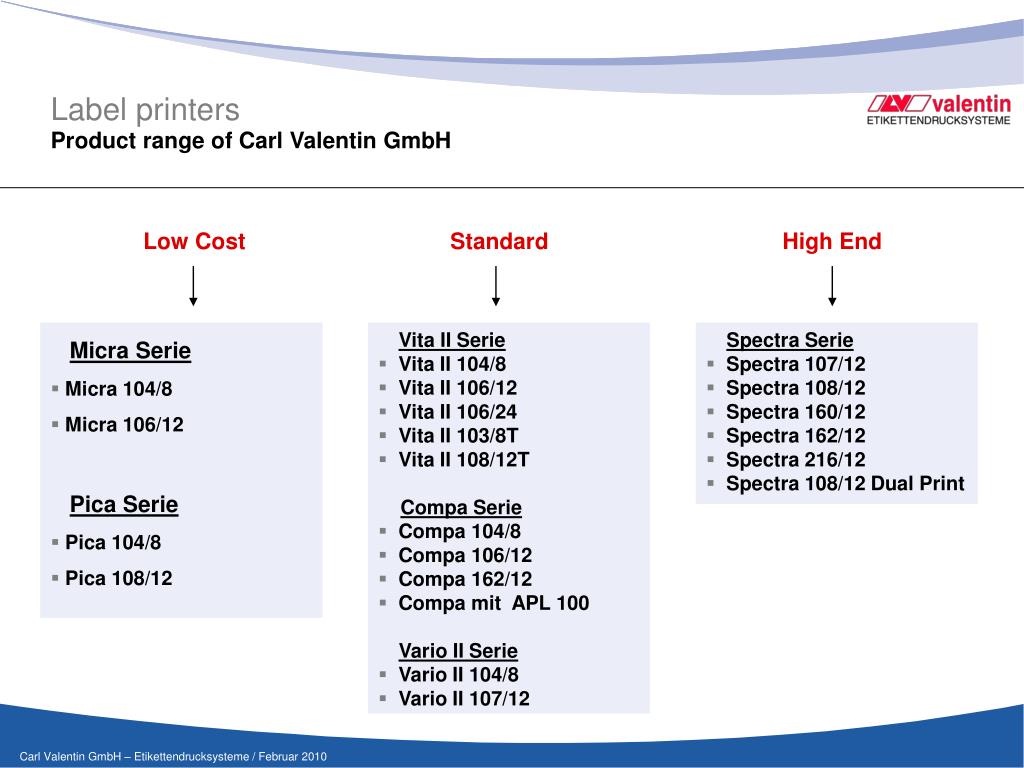

  9. Label printers Product range of Carl Valentin GmbH Low Cost Standard High End Micra Serie • Micra 104/8 • Micra 106/12 Pica Serie • Pica 104/8 • Pica 108/12 • Vita II Serie • Vita II 104/8 • Vita II 106/12 • Vita II 106/24 • Vita II 103/8T • Vita II 108/12T Compa Serie • Compa 104/8 • Compa 106/12 • Compa 162/12 • Compa mit APL 100 Vario II Serie • Vario II 104/8 • Vario II 107/12 Spectra Serie • Spectra 107/12 • Spectra 108/12 • Spectra 160/12 • Spectra 162/12 • Spectra 216/12 • Spectra 108/12 Dual Print

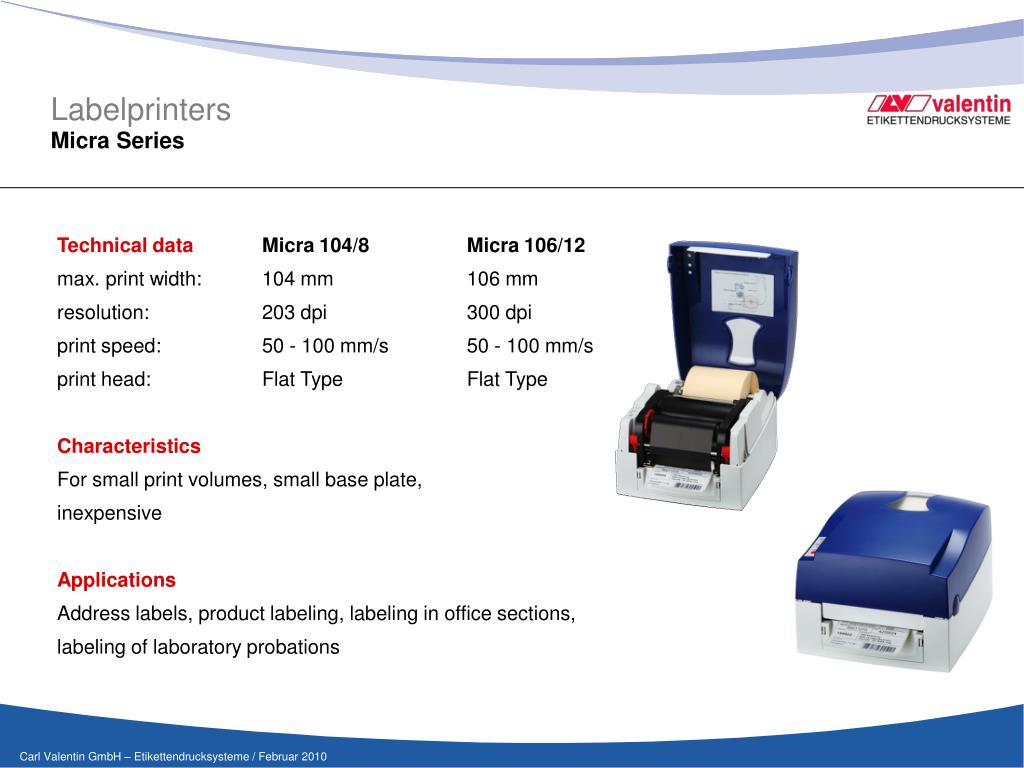

  10. Micra Series Labelprinters Technical data Micra 104/8 Micra 106/12 max. print width: 104 mm 106 mm resolution: 203 dpi 300 dpi print speed: 50 - 100 mm/s 50 - 100 mm/s print head: Flat Type Flat Type Characteristics For small print volumes, small base plate, inexpensive Applications Address labels, product labeling, labeling in office sections, labeling of laboratory probations

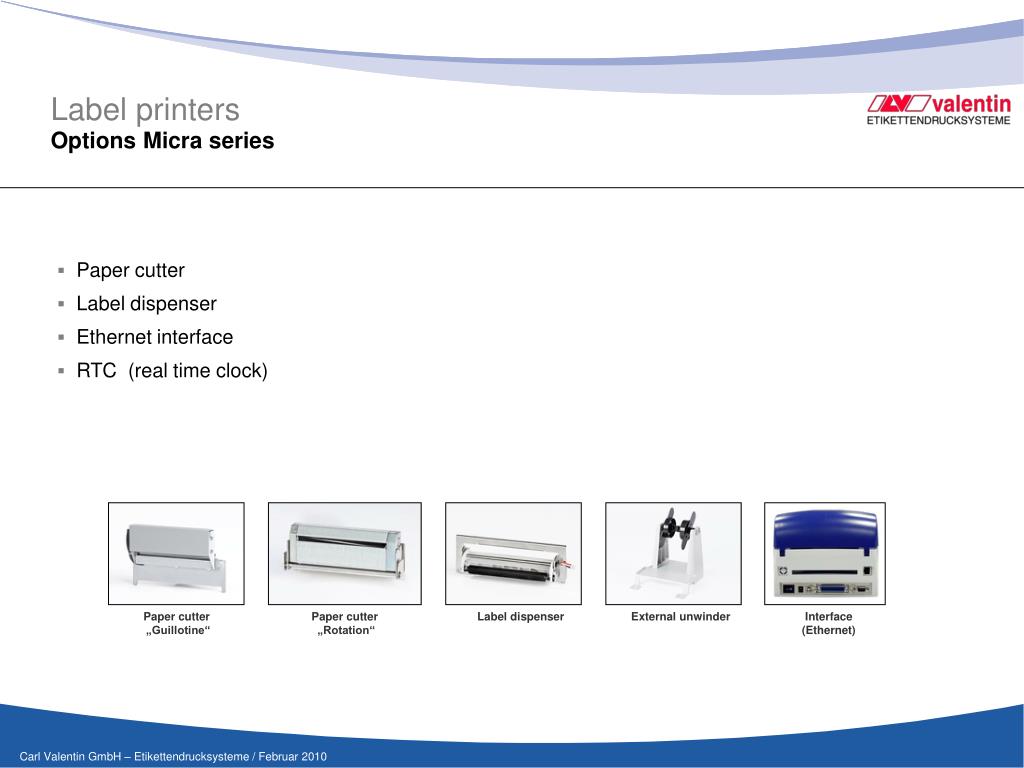

  11. Options Micraseries Label printers • Paper cutter • Label dispenser • Ethernet interface • RTC (real time clock) Paper cutter „Guillotine“ Paper cutter „Rotation“ Label dispenser Externalunwinder Interface (Ethernet)

  12. Pica II series Label printers Technical data Pica II 104/8Pica II 108/12 max. print width: 104 mm 108 mm resolution: 203 dpi 300 dpi print speed: 80 mm/s 100 mm/s print head: Flat Type Flat Type Characteristics For small and medium print volumes, low priced,small base plate, metal housing Applications Product labeling, wire and cable labeling, type plates, administration and trade

  13. Options Pica II series Label printers • Paper cutter • Label dispenser • External rewinder and unwinder • Ethernet interface • USB interface Abschneide- vorrichtung Etikettenspende-einrichtung Externe Aufwickel-vorrichtung Externe Abwickel-vorrichtung Spende Ein- und Ausgänge USB-Schnittstelle Ethernet

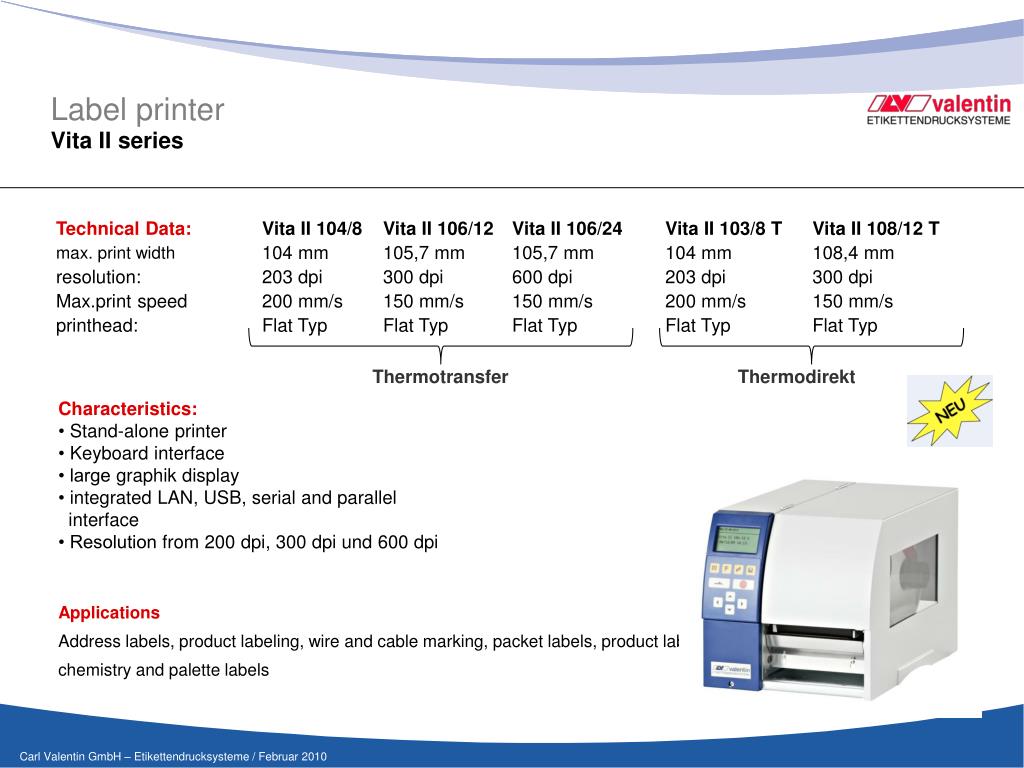

  14. Vita II series Label printer Thermotransfer Thermodirekt Characteristics: • Stand-aloneprinter• Keyboard interface • large graphikdisplay • integratedLAN, USB, serialand parallel interface • Resolution from200 dpi, 300 dpi und 600 dpi Applications Address labels, product labeling, wire and cable marking, packet labels, product labeling and product traceability, chemistry and palette labels

  15. Options Vita II Series Label printers • Paper cutter • Label dispenser • Internal and external rewinder • Ethernet interface Compact Flash Externalunwinder Paper cutter Label dispenser Rewinderforprinted labels Rewinderfor liner Verbindungsset Spende Ein- und Ausgänge

  16. Compa II Series Label printers Technical data Compa II 104/8 Compa II 106/12 max. print width: 104 mm 106 mm resolution: 203 dpi 300 dpi print speed: 200 mm/s 200 mm/s print head: Flat Type Flat Type Characteristics For large print volumes, Compact Flash memory cards Applications Address labels, product labeling, wire and cable marking, packet labels, product labeling and product traceability, chemistry and palette labels

  17. Options Compa II 104/8 und Compa II 106/12 series Label printers • Paper cutter • Label dispenser • Internal and external rewinder • Ethernet interface • RFID module • External unwinder Compact Flash Paper cutter Label dispenser Internal rewinder Externalrewinder Externalunwinder Verbindungsset Spende Ein- und Ausgänge Ethernet

  18. Compa II Serie 162/12 Label printers Technical data max. print width 162.6 mm resolution: 300 dpi print speed: 150 mm/s print head: Flat Type Characteristics For large print volumes, large print width (DIN A 5), Compact Flash memory cards Applications Address labels, product labeling, wire and cable marking, packet labels, product labeling and product traceability, chemistry and palette labels

  19. Optionen Compa II Serie 162/12 Label printers • Paper cutter • Label dispenser • Internal and external rewinder • Ethernet interface • RFID module Compact Flash RFID-Modul Paper cutter Label dispenser Internal rewinder Externalrewinder Externalunwinder Verbindungsset Spende Ein- und Ausgänge Ethernet

  20. Compa II Serie with Applikator APL 100 Label printers

  21. Vario III Serie Label printers Specifications: VarioIII 104/8 Vario III 107/12 Vario III 107/24 Print width: 104 mm 106,6 mm 105,7mm Resolution: 203 dpi 304 dpi 600dpi Max. printspeed:250 mm/s 200 mm/s 100mm/s Print Head: Flat Type Flat Type Flat Type • Standard integrated 3x USB interface • Internal label rewinder (max. 100 mm diameter) • Standard integrated Ethernet interface • Optionally available with RFID function, bar code scanner and WLAN • Optional dispenser input/output of most recent generation • 2-fold USB host for connection of USB keyboard and memory stick as • well as a slot for Compact Flash cards • Optionally with 7" touch-screen display .

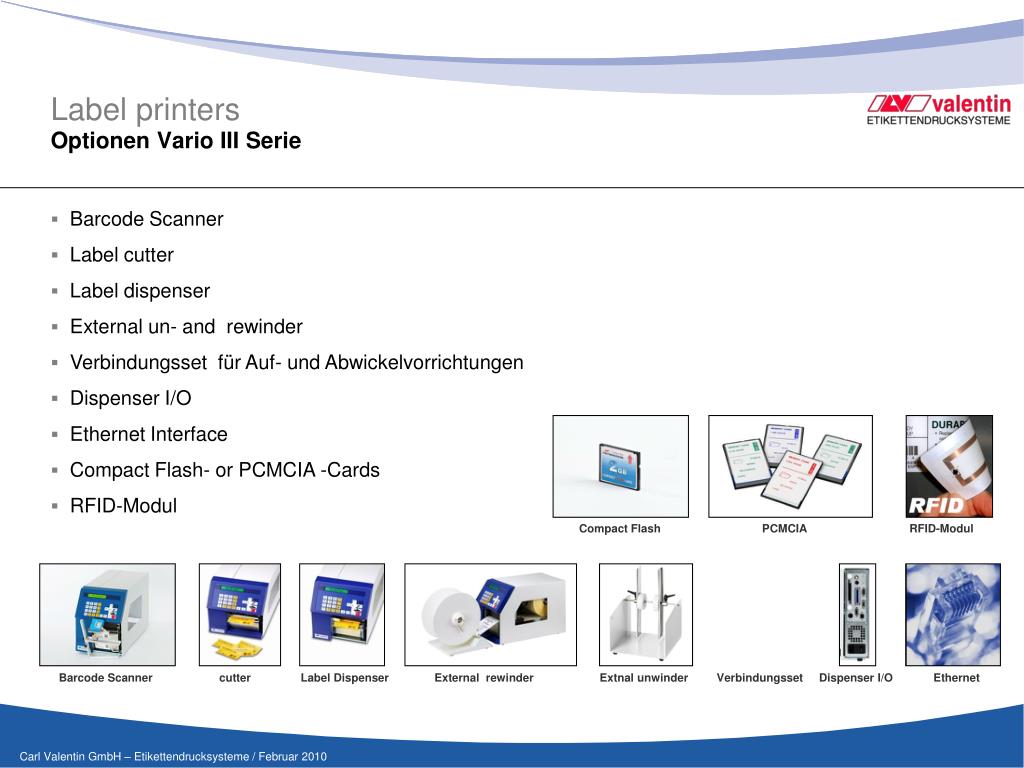

  22. Optionen Vario III Serie Label printers • Barcode Scanner • Label cutter • Label dispenser • Externalun- andrewinder • Verbindungsset für Auf- und Abwickelvorrichtungen • Dispenser I/O • Ethernet Interface • Compact Flash- orPCMCIA -Cards • RFID-Modul Compact Flash PCMCIA RFID-Modul Barcode Scanner cutter Label Dispenser Externalrewinder Extnalunwinder Verbindungsset Dispenser I/O Ethernet

  23. Spectra Serie 107/12, Spectra 108/12, Spectra 160/12 und Spectra 162/12 Label printers Technical data Spectra 106/12 Spectra 107/12 Spectra 108/12 Spectra 162/12 max. print width 106 mm 106.6 mm 108.4 mm 162.12 mm resolution 300 dpi 305 dpi 300 dpi 300 dpi print speed 300 mm/s 300 mm/s 300 mm/s 150 mm/s print head Flat Type Corner Type Flat Type Flat Type Characteristics For very large print volumes, use in rough industrial environments, stable metal housing, stand-alone capability, user guiding Applications Logistics and transport, product labeling, type plates, chemistry and palette labels

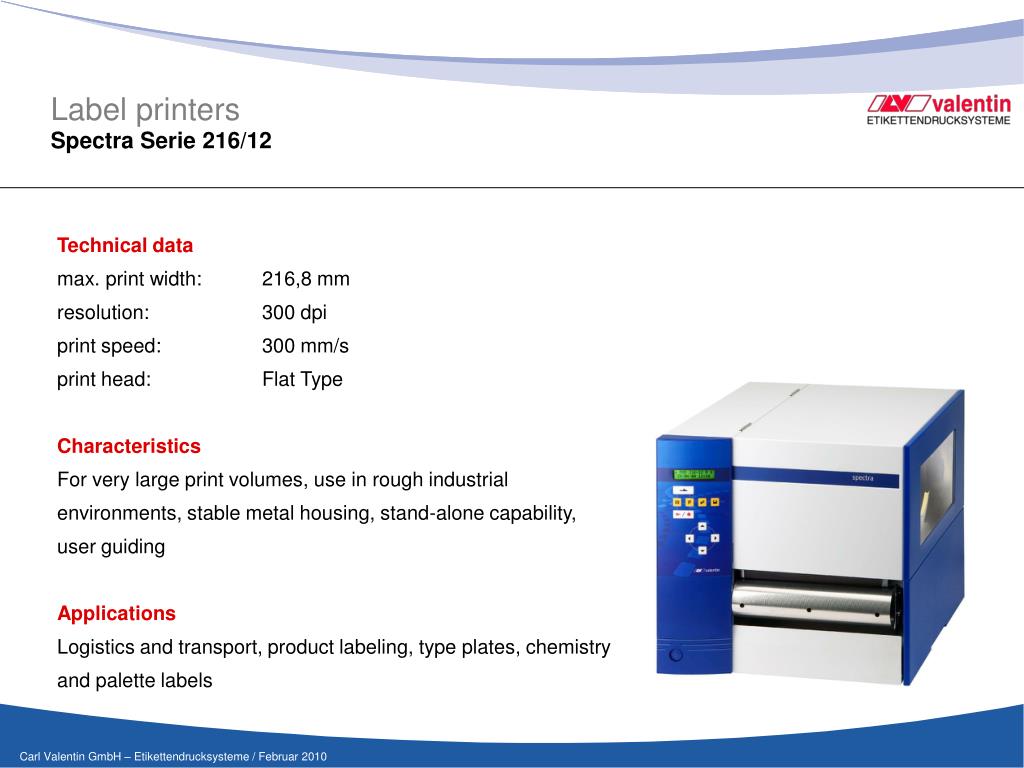

  24. Spectra Serie 216/12 Label printers Technical data max. print width: 216,8 mm resolution: 300 dpi print speed: 300 mm/s print head: Flat Type Characteristics For very large print volumes, use in rough industrial environments, stable metal housing, stand-alone capability, user guiding Applications Logistics and transport, product labeling, type plates, chemistry and palette labels

  25. Label printers Duoprint 107/12, Duoprint 160/12

  26. Ribbon save systemSpectra Serie 107/12, Spectra 108/12, Spectra 160/12 und Spectra 162/12 Options für Label printer printedlabelribbonwithoutsavingribbonwithsaving

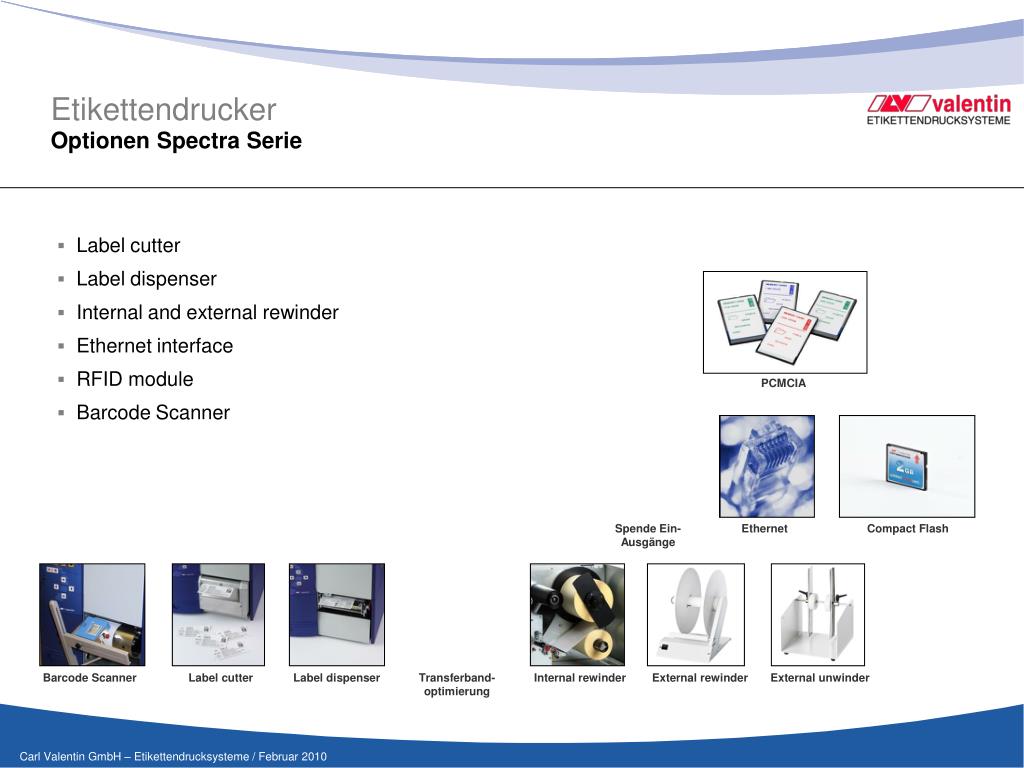

  27. Optionen Spectra Serie Etikettendrucker • Label cutter • Label dispenser • Internal and external rewinder • Ethernet interface • RFID module • Barcode Scanner PCMCIA Spende Ein- Ausgänge Ethernet Compact Flash Barcode Scanner Label cutter Label dispenser Transferband- optimierung Internal rewinder Externalrewinder Externalunwinder

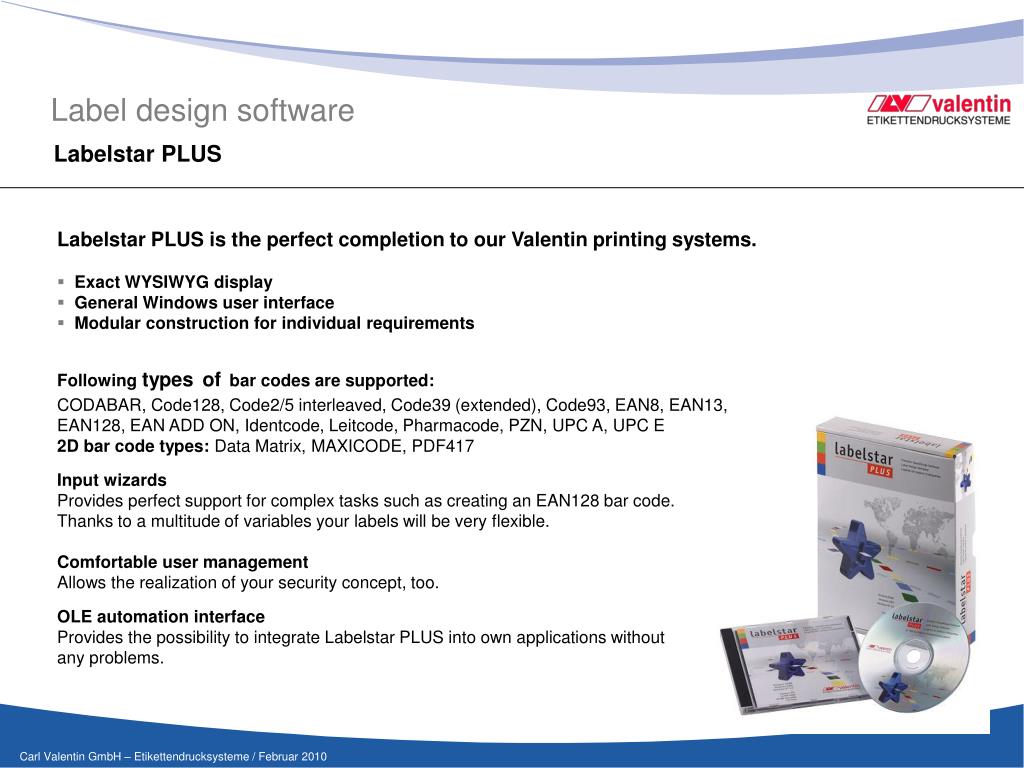

  28. Labelstar PLUS Label design software • Labelstar PLUS is the perfect completion to our Valentin printing systems. • Exact WYSIWYG display • General Windows user interface • Modular construction for individual requirements • Following typesofbar codes are supported:  CODABAR, Code128, Code2/5 interleaved, Code39 (extended), Code93, EAN8, EAN13, EAN128, EAN ADD ON, Identcode, Leitcode, Pharmacode, PZN, UPC A, UPC E • 2D bar code types: Data Matrix, MAXICODE, PDF417 • Input wizards • Provides perfect support for complex tasks such as creating an EAN128 bar code.Thanks to a multitude of variables your labels will be very flexible. • Comfortable user management • Allows the realization of your security concept, too. • OLE automation interface • Provides the possibility to integrate Labelstar PLUS into own applications withoutany problems.

  29. Labelstar PLUS additional modules Label design software Database managerBy means of the database module you have the possibility to integrate data from a data source by ODBC interface into your label. SAP export moduleLabels created in Labelstar PLUS, can be exported beginning with version 3.1 in a SAP compatible file format. Moreover, SAP variables can be used as placeholders for definition of text and bar codes. Memory card managerIn conjunction with the memory card module you can manage your memory cards. Printer internal drives are supported as well as external memory card drives. Print managerBeginning with version 3.1 Labelstar PLUS have a print manager with extended functionality for creation of files for print job management. These files enable fix location e.g. print job lists or label masks to database entries.

  30. Labelstar LITE Label design software • Support of all label printers - only one label printer can be installed • No support of Windows printers • Support of TrueType fonts • No support of printer fonts • Support of 4 system variables (date/time/counter/customized entry) with limited functionality • No printer variables • Only support of bmp and pcx graphics • 1D bar codes • No 2D bar codes • No EAN128 • No symbol table • No user administration • No database support • No memory card access • No log files • No RFID support • No print manager • No SAP export

  31. Part four Handling Valentin printers

  32. 4.1.) Keyboard assignment

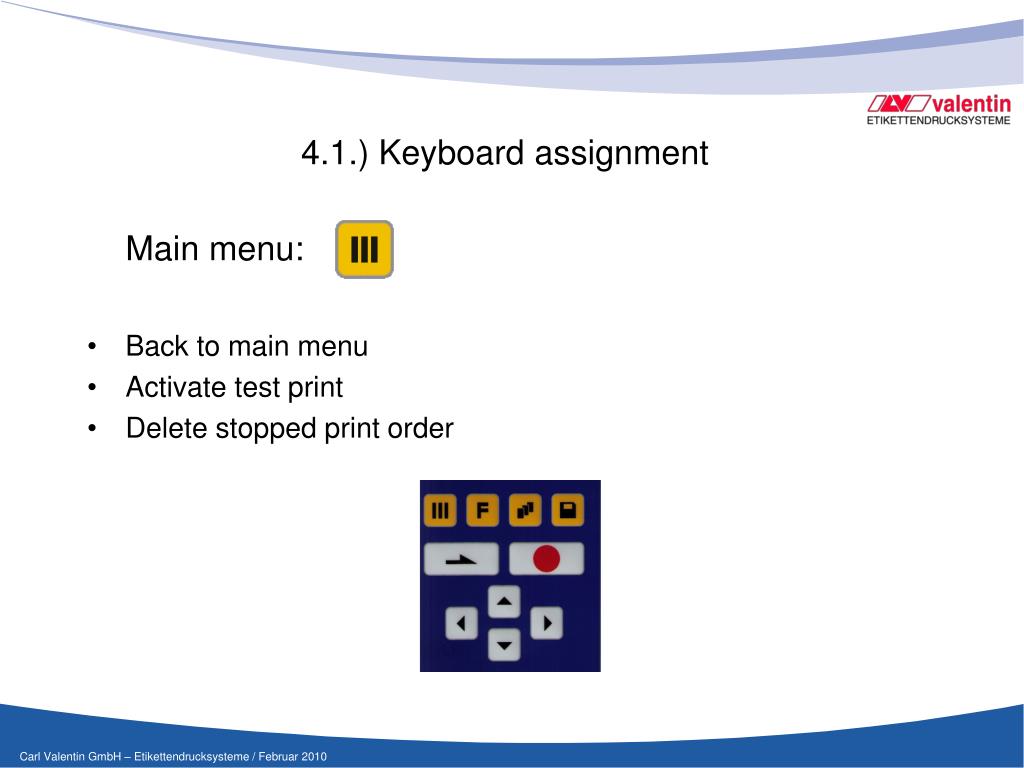

  33. 4.1.) Keyboard assignment • Main menu: • Back to main menu • Activate test print • Delete stopped print order

  34. 4.1.) Keyboard assignment • Functionmenu: • Change tofunctionmenu. • In function menu, one menu item back.

  35. 4.1.) Keyboard assignment • Feed: • In function menu, change to next menu item • In an active print order (dispensing mode), a dispensing impulse can be released

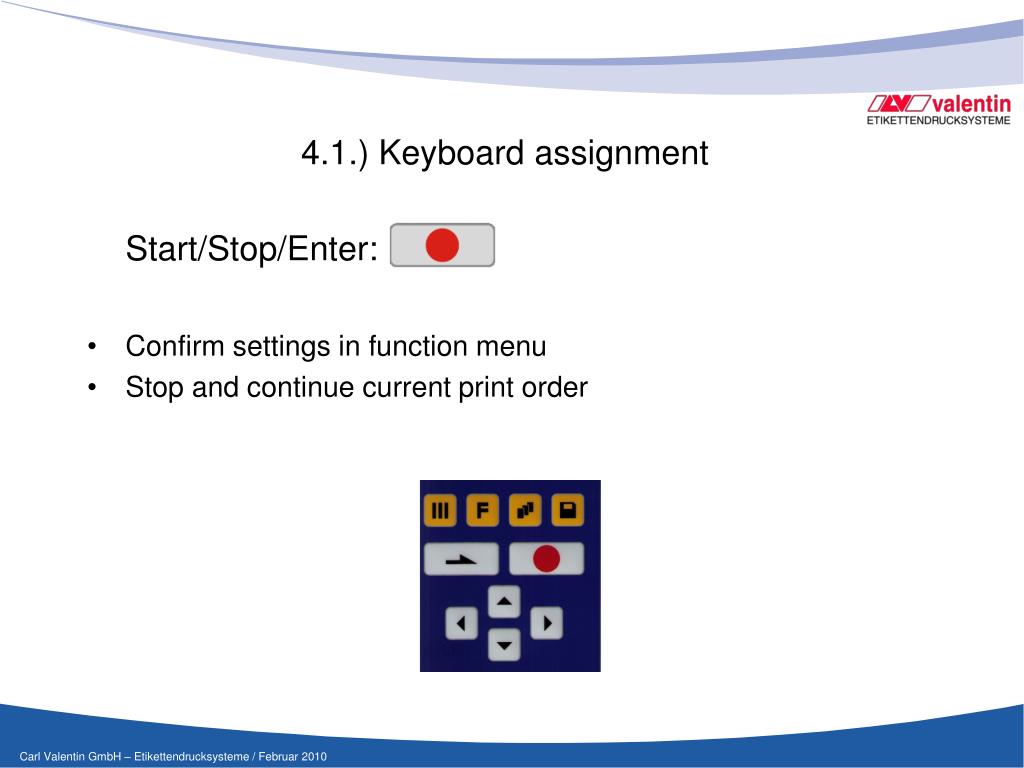

  36. 4.1.) Keyboard assignment • Start/Stop/Enter: • Confirm settings in function menu • Stop and continue current print order

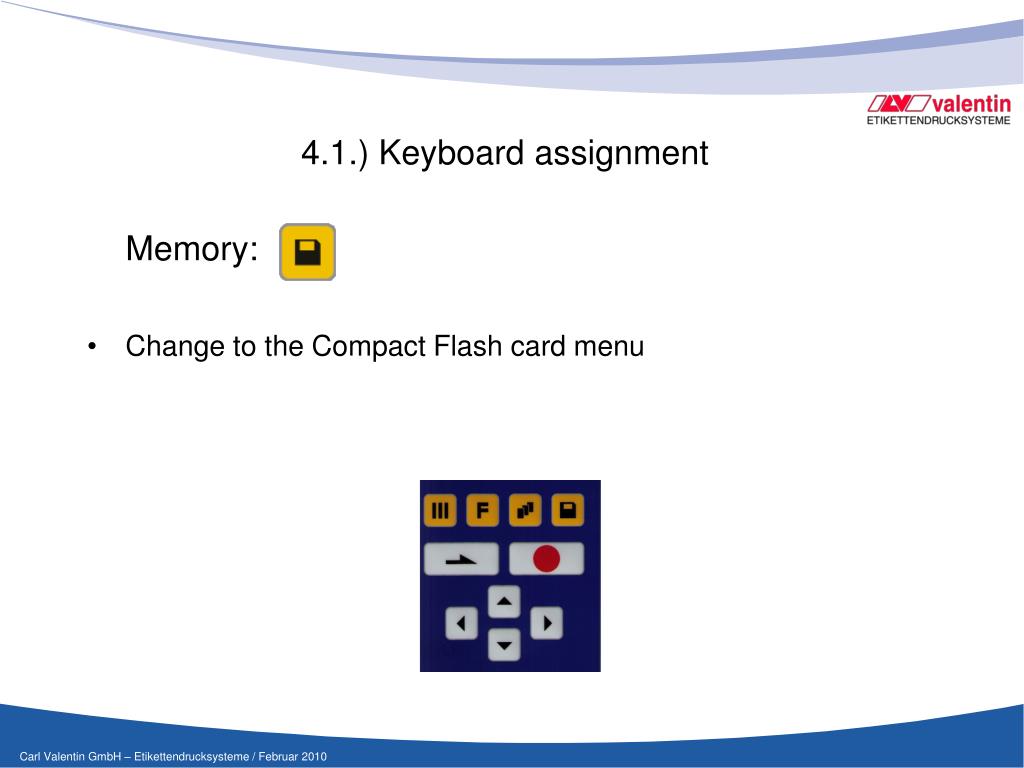

  37. 4.1.) Keyboard assignment • Memory: • Change to the Compact Flash card menu

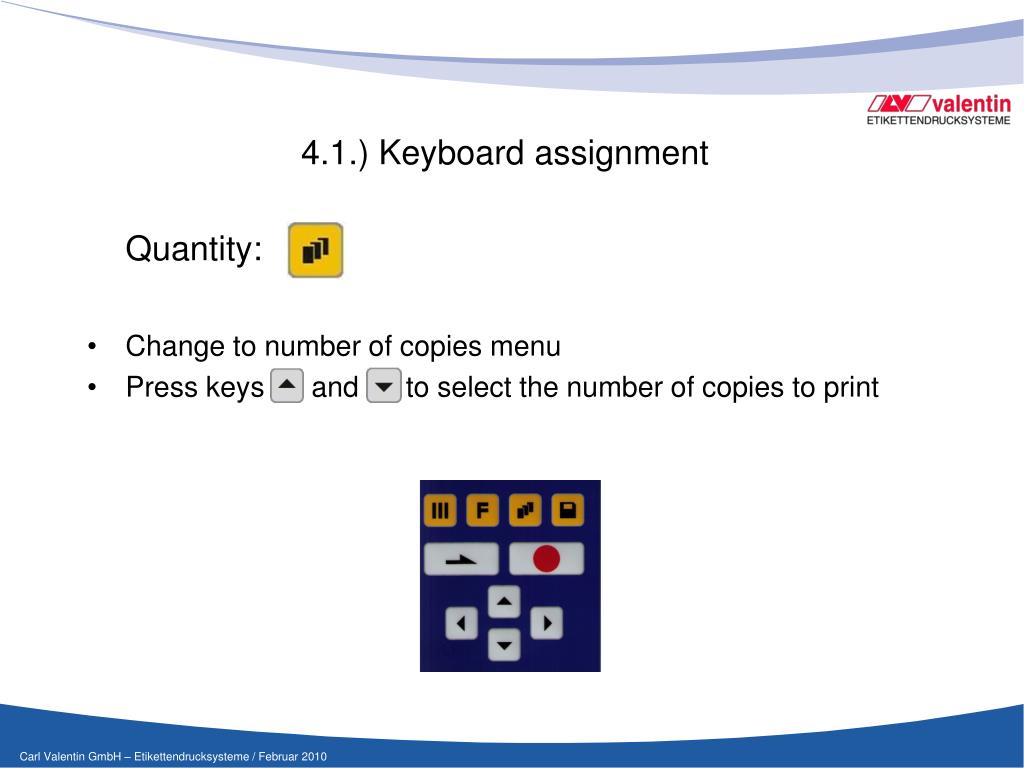

  38. 4.1.) Keyboard assignment • Quantity: • Change to number of copies menu • Press keys and to select the number of copies to print

  39. 4.1.) Keyboard assignment • Forwards: • Change to the next entry field if two parameter modifications are possible in one window • Press keys and to change values

  40. 4.1.) Keyboard assignment • Backwards: • Change to the next entry field if two parameter modifications are possible in one window • Press keys and to change values

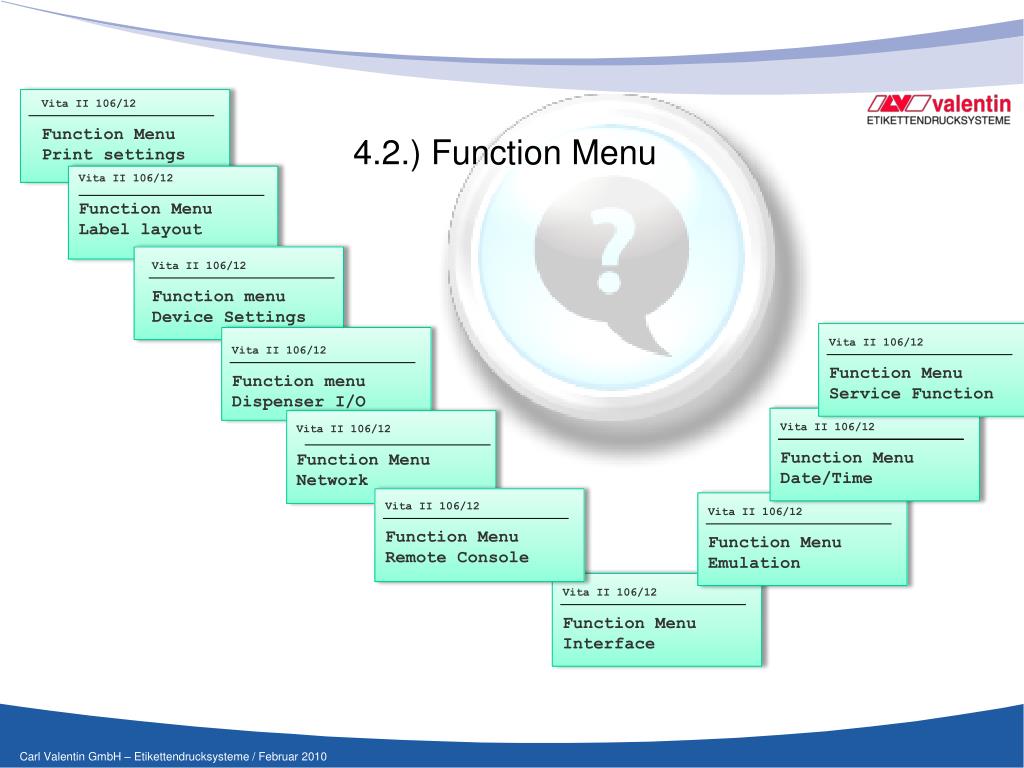

  41. Vita II 106/12 Function Menu Print settings • 4.2.) Function Menu Vita II 106/12 Function Menu Label layout Vita II 106/12 Functionmenu Device Settings Vita II 106/12 Function Menu Service Function Vita II 106/12 Functionmenu Dispenser I/O Vita II 106/12 Function Menu Date/Time Vita II 106/12 Function Menu Network Vita II 106/12 Function Menu Remote Console Vita II 106/12 Function Menu Emulation Vita II 106/12 Function Menu Interface

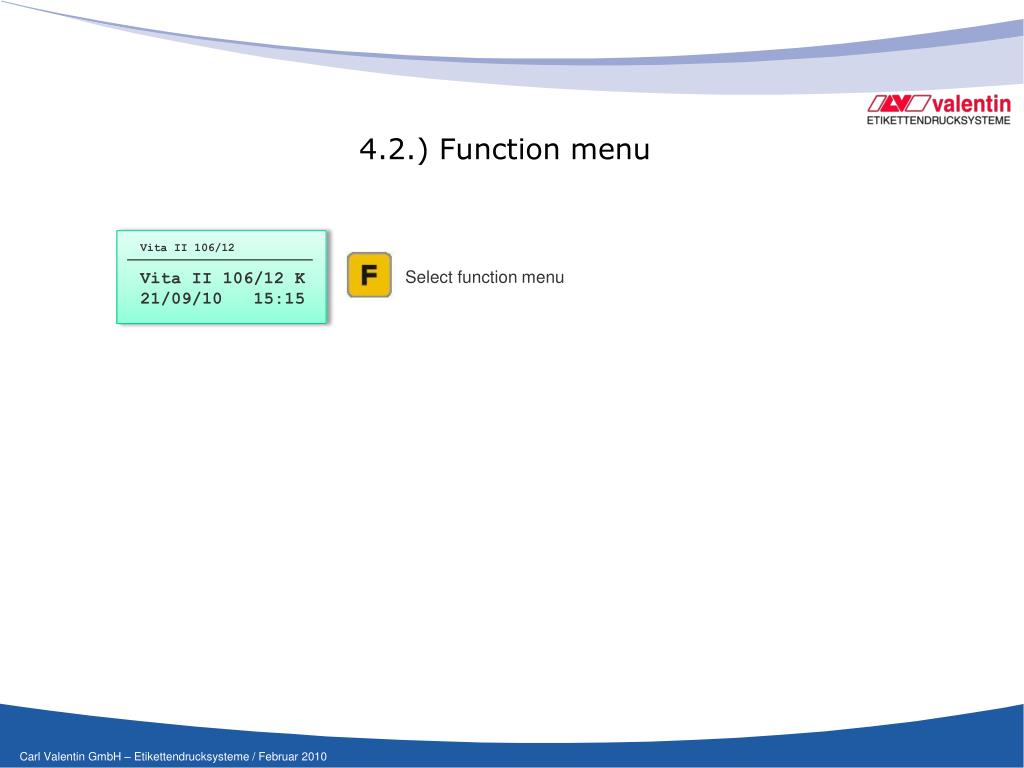

  42. 4.2.) Functionmenu Vita II 106/12 Vita II 106/12 K 21/09/10 15:15 Select functionmenu

  43. 4.2.1) Print settings Vita II 106/12 Function Menu Print settings Enter functionmenu Vita II 106/12 Speed 100 Contrast 100 Max/min speed:50-200 Max/min contr.:10-200 Select nextmenu item Vita II 106/12 RibbonControl ON weak sens. OFF, ON weaksensity ON, strong sensity Select nextmenu item Vita II 106/12 Y Displacement Offs (mm) 0mm Max. + 90mm / -30mm Page 76 Select nextmenu item

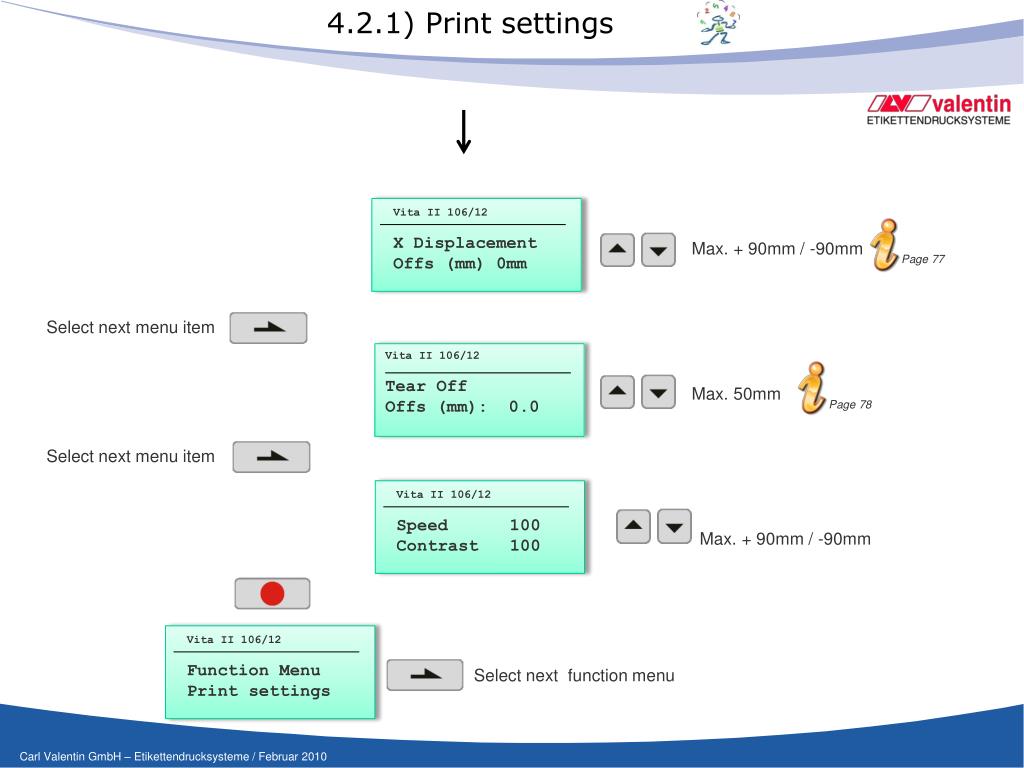

  44. 4.2.1) Print settings Vita II 106/12 X Displacement Offs (mm) 0mm Max. + 90mm / -90mm Page 77 Select nextmenu item Vita II 106/12 Tear Off Offs (mm): 0.0 Max. 50mm Page 78 Select nextmenu item Vita II 106/12 Speed 100 Contrast 100 Max. + 90mm / -90mm Vita II 106/12 Function Menu Print settings Select nextfunctionmenu

  45. 4.2.1) Label layout Vita II 106/12 Function Menu Label layout Enter functionmenu Vita II 106/12 Label: 25.0 Gap: 2.0 Max.: mm Select nextmenu item Vita II 106/12 Lay. Width:104.0 Columns: 1 Max columns: 9 Page 79 Select nextmenu item Vita II 106/12 Measure Label Start measure Vita II 106/12 Label: 45.0 Gap: 3.0 Select nextmenu item

  46. 4.2.1) Label layout Vita II 106/12 Label Type Adhesivelabels Adhesive/ Continiouslabel Select nextmenu item Vita II 106/12 Material Type 1 Select nextmenu item Transmission normal Reflection normal Transmission invers Reflection invers Vita II 106/12 Photocell SP Trans. Normal 10 Page 80 Select nextmenu item Vita II 106/12 ErrorlengthSync mm: 150 ON

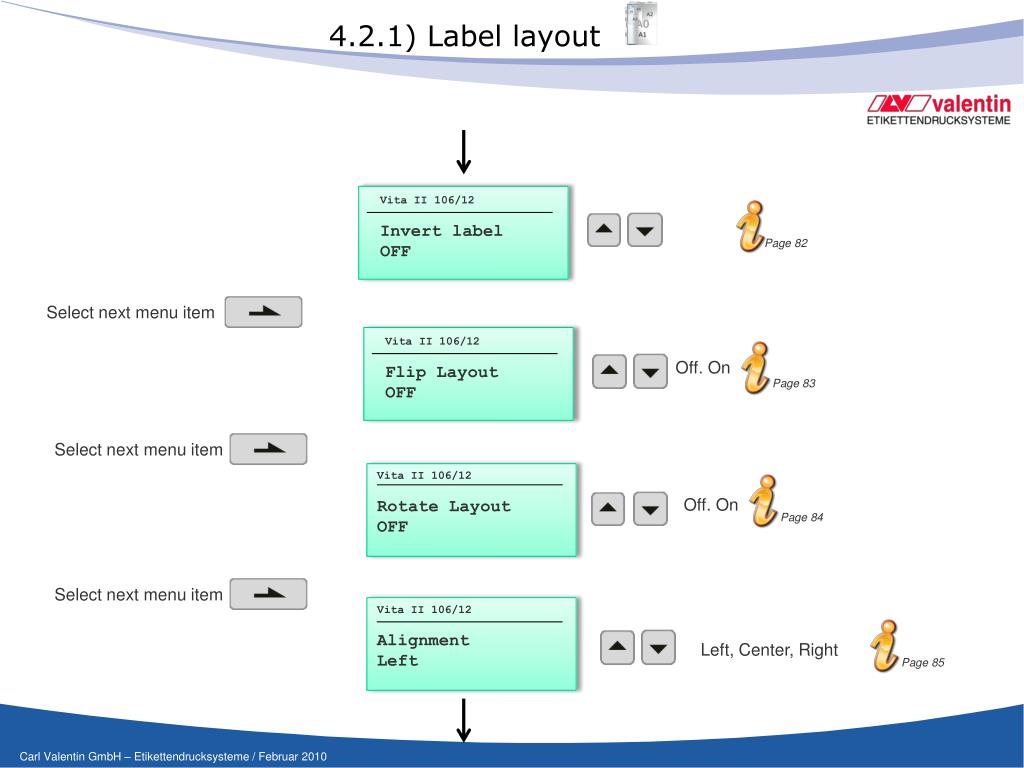

  47. 4.2.1) Label layout Vita II 106/12 Invertlabel OFF Page 82 Select nextmenu item Vita II 106/12 Flip Layout OFF Off. On Page 83 Select nextmenu item Vita II 106/12 Rotate Layout OFF Off. On Page 84 Select nextmenu item Vita II 106/12 Alignment Left Left, Center, Right Page 85

  48. 4.2.1) Label layout Vita II 106/12 Auto measure OFF Off. On Back tofirstmenu item Vita II 106/12 Label: 25.0 Gap: 2.0 Save settings Vita II 106/12 Function Menu Label layout Select nextfunctionmenu

  49. 4.2.3) Device settings Vita II 106/12 Functionmenu Device Settings Enter functionmenu Vita II 106/12 Field Handling Off Off, Keep graphic, Delete graphic Page 86 Select nextmenu item Vita II 106/12 Codepage ANSI charset ANSI, CP437, CP850, GEM German, GEM English, GEM French…. Select nextmenu item Vita II 106/12 Ext. Parameters ON Off. On Page 87
