Transforming the Student Administration RDS into a Historical Data Archive

1. Transforming the Student Administration RDS into a Historical Data Archive Session #10591 March 9, 2004 11:50-12:50 HEUG 2004 Conference - Atlanta

2. Ray Helm Research Analyst, Office of Institutional Research and Planning University of Kansas - Lawrence Ryan Cherland Director, University Management Information, Associate Director, Office of Institutional Research and Planning University of Kansas - Lawrence Session #10591-Ray Helm

3. Ray Helm is a Research Analyst with the Office of Institutional Research and Planning. He joined the University of Kansas as a Programmer Analyst with Decision Support Services in 2000. He has been involved in reporting from PeopleSoft systems for over 3 years and was the original RDS Administrator at KU. Ryan Cherlandis Director of University Management Information and Associate Director of the Office of Institutional Research and Planning. He has over 18 years of experience in institutional research, with the last 11 years at the University of Kansas-Lawrence. Ryan created DEMIS and has been involved with extracting and reporting on data from PeopleSoft systems since 1996. Ryan has a Ph.D. in Higher Education Administration with a minor emphasis in Educational Psychology and Research. Session #10591-Ray Helm

4. SynopsisThis presentation reviews the methodology used to create a historical archive of student administration data by customizing PeopleSoft’s RDS service. • Review Database needs • Setting Census Parameters • Modifying Decision Stream Fact Builds • Modifying Decision Stream Dimension • Special Jobstreams • Reporting Examples Session #10591-Ray Helm

5. About the University of Kansas • History- The University of Kansas opened its doors in 1866. • Academics- The university offers more than 100 undergraduate and graduate majors and programs including allied health, architecture, business, education, engineering, fine arts, journalism, law, liberal arts and sciences, nursing, pharmacy, and social welfare. • Lawrence Campus Enrollment– 20,692 undergraduates and 6,122 graduate students from every state in the nation and more than 100 countries around the world. • FTE students per FTE faculty ratio: 14.7 Session #10591-Ray Helm

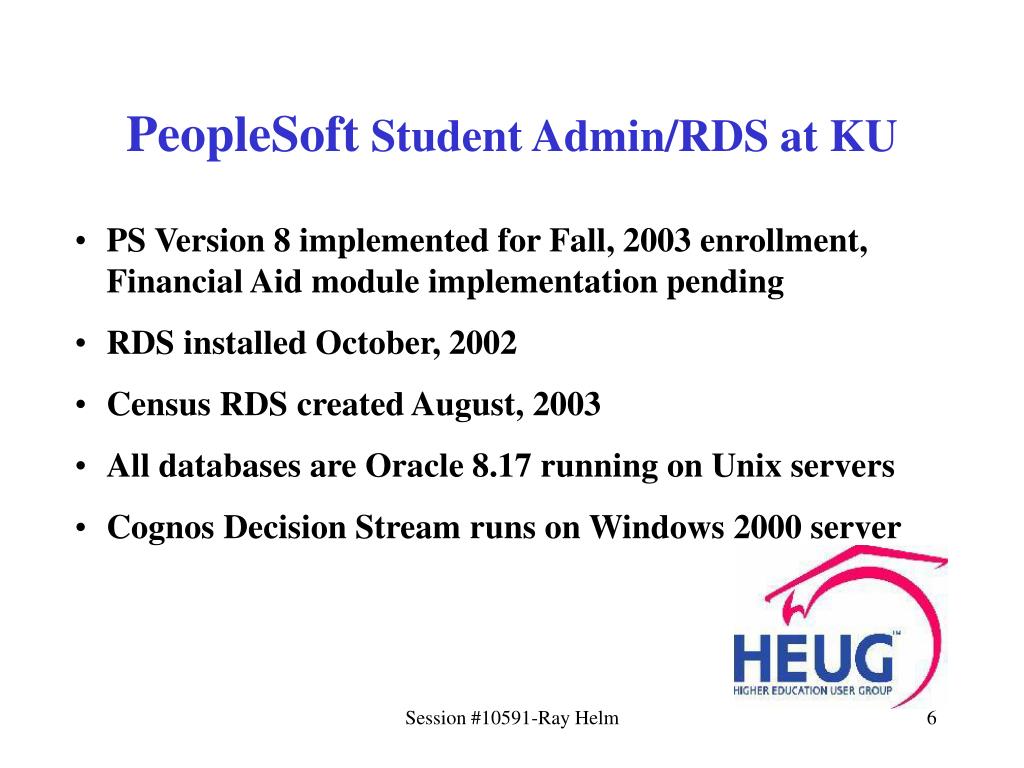

6. PeopleSoft Student Admin/RDS at KU • PS Version 8 implemented for Fall, 2003 enrollment, Financial Aid module implementation pending • RDS installed October, 2002 • Census RDS created August, 2003 • All databases are Oracle 8.17 running on Unix servers • Cognos Decision Stream runs on Windows 2000 server Session #10591-Ray Helm

7. Why Build a Census RDS? • Daily RDS provides current snapshot, not designed for historical reporting • Needed capacity to report across semesters to track historical trends and fulfill institutional research needs. • Running queries against transactional “live” data was not desired. • Census extract begun under legacy student records system needed to be continued Session #10591-Ray Helm

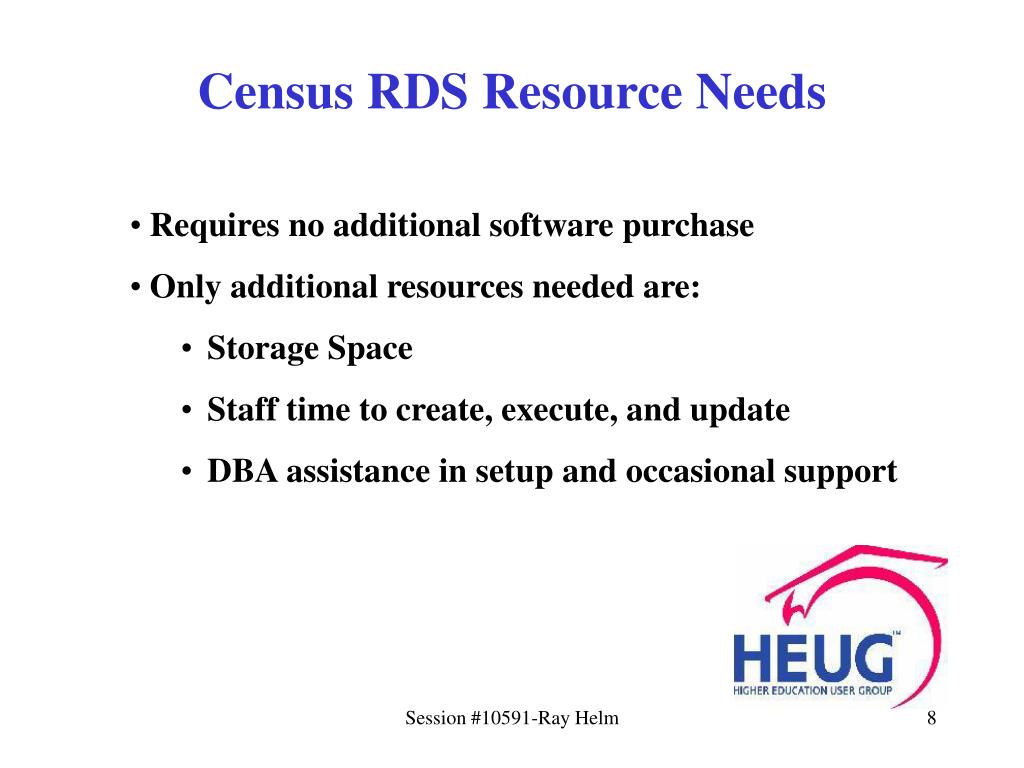

8. Census RDS Resource Needs • Requires no additional software purchase • Only additional resources needed are: • Storage Space • Staff time to create, execute, and update • DBA assistance in setup and occasional support Session #10591-Ray Helm

9. KU’s RDS Catalogs and Databases • Decision Stream Catalog Databases • Production Catalog for Daily RDS • Development Catalog for RDS Admins • Census Catalog • PS Delivered Catalog (Static) • RDS Databases • Daily Production data • Development Test data • Production Census data Session #10591-Ray Helm

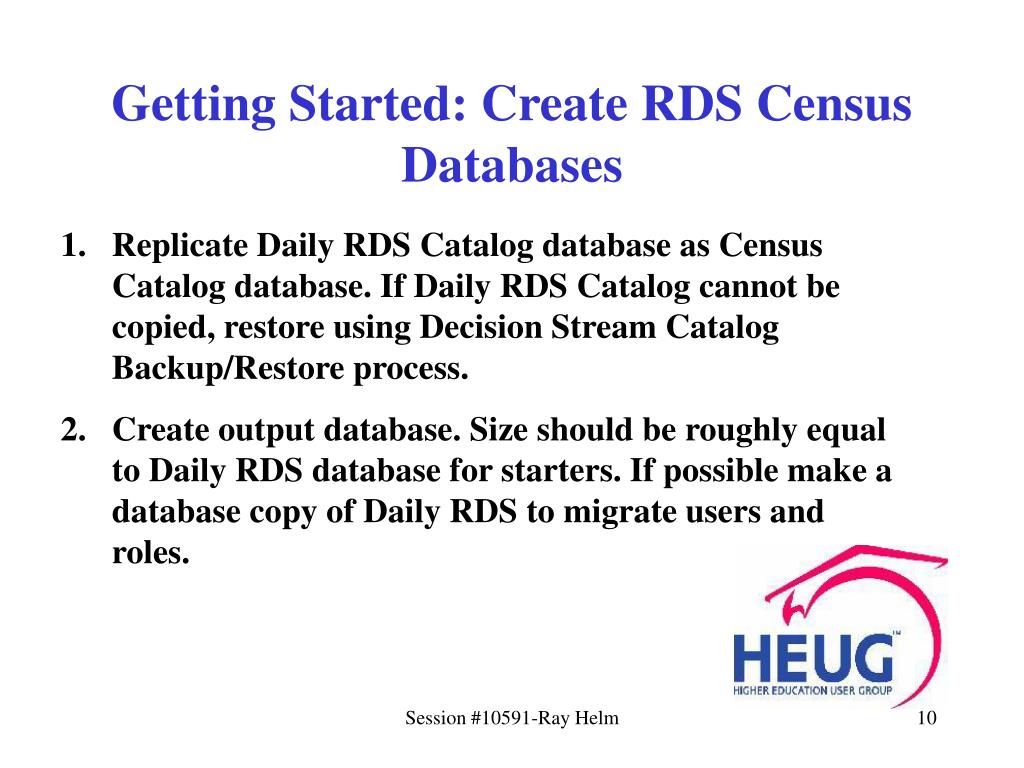

10. Getting Started: Create RDS Census Databases • Replicate Daily RDS Catalog database as Census Catalog database. If Daily RDS Catalog cannot be copied, restore using Decision Stream Catalog Backup/Restore process. • Create output database. Size should be roughly equal to Daily RDS database for starters. If possible make a database copy of Daily RDS to migrate users and roles. Session #10591-Ray Helm

11. Create CEN_PARAMS Table • Same structure as ODS_PARAMS: • VARIABLE_NAME • RESULT • Supplements ODS_PARAMS as source of • Decision Stream variable values • Stores variables specific to census process Session #10591-Ray Helm

12. Census Variables • CENSUS_TERM Term code as it is referenced in PS source data. • CENSUS Unique identifier that will distinguish census point records within the Census RDS • DATE_CUTOFF Official date and time when the census data was collected Session #10591-Ray Helm

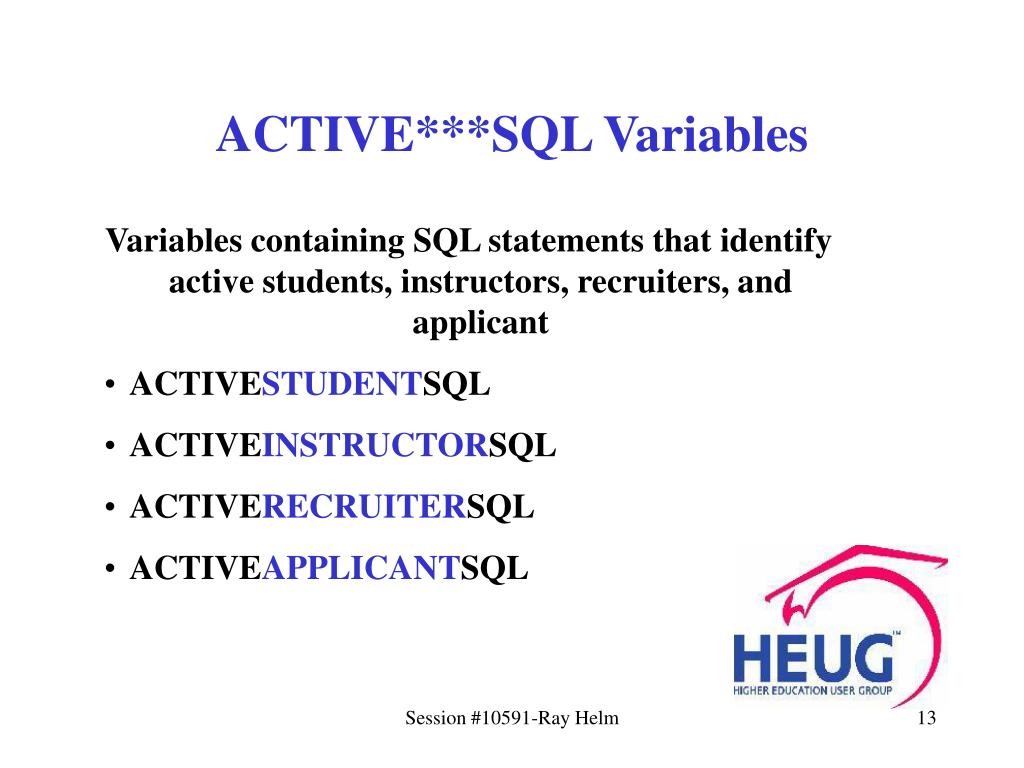

13. ACTIVE***SQL Variables • Variables containing SQL statements that identify active students, instructors, recruiters, and applicant • ACTIVESTUDENTSQL • ACTIVEINSTRUCTORSQL • ACTIVERECRUITERSQL • ACTIVEAPPLICANTSQL Session #10591-Ray Helm

14. CENS_PARAMS Examples Session #10591-Ray Helm

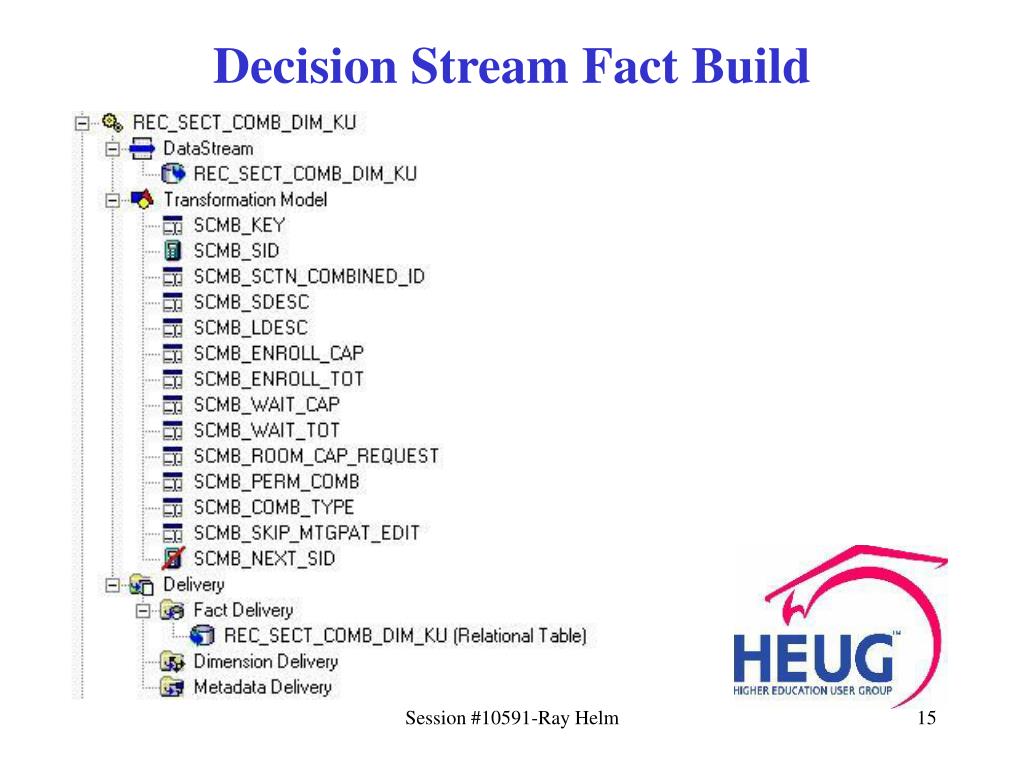

15. Decision Stream Fact Build Session #10591-Ray Helm

16. RDS Fact Build Modification • Add Census variables to Fact Build Properties and modify existing CURDATE_SOURCE • Modify DataStream SQL against source tables • Add CENSUS variable to Transformation • Add CENSUS variable to Fact Delivery, with index • Change Delivery Method from Truncate to Append Session #10591-Ray Helm

17. Adding Variables to Fact Build Properties Session #10591-Ray Helm

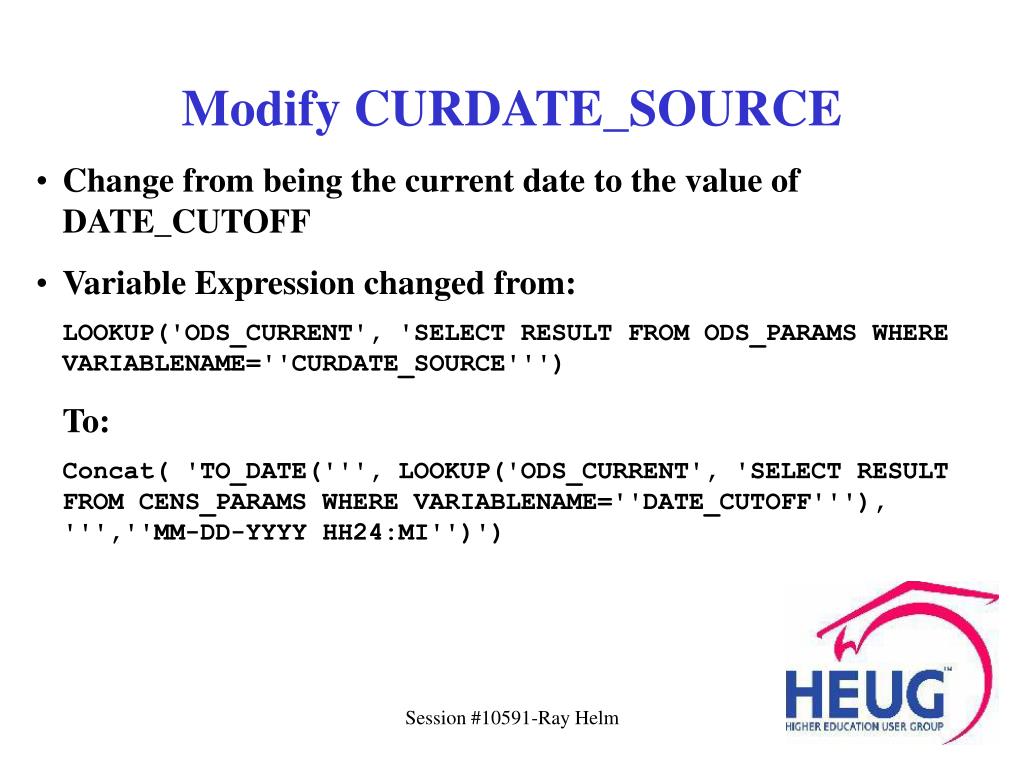

18. Modify CURDATE_SOURCE • Change from being the current date to the value of DATE_CUTOFF • Variable Expression changed from: • LOOKUP('ODS_CURRENT', 'SELECT RESULT FROM ODS_PARAMS WHERE VARIABLENAME=''CURDATE_SOURCE''') • To: • Concat( 'TO_DATE(''', LOOKUP('ODS_CURRENT', 'SELECT RESULT FROM CENS_PARAMS WHERE VARIABLENAME=''DATE_CUTOFF'''), ''',''MM-DD-YYYY HH24:MI'')') Session #10591-Ray Helm

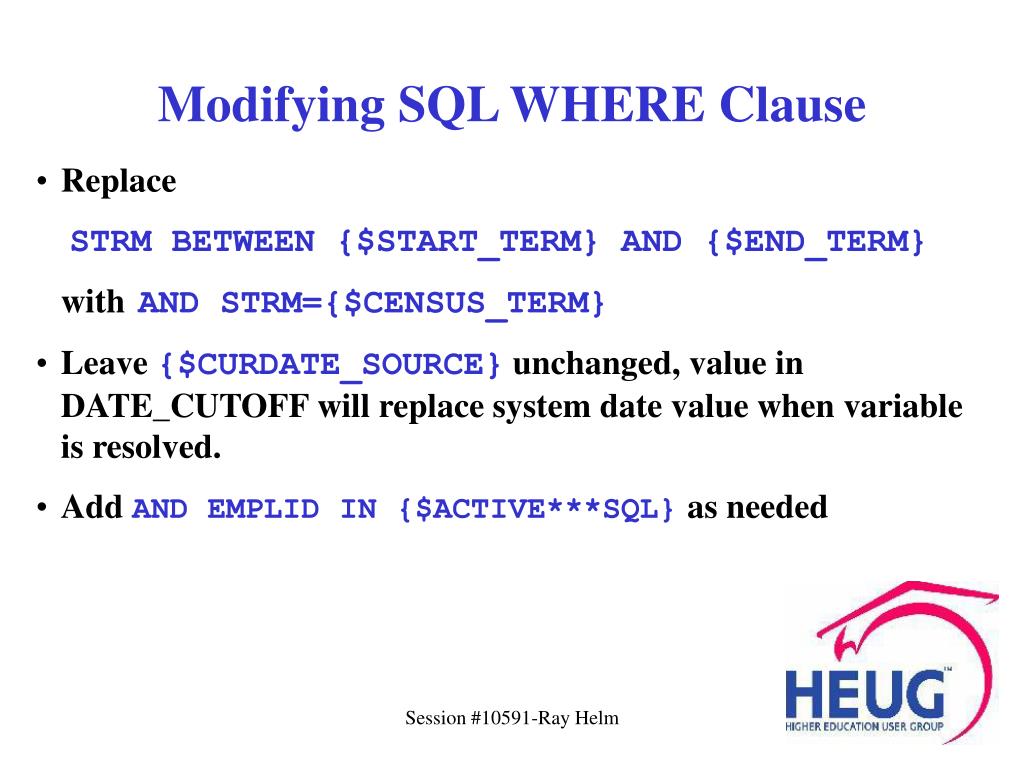

19. Modifying SQL WHERE Clause • Replace • STRM BETWEEN {$START_TERM} AND {$END_TERM} • with AND STRM={$CENSUS_TERM} • Leave {$CURDATE_SOURCE} unchanged, value in DATE_CUTOFF will replace system date value when variable is resolved. • Add AND EMPLID IN {$ACTIVE***SQL} as needed Session #10591-Ray Helm

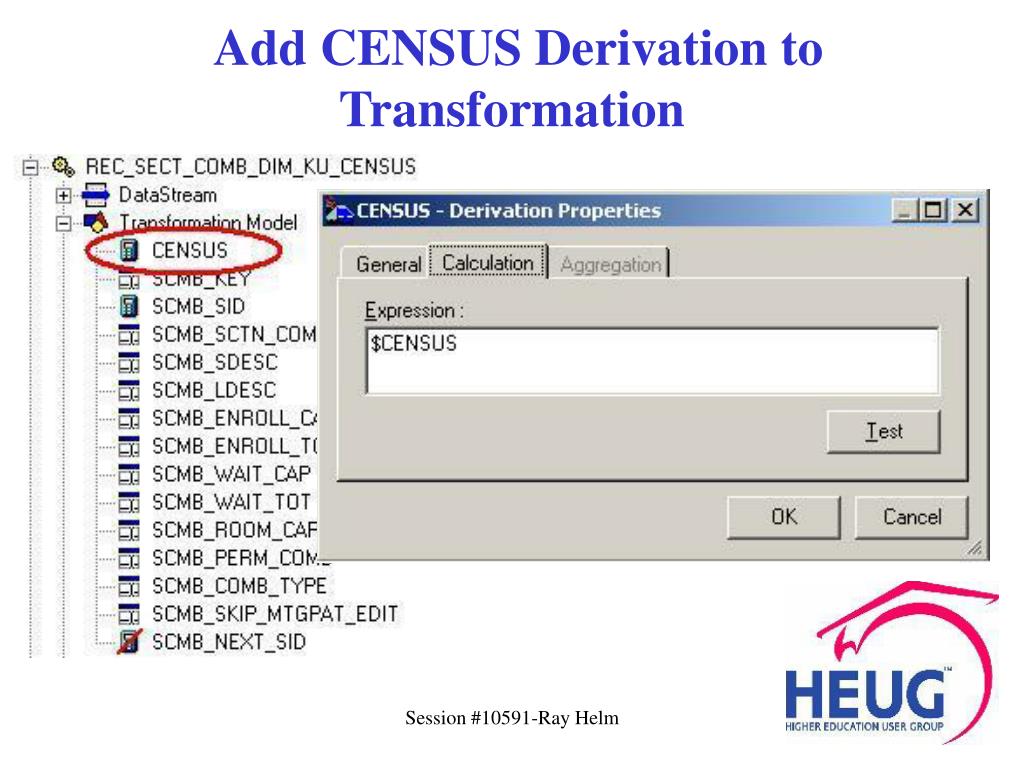

20. Add CENSUS Derivation to Transformation Session #10591-Ray Helm

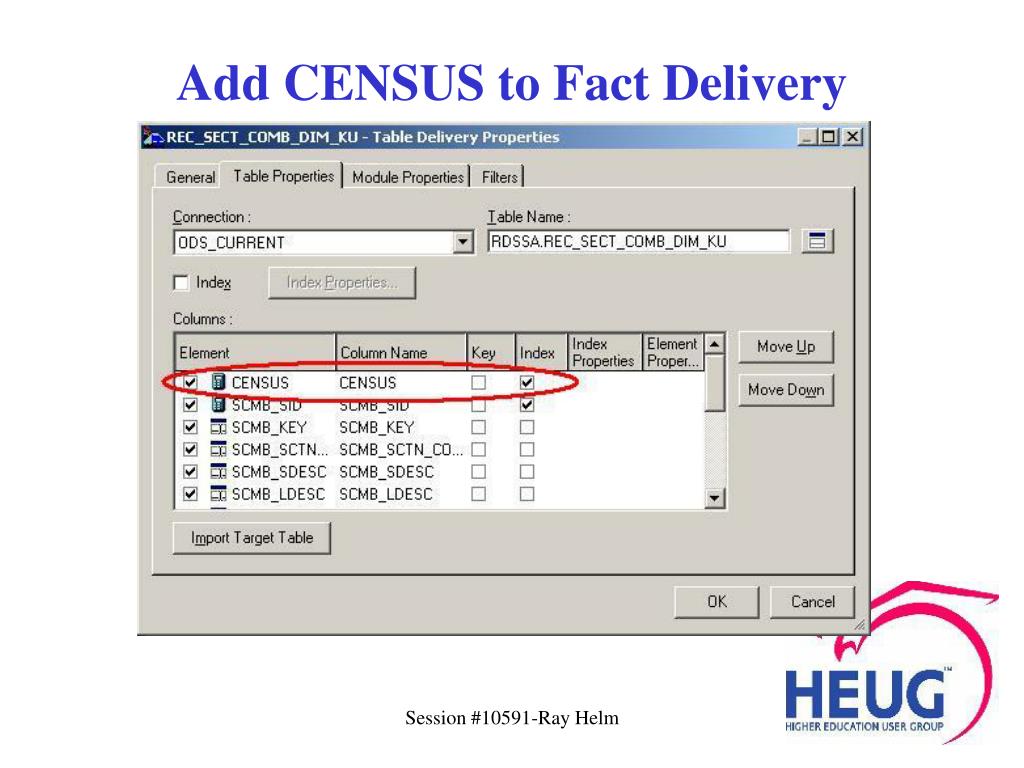

21. Add CENSUS to Fact Delivery Session #10591-Ray Helm

22. Change Delivery Method to Append Session #10591-Ray Helm

23. Result of Fact Build Modifications • Extract against source data selects only records pertaining to current term with effective dates before specified cutoff date • CENSUS column added to output table to identify census point for each record • New census data appended to existing data to create historical record Session #10591-Ray Helm

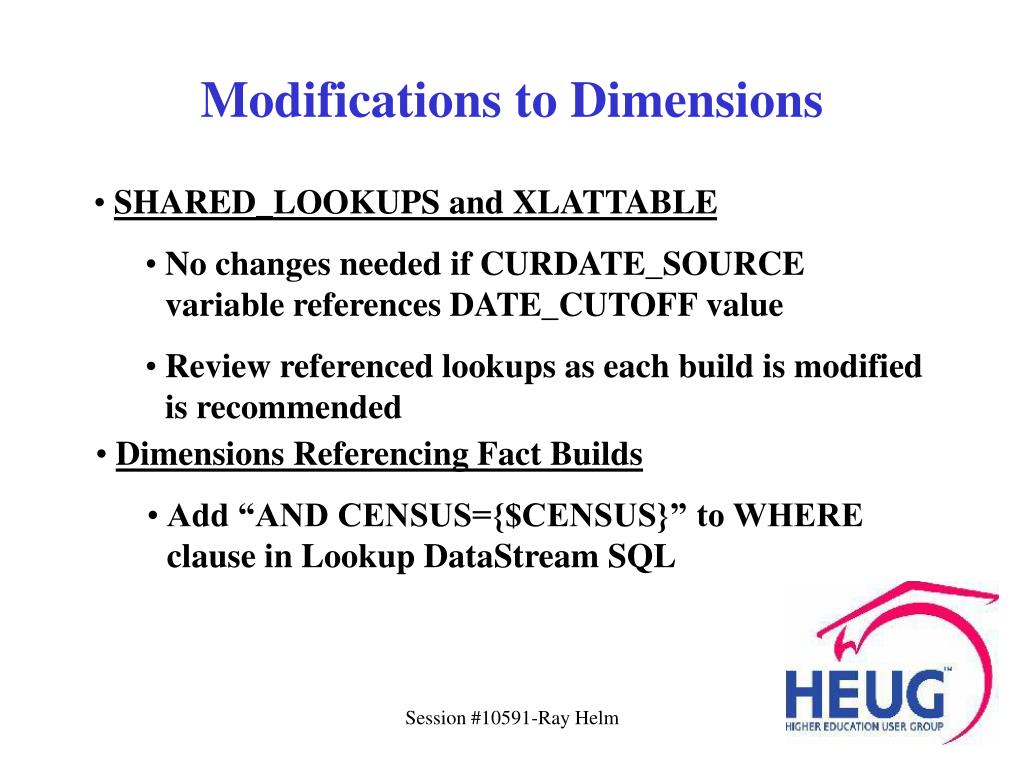

24. Modifications to Dimensions • SHARED_LOOKUPS and XLATTABLE • No changes needed if CURDATE_SOURCE variable references DATE_CUTOFF value • Review referenced lookups as each build is modified is recommended • Dimensions Referencing Fact Builds • Add “AND CENSUS={$CENSUS}” to WHERE clause in Lookup DataStream SQL Session #10591-Ray Helm

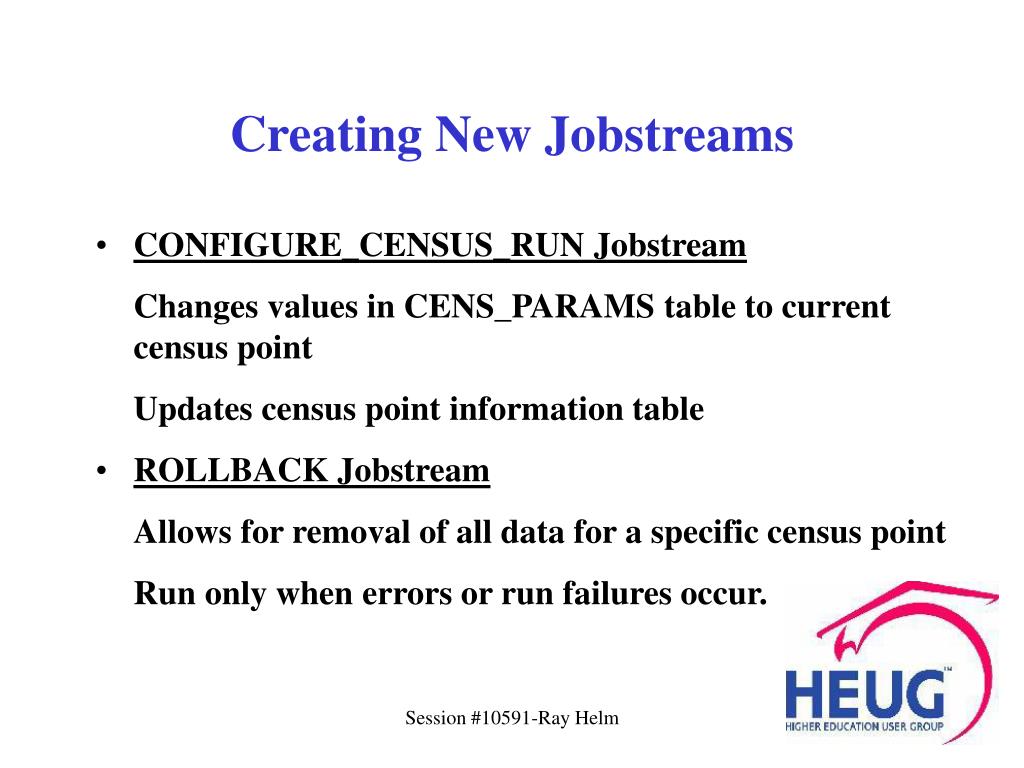

25. Creating New Jobstreams • CONFIGURE_CENSUS_RUN Jobstream • Changes values in CENS_PARAMS table to current census point • Updates census point information table • ROLLBACK Jobstream • Allows for removal of all data for a specific census point • Run only when errors or run failures occur. Session #10591-Ray Helm

26. CONFIGURE_CENSUS_RUN Jobstream Session #10591-Ray Helm

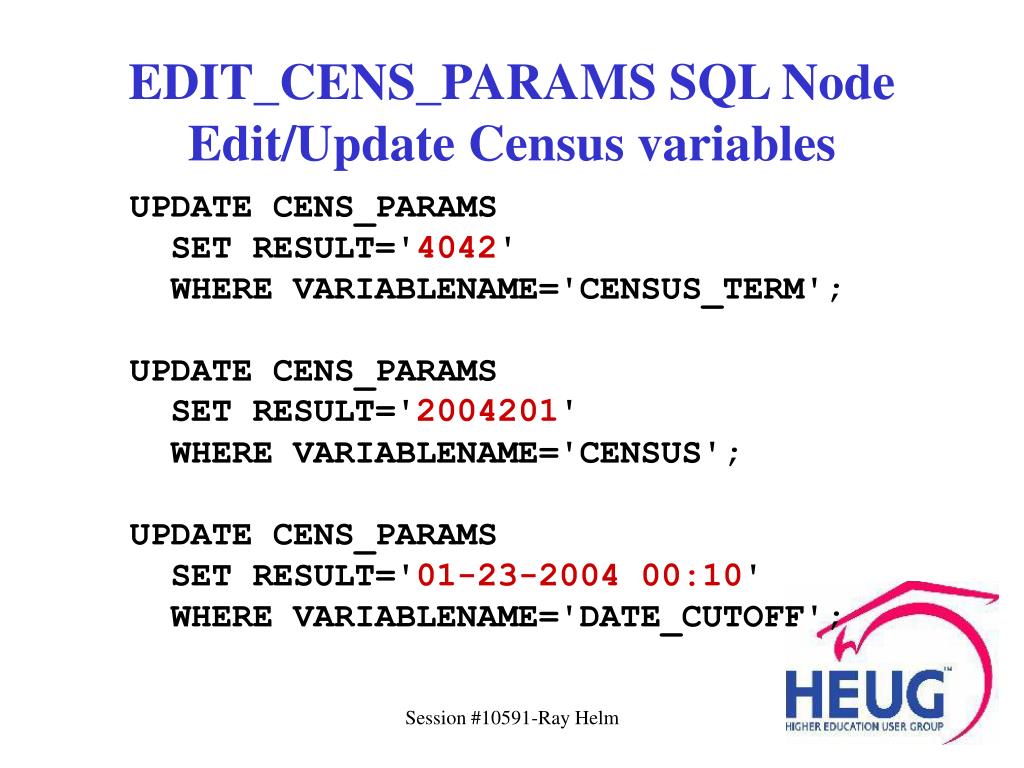

27. EDIT_CENS_PARAMS SQL NodeEdit/Update Census variables UPDATE CENS_PARAMS SET RESULT='4042' WHERE VARIABLENAME='CENSUS_TERM'; UPDATE CENS_PARAMS SET RESULT='2004201' WHERE VARIABLENAME='CENSUS'; UPDATE CENS_PARAMS SET RESULT='01-23-2004 00:10' WHERE VARIABLENAME='DATE_CUTOFF'; Session #10591-Ray Helm

28. EDIT_CENS_PARAMS SQL NodeTEMP_PARAMS table CREATE GLOBAL TEMPORARY TABLE TEMP_PARAMS (CTERM CHAR(4), STR1 CHAR(255), STR2 CHAR(20) ); INSERT INTO TEMP_PARAMS SELECT TRIM(TRAILING FROM RESULT),'', '‘ FROM CENS_PARAMS WHERE VARIABLENAME='CENSUS_TERM'; Session #10591-Ray Helm

29. EDIT_CENS_PARAMS SQL Node UPDATE TEMP_PARAMS SET STR1='(SELECT EMPLID FROM PS_CLASS_INSTR WHERE STRM=''' WHERE CTERM IS NOT NULL; UPDATE TEMP_PARAMS SET STR1=TRIM(TRAILING FROM STR1)||CTERM||TRIM(TRAILING FROM STR2) WHERE CTERM IS NOT NULL; UPDATE CENS_PARAMS SET RESULT=(SELECT STR1 FROM TEMP_PARAMS WHERE CTERM IS NOT NULL) WHERE VARIABLENAME='ACTIVEINSTRUCTORSQL'; Session #10591-Ray Helm

30. ROLLBACK_CENSUS_POINT Jobstream Session #10591-Ray Helm

31. Rollback Procedure Variables Session #10591-Ray Helm

32. SQL1: BUILD ROLLBACK TABLE CREATE TABLE ROLLBACK1 (ROWNUMB NUMBER(8), TABLE_NAME CHAR(255)); INSERT INTO ROLLBACK1 SELECT ROW_NUMBER() OVER (ORDER BY TABLE_NAME) , TABLE_NAME FROM ALL_TABLES WHERE OWNER='RDSSA' AND (SUBSTR(TABLE_NAME,1,3) IN ('ADM','CC_','FA_','REC','SF_','IR_','XSY') OR TABLE_NAME='CENSUS_POINT_INFO_TBL'); Session #10591-Ray Helm

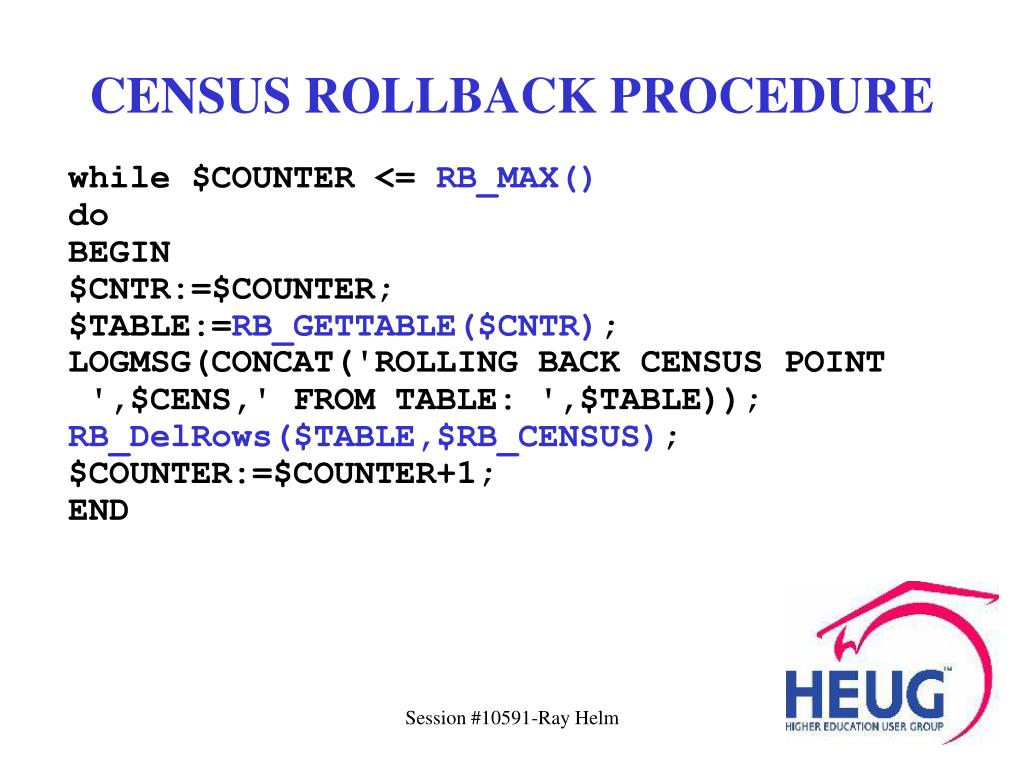

33. CENSUS ROLLBACK PROCEDURE while $COUNTER <= RB_MAX() do BEGIN $CNTR:=$COUNTER; $TABLE:=RB_GETTABLE($CNTR); LOGMSG(CONCAT('ROLLING BACK CENSUS POINT ',$CENS,' FROM TABLE: ',$TABLE)); RB_DelRows($TABLE,$RB_CENSUS); $COUNTER:=$COUNTER+1; END Session #10591-Ray Helm

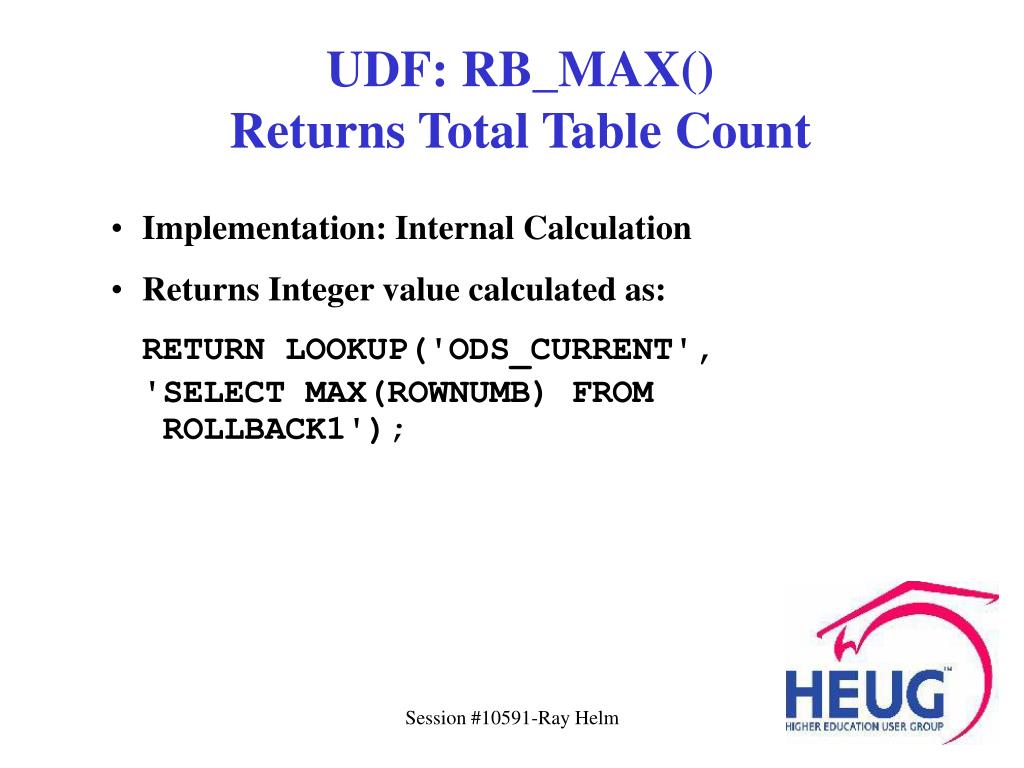

34. UDF: RB_MAX()Returns Total Table Count • Implementation: Internal Calculation • Returns Integer value calculated as: • RETURN LOOKUP('ODS_CURRENT', • 'SELECT MAX(ROWNUMB) FROM • ROLLBACK1'); Session #10591-Ray Helm

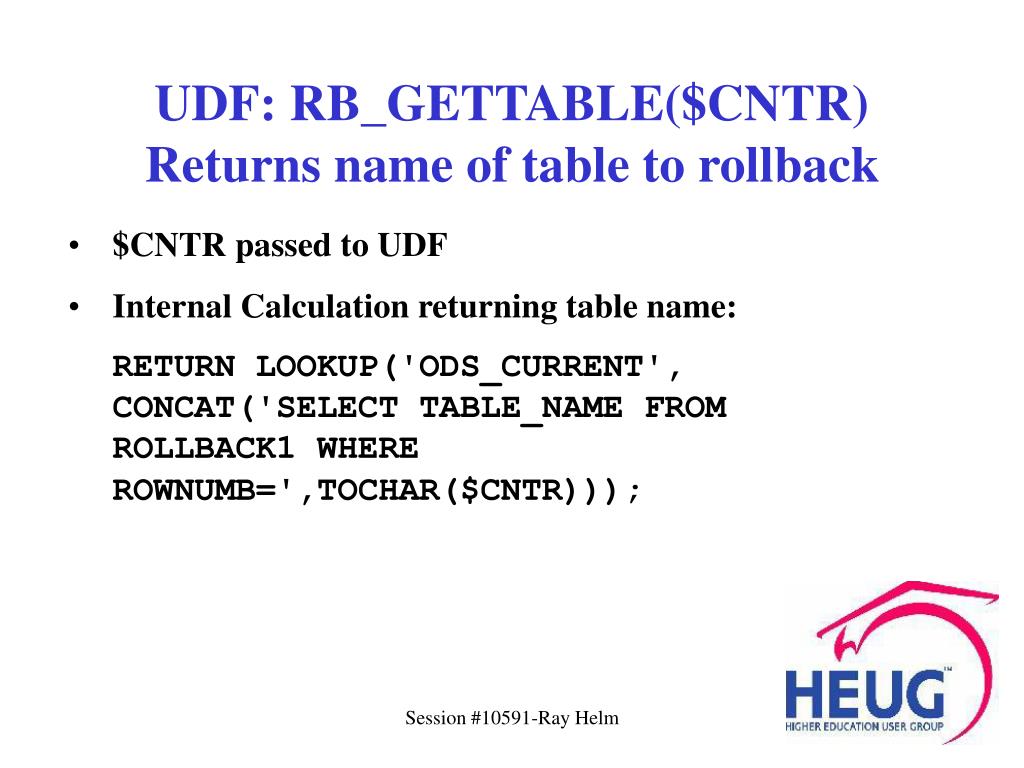

35. UDF: RB_GETTABLE($CNTR)Returns name of table to rollback • $CNTR passed to UDF • Internal Calculation returning table name: • RETURN LOOKUP('ODS_CURRENT', CONCAT('SELECT TABLE_NAME FROM ROLLBACK1 WHERE ROWNUMB=',TOCHAR($CNTR))); Session #10591-Ray Helm

36. RB_DelRows($TABLE,$RB_CENSUS)Deletes rows from table • $TABLE (table name) and $RB_CENSUS (Census value) are passed to UDF • Internal Implementation executes: • SQL('ODS_CURRENT',CONCAT('DELETE FROM ', $TABLE, ' WHERE CENSUS=''', $CENS,'''')); • Example: • RB_DELROWS(‘MYTABLE’,’2004201’) executes: • DELETE FROM MYTABLE WHERE CENSUS=‘2004201’ Session #10591-Ray Helm

37. CENSUS ROLLBACK PROCEDURE while $COUNTER <= RB_MAX() do BEGIN $CNTR:=$COUNTER; $TABLE:=RB_GETTABLE($CNTR); LOGMSG(CONCAT('ROLLING BACK CENSUS POINT ',$CENS,' FROM TABLE: ',$TABLE)); RB_DelRows($TABLE,$RB_CENSUS); $COUNTER:=$COUNTER+1; END Session #10591-Ray Helm

38. Migrating changes in Daily RDS to Census RDS • New data needs are being identified as analysts from across the University begin using the Daily RDS, and as development of the transactional system continues. • Changes to Daily RDS are relatively simple, since tables are truncated daily. • Changing Census RDS tables is more difficult: • Need to add new columns without losing existing data • How do you get data for added columns (or new tables) for past census points? Session #10591-Ray Helm

39. Adding a New Table to Census RDS • Adding new fact build is relatively simple: • Export Daily RDS fact build and related dimensions • using Decision Stream CATEXP • Import into Census RDS using DS CATIMP • Modify fact build using methods described previously • Decide how to populate past census points: • Restore census point backups one at a time and • execute build? • Use current data? Leave empty? Session #10591-Ray Helm

40. Adding a New Column to Existing Fact Build • More complicated than adding a new build • Need to modify existing table, cannot just create new • Potential for losing data exists (so be careful!) • Backing up both Catalog and Output databases before • beginning is highly recommended Session #10591-Ray Helm

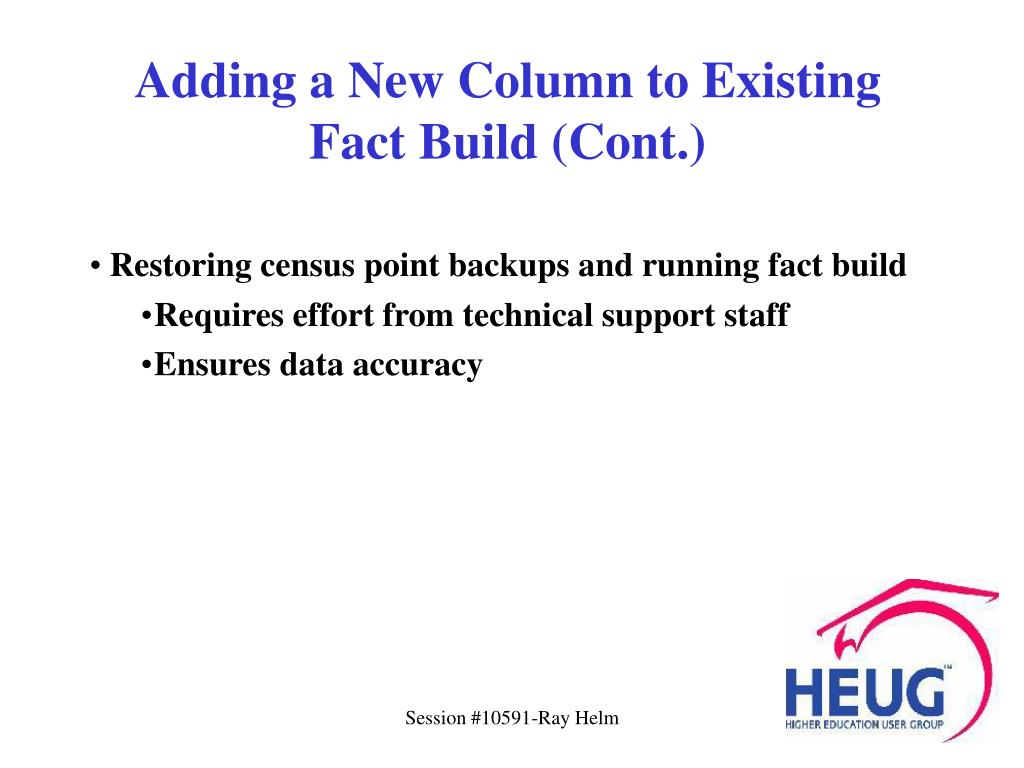

41. Adding a New Column to Existing Fact Build (Cont.) • Restoring census point backups and running fact build • Requires effort from technical support staff • Ensures data accuracy Session #10591-Ray Helm

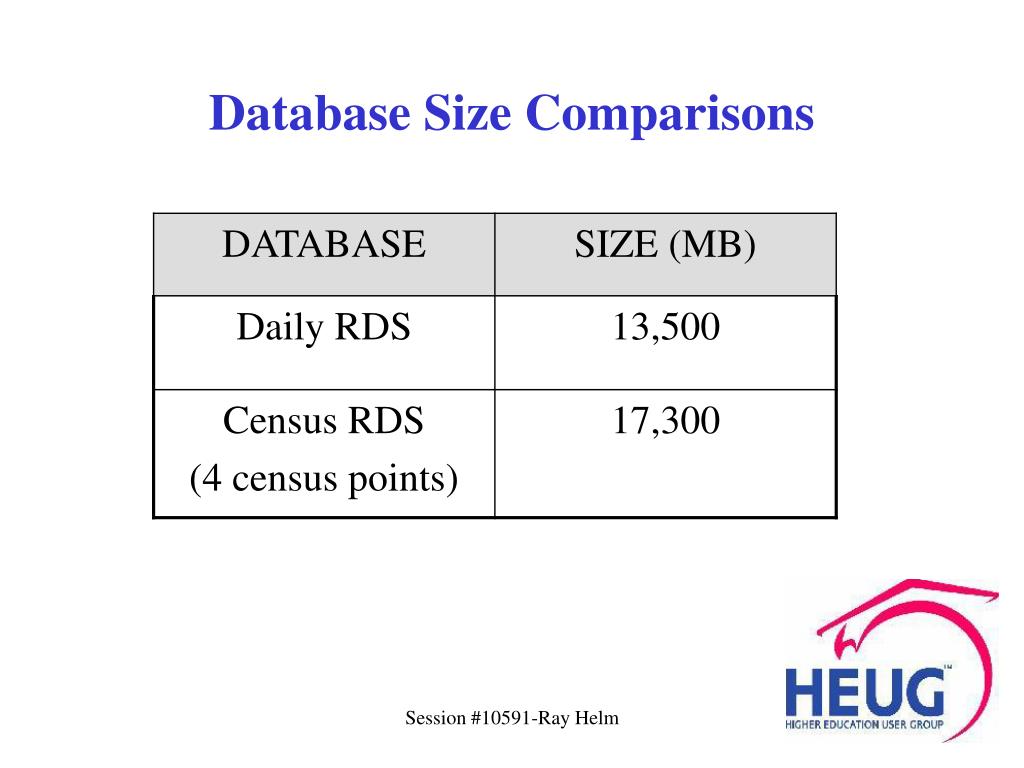

42. Database Size Comparisons Session #10591-Ray Helm

43. Options for Reducing Census RDS Size • Drop tables/fact builds for unused tables • Add SQL procedure steps to drop Staging Tables • Staging tables account for 1,250 MB of storage (7.2%) • Alternative: leave Staging table delivery as Truncate • Remove unused/unnecessary columns from tables • Can you live with just one DESCR? • Drop unneeded indexes Session #10591-Ray Helm

44. Making Use of Census RDS Data Ryan Cherland Session #10591-Ray Helm

45. Examples of how Institutional Research uses the Census RDS • Creation and storage of a Census single record per student Reporting Datamart table • Audit checks • A source for audit checks with production SQRs run against the SASTATIC SA database • Reports • Census Class Roster Session #10591-Ray Helm

46. Single Record Report Table • Contains basic bio-demographic data • Campus location where majority of credit hours are taken (only location for this) • Various credit hour and FTE fields covering campus location, special hours (ROTC, Dissertation/Thesis), overall hours, etc. • “Primary” school, major, and student level selected from all active programs and plans • Test scores (SAT, ACT, GRE) • 104 fields in total Session #10591-Ray Helm

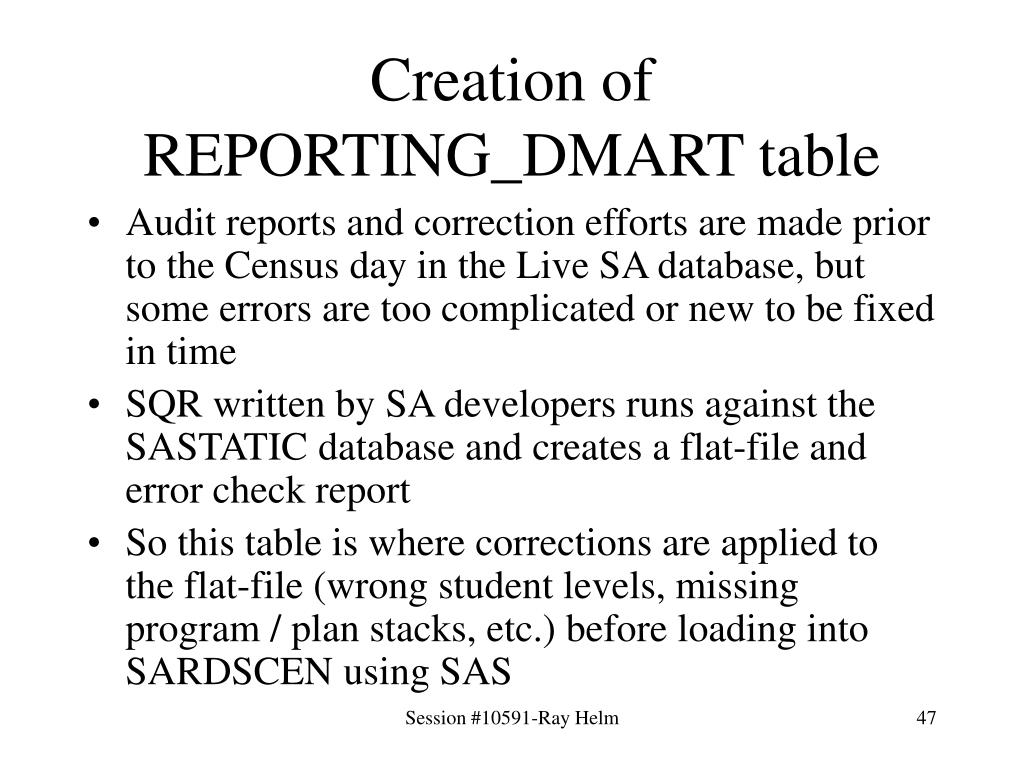

47. Creation of REPORTING_DMART table • Audit reports and correction efforts are made prior to the Census day in the Live SA database, but some errors are too complicated or new to be fixed in time • SQR written by SA developers runs against the SASTATIC database and creates a flat-file and error check report • So this table is where corrections are applied to the flat-file (wrong student levels, missing program / plan stacks, etc.) before loading into SARDSCEN using SAS Session #10591-Ray Helm

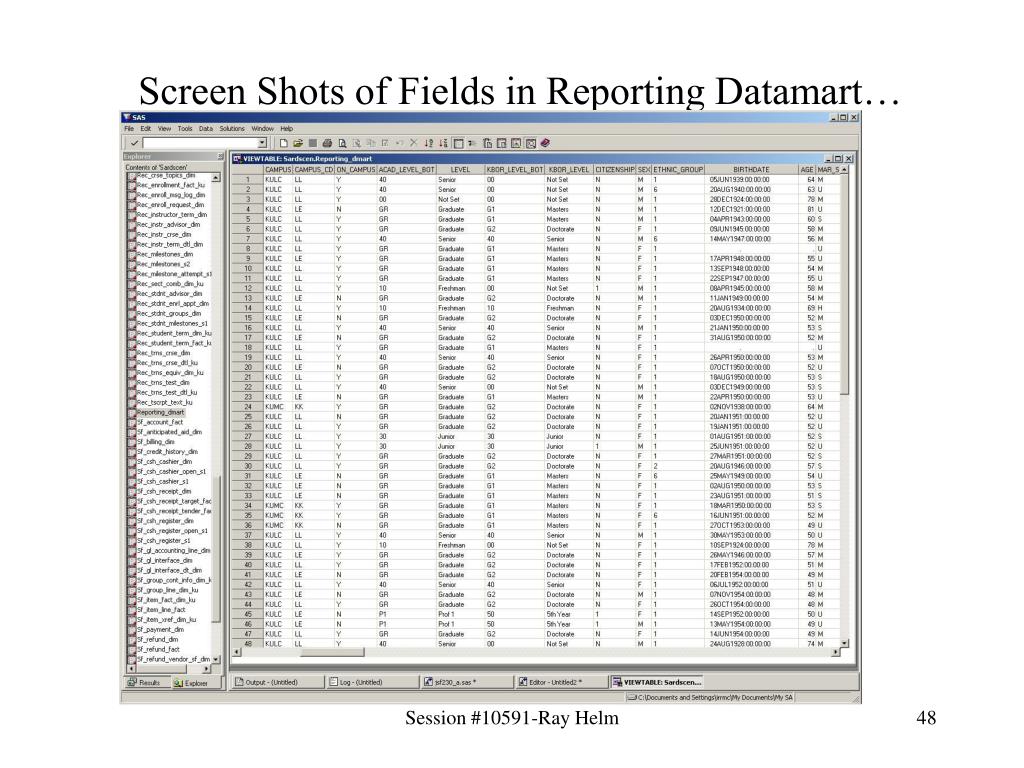

48. Screen Shots of Fields in Reporting Datamart… Session #10591-Ray Helm

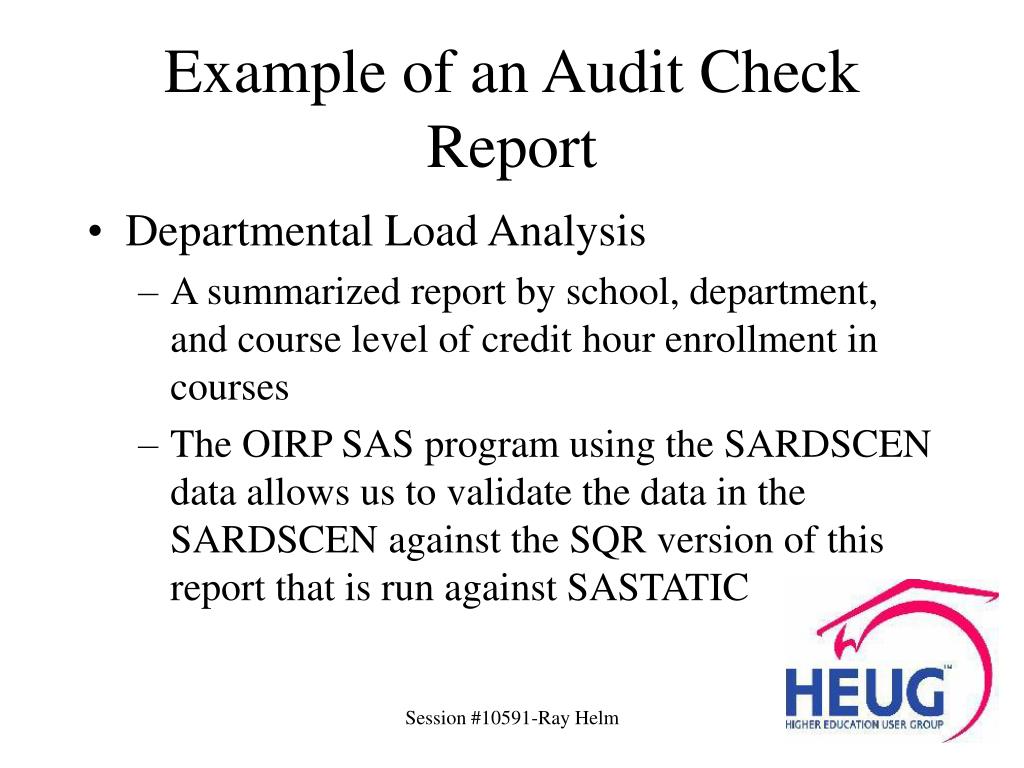

49. Example of an Audit Check Report • Departmental Load Analysis • A summarized report by school, department, and course level of credit hour enrollment in courses • The OIRP SAS program using the SARDSCEN data allows us to validate the data in the SARDSCEN against the SQR version of this report that is run against SASTATIC Session #10591-Ray Helm

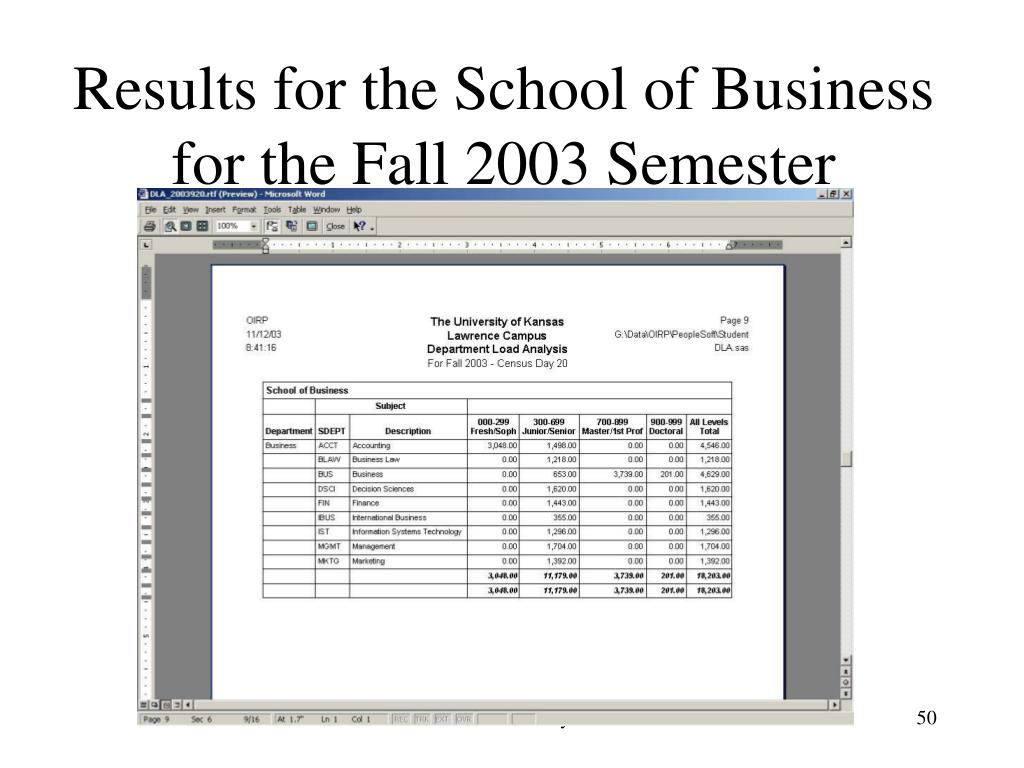

50. Results for the School of Business for the Fall 2003 Semester Session #10591-Ray Helm
